Fridge-Freezer

Chłodziarko-zamrażarka

ERN29550

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety information 2
Operation 4
First use 4
Daily use 4
Helpful hints and tips 5

Safety information

In the interest of your safety and to ensure
the correct use, before installing and first us­ing the appliance, read this user manual
carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents,
it is important to ensure that all people using
the appliance are thoroughly familiar with its
operation and safety features. Save these in­structions and make sure that they remain
with the appliance if it is moved or sold, so
that everyone using it through its life will be
properly informed on appliance use and safe­ty.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for dam­ages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or in­struction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.

• Keep all packaging well away from chil­dren. There is risk of suffocation.

• If you are discarding the appliance pull the
plug out of the socket, cut the connection
cable (as close to the appliance as you
can) and remove the door to prevent play­ing children to suffer electric shock or to
close themselves into it.

• If this appliance featuring magnetic door
seals is to replace an older appliance hav­ing a spring lock (latch) on the door or lid,
be sure to make that spring lock unusable

Care and cleaning 6
What to do if… 8
Technical data 10
Installation 10
Environmental concerns 14

Subject to change without notice

before you discard the old appliance. This
will prevent it from becoming a death trap
for a child.

General safety

Caution! Keep ventilation openings

clear of obstruction.

• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.

• Do not use a mechanical device or any ar­tificial means to speed up the thawing
process.

• Do not use other electrical appliances
(such as ice cream makers) inside of re­frigerating appliances, unless they are ap­proved for this purpose by the manufac­turer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is con­tained within the refrigerant circuit of the
appliance, a natural gas with a high level of
environmental compatibility, which is nev­ertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be­come damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-

tion

– thoroughly ventilate the room in which

the appliance is situated

• It is dangerous to alter the specifications or
modify this product in any way. Any dam­age to the cord may cause a short-circuit,
fire and/or electric shock.

electrolux 3

Warning! Any electrical component
(power cord, plug, compressor) must be
replaced by a certified service agent or
qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not
squashed or damaged by the back of
the appliance. A squashed or dam­aged power plug may overheat and
cause a fire.

3. Make sure that you can come to the
mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.

6. You must not operate the appliance
without the lamp cover

1)

of interior

lighting.

• This appliance is heavy. Care should be
taken when moving it.

• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abra­sions or frost/freezer burns.

• Avoid prolonged exposure of the appli­ance to direct sunlight.

•

Bulb lamps

2)

used in this appliance are
special purpose lamps selected for house­hold appliances use only. They are not
suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in
the appliance.

• Do not store flammable gas and liquid in
the appliance, because they may explode.

• Do not place food products directly
against the air outlet on the rear wall.

3)

• Frozen food must not be re-frozen once it
has been thawed out.

• Store pre-packed frozen food in accord­ance with the frozen food manufacturer's
instructions.

• Appliance's manufacturers storage rec­ommendations should be strictly adhered
to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates

1) If the lamp cover is foreseen

2) If the lamp is foreseen

3) If the appliance is Frost Free

4) If a water connection is foreseen

pressure on the container, which may
cause it to explode, resulting in damage to
the appliance.

• Ice lollies can cause frost burns if con­sumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appli­ance and disconnect the mains plug from
the mains socket.

• Do not clean the appliance with metal ob­jects.

• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refriger­ator for defrosted water. If necessary,
clean the drain. If the drain is blocked, wa­ter will collect in the bottom of the appli­ance.

Installation

Important! For electrical connection

carefully follow the instructions given in
specific paragraphs.

• Unpack the appliance and check if there
are damages on it. Do not connect the ap­pliance if it is damaged. Report possible
damages immediately to the place you
bought it. In that case retain packing.

• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.

• Adequate air circulation should be around
the appliance, lacking this leads to over­heating. To achieve sufficient ventilation
follow the instructions relevant to installa­tion.

• Wherever possible the back of the product
should be against a wall to avoid touching
or catching warm parts (compressor, con­denser) to prevent possible burn.

• The appliance must not be located close
to radiators or cookers.

• Make sure that the mains plug is accessi­ble after the installation of the appliance.

•

Connect to potable water supply only.

4)

4 electrolux

Service

• Any electrical work required to do the serv­icing of the appliance should be carried out
by a qualified electrician or competent per­son.

• This product must be serviced by an au­thorized Service Centre, and only genuine
spare parts must be used.

Environment Protection

This appliance does not contain gasses
which could damage the ozone layer, in

Operation

Switching on

Insert the plug into the wall socket.
Turn the Temperature regulator clockwise to
a medium setting.

Switching off

To turn off the appliance, turn the Tempera­ture regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated.
To operate the appliance, proceed as fol­lows:

• turn the Temperature regulator toward
lower settings to obtain the minimum cold­ness.

• turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.

either its refrigerant circuit or insulation
materials. The appliance shall not be dis­carded together with the urban refuse
and rubbish. The insulation foam con­tains flammable gases: the appliance
shall be disposed according to the ap­plicable regulations to obtain from your
local authorities. Avoid damaging the
cooling unit, especially at the rear near
the heat exchanger. The materials used
on this appliance marked by the symbol

are recyclable.

A medium setting is generally the most
suitable.

However, the exact setting should be chosen
keeping in mind that the temperature inside
the appliance depends on:

• room temperature

• how often the door is opened

• the quantity of food stored

• the location of the appliance.

Important! If the ambient temperature is
high or the appliance is fully loaded, and the
appliance is set to the lowest temperatures,
it may run continuously causing frost to form
on the rear wall. In this case the dial must be
set to a higher temperature to allow
automatic defrosting and therefore reduced
energy consumption.

First use

Cleaning the interior

Before using the appliance for the first time,
wash the interior and all internal accessories
with lukewarm water and some neutral soap
so as to remove the typical smell of a brand­new product, then dry thoroughly.

Daily use

Freezing fresh food

The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh foods it is not necessary to
change the medium setting.
However, for a faster freezing operation, turn
the temperature regulator toward higher set­tings to obtain the maximum coldness.

Important! Do not use detergents or abra­sive powders, as these will damage the fin­ish.

Important! In this condition, the refrigerator
compartment temperature might drop below
0°C. If this occurs reset the temperature
regulator to a warmer setting.

Place the fresh food to be frozen on the top
compartment.

Storage of frozen food

When first starting-up or after a period out of
use, before putting the products in the com­partment let the appliance run at least 2
hours on the higher settings.
If large quantities of food are to be stored,
remove all drawers and baskets from appli­ance and place food on cooling shelves to
obtain the best performance.

Warning! Make sure that foods do not
exceed the load limit stated on the side
of the upper section (where applicable)

Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer
that the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly or
cooked immediately and then re-frozen (after
cooling).

Thawing

Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator com­partment or at room temperature, depending
on the time available for this operation.
Small pieces may even be cooked still frozen,
directly from the freezer: in this case, cooking
will take longer.

Ice-cube production

This appliance is equipped with one or more
trays for the production of ice-cubes. Fill
these trays with water, then put them in the
freezer compartment.

Important! Do not use metallic instruments
to remove the trays from the freezer.

Movable shelves

The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.

electrolux 5

Positioning the door shelves

To permit storage of food packages of vari­ous sizes, the door shelves can be placed at
different heights.
To make these adjustments proceed as fol­low: gradually pull the shelf in the direction of
the arrows until it comes free, then reposition
as required.

Helpful hints and tips

Hints for energy saving

• Do not open the door frequently or leave it
open longer than absolutely necessary.

• If the ambient temperature is high and the
Temperature Regulator is set to low tem-

perature and the appliance is fully loaded,
the compressor may run continuously,
causing frost or ice on the evaporator. If
this happens, set the Temperature Regu­lator toward warmer settings to allow au-

6 electrolux

tomatic defrosting and so a saving in elec­tricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liq­uids in the refrigerator

• do cover or wrap the food, particularly if it
has a strong flavour

• p ositio n food so that air can circulate freely
around it

Hints for refrigeration

Useful hints:
Meat (all types) : wrap in polythene bags and
place on the glass shelf above the vegetable
drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on any
shelf.
Fruit and vegetables: these should be thor­oughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing
process, here are some important hints:

• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rating
plate;

• the freezing process takes 24 hours. No
further food to be frozen should be added
during this period;

• only freeze top quality, fresh and thorough­ly cleaned, foodstuffs;

• prepare food in small portions to enable it
to be rapidly and completely frozen and to
make it possible subsequently to thaw only
the quantity required;

• wrap up the food in aluminium foil or pol­ythene and make sure that the packages
are airtight;

• do not allow fresh, unfrozen food to touch
food which is already frozen, thus avoiding
a rise in temperature of the latter;

• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;

• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;

• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this ap­pliance, you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;

• be sure that frozen foodstuffs are transfer­red from the foodstore to the freezer in the
shortest possible time;

• not open the door frequently or leave it
open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly
and cannot be refrozen.

• Do not exceed the storage period indica­ted by the food manufacturer.

Care and cleaning

Caution! Unplug the appliance before
carrying out any maintenance operation.

This appliance contains hydrocarbons in
its cooling unit; maintenance and re­charging must therefore only be carried
out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with luke­warm water and some neutral soap.

• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.

• rinse and dry thoroughly.

Important! Do no t p ull , m ov e or da ma ge a ny
pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will dam­age the surface and leave a strong odour.

Clean the condenser (black grill) and the
compressor at the back of the appliance with
a brush or a vacuum cleaner. This operation
will improve the performance of the appli­ance and save electricity consumption.

Important! Take care of not to damage the
cooling system.

Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer cas­ing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops, dur­ing normal use. The defrost water drains out
through a trough into a special container at
the back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refriger­ator compartment channel to prevent the
water overflowing and dripping onto the food
inside. Use the special cleaner provided,
which you will find already inserted into the
drain hole.

electrolux 7

Defrosting the freezer

A certain amount of frost will always form on
the freezer shelves and around the top com­partment.
Defrost the freezer when the frost layer rea­ches a thickness of about 3-5 mm.

Important! About 12 hours prior to
defrosting, set the Temperature regulator
toward higher settings , in order to build up
sufficient chill reserve for the interruption in
operation.

To remove the frost, follow the instructions
below:

1. Switch off the appliance.

2. Remove any stored food, wrap it in sev-

eral layers of newspaper and put it in a
cool place.

Caution! Do not touch frozen goods
with wet hands. Hands can freeze to the
goods.

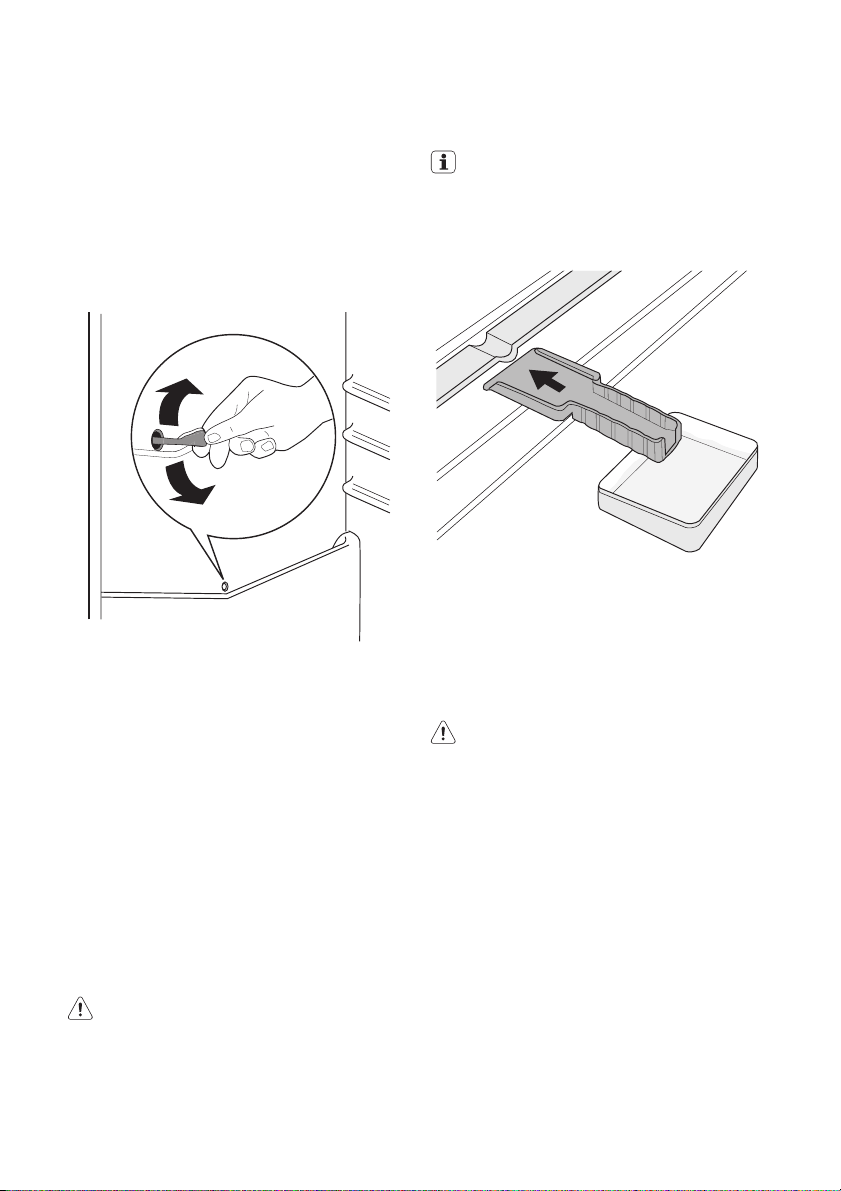

3. Leave the door open and insert the plas-

tic scraper in the appropriate seating at
the bottom centre, placing a basin un­derneath to collect the defrost water

In order to speed up the defrosting proc­ess, place a pot of warm water in the
freezer compartment. In addition, re­move pieces of ice that break away be­fore defrosting is complete.

8 electrolux

4. When defrosting is completed, dry the in­terior thoroughly and keep the scraper for
future use.

5. Switch on the appliance.

6. After two or three hours, reload the pre­viously removed food into the compart­ment.

Warning! Never use sharp metal tools
to scrape off frost from the evaporator
as you could damage it.

Do not use a mechanical device or any
artificial means to speed up the thawing
process other than those recommended
by the manufacturer.
A temperature rise of the frozen food
packs, during defrosting, may shorten
their safe storage life.

Periods of non-operation

When the appliance is not in use for long pe­riods, take the following precautions:

•

disconnect the appliance from elec­tricity supply

• remove all food
defrost

5)

and clean the appliance and all

•
accessories

• leave the door/doors ajar to prevent un­pleasant smells.

If the cabinet will be kept on, ask somebody
to check it once in a while to prevent the food
inside from spoiling in case of a power failure.

What to do if…

Warning! Before troubleshooting,
disconnect the mains plug from the
mains socket.
Only a qualified electrician or competent
person must do the troubleshooting that
is not in this manual.

Problem Possible cause Solution

The appliance does not
operate. The lamp does
not operate.

The mains plug is not connected

The appliance has no power.

The lamp does not work.

The lamp is defective. Refer to "Replacing the lamp".

The compressor operates
continually.

The door is not closed correctly. Refer to "Closing the door".

The door has been opened too

5) If foreseen.

The appliance is switched off. Switch on the appliance.

to the mains socket correctly.

There is no voltage in the mains
socket.

The lamp is in stand-by. Close and open the door.

The temperature is not set cor­rectly.

frequently.

Important! There are some sounds during
normal use (compressor, refrigerant
circulation).

Connect the mains plug to the
mains socket correctly.

Connect a different electrical appli­ance to the mains socket.
Contact a qualified electrician.

Set a higher temperature.

Do not keep the door open longer
than necessary.

electrolux 9

Problem Possible cause Solution

The product temperature is too

The room temperature is too

Water flows on the rear
plate of the refrigerator.

Water flows into the re­frigerator.

Products prevent that water flows

Water flows on the
ground.

The temperature in the
appliance is too low.

The temperature in the
appliance is too high.

The door is not closed correctly. Refer to "Closing the door".

The product temperature is too

Many products are stored at the

The temperature in the re­frigerator is too high.

The temperature in the
freezer is too high.

There is too much frost.

The door is not closed correctly. Refer to "Closing the door".

The temperature regulator is not

Replacing the lamp

1. Disconnect the mains plug from the

high.

high.

During the automatic defrosting
process, frost defrosts on the rear
plate.

The water outlet is clogged. Clean the water outlet.

into the water collector.

The melting water outlet does not
flow in the evaporative tray above
the compressor.

The temperature regulator is not
set correctly.

The temperature regulator is not
set correctly.

high.

same time.

There is no cold air circulation in
the appliance.

Products are too near to each
other.

Food is not wrapped correctly. Wrap the food correctly.

set correctly.

8. Open the door. Make sure that the lamp

comes on.

Let the product temperature de­crease to room temperature before
storage.

Decrease the room temperature.

This is correct.

Make sure that products do not
touch the rear plate.

Attach the melting water outlet to
the evaporative tray.

Set a higher temperature.

Set a lower temperature.

Let the product temperature de­crease to room temperature before
storage.

Store less products at the same
time.

Make sure that there is cold air cir­culation in the appliance.

Store products so that there is cold
air circulation.

Set a higher temperature.

mains socket.

2. Remove the screw from the lamp cover.

3. Remove the lamp cover (refer to the illus­tration).

4. Replace the used lamp with a new lamp
of the same power and specifically de­signed for household appliances. (the
maximum power is shown on the lamp
cover).

5. Install the lamp cover.

6. Tighten the screw to the lamp cover.

7. Connect the mains plug to the mains
socket.

10 electrolux

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "In­stallation".

3. If necessary, replace the defective door
gaskets. Contact the Service Center.

Technical data

Dimension of the recess

Height 1780 mm

Width 560 mm

Depth 550 mm

Rising Time 20 h

The technical information are situated in the
rating plate on the internal left side of the ap­pliance and in the energy label.

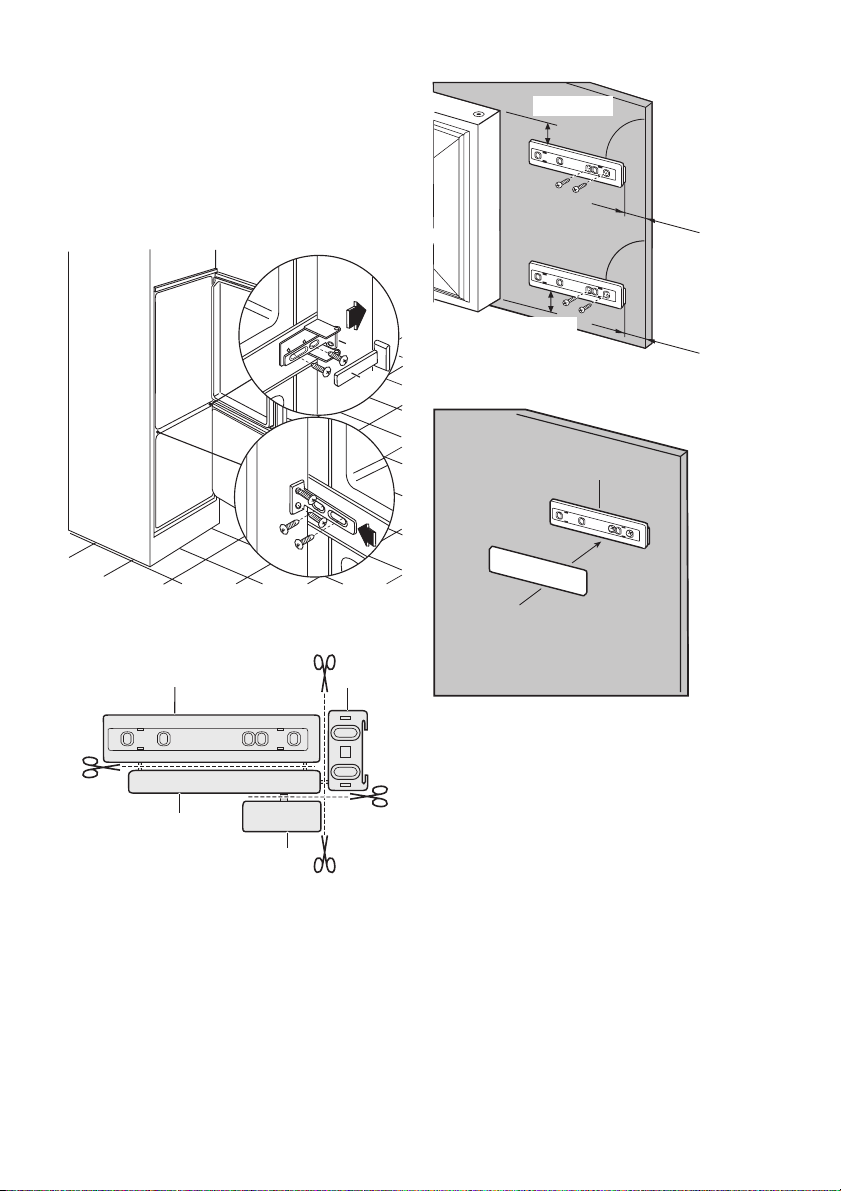

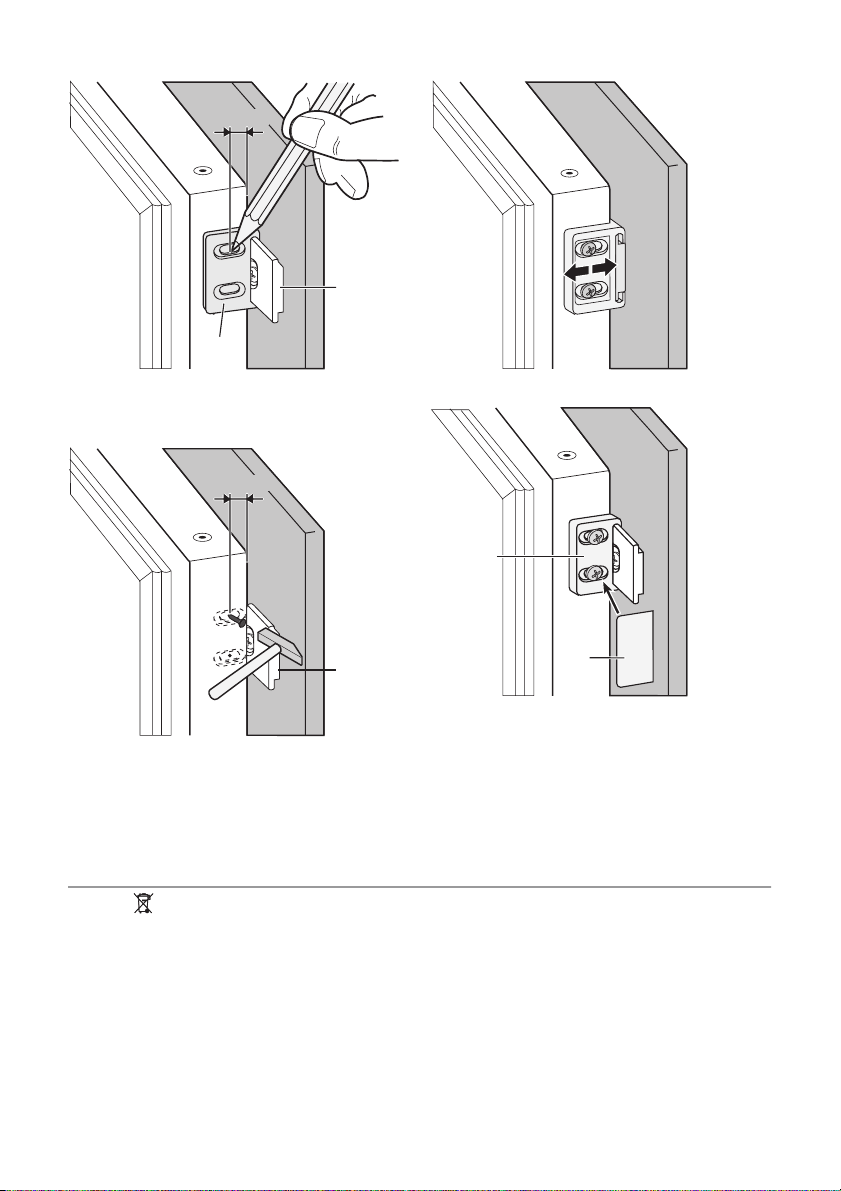

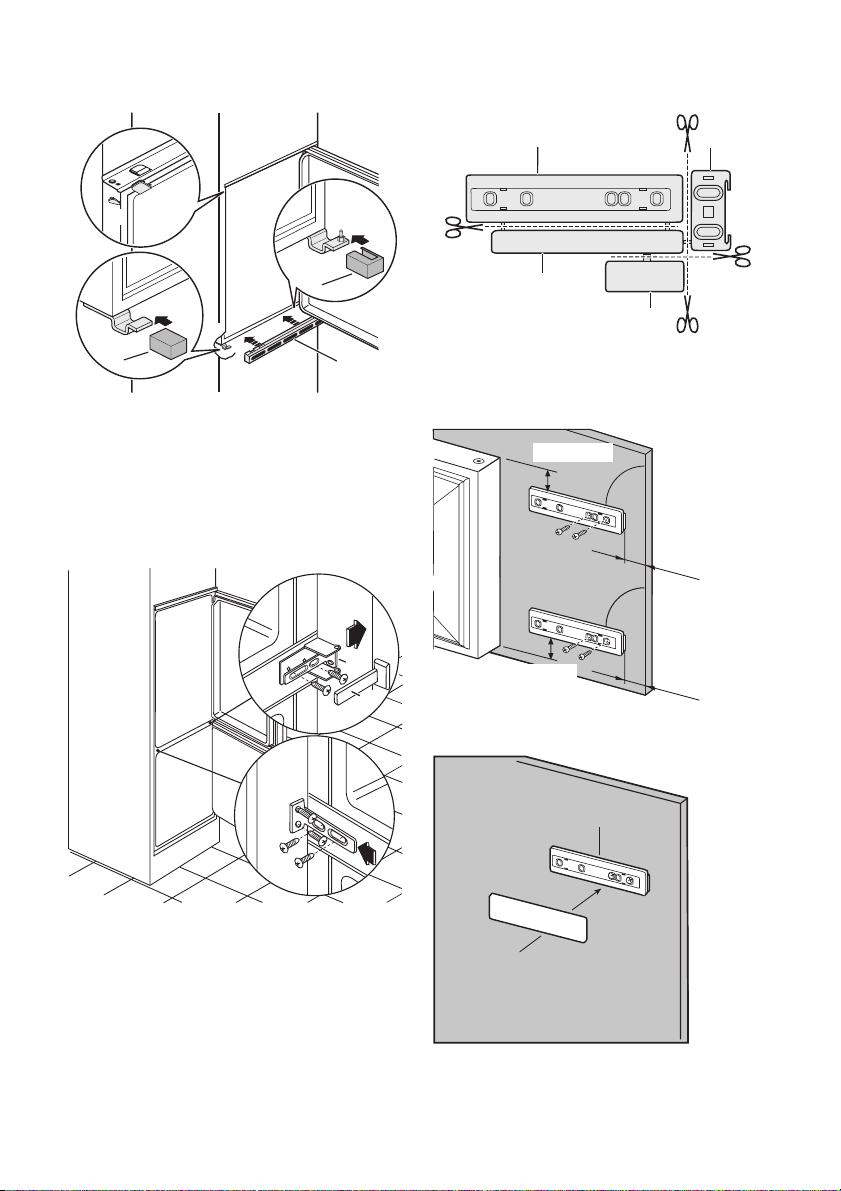

Installation

Read the "Safety Information" carefully
for your safety and correct operation of
the appliance before installing the
appliance.

Positioning

Install this appliance at a location where the
ambient temperature corresponds to the cli­mate class indicated on the rating plate of the
appliance:

Climate

class

SN +10°C to + 32°C

N +16°C to + 32°C

ST +16°C to + 38°C

T +16°C to + 43°C

Ambient temperature

Electrical connection

Before plugging in, ensure that the voltage
and frequency shown on the rating plate cor­respond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power sup­ply socket is not earthed, connect the appli­ance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility if
the above safety precautions are not ob­served.
This appliance complies with the E.E.C. Di­rectives.
