Contents

Safety information 2
Operation 4
First use 4
Daily use 4
Helpful hints and tips 5

Subject to change without notice

Care and cleaning 6
What to do if… 8
Technical data 10
Installation 10
Environmental concerns 14

Safety information

In the interest of your safety and to ensure
the correct use, before installing and first us­ing the appliance, read this user manual
carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents,
it is important to ensure that all people using
the appliance are thoroughly familiar with its
operation and safety features. Save these in­structions and make sure that they remain
with the appliance if it is moved or sold, so
that everyone using it through its life will be
properly informed on appliance use and safe­ty.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for dam­ages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or in­struction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.

• Keep all packaging well away from chil­dren. There is risk of suffocation.

• If you are discarding the appliance pull the
plug out of the socket, cut the connection
cable (as close to the appliance as you
can) and remove the door to prevent play­ing children to suffer electric shock or to
close themselves into it.

• If this appliance featuring magnetic door
seals is to replace an older appliance hav-

ing a spring lock (latch) on the door or lid,
be sure to make that spring lock unusable
before you discard the old appliance. This
will prevent it from becoming a death trap
for a child.

General safety

Caution! Keep ventilation openings

clear of obstruction.

• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.

• Do not use a mechanical device or any ar­tificial means to speed up the thawing
process.

• Do not use other electrical appliances
(such as ice cream makers) inside of re­frigerating appliances, unless they are ap­proved for this purpose by the manufac­turer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is con­tained within the refrigerant circuit of the
appliance, a natural gas with a high level of
environmental compatibility, which is nev­ertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be­come damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-

tion

– thoroughly ventilate the room in which

the appliance is situated

electrolux 3

• It is dangerous to alter the specifications or
modify this product in any way. Any dam­age to the cord may cause a short-circuit,
fire and/or electric shock.

Warning! Any electrical component
(power cord, plug, compressor) must be
replaced by a certified service agent or
qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not

squashed or damaged by the back of
the appliance. A squashed or dam­aged power plug may overheat and
cause a fire.

3. Make sure that you can come to the

mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do

not insert the power plug. There is a
risk of electric shock or fire.

6. You must not operate the appliance

without the lamp cover

1)

of interior

lighting.

• This appliance is heavy. Care should be
taken when moving it.

• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abra­sions or frost/freezer burns.

• Avoid prolonged exposure of the appli­ance to direct sunlight.

Daily Use

• Do not put hot pot on the plastic parts in
the appliance.

• Do not store flammable gas and liquid in
the appliance, because they may explode.

• Do not place food products directly
against the air outlet on the rear wall.

2)

• Frozen food must not be re-frozen once it
has been thawed out.

• Store pre-packed frozen food in accord­ance with the frozen food manufacturer's
instructions.

• Appliance's manufacturers storage rec­ommendations should be strictly adhered
to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates

1) If the lamp cover is foreseen

2) If the appliance is Frost Free

3) If a water connection is foreseen

pressure on the container, which may
cause it to explode, resulting in damage to
the appliance.

• Ice lollies can cause frost burns if con­sumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appli­ance and disconnect the mains plug from
the mains socket.

• Do not clean the appliance with metal ob­jects.

• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refriger­ator for defrosted water. If necessary,
clean the drain. If the drain is blocked, wa­ter will collect in the bottom of the appli­ance.

Installation
Important! For electrical connection

carefully follow the instructions given in
specific paragraphs.

• Unpack the appliance and check if there
are damages on it. Do not connect the ap­pliance if it is damaged. Report possible
damages immediately to the place you
bought it. In that case retain packing.

• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.

• Adequate air circulation should be around
the appliance, lacking this leads to over­heating. To achieve sufficient ventilation
follow the instructions relevant to installa­tion.

• Wherever possible the back of the product
should be against a wall to avoid touching
or catching warm parts (compressor, con­denser) to prevent possible burn.

• The appliance must not be located close
to radiators or cookers.

• Make sure that the mains plug is accessi­ble after the installation of the appliance.

•

Connect to potable water supply only.

3)

Service

• Any electrical work required to do the serv­icing of the appliance should be carried out

4 electrolux

by a qualified electrician or competent per­son.

• This product must be serviced by an au­thorized Service Centre, and only genuine
spare parts must be used.

Environment Protection

This appliance does not contain gasses
which could damage the ozone layer, in
either its refrigerant circuit or insulation
materials. The appliance shall not be dis-

Operation

Switching on

Insert the plug into the wall socket.

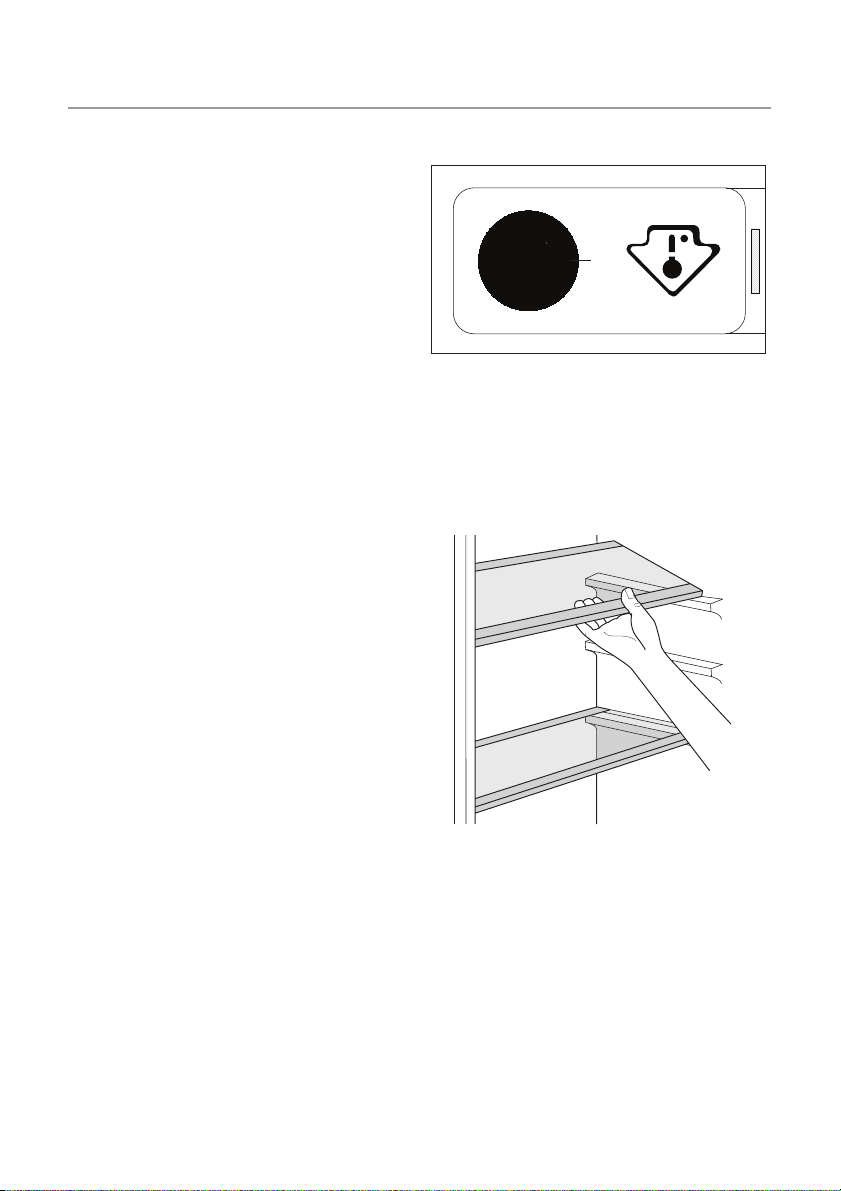

Turn the Temperature regulator clockwise to
a medium setting.

Switching off

To turn off the appliance, turn the Tempera­ture regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated.
To operate the appliance, proceed as fol­lows:

• turn the Temperature regulator toward
lower settings to obtain the minimum cold­ness.

• turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.

carded together with the urban refuse
and rubbish. The insulation foam con­tains flammable gases: the appliance
shall be disposed according to the ap­plicable regulations to obtain from your
local authorities. Avoid damaging the
cooling unit, especially at the rear near
the heat exchanger. The materials used
on this appliance marked by the symbol

are recyclable.

A medium setting is generally the most
suitable.

However, the exact setting should be chosen
keeping in mind that the temperature inside
the appliance depends on:

• room temperature

• how often the door is opened

• the quantity of food stored

• the location of the appliance.
Important! If the ambient temperature is

high or the appliance is fully loaded, and the
appliance is set to the lowest temperatures,
it may run continuously causing frost to form
on the rear wall. In this case the dial must be
set to a higher temperature to allow
automatic defrosting and therefore reduced
energy consumption.

First use

Cleaning the interior

Before using the appliance for the first time,
wash the interior and all internal accessories
with lukewarm water and some neutral soap
so as to remove the typical smell of a brand­new product, then dry thoroughly.

Daily use

Freezing fresh food

The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh foods it is not necessary to
change the medium setting.
However, for a faster freezing operation, turn
the temperature regulator toward higher set­tings to obtain the maximum coldness.

Important! Do not use detergents or abra­sive powders, as these will damage the fin­ish.

Important! In this condition, the refrigerator
compartment temperature might drop below
0°C. If this occurs reset the temperature
regulator to a warmer setting.

Storage of frozen food

When first starting-up or after a period out of
use, before putting the products in the com­partment let the appliance run at least 2
hours on the higher settings.

Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer
than the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly or
cooked immediately and then re-frozen (after
cooling).

Thawing

Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator com­partment or at room temperature, depending
on the time available for this operation.
Small pieces may even be cooked still frozen,
directly from the freezer: in this case, cooking
will take longer.

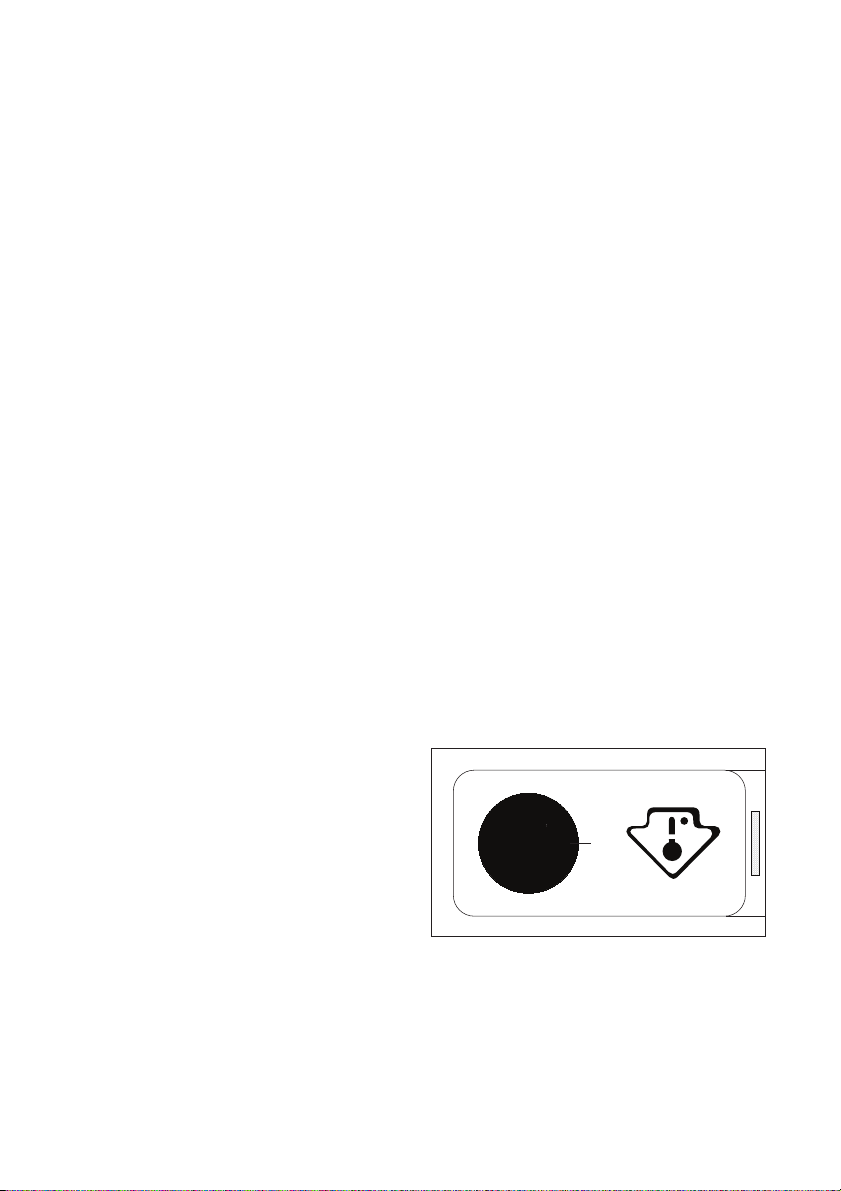

Important! this appliance is sold in France.
In accordance with regulations valid in this
country it must be provided with a special
device (see figure) placed in the lower com­partment of the fridge to indicate the coldest
zone of it.

electrolux 5

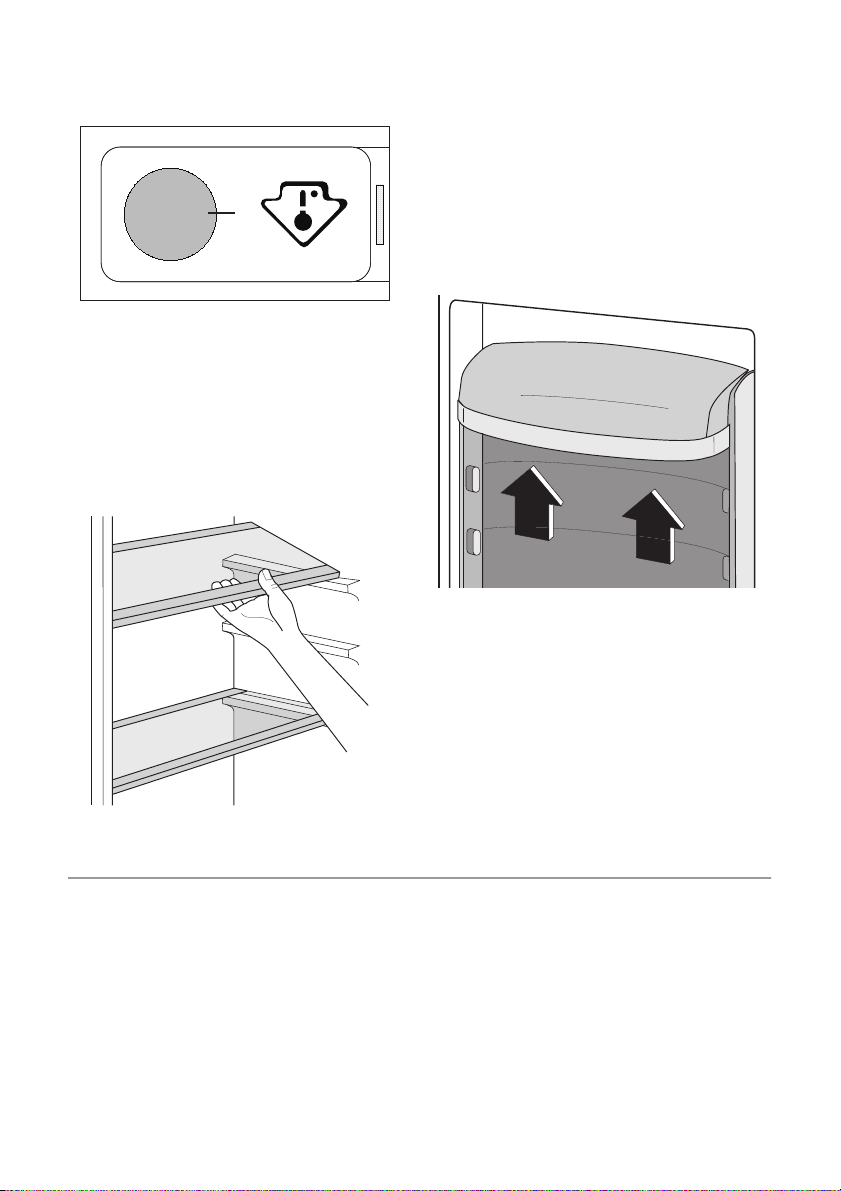

Positioning the door shelves

To permit storage of food packages of vari­ous sizes, the door shelves can be placed at
different heights.
To make these adjustments proceed as fol­lows:

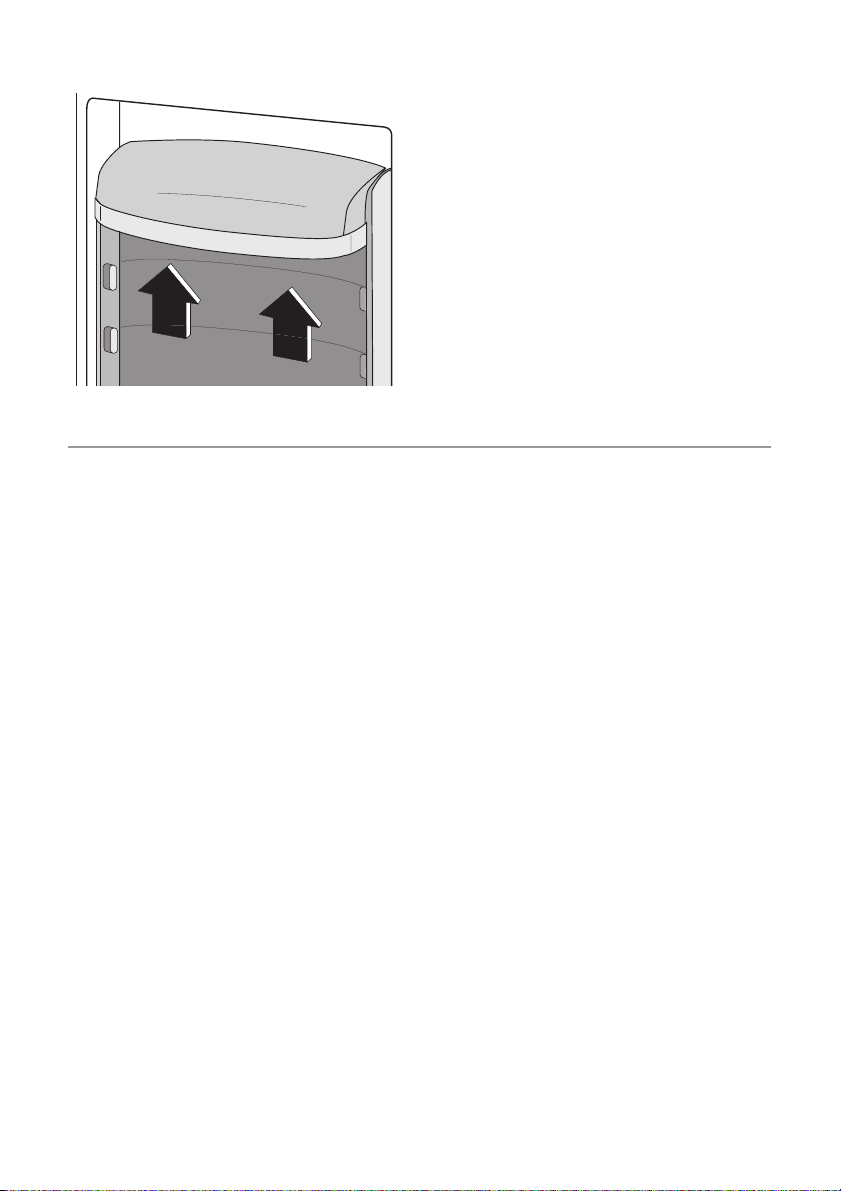

gradually pull the shelf in the direction of the
arrows until it comes free, then reposition as
required.

Movable shelves

The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
For better use of space, the front half-shelves
can lie over the rear ones.

Helpful hints and tips

Hints for energy saving

• Do not open the door frequently or leave it
open longer than absolutely necessary.

• If the ambient temperature is high and the
Temperature Regulator is set to low tem­perature and the appliance is fully loaded,
the compressor may run continuously,

causing frost or ice on the evaporator. If
this happens, set the Temperature Regu­lator toward warmer settings to allow au­tomatic defrosting and so a saving in elec­tricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

6 electrolux

• do not store warm food or evaporating liq­uids in the refrigerator

• do cover or wrap the food, particularly if it
has a strong flavour

• p osit ion f ood s o tha t air can circulate freely
around it

Hints for refrigeration

Useful hints:
Meat (all types) : wrap in polythene bags and
place on the glass shelf above the vegetable
drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on any
shelf.
Fruit and vegetables: these should be thor­oughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing
process, here are some important hints:

• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rating
plate;

• the freezing process takes 24 hours. No
further food to be frozen should be added
during this period;

• only freeze top quality, fresh and thorough­ly cleaned, foodstuffs;

• prepare food in small portions to enable it
to be rapidly and completely frozen and to
make it possible subsequently to thaw only
the quantity required;

• wrap up the food in aluminium foil or pol­ythene and make sure that the packages
are airtight;

• do not allow fresh, unfrozen food to touch
food which is already frozen, thus avoiding
a rise in temperature of the latter;

• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;

• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;

• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this ap­pliance, you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;

• be sure that frozen foodstuffs are transfer­red from the foodstore to the freezer in the
shortest possible time;

• not open the door frequently or leave it
open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly
and cannot be refrozen.

• Do not exceed the storage period indica­ted by the food manufacturer.

Care and cleaning

Caution! Unplug the appliance before
carrying out any maintenance operation.

This appliance contains hydrocarbons in
its cooling unit; maintenance and re­charging must therefore only be carried
out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with luke­warm water and some neutral soap.

• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.

• rinse and dry thoroughly.

Important! Do not pull, move or damage any
pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will dam­age the surface and leave a strong odour.

Clean the condenser (black grill) and the
compressor at the back of the appliance with

electrolux 7

a brush or a vacuum cleaner. This operation
will improve the performance of the appli­ance and save electricity consumption.

Important! Take care of not to damage the
cooling system.

Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer cas­ing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops, dur­ing normal use. The defrost water drains out
through a trough into a special container at
the back of the appliance, over the motor
compressor, where it evaporates.

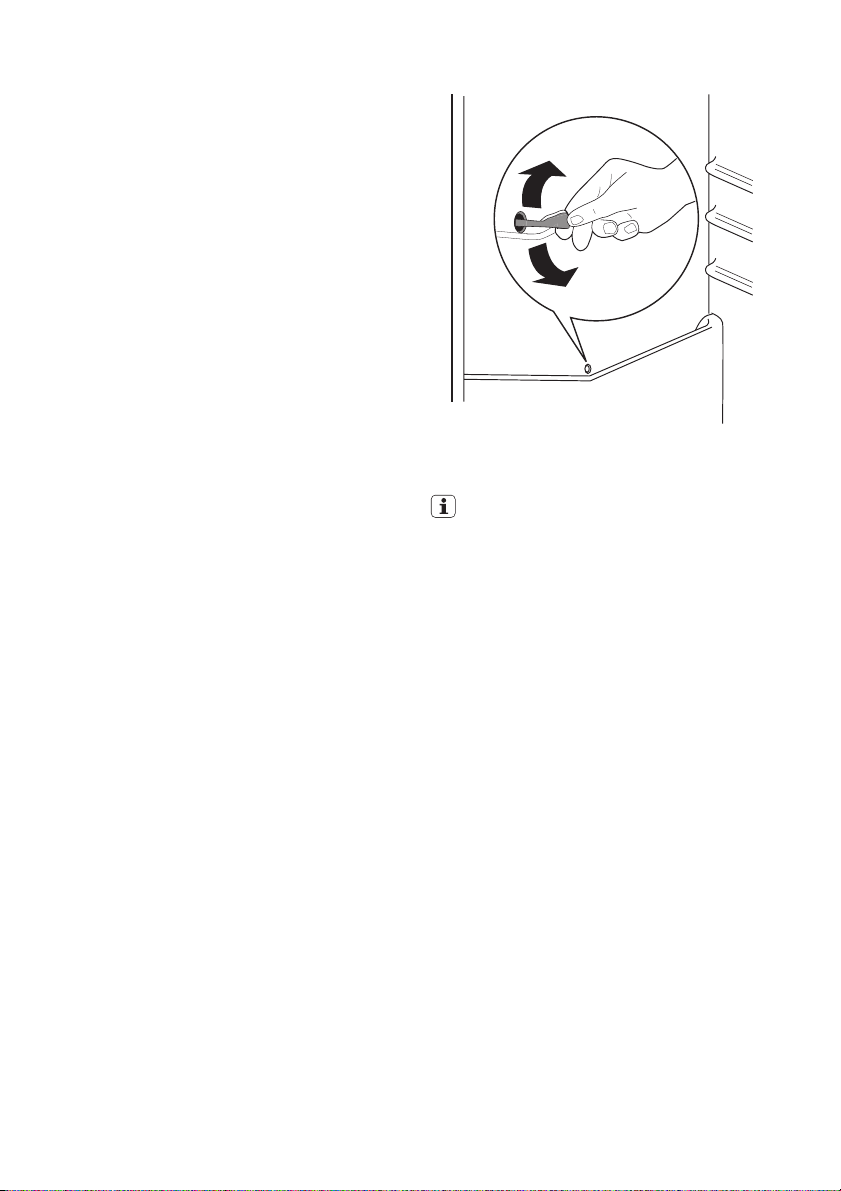

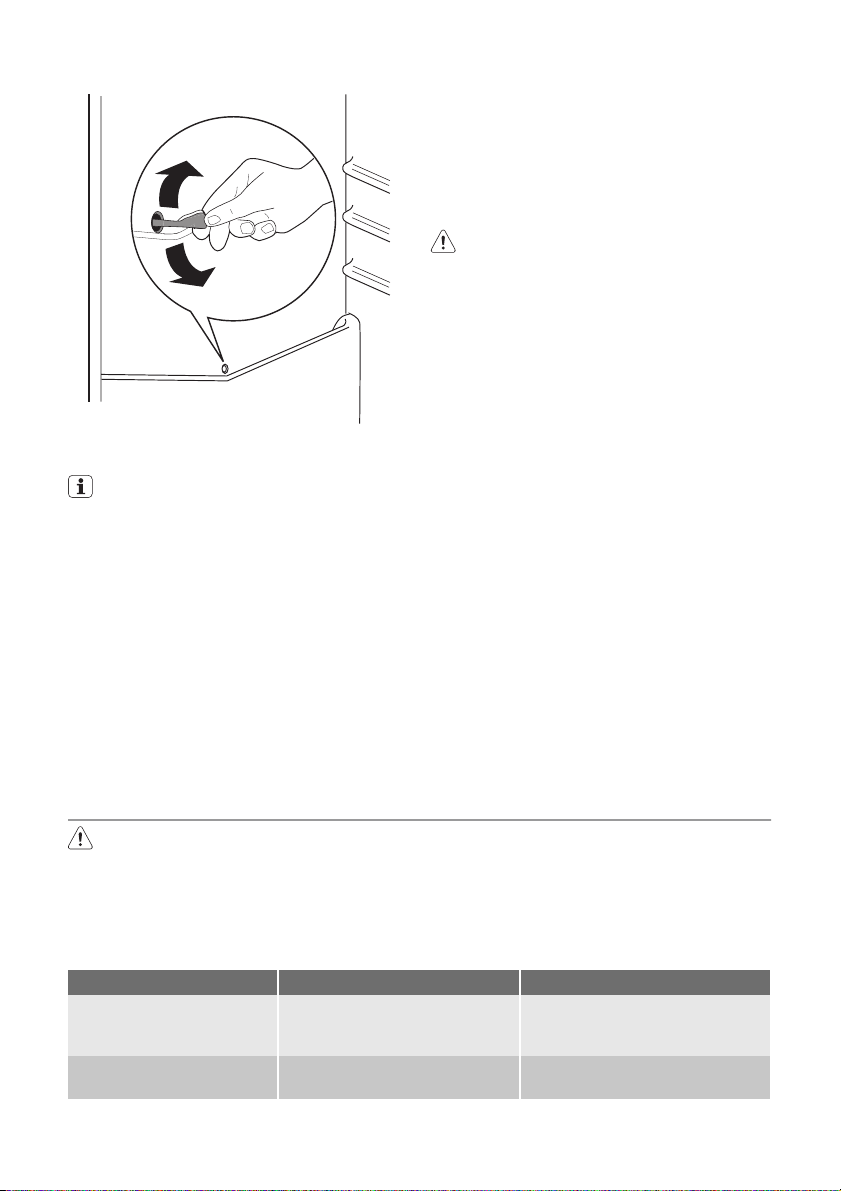

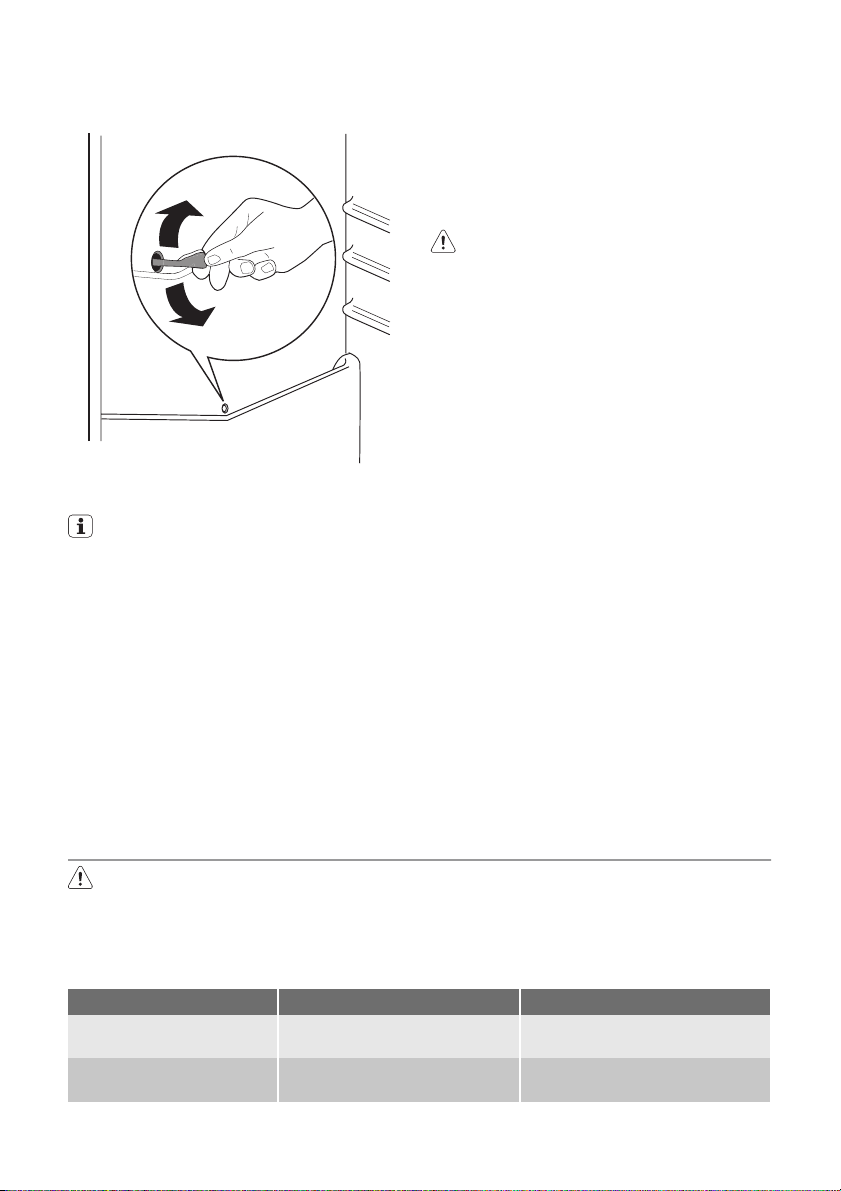

It is important to periodically clean the defrost
water drain hole in the middle of the refriger­ator compartment channel to prevent the
water overflowing and dripping onto the food
inside. Use the special cleaner provided,
which you will find already inserted into the
drain hole.

Defrosting the freezer

A certain amount of frost will always form
around the top compartment.

Important! Defrost the freezer when the
frost layer reaches a thickness of about 3-5
mm.

To remove the frost, do these steps:

1. Switch off the appliance.

2. Remove any stored food, wrap it in sev-

eral layers of newspaper and put it in a
cool place.

3. Open the door.

4. When defrosting is completed, dry the in-

terior thoroughly.

5. Switch on the appliance.

6. Set the temperature regulator to obtain

the maximum coldness and run the ap­pliance for two or three hours using this
setting.

7. Reload the previously removed food into

the compartment.

Warning! Never use sharp metal tools
to scrape off frost from the evaporator
as you could damage it. Do not use a
mechanical device or any artificial means
to speed up the thawing process other
than those recommended by the
manufacturer. A temperature rise of the
frozen food packs, during defrosting,
may shorten their safe storage life.

Periods of non-operation

When the appliance is not in use for long pe­riods, take the following precautions:

• disconnect the appliance from elec-

tricity supply

• remove all food
defrost

4)

and clean the appliance and all

•
accessories

• leave the door/doors ajar to prevent un­pleasant smells.

If the cabinet will be kept on, ask somebody
to check it once in a while to prevent the food
inside from spoiling in case of a power failure.

4) If foreseen.

8 electrolux

What to do if…

Warning! Before troubleshooting,
disconnect the mains plug from the
mains socket.
Only a qualified electrician or competent
person must do the troubleshooting that
is not in this manual.

Problem Possible cause Solution

The appliance does not
operate. The lamp does
not operate.

The mains plug is not connected

The appliance has no power.

The lamp does not work.

The lamp is defective. Refer to "Replacing the lamp".

The compressor operates
continually.

The door is not closed correctly. Refer to "Closing the door".
The door has been opened too

The product temperature is too

The room temperature is too

Water flows on the rear
plate of the refrigerator.

Water flows into the re­frigerator.

Products prevent that water flows

Water flows on the
ground.

The temperature in the
appliance is too low.

The temperature in the
appliance is too high.

The door is not closed correctly. Refer to "Closing the door".
The product temperature is too

Many products are stored at the

The appliance is switched off. Switch on the appliance.

to the mains socket correctly.

There is no voltage in the mains
socket.

The lamp is in stand-by. Close and open the door.

The temperature is not set cor­rectly.

frequently.

high.

high.
During the automatic defrosting

process, frost defrosts on the rear
plate.

The water outlet is clogged. Clean the water outlet.

into the water collector.
The melting water outlet does not

flow in the evaporative tray above
the compressor.

The temperature regulator is not
set correctly.

The temperature regulator is not
set correctly.

high.

same time.

Important! There are some sounds during
normal use (compressor, refrigerant
circulation).

Connect the mains plug to the
mains socket correctly.

Connect a different electrical appli­ance to the mains socket.
Contact a qualified electrician.

Set a higher temperature.

Do not keep the door open longer
than necessary.

Let the product temperature de­crease to room temperature before
storage.

Decrease the room temperature.

This is correct.

Make sure that products do not
touch the rear plate.

Attach the melting water outlet to
the evaporative tray.

Set a higher temperature.

Set a lower temperature.

Let the product temperature de­crease to room temperature before
storage.

Store less products at the same
time.

electrolux 9

Problem Possible cause Solution

The temperature in the re­frigerator is too high.

The temperature in the
freezer is too high.

There is too much frost.

The door is not closed correctly. Refer to "Closing the door".
The temperature regulator is not

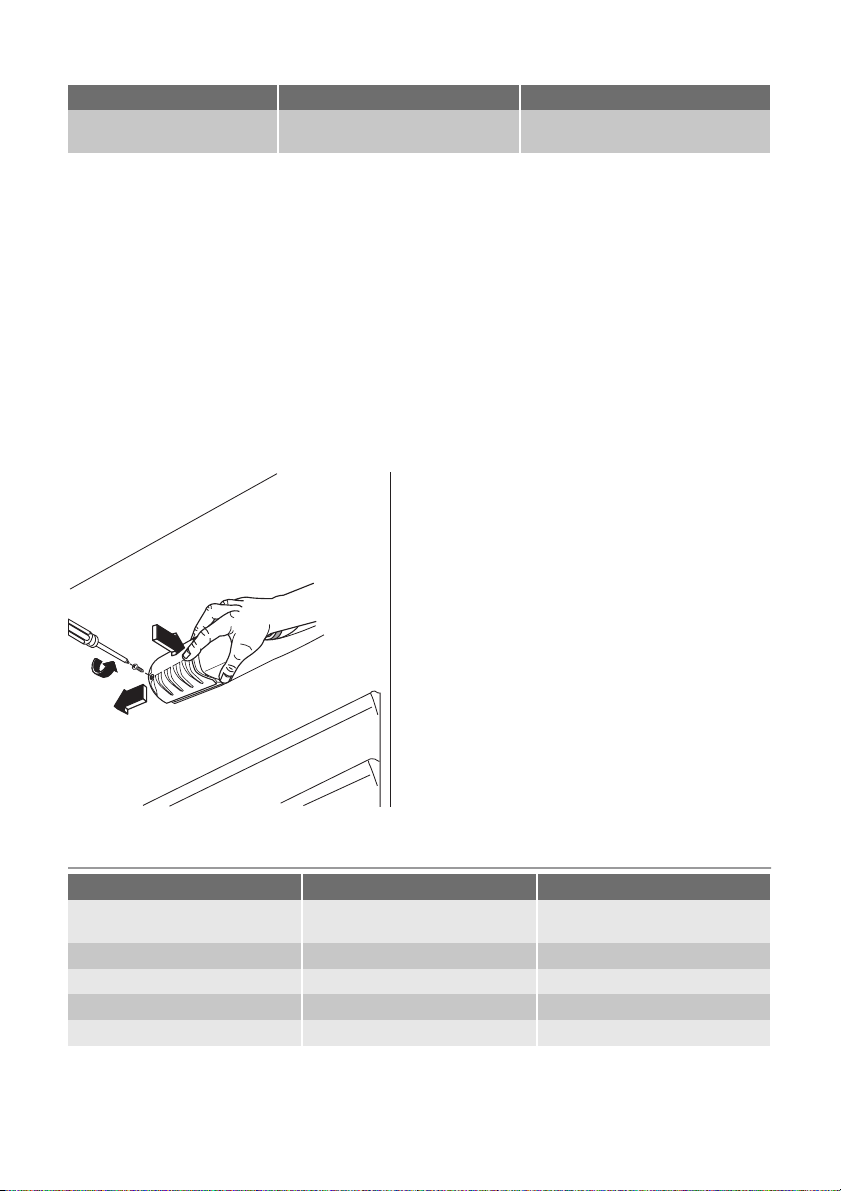

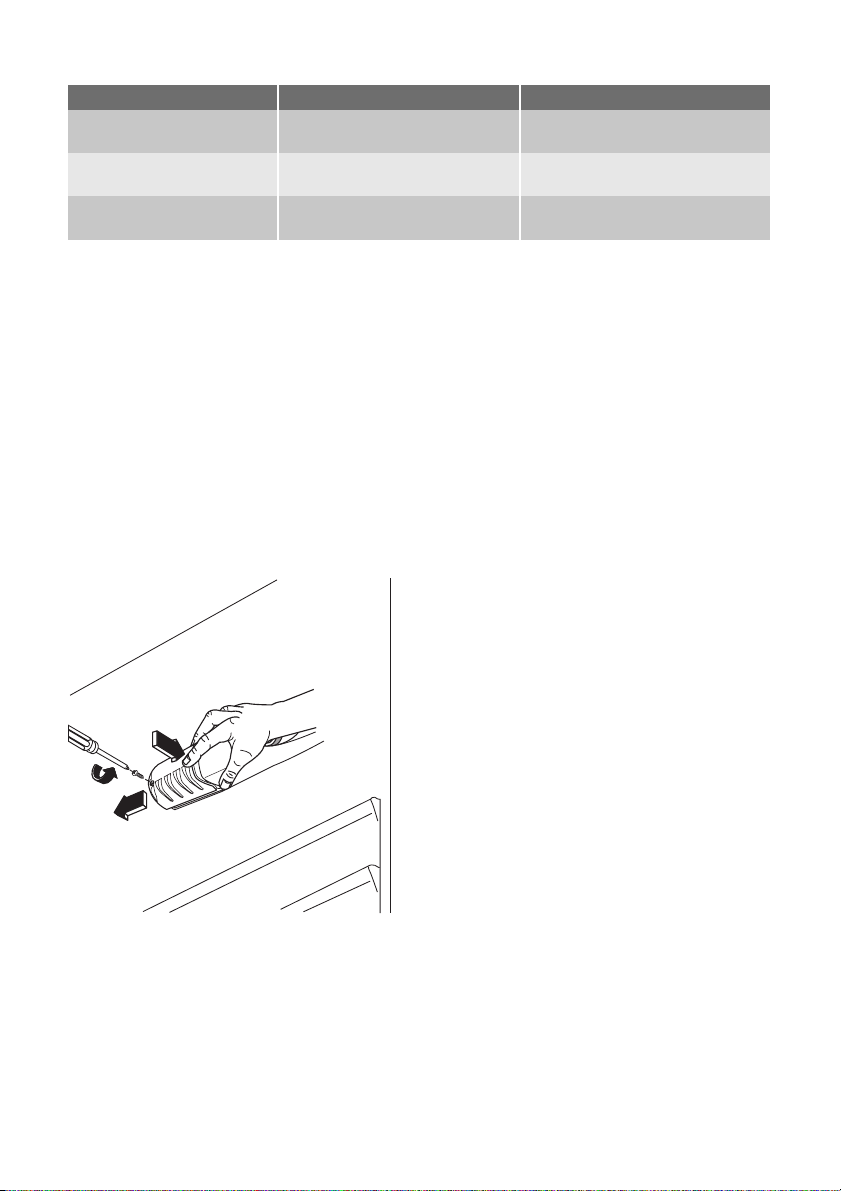

Replacing the lamp

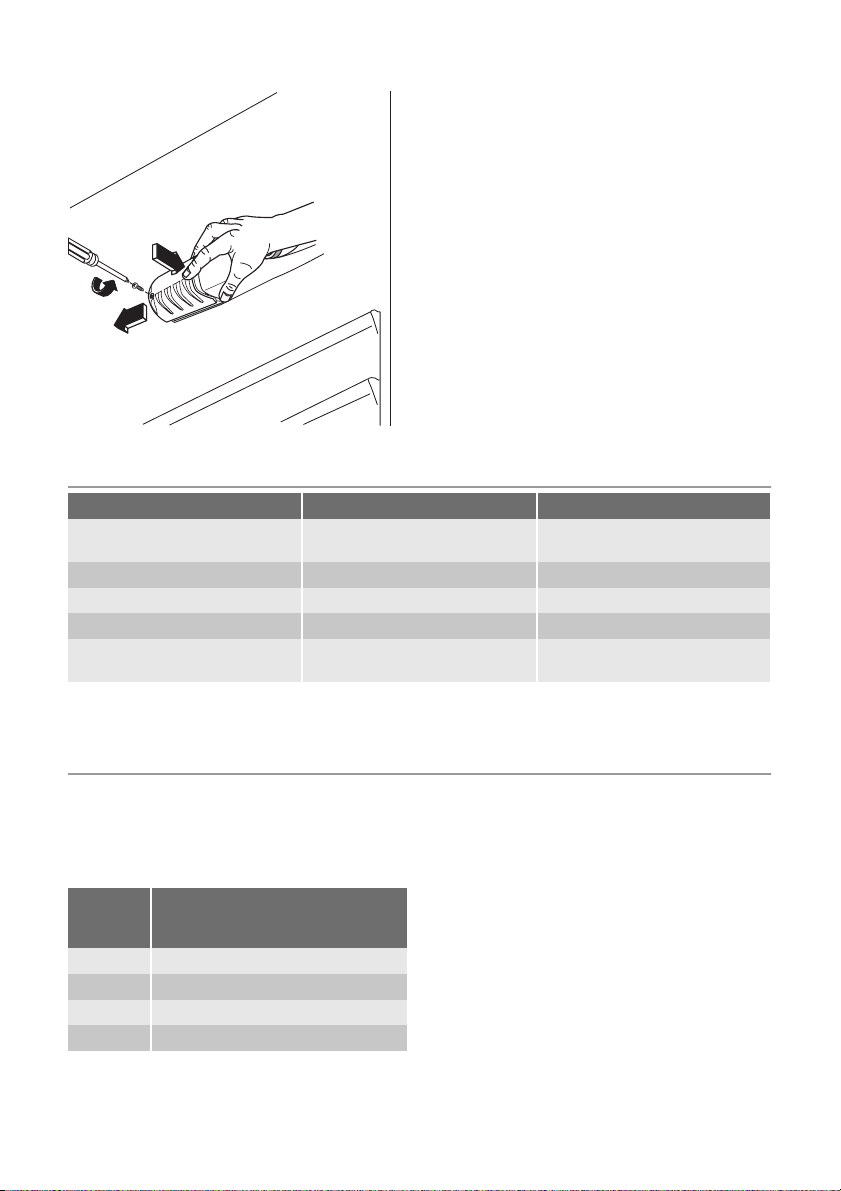

1. Disconnect the mains plug from the
mains socket.

2. Remove the screw from the lamp cover.

3. Remove the lamp cover (refer to the illus­tration).

There is no cold air circulation in
the appliance.

Products are too near to each
other.

Food is not wrapped correctly. Wrap the food correctly.

set correctly.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "In­stallation".

3. If necessary, replace the defective door
gaskets. Contact the Service Center.

Make sure that there is cold air cir­culation in the appliance.

Store products so that there is cold
air circulation.

Set a higher temperature.

4. Replace the used lamp with a new lamp
of the same power (the maximum power
is shown on the lamp cover).

5. Install the lamp cover.

6. Tighten the screw to the lamp cover.

7. Connect the mains plug to the mains
socket.

8. Open the door. Make sure that the lamp
comes on.

10 electrolux

Technical data

Dimension of the recess
Height 1580 mm
Width 560 mm
Depth 550 mm
Rising Time 20 h

The technical information are situated in the
rating plate on the internal left side of the ap­pliance and in the energy label.

Installation

Positioning

Install this appliance at a location where the
ambient temperature corresponds to the cli­mate class indicated on the rating plate of the
appliance:

Climate

class

SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Ambient temperature

Electrical connection

Before plugging in, ensure that the voltage
and frequency shown on the rating plate cor­respond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power sup­ply socket is not earthed, connect the appli­ance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility if
the above safety precautions are not ob­served.
This appliance complies with the E.E.C. Di­rectives.

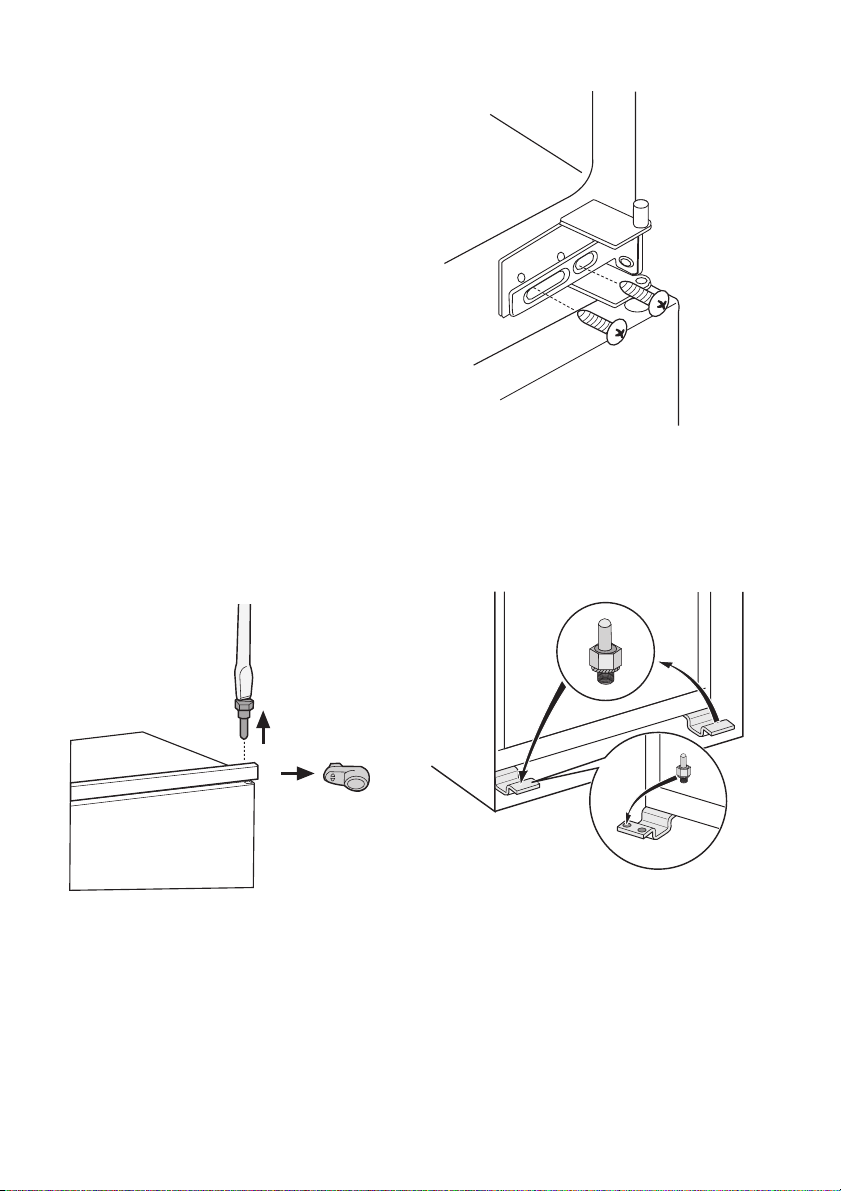

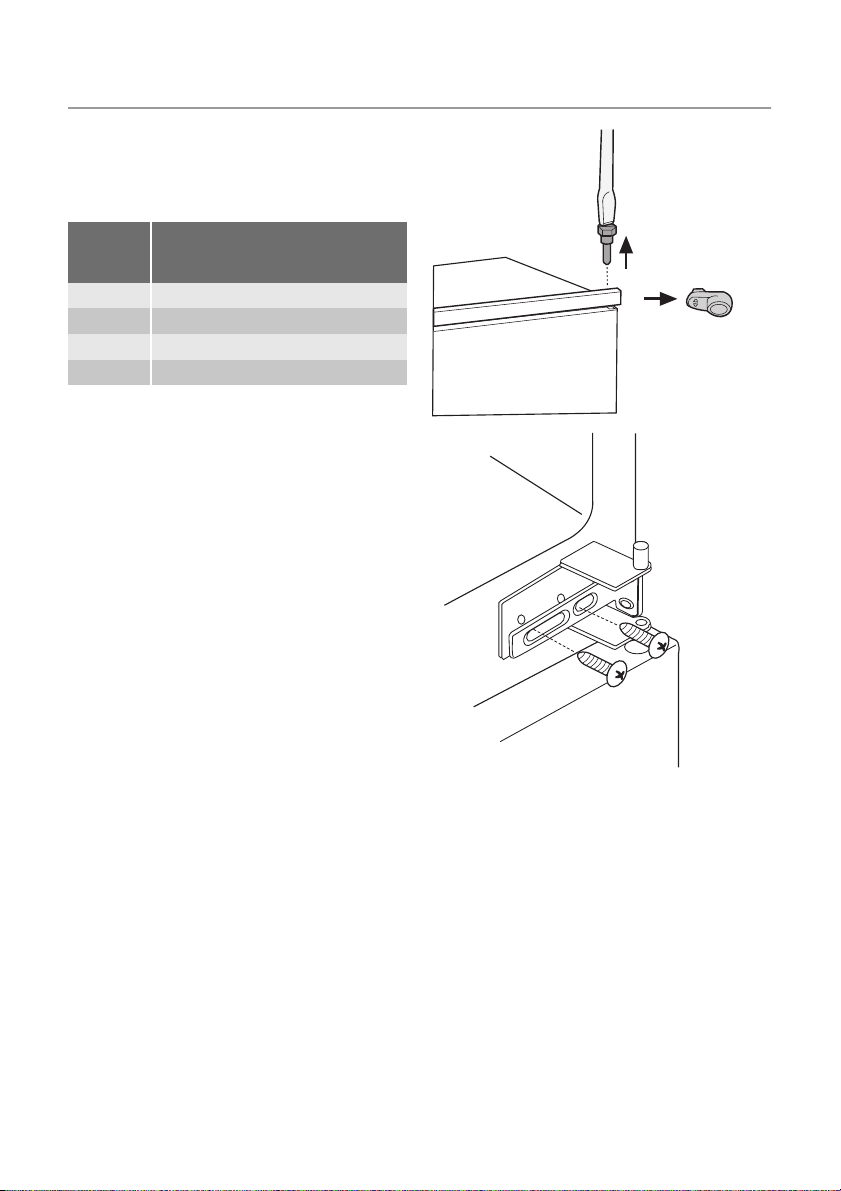

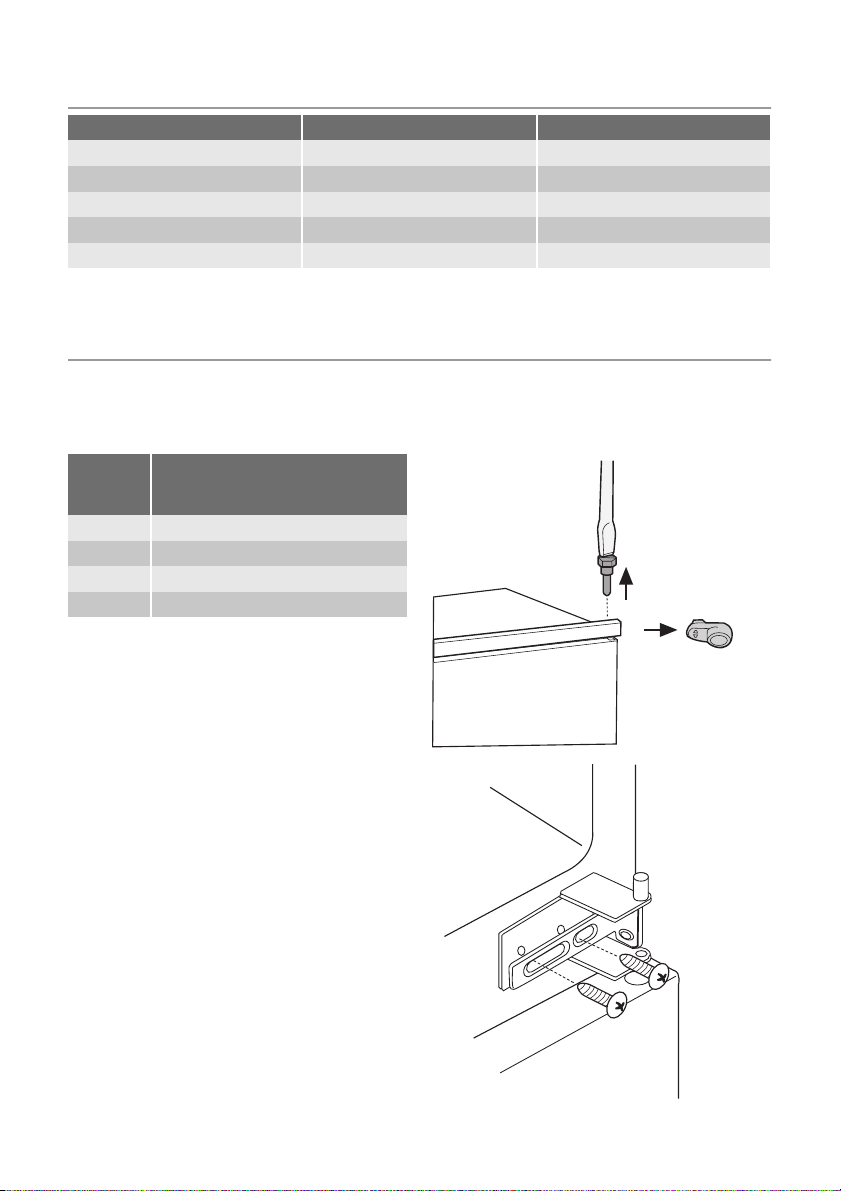

Door reversibility

The door of the appliance opens to the right.
If you want to open the door to the left, do
these steps before you install the appliance:

1. Loosen and remove the upper pin.

2. Remove the upper door.

3. Remove the spacer.

4. Loosen the middle hinge.

5. Remove the lower door.

6. Loosen and remove the lower pin.

On the opposite side:

1. Tighten the lower pin.

2. Install the lower door.

electrolux 11

3. Tighten the middle hinge.

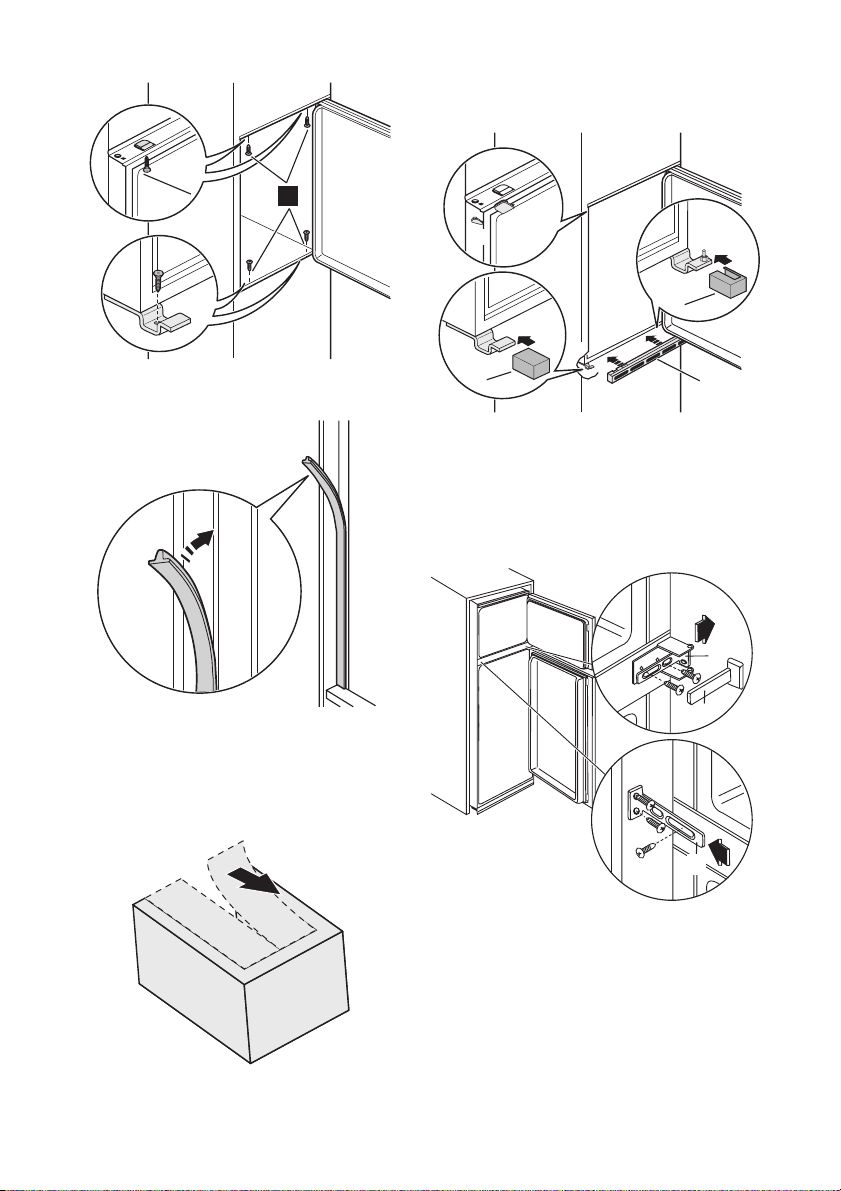

4. Install the spacer.

5. Install the upper door.

6. Tighten the upper pin.

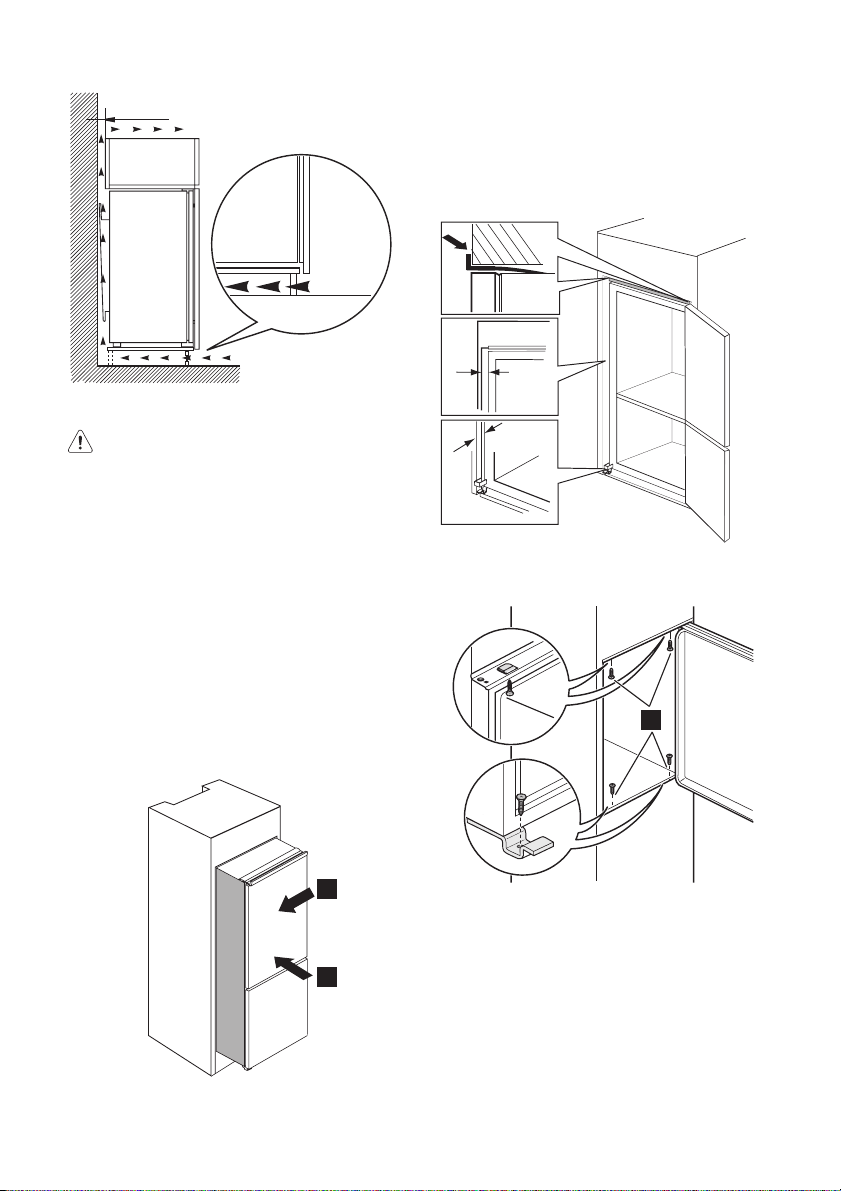

Ventilation requirements

The airflow behind the appliance must be
sufficient.

min.

2

200 cm

opposite side of the hinge. Make sure
that the clearance between the appli­ance and the cupboard is 4 mm.

2

1

2. Adjust the appliance in the niche.
The lower hinge cover (in the accesso­ries bag) makes sure that the distance
between the appliance and the kitchen
furniture is correct.
Open the door. Put the lower hinge cover
in position.

min.
200 cm

Installing the appliance

Caution! Make sure that the mains

cable can move freely.

Do these steps.

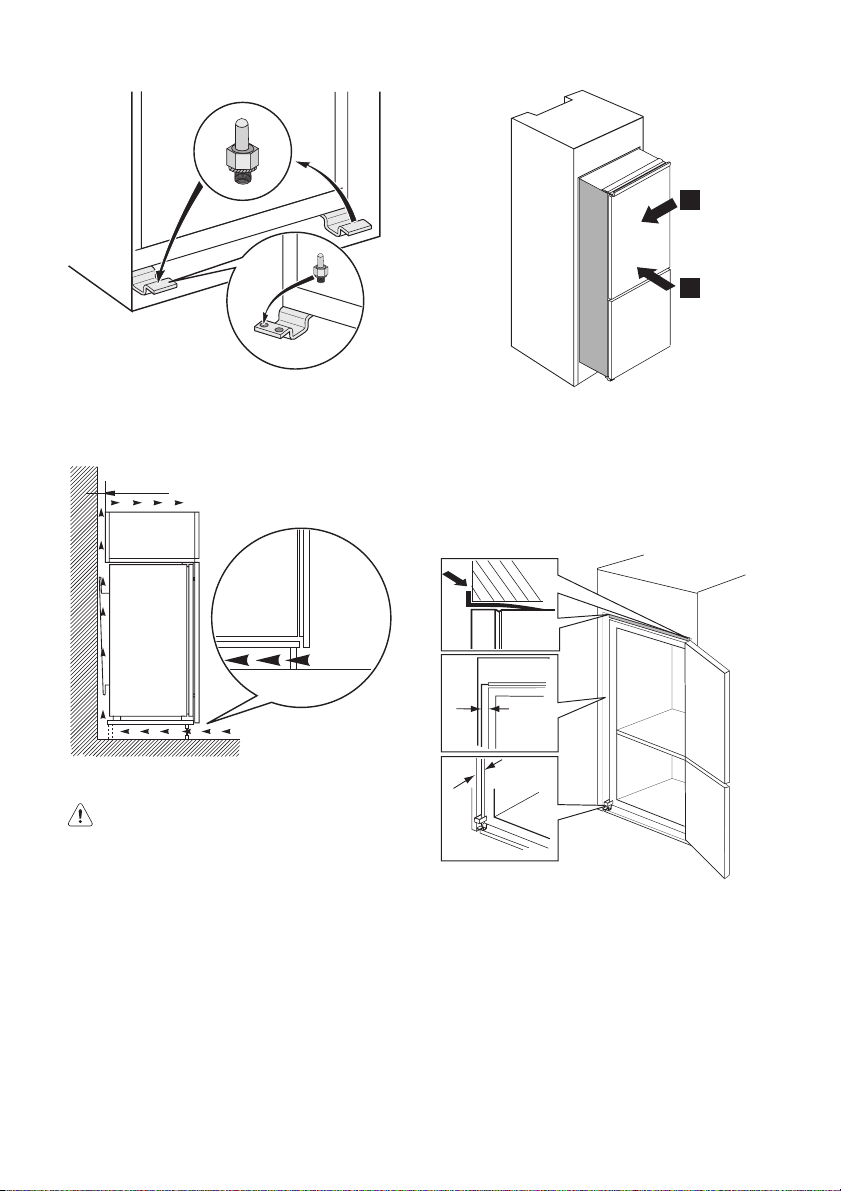

1. Install the appliance in the niche.
Push the appliance in the direction of the
arrows (1) until the upper gap cover
stops against the kitchen furniture. Make
sure that the distance between the ap­pliance and the cupboard front-edge is
44 mm.
Push the appliance in the direction of the
arrows (2) against the cupboard on the

2

4mm

44mm

3. Attach the appliance to the niche with 4
screws.

12 electrolux

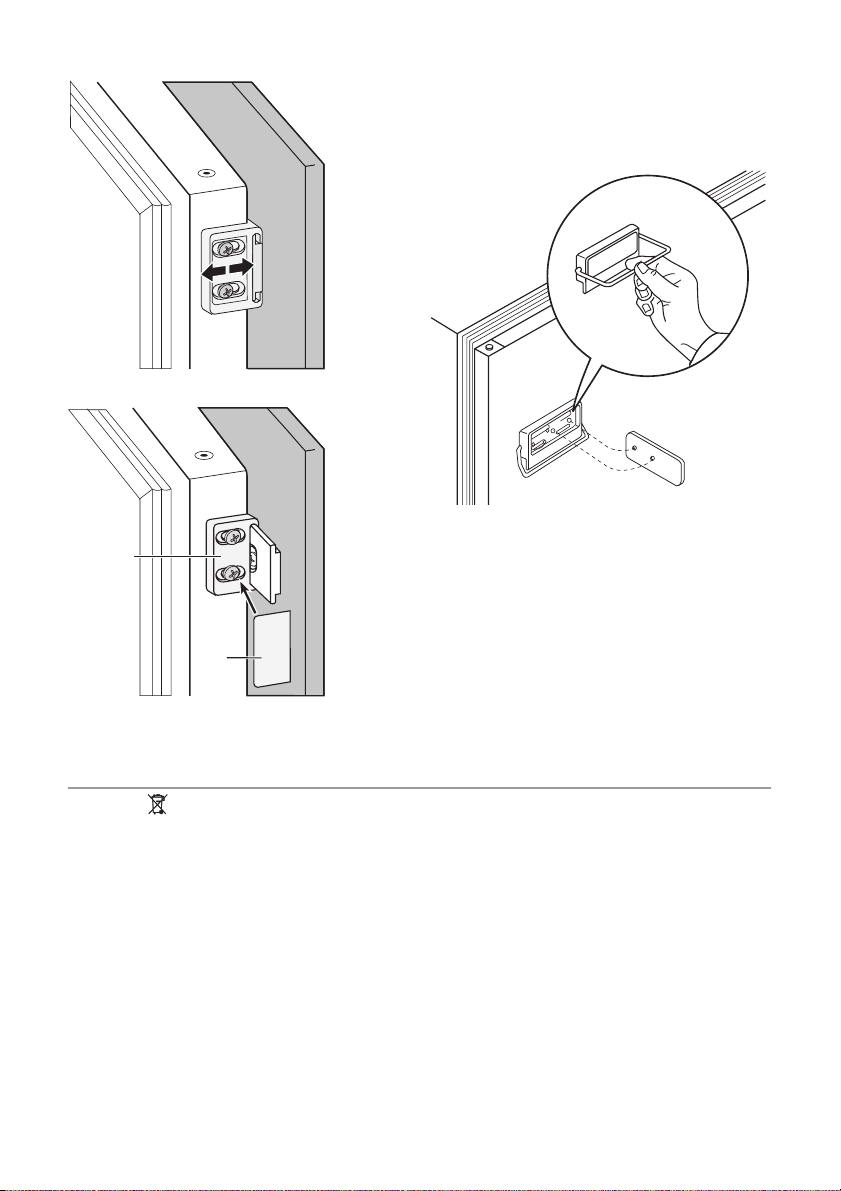

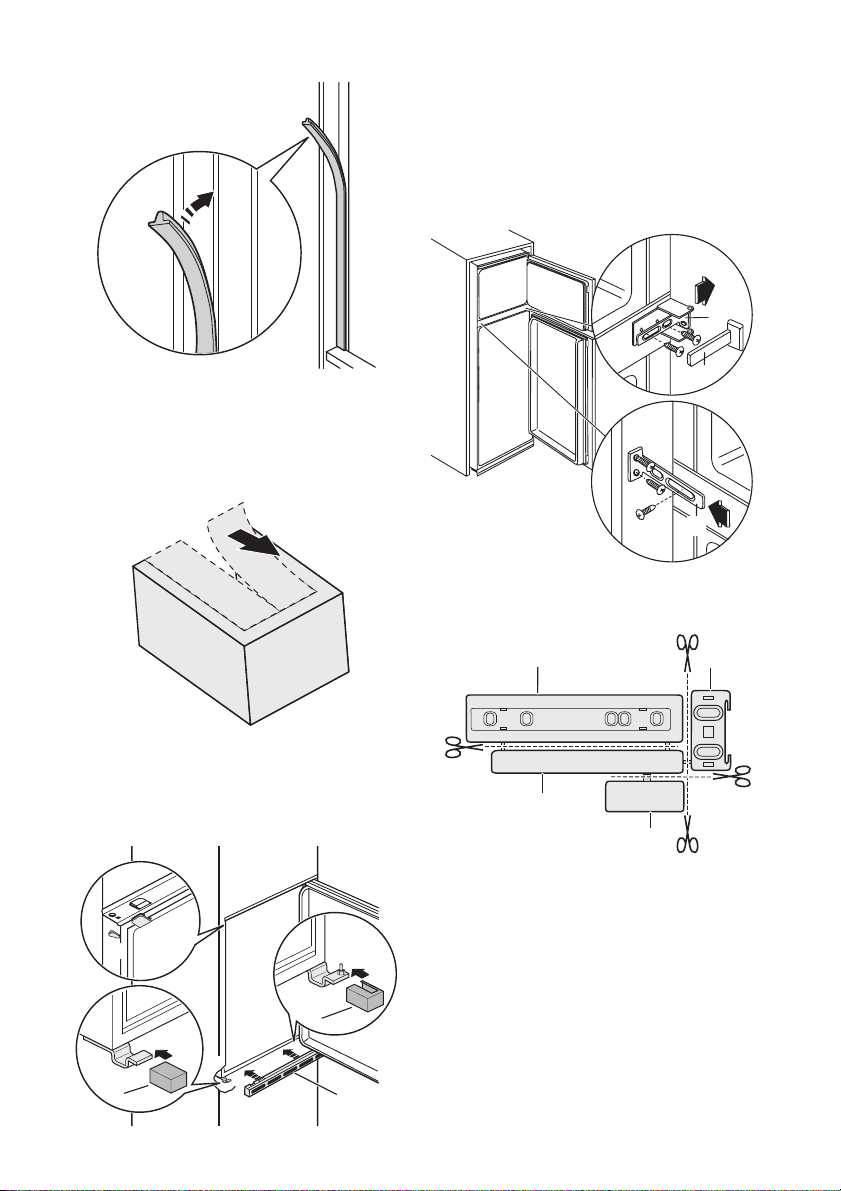

Attach the hinge covers (E) to the hinge.

I

4. Push the sealing strip between the ap­pliance and the adjacent cabinet.

5. Remove the correct part from the hinge
cover (E). Make sure to remove the part
DX, in the case of right hinge, SX in op­posite case.

C

D

E

E

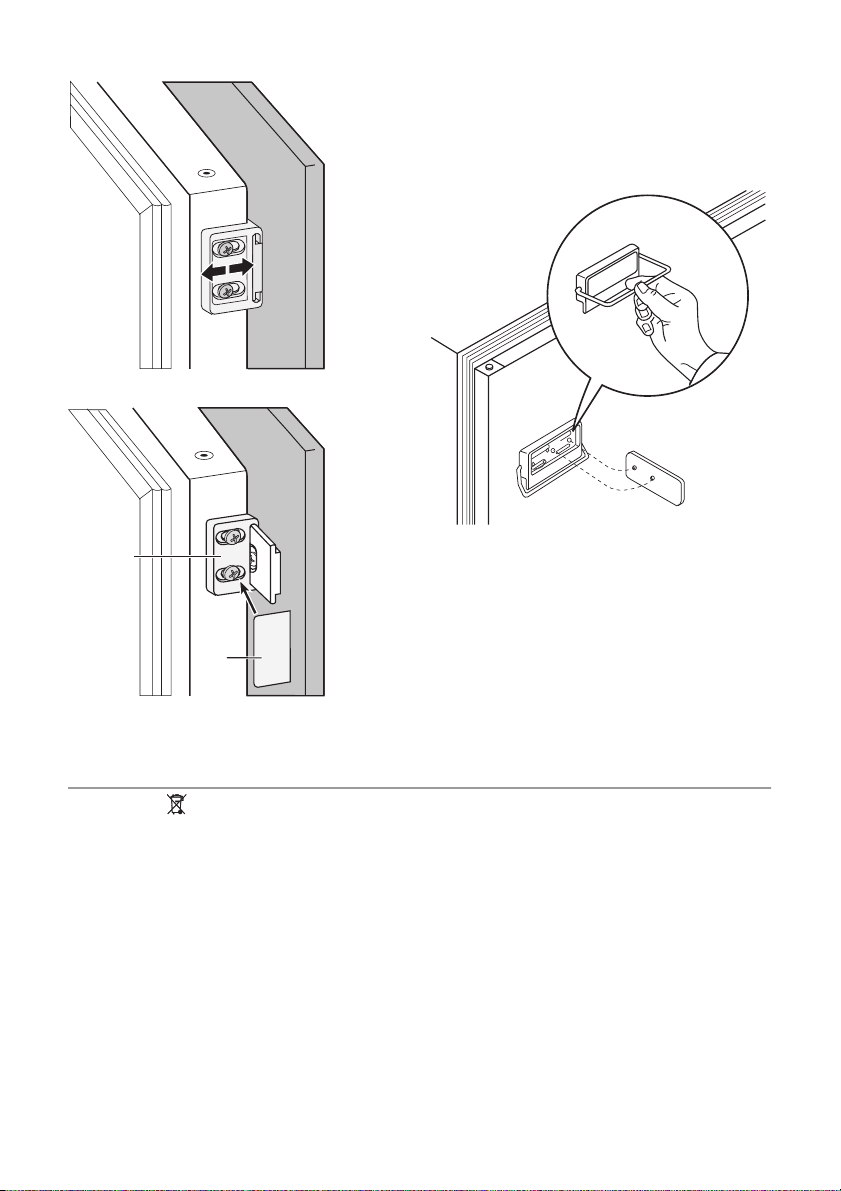

7. If the appliance must connect laterally to
the kitchen furniture door:
a) Loosen the screws of the part (G) and

move the part (G).

b) Tighten the screws of the part (G)

again.

c) Attach the part (H) to the part (G).

B

G

H

6. Attach the covers (C, D) to the lugs and
the hinge holes.
Install the vent grille (B).

G

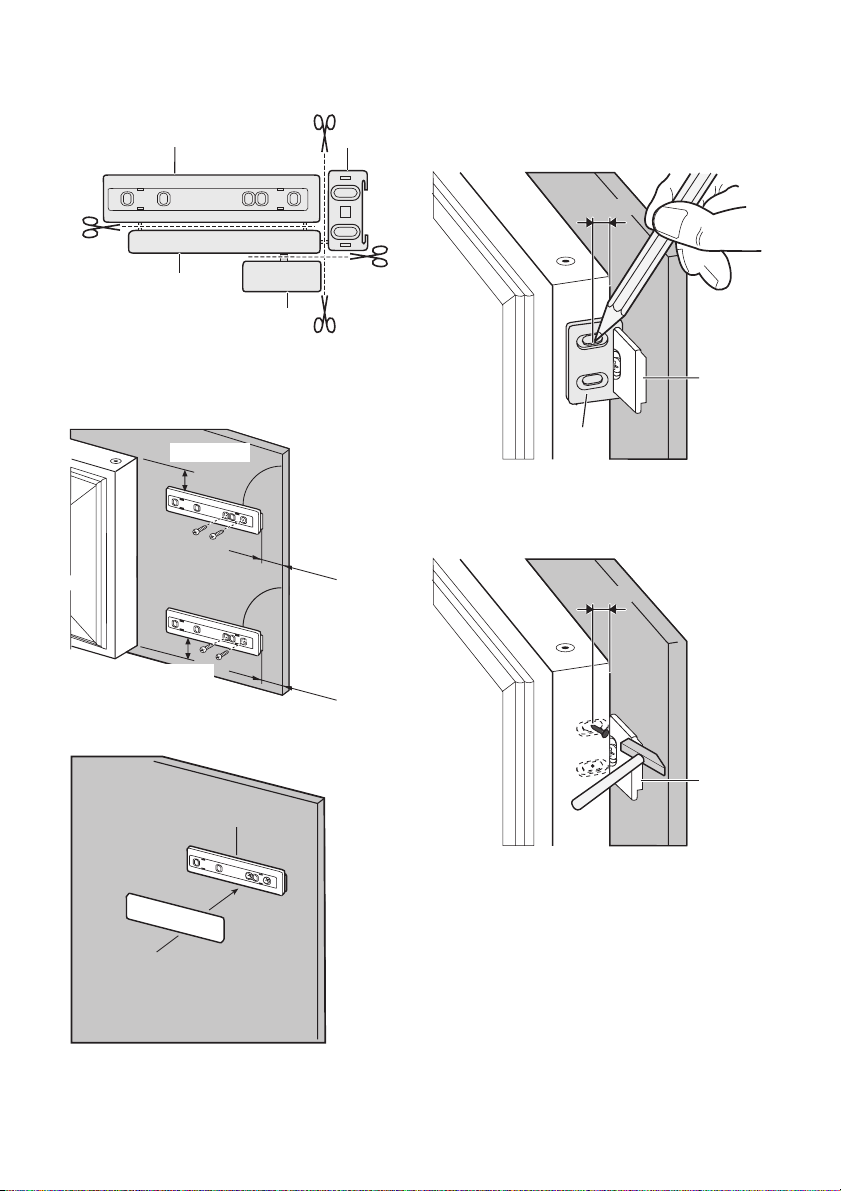

8. Disconnect the parts Ha, Hb, Hc and Hd

Ha

Hc

electrolux 13

Put together the appliance door and the
furniture door and mark the holes.

Hb

8 mm

Hd

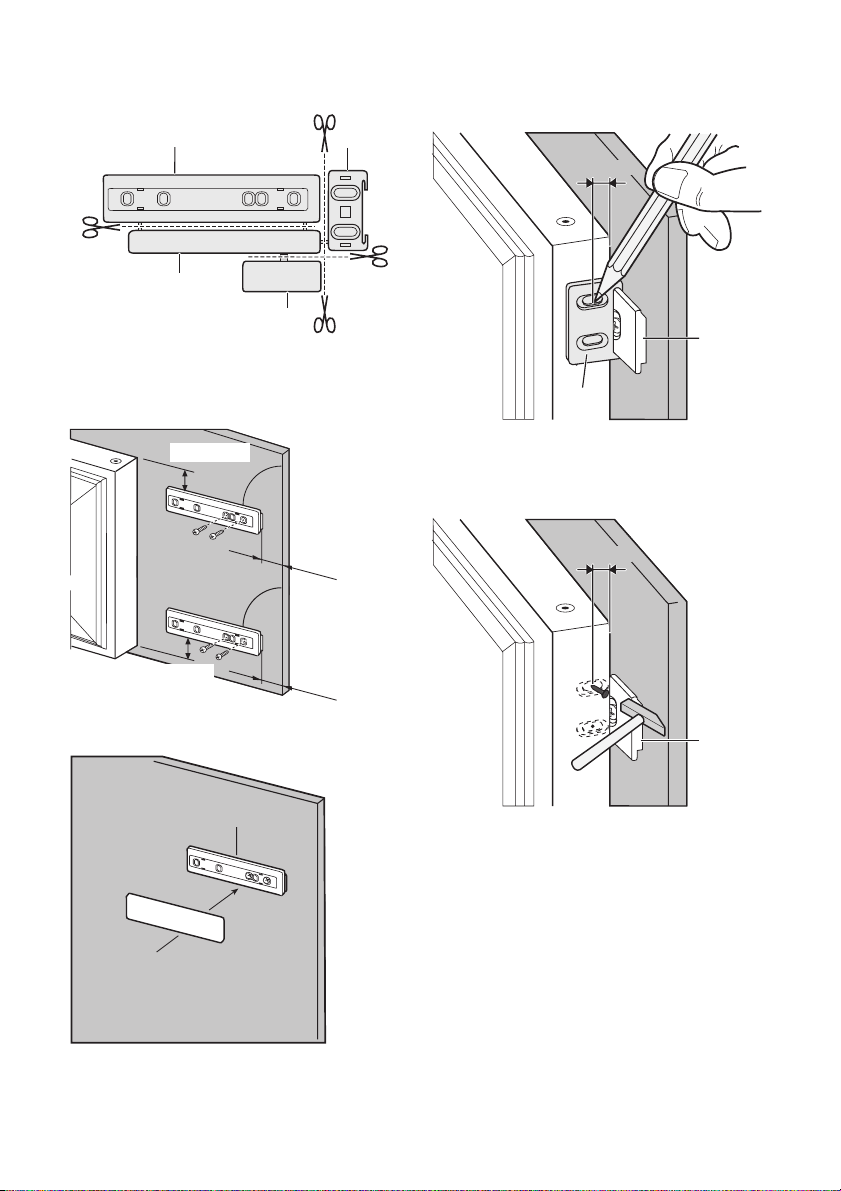

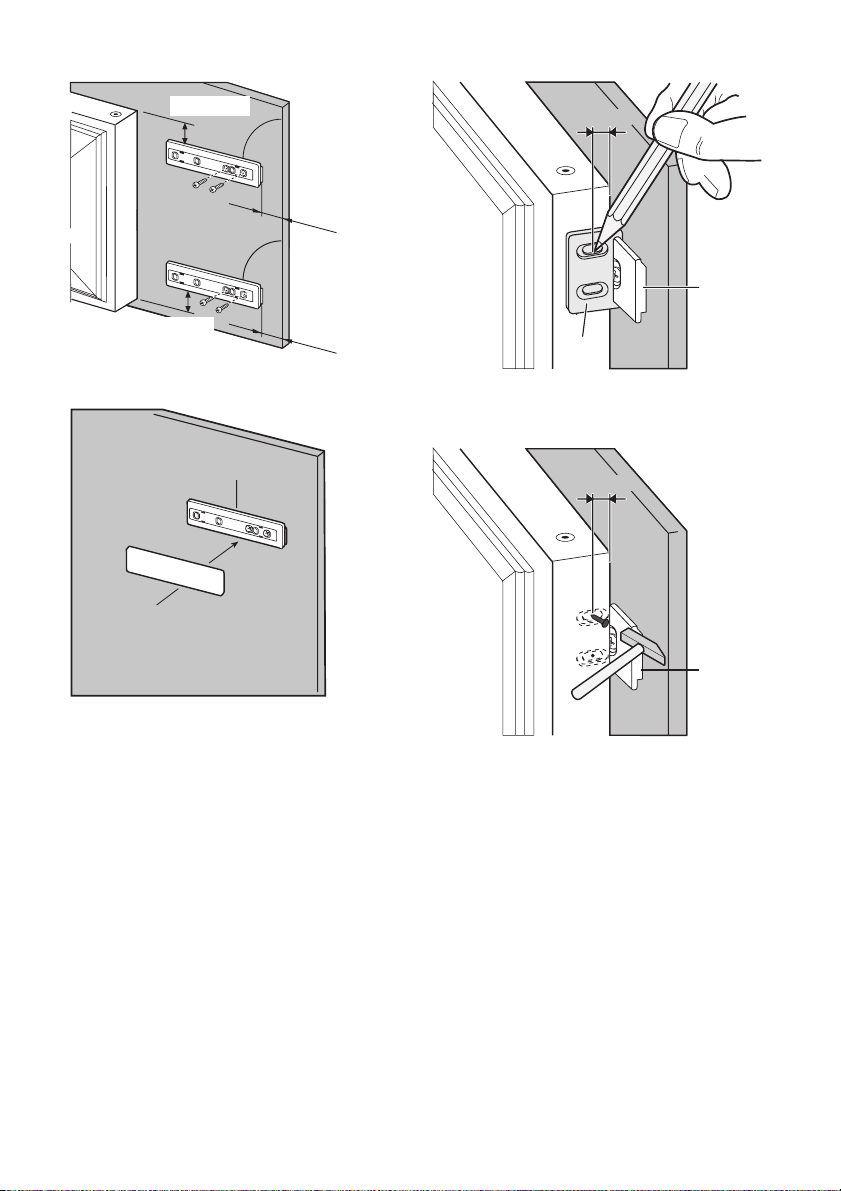

9. Install the part Ha on the inner side of the
kitchen furniture.

ca. 50 mm

90°

21 mm

90°

ca. 50 mm

10. Push the part Hc on the part Ha.

21 mm

Ha

Ha

Hb

12. Remove the brackets and mark a dis­tance of 8 mm from the outer edge of the
door where the nail must be fitted (K).

8 mm

K

Ha

13. Place the small square on the guide
again and fix it with the screws supplied.
Align the kitchen furniture door and the
appliance door by adjusting the part Hb.

Hc

11. Open the appliance door and the kitchen
furniture door at an angle of 90°.
Insert the small square (Hb) into guide
(Ha).

14 electrolux

Hb

14. Press the part Hd on the part Hb.

Use the sliding system previously illus­trated
or open one of the two doors by fitting
the small handle supplied as an acces­sory.

Hb

Hd

15. To open the doors do these steps.

Environmental concerns

The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for

Do a final check to make sure that:

• All screws are tightened.

• The magnetic sealing strip is attached
tightly to the cabinet.

Important! If the ambient temperature is low
(for example, in the Winter), the size of the
gasket decreases. The size of the gasket
increases when the ambient temperature
increases.

the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product. For more
detailed information about recycling of this
product, please contact your local council,
your household waste disposal service or the
shop where you purchased the product.

Electrolux. Thinking of you.

Per conoscere meglio il nostro modo di pensare, visitate il sito

www.electrolux.com

Indice

Informazioni per la sicurezza 15
Uso dell'apparecchio 17
Primo utilizzo 17
Utilizzo quotidiano 18
Consigli e suggerimenti utili 19

Con riserva di modifiche

Pulizia e cura 20
Cosa fare se… 21
Dati tecnici 24
Installazione 24
Considerazioni ambientali 28

Informazioni per la sicurezza

Per garantire un impiego corretto e sicuro
dell'apparecchio, prima dell'installazione e
del primo utilizzo leggere con attenzione il li­bretto istruzioni, inclusi i suggerimenti e le
avvertenze. Per evitare errori e incidenti, è
importante garantire che tutte le persone che
utilizzano l'apparecchio ne conoscano il fun­zionamento e le caratteristiche di sicurezza.
Conservare queste istruzioni e accertarsi che
rimangano unite all'apparecchio in caso di
vendita o trasloco, in modo che chiunque lo
utilizzi sia correttamente informato sull'uso e
sulle norme di sicurezza.
Per la sicurezza delle persone e delle cose
osservare le precauzioni indicate nelle pre­senti istruzioni per l'utente, il produttore non
è responsabile dei danni provocati da even­tuali omissioni.

Sicurezza dei bambini e delle persone
fragili

• Questo apparecchio non deve essere usa­to da persone, bambini inclusi, con ridotte
capacità fisiche, sensoriali o psichiche, op­pure prive di conoscenza e esperienza, a
meno che non siano state istruite all'uso
dell'apparecchio da parte dei responsabili
della loro sicurezza, oppure sotto vigilanza
di questi.
I bambini devono essere sorvegliati per as­sicurarsi che non giochino con l'apparec­chio.

• Tenere i materiali di imballaggio al di fuori
della portata dei bambini. Alcuni materiali
possono creare rischi di soffocamento.

• Qualora l'apparecchio venga demolito,
estrarre la spina dalla presa, tagliare il cavo
di collegamento (il più vicino possibile al­l'apparecchio) e smontare lo sportello per
evitare che i bambini giocando possano
subire scosse elettriche o chiudersi dentro
l'apparecchio.

• Se questo nuovo apparecchio, che è do­tato di guarnizioni magnetiche nello spor­tello, va a sostituirne uno più vecchio aven­te sportello o coperchio con chiusure a
molla, si deve rendere inutilizzabili tali chiu­sure prima di eliminare l'apparecchio so­stituito, per evitare che diventi una trappola
mortale per i bambini.

Sicurezza generale

Attenzione Assicurarsi che le aperture

di ventilazione non siano otturate.

• L'apparecchio è progettato per la conser­vazione di alimenti e bevande per il nor­male uso domestico, come spiegato nelle
presenti istruzioni per l'uso.

• Non utilizzare dispositivi meccanici o altri
mezzi artificiali per accelerare lo sbrina­mento.

• Non utilizzare altri apparecchi elettrici (per
esempio gelatiere) all'interno dei frigoriferi,
a meno che non siano approvati per que­sto scopo dal produttore.

• Non danneggiare il circuito refrigerante.

• Nel circuito refrigerante dell'apparecchio è
contenuto il refrigerante isobutano
(R600a), un gas naturale con un elevato li-

electrolux 15

16 electrolux

vello di compatibilità ambientale, che è pe­rò infiammabile.
Durante il trasporto e l'installazione del­l'apparecchio, assicurarsi che nessuno dei
componenti del circuito refrigerante venga
danneggiato.
Se il circuito refrigerante dovesse venire
danneggiato:
– evitare fiamme libere e sorgenti di ac-

censione

– ventilare la stanza in cui si trova l'appa-

recchio

• È pericoloso cambiare le specifiche o mo­dificare il prodotto in qualunque modo. Un
danneggiamento del cavo potrebbe pro­vocare cortocircuiti, incendi e/o scosse
elettriche.

Avvertenza Qualunque componente
elettrico (cavo di alimentazione, spina,
compressore) deve essere sostituito da
un tecnico certificato o da personale
d'assistenza qualificato.

1. Non collegare prolunghe al cavo di ali-

mentazione.

2. Evitare che il lato posteriore dell'appa-

recchiatura possa schiacciare o dan­neggiare la spina, causandone il surri­scaldamento e un conseguente rischio
di incendio.

3. La spina dell'apparecchiatura deve tro-

varsi in una posizione accessibile.

4. Evitare di tirare il cavo di alimentazione.

5. Se la presa elettrica non è perfetta-

mente stabile, non inserire la spina. Il
collegamento potrebbe provocare
scosse elettriche o creare un rischio di
incendio.

6. Non accendere l'apparecchiatura se

non è installato il coprilampada

5)

della

luce interna.

• Questa apparecchiatura è pesante. Pro­cedere con cautela durante gli sposta­menti.

• Evitare di estrarre o di toccare gli alimenti
riposti nel vano congelatore con le mani
bagnate o umide; il contatto potrebbe pro­vocare ustioni da freddo.

• Evitare un'esposizione prolungata dell'ap­parecchiatura alla luce solare diretta.

Uso quotidiano

• Non collocare pentole calde sulle parti in
plastica dell'apparecchio.

• Non collocare gas e liquidi infiammabili nel­l'apparecchio, perché potrebbero esplo­dere.

• Non collocare gli alimenti direttamente
contro l'uscita dell'aria nella parete poste-

6)

riore.

• Gli alimenti congelati non devono essere
ricongelati una volta scongelati.

• Riporre gli alimenti surgelati preconfezio­nati secondo le istruzioni del produttore
dell'alimento surgelato.

• Osservare rigorosamente i consigli per la
conservazione degli alimenti del produtto­re dell'apparecchio. Vedere le relative
istruzioni.

• Non collocare bevande gassate o frizzanti
nello scomparto congelatore perché crea­no pressione sul recipiente che può esplo­dere danneggiando l'apparecchio.

• I ghiaccioli possono provocare bruciature
da gelo se consumati immediatamente
dopo averli tolti dall'apparecchio.

Pulizia e cura

• Prima della manutenzione, spegnere l'ap­parecchio e staccare la spina dalla presa.

• Non pulire l'apparecchio con oggetti me­tallici.

• Non usare oggetti appuntiti per rimuovere
la brina dall'apparecchio. Usare un ra­schietto di plastica.

• Esaminare regolarmente il foro di scarico
dell'acqua di sbrinamento nel frigorifero.
Se necessario, pulirlo. Se il foro è otturato,
l'acqua si raccoglie sul fondo dell'appa­recchio.

Installazione
Importante Per il collegamento elettrico,

seguire attentamente le istruzioni dei
paragrafi corrispondenti.

• Disimballare l'apparecchio e assicurarsi
che non presenti danni. Non collegare
l'apparecchio se è danneggiato. Segnala­re immediatamente gli eventuali danni al
negozio in cui è stato acquistato. In questo
caso conservare l'imballaggio.

5) Per le apparecchiature che prevedono il coprilampada

6) Se l'apparecchio è di tipo No-Frost

electrolux 17

• Si consiglia di attendere almeno due ore
prima di collegare l'apparecchio per con­sentire all'olio di arrivare nel compressore.

• Attorno all'apparecchio vi deve essere
un'adeguata circolazione dell'aria, altri­menti si può surriscaldare. Per ottenere
una ventilazione sufficiente seguire le istru­zioni di installazione.

• Se possibile il retro dell'apparecchio do­vrebbe essere posizionato contro una pa­rete per evitare di toccare le parti calde o
di rimanervi impigliati (compressore, con­densatore), evitando così possibili scotta­ture.

• L'apparecchio non deve essere posto vi­cino a radiatori o piani di cottura a gas.

• Installare l'apparecchio in modo che la
presa rimanga accessibile.

• Per il collegamento idrico, usare solo sor­genti d'acqua potabile.

Assistenza tecnica

• Gli interventi elettrici sull'apparecchiatura
devono essere eseguiti esclusivamente da

7)

Uso dell'apparecchio

Accensione

Inserire la spina nella presa.
Ruotare il termostato in senso orario fino a
una regolazione media.

Spegnimento

Per spegnere l'apparecchio, ruotare il termo­stato in posizione "O".

Regolazione della temperatura

La temperatura è regolata automaticamente.
Per utilizzare l'apparecchio, procedere come
segue:

• ruotare il termostato verso una regolazione
bassa per un raffreddamento minimo.

• ruotare il termostato verso una regolazione
alta per un raffreddamento massimo.

Una regolazione media è in genere la più
adatta.

elettricisti qualificati o da personale com­petente.

• Gli interventi di assistenza devono essere
eseguiti esclusivamente da tecnici autoriz­zati e utilizzando solo ricambi originali.

Tutela ambientale

Questo apparecchio non contiene gas
che potrebbero danneggiare lo strato di
ozono nel circuito refrigerante o nei ma­teriali isolanti. L'apparecchio non deve
essere smaltito assieme ai rifiuti urbani e
alla spazzatura. La schiuma dell'isola­mento contiene gas infiammabili: lo
smaltimento dell'apparecchio va esegui­to secondo le prescrizioni vigenti da ri­chiedere alle autorità locali. Evitare di
danneggiare il gruppo refrigerante, spe­cialmente nella parte posteriore vicino
allo scambiatore di calore. I materiali
usati su questo apparecchio contrasse-

gnati dal simbolo

Tuttavia la regolazione esatta dovrebbe es­sere scelta tenendo a mente che la tempe­ratura all'interno dell'apparecchio dipende
da:

• temperatura ambiente

• frequenza di apertura della porta

• quantità di cibo conservato

• posizione dell'apparecchio.

Importante Se la temperatura ambiente è
elevata o l'apparecchio è a pieno carico ed è
regolato su temperature minime, può
funzionare in continuo causando la
formazione di brina sulla parete posteriore. In
questo caso la manopola deve essere
regolata su una temperatura per consentire
lo sbrinamento automatico riducendo così il
consumo di energia.

sono riciclabili.

Primo utilizzo

Pulizia dell'interno

Prima di utilizzare l'apparecchio per la prima
volta, lavare l'interno e gli accessori interni

7) Per gli apparecchi che prevedono un collegamento alla rete idrica

con acqua tiepida e un po' di sapone neutro
in modo a togliere il tipico odore dei prodotti
nuovi, quindi asciugare accuratamente.

18 electrolux

Importante Non usare detergenti corrosivi o

polveri abrasive che danneggiano le finiture.

Utilizzo quotidiano

Congelazione dei cibi freschi

Il vano congelatore è adatto alla congelazio­ne di cibi freschi e alla conservazione a lungo
termine di cibi congelati e surgelati.
Per congelare cibi freschi non è necessario
cambiare la regolazione media.
Tuttavia, per un'operazione di congelamento
più rapida, ruotare il termostato verso una
regolazione più alta per ottenere il massimo
raffreddamento.

Importante In questa condizione la
temperatura del vano frigorifero può
scendere sotto 0°C. In questo caso riportare
il termostato verso una regolazione più calda.

Conservazione dei surgelati

Al primo avvio o dopo un periodo di non uti­lizzo, lasciare in funzione l'apparecchiatura
per almeno 2 ore con una regolazione alta
prima di introdurre gli alimenti.

Importante Se si verifica un'interruzione
della corrente elettrica di durata superiore al
"tempo di salita" indicato nella tabella dei dati
tecnici, il cibo scongelato deve essere
consumato rapidamente o cucinato
immediatamente e quindi ricongelato (dopo
il raffreddamento).

Scongelamento

Prima dell'utilizzo, i cibi surgelati o congelati
possono essere scongelati nel vano frigori­fero o a temperatura ambiente, in funzione
del tempo disponibile per questa operazione.
I pezzi piccoli possono addirittura essere cu­cinati ancora congelati, direttamente dal
congelatore: in questo caso la cottura durerà
più a lungo.

Importante questa apparecchiatura viene
venduta in Francia.
Per rispettare la normativa vigente in questo
paese, essa deve essere dotata di un parti­colare dispositivo, posto nella parte bassa
della cella frigo (vedi figura) per segnalare la
zona piu' fredda del vano.

Ripiani mobili

Le pareti del frigorifero sono equipaggiate
con una serie di guide che permettono di
collocare i ripiani nella posizione desiderata.
Per un migliore sfruttamento dello spazio, i
semiripiani anteriori possono essere collocati
sopra a quelli posteriori.

Posizionamento dei ripiani della porta

Per consentire di riporre pacchetti di cibo di
varie dimensioni, i ripiani della porta possono
essere collocati ad altezze diverse.
Per tali regolazioni, procedere come segue:
tirare gradualmente il ripiano nella direzione
delle frecce fino a liberarlo, quindi riposizio­narlo come desiderato.
