Electrolux ERB 8441 User Manual

A/E/23-1. (05.)200370291

REFRIGERATOR- FREEZER COMBINATION

INSTRUCTION BOOK

ERB 8441

This instruction book contains safety precautions, information on use and helpful hints and tips.

To ensure you use this appliance effectively and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference.

The symbols below help you to find things more easily:

Safety precautions

Warnings and Safety information

Hints, useful information

Environmental information

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments of the appliance.

During Use

This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use. Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the appliance. Frozen food should not be refrozen once it has thawed out. Do not place carbonated or fizzy drinks in the freezer compartment. Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer. Do not remove items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. Bottles and cans must not be placed in the freezer compartment they can burst when the contents freeze. Manufacturers' recommended storage times should be adhered to. Refer to relevant instructions.

Maintenance and Cleaning

Before cleaning, always switch off the appliance and disconnect from the electrical supply. When unplugging always pull the plug from the mains socket, do not pull on the cable.

Servicing

This product should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the end of the Appliance Life

When disposing of your appliance use an authorised disposal site. Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

The Appliance and the Environment

This appliance does not contain gases which could damage the ozone layer. Avoid damaging the cooling unit. The packaging used on this appliance marked with the symbol is recyclable.

Keep this instruction book for future reference and ensure it is passed on to any new owner.

IMPOR

IMPORTT

ANT S

AFET

Y INS

UCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Prior to installation

Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.

Installation

This appliance is heavy. Care should be taken when moving it. It is dangerous to alter the specifications or attempt to modify this product in any way. Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from your local Service Force Centre.

Make sure that the power plug has not been squashed or damaged during transit.

- A damaged power plug may overheat and cause a fire.

As you unpack the appliance, check carefully for any signs of transit damage.

Do not place heavy articles or the fridge/freezer itself on the power cord.

- There is a risk of a short circuit and fire.

Do not remove the power cord by pulling on its lead, particularly when the fridge/freezer is being pulled out of its niche.

- Damage to the cord may cause a short-circuit, fire and/or electric shock.

- If the power cord is damaged, it must be replaced by a certified service agent or qualified service personnel.

If the power plug socket is loose, do not insert the power plug.

- There is a risk of electric shock or fire.

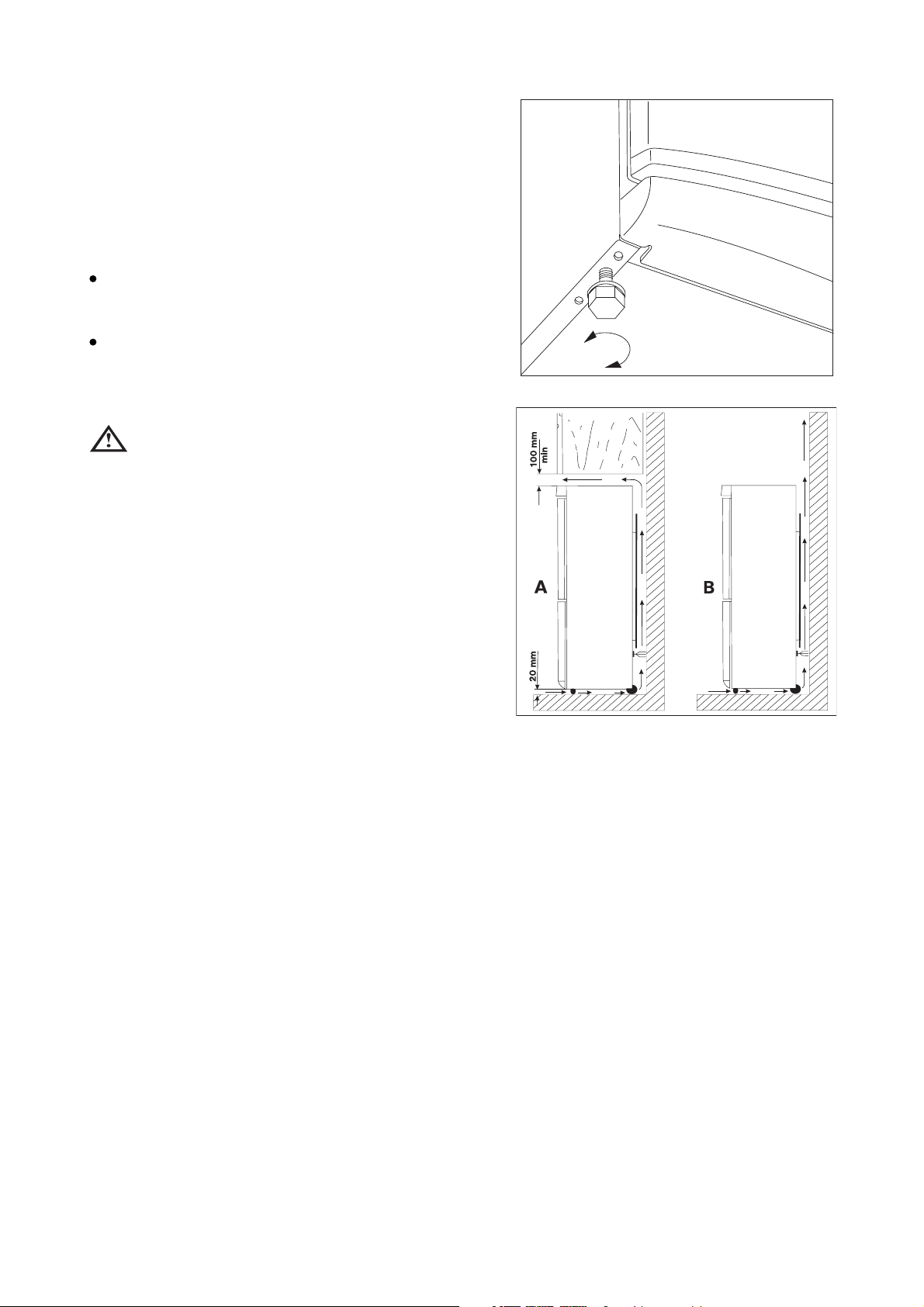

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions. The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

Do not allow children to tamper with the controls or play with the product. Keep packaging materials away from children, to prevent the risk of suffocation!

Safety precautions for isobutane Warning

The refrigerant isobutane (R 600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

CCONTENT

ONTENTSS

Instructions for the User

Important Safety Instructions 3

General Information 5 Description of the appliance, main parts 5 Switch and indicator set 6

Handling the appliance 6

Putting in into use 6 Controlling the temperature, setting 6 How to use refrigerator 7 Storing in the refrigerator 7

Storage time and temoerature of foods 7 How to the the freezer 8

Freezing 8 Storing in the freezer 8 How to make ice cubes 8

Some useful information and advice 8

Hints and ideas 8

How to save energy 8 The appliance and environment 9

Maintenance 9

Defrosting 9 Regular cleaning 11 When the refrigerator is not in use 11

Trouble shooting 11

How to change the bulb 11 If something does not work 11

Something Not Working 12

Service and Spare Parts 13

Customer Care Department 13

Guarantee Conditions 14

Instructions for the Installer

Technical Data 15

Installing the Appliance 15

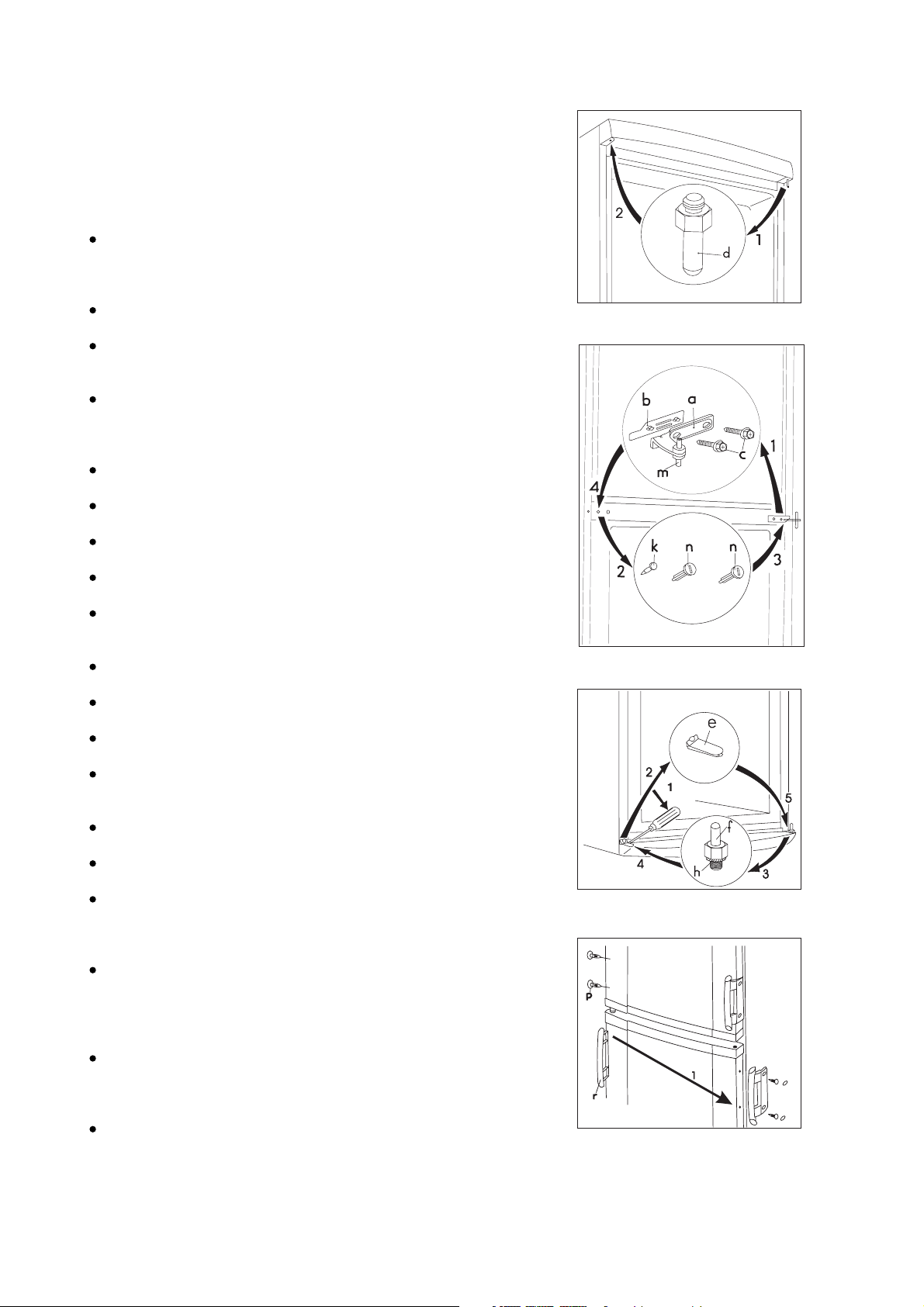

Transportation, Unpacking 15 Cleaning 15 Placement 15 Change of door opening direction 17

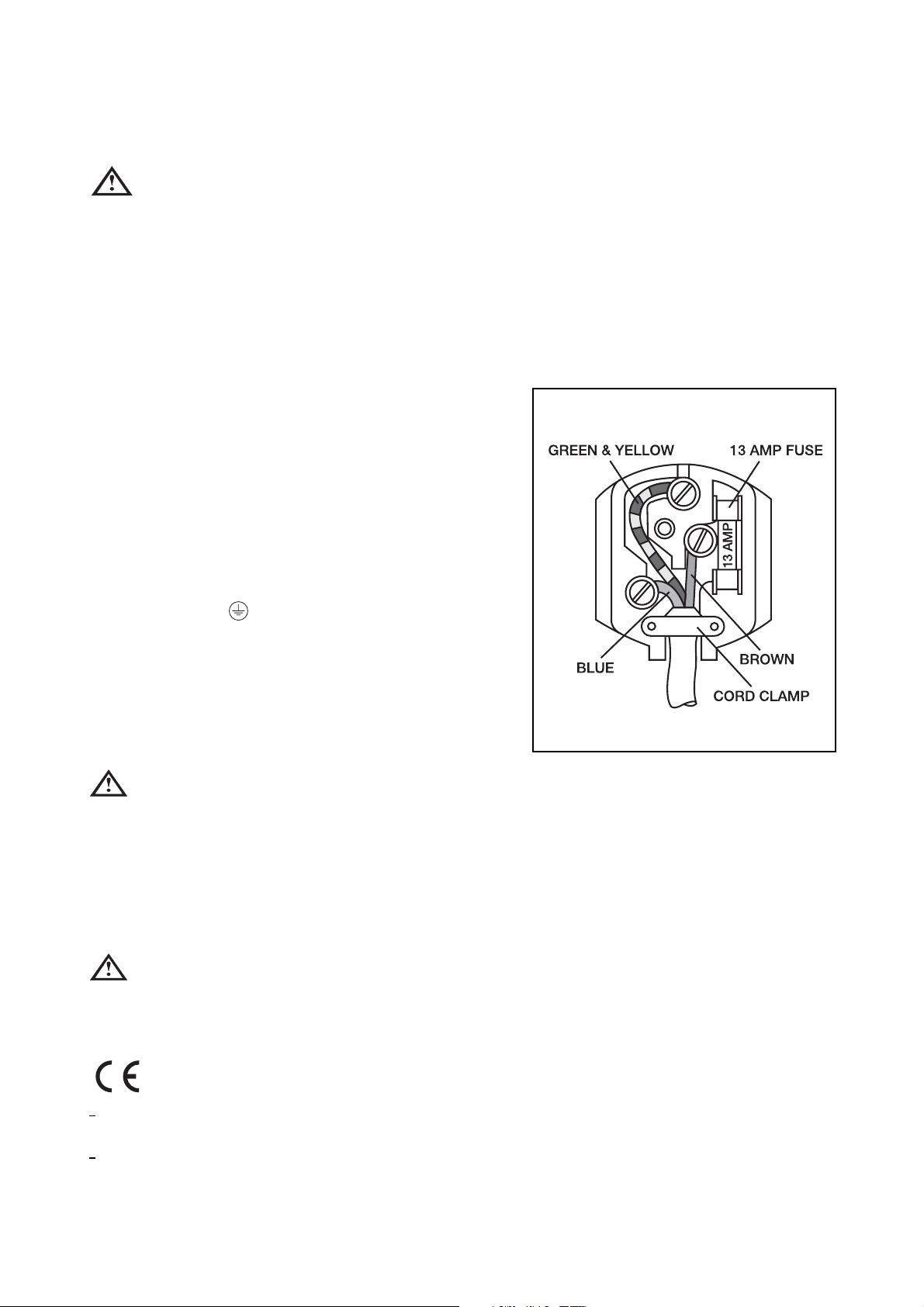

Electrical Connections 18

Storage Chart 19

INS

UCTIONS F

OR THE USER

General information

This appliance is designed for the storage of refrigerated and frozen food in a domestic environment.

To ensure correct operation, the appliance should be located where the ambient temperature is between 10-32 °C.

Description of the appliance, main parts

14. Adjustable feet

15. Butter compartment lid

16. Egg tray

17. Door shelf

18. Door gasket

19. Bottle shelf

20. Handles

21. Ice tray

22. Condenser

23. Defrost water outlet tube

24. Spacer

25. Evaporator tray

26. Compressor

27. Rollers

A - Refrigerator B - Freezer

1. Top with indicating switch

2. Lighting box

3. Glass shelves

4. Bottle rack

5. Cooling surface

6. Defrost water drain

7. Glass shelf

8. Vegetable boxes

9. Data label

10. Freezing compartment

11. Storing compartment(s)

12. Defrost water outlet

13. Bottom plinth

Handling the appliance

Switch and indicator set

The following component can be found under a cover in the top frame:

A. Thermostat knob of the appliance

It is for setting the temperature in the appliance.

Putting it into use

Place the accessories into the appliance then plug to the mains socket.

The thermostat knob is under a cover in the top frame.You can switch the appliance on and set the temperature with it by turning the knob clockwise.

The next paragraph will give instructions for setting.

Controlling the temperature, setting

The thermostat interrupts the operation of the appliance automatically for more or less time depending on the setting then restarts it assuring the required temperature.

The closer it is set to „Max.” position the more intensive the refrigerating will be. When the thermostat knob is set to „Medium” position (between „Min.” and „Max.”), in the freezing compartment -18 °C, in the fresh food compartment +5 °C can be reached. Setting it to „Medium” position is adequate for everyday use.

The temperature coming about in the refrigerator is effected by not only the position of the thermostat but the ambient temperature, frequency of door openings and the quantity of food put into it newly, etc.

In the maximum „Max.” position - in case of

increased demand e.g. during heatwaves - the compressor may operate continually. This does not cause damages to the appliance.
