Electrolux ERB3225 User Manual

f r i dge - freezer

INSTRUCTION BOOK

2223 374-81

ERB 3225 X

IMPORTANT SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety.You MUST read it carefully before installing or using the appliance.

Installation

• This appliance is heavy. Care should be taken when moving it.

• It is dangerous to alter the specifications or attempt to modify this product in any way.

• Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Important: if the supply cable is damaged, it must be replaced by a special cable available from the manufacturer or its service agent.

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

• Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.

• The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

• Do not allow children to tamper with the controls or play with the product.

• Keep all packaging well away from children.

General Safety

• Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• The appliance must not be located close to radiators or boilers.

• Avoid prolonged exposure of the appliance to direct sunlight.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

During Use

• This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs only.

• Frozen food must NOT be re-frozen once it has thawed out.

• Do not place carbonated or fizzy drinks in the freezer.

• Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

• Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.

• Manufacturers’ storage recommendations should be strictly adhered to. Refer to relevant instructions.

• The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this will cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost Instructions.

Maintenance and Cleaning

• Switch off and unplug the appliance before carrying out any cleaning or maintenance work.

Servicing

• This product should be serviced by an authorised engineer and only genuine spare parts should be used.

• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Electrolux Service Force Centre and always insist on genuine spare parts.

At the end of the Appliance Life

• When disposing of your appliance, use an authorised disposal site.

• Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

CONTENTS

Instructions for the User

Important Safety Information

Operation

Before use 4

Control panel 4

Starting your appliance 4

Temperature control 4

Ambient Temperature Switch 4

The freezer compartment 4

Freezing fresh food 4

Frozen food storage 5

Thawing 5

Making ice cubes 5

Cold accumulators 5

Fresh food refrigeration 5

Movable shelves 6

Positioning the door shelves 6

Humidity control 6

Hints and Tips

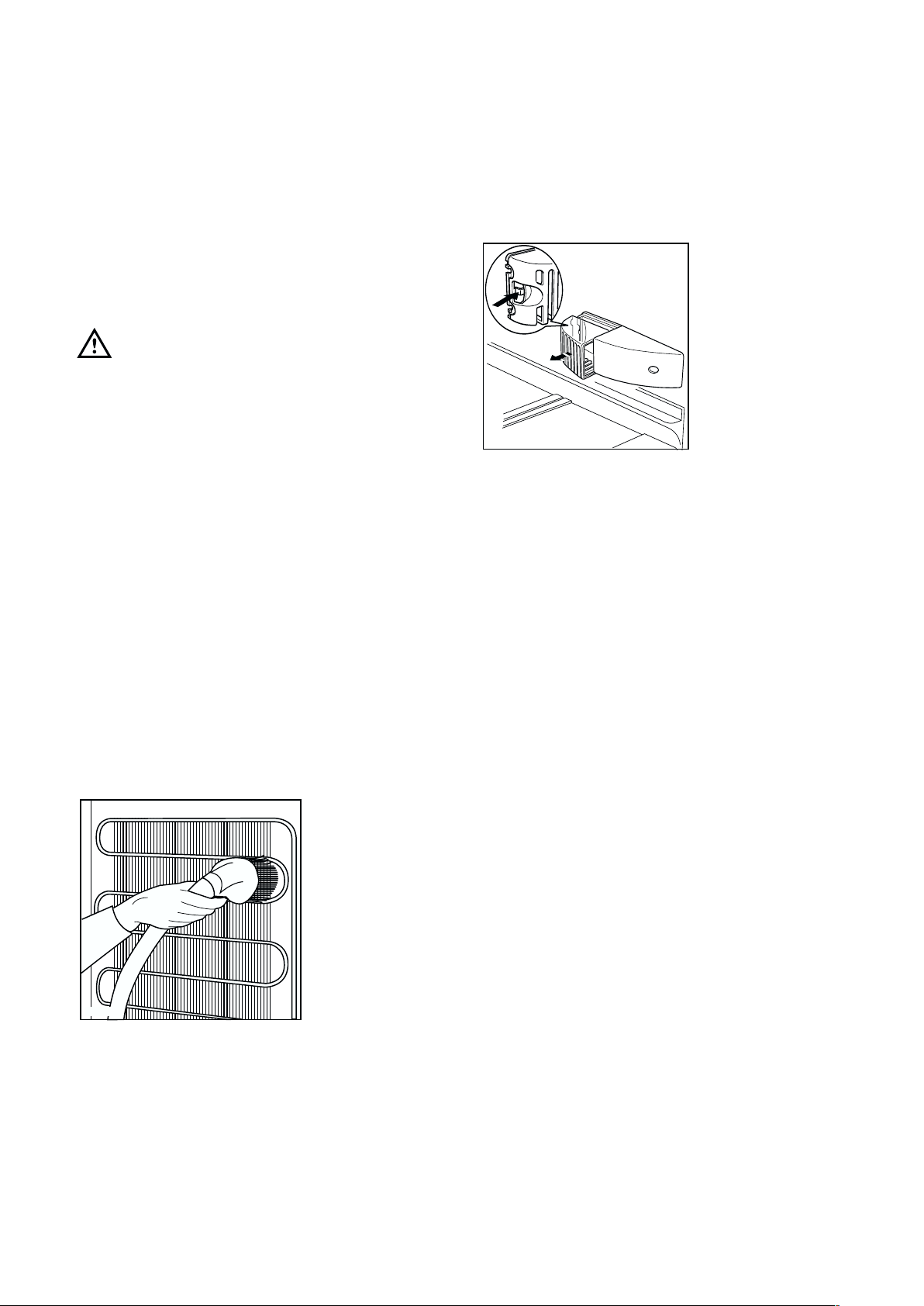

Maintenance and Cleaning

Internal cleaning 8

External cleaning 8

When the appliance is not in use 8

Changing the light bulb 8

Defrosting 9

Something Not Working

Service and Spare Parts

Customer Care

Guarantee Conditions

Instructions for the Installer

Technical Specification

Installation

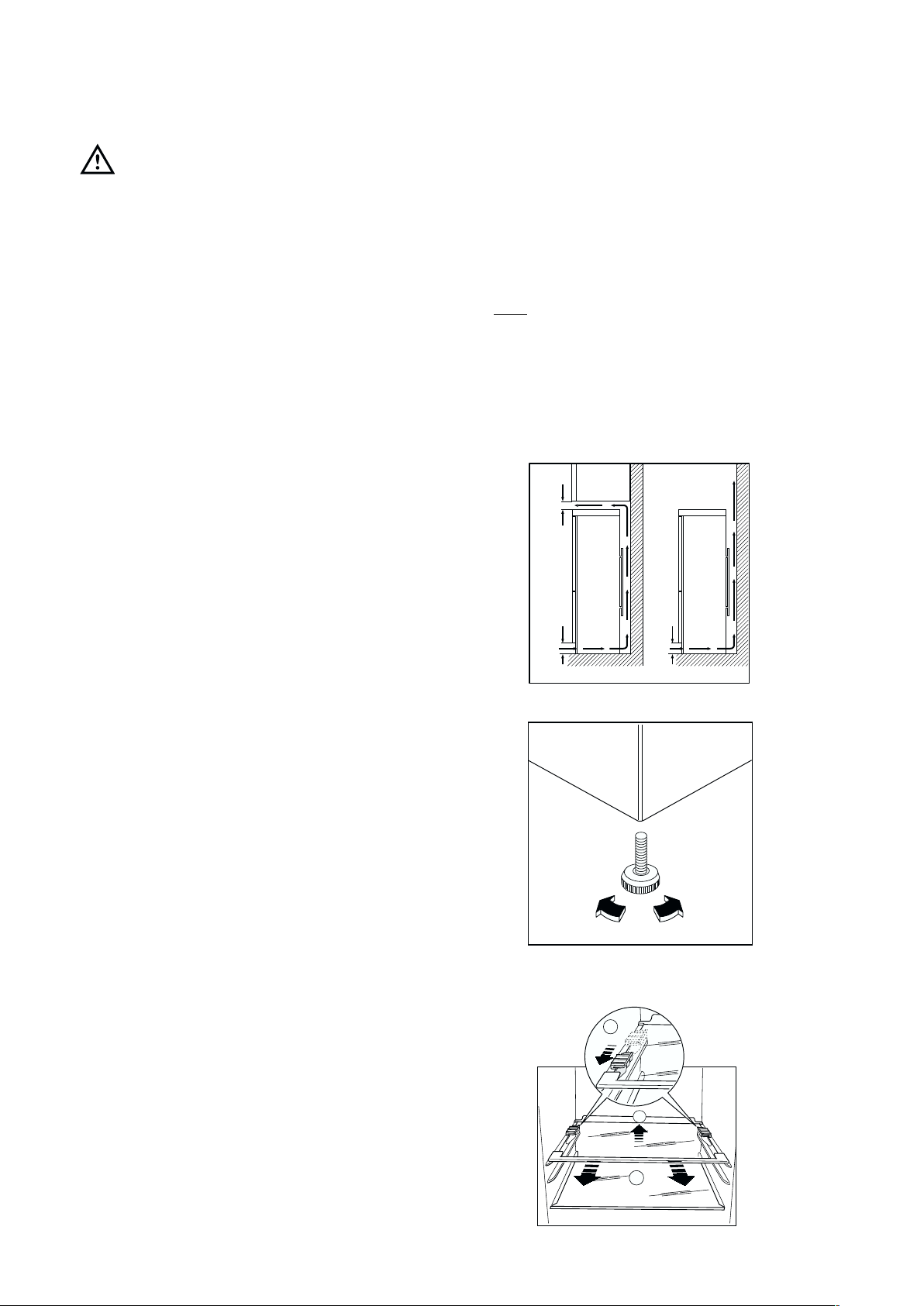

Positioning 14

Shelf holders 14

Electrical Connection

Rear Spacers 16

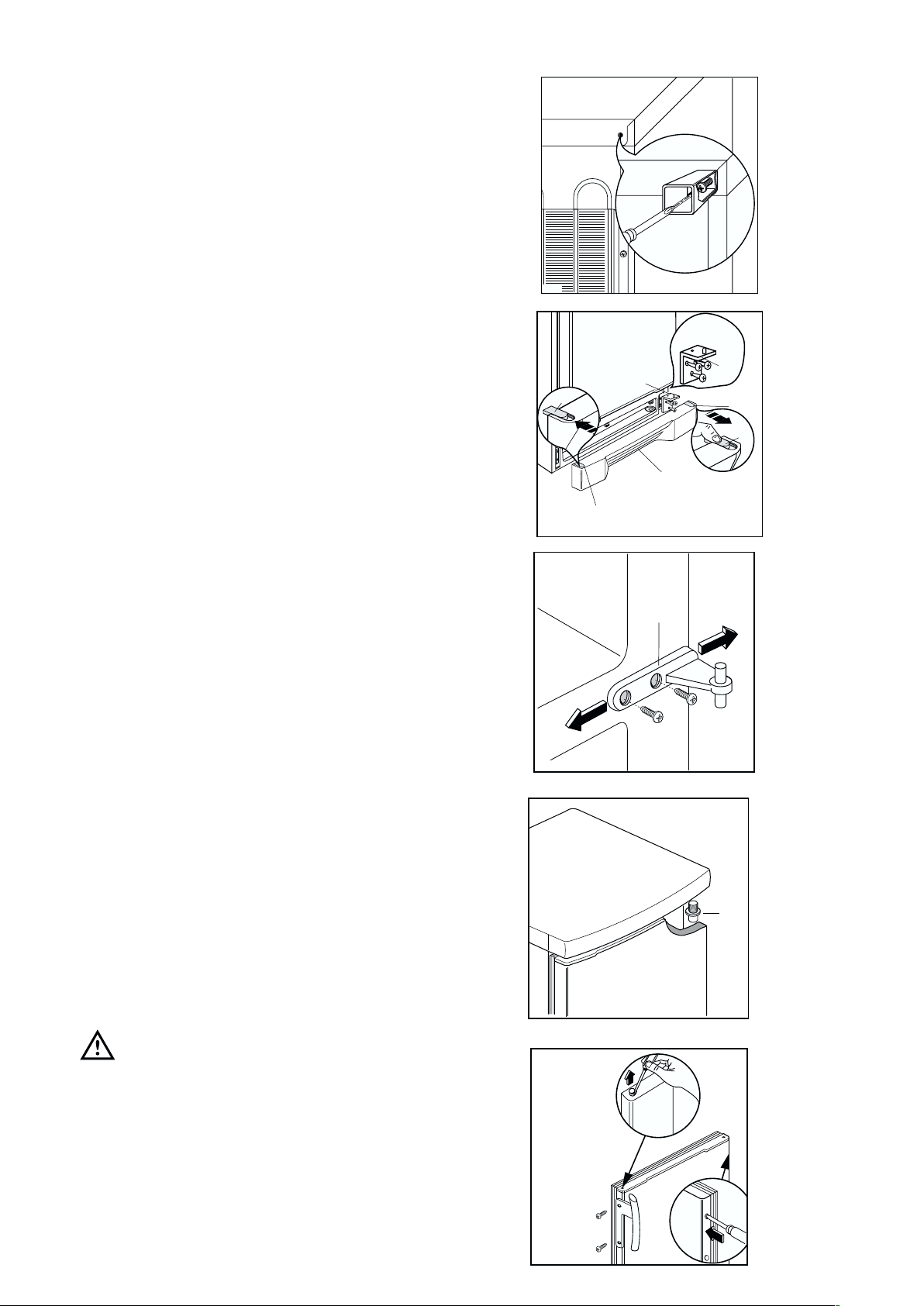

Door Reversal

OPERATION

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Temperature control

The temperature within the appliance is controlled by the thermostat control knob situated at the top of the cabinet.

To operate the appliance proceed as follows:

Turn the thermostat control knob beyond the «

■»

position.

When you first start the appliance, we suggest that you turn the thermostat control knob to a medium setting, although the temperature will be affected by:

- Room temperature

- How often the door is opened

- How much food is stored

- Position of the appliance

In determining the correct temperature control setting all these factors have to be considered and some experimentation may be necessary.

When altering the temperature setting, allow 24 hours for the temperature to stablise before making further changes

To obtain a lower temperature, turn the thermostat control knob towards max; to obtain a higher temperature turn the control knob towards min. For easier turning of this control knob, use a small coin.

The freezer compartment

The four-star freezer compartment is suitable for storage of commercially frozen food and for freezing fresh foods.

Freezing fresh food

It is not necessary to adjust the thermostat setting when freezing fresh food.

In any 24 hours you can freeze up to 9 kg.

Place food to be frozen in the upper drawer of the freezer as this is the coldest part.

Important

In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen .

Control panel

A. Pilot light for ambient temperature switch

B. Ambient temperature switch

C. Operating pilot light

D. Thermostat control knob

Starting your appliance

Insert the plug into the wall socket.

The thermostat control knob (D) will pre-set and the operating pilot light (C) will illuminate.

If the Thermostat control knob is in the OFF (

■)

position, use a coin to turn the switch to a medium setting and the operating pilot light will illuminate.

Low Room Temperature Switch

With a room temperature below + 16°C the refrigerator compartment may not function correctly.

If the room temperature is lower than + 16°C it will be necessary to press switch (B).

The relevant pilot light (A) comes on.

Do not use soap or detergent as the smell may linger. Dry thoroughly.

N-S

Making ice cubes

The appliance is provided with one or more trays for ice-cubes trays.

Fill the tray(s) 3/4 full to give the ice space to expand and place them in the freezer compartment.

To release the ice cubes simply give the tray a slight twist.

Do not use sharp or metallic instruments to remove the trays from the freezer.

Thawing

Frozen food, prior to being used, can be thawed in the fridge or at room temperature depending on the time available. Small food items may even be cooked from frozen; in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Meat, fish and fruit should be thawed in the refrigerator compartment and small pieces of meat can even be cooked while still frozen, but you must ensure that it is thoroughly cooked through.

Vegetables should be directly immersed in boiling water; ready-cooked dishes can be placed directly in the oven in their aluminium wrapping.

A microwave oven is particularly suitable for thawing any type of frozen or deep-frozen food: follow the oven instructions, particularly regarding the placement of aluminium wrapping or containers in the oven.

Defrosted cooked food must never be refrozen.

Frozen food storage

When first starting-up or after a period of use, before putting the products in the compartment let the appliance run for at least two hours on the coldest setting, then turn the thermostat knob to the normal opertion position.

Do not exceed the storage period indicated by the manufacturer.

Finally, do not open the door frequently or leave it open longer than is absolutely necessary.

Warning

Do not put carbonated liquids, (fizzy drinks etc.), in the freezer compartment.

Ice lollies, if consumed immediately after removal from the freezer, can cause low temperature skin burns.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or “frost/freezer burns”.

Important

Fresh food refrigeration

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.

Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & wild fowl): wrap in polythene bags and place on top of the salad crispers.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crispers.

Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Cold accumulators

The freezer contains two cold accumulators which can be found in one of the freezer drawers. Place the cold accumulators in the FAST FREEZE compartment. The cold accumulators increase storage times in the event of a power cut or breakdown.

Removal of these units will increase the capacity of the fast freezing compartment but will reduce storage times in the event of a power cut or breakdown.

Movable shelves

The walls of the refrigerator have runners so that shelves can be positioned as desired.

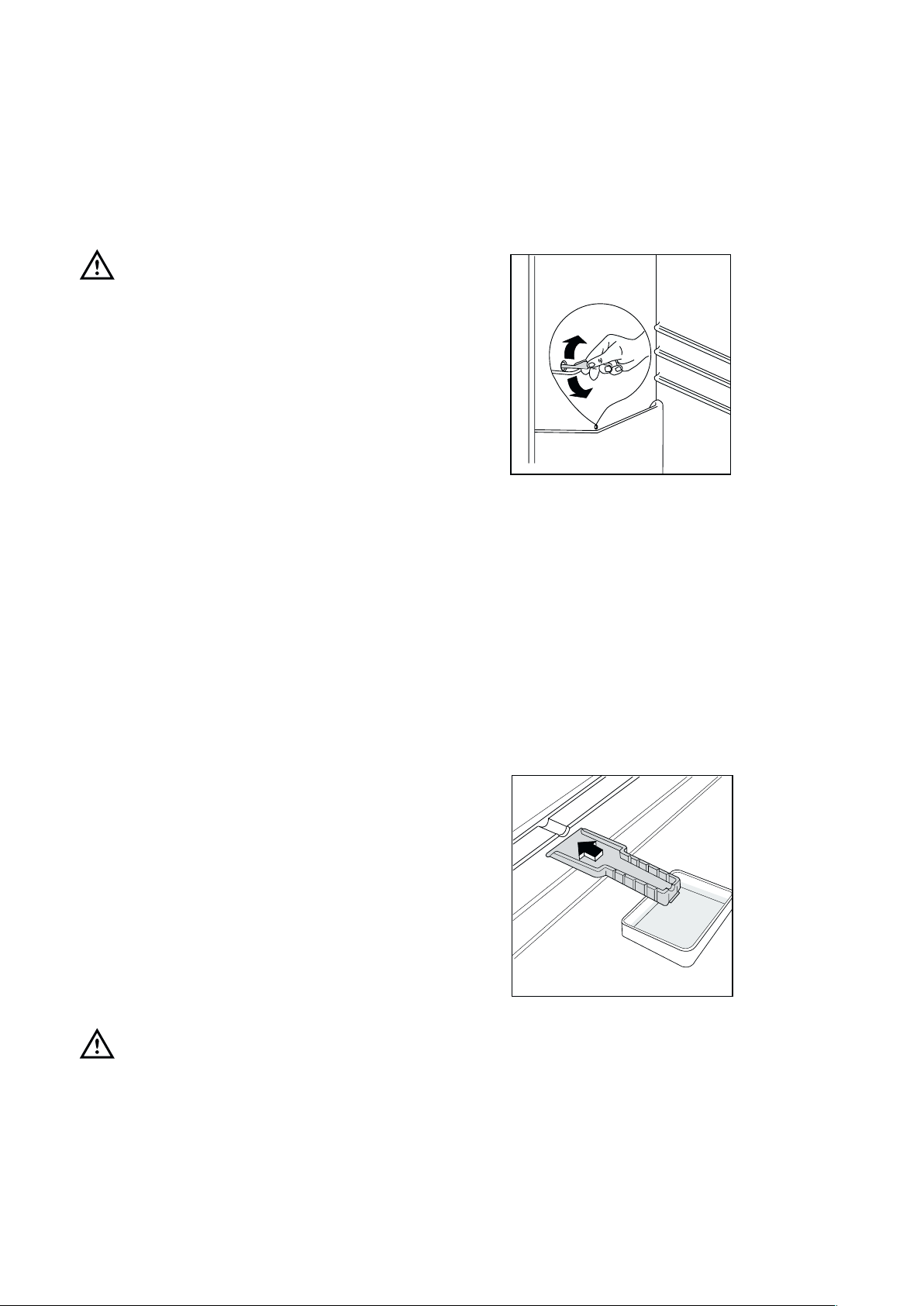

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be adjusted in height.

To do this proceed as shown in the diagram.

Humidity control

The glass shelf incorporates a device with slits (adjustable by means of a sliding lever), which makes it possible to regulate the temperature in the vegetable drawer(s).

Close the slots to obtain a warmer temperature and greater humidity.

Open the slots to obtain a cooler temperature and less humidity.

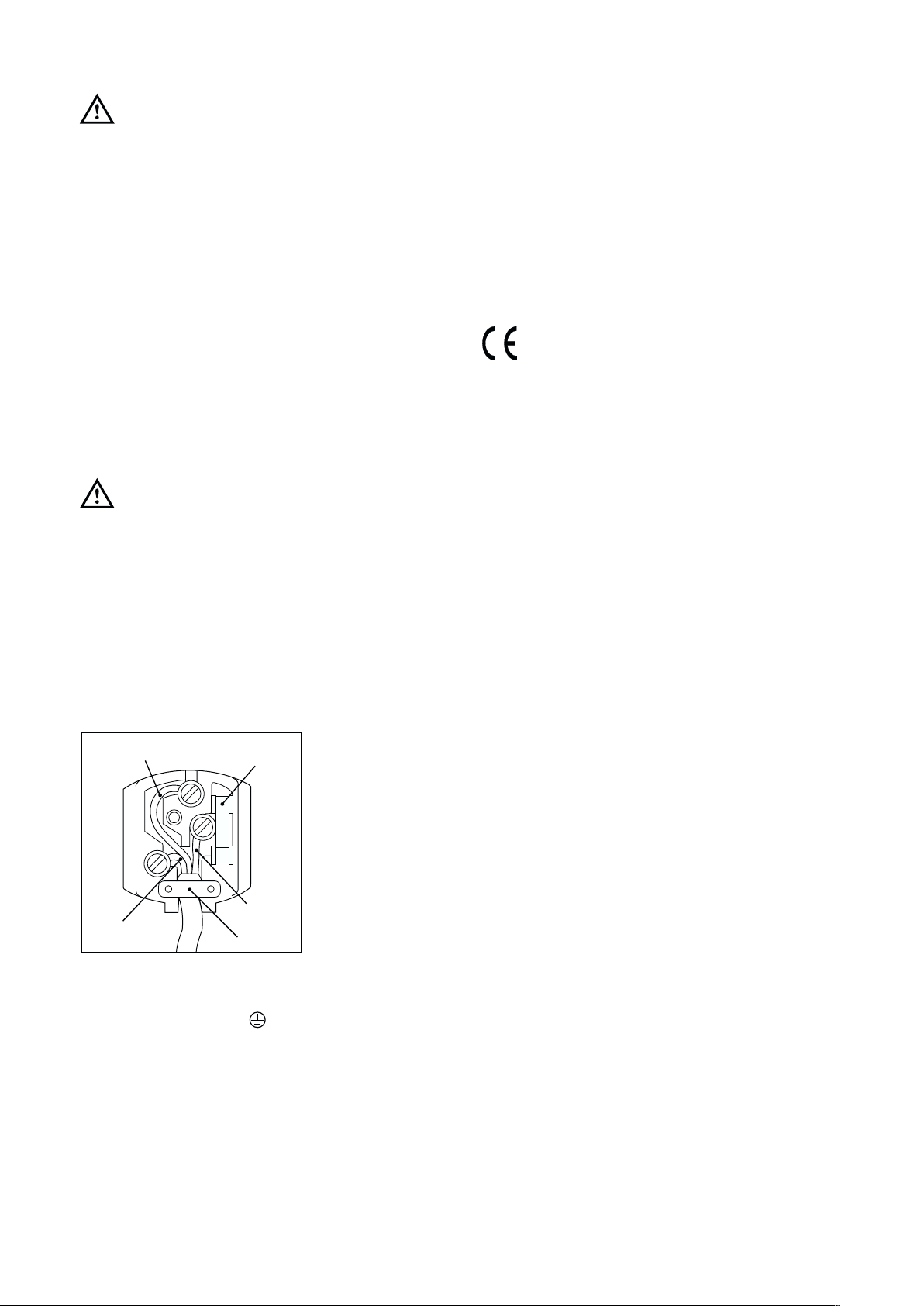

Electrical connections

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING:THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter

«E» or the earth symbol or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.

D207

GREEN & YELLOW

13 AMP. FUSE

BROWN

CORD CLAMP

BLUE

13 AMP

The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BSI362 fuse. Only ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local Electrolux Service Force Centre.

This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

D338

PR271
