Electrolux EPSOSWH, EPSOSBR User Manual
Electric ovens
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
35675-0101
EPSOS
GB
Important Safety Information
You MUST read these warnings carefully before installing or using the oven. If you need
assistance, contact our Customer Care Department on 08705 950950
Installation
This oven must be installed by qualified personnel to
the relevant British Standards.
Ensure that all control knobs are in the OFF position
when not in use.
This oven is heavy. Take care when moving it.
Remove all packaging, both inside and outside the
oven, before using the oven.
Do not attempt to modify the oven in any way.
Child Safety
This oven is designed to be operated by adults. Do not
allow children to play near or with the oven.
The oven gets hot when it is in use. Children should
be kept away until it has cooled.
During Use
This oven is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.
Never line any part of the oven with aluminium foil.
Do not allow heatproof cooking material, e.g. roasting
bags, to come into contact with oven elements.
Never place plastic or any other material which may
melt in or on the oven.
Do not place sealed cans or aerosols inside the oven.
They may explode if they are heated.
Do not hang towels, dishcloths or clothes from the
oven or its handle.
Do not use this oven if it is in contact with water and
never operate it with wet hands.
Do not leave cookware containing foodstuffs, e.g. fat
or oil in or on the oven in case it is inadvertently
switched ON.
When using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the oven.
Maintenance and Cleaning
Only clean this oven in accordance with the instructions.
The oven should be kept clean at all times. A build-up
of fats or other foodstuffs could result in a fire,
especially in the grill pan.
Always allow the oven to cool down and switch off the
electrical supply before carrying out any cleaning or
maintenance work.
Service
This oven should only be repaired or serviced by an
authorised Service Engineer and only genuine approved
spare parts should be used.
Environmental Information
After installation, please dispose of the packaging
with due regard to safety and the environment.
When disposing of an old appliance, make it unusable,
by cutting off the cable. Remove any door catches,
to prevent small children being trapped inside.
Take great care when heating fats and oils as they will
ignite if they become too hot.
Always use oven gloves to remove and replace food in
the oven.
2
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
Contents
For the User
Important Safety Information 2
Description of the Appliance 4
Controls 5
Before the First Use 5
Using the Oven 6
Using the Conventional Oven 7
Cooking Chart 7

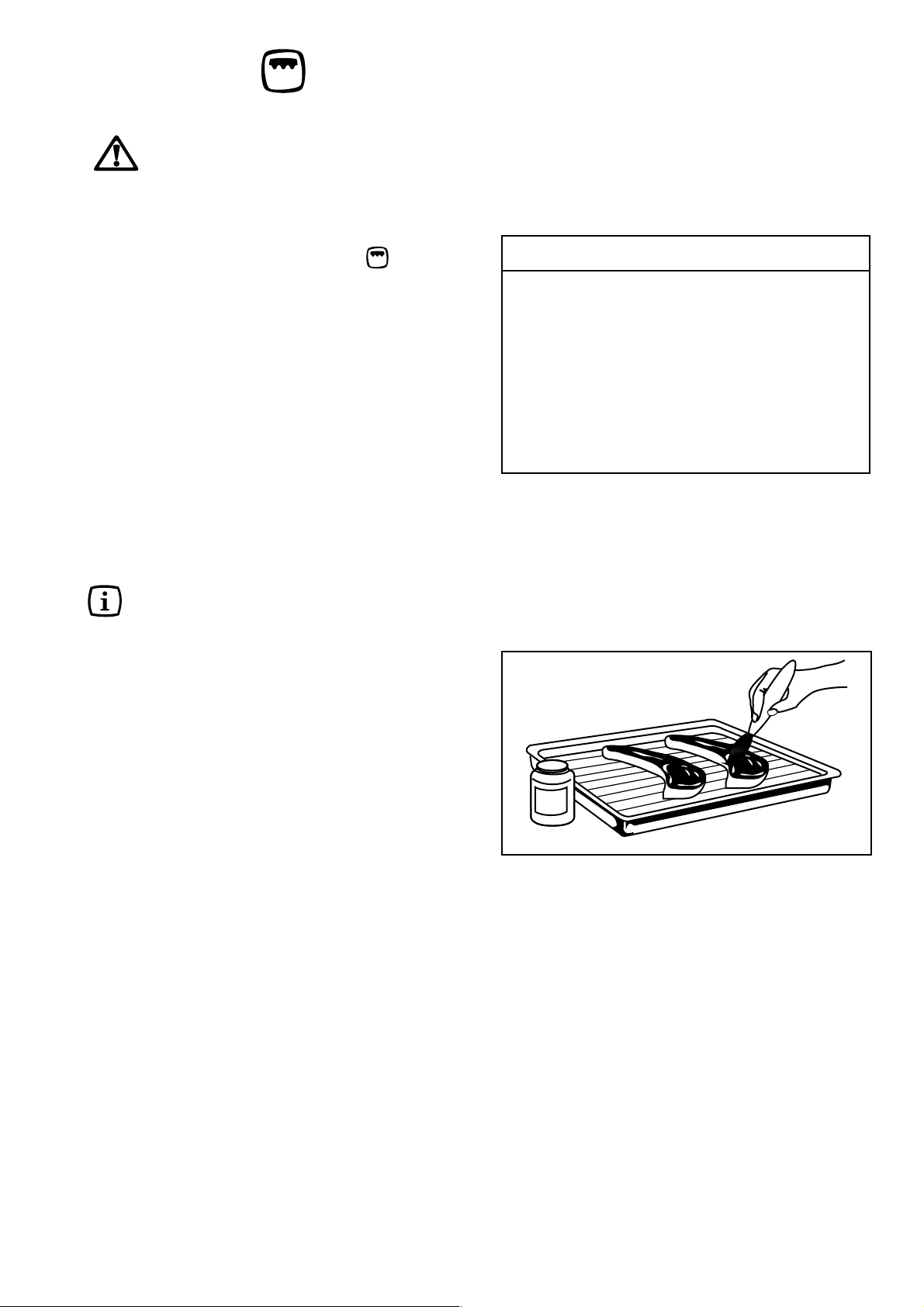

Grilling 8

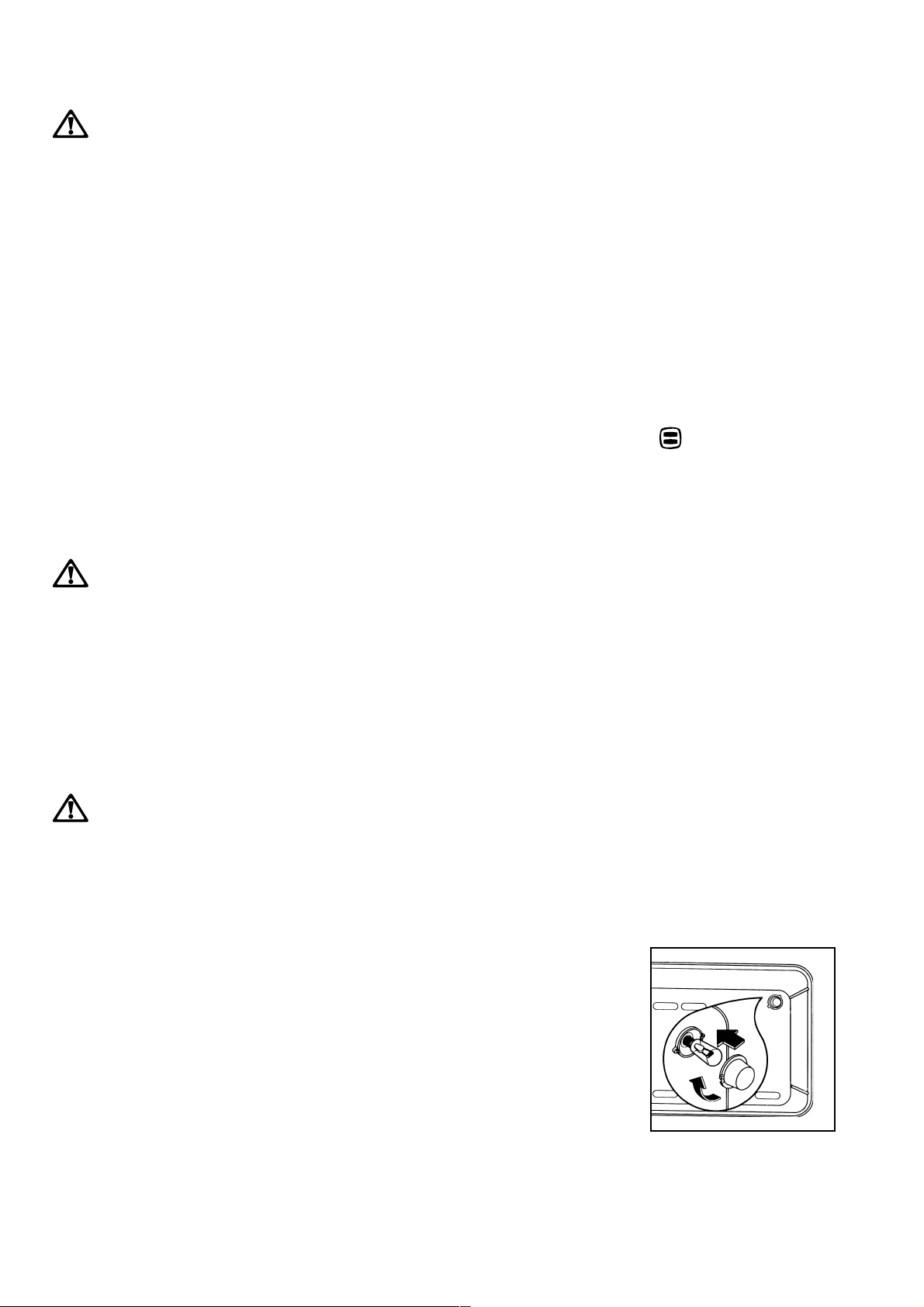

Cleaning the Oven 9
Something not working 10
Service and Spare Parts 11
Guarantee Conditions 11
For the Installer
Technical Data 14
Electrical Connection 14

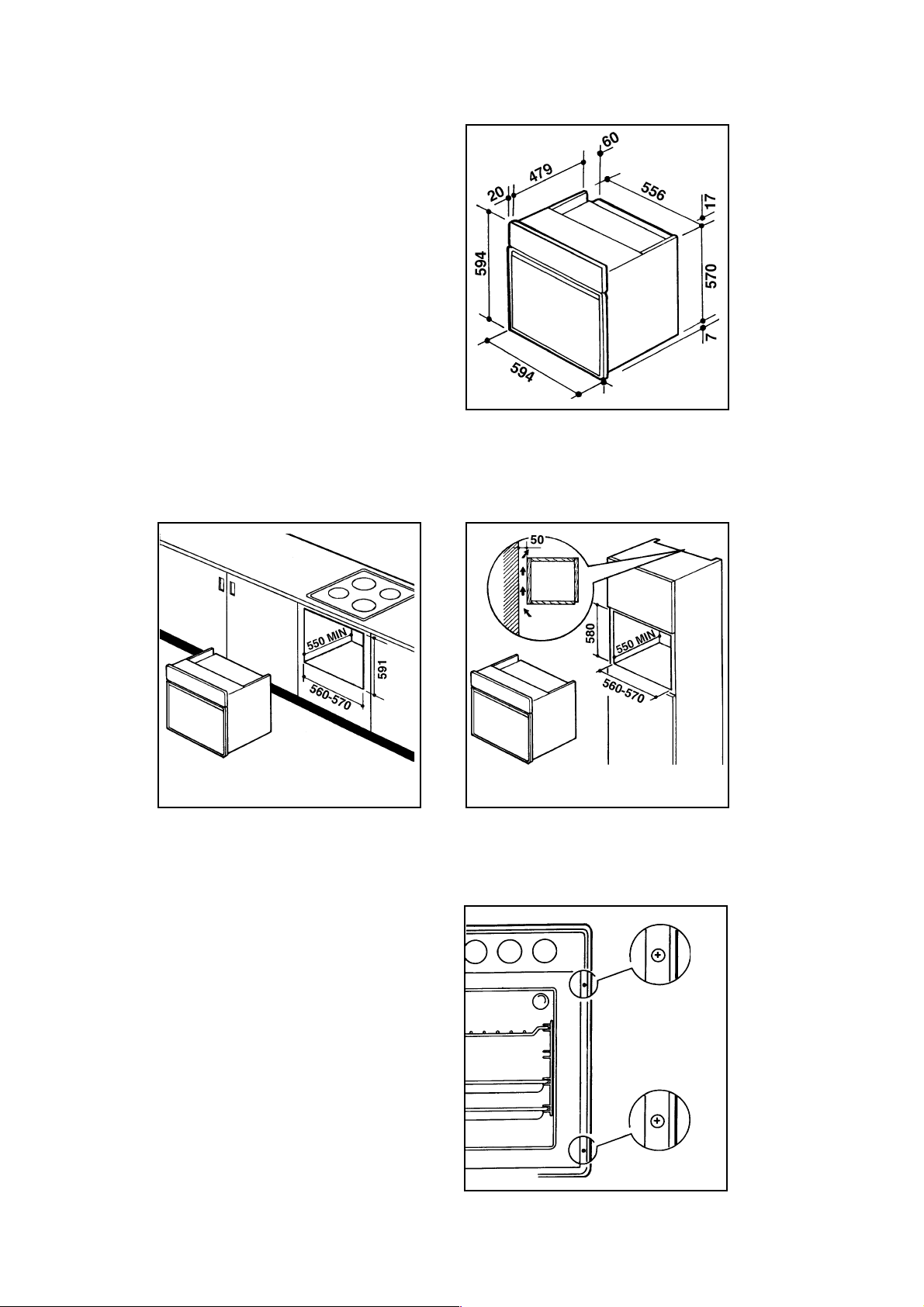

Building In 15
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
F
Hints and Tips
Environmental information
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683
(Low VoltageDirective);
* 93/68 (General Directives);
* 89/336 (Electromagnetical
Compatibility Directive) .
and subsequent modifications
Oven Door Protection
Device
(Stainless steel models only)
All our appliances comply with the
European safety standards. Nevertheless,
in order to ensure the highest safety level,
and avoid small children to be exposed to
the heat when the appliance is operated, it
is possible to fit a special protection device
to the oven door. This device can be
purchased in our Service Force Centres,
specifying the relevant code (35791) and
the Product No. shown on the rating plate.
3
Description of the Appliance
45
1
6
3
2
1. Control Panel
2. Thermostat Control Knob
3. Oven Function Control Knob
4. Thermostat Control Light
5. Mains on Light
6. Grill
7. Oven door
8. Rating label
7
Accessories
Grill/
Roasting pan
8
Grill trivet
Removable
handles
Anti-tip shelf (x 2)
4
Controls
Oven Function Control Knob
Conventional cooking - The heat comes from the
top and bottom element of the oven, ensuring even
heating inside the oven
Bottom heating element - The heat comes from
the bottom of the oven only
Top heating element - The heat comes from the
top of the oven only
Grill - The heat comes from the top element only
Thermostat Control Knob
Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (MAX).
Mains on Light
The mains on light will come on when the oven function
control knob is set.
Thermostat Control Light
0
50
MAX
The thermostat control light will come on when the
thermostat control knob is turned. The light will remain on
until the correct temperature is reached. It will then cycle
on and off to show the temperature is being maintained.
The Safety Thermostat
This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequent
over-heating, the safety device will stop the power supply
to the appliance. If this happens, call your local Service
Force Centre. Under no circumstances should you
attempt to repair the appliance yourself.
Before the First Use
Remove all packaging, both inside and outside
the oven, before using the appliance.
Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted.
This is quite normal.
1. Switch the oven function control knob to
F
conventional cooking .
100
200
150
2. Set the thermostat control knob to MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty for approximately
45 minutes.
This procedure should be repeated with the grill
function for approximately 5-10 minutes.
5
Using the Oven
Always cook with the oven door closed.
Stand clear when opening the drop down oven
door. Do not allow it to fall open - support the door
using the door handle, until it is fully open.
The oven has four shelf levels, and is supplied with
two shelves. The shelf positions are counted from
the bottom of the oven as shown in the diagram.
It is important that these shelves are correctly
positioned as shown in the diagram.
Do not place cookware directly on the oven base.
Hints and Tips
Condensation and steam
When food is heated it produces steam in the same way
as a boiling kettle. The oven vents allow some of this
steam to escape. However, always stand back from
the oven when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is not a
fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.
4
3
2
1
FO 0285
Cooling fan
The cooling fan operates during cooking. Air is expelled
through vents between the oven door and the control
panel, as shown in the diagram.
The cooling fan may run on after the oven is switched off
to keep the controls cool. This is quite normal.
Cookware
Use any oven proof cookware which will withstand
temperatures of 250°C.
Baking trays, oven dishes, etc. should not be placed
on the oven base.
Do not use baking trays larger than 30 cm x 35 cm (12
in x 14 in) as they will restrict the circulation of heat
and may affect performance.
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity, colour,
etc. which affects the way they transmit heat to the food
inside them.
A Aluminium, earthenware, oven glassware and bright
shiny utensils reduce cooking and underneath
browning.
B Enamelled cast iron, anodized aluminium, aluminium
with non-stick interior and coloured exterior and dark,
heavy utensils increase cooking and underneath
browning.
6
