Page 1
Electric ovens
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
35675-0201
EPSOM
GB
Page 2
Important Safety Information
You MUST read these warnings carefully before installing or using the oven. If you need
assistance, contact our Customer Care Department on 08705 950950
Installation
This oven must be installed by qualified personnel to the
relevant British Standards.
This oven is heavy. Take care when moving it.
Remove all packaging, both inside and outside the oven,
before using the oven.
Do not attempt to modify the oven in any way.
Child Safety
This oven is designed to be operated by adults. Do not
allow children to play near or with the oven.
The oven gets hot when it is in use. Children should be
kept away until it has cooled.
During Use
This oven is intended for domestic cooking only. It is not
designed for commercial or industrial purposes.
Never line any part of the oven with aluminium foil.
Do not allow heatproof cooking material, e.g. roasting
bags, to come into contact with oven elements.
Never place plastic or any other material which may melt
in or on the oven.
Do not place sealed cans or aerosols inside the oven.
They may explode if they are heated.
Do not hang towels, dishcloths or clothes from the oven
or its handle.
Do not use this oven if it is in contact with water and never
operate it with wet hands.
Take great care when heating fats and oils as they will
ignite if they become too hot.
Always use oven gloves to remove and replace food in
the oven.
Ensure that all control knobs are in the OFF position
when not in use.
Do not leave cookware containing foodstuffs, e.g. fat or
oil in or on the oven in case it is inadvertently switched
ON.
When using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the oven.
Maintenance and Cleaning
Always allow the oven to cool down and switch off the
electrical supply before carrying out any cleaning or
maintenance work.
Service
This oven should only be repaired or serviced by an
authorised Service Engineer and only genuine approved
spare parts should be used.
Environmental Information
After installation, please dispose of the packaging with
due regard to safety and the environment.
When disposing of an old appliance, make it unusable,
by cutting off the cable. Remove any door catches, to
prevent small children being trapped inside.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
F
Hints and Tips
Environmental information
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683 (Low Voltage Directive);
* 93/68 (General Directives);
* 89/336 (Electromagnetical Compatibility
Directive) .
and subsequent modifications
Only clean this oven in accordance with the instructions.
The oven should be kept clean at all times. A build-up of
fats or other foodstuffs could result in a fire, especially in
the grill pan.
2
Page 3
Contents
For the User
Important Safety Information 2
Description of the Appliance 3
Controls 4
24 hour Clock and Timer 5
Using the Oven 7
Hints and Tips 7
Before the First Use 7
Using the Fan Oven 8
Defrosting 10
Grilling 11
Cleaning the Oven 13
Something not working 14
Service and Spare Parts 15
Guarantee Conditions 15
For the Installer
Electrical Connection 18
Technical Data 18

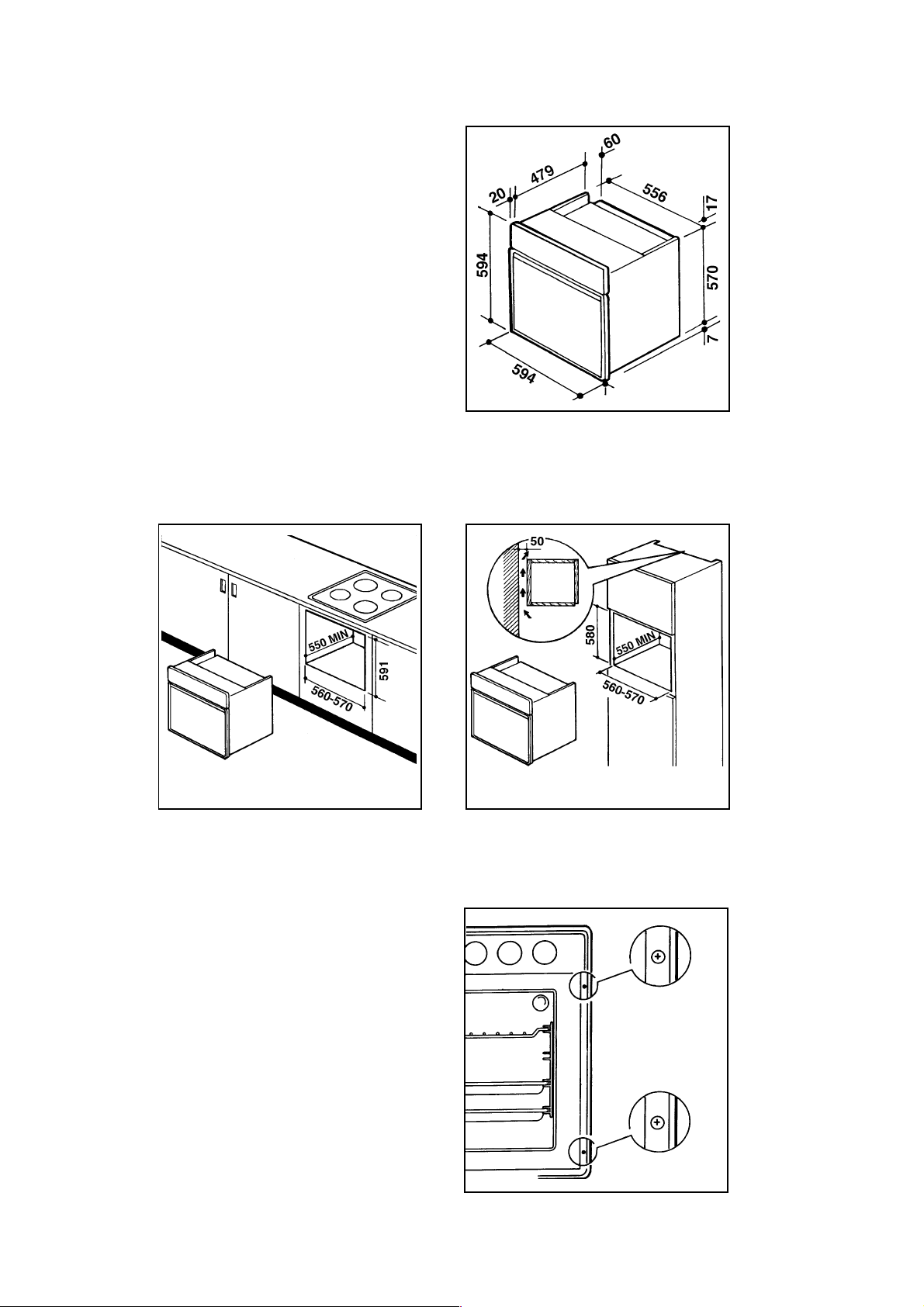

Building In 19
Oven Door Protection
Device
(stainless steel models only)
All our appliances comply with the
European safety standards. Nevertheless,
in order to ensure the highest safety level,
and avoid small children to be exposed to
the heat when the appliance is operated, it
is possible to fit a special protection device
to the oven door. This device can be
purchased in our Service Force Centres,
specifying the relevant code (35791) and
the Product No. shown on the rating plate.

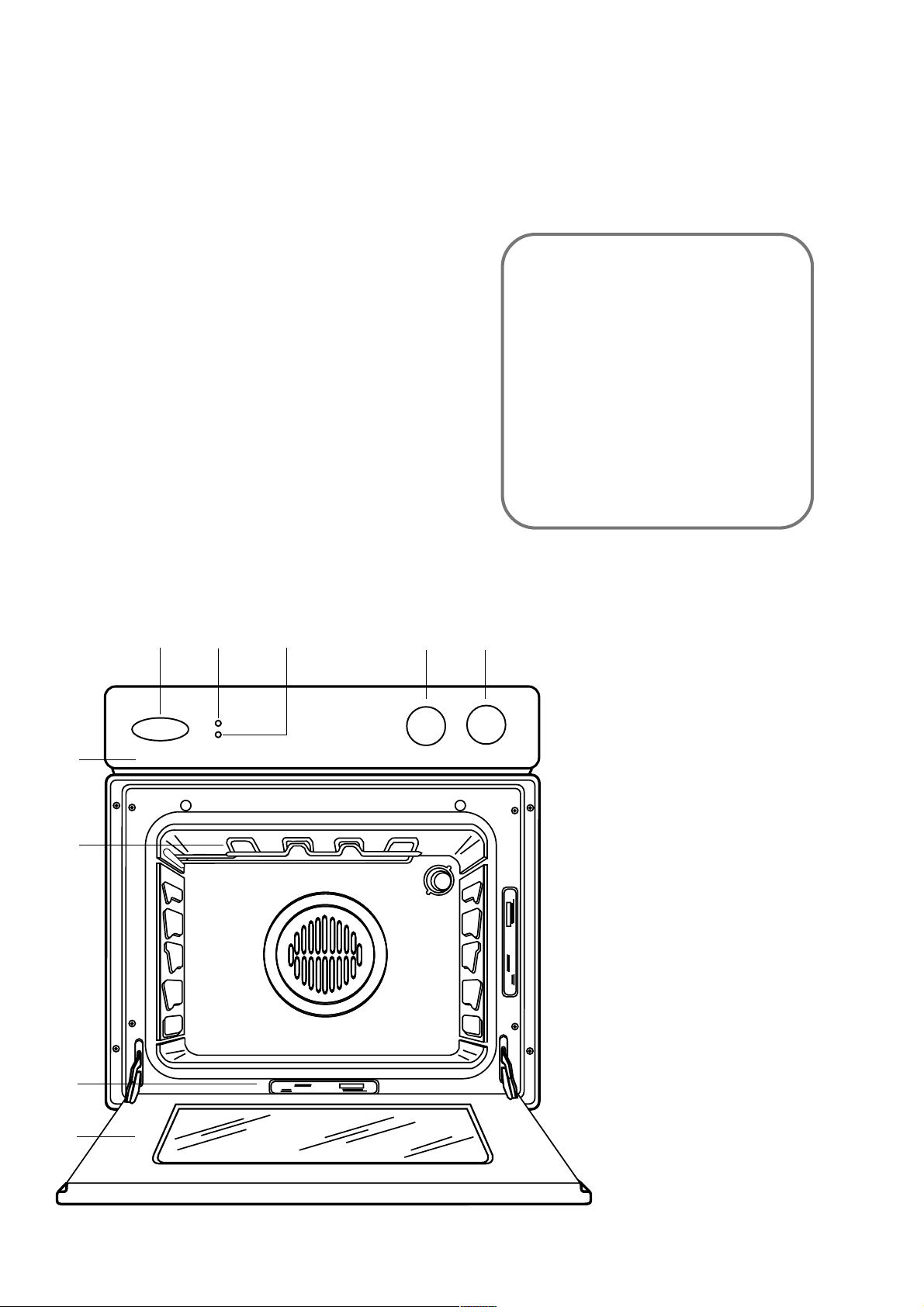

Description of the Appliance
56
1
7
4
23
1. Control Panel
2. Thermostat Control Knob
3. Oven Function Control
Knob
4. Thermostat Control Light
5. Mains on Light
6. Electronic programmer
7. Grill
8. Rating label
9. Oven door
8

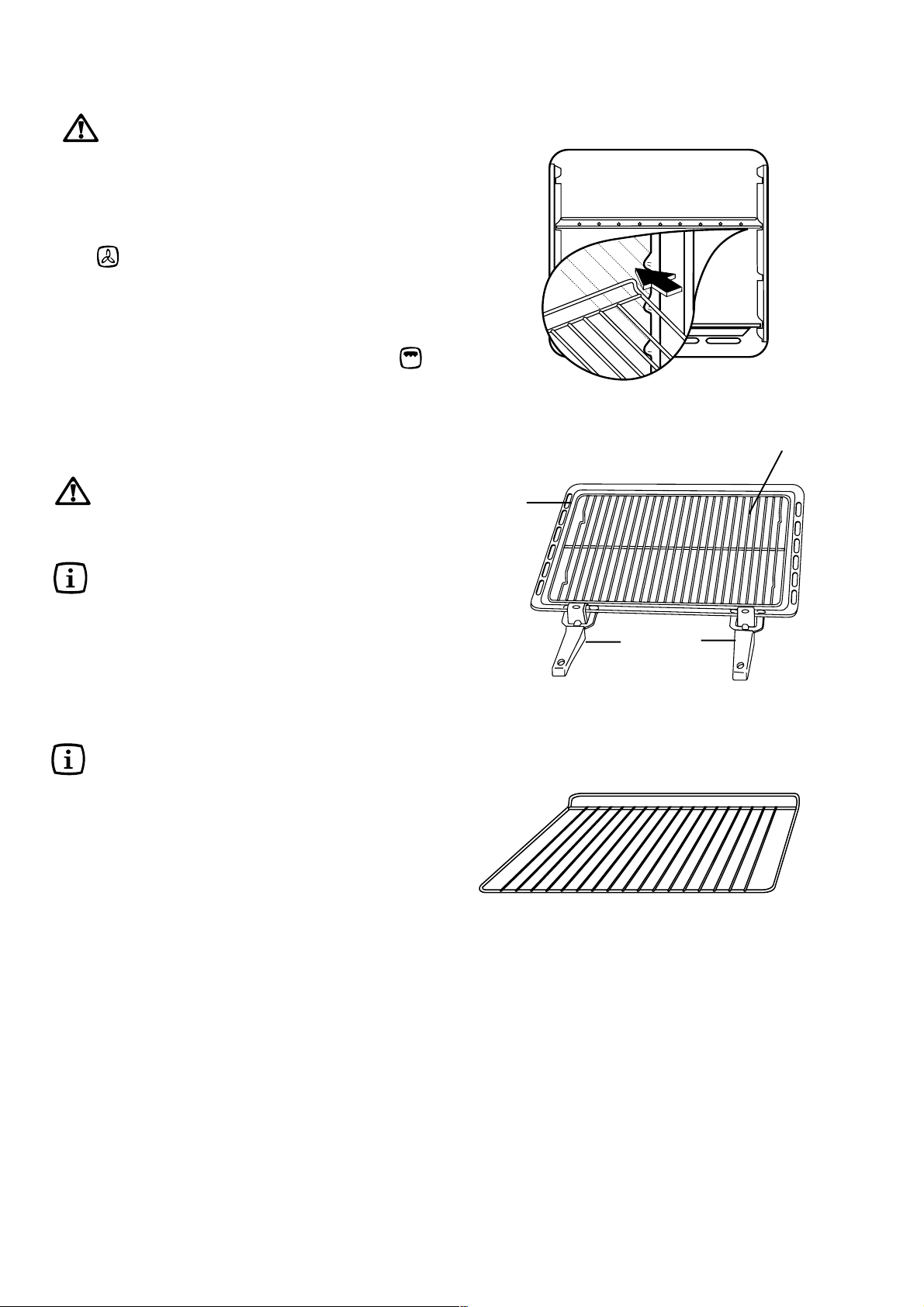

Accessories
9
- Grill/ Roasting pan
- Grill trivet
- Removable handles
- Anti-tip shelf (x 2)
3
Page 4

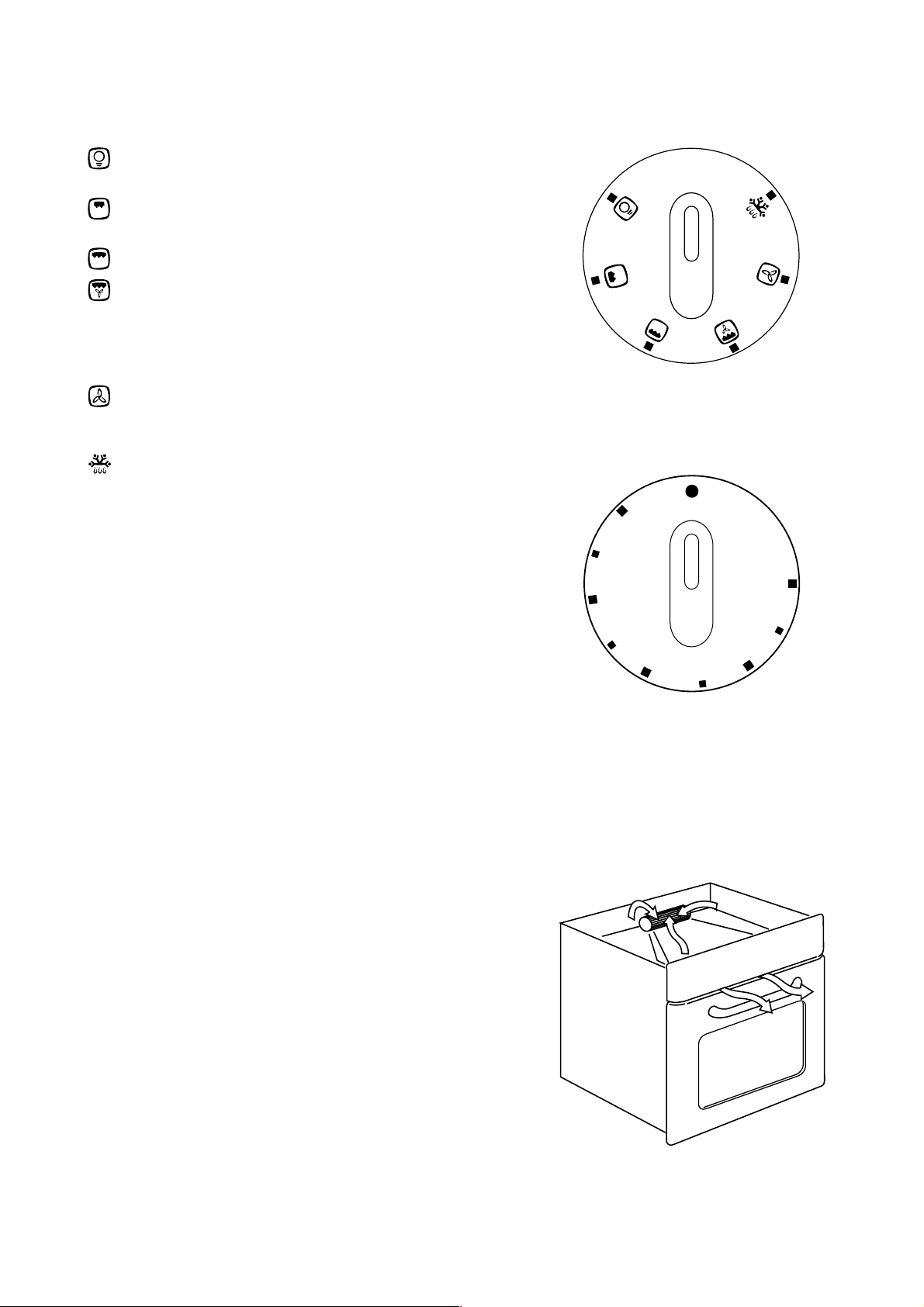

Controls
Oven Function Control Knob
Oven Light - The oven light will be on without any
cooking function.
Inner grill element only - can be used for grilling
small quantities.
Double Grill - The full grill element will be on.
Thermal Grilling - This function offers an alternative
method of cooking food items, normally associated
with conventional grilling. The grill element and the
oven fan operate together, circulating hot air around
the food.
Fan Oven cooking - This allows you to roast or
roast and bake simoultaneously using any shelf,
without flavour transference.
Defrost Setting - This setting is intended to assist
in thawing of frozen food.
Thermostat Control Knob
Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (MAX).
Mains on Light
The mains on light will come on when the oven function
control knob is set.
0
50
MAX
100
200
150
Thermostat Control Light
The thermostat control light will come on when the
thermostat control knob is turned. The light will remain on
until the correct temperature is reached. It will then cycle
on and off to show the temperature is being maintained.
The Safety Thermostat
This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequent
over-heating, the safety device will stop the power supply
to the appliance. If this happens, call your local Service
Force Centre. Under no circumstances should you
attempt to repair the appliance yourself.
Cooling fan
The cooling fan operates during cooking. Air is expelled
through vents between the oven door and the control
panel, as shown in the diagram.
The cooling fan may run on after the oven is switched off
to keep the controls cool. This is quite normal.
4
Page 5

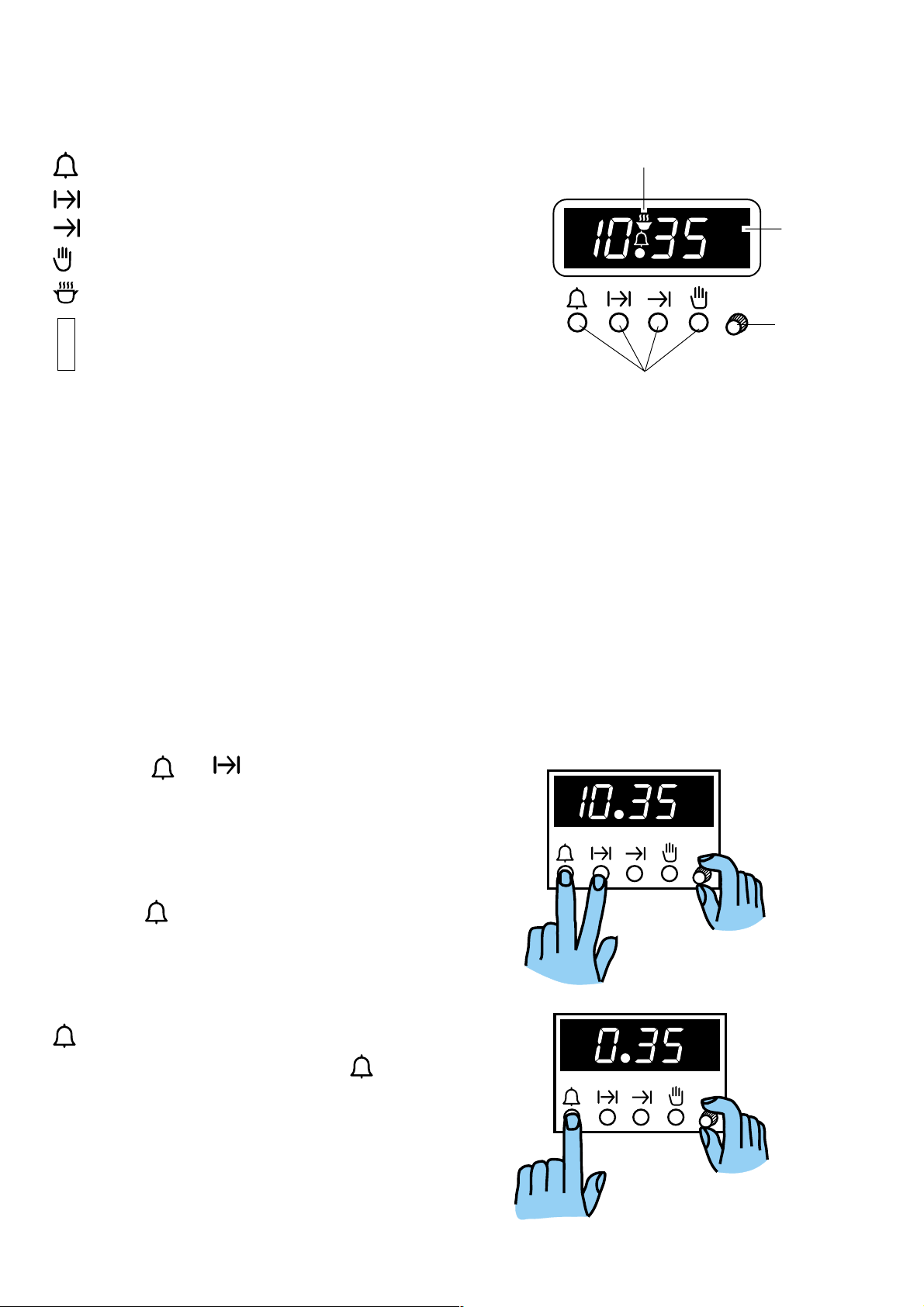

24 hour Clock and Timer
Minute minder
Cooking duration
End of cooking time
Manual function
Cookpot
symbol
A
A
U
U
T
T
O
O
Auto
symbol
Cookpot symbol - This will be displayed when a
program is in operation.
A
Auto symbol - This will be displayed when the
U
T
oven has been programmed for automatic
O
operation.
- + Time setting knob
The electronic timer can indicate the time of day, operate as a minute minder and automatically operate the oven.
Before the oven can be operated, the time of day must
be set on the electronic timer.
Please note that this is a 24 hour clock. For example,
2pm is shown as 14:00.
In case of loss of power, all the settings (time of day, set
program or program in operation), will be cancelled. When
the power is restored, the numbers on the display will
flash, and the timer has to be reset.
TO SET THE TIME OF DAY
F
Programming
controls
- +
Time
setting
Press buttons and , and at the same time turn
the time setting knob until the correct time of day is
displayed.
TO SET THE MINUTE MINDER
F
Press button and at the same time turn the setting
time knob until the duration time is displayed (maximum
23 hours, 59 minutes).
Our diagram shows the timer set for 35 minutes. After a
few seconds the time of day will show in the display.
To check the number of minutes remaining, press the
button. At the end of the timed period an alarm will
sound. To switch off the alarm press button .
- +
- +
5
Page 6

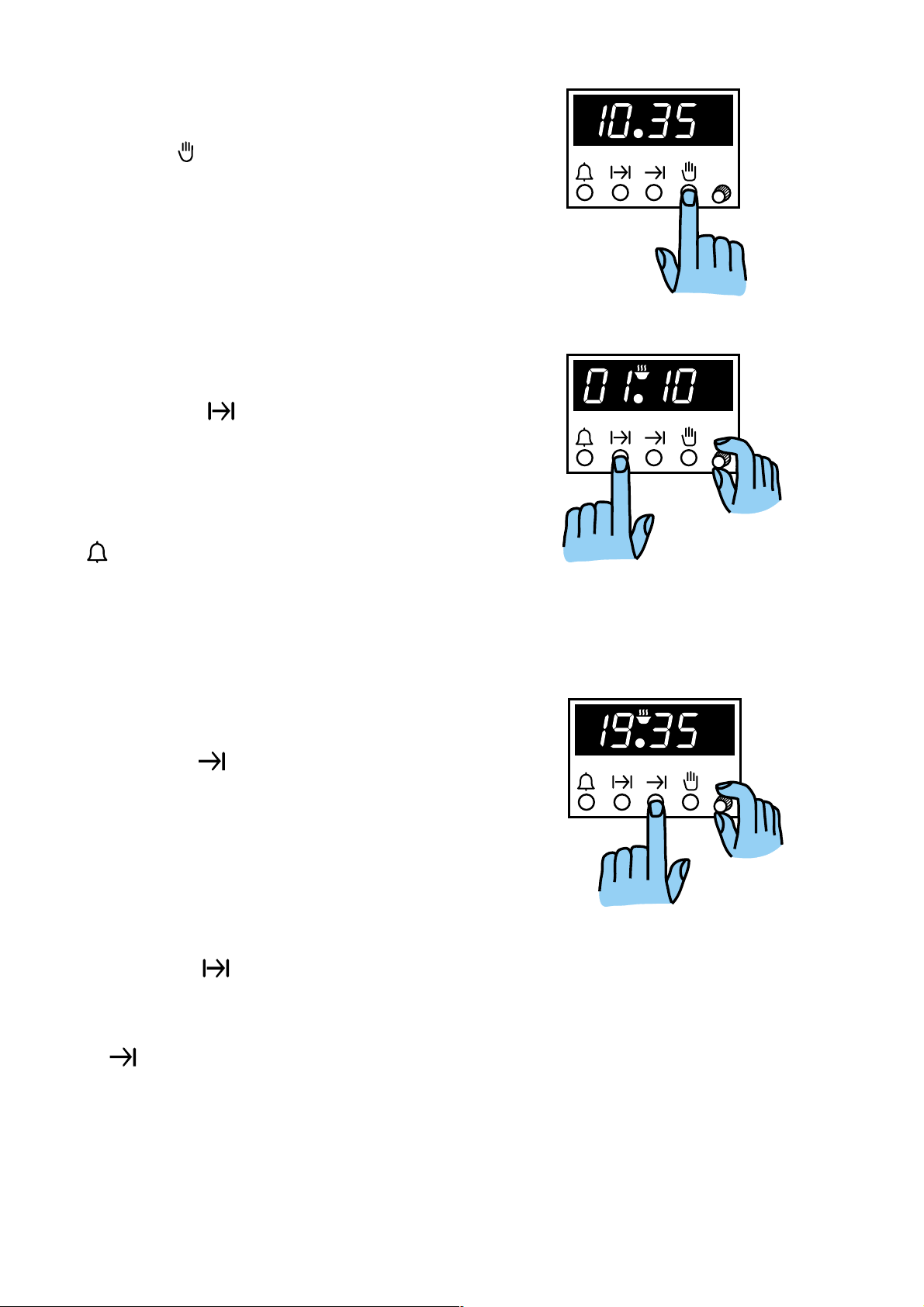

MANUAL FUNCTION
F
Press button to set the oven for manual function.
TO SET THE TIMER TO
F
SWITCH OFF ONLY
This is useful if you want to begin cooking immediately
but have the oven switch off automatically.
1. Set the oven function control knob and the thermostat
control knob on the required settings.
2. Place food in the oven.
3. Press button and, at the same time, turn the
time setting knob until the required cooking duration
is displayed.
Our diagram shows the timer set for 1 hour 10 minutes.
At the end of the cooking time the oven will switch off, an
alarm will sound. Turn the oven function and thermostat
control knob to zero. To switch off the alarm press button
.
- +
A
A
U
U
T
T
O
O
- +
TO SET THE TIMER TO SWITCH
F
THE OVEN ON AND OFF
1. Ensure the clock is showing the right time of day.
2. Carry out steps 1, 2 and 3 as explained in "To set the
timer to switch off only".
3. Press button and at the same time turn the time
setting knob until the end cooking time is displayed.
Our diagram shows the end cooking time set for 7:35
pm.
At the end of the cooking time turn the oven function and
thermostat control knob to zero.
TO CANCEL A PROGRAMME
F
1. Press button and, at the same time, turn the
time setting knob until the cooking duration is set on
"zero".
2. If the end cooking time has been set too, press button
and at the same time turn the time setting knob
until the end cooking time is set on "zero".
A
A
U
U
T
T
O
O
- +
6
Page 7
Before the First Use
Remove all packaging, both inside and outside
the oven, before using the appliance.
Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted.
This is quite normal.
1. Set the programmer to manual function.
F
2. Switch the oven function control knob to fan cooking
.
3. Set the thermostat control knob to MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty for approximately 45
minutes.
This procedure should be repeated with the grill
function for approximately 5-10 minutes.
4
3
2
1
FO 0285
Using the Oven
Always cook with the oven door closed.
Stand clear when opening the drop down oven
door. Do not allow it to fall open - support the
door using the door handle, until it is fully open.
The oven has four shelf levels, and is supplied
with two shelves. The shelf positions are
counted from the bottom of the oven as shown
in the diagram.
It is important that these shelves are correctly
positioned as shown in the diagram.
Do not place cookware directly on the oven
base.
Hints and Tips
Condensation and steam
When food is heated it produces steam in the same way
as a boiling kettle. The oven vents allow some of this
steam to escape. However, always stand back from
the oven when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is not a
fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.
Cookware
Use any oven proof cookware which will withstand
temperatures of 250°C.
Baking trays, oven dishes, etc. should not be placed
directly against the grid covering the fan at the back
of the oven, or placed on the oven base.
Do not use baking trays larger than 30 cm x 35 cm
(12 in x 14 in) as they will restrict the circulation of
heat and may affect performance.
Accessories
Grill/
Roasting pan
Removable
handles
Grill trivet
ANTI-TIP SHELF
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat to
the food inside them.
A Aluminium, earthenware, oven glassware and bright
shiny utensils reduce cooking and base browning.
B Enamelled cast iron, anodized aluminium, aluminium
with non-stick interior and coloured exterior and dark,
heavy utensils increase cooking and base browning.
7
Page 8

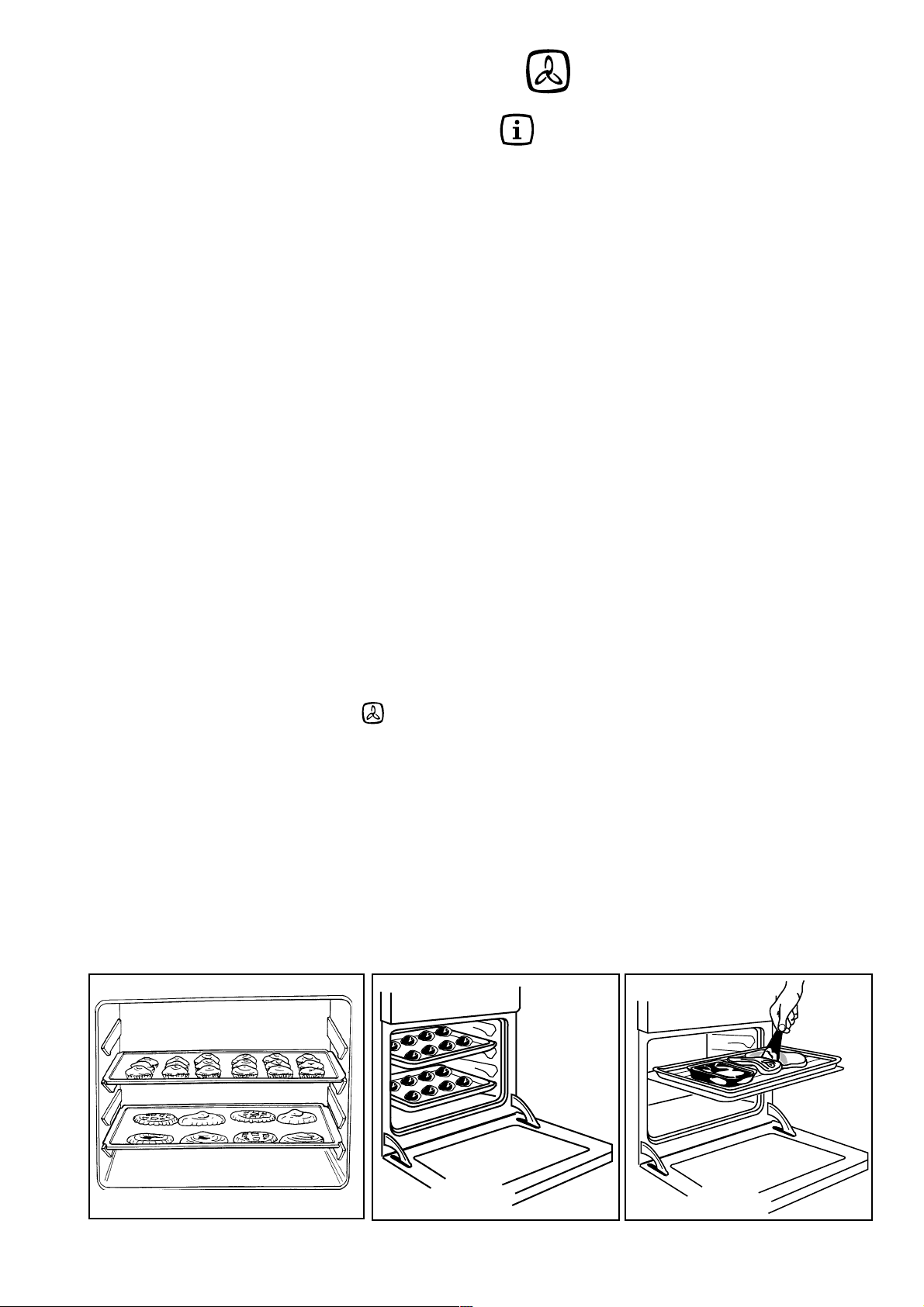

Using the Fan Oven
The air inside the oven is heated by the element around
the fan situated behind the back panel. The fan circulates
hot air to maintain an even temperature inside the oven.
The advantages of cooking with this function are:
lFaster Preheating
As the fan oven quickly reaches temperature, it is not
usually necessary to preheat the oven although you may
find that you need to allow an extra 5-7 minutes on
cooking times. For recipes which require higher
temperatures, best results are achieved if the oven is
preheated first, e.g. bread, pastries, scones, souffles,
etc.
lLower Temperatures
Fan oven cooking generally requires lower temperatures
than conventional cooking.
Follow the temperatures recommended in the chart at
page 11 or remember to reduce temperatures by about
20-25°C for your own recipes which use conventional
cooking.
lEven Heating for Baking
The fan oven has uniform heating on all runner positions.
This means that batches of the same food can be cooked
in the oven at the same time. However, the top shelf may
brown slightly quicker that the lower one.
This is quite usual. There is no mixing of flavours between
dishes.
How to Use the Fan Oven
F
1. Turn the oven function control knob to .
2. Turn the thermostat control to the required temperature.
THINGS TO NOTE
The oven light will come on when the oven function
control knob is set.
The oven fan will operate continually during cooking.
The thermostat control light will remain on until the
correct temperature is reached. It will then cycle on
and off to show the temperature is being maintained.
Hints and Tips
Runner positions are not critical, but make sure the
shelves are evenly spread.
When cooking more than one dish in the fan oven, place
dishes centrally on the shelves rather than several dishes
on one shelf.
When the oven is full, you may need to allow slightly
longer cooking time.
A shelf may be placed on the floor of the oven. Place
dishes on a shelf in this position rather than on the oven
base, to allow air circulation around the food.
When the oven is full of the same food, e.g. equal trays
of small cakes or equal size victoria sandwich cakes,
then they will be cooked in the same time and removed
from the oven together. When different sizes of trays or
types of food, e.g. biscuits and cakes are cooked, they
will not necessarily be ready together.
The fan oven can be used to heat foods through without
thawing first, e.g. fruit tarts, mince pies, sausage rolls,
and other small pastry items. Use a temperature of 190200°C and allow 20-40 minutes (depending on the quantity
of food in the oven).
The use of too high temperatures can cause uneven
browning. Check with the recommendations for oven
temperatures given in the cooking charts, but be prepared
to adjust the temperature by 10°C if necessary. Remember
to reduce temperatures by about 20-25°C for your own
conventional recipes.
When roasting do use the trivet in the meat tin. Fat and
meat juices will drain into the meat tin below and can be
used to make gravy. The trivet also prevents splashes of
fat from soiling the oven interior.
The meat tin should not be placed on a heated hotplate
as this may cause the enamel to crack.
FO 0061
8
Page 9
Cooking Chart
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your
individual requirements. Only experience will enable you to determine the correct setting for your personal
requirements.
Food Shelf Cooking
Position Temp (°C)
Biscuits 180-190
Bread 210-220
Casseroles 130-140
Cakes: Small and queen 160-170
Sponges 160-170
Madeira 140-150
Rich Fruit 130-140
Christmas 130-140
Meringues 90-100
Fish 170-190
Fruit Pies and Crumbles 190-200
Milk Puddings 130-140
Pastry: Choux
Shortcrust
Flaky
Puff
Plate Tarts 180
Quiches/Flans 170-180
Scones 210-220
Roasting: Meat & Poultry 160-180
}
Shelf
positions
are not
critical but
ensure that
oven
shelves are
evenly
spaced
when more
than one is
used.
190-200
When roasting, ensure the meat is cooked thoroughly, use a meat thermometer if preferred to check the centre
temperature has reached the required temperature (see table below).
MEAT TEMPERATURES
Beef Rare - 60°C
Medium - 70°C
Well Done - 80°C
Pork Well Done - 80°C
Lamb Medium - 70°C
Well Done - 80°C
9
Page 10
Defrosting
The oven fan operates without heat and circulates the air,
at room temperature, inside the oven. This increases the
speed of defrosting. However, please note that the temperature of the kitchen will influence the speed of defrosting.
This function is particularly suitable for delicate food
which could be damaged by heat, e.g. cream filled
gateaux, iced cakes, pastries, bread and other yeast
products.
How to Use Defrosting
F
1. Turn the oven function control knob to .
2. Ensure the thermostat control knob is in the OFF
position.
Food
Chicken 1000 g. 100-140 20-30 Place the chicken on an inverted
Defrosting time
(Mins)
Standing time
(Mins)
Hints and Tips
Cover food with a lid, aluminium foil or plastic film to
prevent drying out during defrosting.
ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
Frozen food should be placed in a single layer when
ever possible and turned over half way through the
defrosting process.
Only joints of meat and poultry up to 2 kg. (4 lb.) are
suitable for defrosting in this way.
Refer to the following table for approximate defrosting
times.
Notes
saucer on a large plate. Defrost open
and turn at half time or defrost
covered with foil. Remove giblets
as soon as possible.
Meat 1000 g. 100-140 20-30 Defrost open and turn at
half time or cover with foil
Meat 500 g. 90-120 20-30 As above
Trout 150 g. 23-35 10-15 Defrost open
Strawberries 300 g. 30-40 10-20 Defrost open
Butter 250 g. 30-40 10-15 Defrost open
Cream 2 x 200 g. 80-100 10-15 Defrost open (cream is
easy to whip even if parts
of it are still slightly frozen)
Cake 1400 g. 60 60 Defrost open
The times quoted in the chart should be used as a guide only, as the speed of defrosting will depend on the kitchen
temperature. For example, the colder the ambient temperature, the longer the defrosting time.
10
Page 11
Grilling
Grilling must be carried out with the oven
door closed. The grill pan handles must be
removed from the pan.
How to Use the Grill
F
1. Turn the oven control function knob on .
2. Turn the thermostat control knob on the required
temperature.
3. Adjust the grid and grill pan runner position to allow
for different thicknesses of food. Position the food
close to the element for faster cooking and further
away for more gentle cooking.
Preheat the grill on a full setting for a few minutes before
sealing steaks or toasting. Adjust the heat setting and
the shelf as necessary, during cooking.
During cooking, the cooling fan and the thermostat
control light will operate in the same way as described
for the fan oven function.
Hints and Tips
- Most foods should be placed on the grid in the grill
pan to allow maximum circulation of air to lift the food
out of the fats and juices. Food such as fish, liver and
kidneys may be placed directly on the grill pan, if
preferred
- Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish lightly
with a little oil or melted butter to keep them moist
during cooking
- Accompaniments such as tomatoes and mushrooms
may be placed underneath the grid when grilling
meats
- When toasting bread, we suggest that the top runner
position is used.
- The food should be turned over during cooking, as
required.
The grill element is controlled by the thermostat.
During cooking, the grill cycles on and off to
prevent overheating.
How to Use the Inner
F
Grill Element
The inner grill provides quick direct heat to the central
area of the grill pan. By using the inner grill element for
cooking small quantities, it can help to save energy.
1. Turn the oven control function knob on .
2. Turn the thermostat control knob on the required
temperature.
3. Adjust the grid and grill pan runner position to allow
for different thicknesses of food and follow the
instructions for grilling.
How to Use the Thermal
F
Grill
Thermal grilling offers an alternative method of cooking
food items normally associated with conventional grilling.
The grill element and the oven fan operate alternately,
circulating hot air around the food. The need to check
and turn the food is reduced. Thermal grilling helps to
minimize cooking smells in the kitchen.
With the exception of toast and rare steaks, you can
thermally grill all the foods you would normally cook
under a conventional grill. Cooking is more gentle,
therefore food generally takes a little longer to cook with
thermal grilling compared with conventional grilling. One
of the advantages is that larger loads can be cooked at
the same time.
1. Turn the oven control function knob on .
2. Turn the thermostat control knob on the required
temperature. Select a maximum temperature of
200°C and do not exceed 1 hour of operation.
3. Adjust the grid and grill pan runner position to allow
for different thicknesses of food and follow the
instructions for grilling.
11
Page 12
Hints and Tips
Prepare foods in the same way as for conventional grilling.
Brush lean meats and fish lightly with little oil or butter to
keep them moist during cooking.
If thermal grilling on more than one level, it may be
necessary to interchange the food on the shelves during
cooking.
A general guide to cooking times is given below but these
times may vary slightly depending on the thickness and
quantity of food being cooked.
Cooking Chart - Grilling
FOOD Grill and Inner Grill Element Thermal Grill
Temp
(°C)
Bacon Rashers 210 2-3 200 8-12
Beefburgers 200 6-10 190 10-15
Chicken Joints 170 10-15 160 35-45
Chops - Lamb 180 7-10 170 20-25
- Pork 180 10-15 170 25-35
Fish - Whole Trout/Herring 170 8-12 170 10-20
- Fillets Plaice/Cod 170 4-6 170 10-20
Kebabs 180 10-15 170 20-30
Kidneys - Lamb/Pig 170 4-6 180 10-15
Liver - Lamb/Pig 170 5-10 180 20-30
Sausages 180 10-15 190 10-15
Toast 250 1-2 --
Heating through and
Browning, e.g. au-gratin, - - 170 20-30
lasagne, shepherd's pie.
Browning dishes only 230 3-5 --
Time
(Mins per side)
Temp
(°C)
depending on size depending on size
Time
(Mins)
12
Page 13
Cleaning the Oven
Before cleaning always allow the cooling fan to
cool the cooker down before switching off at the
electricity supply.
The oven should be kept clean at all times. A buildup of fats or other foodstuffs could result in a fire,
especially in the grill pan.
Cleaning materials
Before using any cleaning materials on your oven, check
that they are suitable and that their use is recommended
by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
External cleaning
Regularly wipe over the control panel, oven door and door
seal using a soft cloth well wrung out in warm water to
which a little liquid detergent has been added.
To prevent damaging or weakening the door
glass panels avoid the use of the following:
Household detergent and bleaches
Impregnated pads unsuitable for non-stick
saucepans
Brillo/Ajax pads or steel wool pads
Chemical oven pads or aerosols
Rust removers
Bath/Sink stain removers
Clean the outer and inner door glass using warm soapy
water. Should the inner door glass become heavily soiled
it is recommended that a cleaning product such as Hob
Brite is used.
DO NOT clean the oven door while the
glass panels are warm. If this precaution is
not observed the glass panel may shatter.
If the door glass panel becomes chipped or has
deep scratches, the glass will be weakened
and must be replaced to prevent the possibility
of the panel shattering. Contact your local
Service Force Centre who will be pleased to
advise further.
Oven Cavity
The enamelled oven cavity is best cleaned whilst the oven
is still warm.
Wipe the oven over with a soft cloth soaked in warm soapy
water after each use. From time to time it will be
necessary to do a more thorough cleaning, using a
proprietary oven cleaner.
If the soilage has become set, after the oven has cooled
down, the following process will help to soften the splatters
to help make cleaning easier.
1. Place the grill/ meat pan on the oven shelf
F
positioned in the lowest runner.
2. Add a few drops of washing-up liquid to the pan
and fill to about 12 mm. with boiling water from the
kettle.
3. Close the oven door, turn the oven function
knob on fan oven and set the thermostat knob
on 50°C.
4. After 15 minutes, turn off the thermostat and
allow the fan oven to continue without heat for a
further 5 minutes, when the temperature of the
water will have cooled down.
5. Carefully remove the pan of water from the oven
and use normal oven cleaners to clean away soil
residues.
6. Leave a small amount of soapy water to soak
into any burned on spillage on the floor of the oven
for a longer time if necessary.
Replacing The Oven Light
If the oven bulb needs replacing, it must comply with the
following specifications:
- Electric power: 15W,
- Electric rate: 230-240 V (50 Hz),
- Resistant to temperatures of 300°C,
- Connection type: E14
These bulbs are available from your local Service Force
Centre.

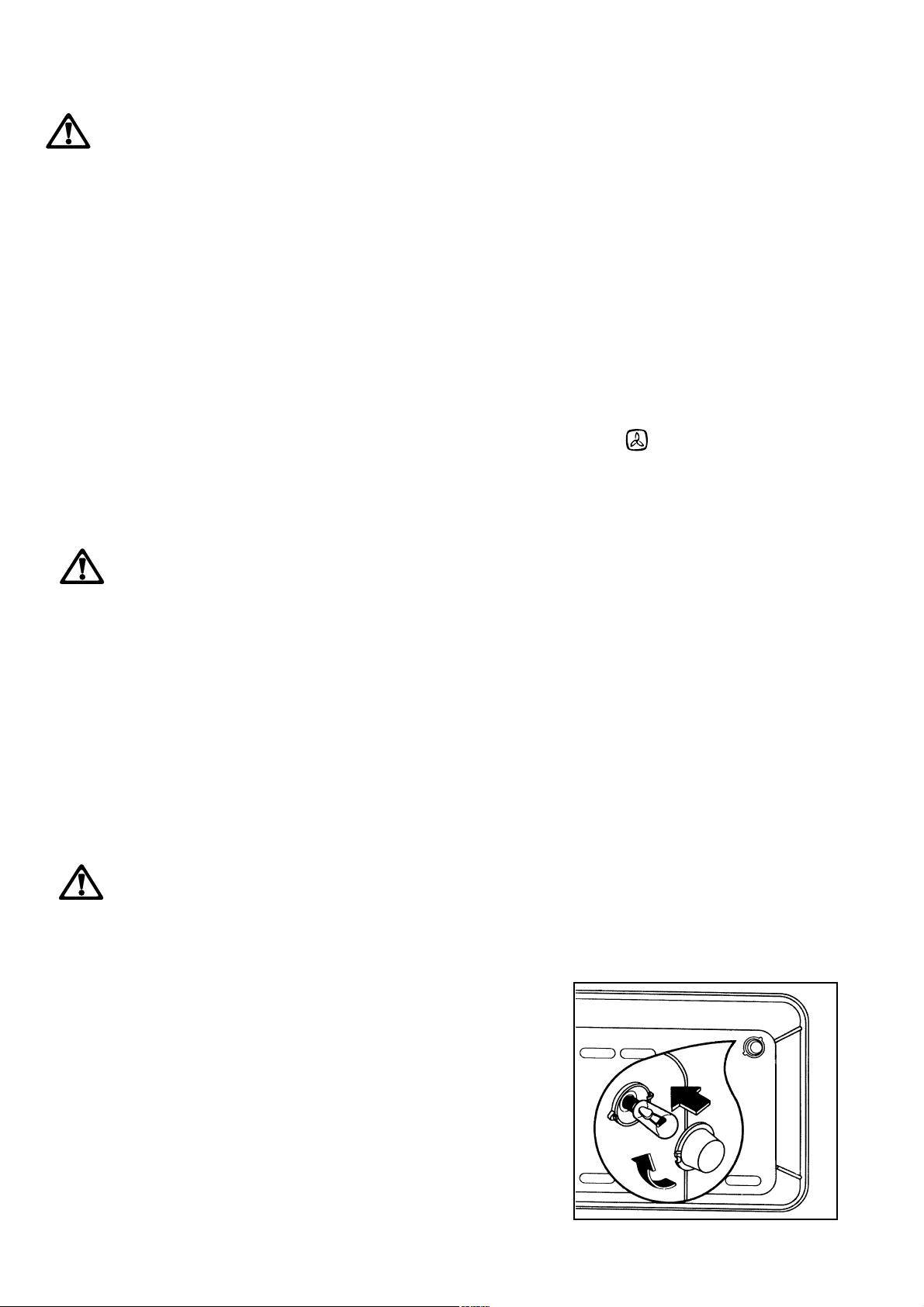

To replace the faulty bulb:
1. Ensure the oven is disconnected from the electrical
supply.
2. Push in and turn the glass cover anticlockwise.
3. Remove the faulty bulb and replace with the new one.
4. Refit the glass cover and restore the electrical supply.
FO 0287
13
Page 14
Something not working
If the appliance is not working correctly, please carry out the following checks, before contacting your local Electrolux
Service Force Centre.
IMPORTANT:
a charge will be made even if the appliance is under guarantee.
If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation,
SYMPTOM
n The oven does not come on
n The oven temperature light does not come on
n The oven light does not come on
n It takes too much time to finish the dishes, or they
are cooked too fast.
SOLUTION
u Check the oven is in manual operation and that
both a cooking function and temperature have been
selected.
u Check the appliance is wired in properly, and the
socket switch or the switch from the mains supply to
the oven are ON.
u Select a temperature with the thermostat control
knob
u Select a function with the oven function control
knob.
u Select a function with the oven function control
knob
u Check the light bulb, and replace it if necessary
(see "Cleaning the Oven")
u The temperature may need adjusting
u Refer to the contents of this booklet, especially to
the chapter Using the Oven.
n Steam and condensation settle on the food and the
oven cavity.
n The programmer does not work
n The oven fan is noisy
If after all these checks, the oven still does not work,
contact your local Service Force Centre quoting your
model and serial number, which can be found on the rating
plate.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the above
checks have been made as the engineer will make
a charge if the fault is not a mechanical or electrical
breakdown.
u Leave dishes inside the oven no longer than 15-20
minutes after the cooking is completed.
u Check the instructions for the programmer.
u Check that shelves and bakeware are not vibrating
in contact with the oven back panel.
When you contact the Service Force Centre, they will
need the following information:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault
4. The model and the serial number (see rating label)
5. Date of purchase
14
Page 15
Service and Spare Parts
CUSTOMER CARE
For general enquiries concerning your Electrolux
appliance and for further information on Electrolux
products, contact our Customer Care Department by
If you require spare parts or an engineer contact your
local Service Force Centre by telephoning:
08705-929929
Your call will be routed to the Service Centre covering
your post code area. The addresses of Electrolux
Service Force Centres are detailed on the following
pages.
letter or telephone as follows:
Customer Care Department
ELECTROLUX
55-77 High Street
Slough
Berkshire SL1 1DZ
Tel : 08705 950950
* calls to this number may be recorded for training purposes
Guarantee Conditions
Electrolux Standard Guarantee
Conditions
We, Electrolux, undertake that if, within 12 months of
the date of the purchase, this Electrolux appliance or
any part thereof is proved to be defective by any reason
only of faulty workmanship or materials, we will, at our
option, repair or replace the same FREE OF ANY
CHARGE for labour, materials or carriage on condition
that:
* The appliance has been correctly installed and used
only on the gas and electricity supply stated on the
rating plate.
* The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
* All service work under this guarantee must be
undertaken by a Electrolux Service Force Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours, in which case a premium will be charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside the United Kingdom.
* Appliances found to be in use within a commercial
or similar environment, plus those which are the
subject to rental agreements.
* Products of Electrolux manufacture which are not
marketed by Electrolux.
European Guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new home
subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the
same extent for labour and parts as exist in the new
contry of use for this brand or range of products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European Community
(EC) or European Free Trade Area.
* The product is installed and used in accordance
with our instructions and is only used domestically,
i.e. a normal household
The electrical supply complies with the specification
given in the rating label.
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest
Customer Care centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis +33 (0)3 44 62 22 22
Germany Nürnberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0)1753 219898
15
Page 16
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Force Centre telephone 08705 929 929
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands
JERSEY Jersey Electricity
Company
PO Box 45
Queens Road
St Helier
Jersey
Channel Islands
JE4 8NY
SCOTLAND
ABERDEEN 54 Claremont Street
(M05) Aberdeen
AB10 6RA
AUCHTERMUCHY 33A Burnside
(M03) Auchtermuchy
Fife
KY14 7AJ
BLANTYRE Unit 5
(M07) Block 2
Auchenraith Industrial
Estate
Rosendale Way
Blantyre
G72 0NJ
DUMFRIES 93 Irish Street
(M01) Dumfries
Scotland
DG1 2PQ
DUNOON Briar Hill
7 Hill Street
(M 67) Dunoon
Argyll
PA23 7AL
GLASGOW 20 Cunningham Road
(M04) Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
INVERNESS Unit 3B
(M06) Smithton Indust. Est.
Smithton
Inverness
IV1 2PD
ISLE OF ARRAN Arran Domestics
(OWN SALES) Unit 4 The Douglas
Centre
Brodick
Isle of Arran
KA27 8AJ
ISLE OF BARRA J Zerfah
(OWN SALES) 244 Bruernish
Isle of Barra
Western Islands
HS9 5QY
ISLE OF BUTE Walker Engineering
(M66) Glenmhor
Upper Serpentine
Road
Rothesay
Isle of Bute
PA20 9EH
ISLE OF LEWIS ND Macleod
(M69) 16 James Street
Stornoway
Isle of Lewis
PA872QW
KELSO 2-8 Wood Market
(M08) Kelso
Borders TD5 7AX
ORKNEY Corsie Domestics
(M65) 7 King Street
Kirkwall
Orkney KW15 1RE
PERTH Hydro Electrical
Inveralmond House
Ruthervenfield Road
Perth PH1 3AQ
PERTH Graham Begg Unit 4
(OWN SALES) Airport Ind Estate
Wick KW1 4QS
SHETLAND Tait Electr onic
(OWN SALES) Systems Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 0PW
SHETLAND Bolts Shetland Ltd
(OWN SALES) 26 North Road
Lerwick
Shetland ZE1 0PE
WHALSAY Leask Electrical
Harlsdale
Symbister, Whalsay
(OWN SALES) Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST Owenmore House
(M27) Kilwee Industrial
Estate
Upper Dunmury Lane
Belfast
BT17 0HD
WALES
CARDIFF Guardia n I ndustrial
(M28) Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
CLYWD Unit 6-7 Coed - Parc
(M14) Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
OSWESTRY P las Funnon
Warehouse
(M17) Middleton Road
Oswestry
SY11 2PP
HAVERFORDWEST Cromlech Lodge
(M75) Ambleston
Haverfordwest
Pembrokeshire
SA62 5DS
DYFED Maes Y Coed
(M77) High Mead
Llanybydder
Carmarthenshire
SA40 9UL
NORTH EAST
GATESHEAD Unit 356a
(M39) Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
GRIMSBY 15 Hainton Avenue
(M42) Grimsby
South Humberside
DN32 9AS
HULL Unit 1
(M41) Boulevard Industrial
Estate
Hull
HU3 4AY
LEEDS 64-66 Cross Gates
(M37) Road
Leeds
LS15 7NN
NEWTON AYCLIFFE Unit 16
(M45) Gurney Way
Aycliffe Ind Estate
Newton Aycliffe
DL5 6UJ
SHEFFIELD Pennine House
(M38) Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD 1 Ke lvin Park
(M11) Dock Road
Birkenhead
L41 1LT
CARLISLE Unit 7
(M10) James Street
Workshops
James Street
Carlisle
Cumbria CA2 5AH
ISLE OF MAN South Quay Ind.
(M64) Estate
Douglas
Isle of Man IM1 5AT
LIVERPOOL Unit 1
(M15) Honeys Green
Precinct
Honeys Green Lane
Liverpool
L12 9JH
MANCHESTER U nit B
(M09) Central Industrial
Estate
St Marks Street
Bolton
BL3 6NR
PRESTON Unit 250
(M13) Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
STOCKPORT Uni t 20 Hai gh Park
(M16) Haigh Avenue
Stockport
SK4 1QR
16
Page 17
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Force Centre telephone 08705 929 929
MIDLANDS
BIRMINGHAM 66 Bi rch Road East,
(M18) Wyrley Road
Industrial
Estate
Witton
Birmingham
B67DB
BOURNE Manning Road Ind
(M44) Estate
Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH 6 5 St.Marys Street
(M72) Bridgnorth
Shropshire
WV16 4DR
GLOUCESTER 101 Rycroft Street
(M23) Gloucester
GL1 4NB
HEREFORD Unit 3
(M31) Bank Buildings
Cattle Market
Hereford
HE4 9HX
HIGHAM FERRERS 30 High Street
(M51) Higham Ferrers
Northants
NN10 8BB
ILKESTON Unit 2
(M43) Furnace Road
Ilkeston
DE7 5EP
LEICESTER Unit 7
(M22) Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE0 5GF
LINCOLN Uni t 8 Stonefield Park
(M40) Clifton Street
Lincoln
LN5 8AA
NEWCASTLE 18-21 Cro ft Road
UNDER LYME Bra mpton Industrial
(M12) Estate
Newcastle under
Lyme
Staffordshire
ST5 0TW
REDDITCH 13 Thornhill Road
(M20) North Moons Moat
Redditch
Worcestershire
B98 9ND
TAMWORTH Unit 3
(M19) Sterling Park
Claymore
Tamworth
B77 5DO
WORCESTER Unit 1&2
(M73) Northbrook Close
Gregorys Mill Ind
Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM 11a Gardener Ind
(M79) Estate
CHELMSFORD H anbury Road
(M47) Widford Ind Estate
COLINDALE Unit 14
(M53) Capital Park
ELTHAM 194 Court Road
(M78) Mottingham - Eltham
ENFIELD 284 Alma Road
(M49) Enfield
GRAVESEND Unit B4,
(M57)
HARPENDEN Unit 4
(M46) Riverside Estate
LETCHWORTH 16-17 Woodsite Ind
(M50) Est.
LONDON 2/ 4 Ro yal Lane
(M76) Yie wsley
MAIDENHEAD Reform Road
(M60) Maidenhead -
MOLESEY 10 Island Farm
(M61) Avenue
NEWBURY 9 Pipers Court
(M24) Berkshire Drive
IPSWICH Unit 6C
(M48) Elton Park Business
NORWICH 2b Trafalgar Street
(M52) Norwich
SUNBURY Unit 1a
(M63) The Summit
Kent House Lane
Beckenham
Kent BR3 1QZ
Chelmsford
Essex
CM12 3AE
Capital Wa y
Colindale
London NW9 0EQ
London SE9 4EW
London
EN3 7BB
Imperial Business
Estate
Gravesend
Kent
DA11 0DL
Coldharbour Lane
Harpenden
AL5 4UN
Works Road
Letchworth
Herts
SG6 1LA
West Drayton
Middlesex
UB7 8DL
Berkshire
SL6 8BY
West Molesey
Surrey
KT8 2UZ
Thatcham
Berkshire
RG19 4ER
Centre
Hadleigh Road
Ipswich
IP2 0DD
NR1 3HN
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
SOUTH EAST
ASHFORD Unit 2
(M58) Bridge Road
FLEET Unit 1
(M59) Redfields Industrial
HAYWARDS HEATH 21-25 Bridge Road
(M55) Haywards Heath
Business
Estate
Bridge Road
Ashford
Kent
TN2 1BB
Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
Sussex
RH16 1UA
SOUTH WEST
BARNSTAPLE Main Road
(M30) Fremington
BOURNEMOUTH 63-65 Curzon Road
(M26) Bournemouth
BRIDGEWATER
(M35)
BRISTOL 11 Eldon Way
(M25) Eldonwall Trading
EMSWORTH 266 Main Road
(M33) Southboure
ISLE OF WIGHT Unit 8
(M34) Enterprise Court
NEWTON ABBOT Unit 2
(M29)
PLYMOUTH 16 Faraday Mill
(M32) Cattledown
REDRUTH Unit 7D Pool Industrial
(M36) Estate
Barnstaple
North Devon
EX31 2NT
Dorset
BH1 4PW
6 Hamp Industrial
Estate
Bridgewater
Somerset
Bristol
Avon
BS4 3QQ
Emsworth
PO10 8JL
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
Zealley Industrial
Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
Plymouth
PL4 0ST
Wilson Way, Redruth,
Cornwall
TR15 3QW
17
Page 18
Technical Data
Heating elements rating
Circular heating element 2.08 kW
Inner Grill element 1.82 kW
Double Grill element 2.66 kW
Oven Light 15 W
Cooling Fan 25 W
Convection Fan 30 W
Total Rating 2.70 kW
Dimensions of recess
Height 580 mm.
Width 560-570 mm.
Depth 550 mm.
Dimensions of the oven cavity
Height 320 mm.
Width 420 mm.
Depth 390 mm.
Oven capacity 53.2 litres
Electrical Connection
The oven is designed to be connected to 230-240V (50Hz)
electricity supply.
The oven has an easily accessible terminal block which
is marked as follows:
Letter L - Live terminal
Letter N - Neutral terminal
or E - Earth terminal
THIS OVEN MUST BE EARTHED
The cable used to connect the oven to the electrical
supply must comply to the specifications given below.
It is necessary that you install a double pole switch
between the oven and the electricity supply (mains), with
a minimum gap of 3mm between the switch contacts and
of a type suitable for the required load in compliance with
the current rules.
The switch must not break the yellow and green earth
cable at any point.
Important
After installation and connecting, the cable must be
placed so that it cannot at any point reach a temperature
of more than 60°C above the ambient temperature.
For Uk use only
Connection Min. size Cable / flex Fuse
via Cable/flex type
13 A socket 2.5 mm
outlet butyl min.
13 A insulated
spur box
Cooker 2.5 mm
Control twin and
Circuit earth
For Europe use only
Min. size Cable/flex Cable / flex type Fuse
1.5 mm
2
2
3 core 13 A
2
PVC/PVC
20 A
H05 RR-F 13 A
Before the oven is connected, check that the main fuse
and the domestic installation can support the load; and
that the power supply is properly earthed.
The manufacturer disclaims any responsibility should
these safety measures not be carried out.
18
Page 19
Building In
Please ensure that when the oven is installed it is
easily accessible for the engineer in the event of
a breakdown.
BUILDING IN
The surround or cabinet into which the oven will be
built must comply with these specifications:
l the dimensions must be as shown in the relevant
diagrams;
l the materials must withstand a temperature increase
of at least 60°C above the ambient temperature;
l proper arrangements must be made for a continuous
supply of air to the oven to prevent the oven overheating.
Dimensions of the oven and recess required are given
in the relevant diagrams.
FO 0292
FO 0374
FO 0290
Securing The Oven To The
Cabinet
1. Fit the oven into the cabinet recess,
2. Open the oven door
3. Secure the oven to the kitchen cabinet with four
wood screws, which fit the holes provided in the
oven frame.
FO 0039
19
Page 20
CUSTOMER CARE
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel: 08705-950950
© Electrolux Household Appliances Limited 2000
Grafiche MDM - Forlì
Loading...
