Electrolux EPH09NLIWI User Manual [dk]

EPH09NLIW EN SPLIT INVERTER

HEAT PUMP

DA SPLIT INVERTER

VARMEPUMPE

SV SPLIT INVERTER

VÄRMEPUMP

NO SPLITTINVERTER

VARMEPUMPE

FI INVERTTERI

LÄMPÖPUMPPU

USER MANUAL

BRUGERVEJLEDNING

BRUKSANVISNING

OHJEKIRJA

2 www.electrolux.com

TABLE OF CONTENTS

Safety precautions .................................................................................................... 3

Description................................................................................................................ 6

Remote control ......................................................................................................... 6

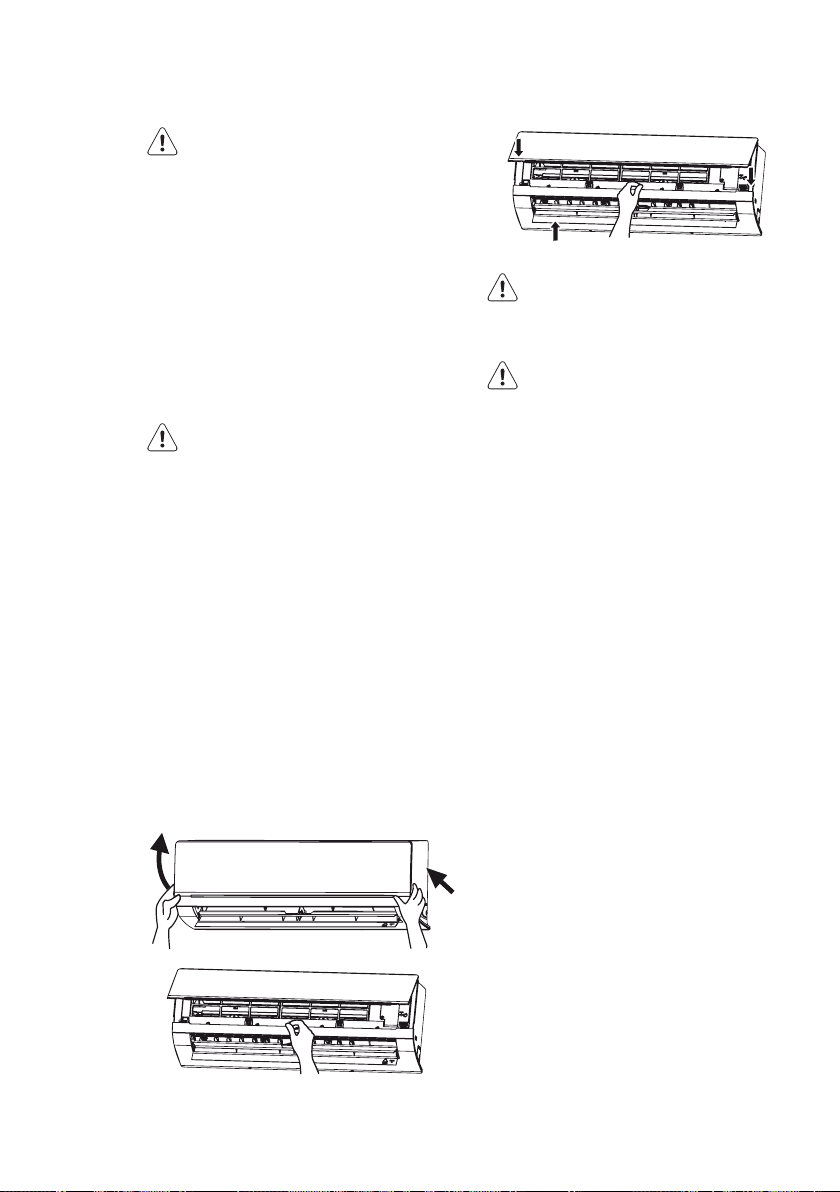

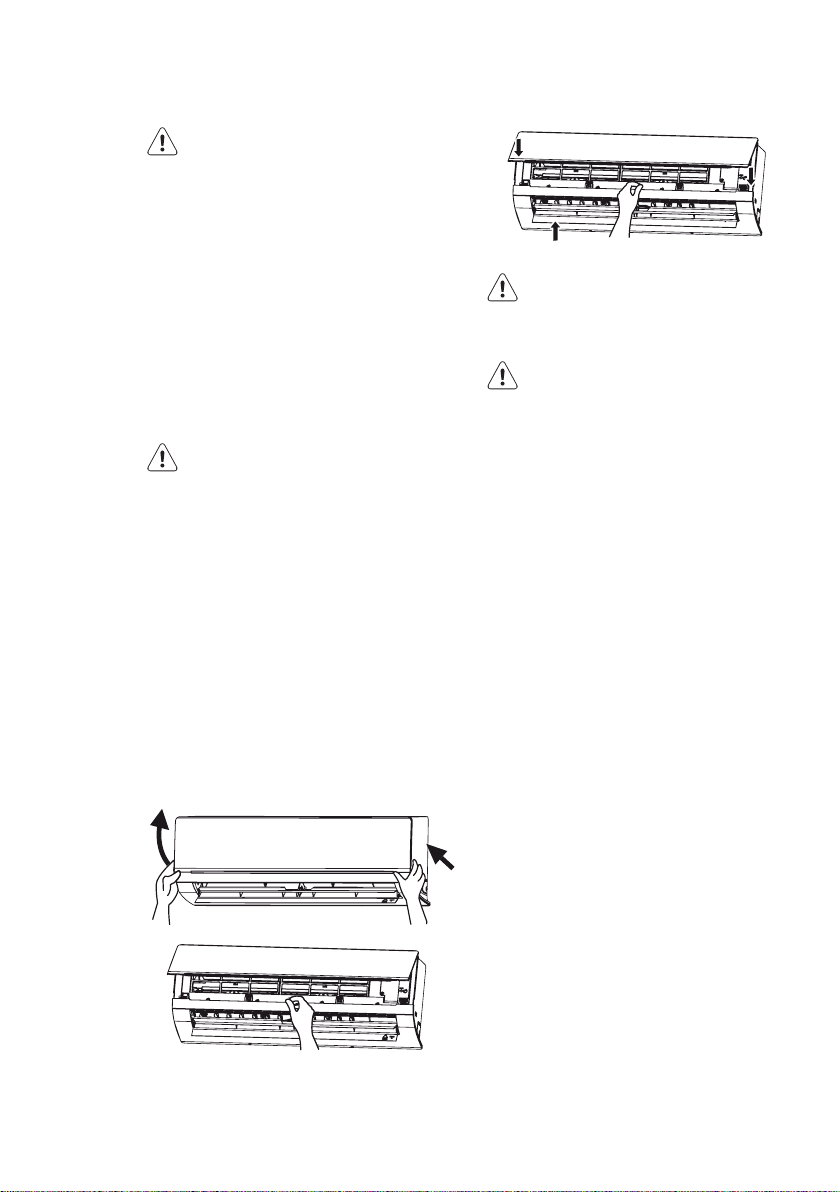

Cleaning and maintenance...................................................................................... 12

Troubleshooting....................................................................................................... 13

Operation tips ......................................................................................................... 15

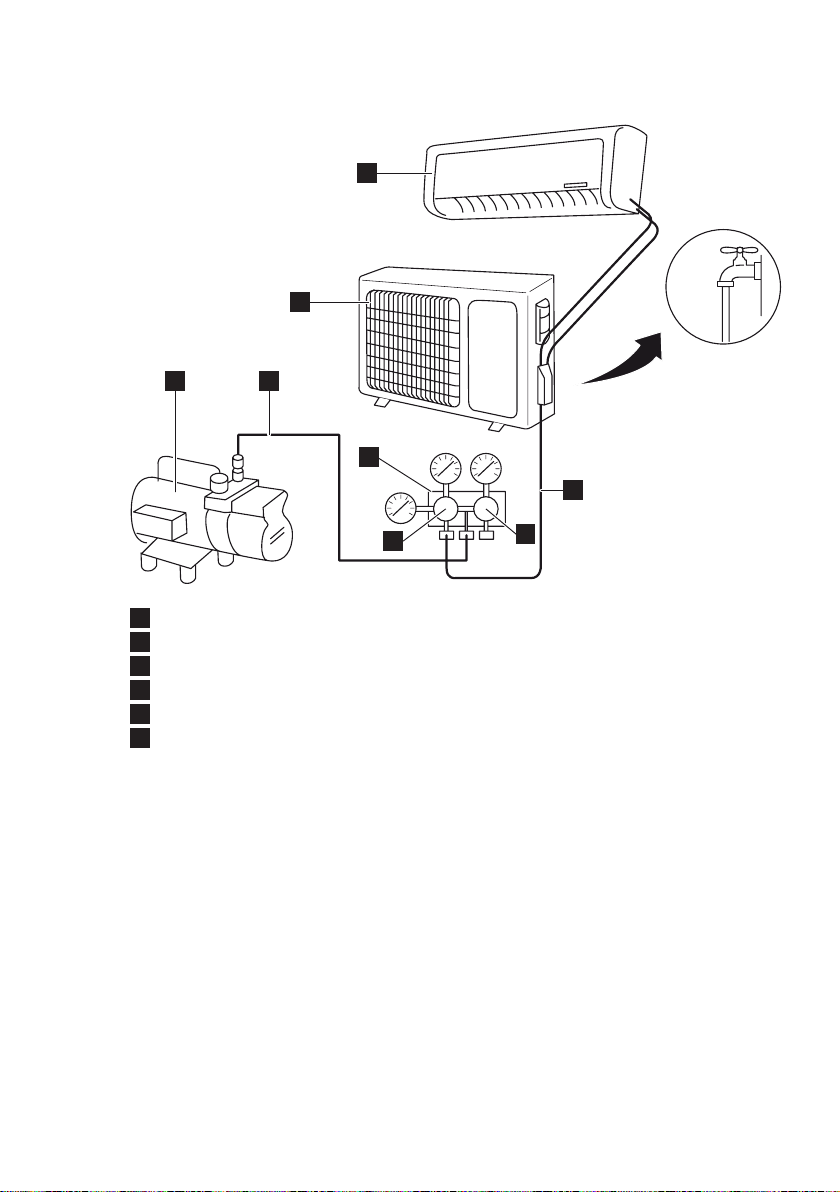

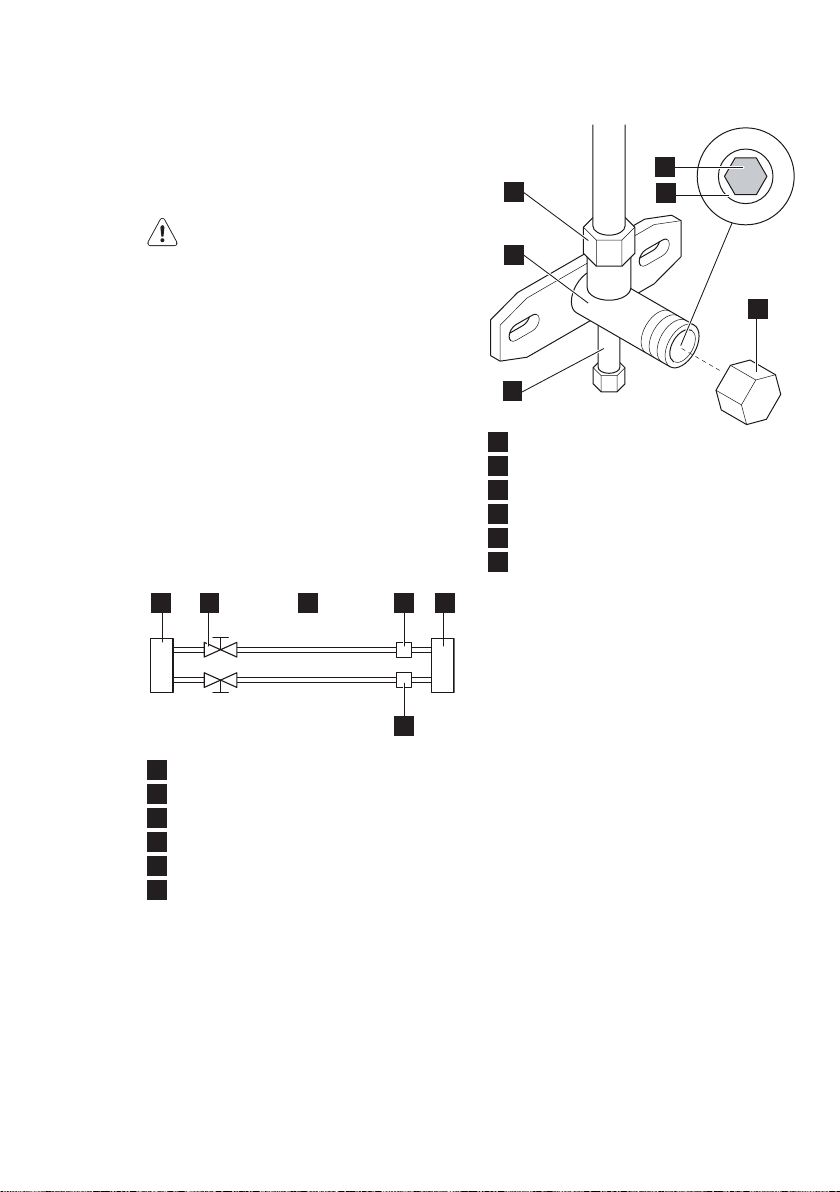

Installation............................................................................................................... 16

Health ﬁlter.............................................................................................................. 25

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information General information and tips Environmental information

Subject to change without notice.

SAFETY PRECAUTIONS

Read the manual carefully before operation.

Keep the manual for further reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If something abnormal occurs (e.g. unpleasant smells of burning), disconnect the unit from the power supply and contact an authorised service centre. If the abnormality remains, the air conditioner may be damaged or even cause electric shock or ﬁre.

Before cleaning or maintenance, switch off the unit and disconnect the unit from the power supply. If the unit is connected to a fuse box, remove the fuse.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualiﬁed persons in order to avoid a hazard.

Do not use an unspeciﬁed mains cord to prevent electric shock or ﬁre.

The unit must be installed according to national regulations for electrical safety. Incorrect wiring can lead to over heat or ﬁre in the cable, the plug or the electrical outlet.

Do not switch on and off the unit frequently.

If the voltage is too high, electrical elements will be damaged easily, If the voltage too low, the compressor will vibrate ﬁercely and damage the cooling system or the compressor. Electrical components cannot be operated.

Make sure that the unit is properly grounded to prevent electric shock.

ENGLISH 3

4 www.electrolux.com

SAFETY PRECAUTIONS

Do not attempt to repair the unit yourself to prevent electric shock or ﬁre. Have the unit repaired by an authorised service centre.

Keep combustible materials at least 1 m from the unit to prevent ﬁre or explosion.

Install the outdoor unit ﬁrmly to prevent personal injury.

Do not stand on the outdoor unit. Do not place heavy things on the outdoor unit.

Do not block the air inlet or the air outlet.

Do not splash water on the unit to prevent electric shock.

Do not operate the unit with wet hands to prevent electric shock.

Do not insert your hands or objects into the air inlet or the air outlet.

Do not expose animais or plants directly to the air ﬂow.

Do not expose yourself to cold air directly for a long time.

Do not use the unit for any other purpose, such as preserving food or drying clothes.

Select the most appropriate temperature to save electric energy.

Do not keep windows and doors open for a long time during operation.

To change the airﬂow direction, use remote control to adjust the horizontal and vertical airﬂow direction.

SAFETY PRECAUTIONS

Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

You can also get this manual through your local distributor or by visiting our website.

Please ﬁnd the Electrolux web addresses to your local country from below table.

Country Website address Country Website address

Albania www.electrolux.al Austria www.electrolux.at Belgium www.electrolux.be Bulgaria www.electrolux.bg Croatia www.electrolux.hr Czech Republik www.electrolux.cz Denmark www.electrolux.dk

Finland www.electrolux.ﬁ France www.electrolux.fr Germany www.electrolux.de Greece www.electrolux.gr Hungary www.electrolux.hu Italy www.electrolux.it

Luxembourg www.electrolux.lu

Please visit www.electrolux.com for more information.

ENGLISH 5

Correct Disposal of this product

Netherlands www.electrolux.nl Norway www.electrolux.no Poland www.electrolux.pl Portugal www.electrolux.pt Romania www.electrolux.ro Serbia www.electrolux.rs Slovakia www.electrolux.sk

Slovenia www.electrolux.sl Spain www.electrolux.es Sweden www.electrolux.se Switzerland www.electrolux.ch Turkey www.electrolux.com.tr UK & Ireland www.electrolux.co.uk

6 www.electrolux.com

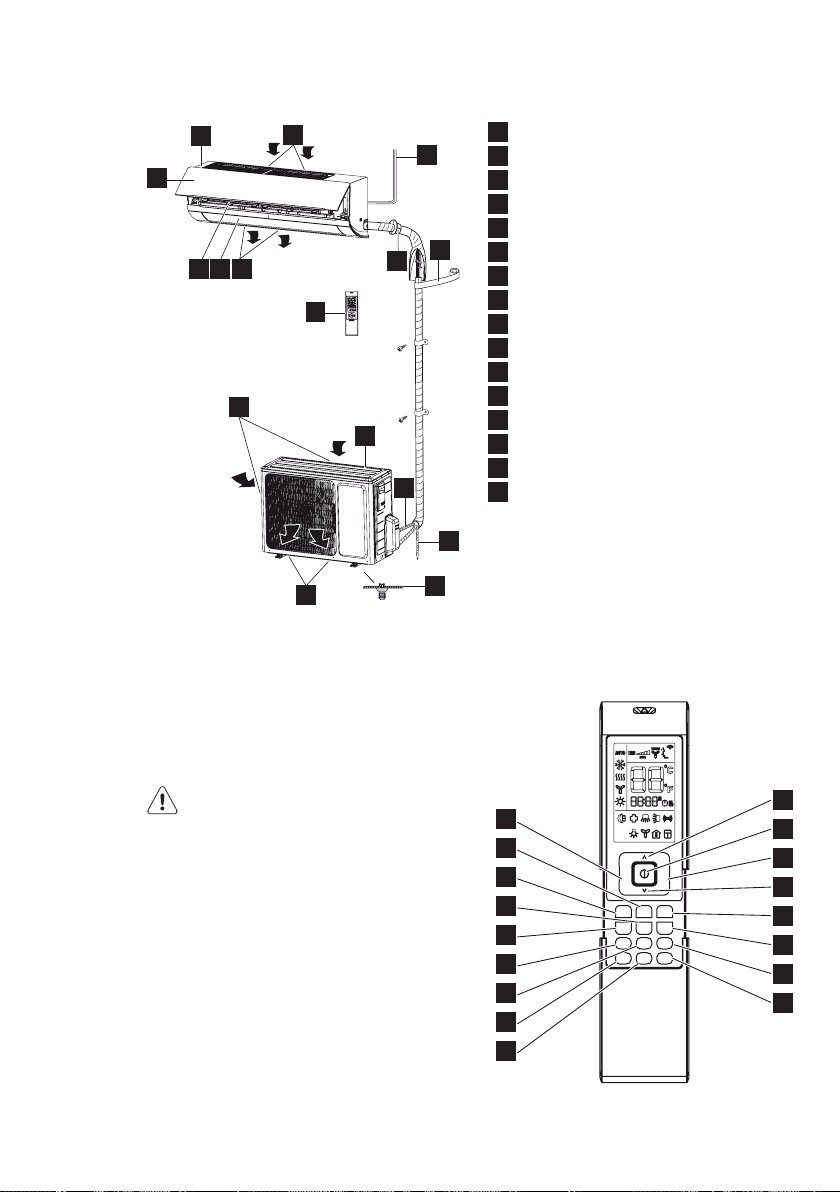

DESCRIPTION

10 11 3

Indoor unit

Air inlet (indoor unit)

Air outlet (indoor unit)

Outdoor unit

Air inlet (outdoor unit)

Air outlet (outdoor unit)

Mains cord

Remote control

Front panel

Filter

Horizontal louvre

Wall pipe

Binding tape

Connection pipe

Drain hose

Drain connector

REMOTE CONTROL

The remote control can be used for different models. Depending on the model, some functions on the remote control might not be available.

CAUTION

r© $O©NOT©DROP©OR©THROW©THE©REMOTE©

control.

r© $O©NOT©POUR©LIQUID©ONTO©THE©REMOTE©

control.

r© $O©NOT©EXPOSE©THE©REMOTE©CONTROL©TO©

direct sunlight.

r© $O©NOT©PLACE©THE©REMOTE©CONTROL©IN©

areas where it is very hot.

NOTE

r© -AKE©SURE©THAT©THERE©ARE©NO©OBJECTS©

between the signal transmitter on the remote control and the signal receiver of the unit.

18 24 29 32 30 25 31 22 23

20 17

Fan

Mode

Swing-

Slee

Turbo

ION

Swing-H

Quiet

Filter

Timer

X-Fan

I Feel

Timer

Clock

Light

Off

19 21 33 26 27 28

ENGLISH 7

Explanation of buttons

Nr. Button Explanation

17 ON/OFF Press the button to switch on the unit. Press the button again

18 MODE Press the button to set the operation mode: AUTO, COOL,

19 FAN Press the button to set the fan speed: AUTO, LOW, MEDIUM

20 UP ^ Press the button to increase the temperature. Keep the

21 DOWN v Press the button to decrease the temperature. Keep the

22 CLOCK Press the button to set the clock. If the clock symbol blinks,

23 LIGHT Press the button to switch the display of the indoor unit on or

24 TURBO In COOL or HEAT mode, press the button to enable or

to switch off the unit.

DRY, FAN and HEAT. Default setting: AUTO. In the AUTO mode, the temperature is not shown. In HEAT

mode, the initial value is 28 °C (82 °F). In other modes, the initial value is 25 °C (77 °F).

LOW, MEDIUM, MEDIUM HIGH and HIGH. Default setting: AUTO. In the DRY mode, only LOW can be set.

button pressed for two seconds to accelerate the process. Release the button to set the temperature and send the order that the °C/°F signal will be displayed constantly.

Temperature range: 16-30 °C (61-86 °F). In AUTO mode, the temperature cannot be set. If you press

the UP or DOWN button, a beep will sound.

button pressed for two seconds to accelerate the process. Release the button to set the temperature and send the order that the °C/°F signal will be displayed constantly.

Temperature range: 16-30 °C (61-86 °F). In AUTO mode, the temperature cannot be set, but the order

can be sent by pressing the button.

press the UP or DOWN button to set the time. Keep the button pressed for two seconds to accelerate the process. Press the CLOCK button again to set the clock. The clock symbol stops blinking.

After battery replacement, “12:00 PM” will be shown. If the clock symbol is visible, the actual time will be shown. If the clock symbol is not visible, the timer will be shown.

off. Default setting: OFF.

disable the turbo function. If the turbo function is enabled, the turbo symbol will be shown. Default setting: OFF.

If the turbo function is enabled, the unit will operate at turbo speed to cool or heat rapidly so that the ambient temperature approaches the set temperature as soon as possible.

8 www.electrolux.com

25 X-FAN In COOL or DRY mode, press the button to enable or disable

26 ION-FILTER Press the button to enable or disable the operation of the

27 TIMER ON Press the button to set the timer function for switching on the

28 TIMER OFF Press the button to set the timer function for switching off the

29 SWING-V Press the button to enable or disable the vertical swing

30 SWING-H Press the button to enable or disable the horizontal swing

31 I FEEL Press the button to enable or disable the I FEEL function.

32 QUIET Press the button to enable or disable the QUIET function.

33 SLEEP Press the button to select (SLEEP 1, SLEEP 2, SLEEP 3 or

SLEEP 1 In COOL and DRY mode:

If the operation mode or the fan speed is changed, the turbo symbol will not be shown.

the X-FAN function. If the X-FAN function is enabled, the X-FAN symbol will be shown. Default setting: OFF.

If the X-FAN function is enabled, the indoor fan will continue operation at low speed for 2 minutes after switching off the unit. This function prevents the possible condensation on cold parts of the indoor unit. Press the X-FAN button to switch off the unit during the process.

If the X-FAN function is disabled, the unit will be switched off immediately.

In AUTO, FAN or HEAT mode, X-FAN is not available.

health ﬁlter.

unit. If the TIMER ON symbol blinks, press the UP or DOWN button to set the time. Keep the button pressed for two seconds to accelerate the process. Press the button to set the timer. Default setting: 8:00 AM (12-hour mode). Press the button again to cancel the timer function.

unit. If the TIMER OFF symbol blinks, press the UP or DOWN button to set the time. Keep the button pressed for two seconds to accelerate the process. Press the button to set the timer. Default setting: 5:00 PM (12-hour mode). Press the button again to cancel the timer function.

function.

If the I FEEL function is enabled, the I FEEL symbol will be shown.

If the I FEEL symbol is enabled, the remote control will send the ambient temperature to the main unit every 10 minutes or when you press one of the buttons.

If the QUIET function is enabled, the indoor fan operates at ultra-low speed so that the indoor noise is low.

SLEEP CANCEL). Default setting: SLEEP CANCEL.

Sleep status after 1 hour of operation: The temperature will increase by 1 °C.

Sleep status after 2 hours of operation: The temperature will increase by 2 °C.

After this time the unit continues to use the new temperature. In HEAT mode: Sleep status after 1 hour of operation: The temperature will

decrease by 1 °C. Sleep status after 2 hours of operation: The temperature will

decrease by 2 °C. After this time the unit continues to use the new temperature.

SLEEP 2 In COOL mode:

If you set a temperature of 16-23 °C, the temperature will increase by 1 °C every hour. After 3 °C, the temperature will be maintained. After 7 hours, the temperature will decrease by 1 °C. After this time the unit continues to use the new temperature.

If you set a temperature of 24-27 °C, the temperature will increase by 1 °C every hour. After 2 °C, the temperature will be maintained. After 7 hours, the temperature will decrease by 1 °C. After this time the unit continues to use the new temperature.

If you set a temperature of 28-29 °C, the temperature will increase by 1 °C every hour. After 1 °C, the temperature will be maintained. After 7 hours, the temperature will decrease by 1 °C. After this time the unit continues to use the new temperature.

If you set a temperature of 30 °C, the temperature will decrease by 1 °C after 7 hours. After this time the unit continues to use the new temperature.

In HEAT mode: If you set a temperature of 16 °C, the unit will operate at this

temperature. If you set a temperature of 17-20 °C, the temperature will

decrease by 1 °C every hour. After 1 °C, the temperature will be maintained.

If you set a temperature of 21-27 °C, the temperature will decrease by 1 °C every hour. After 2 °C, the temperature will be maintained.

If you set a temperature of 28-30 °C, the temperature will decrease by 1 °C every hour. After 3 °C, the temperature will be maintained.

ENGLISH 9

10 www.electrolux.com

SLEEP 3 The user-dejned behaviour mode. The time on remote control

General operation

1. Disconnect the unit from the power supply.

2. Press the ON/OFF button to start the unit.

3. Press the MODE button to set the operation mode.

4. Press the UP and DOWN buttons to set the temperature. (Note: It is unnecessary to set the temperature in AUTO mode.)

5. Press the FAN button to set the fan speed.

6. Press the SWING-H and SWING-V buttons to set the swing.

Optional operation

1. Press the SLEEP button to enable or disable the sleep mode.

2. Press the TIMER ON and TIMER OFF buttons to enable or disable the timer function.

3. Press the LIGHT button to turn on or to turn off the display of the indoor unit.

4. Press the TURBO button to enable or disable the turbo function.

will show “1hour”. The temperature to use after 1 hour will blink.

Press the UP and DOWN buttons to set the desired temperature. Press the TURBO button again to conjrm.

The value "1hour" will increase to the value "2hours", "3hours" or ”8hours”. In each step the corresponding temperature will blink.

Repeat the above (2 3) operation for the "2hours", "3hours" and ”8hours” steps.

Sleep3: Display the set temperatures: Select SLEEP 3 without changing temperature. Press the TURBO button to conjrm.

Note: The above setting or enquiry procedure terminates if no button is pressed for 10 seconds. The ON/OFF button, the MODE button and the SLEEP button also terminate the setting or enquiry procedure.

Special functions

AUTO mode The temperature will not be displayed.

The unit automatically sets the operation mode.

Locking/unlocking the remote control Simultaneously press the SWING-V

button and the ION-FILTER button to lock or unlock the remote control. If the remote control is locked, the LOCK symbol will be shown. Press any button to make the LOCK symbol blink 3 times and unlock the remote control. If the remote control is unlocked, the LOCK symbol will not be shown.

Celsius (°C) ~ Fahrenheit (°F) If the unit is switched off, simultaneously

press the SWING-H button and the ION-FILTER button to switch between Celsius (°C) and Fahrenheit (°F).

Energy-saving function In COOL mode, simultaneously press

the ION-FILTER button and the CLOCK button to enable or disable the energysaving function. The display shows ”SE”.

ENGLISH 11

8 °C heating function In HEAT mode, simultaneously press

the ION-FILTER button and the CLOCK button to enable or disable the 8 °C heating function. The display shows ”8 °C” (”46 °F”). The unit starts to heat when the temperature drops below 8 °C. Fan Speed will be AUTO and cannot be changed.

Replacng the batteries

The remote control operates with two

1.5V AAA batteries.

1. Open the battery compartment.

2. Remove the old batteries.

3. Insert the new batteries. Make sure that the positive (+) and negative (-) markings on the batteries match the positive (+) and negative (-) markings on the battery compartment.

4. Close the battery compartment.

CAUTION

r© !LWAYS©USE©NEW©BATTERIES©OF©THE©SAME©

type. Do not use old batteries or different batteries types.

r© 2EMOVE©THE©BATTERIES©WHEN©THE©

remote control will not be used for a long time.

r© !IM©THE©REMOTE©CONTROL©AT©THE©RECEIVER©

of the main unit to improve the receiving sensitivity of the main unit.

r© )F©THE©REMOTE©CONTROL©TRANSMITS©A©

signal, the transmitting symbol will blink for 1 second. The bell will ring if the main unit receives the signal.

r© )F©THE©REMOTE©CONTROL©DOES©NOT©OPERATE©

normally, remove the batteries and insert them again 30 seconds later. If the remote control still does not operate normally, replace the batteries.

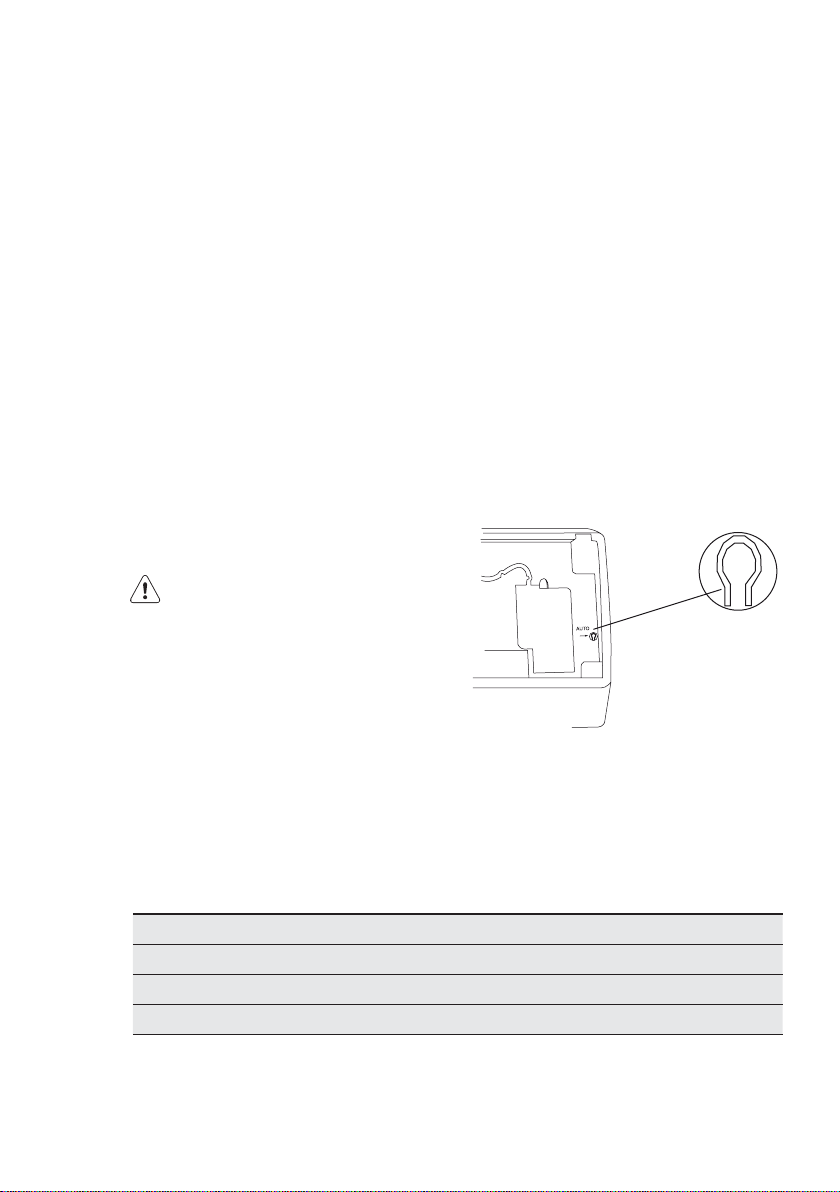

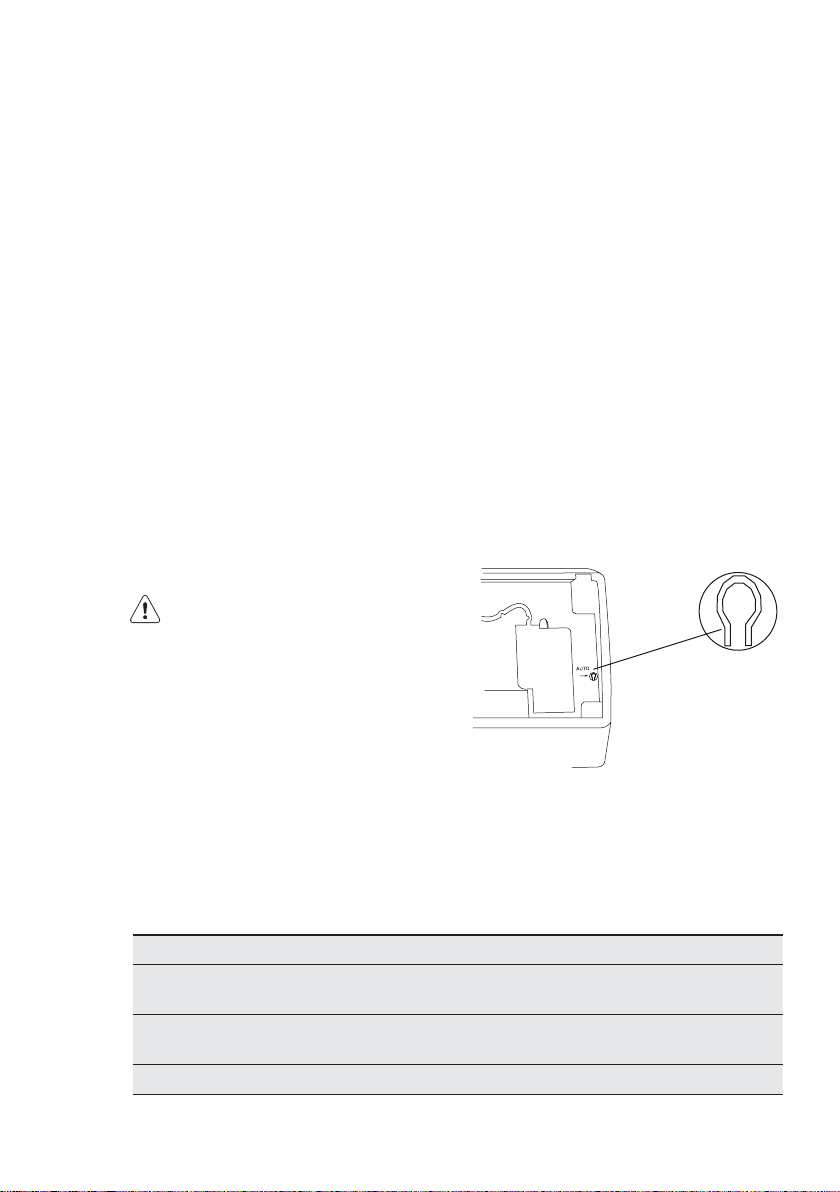

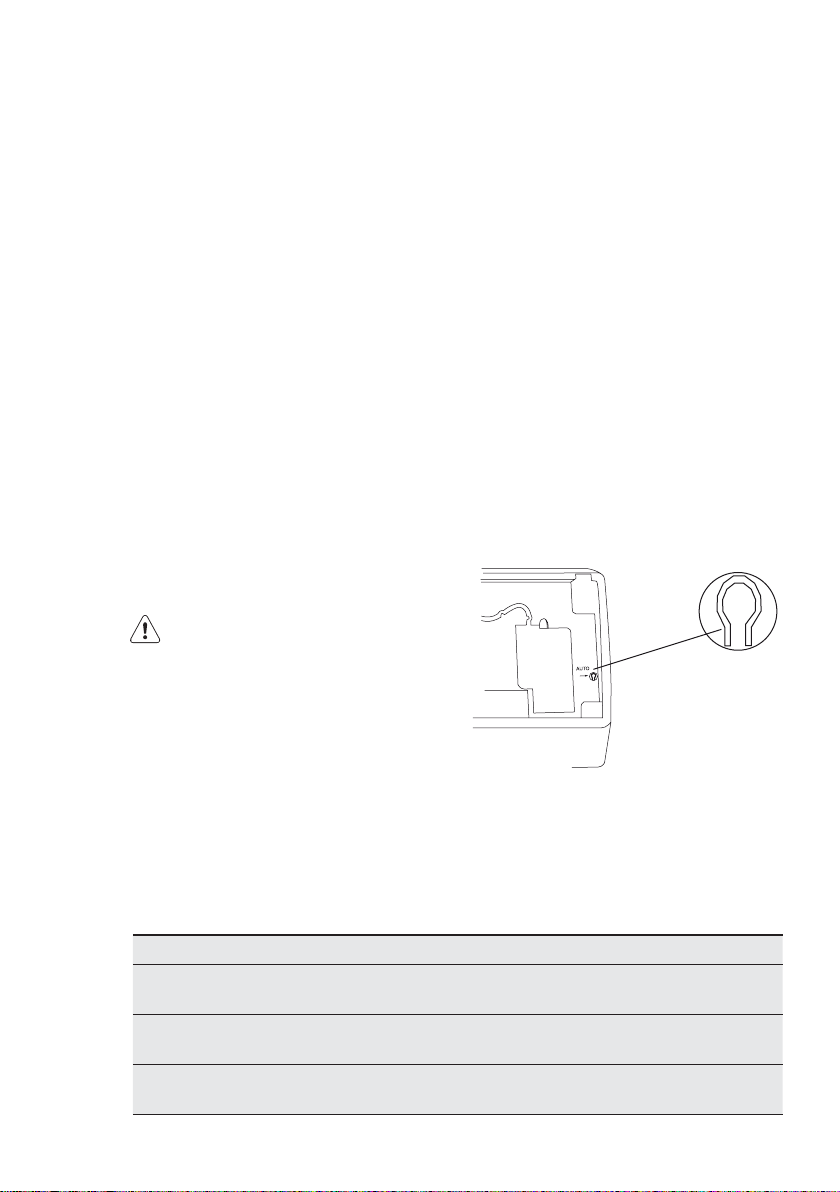

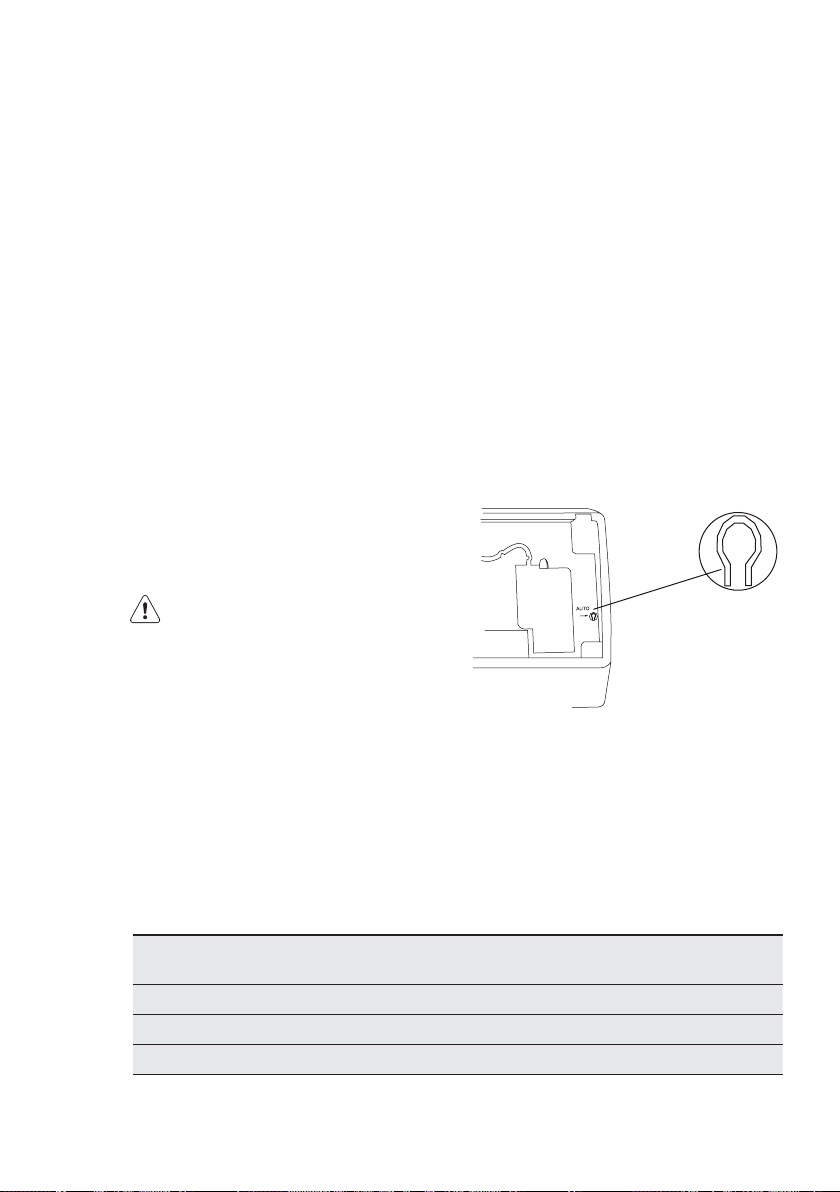

Emergency operation

If the remote control cannot be used, use the AUTO/STOP button on the main unit. The unit will operate in AUTO mode. The temperature or fan speed cannot be changed.

NOTE

r© /PERATE©THE©REMOTE©CONTROL©WITHIN©ITS©

transmitting and receiving range.

r© /PERATE©THE©REMOTE©CONTROL©AT©LEAST©

1 m away from your TV set or stereo sound set.

Mode Model Temperature setting Fan speed

AUTO Cooling only 25 °C (COOL, FAN) AUTO AUTO Heat pump 25 °C (COOL, FAN) AUTO AUTO Heat pump 20 °C (HEAT) AUTO

1. Press the AUTO/STOP button to switch on the unit. The unit automatically sets the operation mode.

2. Press the AUTO/STOP button again to switch off the unit.

12 www.electrolux.com

CLEANING AND MAINTENANCE

WARNING

r© "EFORE©CLEANING©AND©MAINTENANCE©

disconnect the unit from the power supply.

r© $O©NOT©IMMERSE©THE©UNIT©IN©WATER©OR©

other liquids. If the unit is immersed in water or other liquids, do not remove the unit with your hands. Immediately disconnect the unit from the power supply. If the unit is immersed in water or other liquids, do not use the unit again.

r© $O©NOT©SPLASH©WATER©ON©THE©UNIT©TO©

prevent electric shock.

CAUTION

r© $O©NOT©USE©AGGRESSIVE©LIQUIDS©EG©

thinner or gasoline) to clean the unit. Clean the unit using a soft, dry cloth or a cloth slightly moistened with water or cleaner.

Cleaning the front panel

1. Remove the front panel.

2. Clean the front panel using a cloth slightly moistened with water.

3. Install the front panel.

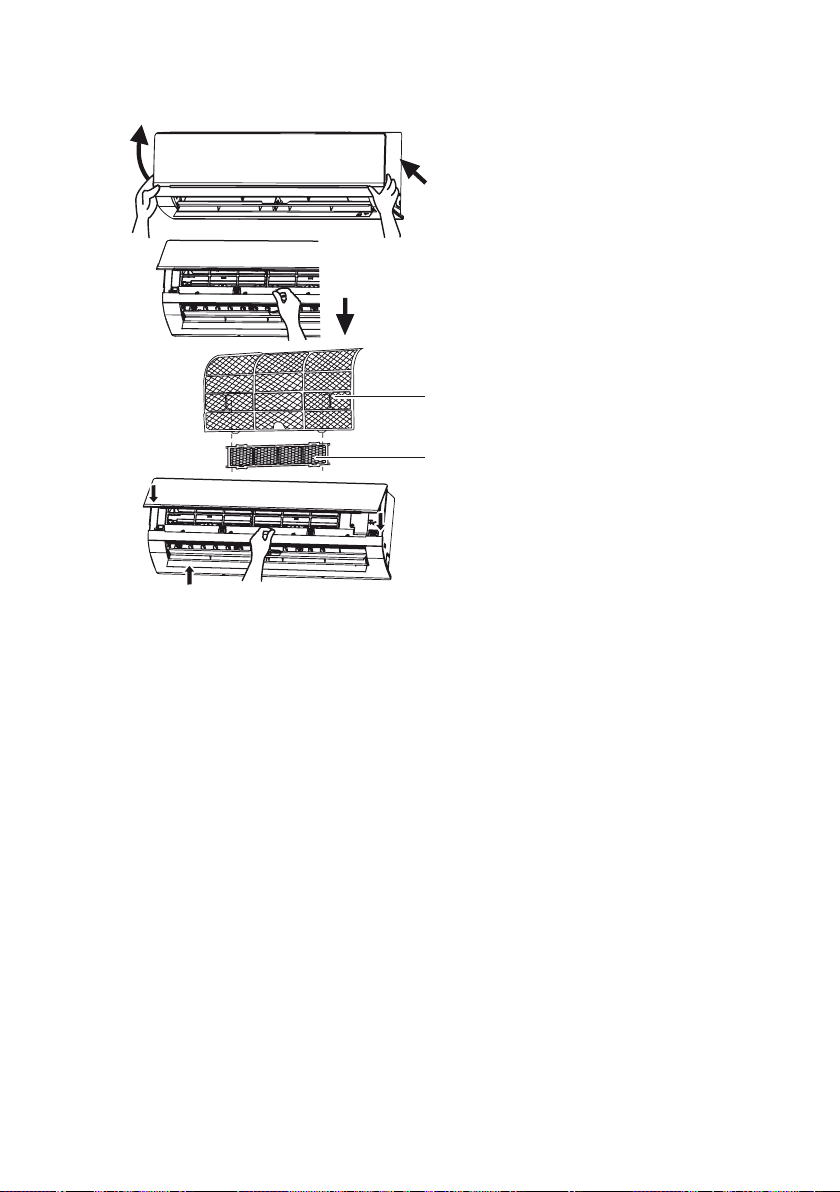

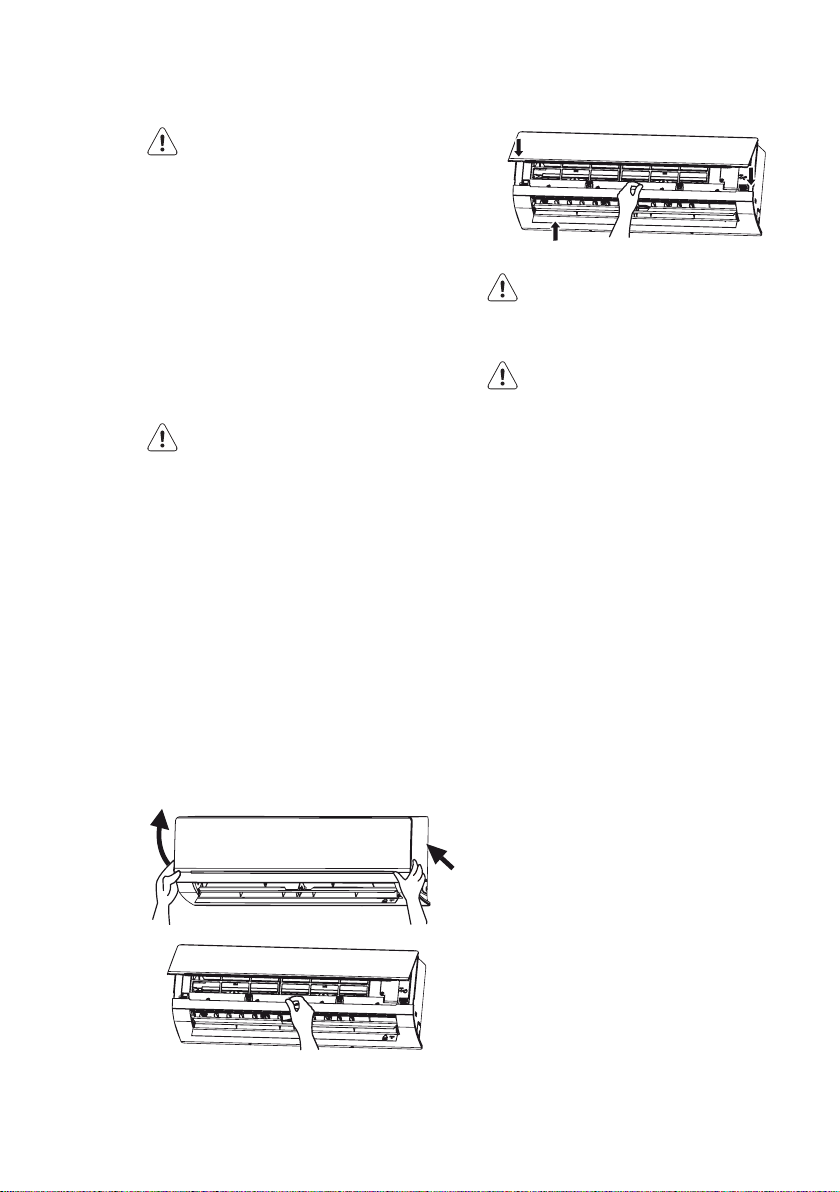

Cleaning the air ﬁlter

The air ﬁlter must be cleaned every 3 months.

WARNING

r© $O©NOT©TOUCH©THE©kN©OF©THE©INDOOR©UNIT©

to prevent personal injury.

CAUTION

r© $O©NOT©USE©WATER©ABOVE©©§#©

to clean the air ﬁlter to prevent deformation or discoloration.

1. Open the front panel.

2. Remove the air ﬁlter.

3. Remove dust from the air ﬁlter using a vacuum cleaner.

4. If the air ﬁlter is dirty, clean the air ﬁlter with warm water and a mild detergent. Allow the air ﬁlter to dry naturally in a cool, dark place.

5. Install the air ﬁlter.

6. Close the front panel.

Check before use

r© -AKE©SURE©THAT©NOTHING©OBSTRUCTS©THE©

air inlet or the air outlet.

r© -AKE©SURE©THAT©THE©INSTALLATION©STAND©

of the outdoor unit is not damaged. If the installation stand is damaged, consult a qualiﬁed technician.

r© -AKE©SURE©THAT©THE©BATTERIES©ARE©

inserted into the remote control.

Maintenance after use

r© $ISCONNECT©THE©UNIT©FROM©THE©POWER©

supply.

r© #LEAN©THE©kLTERS©AND©THE©HOUSINGS©OF©

the indoor unit and the outdoor unit.

r© 2EMOVE©ANY©OBSTRUCTIONS©FROM©THE©

outdoor unit.

TROUBLESHOOTING

ENGLISH 13

CAUTION

r©4HE©UNIT©IS©NOT©USERSERVICEABLE©$O©

not attempt to repair the unit yourself to prevent electric shock or ﬁre. Have

Problem Solution

The unit does not operate. The unit does not operate if it is switched on

immediately after switching off the unit. After switching off the unit, wait for approximately 3 minutes before switching on the unit.

Odours are emitted. Some odours may be emitted from the indoor

unit as the result of room smells (furniture, tobacco, etc.) which have been taken into the unit. If the odours persist, contact an authorised service centre.

Water-kowing noise. The water-kowing noise is the refrigerant

kowing inside the unit.

Mist is emitted in COOL mode. During cooling operation, mist may be

emitted from the indoor unit due to high room temperature and humidity. The mist will disappear if the room temperature and humidity decrease.

Cracking noise. The cracking noise is the sound of friction

caused by expansion and/or contraction of the front panel or other parts due to the change in temperature.

The unit cannot be started. Is the unit disconnected from the power

supply? Is the mains plug loose? Is the circuit protection device tripped off? Is the voltage higher or lower? (tested by

professionals) Is the timer function used correctly?

The cooling/heating effect is poor. Is the temperature set correctly?

Is the air inlet or the air outlet blocked? Is the air jlter dirty? Is the window or the door open? Is a low fan speed set? Are there heat sources in the room?

the unit repaired by an authorised service centre. The following checks can save you time and money before consulting an authorised service centre.

14 www.electrolux.com

The remote control does not work.

Is there any magnetic or electrical interference near the unit? If yes, remove and reinsert the batteries.

Is the remote control within its transmitting and receiving range without any obstructions? If necessary, replace the batteries.

Is the remote control damaged?

Water leakage in indoor unit. The room humidity is high.

Condensing water overkows. The drain hose is loose.

Water leakage in outdoor unit. In COOL mode, water condensate is generated

around the pipes and connection joints. In HEAT mode, the water on the heat

exchanger drips out. In defrost mode, the thaw water kows out.

Noise from indoor unit. The noise emitted when the fan or compressor

relay is switched on or off. If the defrost mode is started or stopped, you

will hear the sound of refrigerant kowing in the reverse direction.

The indoor unit cannot blow air. In HEAT mode, when the temperature of the

indoor heat exchanger is low, the airkow is stopped within 2 minutes in order to prevent cold air.

In HEAT mode, when the outdoor temperature is low or the outdoor humidity is high, frost will be formed on the outdoor heat exchanger. The unit will defrost automatically and the indoor unit will stop blowing air for 3-12 minutes.

In DRY mode, the indoor fan will stop blowing air for 3-12 minutes in order to avoid condensing water being vapourised again.

In defrost mode, water or vapour may be emitted.

Moisture on air outlet. If the unit operates at high humidity for a long

time, moisture will be generated on the grill of the air outlet.

C5: Malfunction of connector jumper.

Check if the connector jumper contacts properly. If necessary, replace the old circuit board with a new circuit board.

F1: Malfunction of indoor ambient temperature sensor.

Check if the indoor room temperature sensor is connected properly.

ENGLISH 15

F2: Malfunction of evaporator temperature sensor.

There is harsh sound during operation.

Strong odours are emitted during operation.

Water is leaking from the indoor unit.

The air switch or protection switch often interrupts power supply.

Water or other liquid is splashed into the unit.

Mains cord and mains plug are overheated.

OPERATION TIPS

Check if the evaporator temperature sensor is connected properly.

Immediately stop operation, disconnect the unit from the power supply and contact an authorised service centre.

Cooling operation

Air conditioners absorb heat from indoor and transmit the heat to the outdoor unit in order to decrease the room temperature. The cooling capacity will increase or decrease according to the outdoor temperature.

Anti-freezing function If the unit is in COOL mode and in a

low ambient temperature, frost will be formed on the heat exchanger of the indoor unit. If the temperature of the heat exchanger decreases below zero, the compressor will stop operation to protect the unit.

Heating operation

Air conditioners absorb heat from outdoor and transmit the heat to the indoor unit in order to increase the room

temperature. The heating capacity will increase or decrease according to the outdoor temperature.

Defrosting

r© )F©THE©OUTDOOR©TEMPERATURE©IS©LOW©AND©

the outdoor humidity is high, frost will form on the outdoor unit during extended operation. The heating capacity will decrease. The unit may stop operation during defrosting.

r© $URING©DEFROSTING©THE©FAN©MOTORS©OF©

the indoor unit and outdoor unit will stop operation.

r© $URING©DEFROSTING©THE©INDOOR©INDICATOR©

ﬂashes and the outdoor unit may emit vapour. This is normal operation to remove frost from the heat exchanger of the outdoor unit.

r© !FTER©DEFROSTING©THE©HEATING©OPERATION©

will resume automatically.

16 www.electrolux.com

Anti-cold air function

In HEAT mode, the indoor fan will not operate in order to prevent cold air from blowing out if the indoor heat exchanger does not reach a certain temperature in one of the following situations:

t when the heating operation starts; t when the defrosting operation is

t when heating at low temperature.

Gentle breeze

The indoor unit may blow gentle breeze and the horizontal louvre rotates to a

Indoor side (°C) Outdoor side (°C)

Max. cooling 32 48 Min. cooling 21 -15 Max. heating 27 24 Min. heating 20 -20

Tip for energy saving

t Do not overcool or overheat. Setting

the temperature at a moderate level helps energy saving.

t Cover windows with a blind or a

curtain. Blocking sunlight and air from outdoor is favorable for cooling.

certain position in one of the following situations:

t In HEAT mode, the compressor does

not start operation after switching on the unit.

t In HEAT mode, the temperature

reaches the set value and the compressor has stopped operation for 1 minute.

Opetaring temperature range

The operating temperature range for cooling-only units is -15-(+48˚C). The operating temperature range for heatpump units is -20-(+24)˚C.

t Clean air

Clogged air ﬁlters lead to inefﬁcient operation and energy waste.

Tip for relative humidity

t If the unit is operated in an area with

a relative humidity of more than 80% for a long time, condensate may drip from the indoor unit.

every two weeks.

INSTALLATION

Installation notes

t Not following the instructions can

cause personal injury and/or property damage.

t Not following the instructions can

cause the unit to fail.

t Let the unit be installed by an

authorised service centre.

t Let the unit be installed in compliance

with local and governmental regulations.

t Let the unit be installed according to

the instructions from this manual.

t First contact an authorised service

centre before relocating an already installed unit

t Disconnect power before working on

the unit.

t Let the mains cable be repaired by an

authorised service centre or qualiﬁed technician for units with Y-attachment.

t The mains plug must remain

accessible after installation.

t Keep

the interconnection cable and the

distance between

ENGLISH 17

refrigerant circuit because the circuit operating temperature is high.

r© 4HE©PIPES©CONNECTING©THE©INDOOR©AND©

outdoor unit are not included in the unit.

r© 4HE©OUTDOOR©UNIT©IS©POWERED©BY©THE©

indoor unit.

Installation site

r© $O©NOT©INSTALL©THE©UNIT©IN©AREAS©WITH © STRONG©HEAT©SOURCES © VAPOURS©OR©lAMMABLE©GASSES © CONTAMINATION©WITH©OIL©PARTICLES

- high frequency electromagnetic equipment (e.g. welding equipment or

MEDICAL©DEVICES

- high salinity (e.g. close to coastal

AREAS

© SULPHURIC©GAS©EG©HOT©WATER©SPRINGS

- poor air quality.

Indoor unit

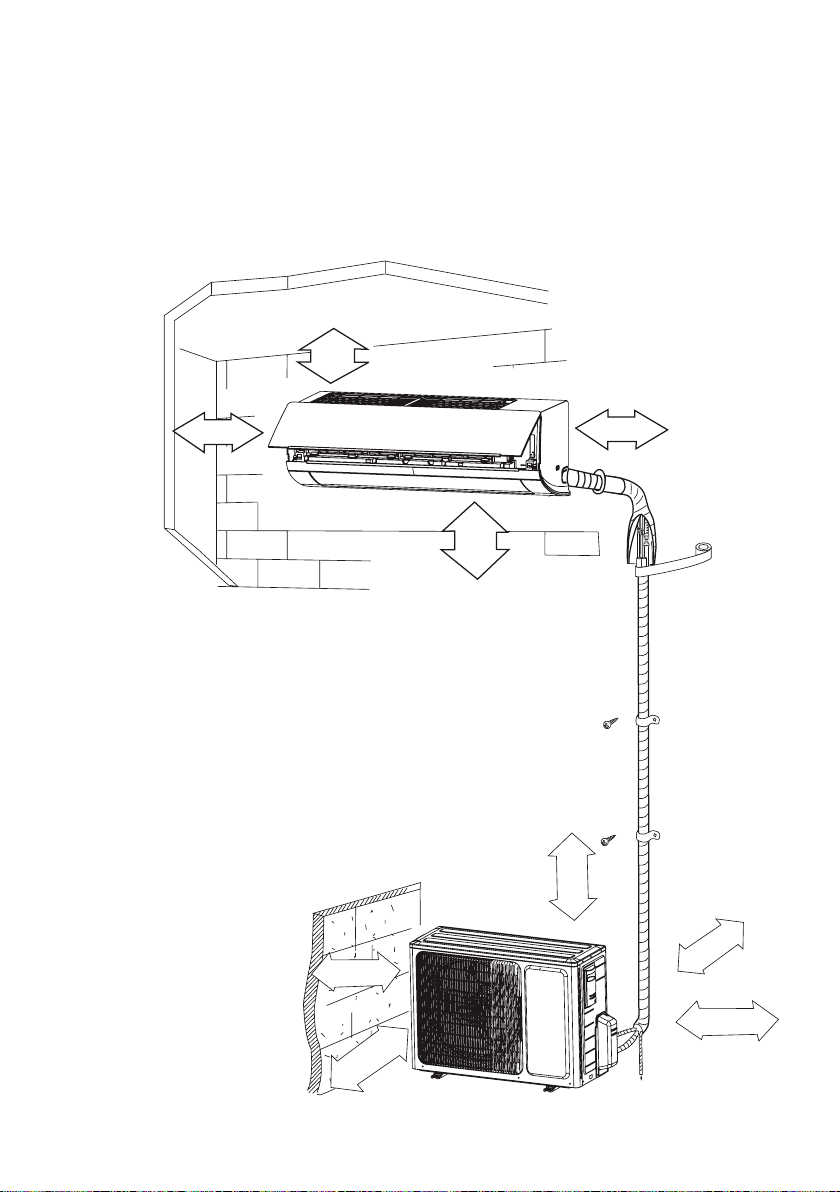

r© -AINTAIN©THE©MINIMUM©INSTALLATION©

distances speciﬁed in this document. Do not block the air inlet or the air outlet.

r© $O©NOT©USE©THE©UNIT©IN©PLACES©WITH©

extremely high humidity.

r© )NSTALL©THE©INDOOR©UNIT©OUT©OF©REACH©OF©

children.

r© 4HE©WALL©MUST©BE©STRONG©ENOUGH©TO©

support the weight and vibration of the unit.

r© )NSTALL©THE©INDOOR©UNIT©AT©LEAST©23©CM©

above the ﬂoor surface.

r© ,EAVE©SUFkCIENT©SPACE©FOR©CLEANING©

and maintenance.

r© 4HE©AIR©kLTER©SHOULD©REMAIN©ACCESSIBLE© r© ,EAVE©AT©LEAST©©M©DISTANCE©

between the unit and other electrical appliances.

r© )NSTALL©THE©INDOOR©UNIT©IN©A©PLACE©WHERE©

the condensate water can be easily drained.

r© )NSTALL©AT©A©LOCATION©PROTECTED©FROM©

direct sunlight.

Outdoor unit

r© -AINTAIN©THE©MINIMUM©INSTALLATION©

distances speciﬁed in this document.

r© $O©NOT©BLOCK©THE©AIR©INLET©OR©THE©AIR©

outlet.

r© )NSTALL©THE©OUTDOOR©UNIT©OUT©OF©REACH©OF©

children.

r© )NSTALL©THE©OUTDOOR©UNIT©WHERE©THERE©IS©

sufﬁcient ventilation.

r© )NSTALL©THE©OUTDOOR©UNIT©WHERE©

produced noise and airﬂow will not disturb neighbors or animals.

r© )NSTALL©THE©OUTDOOR©UNIT©IN©A©DRY©PLACE© r© )NSTALL©THE©OUTDOOR©UNIT©IN©A©PLACE©NOT©

exposed to direct sunlight or strong wind.

r© )NSTALL©THE©UNIT©IN©A©PLACE©THAT©SUPPORTS©

the weight and vibration of the unit.

r© 4HE©HEIGHT©DIFFERENCE©BETWEEN©THE©

indoor unit and the outdoor unit must be less than 5 m.

r© 4HE©LENGTH©OF©THE©CONNECTING©PIPES©

must be less than 10 m.

r© ,EAVE©SUFkCIENT©SPACE©FOR©CLEANING©

and maintenance.

r© 4HE©OUTDOOR©UNIT©IS©POWERED©BY©THE©

indoor unit.

Safety precautions for electrical appliances

r© 5SE©A©DEDICATED©MAINS©CIRCUIT r© 4HE©UNIT©MUST©BE©PROPERLY©GROUNDED r© )NSTALL©A©2ESIDUALCURRENT©DEVICE©

(RCD) to protect against personal injury in case of leakage currents.

r© 5SE©AN©ALL©POLE©DISCONNECTION©SWITCH©

with a contact separation of at least 3 mm in all poles in ﬁxed wiring. For models with a mains plug, make sure that the mains plug is within reach after installation.

r© 4HE©INSTALLATION©MUST©COMPLY©WITH©

local electrical safety regulations and with other relevant local regulations

r© 4HE©UNIT©MUST©BE©INSTALLED©IN©

accordance with national wiring regulations.

18 www.electrolux.com

r© $O©NOT©SUBJECT©THE©MAINS©CABLE©TO©

force.

r© 4HE©DISTANCE©BETWEEN©THE©UNIT©AND©

heat sources is at least 1.5 m.

and heat tripping to prevent short circuit and overload. The suitable capacity is speciﬁed in the following table.

r© 5SE©AN©AIR©SWITCH©4HE©AIR©SWITCH©MUST©

have functions for magnetic tripping

Air conditioner (Btu) Air switch capacity

09-12K 16A

NOTE

r© -AKE©SURE©THAT©THE©LIVE©WIRE©THE©

neutral wire and the ground wire in the mains socket are properly connected.

r© )NADEQUATE©OR©INCORRECT©ELECTRICAL©

connections can cause electric shock or ﬁre.

r© 4HE©YELLOWGREEN©WIRE©IS©THE©GROUND©

wire that cannot be used for other purposes. Improper grounding can cause electric shock.

r© 4HE©GROUND©RESISTANCE©MUST©COMPLY©

with local regulations.

r© 4HE©MAINS©SUPPLY©MUST©HAVE©RELIABLE©

ground terminal. Do not connect the ground wire to water pipes, gas

Grounding requirements

r© 4HE©UNIT©IS©A©TYPE©)©ELECTRICAL©

appliance. Make sure that the unit is properly grounded.

pipes, contamination pipes or other possible unsafe places.

r© &USES©MUST©COMPLY©WITH©THE©

prescribed model and rating printed on the fuse cover or circuit board.

Installation drawing

The dimensions required for proper installation of the unit include the minimum permissible distances to adjacent parts.

min.

5cm*

ENGLISH 19

15cm

30cm

15cm

230

30cm

200cm

* Recommended distance for maximum airﬂow is 15 cm.

50cm

20 www.electrolux.com

Indoor unit

Installing the mounting plate

1. Install the mounting plate

horizontally.

2. Fix the mounting plate to the wall

with screws. Make sure that the mounting plate is ﬁxed ﬁrmly enough to support approximately 60 kg. The weight must be evenly shared by each screw.

Drill piping hole

1. Slant the piping hole (Ø 55 mm) on

the wall slightly downward to the outdoor side.

2. Insert the piping-hole sleeve into

the hole to prevent damage to the connection piping and wiring.

Installing the drain hose

1. Connect the drain hose to the outlet

pipe of the indoor unit. Bind the joint with rubber belt.

2. Put the drain hose into the insulating

tube.

3. Wrap the insulating tube with wide

rubber belt to prevent the insulating tube from shifting. Slant the drain hose slightly downward for smooth drainage of the condensate water.

NOTE

r© 4HE©INSULATING©TUBE©MUST©BE©

connected reliably with the sleeve outside the outlet pipe. The drain must be slanted downward slightly without distortion, bulge or ﬂuctuation. Do not put the outlet of the drain hose in water to prevent the drain hose from freezing.

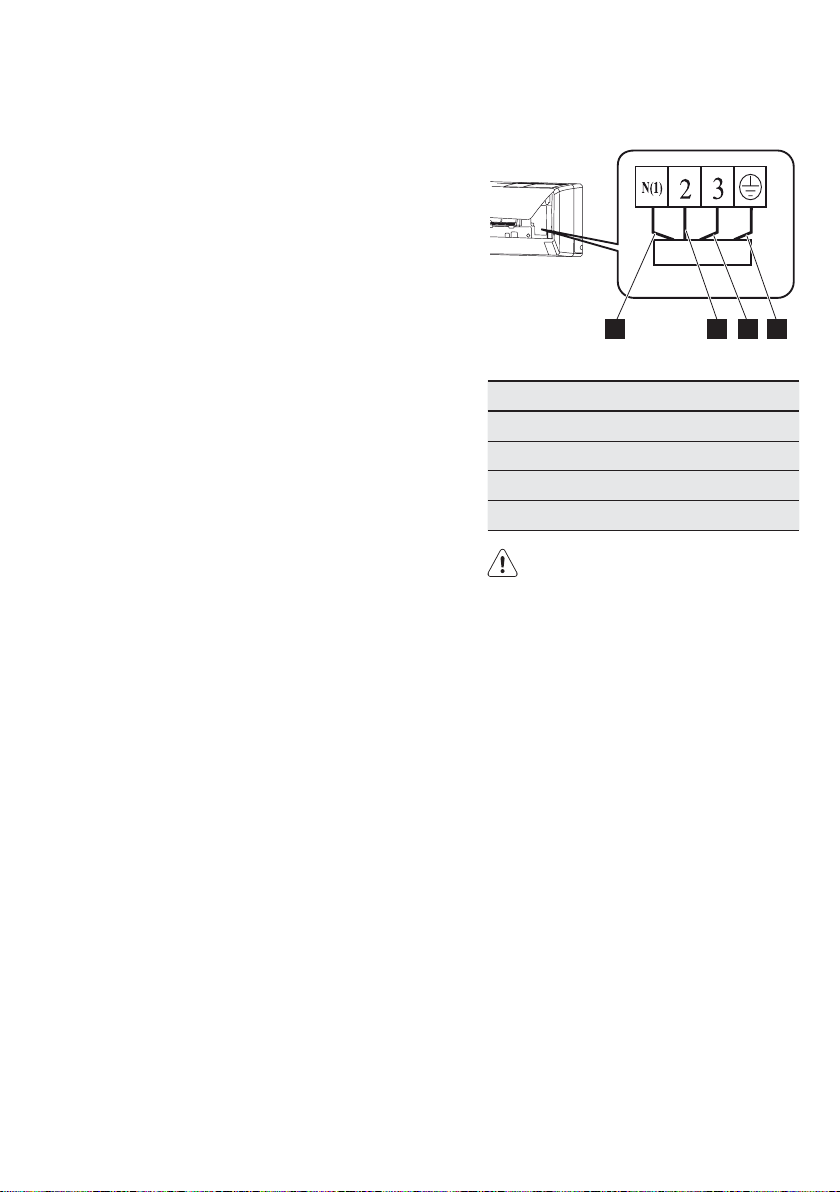

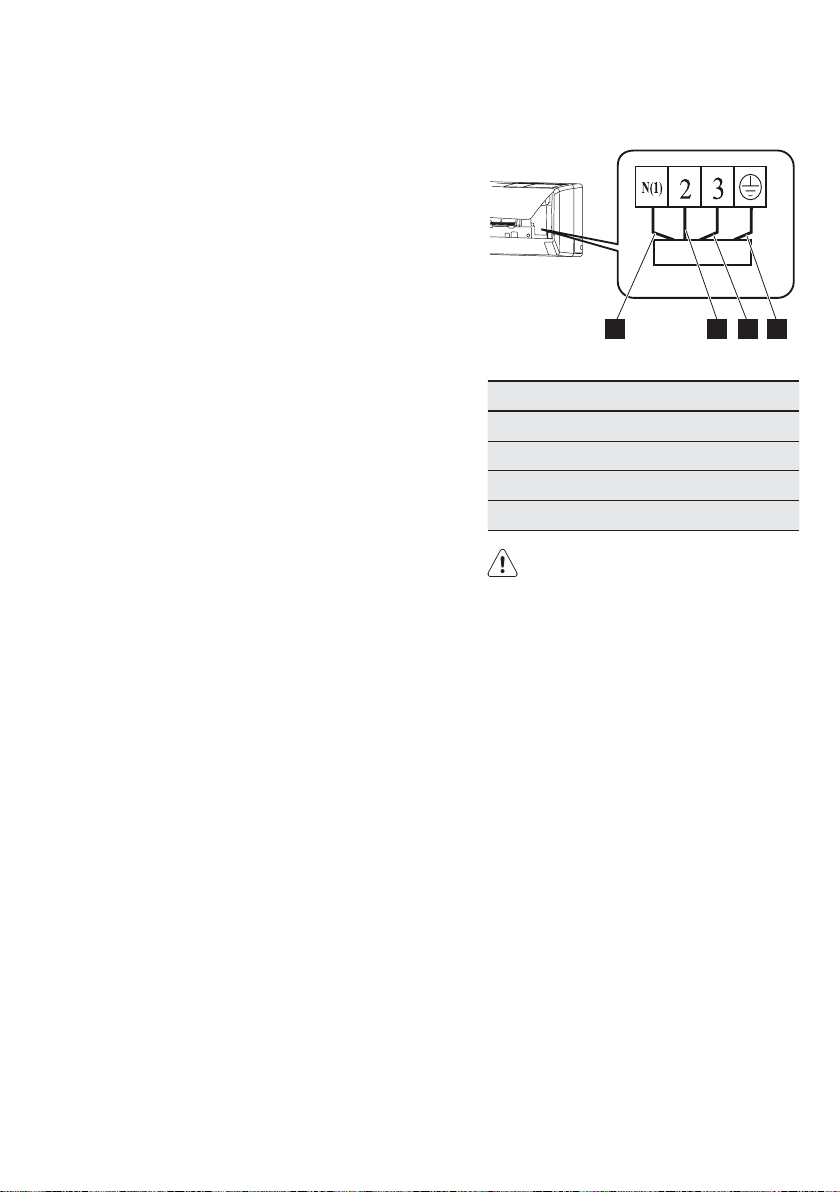

Electrical wiring indoor unit:

1 2 3 4

Nr. Colour

1 Blue (neutral) 2 Black 3 Brown 4 Yellow (ground)

CAUTION

r© #HECK©THE©WIRING©TO©MAKE©SURE©THAT©

there is no short circuit. Incorrect wiring can cause malfunction.

1. Open the front panel.

2. Remove the wiring cover.

3. Fix the mains cord to the terminal board (as shown).

4. Guide the mains cord through the hole at the back of the indoor unit.

5. Install the cord anchorage and wiring cover.

6. Close the front panel.

NOTE

r© 4HE©ELECTRICAL©WIRING©BETWEEN©THE©

indoor unit and the outdoor unit must be connected by a qualiﬁed electrician.

r© 4IGHTEN©THE©TERMINAL©SCREWS©TIGHTLY r© !FTER©TIGHTENING©THE©SCREWS©PULL©THE©

wire slightly to conﬁrm whether it’s ﬁrm or not.

r© -AKE©SURE©THAT©THE©ELECTRICAL©

connections are properly grounded to prevent electric shock.

ENGLISH 21

t Make sure that the wiring connections

are secure and that the cover plates are properly mounted to prevent electric shock.

Installing the indoor unit The piping can be output from the right,

the right rear, the left or the left rear.

1. When routing the piping and wiring from the left or right of indoor unit, cut off the tailings from the chassis when necessary.

2. Remove the piping from the body case.

3. Wrap the piping, the mains cords and the drain hose with the tape.

4. Guide the piping, the mains cords and the drain hose through the piping hole.

5. Firmly hang the mounting slots of the indoor unit on the upper hooks of the mounting plate.

6. The installation site must be at least 230 cm above the ﬂoor surface.

Installing the connection pipe

1. Align the center of the piping ﬂare with the related valve.

2. Screw in the ﬂare nut by hand and then tighten the nut with spanner and torque wrench. Refer to the following table.

outdoor unit. Handle the piping bending with care. Do not damage the connection pipe. Firmly tighten the joint nut to prevent leakage.

t The pipes connecting the indoor and

outdoor unit are not included in the unit.

t In case the connective pipe length is

longer than 7.5m charge the unit with additional refrigerant. Add 20g/m of R410A for models with a capacity of less than 6500W. Add 50g/m for the other models.

Outdoor unit

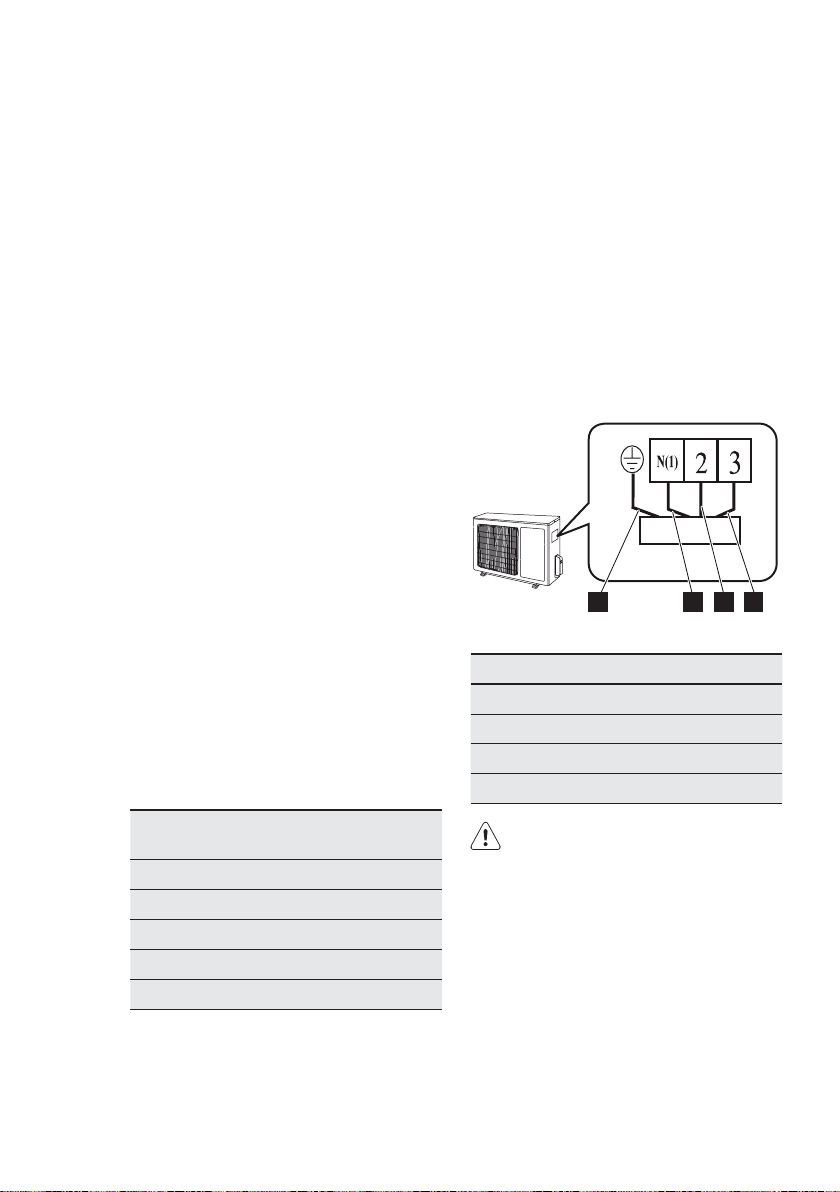

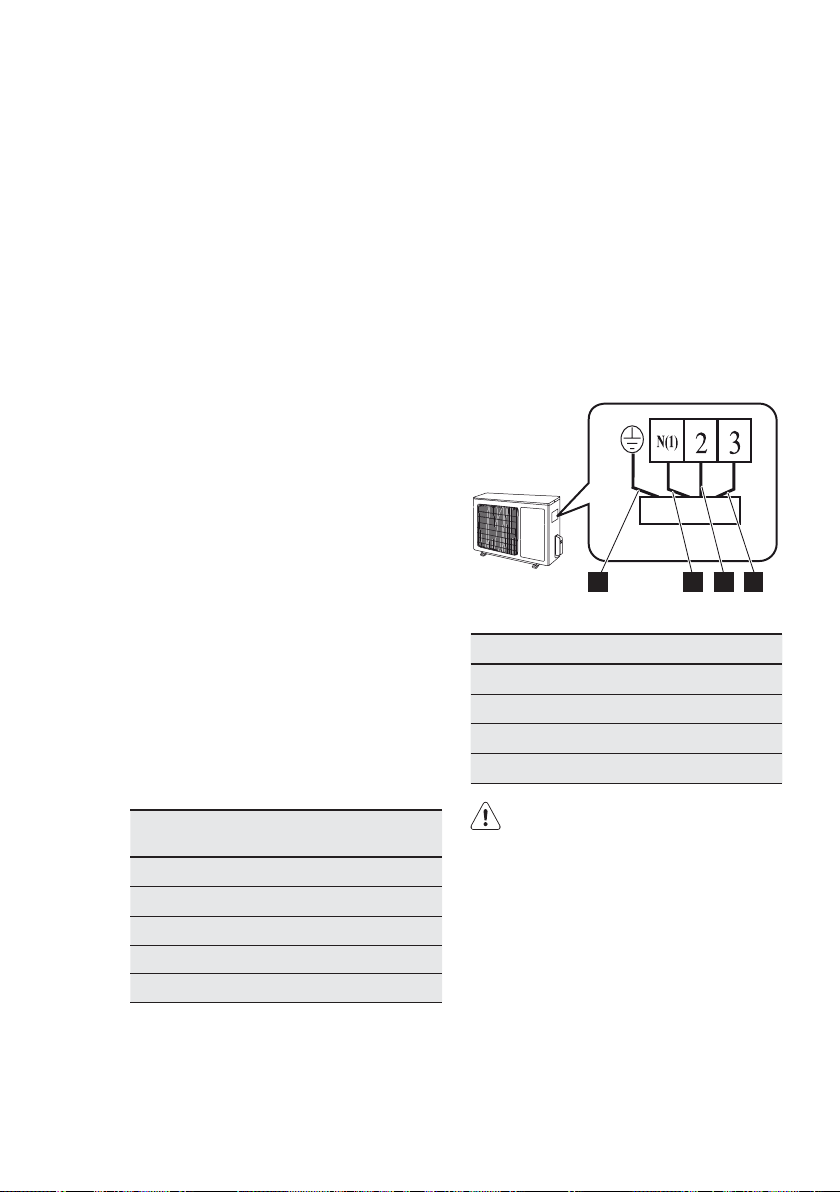

Electrical wiring

1 2 3 4

Nr. Colour

1 2 3 4

Yellow (ground) Blue (neutral) Black Brown

Hex nut diameter (mm)

Tightening torque (Nm)

Ø 6 15-20 Ø 9.52 30-40 Ø 12 45-55 Ø 16 60-65 Ø 19 70-75

NOTE

t First connect the connection pipe

to the indoor unit and then to the

CAUTION

t Check the wiring to make sure that

there is no short circuit. Incorrect wiring can cause malfunction.

1. Remove the handle (x2) on the right side plate of outdoor unit.

2. Remove mains cord anchorage.

3. Connect the mains cord to the terminal board.

4. Lock the position of the cord with wire clamps.

5. Check for improper connections.

22 www.electrolux.com

6. Reinstall the handle.

NOTE

r© #HECK©FOR©FREE©SPACE©BETWEEN©THE©

connection and the lock positions.

CAUTION

r© /PEN©THE©STEM©OF©THE©PACKED©VALVE©

until it hits against the stopper. Do not try to open it further. Close the stem of the packed valve with a special tool. Close the cap of the packed valve with a spanner.

NOTE

The outdoor unit has two outlets, the low side outlet and the high side outlet. Only the low side outlet contains a charging port. The low side outlet is shown below.

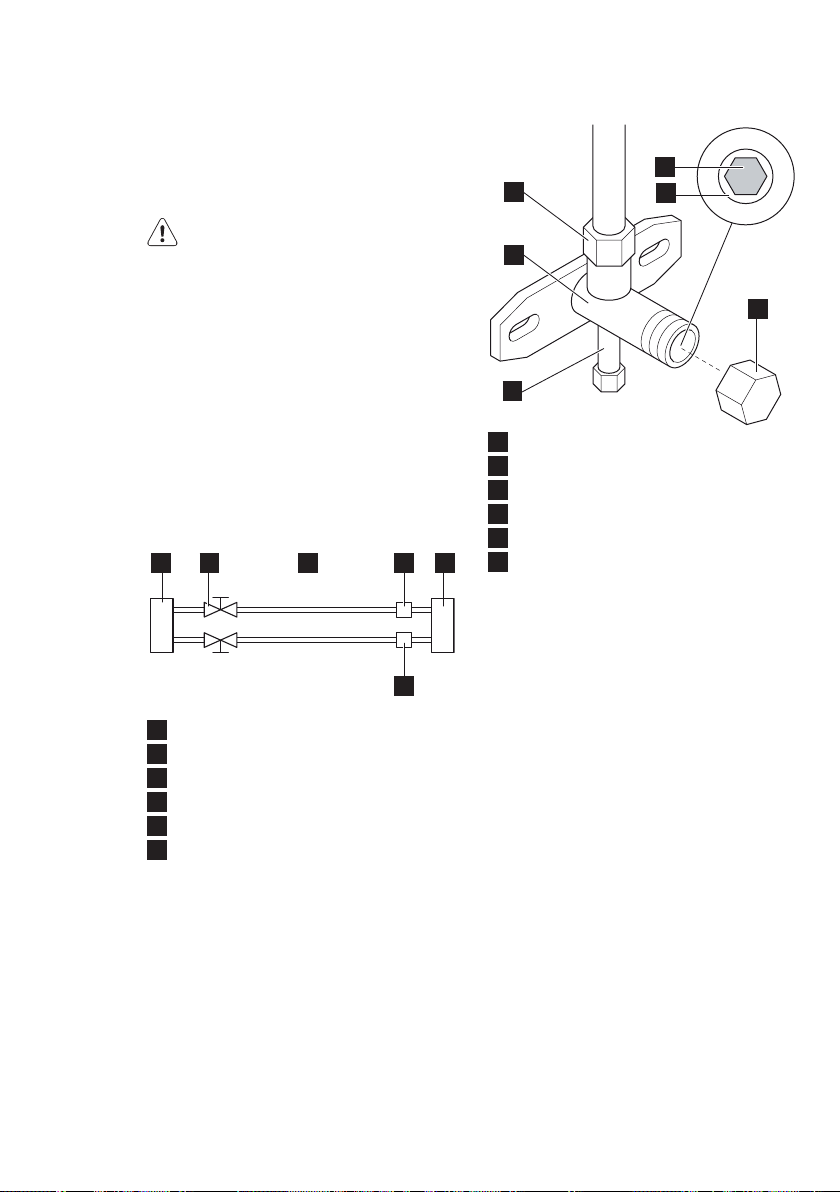

2 5 4 1

Valve body

Valve stem

Charge port

Stopper

Flare nut

Cap

12 35 4

Indoor unit

Outdoor unit

Refrigerant

Gas

Packed valve

Half union

ENGLISH 23

Valve body

Valve stem

Charge port

Stopper

Flare nut

Cap

Using the vacuum pump

1. Fully tighten the ﬂare nuts at connection point A, B, C and D.

2. Connect vacuum hose between charging port and the manifold.

3. Connect the other charge hose between manifold and the vacuum pump.

4. Fully open the handle Lo of the manifold valve.

5. Operate the vacuum pump to evacuate.

6. Slightly loosen the ﬂare nut of the Lo valve on the gas pipe side.

7. Check if air is entering (noise of the vacuum pump changes and

compound meter indicates 0 instead of minus).

8. Tighten the ﬂare nut.

9. Make evacuation for 15 minutes or more and check that the compound meter indicates -7.6 x 10

(-1x10

Pa) (-0,7Bar).

μmHg

10. Fully close the handle Lo of the manifold valve and stop the operation of the vacuum pump.

11. Turn the stem of the packed valve B about 45° counterclockwise for 6~7 seconds after the gas comes out, then tighten the ﬂare nut again.

12. Make sure the pressure display in the pressure indicator is a little higher than the atmosphere pressure. This to verify if the refrigerant does ﬂow correctly through the tubes.

13. Remove the vacuum hose.

14. Replace the charging port cap.

15. Fully open the packed valve stems B and A.

24 www.electrolux.com

16. Securely tighten the cap of the packed valves.

Outdoor condensate drainage (heatpump unit only)

During heating operation, condensate water and defrosting water must be drained through the drain hose.

1. Install the outdoor drain connector in a Ø 25 mm hole on the base plate.

2. Attach the drain hose to the connector so that water in the outdoor unit can be drained. The hole diameter 25 must be plugged.

Check after installation

Items to be checked Possible malfunction

Has the unit been jxed jrmly? The unit may drop, shake or emit noise. Have you done the refrigerant leakage

test? Is the thermal insulation sufjcient? Condensation. Is the water drainage satisfactory? Water leakage. Is the voltage in accordance with the

rated voltage on the nameplate? Is the electrical wiring or piping

connection installed correctly and securely?

Has the unit been securely grounded? Electrical leakage. Is the mains cable as specijed? Electrical malfunction or damage to

Is the air inlet or the air outlet blocked? Insufjcient cooling or heating. Is the length of the connection pipes

and the refrigerant capacity as specijed Is the length of the connection pipes

and the refrigerant capacity as specijed

Insufjcient cooling or heating.

Electrical malfunction or damage to the unit.

Electrical malfunction or damage to the parts.

parts.

Inaccurate refrigerant capacity.

Operation test

Before operation test

supply before the installation is completed.

connected correctly and securely.

pipes must be opened. Refer to the section “Vacuuming and leakage test”.

Operation test method

1. Connect the unit to the power supply.

2. Press the ON/OFF button to switch on the unit.

3. Press the MODE button to set the operation mode and check whether the operation is as expected.

HEALTH FILTER

ENGLISH 25

Installation

1. Open the front panel.

2. Remove the air ﬁlter (A).

3. Attach the health ﬁlter (B) to the air ﬁlter (A).

4. Install the air ﬁlter (A).

5. Close the front panel.

Cleaning and maintenance

1. Remove the health ﬁlter.

2. Remove dust from the health ﬁlter

using a vacuum cleaner.

3. If the health ﬁlter is dirty, clean the health ﬁlter with warm water and a mild detergent. Allow the health ﬁlter to dry naturally in a cool, dark place.

4. Install the health ﬁlter.

Service interval

The service interval for the health ﬁlter is approximately one year under normal condition. The health ﬁlter must be replaced when the surface becomes black (green).

26 www.electrolux.com

INDHOLD

Sikkerhedsforanstaltninger ...................................................................................... 27

forløb ...................................................................................................................... 28

Fjernbetjening ......................................................................................................... 28

Vedligeholdelse og rengøring................................................................................... 34

Fejlsøgning.............................................................................................................. 35

Tips til betjening ...................................................................................................... 37

Installation............................................................................................................... 38

Sundhedsﬁlter......................................................................................................... 47

VI TÆNKER PÅ DIG

Tak for dit køb af et Electrolux-apparat. Du har valgt et produkt, som giver dig årtiers professionel erfaring og innovation på én gang. Genialt og elegant. Det er designet med dig i tankerne. Så uanset hvornår du bruger det, kan du være sikker på, at du får fantastiske resultater hver gang.

Velkommen til Electrolux.

Besøg vores websted for:

Få rådgivning, brochurer, fejlﬁnding, serviceinformation:

www.electrolux.dk

Registrere dit produkt for bedre service:

www.electrolux.com/productregistration

Købe tilbehør, forbrugsvarer og originale reservedele til dit apparat:

www.electrolux.com/shop

KUNDEPLEJE OG SERVICE

Vi anbefaler brugen af originale reservedele. Sørg for at have følgende data tilgængelig, når du kontakter service. Du ﬁnder oplysningerne på maskinens typeskilt. Model, PNC, Serienummer.

Advarsel /Forsigtig-Sikkerhedsanvisninger. Generelle oplysninger og gode råd Miljøoplysninger

Ret til ændringer uden varsel forbeholdes.

SIKKERHEDSFORANSTALTNINGER

DANSK 27

drift.

op i den.

bruges af personer (herunder børn) med nedsat fysisk, sensorisk eller psykisk funktionsevne, eller som mangler den nødvendige erfaring eller viden, med mindre den, der har ansvaret for deres sikkerhed, først har instrueret dem eller har kontrolleret, at de kan betjene det korrekt.

sikre, at de beﬁnder sig på afstand af apparatet.

ubehagelige brændte lugte), skal du afbryde enheden fra strømforsyningen og kontakte et autoriseret servicecenter. Hvis anormaliteten forbliver, kan klimaanlægget blive beskadiget eller endda forårsage elektrisk stød eller brand.

skal du slukke for enheden og koble enheden fra strømforsyningen. Hvis enheden er sluttet til en sikringstavle, skal du fjerne tavlen.

eller signalkontrolledningen. Hvis netledningen eller signalkontrolledningen er beskadiget, skal den udskiftes af en kvaliﬁceret elektriker.

for at forhindre elektrisk stød eller brand.

overensstemmelse med nationale bestemmelser for el-sikkerhed. Forkert el-installation kan føre til overophedning og brand i kablet, stikket eller stikkontakten. Undlad at tænde og slukke for enheden jævnligt.

beskadiges elektriske elementer nemt. Hvis spændingen er for

lav, ryster kompressoren kraftigt og beskadiger kølesystemet eller kompressoren. Elektriske komponenter kan ikke betjenes.

for at forhindre elektrisk stød.

for at forhindre elektrisk stød eller brand. Få enheden repareret af et autoriseret servicecenter.

1 meter fra enheden for at forhindre brand eller eksplosion.

forhindre personskade.

at anbringe tung ting på udeenheden.

luftudgangen.

for at forhindre elektrisk stød.

hænder for at forhindre elektrisk stød.

genstande ind i luftindgangen eller luftudgangen.

direkte for luftstrømmen.

kølig luft i længere tid.

formål, som f.eks. konservering af fødevarer eller tørring af tøj.

at spare el-energi.

i længere tid under drift.

skal du bruge fjernbetjeningen til at justere den vandrette og lodrette retning af luftstrømmen.

usorteret kommunalaffald. Det er nødvendigt at indsamle dette affald separat til specialbehandling.

28 www.electrolux.com

BESKRIVELSE

10 11 3

Indeenhed

Luftindgang (indeenhed)

Luftudgang (indeenhed)

Udeenhed

Luftindgang (udeenhed)

Luftudgang (udeenhed)

Netledning

Fjernbetjening

Frontpanel

Filter

Vandret lamel

Vægrør

Tape

Tilslutningsrør

Aﬂøbsslange

Aﬂøbstilslutning

FJERNBETJENING

Fjernbetjeningen kan bruges til forskellige modeller. Afhængigt af modellen er visse funktioner på fjernbetjeningen muligvis ikke tilgængelige.

FORSIGTIG

fjernbetjeningen.

for direkte sollys.

på områder, hvor det er meget varmt.

BEMÆRK

mellem signalsenderen på fjernbetjeningen og enhedens signalmodtager.

18 24 29 32 30 25 31 22 23

20 17

Fan

Mode

Swing-

Slee

Turbo

ION

Swing-H

Quiet

Filter

Timer

X-Fan

I Feel

Timer

Clock

Light

Off

19 21 33 26 27 28

DANSK 29

Forklaring på knapper

Nr. Knap Forklaring

17 TÆND/SLUK Slå displayet til ved at trykke på en vilkårlig knap. Tryk på knappen

18 MODE

(TILSTAND)

19 FAN

(BLÆSER)

UP (OP)

21 DOWN

(NED)

22 CLOCK (UR) Tryk på knappen for at indstille timeren. Hvis ursymbolet blinker,

23 LIGHT (LYS) Tryk på knappen for at slå indeenhedens display til eller fra.

24 TURBO I tilstanden COOL (Afkøling) eller HEAT (Varme) skal du trykke

igen for at slukke for enheden. Tryk på knappen for at indstille driftstilstanden: AUTO, COOL

(Afkøling), DRY (Tørring), FAN (Blæser) og HEAT (Varme). Standardindstilling: AUTO.

I tilstanden AUTO vises temperaturen ikke. I tilstanden HEAT (Varme) er startværdien 28 °C (82 °F). I andre tilstande er startværdien 25 °C (77 °F).

Tryk på -knappen for at vælge blæserhastighed AUTO, LOW (Lav), MEDIUM LOW (Middellav), MEDIUM (Middel), MEDIUM HIGH (Middelhøj) og HIGH (Høj). Standardindstilling: AUTO. I tilstanden DRY (Tørring) kan kun LOW (Lav) indstilles.

Tryk på knappen for at øge temperaturen. Hold knappen trykket ind

i to sekunder for at øge processens hastighed. Slip knappen for at indstille temperaturen og sende ordre om, at °C/°F-signalet vil blive vist konstant.

Temperaturområde: 16-30 °C (61-86 °F). I tilstanden AUTO kan temperaturen ikke indstilles. Hvis du trykker på

knappen UP (Op) eller DOWN (Ned), udsendes der et bip. Tryk på knappen for at sænke temperaturen. Hold knappen trykket

ind i to sekunder for at øge processens hastighed. Slip knappen for at indstille temperaturen og sende ordre om, at °C/°F-signalet vil blive vist konstant.

Temperaturområde: 16-30 °C (61-86 °F). I tilstanden AUTO kan temperaturen ikke indstilles, men der kan

afsendes ordre ved at trykke på knappen.

skal du trykke på knappen UP (Op) eller DOWN (Ned) for at indstille tiden. Hold knappen trykket ind i to sekunder for at øge processens hastighed. Tryk igen på knappen CLOCK (Ur) for at indstille uret. Ursymbolet holder op med at blinke.

Efter udskiftning af batteriet vises “12:00 PM”. Hvis ursymbolet er synligt, vil den reelle tid blive vist. Hvis ursymbolet ikke er synligt, vil timeren blive vist.

Standardindstilling: OFF (Fra).

på knappen for at aktivere eller deaktivere turbofunktionen. Hvis turbofunktionen er aktiveret, vil turbosymbolet blive vist. Standardindstilling: OFF (Fra).

30 www.electrolux.com

25 X-FAN

(X-BLÆSER)

26 ION-FILTER Tryk på knappen for at aktivere eller deaktivere driften

27 TIMER ON

(TIMER TIL)

28 TIMER OFF

(TIMER FRA)

29 SWING-V

(SVING-V)

30 SWING-H

(SVING-H)

31 I FEEL (JEG

FØLER)

Hvis turbofunktionen er aktiveret, vil enheden fungere ved turbohastighed for at afkøle eller opvarme hurtigt, så den omgivende temperatur nærmer sig den indstillede temperatur hurtigst muligt.

Hvis betjeningstilstanden eller blæserhastigheden ændres, vil turbosymbolet ikke blive vist.

I tilstanden COOL (Afkøling) eller DRY (Tørring) skal du trykke på knappen for at aktivere eller deaktivere funktionen X-FAN (X-blæser). Hvis funktionen X-FAN (X-blæser) er aktiveret, vil symbolet for X-FAN (X-blæser) blive vist. Standardindstilling: OFF (Fra).

Hvis funktionen X-FAN (X-blæser) er aktiveret, vil indeblæseren fortsætte driften ved lav hastighed i 2 minutter, efter enheden er blevet slukket. Denne funktion forhindrer en e

ventuel kondensering på indeenhedens kølige dele. Tryk på knappen X-FAN (X-blæser) for at slukke for enheden under processen.

Hvis funktionen X-FAN (X-blæser) er deaktiveret, vil enheden blive slukket med det samme.

I tilstanden AUTO, FAN (Blæser) eller HEAT (Varme) er X-FAN (X-blæser) ikke tilgængelig.

af sundhedsﬁlteret. Tryk på knappen for at indstille timerfunktionen for at slå enheden

til. Hvis symbolet for TIMER ON (Timer til) blinker, skal du trykke på knappen UP (Op) eller DOWN (Ned) for at indstille tiden. Hold knappen trykket ind i to sekunder for at øge processens hastighed. Tryk på knappen for at indstille timeren. Standardindstilling: 5:00 AM (12-timers tilstand). Tryk igen på knappen for at annullere timerfunktionen.

Tryk på knappen for at indstille timerfunktionen for at slå enheden fra. Hvis symbolet for TIMER OFF (Timer fra) blinker, skal du trykke på knappen UP (Op) eller DOWN (Ned) for at indstille tiden. Hold knappen trykket ind i to sekunder for at øge processens hastighed. Tryk på knappen for at indstille timeren. Standardindstilling: 5:00 AM (12-timers tilstand). Tryk igen på knappen for at annullere timerfunktionen.

Tryk på knappen for at aktive

re eller deaktivere den lodrette

svingfunktion. Tryk på knappen for at aktivere eller deaktivere den vandrette

svingfunktion. Tryk på knappen for at aktivere eller deaktivere funktionen I FEEL (Jeg

føler). Hvis funktionen I FEEL (Jeg føler) er aktiveret, vil I symbolet for I FEEL (Jeg føler) blive vist.

Hvis symbolet for I FEEL (Jeg føler) er aktiveret, vil fjernbetjeningen sende den omgivende temperatur til hovedenheden hver gang, der er gået 10 minutter, eller når du trykker på en af knapperne.

+ 84 hidden pages
