EOD5720AA
EN OVEN USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION............................................................................................ 3
2. SAFETY INSTRUCTIONS.......................................................................................... 4
3. PRODUCT DESCRIPTION.........................................................................................6
4. CONTROL PANEL.....................................................................................................7
5. BEFORE FIRST USE..................................................................................................8
6. DAILY USE................................................................................................................ 9
7. CLOCK FUNCTIONS...............................................................................................11
8. USING THE ACCESSORIES....................................................................................13
9. ADDITIONAL FUNCTIONS.......................................................................................15
10. HINTS AND TIPS...................................................................................................16
11. CARE AND CLEANING......................................................................................... 24
12. TROUBLESHOOTING........................................................................................... 27
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2 www.electrolux.com
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we
recommend you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Children of less than 3 years should be kept away
unless continuously supervised.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• Internally the appliance becomes hot when in operation.
Do not touch the heating elements that are in the
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
• Before maintenance cut the power supply.
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
ENGLISH
3
Page 4
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite
sequence.
• The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
www.electrolux.com4
Page 5
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance. It is not a defect in the
sense of the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
ENGLISH
5
Page 6
2.5 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION

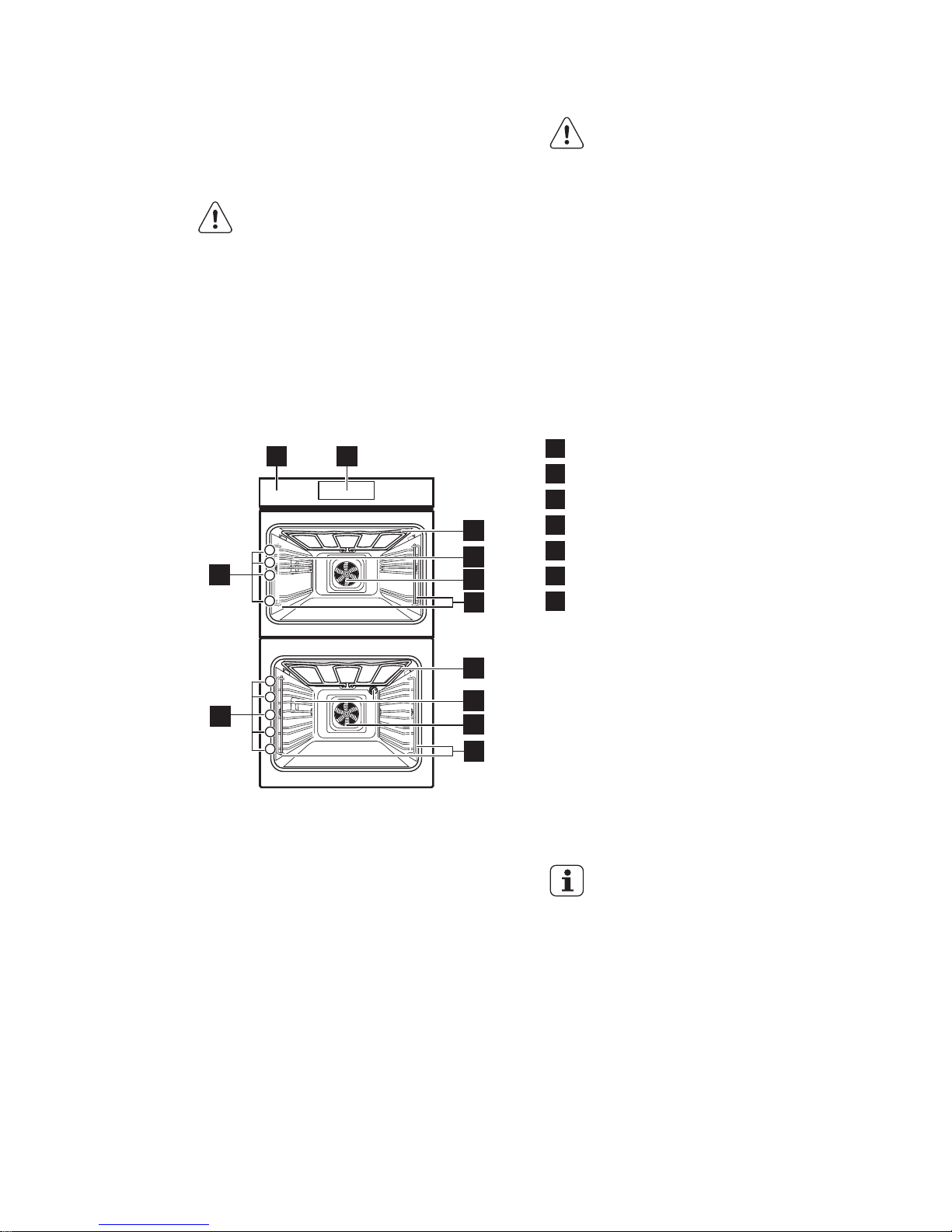

3.1 General overview
21
3
3
5
5
4
4
1
2
3
4
7
6
6
7
1
2
3
4
5
1
Control panel
2
Electronic programmer
3
Heating element
4
Lamp
5
Fan
6
Shelf support, removable
7
Shelf positions

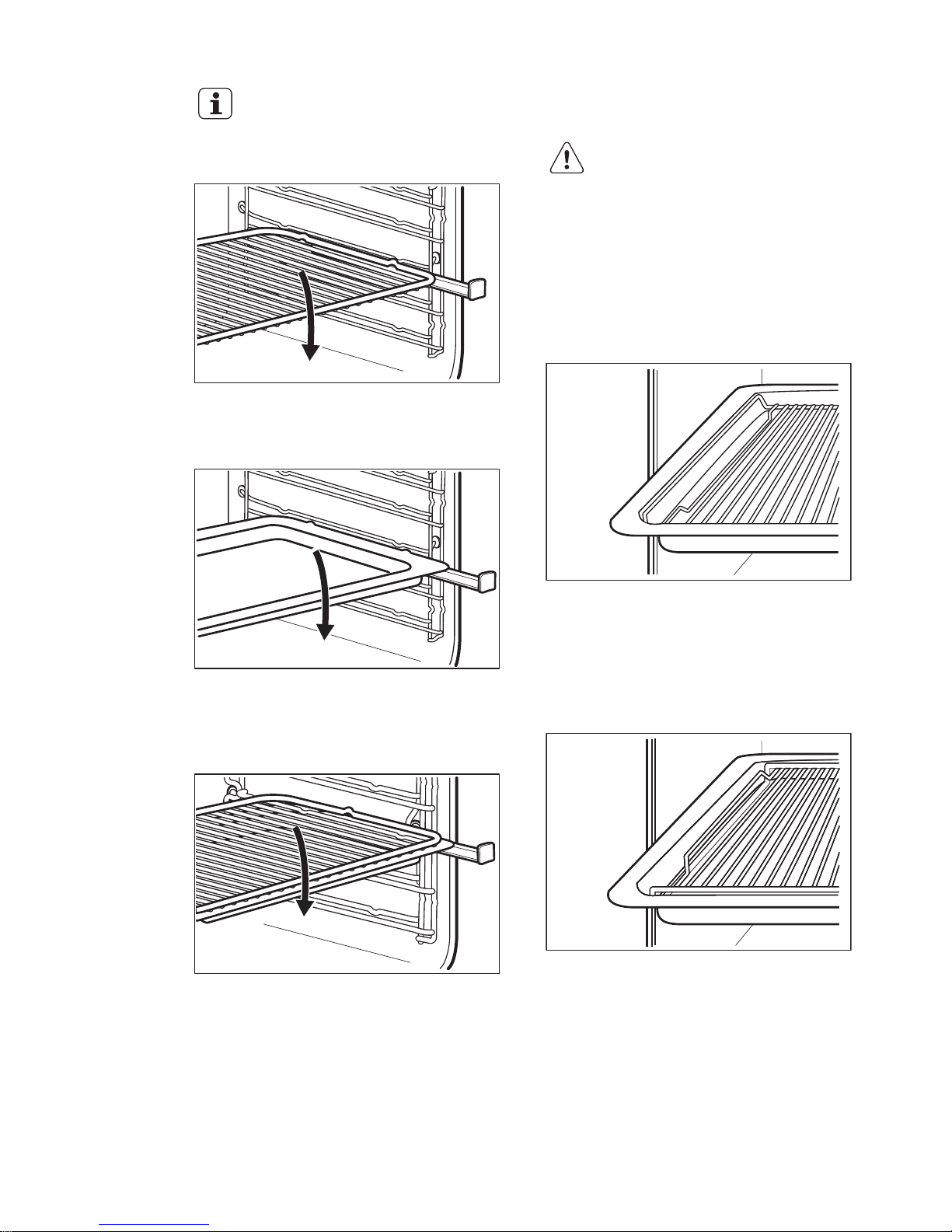

3.2 Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
• Trivet
For roasting and grilling.
Use the trivet only with the
Grill- / roasting pan.
• Telescopic runners
For shelves and trays.
www.electrolux.com6
Page 7
4. CONTROL PANEL
4.1 Electronic programmer

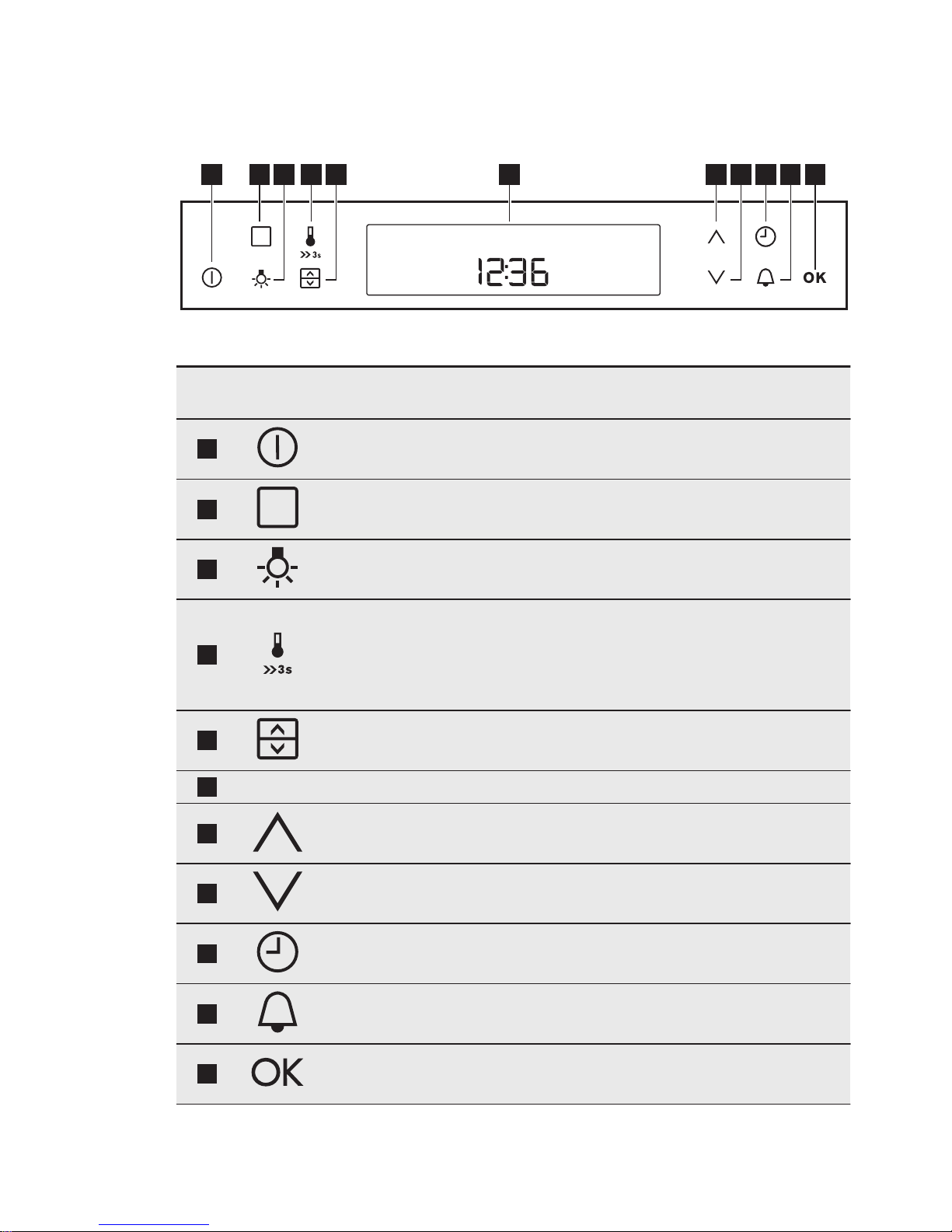

1 112 3 4 65 7 8 9 10
Use the sensor fields to operate the appliance.
Sensor
Field
Function Description
1
ON / OFF To activate and deactivate the appliance.
2
OPTIONS To set an oven function, a cleaning function or
an automatic programme.
3
OVEN LIGHT To activate or deactivate the oven lamp.
4
TEMPERATURE /
FAST HEAT UP
To set and examine the cavity temperature or
the core temperature sensor temperature (if
present). If you press it and hold for three seconds, it turns the Fast heat up function ON and
OFF.
5
OVEN SELECTION To switch between top and main oven.
6
- DISPLAY Shows the current settings of the appliance.
7
UP To move up in the menu.
8
DOWN To move down in the menu.
9
CLOCK To set the clock functions.
10
MINUTE MINDER To set the Minute Minder.
11
OK To confirm the selection or setting. To move
down in the menu.
ENGLISH
7
Page 8

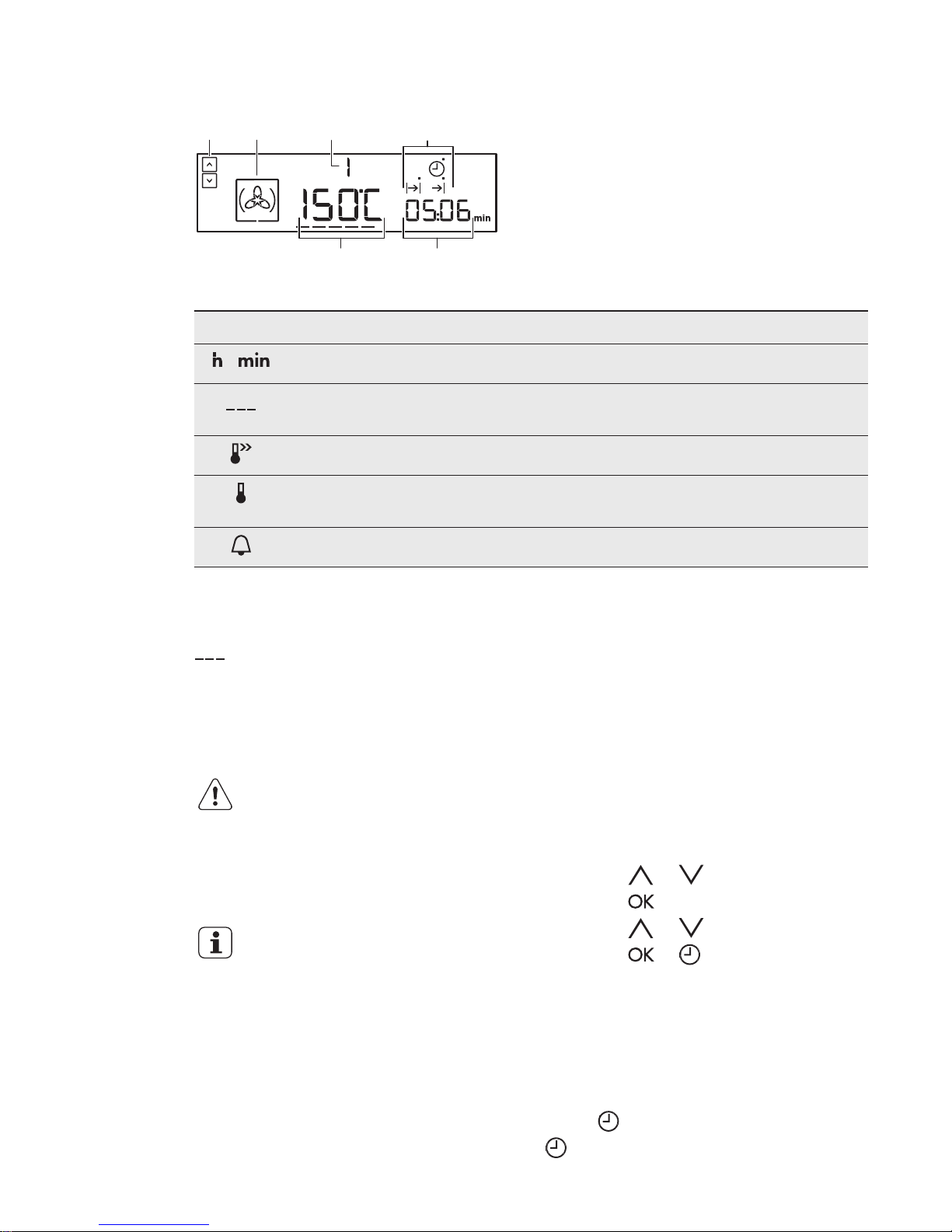

4.2 Display
B C D
EF
A
A) Top / Main oven indicator
B) Oven function symbol
C) Number of the oven function / programme
D) Indicators for the clock functions (refer to
the table "Clock functions")
E) Clock / residual heat display
F) Temperature / time of day display
Other indicators of the display:
Symbol Name Description
/
h / min
A clock function operates.
Heat-up / residual heat indicator
Shows the temperature level in the appliance.
Temperature / fast heat up
The function operates.
Temperature
You can examine or change the temperature.
Minute minder
The minute minder function operates.
4.3 Heat up indicator
If you activate an oven function, the bars
come on in the display. The bars
show that the temperature in the
appliance increases or decreases.
When the appliance is at the set
temperature, the bars go off the display.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories and the removable
shelf supports back to their initial position.
5.2 Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few seconds
the display shows the software version.
After the software version goes off, the
display shows h and 12:00.
1. Touch or to set the hours.
2. Touch
.
3. Touch or to set the minutes.
4. Touch or .
The Temperature / Time display shows the
new time.
5.3 Changing the time
You can change the time of day only when
the appliance is off.
Touch .
flashes in the display.
www.electrolux.com8
Page 9
To set the new time of day, refer to
"Setting the time".
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Selecting an oven
1. To switch on the appliance press .
2. Repeatedly press until the top /
main oven indicator appears on the
display.
6.2 Top oven functions
Oven function Application
True Fan Cooking
To bake on 1 shelf positions at the same time and to
dry food.
Pizza Setting To bake food on 1 shelf position for a more intensive
browning and a crispy bottom.
Slow Cooking To prepare tender, succulent roasts.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Defrost To defrost frozen food.
ECO Roasting The ECO functions let you optimize the energy con-
sumption during cooking. It is necessary to set the
cooking time first. To get more information about the
recommended settings, refer to the cooking tables
with the equivalent function.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on 1
shelf position. Also to make gratins and to brown.
ENGLISH
9
Page 10

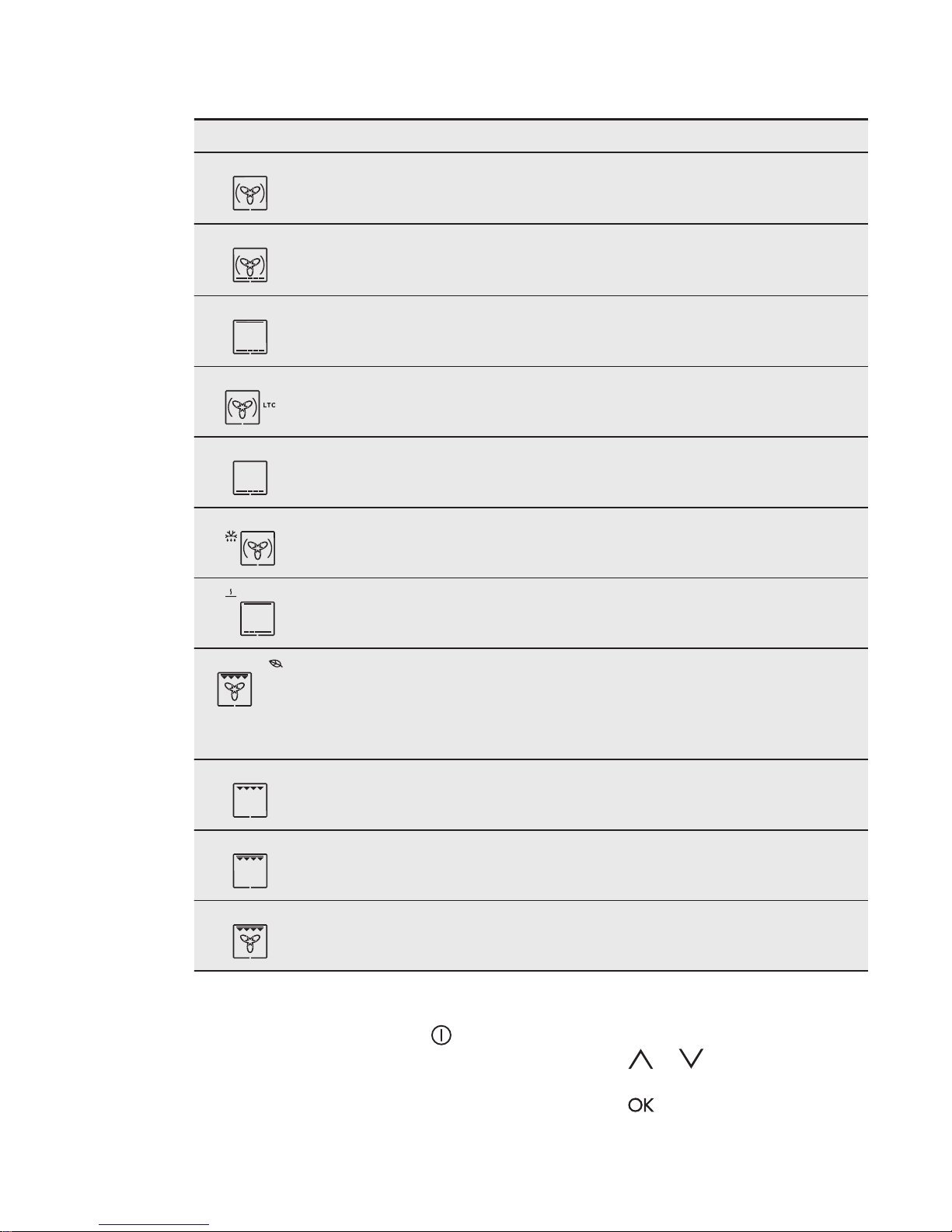

6.3 Main oven functions
Oven function Application
True Fan Cooking
To bake on up to 3 shelf positions at the same time
and to dry food. Set the temperature 20 - 40 ºC lower
than for Conventional Cooking.
Pizza Setting To bake food on 1 shelf position for a more intensive
browning and a crispy bottom. Set the temperature
20 - 40 ºC lower than for Conventional Cooking.
Conventional
Cooking
To bake and roast food on 1 shelf position.
Slow Cooking To prepare tender, succulent roasts.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Defrost To defrost frozen food.
Keep Warm To keep food warm.
ECO Roasting The ECO functions let you optimize the energy con-
sumption during cooking. It is necessary to set the
cooking time first. To get more information about the
recommended settings, refer to the cooking tables
with the equivalent function.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on 1
shelf position. Also to make gratins and to brown.
6.4 Setting the oven function
1. Activate the appliance with .
The display shows the set temperature,
the symbol and the number of the oven
function.
2. Touch or to set an oven
function.
3. Touch or the appliance starts
automatically after five seconds.
www.electrolux.com10
Page 11
If you activate the appliance
and do not set an oven
function or programme, the
appliance deactivates
automatically after 20
seconds.
6.5 Changing the temperature
Touch or to change the
temperature in steps of 5 °C.
When the appliance is at the set
temperature, an acoustic signal sounds
three times and the Heat up indicator
goes out.
6.6 Checking the temperature
You can see the temperature in the
appliance when the function or
programme operates.
1. Touch .
The Temperature / Time display shows the
temperature in the appliance.
2. Touch to go back to the set
temperature or the display shows it
automatically after five seconds.
6.7 Fast heat up function
Do not put food in the oven
when the Fast heat up
function operates.
The Fast heat up function is not available
with every oven function. An acoustic
signal sounds if the Fast heat up function
is not available for the set function if Faulty
tone is activated in the "Settings menu".
The Fast heat up function decreases the
heat up time.
To activate the Fast heat up function
touch and hold for more than three
seconds.
If you activate the Fast heat up function,
horizontal bars on the display flash to
show that the function operates.
6.8 Energy saving
The appliance contains features which
help you save energy during everyday
cooking:
• Residual heat
– When an oven function or
programme operates, the heating
elements are deactivated 10%
earlier (the lamp and fan continue
to operate). For this feature to
operate, the cooking time must be
longer than 30 minutes or you
must use the clock functions
(Duration, End, Time delay). This
feature does not operate with grill
functions.
– When the appliance is off, you can
use the heat to keep the food
warm. The clock / residual heat
display shows the remaining
temperature, and the bars show
the temperature as it decreases.
• Cooking with the lamp off - Touch
to deactivate the lamp during
cooking.
• Eco functions - refer to "Oven
functions".
7. CLOCK FUNCTIONS
7.1 Clock functions table
Clock function Application
TIME OF DAY To show the time of day. To change the time of day,
refer to "Setting the time".
DURATION To set how long the appliance operates.
ENGLISH
11
Page 12
Clock function Application
END To set when the appliance deactivates. You can use
Duration and End at the same time (Time delay) if you
want the appliance to activate and deactivate automatically later.
7.2 Count Up Timer
The Count Up Timer is not
activated if Duration and End
are set.
The Count Up Timer starts to count when
the appliance starts to heat.
To reset the Count Up Timer, touch
and at the same time until the display
shows "00:00" and the Count Up Timer
starts to count up again.
7.3 Setting the DURATION
1. Activate the appliance and set an oven
function and temperature.
2. Touch again and again until the
display shows .
flashes in the display.
3. Use or to set the minutes for
DURATION.
4. Touch to confirm.
5. Use or to set the hours for
DURATION.
If you touch while you
set the DURATION, the
appliance switches to the
setting of the END
function.
6. When the set time ends, an acoustic
signal sounds for two minutes.
and time setting flash in the display.
The appliance deactivates.
7. Touch a sensor field to stop the
acoustic signal.
8. Deactivate the appliance.
7.4 Setting the END
1. Activate the appliance and set an oven
function and temperature.
2. Touch again and again until the
display shows .
flashes in the display.
3. Use or to set the END and
to confirm. First you set the minutes
and then the hours.
When the set time ends, an acoustic
signal sounds for two minutes. symbol
and the time setting flash in the display.
The appliance deactivates.
4. Touch a sensor field to stop the
acoustic signal.
5. Deactivate the appliance.
7.5 Setting the MINUTE MINDER
Use the MINUTE MINDER to set a
countdown (maximum 2 h 30 min). This
function has no effect on the operation of
the oven. You can set the MINUTE
MINDER at any time and also when the
appliance is off.
1. Touch .
and "00" flash in the display.
2. Use or to set the MINUTE
MINDER. First you set the seconds,
then the minutes and the hours.
3. Touch and at the same time
to reset the set time.
4. Touch or the MINUTE MINDER
starts automatically after five seconds.
When the set time ends, an acoustic
signal sounds for two minutes and 00:00
and flash in the display.
5. Touch a sensor field to stop the
acoustic signal.
www.electrolux.com12
Page 13
7.6 Setting the Time delay
function
The DURATION and END can be
used at the same time, if the appliance is
to be switched on and off automatically
later. In this case, first set the DURATION
and then the END function (refer
to "Setting the DURATION" and "Setting
the END" ).
When the Time delay function
is activated, the display
shows a static symbol of the
oven function, with a dot
and . The dot shows
which clock function is on in
the Clock / residual heat
display.
8. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.

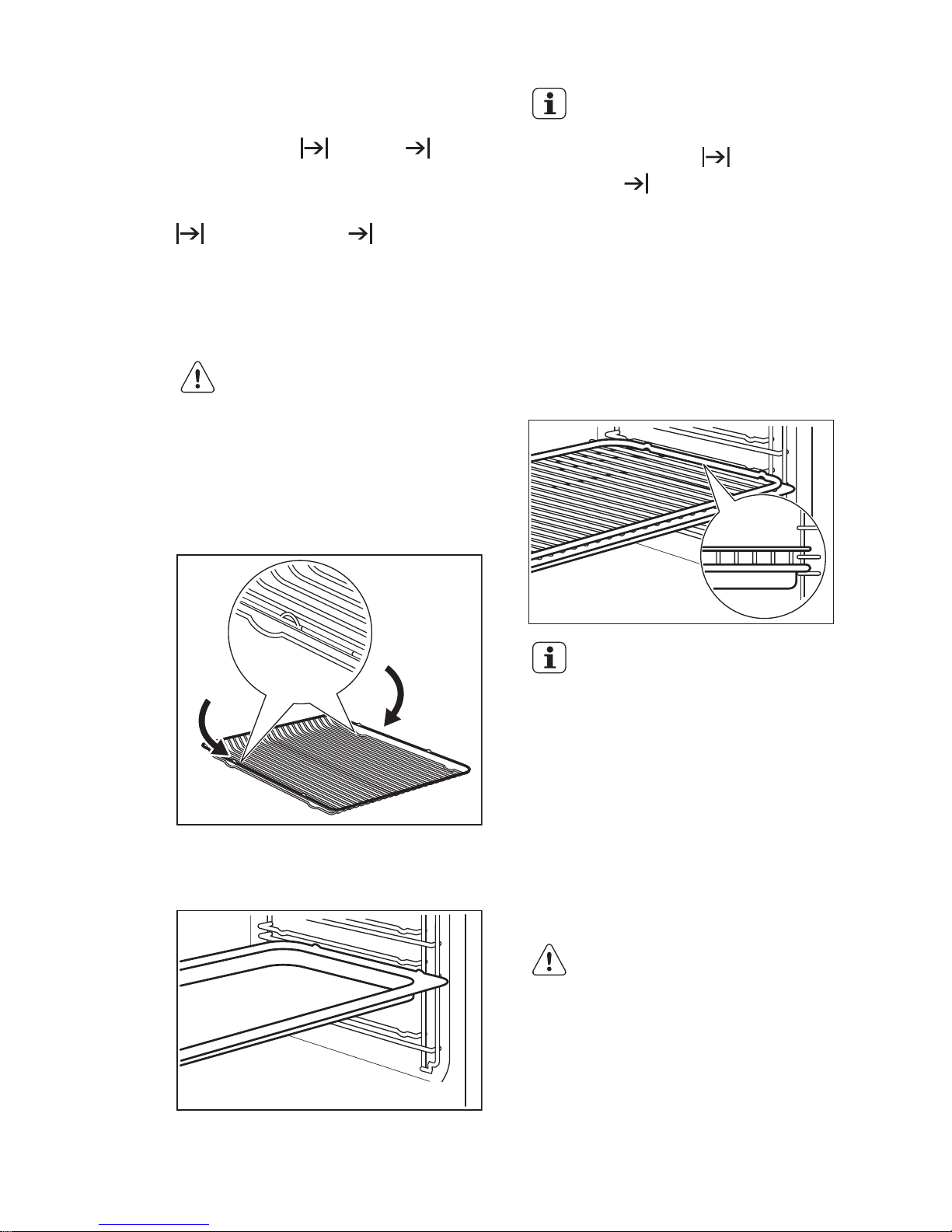

8.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Deep pan:
Push the deep pan between the guide
bars of the shelf support.
Wire shelf and the deep pan together:
Push the deep pan between the guide
bars of the shelf support and the wire shelf
on the guide bars above.
• All accessories have small
indentations at the top of
the right and left side to
increase safety. The
indentations are also antitip devices.
• The high rim around the
shelf is a device which
prevents cookware from
slipping.
8.2 Telescopic runners inserting the accessories
CAUTION!
Make sure you push back the
telescopic runners fully in the
appliance before you close
the oven door.
Wire shelf:
Put the wire shelf on the telescopic
runners so that the feet point downwards.
ENGLISH
13
Page 14
The high rim around the wire
shelf is a special device to
prevent the cookware from
slipping.
Baking tray or deep pan:
Put the baking tray or deep pan on the
telescopic runners.
Wire shelf and deep pan together:
Put the wire shelf on the deep pan. Put
the wire shelf and the deep pan on the
telescopic runners.
8.3 Trivet and Grill- / Roasting
pan
WARNING!
Be careful when you remove
the accessories from a hot
appliance. There is a risk of
burns.
You can use the trivet to roast larger
pieces of meat or poultry on one shelf
position.
1. Put the trivet into the deep pan so that
the supports of the wire shelf point up.
2. Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat dishes in
large quantities and to toast.
1. Put the trivet into the deep pan so that
the supports of the wire shelf point
down.
2. Put the deep pan into the oven on the
necessary shelf position.
www.electrolux.com14
Page 15
9. ADDITIONAL FUNCTIONS
9.1 Using the Child Lock
The Child Lock prevents an accidental
operation of the appliance.
1. To activate the function deactivate the
appliance with . Do not set an oven
function.
2. Touch and hold and at the
same time for 2 seconds.
An acoustic signal sounds.
SAFE comes on in the display.
To deactivate the Child Lock function
repeat step 2.
9.2 Using the Function Lock
You can activate the function only when
the appliance operates.
The Function Lock prevents an accidental
change of the oven function.
1. To activate the function activate the
appliance.
2. Activate an oven function or setting.
3. Touch and hold
and at the
same time for 2 seconds.
An acoustic signal sounds.
Loc comes on in the display.
To deactivate the Function Lock repeat
step 3.
You can deactivate the
appliance when the Function
Lock is on. When you
deactivate the appliance, the
Function Lock deactivates.
9.3 Using the settings menu
You can set the settings menu only when
the appliance is deactivated.
The settings menu lets you activate or
deactivate functions in the main menu.
The display shows SET and the number of
the setting.
Description Value to set
1 RESIDUAL HEAT INDICATOR ON / OFF
2
KEY TONE
1)
CLICK / BEEP / OFF
3 FAULTY TONE ON / OFF
4 SERVICE MENU -
5 RESTORE SETTINGS ON / OFF
1)
It is not possible to deactivate the tone of the ON / OFF sensor field.
1. When the appliance is deactivated,
touch and hold for three seconds.
The display shows SET1 and "1" flashes.
2. Touch or to set the setting.
3. Touch .
4. Touch or to change the value
of the setting.
5. Touch .
9.4 Automatic Switch-off
For safety reasons the appliance
deactivates automatically after some time
if an oven function operates and you do
not change any settings.
Temperature (°C) Switch-off time
(h)
30 - 115 12.5
ENGLISH
15
Page 16
Temperature (°C) Switch-off time
(h)
120 - 195 8.5
200 - 245 5.5
250 - maximum 1.5
After the Automatic switch-off, touch a
sensor field to operate the appliance
again.
The Automatic switch-off
does not work with the
functions: Light, Slow
Cooking, Duration, End, Time
delay.
9.5 Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance
is deactivated, the brightness of the
display is lower between 10 PM and 6
AM.
• Day brightness:
– when the appliance is activated.
– if you touch a sensor field during
the night brightness (apart from
ON / OFF), the display goes back
to the day brightness mode for the
next 10 seconds.
– if the appliance is deactivated and
you set the Minute Minder. When
the Minute Minder function ends,
the display goes back to the night
brightness.
9.6 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
10. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They depend
on the recipes and the quality
and quantity of the
ingredients used.
10.1 Double oven
Top oven
The top oven is the smaller of the two
ovens. It has 4 shelf positions. Use it to
cook smaller quantities of food. It gives
especially good results when used to cook
fruitcakes, sweets and savoury flants or
quiche.
Main oven
The main oven is the bigger of the two
ovens. It is particularly suitable for cooking
larger quantities of food.
10.2 Baking
• Your oven can bake or roast differently
to the appliance you had before. Adapt
your usual settings (temperature,
cooking times) and shelf positions to
the values in the tables.
• The manufacturer recommends that
you use the lower temperature the first
time.
• If you cannot find the settings for a
special recipe, look for the one that is
almost the same.
• You can extend baking times by 10 –
15 minutes if you bake cakes on more
than one shelf position.
• Cakes and pastries at different heights
do not always brown equally at first. If
this occurs, do not change the
temperature setting. The differences
equalize during the baking procedure.
• With longer baking times, you can
deactivate the oven approximately 10
minutes before the end of the baking
time and then use the residual heat.
When you cook frozen food, the trays in
the oven can twist during baking. When
www.electrolux.com16
Page 17
the trays become cold again, the
distortions are gone.
10.3 Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is
not browned sufficiently.
The shelf position is incorrect.
Put the cake on a lower
shelf.
The cake sinks and becomes soggy, lumpy or
streaky.
The oven temperature is too
high.
The next time you bake, set
a slightly lower oven temperature.
The cake sinks and becomes soggy, lumpy or
streaky.
The baking time is too
short.
Set a longer baking time.
You cannot decrease
baking times by setting
higher temperatures.
The cake sinks and becomes soggy, lumpy or
streaky.
There is too much liquid in
the mixture.
Use less liquid. Be careful
with mixing times, especially
if you use a mixing machine.
The cake is too dry. The oven temperature is too
low.
The next time you bake, set
a higher oven temperature.
The cake is too dry. The baking time is too long. The next time you bake, set
a shorter baking time.
The cake browns unevenly. The oven temperature is too
high and the baking time is
too short.
Set a lower oven temperature and a longer baking
time.
The cake browns unevenly. The mixture is unevenly dis-
tributed.
Spread the mixture evenly
on the baking tray.
The cake is not ready in the
baking time given.
The oven temperature is too
low.
The next time you bake, set
a slightly higher oven temperature.
10.4 Baking
Top oven
Food Temperature (°C) Time (min) Shelf position
Biscuits 170 - 190 10 - 20 2
Bread 200 - 220 30 - 35 1
Bread rolls / buns 170-180 10 - 15 1
Cakes:
- Small & Queen 160 - 170 18 - 25 2
- Sponges 160 - 175 20 - 30 2
ENGLISH
17
Page 18
Food Temperature (°C) Time (min) Shelf position
- Victoria Sandwich 160 - 170 18 - 25 2
- Madeira 140 - 150 75 - 90 2
- Rich Fruit 140 - 150 120 - 150 2
- Gingerbread 140 - 150 75 - 90 2
- Meringues 90 - 100 150 - 180 2
- Flapjack 160 - 170 25 - 30 2
- Shortbread 130 - 150 45 - 65 2
Casseroles:
- Beef / Lamb 160 - 170 150 - 180 1
- Chicken 160 - 180 75 - 90 1
Convenience Foods Follow manufacturer's instructions.
Fish 170 - 190 20 - 30 2
Fish Pie (Potato Topped) 190 - 200 20 - 30 2
Fruit Pies, Crumbles 190 - 200 30 - 50 2
Milk Puddings 150 - 170 90 - 120 2
Pasta, Lasagne etc. 170 - 180 40 - 50 2
Pastry:
- Choux 180 - 190 30 - 40 2
- Eclairs, Profiteroles 180 - 190 30 - 40 2
- Flaky / Puff Pies 210 - 220 30 - 40 2
Shortcrust:
- Mince Pies 190 - 210 15 - 20 2
- Meat Pies 190 - 210 25 - 35 2
- Quiche, Tarts, Flans 180 - 200 25 - 50 2
Scones 220 - 230 8 - 12 2
Shepard's Pie 180 - 190 30 - 40 2
Souffles 190 - 200 20 - 30 2
Vegetables:
- Baked Jacket Potatoes
180 - 190 60 - 90 2
- Roast Potatoes 180 - 190 60 - 90 2
www.electrolux.com18
Page 19
Food Temperature (°C) Time (min) Shelf position
Yorkshire Pudding:
- Large 200 - 210 25 - 40 1
- Individual 210 - 220 15 - 25 1
Main oven
Food Temperature (°C) Time (min) Shelf posi-
tion
Conventional
Cooking
True Fan Cooking
Biscuits 180 - 190 180 - 190 10 - 20 2
Bread 200 - 220 190 - 210 30 - 35 2
Cakes:
- Small & Queen 170 - 180 160 - 170 18 - 25 2
- Sponges 170 - 180 160 - 170 20 - 25 2
- Madeira 150 - 160 140 - 160 60 - 75 2
- Rich Fruit 140 - 150 130 - 140 120 - 150 2
- Christmas 140 - 150 130 - 140 180 - 270 2
Fish 170 - 180 160 - 180 20 - 30 3
Fruit Pies, Crumbles
180 - 200 170 - 180 30 - 50 3
Milk Puddings 150 - 170 140 - 160 60 - 90 3
Pastry:
- Choux 180 - 190 180 - 190 30 - 40 3
- Shortcrust 190 - 200 180 - 190 25 - 35 3
- Flaky 190 - 210 180 - 190 30 - 40 3
- Puff Follow manufacturer's instructions. Reduce the temperature by 20ºC
for True Fan Cooking Function.
Plate Tarts 190 - 200 180 - 190 25 - 45 3
Quiches / Flans 200 - 210 170 - 180 25 - 45 3
Scones 220 - 230 210 - 230 8 - 12 2
10.5 Slow Cooking
Use this function to prepare lean, tender
pieces of meat and fish. This function is
not applicable to such recipes as pot roast
or fatty roast pork.
In the first 10 minutes you can set an oven
temperature between 80 °C and 150 °C.
The default is 90 °C. After the temperature
is set, the oven continues to cook at 80
°C. Do not use this function for poultry.
ENGLISH
19
Page 20
Always cook without a lid
when you use this function.
1. Sear the meat in a pan on the hob on
a very high setting for 1 - 2 minutes on
each side.
2. Put the meat together with the hot
roasting pan into the oven on the wire
shelf.
3. Select the function Slow Cooking.
Food Quantity Temperature
(°C)
Time (min) Shelf position
Roast beef 1000 - 1500 g 120 120 - 150 1
Fillet of beef 1000 - 1500 g 120 90 - 150 3
Roast veal 1000 - 1500 g 120 120 - 150 1
Steaks 200 - 300 g 120 20 - 40 3
10.6 Pizza Setting
Top oven
Food Temperature (°C) Time (min) Shelf position
Apple Pie 160 - 180 160 - 180 1
Plate Tart 160 - 180 25 - 50 1
Pizza Follow manufacturer's instructions. 1
Quiches / Tarts 160 - 180 25 - 50 1
Main oven
Food Temperature (°C) Time (min) Shelf position
Apple Pie 160 - 180 50 - 60 3
Plate Tart 180 - 200 25 - 50 3
Pizza Follow manufacturer's instructions. 3
Quiches / Tarts 180 - 200 25 - 50 3
10.7 Roasting
• Use heat-resistant ovenware to roast
(refer to the instructions of the
manufacturer).
• You can roast large roasting joints
directly in the deep pan (if present) or
on the wire shelf above the deep pan.
• Roast lean meats in the roasting tin
with the lid. This keeps the meat more
succulent.
• All types of meat that can be browned
or have crackling can be roasted in the
roasting tin without the lid.
• We recommend that you cook meat
and fish weighing 1 kg and above in
the appliance.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid
into the deep pan.
www.electrolux.com20
Page 21
• If necessary, turn the roast (after 1/2 2/3 of the cooking time).
• Baste large roasts and poultry with
their juices several times during
roasting. This gives better roasting
results.
• You can deactivate the appliance
approximately 10 minutes before the
end of the roasting time, and use the
residual heat.
10.8 Roasting tables - Main oven
Beef
Food Quantity Temperature
(°C)
Time (min) Shelf position
Roast beef or fillet:
rare
per cm. of
thickness
190 - 200
1)
5 - 6 2
Roast beef or fillet:
medium
per cm. of
thickness
180 - 190
1)
6 - 8 2
Roast beef or fillet:
well done
per cm. of
thickness
170 - 180
1)
8 - 10 2
1)
Preheat the oven.
Pork
Food Quantity Temperature
(°C)
Time (min) Shelf position
Shoulder, neck,
ham
1 - 1.5 kg 160 - 180 90 - 120 2
Pork chop 1 - 1.5 kg 160 - 180 60 - 90 2
Meat loaf 750 g - 1 kg 160 - 170 45 - 60 2
Knuckle of pork
(precooked)
750 g - 1 kg 150 - 170 90 - 120 2
Veal
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Roast veal 1 160 - 180 90 - 120 2
Knuckle of veal 1.5 - 2 160 - 180 120 - 150 2
Lamb
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Leg of lamb,
roast lamb
1 - 1.5 150 - 170 75 - 120 2
Saddle of lamb 1 - 1.5 160 - 180 60 - 90 2
ENGLISH
21
Page 22
Game
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Saddle of hare,
leg of hare
Up to 1 kg 220-250 25 - 40 2
Loin of Game 1.5-2 210-220 75 - 105 1
Leg of Game 1.5-2 200-210 90 - 135 1
Poultry
Food Quantity Temperature
(°C)
Time (min) Shelf position
Poultry pieces 200 - 250 g
each
200 - 220 35 - 50 3
Half chicken 400 - 500 g
each
190 - 210 35 - 50 3
Poultry 1 - 1.5 kg 190 - 210 45 - 75 1
Duck 1.5 - 2 kg 180 - 200 75 - 100 1
Goose 3.5 - 5 kg 160 - 180 150 - 210 1
Turkey 2.5 - 3.5 kg 160 - 180 105 - 150 1
Turkey 4 - 6 kg 140 - 160 150 - 240 1
Fish (steamed)
Type of meat Quantity (kg) Temperature
(°C)
Time (min) Shelf position
Whole fish 1 - 1.5 210 - 220 40 - 60 1
10.9 Grilling
Always grill with the maximum
temperature setting.
Set the shelf into the shelf position as
recommended in the grilling table.
For grilling in the top oven adjust the shelf
position to suit different thicknesses of
food.
Always set the pan to collect the fat into
the first shelf position.
Grill only flat pieces of meat or fish.
Always preheat the empty oven with the
grill functions for 5 minutes.
CAUTION!
Always grill with the oven
door closed.
Grilling and Fast Grilling - Top oven
Food Time (min)
Bacon Rashers 5 -6
Beefburgers 10 - 20
www.electrolux.com22
Page 23
Food Time (min)
Chicken Joints 20 - 40
Lamb Chops 15 - 25
Pork Chops 20 - 25
Whole Fish, Trout / Makarel 10 - 12
Fillets, Plaice / Cod 4 - 6
Kebabs 12 - 18
Kidneys, Lamb / Pig 6 - 10
Sausages 20 - 30
Toasted Sandwiches 3 - 4
Steaks:
- Rare 4 - 6
- Medium 6 - 8
- Well Done 12 - 15
Grilling - Main oven
Food Temperature
(°C)
Time (min) Shelf position
1st side 2nd side
Roast beef 210 - 230 30 - 40 30 - 40 2
Filet of beef 230 20 - 30 20 - 30 3
Back of pork 210 - 230 30 - 40 30 - 40 2
Back of veal 210 - 230 30 - 40 30 - 40 2
Back of lamb 210 - 230 25 - 35 20 - 25 3
Whole Fish, 500
- 1000 g
210 - 230 15 - 30 15 - 30 3 / 4
Fast Grilling - Main oven
Food Time (min) Shelf position
1st side 2nd side
Burgers / Burgers 8 - 10 6 - 8 4
Pork fillet 10 - 12 6 - 10 4
Sausages 10 - 12 6 - 8 4
Fillet / Veal steaks 7 - 10 6 - 8 4
Toast / Toast
1)
1 - 3 1 - 3 5
ENGLISH
23
Page 24
Food Time (min) Shelf position
1st side 2nd side
Toast with topping 6 - 8 - 4
1)
Preheat the oven.
10.10 Defrost - Main oven
Remove the food packaging and put the
food on a plate.
Use the first shelf position from the
bottom.
Do not cover the food with a bowl or a
plate, as this can extend the defrost time.
Food Quantity Defrosting
time (min)
Further defrosting
time (min)
Comments
Chicken 1 kg 100 - 140 20 - 30 Put the chicken on an upturned
saucer in a big plate. Turn halfway through.
Meat 1 kg 100 - 140 20 - 30 Turn halfway through.
Meat 500 g 90 - 120 20 - 30 Turn halfway through.
Trout 150 g 25 - 35 10 - 15 -
Strawberries
300 g 30 - 40 10 - 20 -
Butter 250 g 30 - 40 10 - 15 -
Cream 2 x 200 g 80 - 100 10 - 15 Whip the cream when still slightly
frozen in places.
Gateau 1.4 kg 60 60 -
11. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
11.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
www.electrolux.com24
Page 25
11.2 Stainless steel or aluminium
appliances
Clean the oven door with a
wet sponge only. Dry it with a
soft cloth. Do not use steel
wool, acids or abrasive
materials as they can
damage the oven surface.
Clean the oven control panel
with the same precautions.
11.3 Removing the shelf
supports
To clean the oven, remove the shelf
supports.

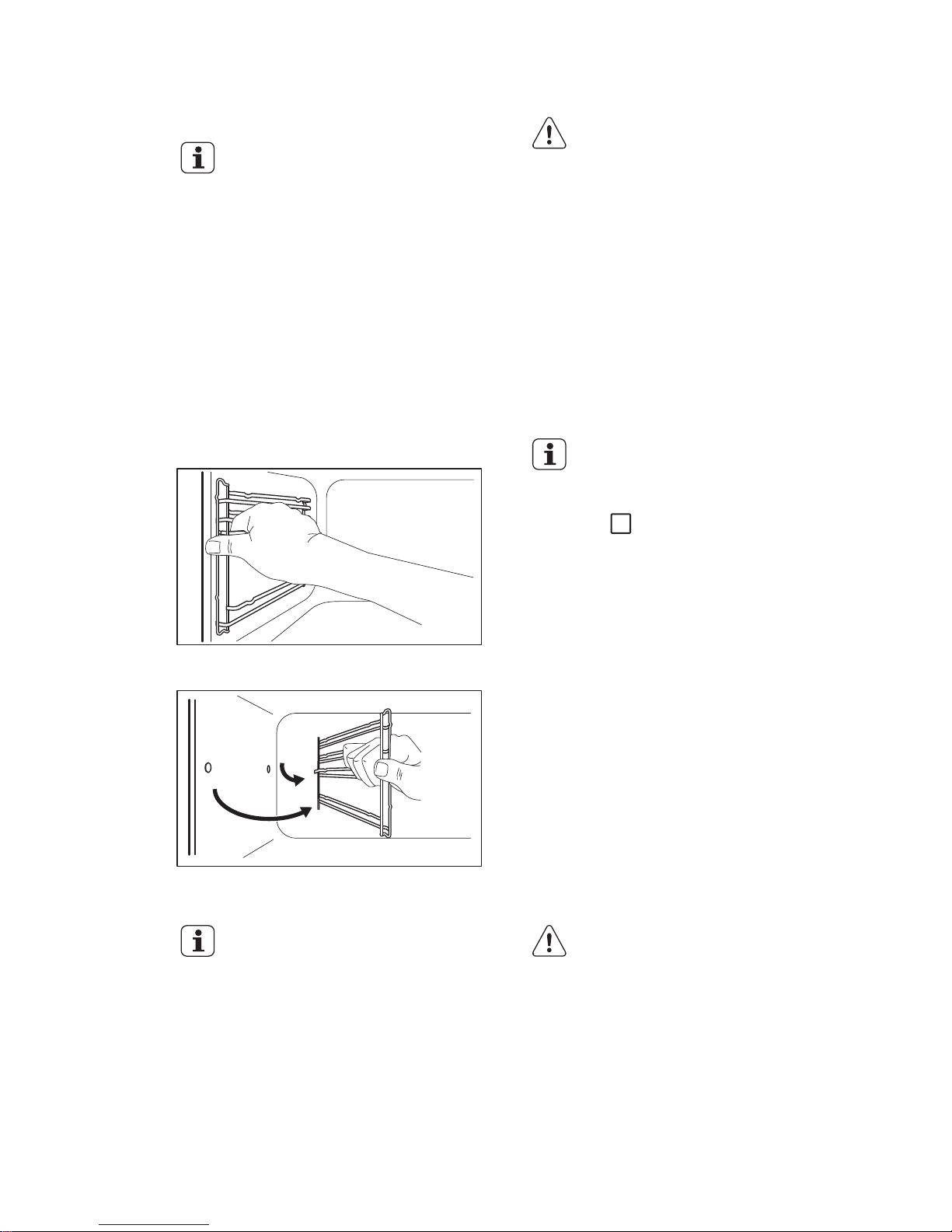

1. Pull the front of the shelf support away
from the side wall.
2. Pull the rear end of the shelf support
away from the side wall and remove it.
1
2
Install the shelf supports in the opposite
sequence.
The retaining pins on the
telescopic runners must point
to the front.
11.4 Catalysis
CAUTION!
Do not clean the catalytic
surface with oven sprays,
abrasive cleaning agents,
soap or other cleaning
agents. This will damage the
catalytic surface.
Remove all accessories and removable
shelf supports.
The walls and the top of the cavity are
catalytic-coated. They absorb fat and dirt
at a big heat without smell.
To support this self-cleaning process heat
the appliance without any food regularly.
Spots or discolouration of the
catalytic surface have no
effect on catalytic properties.
1. Touch again and again until the
display shows "Cata" and the duration
of the cleaning procedure (1 hour).
You cannot set the Duration, but you
can use the End function to delay the
start of the cleaning procedure.
An acoustic signal sounds after the time
ends. The appliance deactivates.
2. Touch a sensor field or open the oven
door to stop the acoustic signal.
3. Clean the bottom of the appliance
with a soft and moist sponge.
11.5 Removing and installing the
door
You can remove the door and the internal
glass panels to clean it. The number of
glass panels is different for different
models.
WARNING!
Be careful when you remove
the door from the appliance.
The door is heavy.

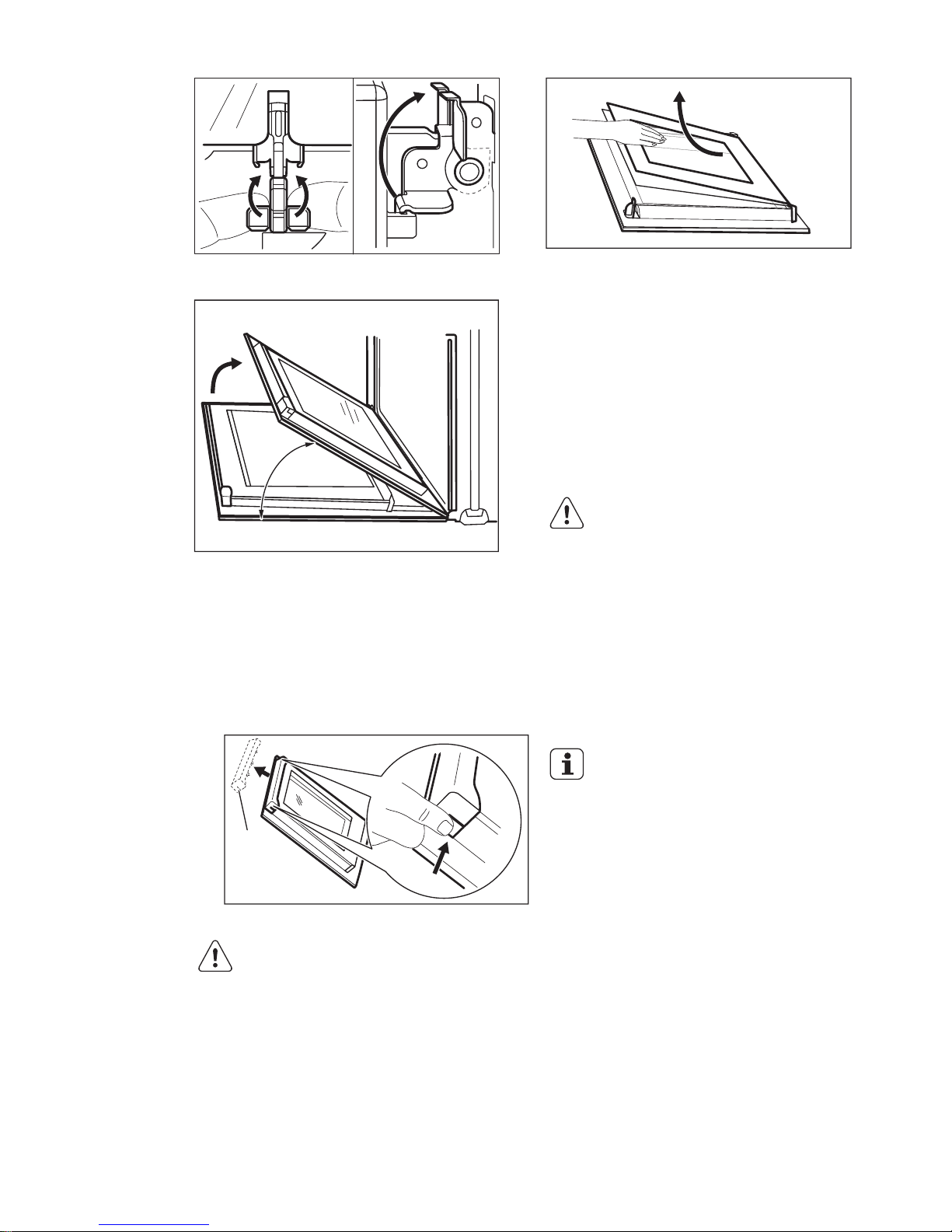

1. Open the door fully.
2. Fully lift up the clamping levers (A) on
the two door hinges.
ENGLISH
25
Page 26
A
A
3. Close the door until it is at an angle of
approximately 45°.
45°
4. Hold the door with one hand on each
side and pull it away from the
appliance at an upwards angle.
5. Put the door with the outer side down
on a soft cloth on a stable surface.
This is to prevent scratches.
6. Hold the door trim (B) on the top edge
of the door at the two sides and push
inwards to release the clip seal.
1
2
B
CAUTION!
Rough handling of the glass,
especially around the edges
of the front panel, can cause
the glass to break.
7. Pull the door trim to the front to
remove it.
8. Hold the door glass panels on their
top edge one by one and pull them up
out of the guide.
9. Clean the glass panel with water and
soap. Dry the glass panel carefully.
When the cleaning is completed, install the
glass panels and the door. Do the above
steps in the opposite sequence. Install the
smaller panel first, then the larger.
11.6 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp. The
lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The back lamp
The lamp glass cover is at the
back of the cavity.
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with a suitable
300 °C heat-resistant oven lamp.
Use the same oven lamp type.
4. Install the glass cover.
The side lamp
1. Remove the left shelf support to get
access to the lamp.

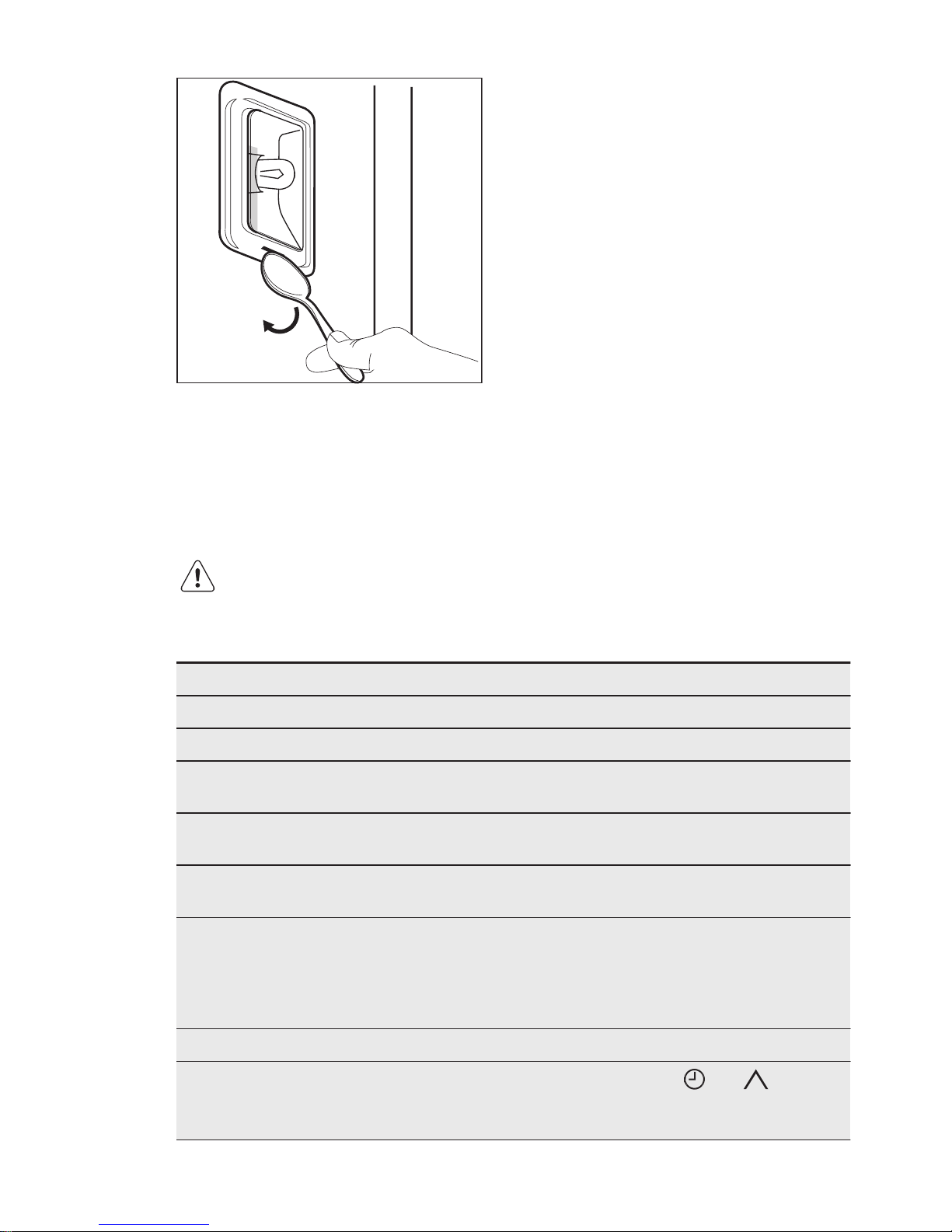

2. Use a narrow, blunt object (e.g. a
teaspoon) to remove the glass cover.
www.electrolux.com26
Page 27
3. Clean the glass cover.
4. Replace the lamp with a suitable 300
°C heat-resistant lamp.
5. Install the glass cover.
6. Install the left shelf support.
12. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
12.1 What to do if...
Problem Possible cause Remedy
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The oven does not heat up. The Child Lock is on. Refer to "Using the Child
Lock".
The oven does not heat up. The fuse is released. Make sure that the fuse is
the cause of the malfunction. If the fuse releases
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
The display does not show
the time during the off status.
The display is deactivated.
Touch and at the
same time to activate the
display again.
ENGLISH
27
Page 28
Problem Possible cause Remedy
It takes too long to cook the
dishes or they cook too
quickly.
The temperature is too low
or too high.
Adjust the temperature if
necessary. Follow the advice in the user manual.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the cooking process ends.
The display shows "C3". The cleaning function does
not operate. You did not
fully close the door, or the
door lock is defective.
Fully close the door.
The display shows an error
code that is not in this table.
There is an electrical fault. • Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows the
error code again, contact the Customer Care
Department.
12.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
13. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
*
www.electrolux.com28
Page 29
ENGLISH
29
Page 30
www.electrolux.com30
Page 31
ENGLISH
31
Page 32
www.electrolux.com/shop
867300108-B-152014
Loading...
