Page 1
Electric ovens
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
35674-1301
Mod. EOB 966
GB
1
Page 2
Important Safety Information
You MUST read these warnings carefully before installing or using the oven. If
you need assistance, contact our Customer Care Department on 08705 950950
Installation
This oven must be installed by qualified
personnel to the relevant British Standards.
This oven is heavy. Take care when moving it.
Remove all packaging, both inside and outside
the oven, before using the oven.
Do not attempt to modify the oven in any way.
Child Safety
This oven is designed to be operated by adults.
Do not allow children to play near or with the
oven.
The oven gets hot when it is in use. Children
should be kept away until it has cooled.
During Use
This oven is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.
Never line any part of the oven with aluminium
foil.
Do not allow heatproof cooking material, e.g.
roasting bags, to come into contact with oven
elements.
Ensure that all control knobs are in the OFF
position when not in use.
Do not leave cookware containing foodstuffs,
e.g. fat or oil in or on the oven in case it is
inadvertently switched ON.
When using other electrical appliances, ensure
the cable does not come into contact with the
hot surfaces of the oven.
Maintenance and Cleaning
Only clean this oven in accordance with the
instructions.
The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.
Always allow the oven to cool down and switch
off the electrical supply before carrying out any
cleaning or maintenance work.
Service
This oven should only be repaired or serviced by
an authorised Service Engineer and only genuine approved spare parts should be used.
Environmental Information
Never place plastic or any other material which
may melt in or on the oven.
Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated.
Do not hang towels, dishcloths or clothes from
the oven or its handle.
Do not use this oven if it is in contact with water
and never operate it with wet hands.
Take great care when heating fats and oils as
they will ignite if they become too hot.
Always use oven gloves to remove and replace
food in the oven.
2
After installation, please dispose of the
packaging with due regard to safety and the
environment.
When disposing of an old appliance, make it
unusable, by cutting off the cable. Remove any
door catches, to prevent small children being
trapped inside.
Keep this instruction book for future
reference and ensure it is passed on to
any new owner.
Page 3
Contents
For the User
Important Safety Information 2
Description of the Appliance 4
Controls 5
Before the First Use 8
Using the Oven 8
Using the Fan Oven 10
Cooking Chart 11
Defrosting 13
Grilling 14
Cleaning the Oven 16
For the Installer
Technical Data 22
Electrical Connection 22
Building In 23
Something not working 18
Service and Spare Parts 19
Guarantee conditions 19
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an
F
operation
Hints and Tips
Environmental information
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683 (Low Voltage Directive);
* 93/68 (General Directives);
* 89/336 (Electromagnetical Compatibility
Directive) .
and subsequent modifications
Oven Door Protection Device
All our appliances comply with the
European safety standards.
Nevertheless, in order to ensure the
highest safety level, and avoid small
children to be exposed to the heat
when the appliance is operated, it is
possible to fit a special protection
device to the oven door. This device
can be purchased in our Service
Force Centres, specifying the
relevant code (35791) and the
Product No. shown on the rating
plate.
3
Page 4
Description of the Appliance
Oven
Control Panel
Electronic
timer
Mains on
Light
Thermostat
Control Light
Function
Control
Knob
Thermostat Control
Knob
Grill Element
Oven door
Accessories
Grill/
Roasting pan
Rating Plate
Grill
trivet
Removable
handles
Anti-tip shelf (x 2)
4
Page 5
Controls
Oven Function Control Knob
Oven Light - The oven light will be on without
any cooking function.
Inner grill element only - can be used for
grilling small quantities.
Double Grill - The full grill element will be on.
Thermal Grilling - This function offers an
alternative method of cooking food items,
normally associated with conventional
grilling. The grill element and the oven fan
operate together, circulating hot air around
the food.
Fan Oven cooking - This allows you to roast
or roast and bake simoultaneously using any
shelf, without flavour transference.
Defrost Setting - This setting is intended to
assist in thawing of frozen food.
Thermostat Control Knob
Turn the thermostat control knob clockwise to
select temperatures between 50°C and 250°C
(MAX).
The Safety Thermostat
This oven is provided with a safety thermostat. In
case of malfunctioning of the main thermostat, and
consequent over-heating, the safety device will stop
the power supply to the appliance. If this happens,
call your local Service Force Centre. Under no
circumstances should you attempt to repair the
appliance yourself.
50
MAX
100
200
150
5
Page 6
24 hour Clock and Timer
Minute minder
Cooking duration
End of cooking time
Manual function
Cookpot
symbol
A
A
U
U
T
T
O
O
Auto
symbol
Cookpot symbol - This will be displayed when
a program is in operation.
A
Auto symbol - This will be displayed when
U
T
the oven has been programmed for
O
automatic operation.
- + Time setting knob
The electronic timer can indicate the time of day,
operate as a minute minder and automatically operate the oven.
Before the oven can be operated, the time of day
must be set on the electronic timer.
Please note that this is a 24 hour clock. For
example, 2pm is shown as 14:00.
In case of loss of power, all the settings (time of
day, set program or program in operation), will be
cancelled. When the power is restored, the
numbers on the display will flash, and the timer
has to be reset.
- +
Time
setting
Programming
controls
TO SET THE TIME OF DAY
F
Press buttons and , and at the same time
turn the time setting knob until the correct time of
day is displayed.
TO SET THE MINUTE MINDER
F
Press button and at the same time turn the
setting time knob until the duration time is displayed
(maximum 23 hours, 59 minutes).
Our diagram shows the timer set for 35 minutes.
After a few seconds the time of day will show in
the display.
To check the number of minutes remaining, press
the button. At the end of the timed period an
alarm will sound. To switch off the alarm press
button .
- +
- +
6
Page 7
MANUAL FUNCTION
F
Press button to set the oven for manual function.
TO SET THE TIMER TO
F
SWITCH OFF ONLY
This is useful if you want to begin cooking
immediately but have the oven switch off
automatically.
1. Set the oven function control knob and the
thermostat control knob on the required settings.
2. Place food in the oven.
3. Press button
and, at the same time, turn
the time setting knob until the required cooking
duration is displayed.
Our diagram shows the timer set for 1 hour 10
minutes.
At the end of the cooking time the oven will switch
off, an alarm will sound. Turn the oven function and
thermostat control knob to zero. To switch off the
alarm press button
.
- +
A
A
U
U
T
T
O
O
- +
TO SET THE TIMER TO SWITCH
F
THE OVEN ON AND OFF
1. Ensure the clock is showing the right time of
day.
2. Carry out steps 1, 2 and 3 as explained in "To
set the timer to switch off only".
3. Press button
and at the same time turn the
time setting knob until the end cooking time is
displayed.
Our diagram shows the end cooking time set for
7:35 pm.
At the end of the cooking time turn the oven function
and thermostat control knob to zero.
TO CANCEL A PROGRAMME
F
1. Press button and, at the same time, turn
the time setting knob until the cooking duration
is set on "zero".
2. If the end cooking time has been set too, press
button
and at the same time turn the time
setting knob until the end cooking time is set on
"zero".
A
A
U
U
T
T
O
O
- +
7
Page 8
Before the First Use
Remove all packaging, both inside and
outside the oven, before using the
appliance.
Before first use, the oven should be heated
without food. During this time, an unpleasant
odour may be emitted. This is quite normal.
F
This procedure should be repeated with the grill
1. Set the programmer to manual
function.
2. Switch the oven function control knob
to fan cooking
3. Set the thermostat control knob to
MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty for
approximately 45 minutes.
function for approximately 5-10 minutes.
.
Using the Oven
Always cook with the oven door
closed.
Stand clear when opening the drop
down oven door. Do not allow it to fall
open - support the door using the
door handle, until it is fully open.
The oven has four shelf levels, and is
supplied with two shelves. The shelf
positions are counted from the
bottom of the oven as shown in the
diagram.
It is important that these shelves are
correctly positioned as shown in the
diagram.
Do not place cookware directly on
the oven base.
4
3
2
1
FO 0336
ANTI-TIP SHELF
The anti-tip shelf has four small metal tabs on its
frame to prevent it from sliding out from the shelf
supports.
8
metal tabs
Page 9
Hints and Tips
Condensation and steam
When food is heated it produces steam in the same
way as a boiling kettle. The oven vents allow some
of this steam to escape. However, always stand
back from the oven when opening the oven
door to allow any build up of steam or heat to
release.
If the steam comes into contact with a cool surface
on the outside of the oven, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not a fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.

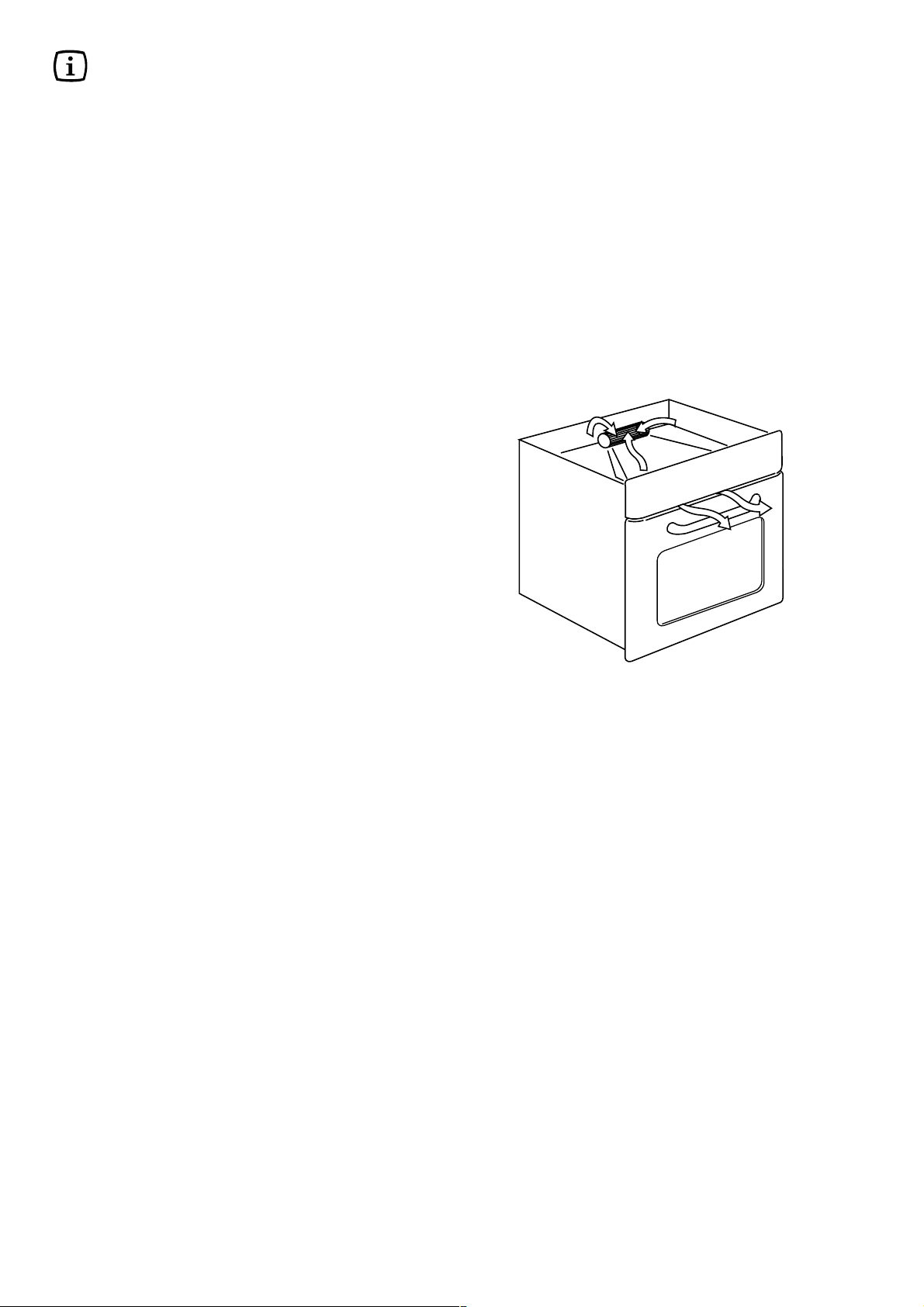

Cooling fan
The cooling fan operates during cooking. Air is
expelled through vents between the oven door and
the control panel, as shown in the diagram.
The cooling fan may run on after the oven is
switched off to keep the controls cool. This is quite
normal.
Cookware
Use any oven proof cookware which will
withstand temperatures of 250°C.
Baking trays, oven dishes, etc. should not be
placed directly against the grid covering the fan
at the back of the oven, or placed on the oven
base.
Do not use baking trays larger than 30 cm x 35
cm (12 in x 14 in) as they will restrict the
circulation of heat and may affect performance.
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat
to the food inside them.
A Aluminium, earthenware, oven glassware and
bright shiny utensils reduce cooking and base
browning.
B Enamelled cast iron, anodized aluminium,
aluminium with non-stick interior and coloured
exterior and dark, heavy utensils increase
cooking and base browning.
9
Page 10
Using the Fan Oven
The air inside the oven is heated by the element
around the fan situated behind the back panel. The
fan circulates hot air to maintain an even temperature inside the oven.
The advantages of cooking with this function
are:
lFaster Preheating
As the fan oven quickly reaches temperature, it is
not usually necessary to preheat the oven although
you may find that you need to allow an extra 5-7
minutes on cooking times. For recipes which require
higher temperatures, best results are achieved if
the oven is preheated first, e.g. bread, pastries,
scones, souffles, etc.
lLower Temperatures
Fan oven cooking generally requires lower
temperatures than conventional cooking.
Follow the temperatures recommended in the chart
at page 11 or remember to reduce temperatures by
about 20-25°C for your own recipes which use
conventional cooking.
FO 2079
lEven Heating for Baking

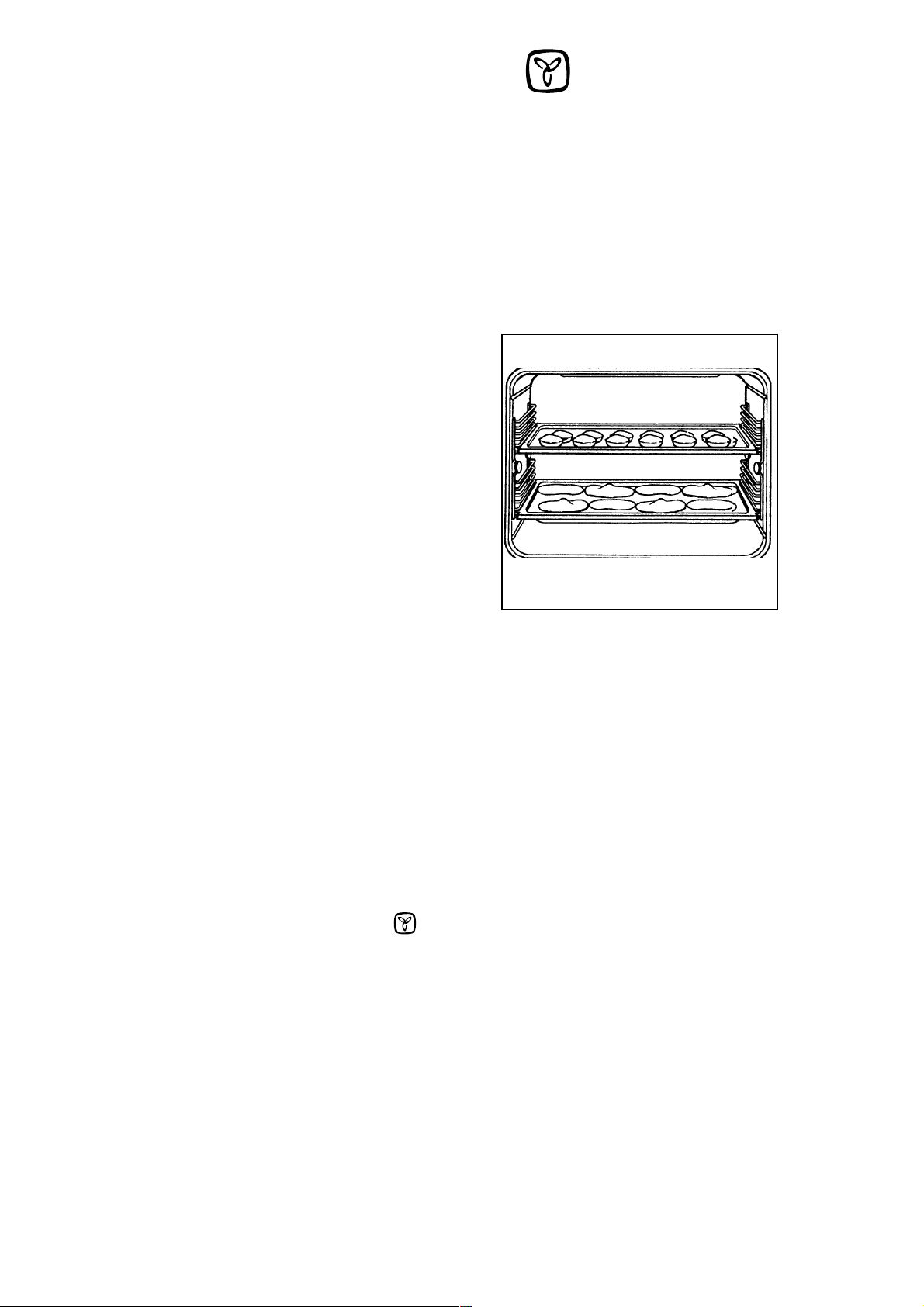

The fan oven has uniform heating on all runner
positions. This means that batches of the same
food can be cooked in the oven at the same time.
However, the top shelf may brown slightly quicker
that the lower one.
This is quite usual. There is no mixing of flavours
between dishes.
How to Use the Fan Oven
F
1. Turn the oven function control knob to .
2. Turn the thermostat control to the required
temperature.
THINGS TO NOTE
The oven light will come on when the oven
function control knob is set.
The oven fan will operate continually during
cooking.
The thermostat control light will remain on until
the correct temperature is reached. It will then
cycle on and off to show the temperature is
being maintained.
10
Page 11
Cooking Chart
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to
suit your individual requirements. Only experience will enable you to determine the correct setting for
your personal requirements.
Food Shelf Cooking
Position Temp (°C)
Biscuits 180-190
Bread 210-220
Casseroles 130-140
Cakes: Small and queen 160-170
Sponges 160-170
Madeira 140-150
Rich Fruit 130-140
Christmas 130-140
Meringues 90-100
Fish 170-190
Fruit Pies and Crumbles 190-200
Milk Puddings 130-140
Pastry: Choux
Shortcrust
Flaky
Puff
Plate Tarts 180
Quiches/Flans 170-180
Scones 210-220
Roasting: Meat & Poultry 160-180
}
Shelf
positions
are not
critical but
ensure
that oven
shelves
are evenly
spaced
when
more than
one is
used.
190-200
When roasting, ensure the meat is cooked thoroughly, use a meat thermometer if preferred to check
the centre temperature has reached the required temperature (see table below).
MEAT TEMPERATURES
Beef Rare - 60°C
Medium - 70°C
Well Done - 80°C
Pork Well Done - 80°C
Lamb Medium - 70°C
Well Done - 80°C
11
Page 12

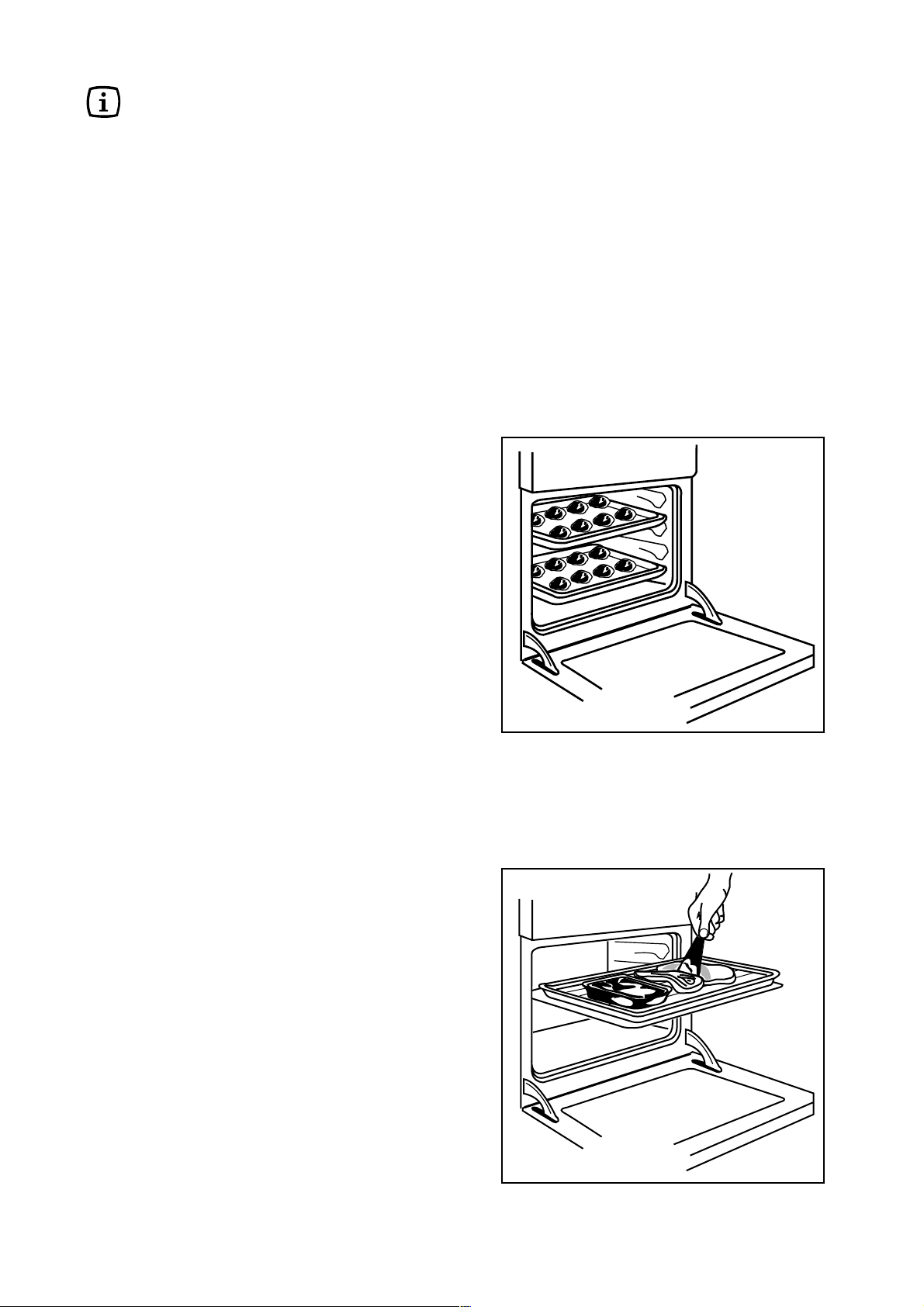

Hints and Tips
Runner positions are not critical, but make sure the
shelves are evenly spread.
When cooking more than one dish in the fan oven,
place dishes centrally on the shelves rather than
several dishes on one shelf.
When the oven is full, you may need to allow slightly
longer cooking time.
A shelf may be placed on the floor of the oven. Place
dishes on a shelf in this position rather than on the
oven base, to allow air circulation around the food.
When the oven is full of the same food, e.g. equal
trays of small cakes or equal size victoria sandwich
cakes, then they will be cooked in the same time
and removed from the oven together. When different
sizes of trays or types of food, e.g. biscuits and
cakes are cooked, they will not necessarily be
ready together.
The fan oven can be used to heat foods through
without thawing first, e.g. fruit tarts, mince pies,
sausage rolls, and other small pastry items. Use a
temperature of 190-200°C and allow 20-40 minutes
(depending on the quantity of food in the oven).
The use of too high temperatures can cause uneven
browning. Check with the recommendations for
oven temperatures given in the cooking charts, but
be prepared to adjust the temperature by 10°C if
necessary. Remember to reduce temperatures by
about 20-25°C for your own conventional recipes.
When roasting do use the trivet in the meat tin. Fat
and meat juices will drain into the meat tin below
and can be used to make gravy. The trivet also
prevents splashes of fat from soiling the oven
interior.
The meat tin should not be placed on a heated
hotplate as this may cause the enamel to crack.
12
Page 13
Defrosting
The oven fan operates without heat and circulates
the air, at room temperature, inside the oven. This
increases the speed of defrosting. However, please
note that the temperature of the kitchen will influence
the speed of defrosting.
This function is particularly suitable for delicate
food which could be damaged by heat, e.g. cream
filled gateaux, iced cakes, pastries, bread and
other yeast products.
How to Use Defrosting
F
1. Turn the oven function control knob to .
2. Ensure the thermostat control knob is in the OFF
position.
Food
Defrosting time
(Mins)
Standing time
Hints and Tips
Cover food with a lid, aluminium foil or plastic
film to prevent drying out during defrosting.
ALWAYS COOK THOROUGHLY
IMMEDIATELY AFTER THAWING.
Frozen food should be placed in a single layer
when ever possible and turned over half way
through the defrosting process.
Only joints of meat and poultry up to 2 kg. (4 lb.)
are suitable for defrosting in this way.
Refer to the following table for approximate
defrosting times.
Notes
(Mins)
Chicken 1000 g. 100-140 20-30 Place the chicken on an inverted
saucer on a large plate. Defrost open
and turn at half time or defrost
covered with foil. Remove giblets
as soon as possible.
Meat 1000 g. 100-140 20-30 Defrost open and turn at
half time or cover with foil
Meat 500 g. 90-120 20-30 As above
Trout 150 g. 23-35 10-15 Defrost open
Strawberries 300 g. 30-40 10-20 Defrost open
Butter 250 g. 30-40 10-15 Defrost open
Cream 2 x 200 g. 80-100 10-15 Defrost open (cream is
easy to whip even if parts
of it are still slightly frozen)
Cake 1400 g. 60 60 Defrost open
The times quoted in the chart should be used as a guide only, as the speed of defrosting will depend on
the kitchen temperature. For example, the colder the ambient temperature, the longer the defrosting
time.
13
Page 14
Grilling
Grilling must be carried out with the
oven door closed. The grill pan handles
must be removed from the pan.
How to Use the Grill
F
1. Turn the oven control function knob on .
2. Turn the thermostat control knob on the required
temperature.
3. Adjust the grid and grill pan runner position to
allow for different thicknesses of food. Position
the food close to the element for faster cooking
and further away for more gentle cooking.
Preheat the grill on a full setting for a few minutes
before sealing steaks or toasting. Adjust the heat
setting and the shelf as necessary, during
cooking.
During cooking, the cooling fan and the thermostat
control light will operate in the same way as
described for the fan oven function.
Hints and Tips
- Most foods should be placed on the grid in the
grill pan to allow maximum circulation of air to
lift the food out of the fats and juices. Food such
as fish, liver and kidneys may be placed directly
on the grill pan, if preferred
- Food should be thoroughly dried before grilling
to minimise splashing. Brush lean meats and
fish lightly with a little oil or melted butter to keep
them moist during cooking
- Accompaniments such as tomatoes and
mushrooms may be placed underneath the
grid when grilling meats
- When toasting bread, we suggest that the top
runner position is used.
- The food should be turned over during cooking,
as required.
The grill element is controlled by the
thermostat. During cooking, the grill cycles on
and off to prevent overheating.
How to Use the Inner
F
Grill Element
The inner grill provides quick direct heat to the
central area of the grill pan. By using the inner grill
element for cooking small quantities, it can help to
save energy.
1. Turn the oven control function knob on
2. Turn the thermostat control knob on the required
temperature.
3. Adjust the grid and grill pan runner position to
allow for different thicknesses of food and
follow the instructions for grilling.
.
How to Use the Thermal
F
Grill
Thermal grilling offers an alternative method of
cooking food items normally associated with
conventional grilling. The grill element and the oven
fan operate alternately, circulating hot air around
the food. The need to check and turn the food is
reduced. Thermal grilling helps to minimize
cooking smells in the kitchen.
With the exception of toast and rare steaks, you
can thermally grill all the foods you would normally
cook under a conventional grill. Cooking is more
gentle, therefore food generally takes a little longer
to cook with thermal grilling compared with
conventional grilling. One of the advantages is that
larger loads can be cooked at the same time.
1. Turn the oven control function knob on
2. Turn the thermostat control knob on the required
temperature. Select a maximum temperature
of 200°C and do not exceed 1 hour of
operation.
3. Adjust the grid and grill pan runner position to
allow for different thicknesses of food and follow
the instructions for grilling.
.
14
Page 15
Hints and Tips
Prepare foods in the same way as for conventional
grilling. Brush lean meats and fish lightly with little
oil or butter to keep them moist during cooking.
A general guide to cooking times is given below but
these times may vary slightly depending on the
thickness and quantity of food being cooked.
Cooking Chart - Grilling
FOOD Grill and Inner Grill Element Thermal Grill
Temp
(°C)
Bacon Rashers 210 2-3 200 8-12
Beefburgers 200 6-10 190 10-15
Chicken Joints 170 10-15 160 35-45
Chops - Lamb 180 7-10 170 20-25
- Pork 180 10-15 170 25-35
Fish - Whole Trout/Herring 170 8-12 170 10-20
- Fillets Plaice/Cod 170 4-6 170 10-20
Kebabs 180 10-15 170 20-30
Kidneys - Lamb/Pig 170 4-6 180 10-15
Liver - Lamb/Pig 170 5-10 180 20-30
Sausages 180 10-15 190 10-15
Toast 250 1-2 --
Heating through and
Browning, e.g. au-gratin, - - 170 20-30
lasagne, shepherd's pie.
Browning dishes only 230 3-5 --
Time
(Mins per side)
Temp
(°C)
depending on size depending on size
Time
(Mins)
15
Page 16
Cleaning the Oven
Before cleaning always allow the cooling
fan to cool the cooker down before
switching off at the electricity supply.
The oven should be kept clean at all
times. A build-up of fats or other foodstuffs
could result in a fire, especially in the grill
pan.
Cleaning materials
Before using any cleaning materials on your oven,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used
as they may dull the surface finishes. Harsh
abrasives should also be avoided.
External cleaning
Regularly wipe over the control panel, oven door
and door seal using a soft cloth well wrung out in
warm water to which a little liquid detergent has
been added.
To prevent damaging or weakening the
door glass panels avoid the use of the
following:
Household detergent and bleaches
Impegnated pads unsuitable for non-
stick saucepans
Brillo/Ajax pads or steel wool pads
Chemical oven pads or aerosols
Rust removers
Bath/Sink stain removers
Clean the outer and inner door glass using warm
soapy water. Should the inner door glass become
heavily soiled it is recommended that a cleaning
product such as Hob Brite is used.
Oven Cavity
The enamelled oven cavity is best cleaned whilst
the oven is still warm.
Wipe the oven over with a soft cloth soaked in warm
soapy water after each use. From time to time it will
be necessary to do a more thorough cleaning,
using a proprietary oven cleaner.
If the soilage has become set, after the oven has
cooled down, the following process will help to
soften the splatters to help make cleaning easier.
1. Place the grill/ meat pan on the oven shelf
F
positioned in the lowest runner.
2. Add a few drops of washing-up liquid to
the pan and fill to about 12 mm. with boiling
water from the kettle.
3. Close the oven door, turn the oven function
knob on fan oven
knob on 50°C.
4. After 15 minutes, turn off the thermostat
and allow the fan oven to continue without
heat for a further 5 minutes, when the temperature of the water will have cooled down.
5. Carefully remove the pan of water from
the oven and use normal oven cleaners to
clean away soil residues.
6. Leave a small amount of soapy water to
soak into any burned on spillage on the floor
of the oven for a longer time if necessary.
and set the thermostat
Oven Shelves
To clean the oven shelves, soak in warm soapy
water and remove stubborn marks with a well
wetted soap impregnated pad. Rinse well and dry

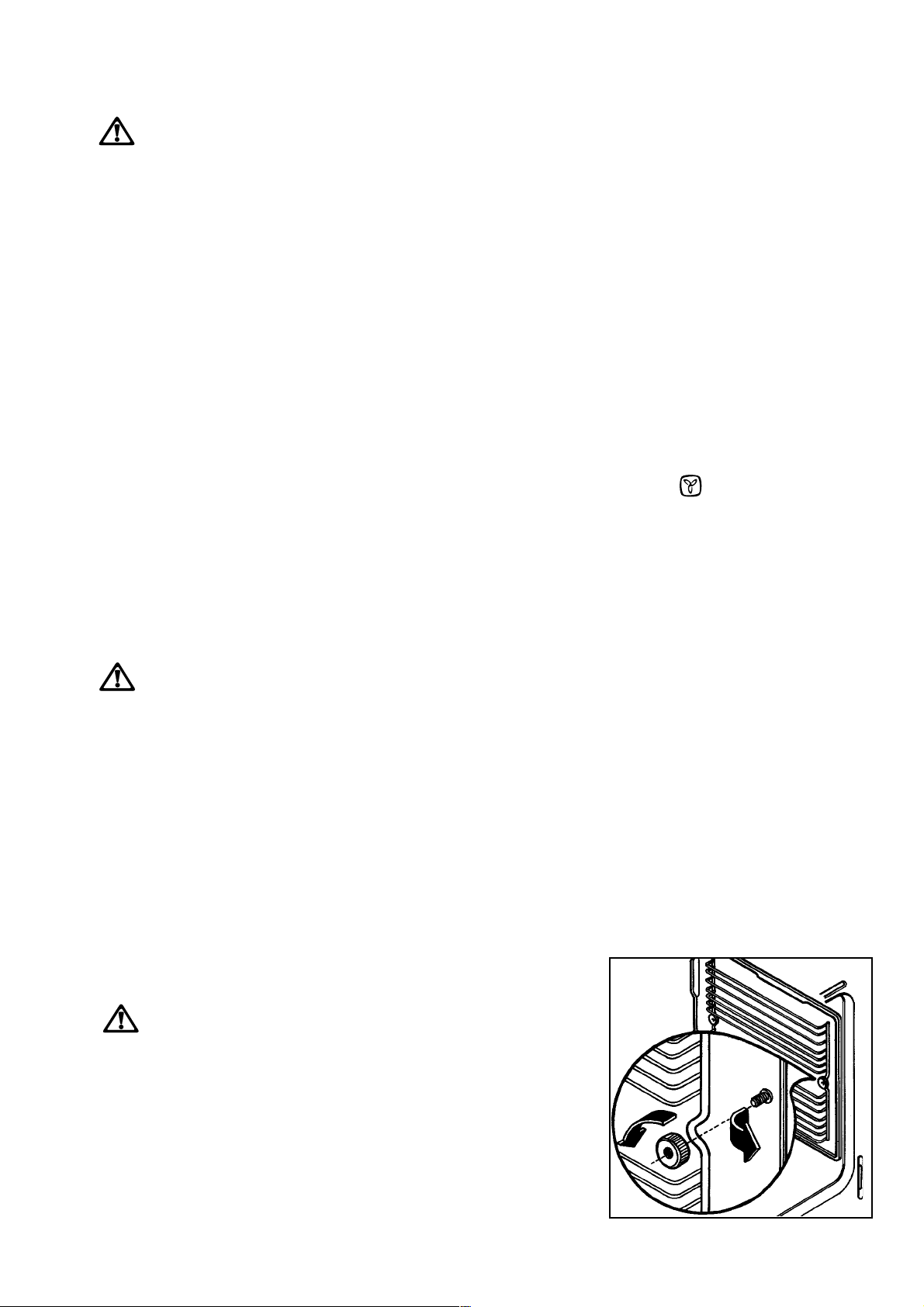

with a soft cloth.The shelf supports can be removed
for easy cleaning (see diagram). Please, ensure
the retaining nuts are secure when refitting the
shelf support.
16
DO NOT clean the oven door while the
glass panels are warm. If this precaution
is not observed the glass panel may
shatter.
If the door glass panel becomes chipped
or has deep scratches, the glass will be
weakened and must be replaced to
prevent the possibility of the panel
shattering. Contact your local Service
Force Centre who will be pleased to advise
further.
Page 17

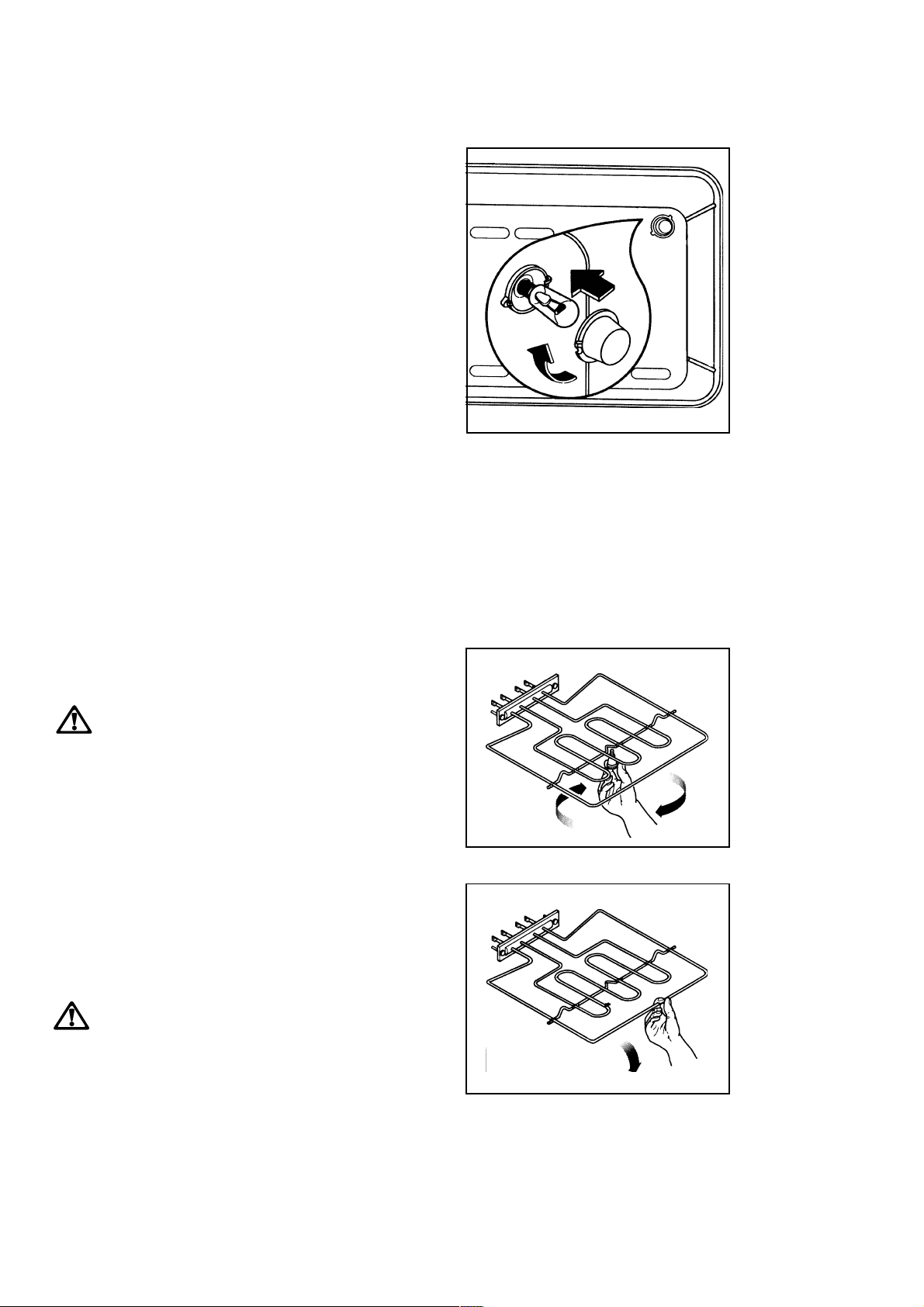

Replacing The Oven Light
If the oven bulb needs replacing, it must comply with
the following specifications:
- Electric power: 15W,
- Electric rate: 230-240 V (50 Hz),
- Resistant to temperatures of 300°C,
- Connection type: E14
These bulbs are available from your local Service
Force Centre.
To replace the faulty bulb:
1. Ensure the oven is disconnected from the electrical
supply.
2. Push in and turn the glass cover anticlockwise.
3. Remove the faulty bulb and replace with the new
one.
4. Refit the glass cover and restore the electrical
supply.
FO 0287
Cleaning the hinged grill
This model has been fitted with a hinged grill element to
enable you to clean the roof of the oven easily.
Before proceeding ensure the oven is cool and
is isolated from the electricity supply.
1) Undo the screw which holds the grill in place
F
(see diagram).
2) Then gently pull the grill downward to allow
access to the oven roof (see diagram).
3) Clean the oven roof with a suitable cleaner and
wipe dry before replacing the hinged grill element.
4) Gently push up the grill element into place and
firmly screw into place the holding nut.
Ensure the grill holding nut is firmly in place to avoid
the grill falling down when in use
FO 0781
FO 0778
17
Page 18
Something not working
If the appliance is not working correctly, please carry out the following checks, before contacting your local
Electrolux Service Force Centre.
IMPORTANT:
or installation, a charge will be made even if the appliance is under guarantee.
If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use
SYMPTOM
n The oven does not come on
n The oven temperature light does not come on
n The oven light does not come on
SOLUTION
u Check the oven is in manual operation and
that both a cooking function and temperature
have been selected.
u Check the appliance is wired in properly, and
the socket switch or the switch from the mains
supply to the oven are ON.
u Select a temperature with the thermostat
control knob
u Select a function with the oven function
control knob.
u Select a function with the oven function
control knob
u Check the light bulb, and replace it if
necessary (see "Cleaning the Oven")
n It takes too much time to finish the dishes, or
they are cooked too fast.
n Steam and condensation settle on the food
and the oven cavity.
n The programmer does not work
n The oven fan is noisy
If after all these checks, the oven still does not work,
contact your local Service Force Centre quoting
your model and serial number, which can be found
on the rating plate.
Please note that it will be necessary to provide
proof of purchase for any in-guarantee service
calls.
In-guarantee customers should ensure that
the above checks have been made as the
engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
u The temperature may need adjusting
u Refer to the contents of this booklet,
especially to the chapter Using the Oven.
u Leave dishes inside the oven no longer than
15-20 minutes after the cooking is completed.
u Check the instructions for the programmer.
u Check that shelves and bakeware are not
vibrating in contact with the oven back panel.
When you contact the Service Force Centre, they
will need the following information:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault
4. The model and the serial number (see rating
label)
5. Date of purchase
18
Page 19
Service and Spare Parts
CUSTOMER CARE
For general enquiries concerning your Electrolux
appliance and for further information on
Electrolux products, contact our Customer Care
If you require spare parts or an engineer contact
your local Service Force Centre by telephoning:
08705-929929
Your call will be routed to the Service Centre
covering your post code area. The addresses of
Electrolux Service Force Centres are detailed on
the following pages.
Department by letter or telephone as follows:
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire SL1 1DZ
Tel : 08705 950950 (*)
* calls to this number may be recorded for training purposes.
Guarantee Conditions
Electrolux Standard Guarantee
conditions
We, Electrolux, undertake that if, within 12 months of
the date of the purchase, this Electrolux appliance or
any part thereof is proved to be defective by any reason
only of faulty workmanship or materials, we will, at our
option, repair or replace the same FREE OF ANY
CHARGE for labour, materials or carriage on condition
that:
* The appliance has been correctly installed and
used only on the gas and electricity supply stated
on the rating plate.
* The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
* All service work under this guarantee must be
undertaken by a Electrolux Service Force Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours, in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside the United Kingdom.
* Appliances found to be in use within a commercial
or similar environment, plus those which are the
subject to rental agreements.
* Products of Electrolux manufacture which are not
marketed by Electrolux.
European Guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the
same extent for labour and parts as exist in the
new contry of use for this brand or range of
products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European
Community (EC) or European Free Trade Area.
* The product is installed and used in accordance
with our instructions and is only used domestically,
i.e. a normal household
The electrical supply complies with the
specification given in the rating label.
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest
Customer Care centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis +33 (0)3 44 62 22 22
Germany Nürnberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0)1753 219898
19
Page 20
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Force Centre telephone 08705 929 929
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands
JERSEY Jersey Electricity
Company
PO Box 45
Queens Road
St Helier
Jersey
Channel Islands
JE4 8NY
SCOTLAND
ABERDEEN 54 Claremont Street
(M05) Aberdeen
AB10 6RA
AUCHTERMUCHY 33A Burnside
(M03) Auchtermuchy
Fife
KY14 7AJ
BLANTYRE Unit 5
(M07) Block 2
Auchenraith Industrial
Estate
Rosendale Way
Blantyre
G72 0NJ
DUMFRIES 93 Irish Street
(M01) Dumfries
Scotland
DG1 2PQ
DUNOON Briar Hill
7 Hill Street
(M 67) Dunoon
Argyll
PA23 7AL
GLASGOW 20 Cunningham Road
(M04) Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
INVERNESS Unit 3B
(M06) Smithton Indust. Est.
Smithton
Inverness
IV1 2PD
ISLE OF ARRAN Arran Domestics
(OWN SALES) Unit 4 The Douglas
Centre
Brodick
Isle of Arran
KA27 8AJ
ISLE OF BARRA J Zerfah
(OWN SALES) 244 Bruernish
Isle of Barra
Western Islands
HS9 5QY
ISLE OF BUTE Walker Engineering
(M66) Glenmhor
Upper Serpentine
Road
Rothesay
Isle of Bute
PA20 9EH
ISLE OF LEWIS ND Macleod
(M69) 16 James Street
Stornoway
Isle of Lewis
PA872QW
KELSO 2-8 Wood Market
(M08) Kelso
Borders TD5 7AX
ORKNEY Corsie Domestics
(M65) 7 King Street
Kirkwall
Orkney KW15 1RE
PERTH Hydro Electrical
Inveralmond House
Ruthervenfield Road
Perth PH1 3AQ
PERTH Graham Begg Unit 4
(OWN SALES) Airport Ind Estate
Wick KW1 4QS
SHETLAND Ta it El ec tr on ic
(OWN SALES) Systems Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 0PW
SHETLAND Bolts Shetland Ltd
(OWN SALES) 26 North Road
Lerwick
Shetland ZE1 0PE
WHALSAY Leask Electrical
Harlsdale
Symbister, Whalsay
(OWN SALES) Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST Owenmore House
(M27) Kilwee Industrial
Estate
Upper Dunmury Lane
Belfast
BT17 0HD
WALES
CARDIFF Guardian Industrial
(M28) Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
CLYWD Unit 6-7 Coed - Parc
(M14) Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
OSWESTRY Plas Funnon
Warehouse
(M17) Middleton Road
Oswestry
SY11 2PP
HAVERFORDWEST Cromlech Lodge
(M75) Ambleston
Haverfordwest
Pembrokeshire
SA62 5DS
DYFED Maes Y Coed
(M77) High Mead
Llanybydder
Carmarthenshire
SA40 9UL
NORTH EAST
GATESHEAD Unit 356a
(M39) Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
GRIMSBY 15 Hainton Avenue
(M42) Grimsby
South Humberside
DN32 9AS
HULL Unit 1
(M41) Boulevard Industrial
Estate
Hull
HU3 4AY
LEEDS 64-66 Cross Gates
(M37) Road
Leeds
LS15 7NN
NEWTON AYCLIFFE Unit 16
(M45) Gurney Way
Aycliffe Ind Estate
Newton Aycliffe
DL5 6UJ
SHEFFIELD Pennine House
(M38) Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD 1 Kelvin Park
(M11) Dock Road
Birkenhead
L41 1LT
CARLISLE Unit 7
(M10) James Street
Workshops
James Street
Carlisle
Cumbria CA2 5AH
ISLE OF MAN South Quay Ind.
(M64) Estate
Douglas
Isle of Man IM1 5AT
LIVERPOOL Unit 1
(M15) Honeys Green
Precinct
Honeys Green Lane
Liverpool
L12 9JH
MANCHESTER U nit B
(M09) Central Industrial
Estate
St Marks Street
Bolton
BL3 6NR
PRESTON Unit 250
(M13) Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
STOCKPORT Unit 2 0 H aigh Park
(M16) Haigh Avenue
Stockport
SK4 1QR
20
Page 21
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Force Centre telephone 08705 929 929
MIDLANDS
BIRMINGHAM 66 Birch Road East,
(M18) Wyrley Road
Industrial
Estate
Witton
Birmingham
B67DB
BOURNE Manning Road Ind
(M44) Estate
Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH 65 St.Marys Street
(M72) Bridgnorth
Shropshire
WV16 4DR
GLOUCESTER 101 Rycroft Street
(M23) Gloucester
GL1 4NB
HEREFORD Unit 3
(M31) Bank Buildings
Cattle Market
Hereford
HE4 9HX
HIGHAM FERRERS 30 H igh Street
(M51) Higham Ferrers
Northants
NN10 8BB
ILKESTON Unit 2
(M43) Furnace Road
Ilkeston
DE7 5EP
LEICESTER Unit 7
(M22) Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE0 5GF
LINCOLN Uni t 8 Stonefield Park
(M40) Clifton Street
Lincoln
LN5 8AA
NEWCASTLE 18-21 Croft Roa d
UNDER LYME Brampton Industrial
(M12) Estate
Newcastle under
Lyme
Staffordshire
ST5 0TW
REDDITCH 13 Thornhill Road
(M20) North Moons Moat
Redditch
Worcestershire
B98 9ND
TAMWORTH Unit 3
(M19) Sterling Park
Claymore
Tamworth
B77 5DO
WORCESTER Unit 1&2
(M73) Northbrook Close
Gregorys Mill Ind
Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM 11a Gardener Ind
(M79) Estate
CHELMSFORD H anbury Road
(M47) Widford Ind Estate
COLINDALE Unit 14
(M53) Capital Park
ELTHAM 194 Court Road
(M78) Mottingham - Eltham
ENFIELD 284 Alma Road
(M49) Enfield
GRAVESEND Unit B4,
(M57)
HARPENDEN Unit 4
(M46) Riverside Estate
LETCHWORTH 16-17 Woodsite Ind
(M50) Est.
LONDON 2/4 Roy al Lane
(M76) Yiewsley
MAIDENHEAD Reform Road
(M60) Maidenhead -
MOLESEY 10 Island Farm
(M61) Avenue
NEWBURY 9 Pipe rs Court
(M24) Berkshire Drive
IPSWICH Unit 6C
(M48) Elton Park Business
NORWICH 2b Trafalgar Street
(M52) Norwich
SUNBURY Unit 1a
(M63) The Summit
Kent House Lane
Beckenham
Kent BR3 1QZ
Chelmsford
Essex
CM12 3AE
Capital Way
Colindale
London NW9 0EQ
London SE9 4EW
London
EN3 7BB
Imperial Business
Estate
Gravesend
Kent
DA11 0DL
Coldharbour Lane
Harpenden
AL5 4UN
Works Road
Letchworth
Herts
SG6 1LA
West Drayton
Middlesex
UB7 8DL
Berkshire
SL6 8BY
West Molesey
Surrey
KT8 2UZ
Thatcham
Berkshire
RG19 4ER
Centre
Hadleigh Road
Ipswich
IP2 0DD
NR1 3HN
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
SOUTH EAST
ASHFORD Unit 2
(M58) Bridge Road
FLEET Unit 1
(M59) Redfields Industrial
HAYWARDS HEATH 21-25 Bridge Road
(M55) Haywards Heath
Business
Estate
Bridge Road
Ashford
Kent
TN2 1BB
Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
Sussex
RH16 1UA
SOUTH WEST
BARNSTAPLE Main Road
(M30) Fremington
BOURNEMOUTH 63-65 Curzon Road
(M26) Bournemouth
BRIDGEWATER
(M35)
BRISTOL 11 Eldon Way
(M25) Eldonwall Trading
EMSWORTH 266 Main Road
(M33) Southboure
ISLE OF WIGHT Unit 8
(M34) Enterprise Court
NEWTON ABBOT Unit 2
(M29)
PLYMOUTH 16 Faraday Mill
(M32) Cattledown
REDRUTH Unit 7D Pool Industrial
(M36) Estate
Barnstaple
North Devon
EX31 2NT
Dorset
BH1 4PW
6 Hamp Industrial
Estate
Bridgewater
Somerset
Bristol
Avon
BS4 3QQ
Emsworth
PO10 8JL
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
Zealley Industrial
Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
Plymouth
PL4 0ST
Wilson Way, Redruth,
Cornwall
TR15 3QW
21
Page 22
Technical Data
Heating elements rating
DIMENSIONS Height 580 mm.
OF RECESS Width 560-570 mm.
Depth 550 mm.
DIMENSIONS Height 320 mm.
OF THE Width 420 mm.
OVEN CAVITY Depth 390 mm.
Oven capacity 53.2 litres
Circular heating element 2.08 kW
Inner Grill element 1.82 kW
Double Grill element 2.66 kW
Oven Light 15 W
Cooling Fan 25 W
Convection Fan 30 W
Total Rating 2.70 kW
Electrical Connection
The oven is designed to be connected to 230-240V
(50Hz) electricity supply.
The oven has an easily accessible terminal block
which is marked as follows:
Letter L - Live terminal
Letter N - Neutral terminal
or E - Earth terminal
THIS OVEN MUST BE EARTHED
The cable used to connect the oven to the electrical
supply must comply to the specifications given
below.
For Uk use only
Connection Min. size Cable / flex Fuse
via Cable/flex type
2
13 A socket 2.5 mm
outlet butyl min.
13 A insulated
spur box
Cooker 2.5 mm
Control twin and
Circuit earth
3 core 13 A
2
PVC/PVC
20 A
It is necessary that you install a double pole switch
between the oven and the electricity supply (mains),
with a minimum gap of 3mm between the switch
contacts and of a type suitable for the required load
in compliance with the current rules.
The switch must not break the yellow and green
earth cable at any point.
Important
After installation and connecting, the cable must be
placed so that it cannot at any point reach a temperature of more than 60°C above the ambient
temperature.
Before the oven is connected, check that the main
fuse and the domestic installation can support the
load; and that the power supply is properly earthed.
The manufacturer disclaims any responsibility
should these safety measures not be carried
out.
For Europe use only
Min. size Cable/flex Cable / flex type Fuse
1.5 mm
22
2
H05 RR-F 13 A
Page 23
Building In
Please ensure that when the oven is installed
it is easily accessible for the engineer in the
event of a breakdown.
BUILDING IN
The surround or cabinet into which the oven will be
built must comply with these specifications:
l the dimensions must be as shown in the relevant
diagrams;
l the materials must withstand a temperature
increase of at least 60°C above the ambient
temperature;
l proper arrangements must be made for a
continuous supply of air to the oven to prevent
the oven overheating.
Dimensions of the oven and recess required are
given in the relevant diagrams.
FO 0374
FO 0292
Securing The Oven To The
Cabinet
1. Fit the oven into the cabinet recess,
2. Open the oven door
3. Secure the oven to the kitchen cabinet with four
wood screws, which fit the holes provided in the
oven frame.
FO 0290
FO 0039
23
Page 24
Grafiche MDM - Forlì
CUSTOMER CARE
Electrolux
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel:
08705 950950
© Electrolux Household Appliances Limited 2000
The Electrolux Group. The worlds No.1 choice.
The Electrolux Group is the worlds largest producer of powered appliances for kitchen, cleaning and outdoor use. More than
55 Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are
sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
Page 25
documentation manual, user maintenance, brochure, user reference, pdf manual
This file has been downloaded from:
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
Loading...
