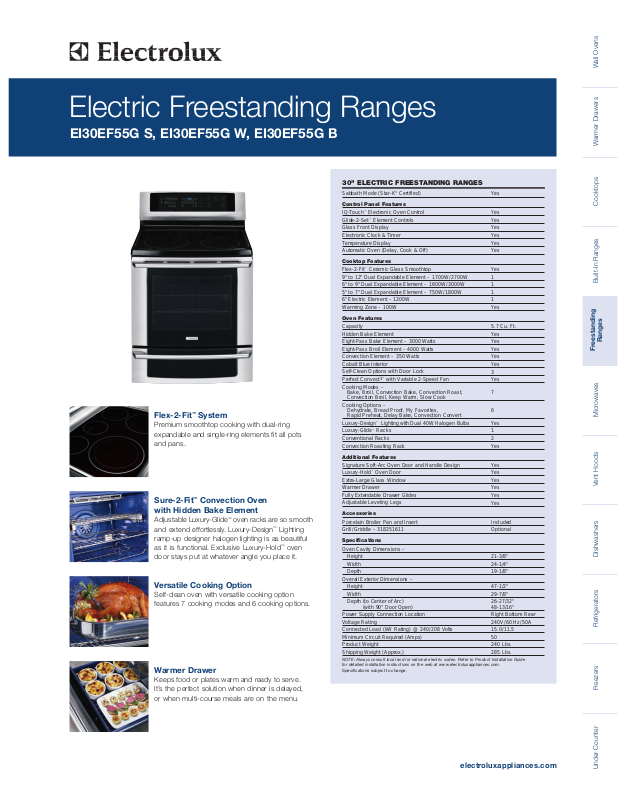

Electrolux EI30EF55GS, EI30EF55GW, EI30EF55GB User Manual

Electric Freestanding Ranges
EI30EF55G S, EI30EF55G W, EI30EF55G B
30" ELECTRIC FREESTANDING RANGES
Sabbath Mode (Star-K®Certified)
Control Panel Features
IQ-Touch™Electronic Oven Control Glide-2-Set™Element Controls Glass Front Display Electronic Clock & Timer Temperature Display Automatic Oven (Delay, Cook & Off)
Cooktop Features
Flex-2-Fit™Ceramic Glass Smoothtop 9" to 12" Dual Expandable Element – 1700W/ 2700W 6" to 9" Dual Expandable Element – 1600W/ 3000W 5" to 7" Dual Expandable Element – 750W/ 1800W 6" Electric Element – 1200W Warming Zone – 100W
Oven Features
Capacity Hidden Bake Element Eight-Pass Bake Element – 3000 Watts Eight-Pass Broil Element – 4000 Watts Convection Element – 350 Watts Cobalt Blue Interior
Flex-2-Fit™System
Premium smoothtop cooking with dual-ring expandable and single-ring elements fit all pots and pans.
Sure-2-Fit™Convection Oven with Hidden Bake Element
Adjustable Luxury-Glide™oven racks are so smooth and extend effortlessly. Luxury-Design ramp-up designer halogen lighting is as beautiful as it is functional. Exclusive Luxury-Hold door stays put at whatever angle you place it.
Lighting
oven
Versatile Cooking Option
Self-clean oven with versatile cooking option features 7 cooking modes and 6 cooking options.
Warmer Drawer
Keeps food or plates warm and ready to serve. It’s the perfect solution when dinner is delayed, or when multi-course meals are on the menu.
Self-Clean Options with Door Lock Perfect Convect Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast, Convection Broil, Keep Warm, Slow Cook
Cooking Options –
Dehydrate, Bread Proof, My Favorites,
Rapid Preheat, Delay Bake, Convection Convert Luxury-Design™LightingwithDual 40W Halogen Bulbs Luxury-Glide™Racks Conventional Racks Convection Roasting Rack
Additional Features
Signature Soft-Arc Oven Door and Handle Design Luxury-Hold™Oven Door Extra-Large Glass Window Warmer Drawer Fully Extendable Drawer Glides Adjustable Leveling Legs
Accessories
Porcelain Broiler Pan and Insert Grill/ Griddle – 318251611
Specifications
Oven Cavity Dimensions –
Height
Width
Depth Overall Exterior Dimensions –
Height
Width
Depth (to Center of Arc) Power Supply Connection Location
Voltage Rating Connected Load (kW Rating) @ 240/ 208 Volts Minimum Circuit Required (Amps) Product Weight Shipping Weight (Approx.)
NOTE: Always consult local and/ or national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
3
with Variable 2-Speed Fan
(with 90° Door Open)
Yes
Yes Yes Yes Yes Yes Yes
Yes 1 1 1 1 Yes
5.7 Cu. Ft. Yes Yes Yes Yes Yes 3 Yes
7
6 Yes
1 2 Yes
Yes Yes Yes Yes Yes Yes
Included Optional
21-3/8" 24-1/4" 19-1/8"
47-1/2" 29-7/8" 26-27/32"
48-13/16" Right Bottom Rear 240V/ 60Hz/50A
15.0/ 11.5 50 240 Lbs. 285 Lbs.
Wall OvensWarmer DrawersCooktopsBuilt-In Ranges
Ranges
Freestanding
MicrowavesVent HoodsDishwashersRefrigerators
FreezersUnder Counter
electroluxappliances.com
Electric Freestanding Ranges
EI30EF55G S, EI30EF55G W, EI30EF55G B
Side
25"
13 "
max.
24"
30"min.
C
L
1
30
/8"
11"
22"
6"
Area allows for flush installation of rear wall electrical outlet
Note: All dimensions for electrical outlet location are maximum
25/8"
34"
min.
18"min.
1" min. to nearest combustible wall (either side of unit) above 36" height
36"
stand.
Overall depth
including oven
door in 90°open
position – 4813/16"
Front
115/8"
357/8"
Adjustable
to
361/8"
285/8"
471/2"
263/8"
Power supply
location
(right bottom
rear)
7
29
/8"
30" Electric Freestanding Range Specifications
Product Weight – 240 Lbs.
Single phase 3- or 4-wire cable, 120/240 or 120 /208 Volt, 60 Hertz, fused on both sides of line with ground.
Connected Load (kW Rating) @ 240/208 Volts = 15.0/11.5 kW
Amps @ 240/208 Volts = 38.3/32.5 Amps
Recommended Circuit Breaker – 50 Amps
Always consult local and/or national electric codes.
Overhead cabinetry should not exceed a 13" maximum depth.
Allow 30" minimum clearance between rangetop and bottom of unprotected wood or metal overhead cabinetry.
Absolute minimum horizontal distance between overhead cabinets installed to either side of appliance must be no less than maximum width of appliance.
USA
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
CANADA
EI30EF55G 01/08 © 2008 Electrolux Major Appliances, NA Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
electroluxappliances.ca
Allow 24" minimum clearance when bottom of wood or metal overhead cabinet is protected by not less than 1/8" flame-retardant millboard covered with not less than No. 28 MGS sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Allow 1" minimum clearance from edge of rangetop to nearest combustible wall on either side of unit.
To reduce risk of fire when using overhead cabinetry, install range hood that projects horizontally a recommended minimum of 5" beyond bottom of cabinets.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
Grill/Griddle – (318251611).
electroluxappliances.com
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
