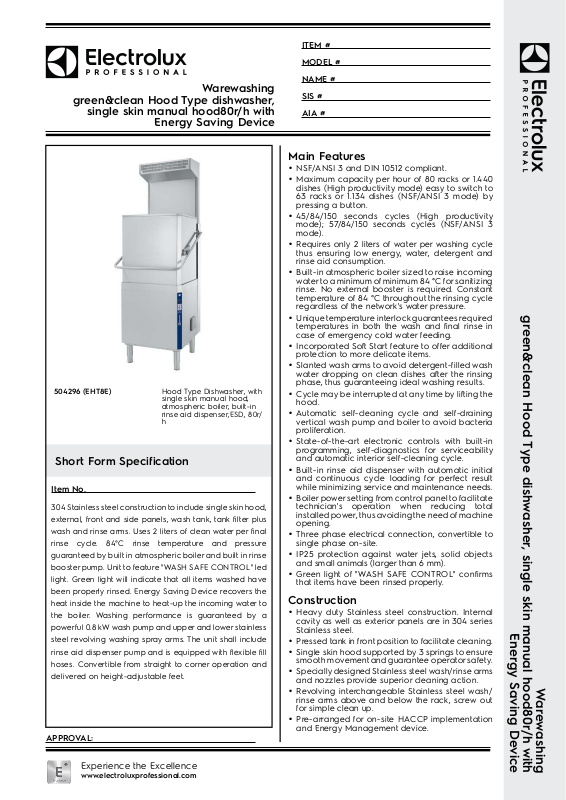

Page 1
Warewashing
green&clean Hood Type dishwasher,
single skin manual hood80r/h with
Energy Saving Device
504296 (EHT8E)Hood Type Dishwasher, with
single skin manual hood,
atmospheric boiler, built-in
rinse aid dispenser,ESD, 80r /
h
Short Form Specification
Item No.
304 Stainless steel construction to include single skin hood,
external, front and side panels, wash tank, tank filter plus
wash and rinse arms. Uses 2 liters of clean water per final
rinse cycle. 84°C rinse temperature and pressure
guaranteed by built in atmospheric boiler and built in rinse
booster pump. Unit to feature "WASH SAFE CONTROL" led
light. Green light will indicate that all items washed have
been properly rinsed. Energy Saving Device recovers the
heat inside the machine to heat-up the incoming water to
the boiler. Washing performance is guaranteed by a
powerful 0.8 kW wash pump and upper and lower stainless
steel revolving washing spray arms. The unit shall include
rinse aid dispenser pump and is equipped with flexible fill
hoses. Convertible from straight to corner operation and
delivered on height-adjustable feet.
APPROV AL:
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•NSF/ ANSI 3 and DIN 10512 compliant.
•Maximum capacity per hour of 80 racks or 1.440
dishes (High productivity mode) easy to switch to
63 racks or 1.134 dishes (NSF/ ANSI 3 mode) by
pressing a button.
•45/84/150 seconds cycles (High productivity
mode); 57 /84/150 seconds cycles (NSF/ ANSI 3
mode).
•Requires only 2 liters of water per washing cycle
thus ensuring low energy, water, detergent and
rinse aid consumption.
•Built-in atmospheric boiler sized to raise incoming
water to a minimum of minimum 84 °C for sanitizing
rinse. No external booster is required. Constant
temperature of 84 °C throughout the rinsing cycle
regardless of the network's water pressure.
•Unique temperature interlock guarantees required
temperatures in both the wash and final rinse in
case of emergency cold water feeding.
•Incorporated Soft Start feature to offer additional
protection to more delicate items.
•Slanted wash arms to avoid detergent-filled wash
water dropping on clean dishes after the rinsing
phase, thus guaranteeing ideal washing results.
•Cycle may be interrupted at any time by lifting the
hood.
•Automatic self-cleaning cycle and self-draining
vertical wash pump and boiler to avoid bacteria
proliferation.
•State-of-the-art electronic controls with built-in
programming, self-diagnostics for serviceability
and automatic interior self-cleaning cycle.
•Built-in rinse aid dispenser with automatic initial
and continuous cycle loading for perfect result
while minimizing service and maintenance needs.
•Boiler power setting from control panel to facilitate
technician's operation when reducing total
installed power, thus avoiding the need of machine
opening.
•Three phase electrical connection, convertible to
single phase on-site.
•IP25 protection against water jets, solid objects
and small animals (larger than 6 mm).
•Green light of "WASH SAFE CONTROL" confirms
that items have been rinsed properly .
Construction
•Heavy duty Stainless steel construction. Internal
cavity as well as exterior panels are in 304 series
Stainless steel.
•Pressed tank in front position to facilitate cleaning.
•Single skin hood supported by 3 springs to ensure
smooth movement and guarantee operator safety.
•Specially designed Stainless steel wash/rinse arms
and nozzles provide superior cleaning action.
•Revolving interchangeable Stainless steel wash/
rinse arms above and below the rack, screw out
for simple clean up.
•Pre-arranged for on-site HACCP implementation
and Energy Management device.
green&clean Hood Type dishwasher, single skin manual hood80r/h with
Energy Saving Device
Warewashing
Experience the Excellence
www.electroluxprofessional.com
Page 2
•Element protection from dry fire and low water.
Warewashing
green&clean Hood Type dishwasher , single
skin manual hood80r/h with Energy Saving
Device
Page 3
Included Accessories
•2 of Yellow cutlery containerPNC 864242
•1 of Basket for 18 dinner plates - yellowPNC 867002
Optional Accessories
•Kit 8 plastic boxes for cutlery - yellowPNC 780068❑
•12lt external manual water softenerPNC 860412❑
•8lt external automatic water softenerPNC 860413❑
•20lt external manual water softenerPNC 860430❑
•Connectivity kit for Double Skin Hood
Type Dishwashers (ECAP)
•Stainless steel inlet hose kitPNC 864016❑
•Filter for partial demineralizationPNC 864017❑
•Kit to measure total and partial water
hardness
•Yellow cutlery containerPNC 864242❑
•CLEAR BLUE Filtering System kit for
single skin hood type
•Drain pump kit for single skin hood
type
•Filter for total demineralizationPNC 864367❑
•Detergent dispenser kit for hood typePNC 864369❑
•Front control panel for single skin
hood type dishwasher
•Reverse osmosis filter for single tank
Dishwasher with atmosphere boiler
•Deliming device kit for Hood Type
(drain pump included)
•Pressure reducer for single tank
dishwasher
•Kit of rack and support to wash fryer
basket
•Kit of 100mm feet for Hood Type
Dishwasher
•Connecting kit for duet manual hood
type dishwasher
•Extra heavy rack support for hood
type dishwasher
•Kit 4 plastic boxes for cutlery - yellowPNC 86557 4❑
•Basket for 6 trays 530x370 mm - redPNC 866 7 43❑
•Basket for 12 soup bowls - greenPNC 867000❑
•Basket for 18 dinner plates - yellowPNC 867002❑
•Basket for 48 small cups or 24 cups -
blue
•Basket for bulk cutlery-capacity: 100
pieces - brown
•Cover rack for small and light items
(500x500 baskets)
•Baskets for 25 tilted glasses (h 120 mm
- diam 80 mm) - blue
•Basket for 16 vertical glasses (h 70 mm
- diam 100 mm) - blue
•Basket semi-professional
500x500x190mm
•Baskets for 16 tilted glasses (h 220 mm
- diam 100 mm) - blue
PNC 864007❑
PNC 864050❑
PNC 864329❑
PNC 864346❑
PNC 86437 4❑
PNC 864388❑
PNC 864391❑
PNC 864461❑
PNC 864463❑
PNC 864464❑
PNC 865264❑
PNC 865493❑
PNC 867007❑
PNC 867009❑
PNC 867016❑
PNC 867021❑
PNC 867023❑
PNC 867024❑
PNC 867040❑
Warewashing
green&clean Hood Type dishwasher , single
skin manual hood80r/h with Energy Saving
Device
Page 4
green&clean Hood Type dishwasher , single
1569
999
200
538
667
647
746
65
1913
332
2000 -
440
875
2026
2273
970
WI
EI
D
EQ
XD
XR
1913
332
2000 -
440
875
2026
2273
970
565
124
755
WI
EI
D
EQ
XD
XR
1569
999
200
538
667
647
746
65
1913
332
2000 -
440
875
2026
2273
970
565
124
755
335
877
420
334 334
294
295
359
31
90
36
55
242
215
268
325
59566T500
WI
EI
D
EQ
XD
XR
WI
XD
XR
D
EQ
EI
skin manual hood80r/h with Energy Saving
Warewashing
Device

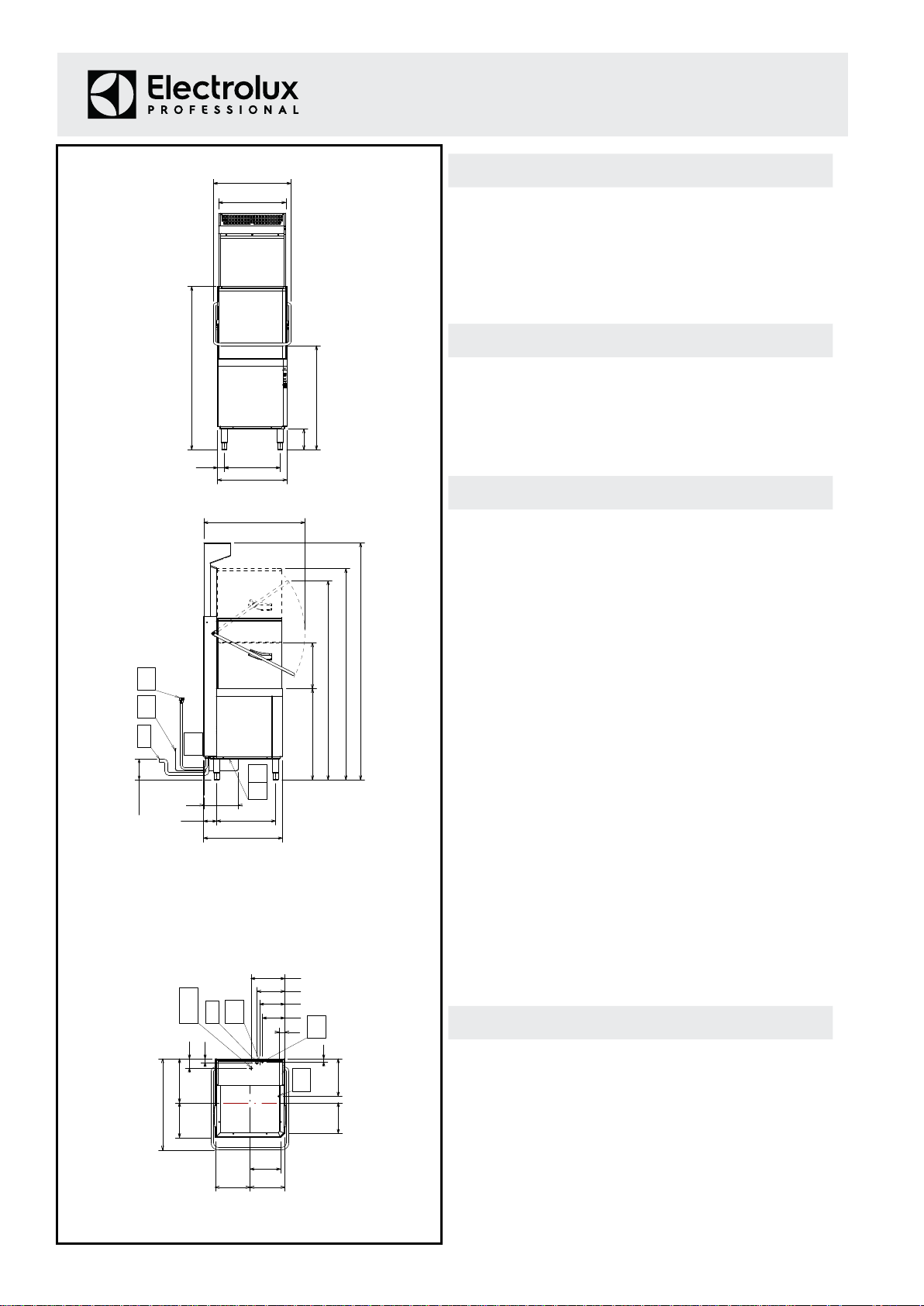

Front
Electric
Supply voltage:
504296 (EHT8E)400 V/3N ph/50 Hz
Convertible to:230V 1N~; 230V 3~
Default Installed Power:9.9 kW
Boiler Heating Elements
Power:
9 kW
Tank heating elements:3 kW
Wash pump size: 0.8 kW
Water:
Water supply temperature*:10-20 °C
Drain line size:20.5 mm
Inlet water supply pressure:0.5-7 bar
Water consumption per
cycle (lt):2
Boiler Capacity (lt):12
Tank Capacity (lt):24
Key Information:
Side
CWI1=Cold W ater inlet 1 (cleaning)
D=Drain
EI=Electrical inlet (power )
EO=Electrical Outlet
V=Vents
WI=Water inlet
XR=Rinse aid connection
N° of cycles:3
Duration cycle:*45/84/150 sec.
Duration cycle - NSF/ANSI
3 compliant:57 /84/150 sec.
Racks per hour:*80
Racks per hour - NSF/ANSI
3 compliant:63
Dishes per hour:*1440
Dishes per hour - NSF/ ANSI
3 compliant:1134
Wash temperature:55 °C
Wash temperature - NSF/
ANSI 3 compliant:75 °C
Rinse temperature:84 °C
External dimensions, Width:7 46 mm
External dimensions, Height:2273 mm
External dimensions, Depth:755 mm
Net weight:150 kg
Shipping weight:119 kg
Shipping weight (ESD):35 kg
Shipping volume:1.26 m³
Shipping volume (ESD):0.33 m³
Packaging size
(WxDxH):930x790x1720 mm
Packaging size ESD
(WxDxH):740x930x480 mm
Noise level:<68 dBA
Top
* productivity guaranteed at any supply temperature
allowed in the range above. To ensure full energy
recovery, an extra 11 seconds is required.
Air Emission:
Air Flow:28 m³ /h
Air temperature:26 - 29 °C
Air humidity:55%
Latent heat:0.35 W
Sensible heat:1.49 W
Page 5
==
20 1/16”
510 mm
==
20 1/16”
510 mm
min 17 5/16”
min 440 mm
min 15/16”
min 23 mm
Line installation
==
20 1/16”
510 mm
min 15/16”
min 23 mm
==
20 1/16”
510 mm
Corner installation
B
20 1/16”
510 mm
Max sugg.
6 7/8”
165 mm
1 9/16”
40 mm
1 9/16"
40 mm
1 3/8"
35 mm
20 1/16”
510 mm
22 13/16”
580 mm
A
7 15/16"
201 mm
45°
30°
Suggested
design
*
13/16"
20 mm
Detail “ A ”
11 13/16"
300 mm
3/16"
5 mm
13/16"
20 mm
Detail “ B ”
*
5 7/8"
149 mm
3 7/8"
99 mm
A
A
Doc Nr : 59566BF00

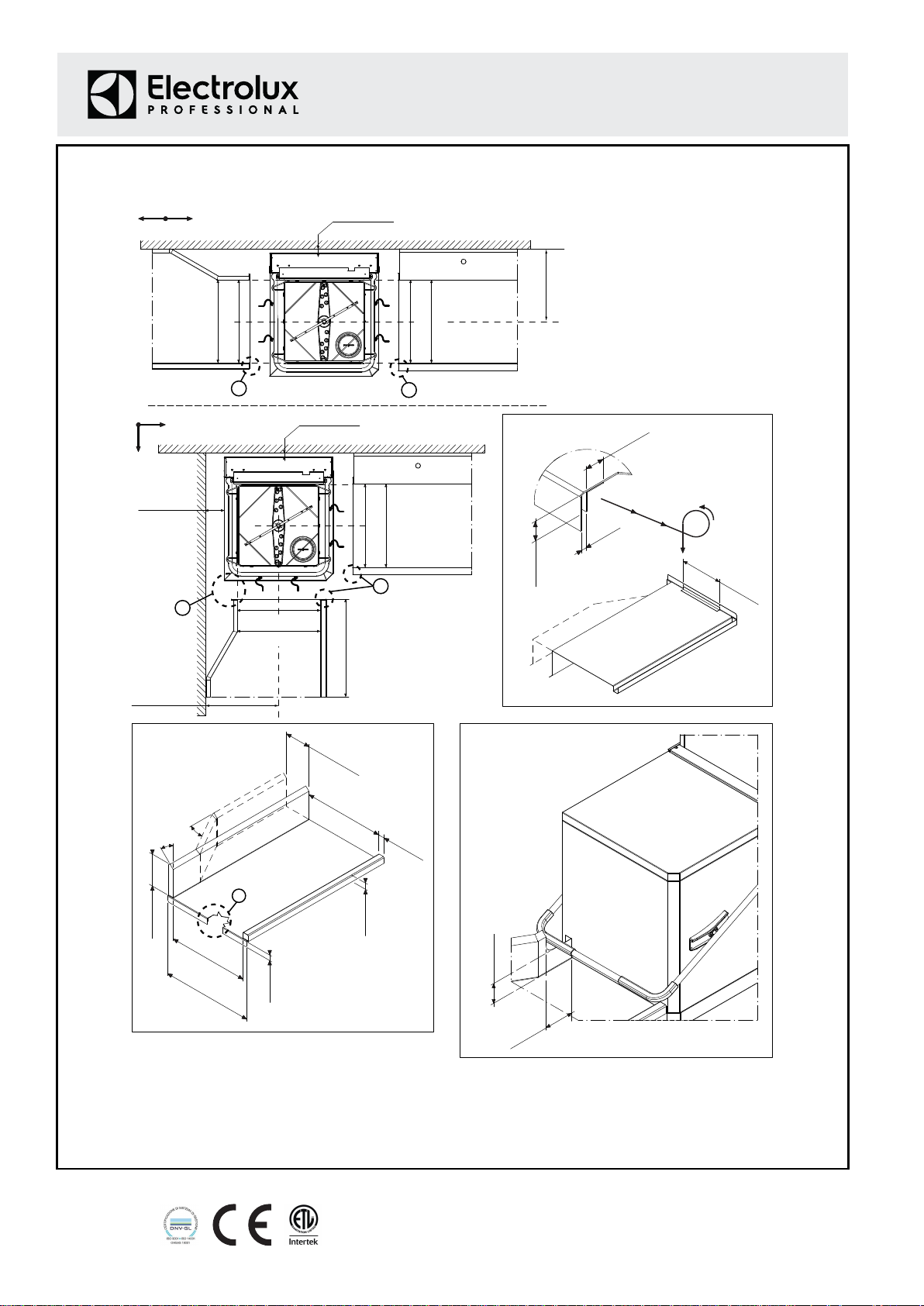

Recommended table connection
All tables must be connected to the dishwashing units according to local regulations and industry standards
which may differ from the recommendations herein suggested. Electrolux Professional is not liable for any
failure in complying with local design standards.
min 2 15/16”
min 75 mm
min 27 9/16”
min 700 mm
A
min 17 3/4”
min 451 mm
Warewashing
green&clean Hood Type dishwasher , single
skin manual hood80r/h with Energy Saving
Device
green&clean Hood Type dishwasher, single skin manual hood80r /h with
The company reserves the right to make modifications to the pr oducts
without prior notice. All information correct at time of printing.
Warewashing
Energy Saving Device
2021.07 .23
