Electrolux EHT 6432 User Manual

AUS ERF AHRUNG GUT

Gas hob

EHT 6432

user manual

GB

2 electrolux

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide
you with lots of pleasure in the future.
The Electrolux ambition is to offer a wide variety of quality products that make your life
more comfortable.
You find some examples on the cover in this manual. Please take a few minutes to study
this manual so that you can take advantage of the benefits of your new machine.
We promise that it will provide a superior User Experience delivering Ease-of-Mind.

Good luck!

4 electrolux

This appliance is manufactured
according to the following EEC directives:
2006/95 EEC - 93/68 EEC ­89/336 EEC - 90/396 EEC,
current edition.

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental Information

))

))

)

U

Contents

Instructions for the User

Important Safety Information 5
Description of the Hob 7
Operation 8
Maintenance and Cleaning 10
Something Not Working? 12
Service and original spare parts 2 9
Standard Guarantee Conditions 30
European Guarantee 32

Instructions for the Installer

Engineers Technical Data 13

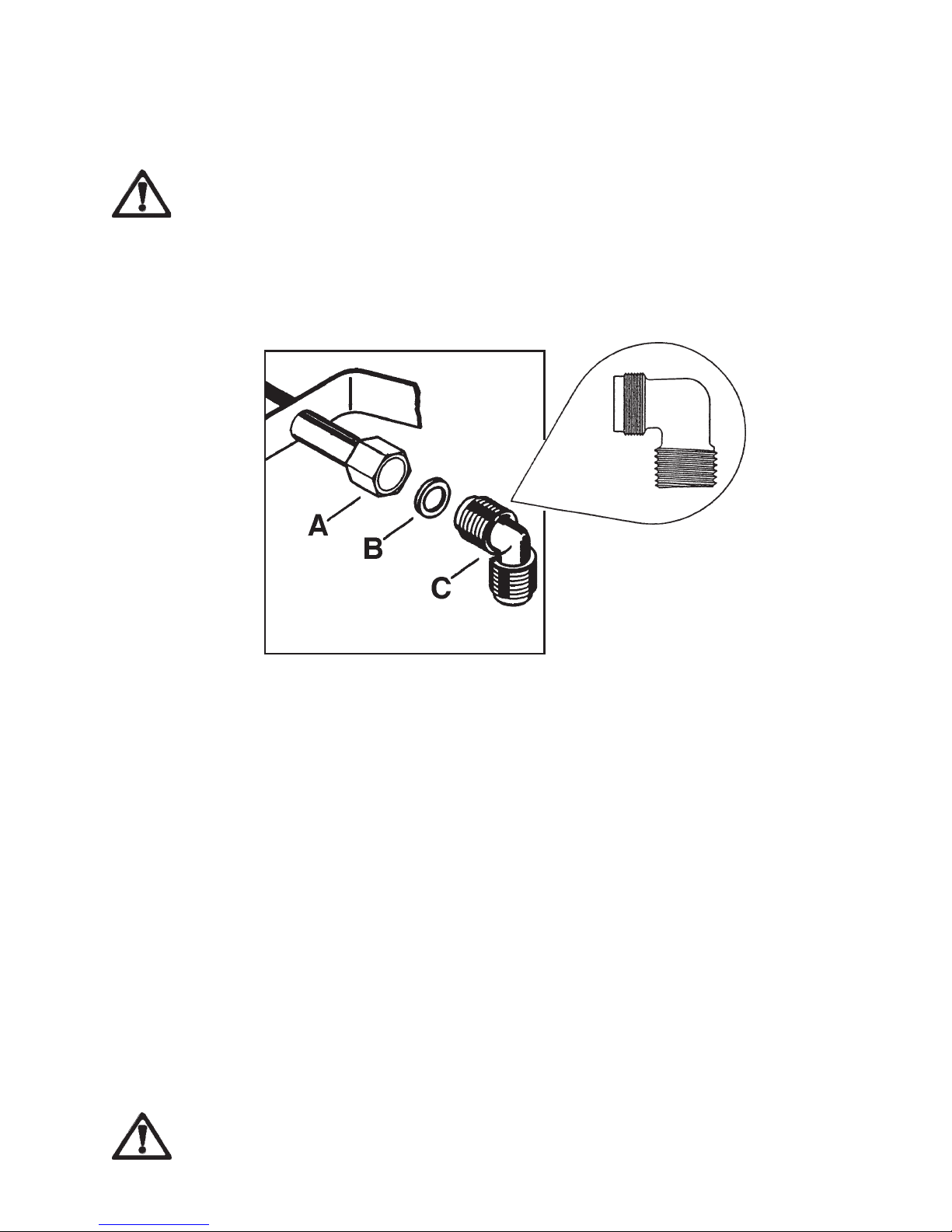

Gas Connection 17
Conversion from Natural Gas to LPG 1 9

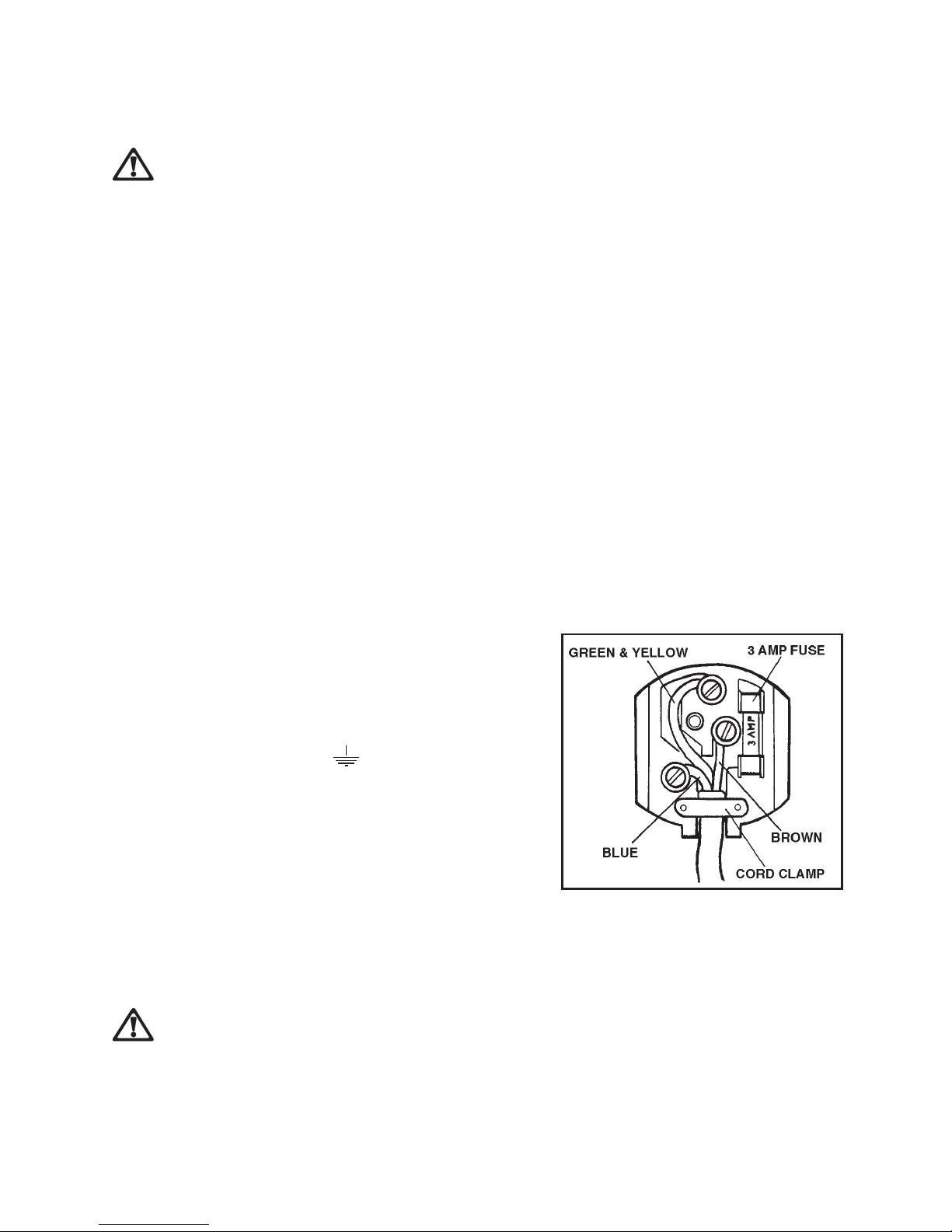

Electrical Connection 20

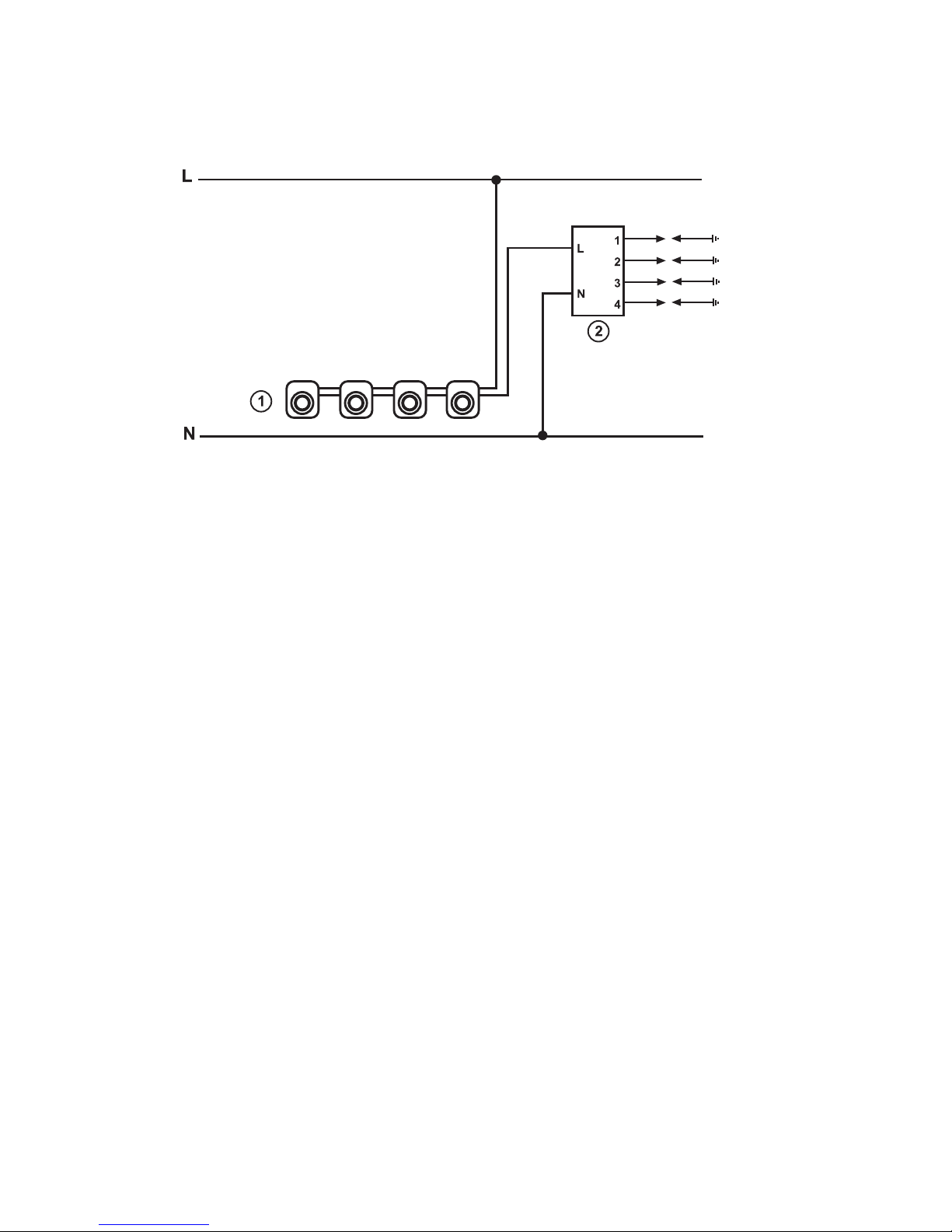

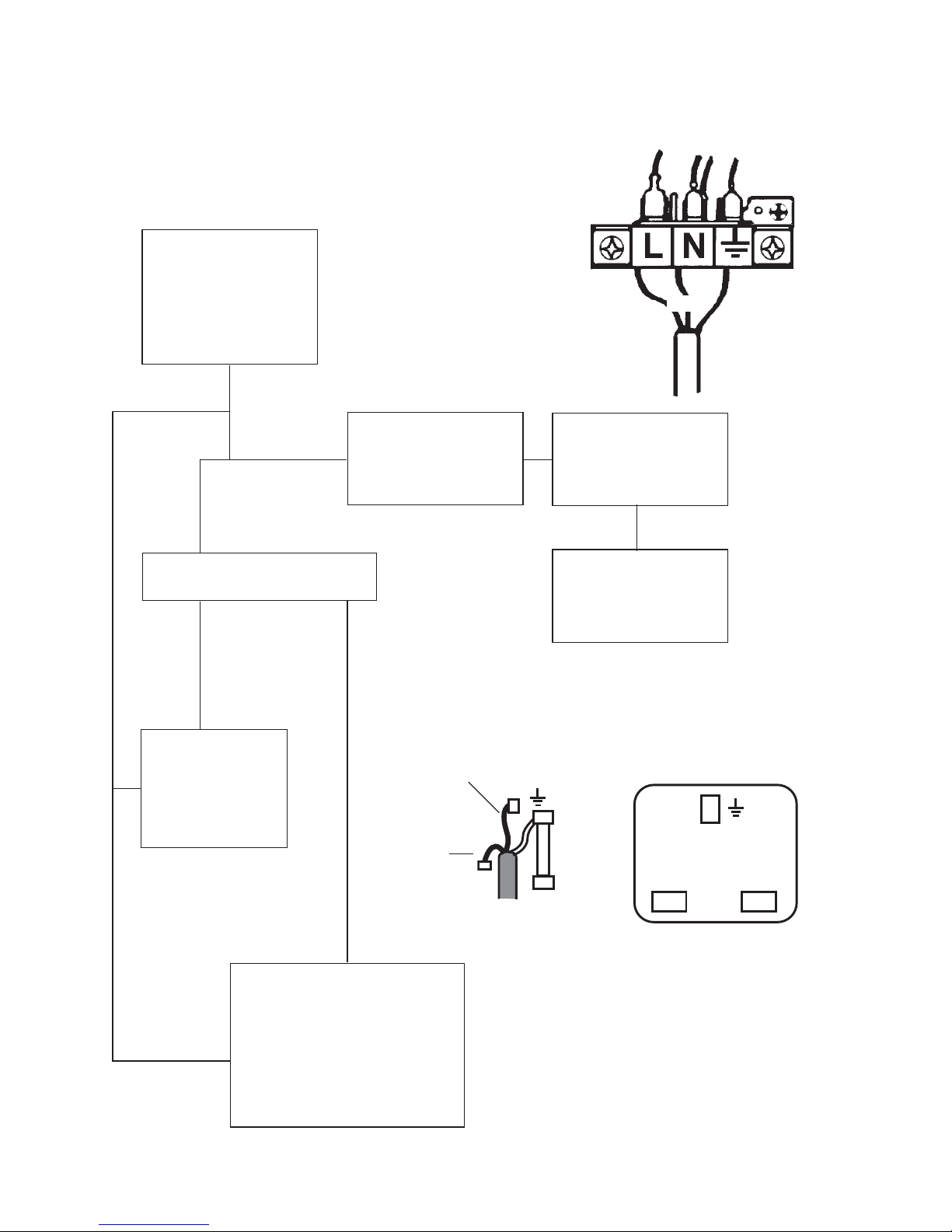

Wiring diagram 22

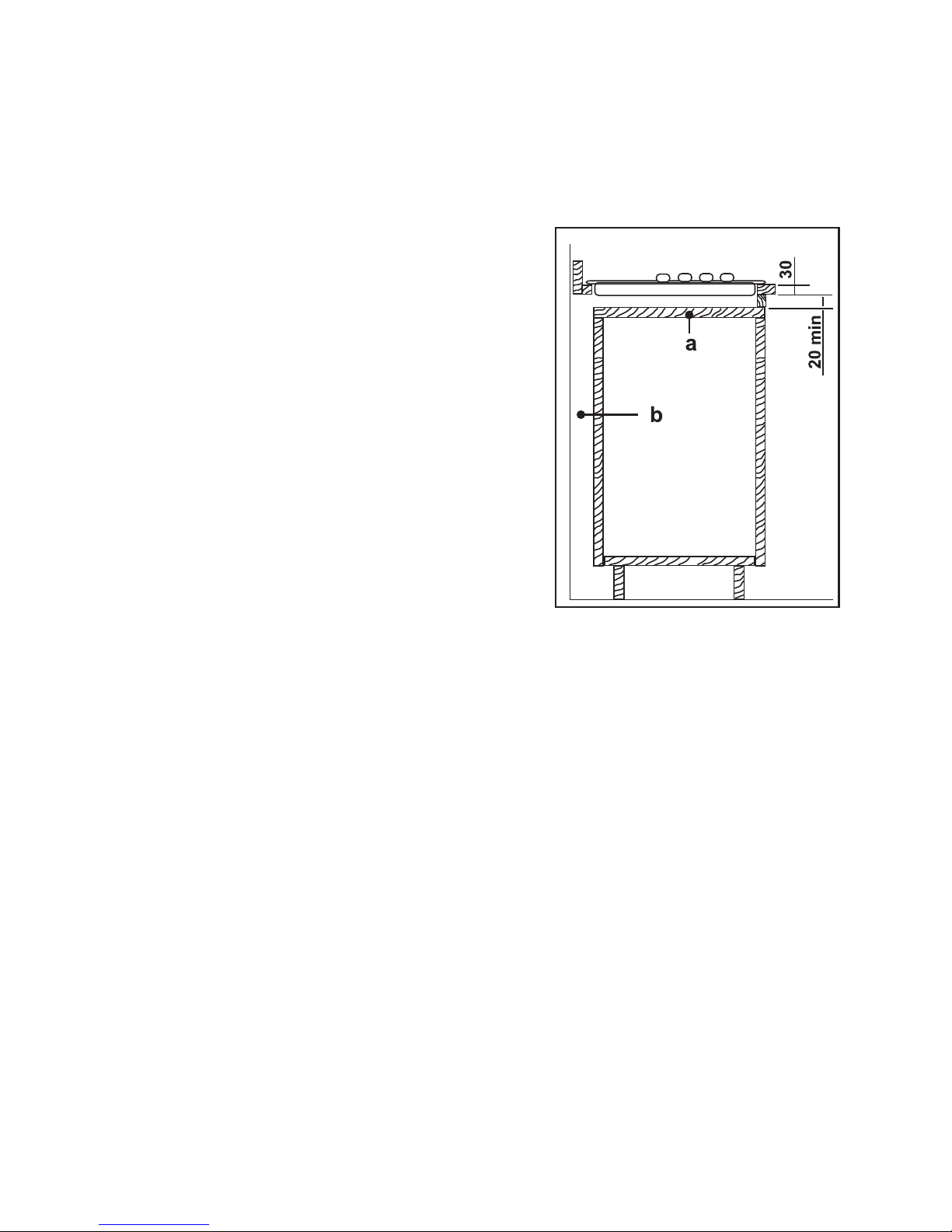

Possibilities for Insertion 2 7

MANUFACTURER:
ELECTROLUX HOME PRODUCTS IT AL Y SPA
Viale Bologna, 298
47100 - Forlì (Italy)

electrolux 5

During Operation

• This appliance has been designed for non professional purpose in private houses only. It is meant
to cook edible foodstuff only and MUST NOT be used for any other purposes.

• It is dangerous to alter the specification in any way.

• For hygiene and safety reasons, this appliance should be kept clean at all times. A build-up of fats
or other foodstuff could result in a fire.

• Do not use this hob if it is in contact with water. Do not operate the hob with wet hands.

• Never leave the hob unattended when cooking with oil and fats.

• Unstable or misshapen pans should not be used on the hob as unstable pans can cause an accident
by tipping or spillage.

• Never use plastic or aluminium foil dishes on the hob.

• Perishable food, plastic items and areosols may be affected by heat and should not be stored above
or below the hob unit.

• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by
unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service
Centre. Always insist on genuine spare parts.

• Ensure that all control knobs are in the OFF position when not in use.

• Should you connect any electrical tool to a plug near this cooking appliance, ensure that electric cables
are not in contact with it and keep them far enough from the heated parts of this appliance.

• If the appliance is out of order, disconnect it from the electric supply.

Child Safety

• This appliance is not intended for use by children or other persons whose physical, sensory or mental
capabilities or lack of experience and knowledge prevents them from using the appliance safely
without supervision or instruction by a responsible person to ensure that they can use the appliance
safely.

• This appliance has been designed to be operated by adults and children under supervision. Young
children MUST NOT be allowed to tamper with the controls or play near or with the oven.

• Accessible parts of this appliance may become hot when it is in use. Children should be KEPT AWAY
until it has cooled.

• Children can also injure themselves by pulling pans or pots off the hob.

These warnings are provided in the interest of safety. You must read them carefully before
installing or using the appliance.

It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred, always ensure that the book is left
with the appliance in order that the new owner can get to know the functions of the appliance
and the relevant warnings.
These instructions are only valid for countries whose identification symbols are shown on
the cover of this instruction booklet and on the appliance itself.

Important Safety Information

6 electrolux

About Installation, Cleaning and Manteinance

• It is mandatory that all operations required for the installation are carried out by a qualified or competent
person, in accordance with existing rules and regulations in force in the country where the appliance
is used.

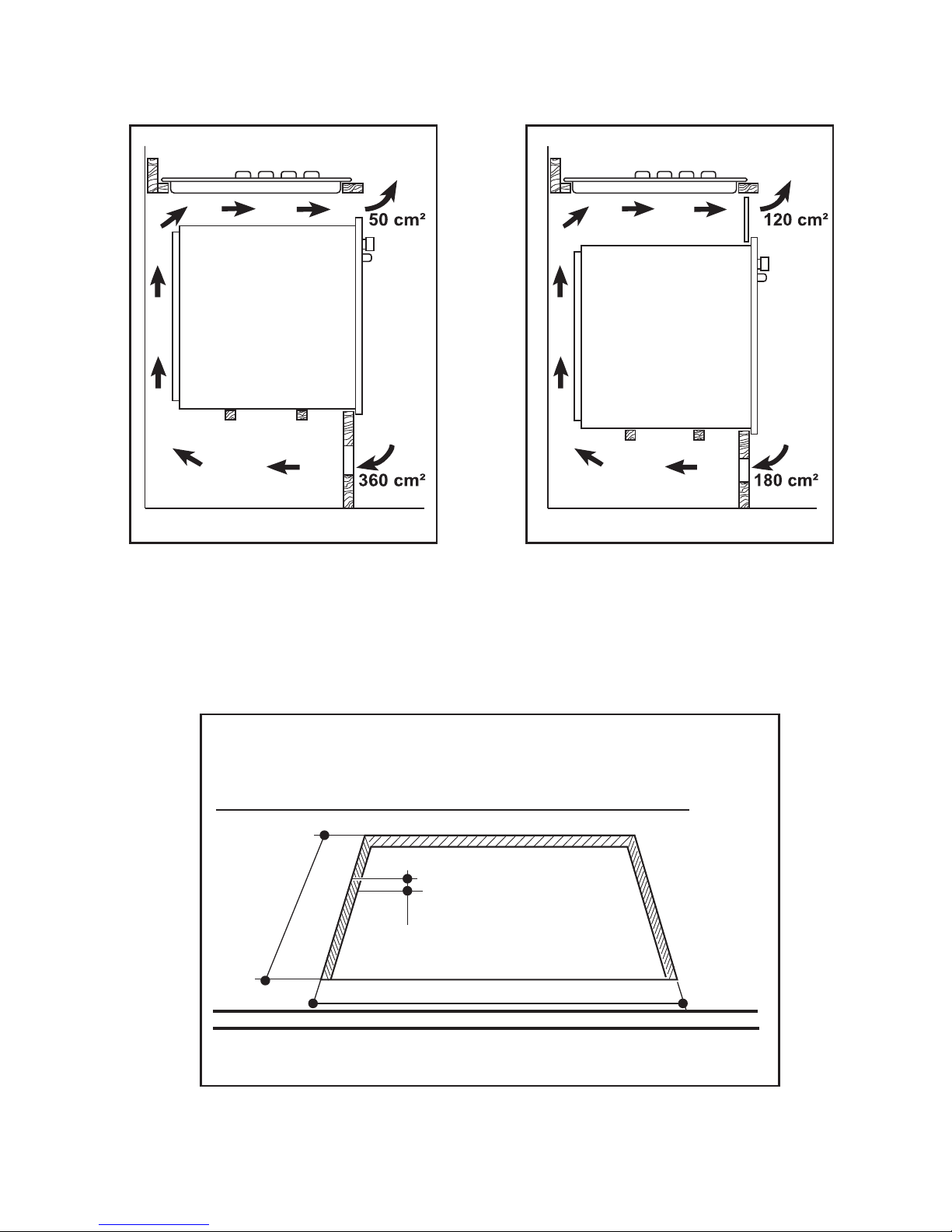

• Ensure a good ventilation around the appliance. A poor air supply could cause lack of oxygen.

• Ensure that the gas and electrical supply complies with the type stated on the identification label, placed
near the gas supply pipe.

• This appliance is not connected to a combustion products evacuation device. It must be installed and
connected in accordance with current installation regulations. Particular attention shall be given to the
relevant requirements regarding ventilation.

• The use of a gas cooking appliance results in the production of heat and moisture in the

room in which it is installed. Ensure that the kitchen is well ventilated: keep natural
ventilation holes open or install a mechanical ventilation device (mechanical extractor
hood).

• Prolonged intensive use of the appliance may call for additional ventilation, for example
opening of a window, or more effective ventilation, for example increasing the level of
mechanical ventilation where present.

• Once you removed all packaging from the appliance, ensure that it is not damaged and the electric
cable is in perfect conditions. Otherwise, contact your dealer before proceeding with the installation.

• Disconnect the appliance from the electrical supply, before carrying out any cleaning or manteinance
work.

• This appliance cannot be cleaned with steam or with a steam cleaning machine.

• The residual heat indicator comes on when the cooking zone is switched on. Children should be
kept away until it switches off.

• The manufacturer disclaims any responsability should all the safety measures not be
carried out.

Service

• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by
unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service
Centre. Always insist on genuine spare parts.

U Environmental Information

• After installation, please dispose of the packaging with due regard to safety and the environment.

• When disposing of an old appliance, make it unusable, by cutting off the cable.

• The symbol on the product or on its packaging indicates that this product may not be treated
as household waste. Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.

electrolux 7

INSTALLA TION

Any gas installation must be carried out by qualified personnel, and in
accordance with existing rules and regulations.

The relevant instructions are to be found in the second section of this manual.
Please, ensure that, once the hob is installed, it is easily accessible for the

engineer in the event of a breakdown.
The manufacturer will not accept liability, should the above instructions or any

of the other safety instructions incorporated in this book be ignored.

WHEN THE HOB IS FIRST INST ALLED

Once the hob has been installed, it is important to remove any protective materials,
which were put on in the factory.

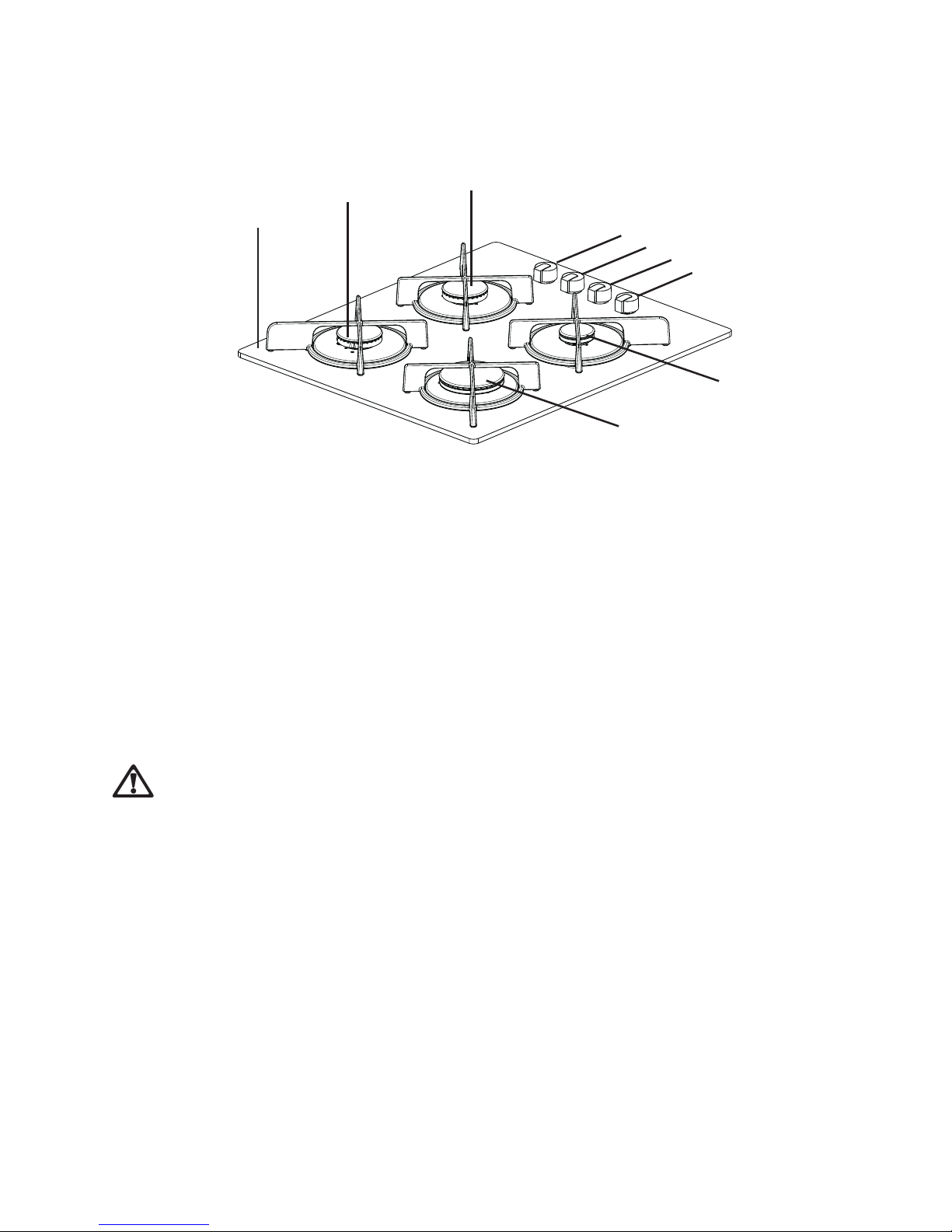

1. Hob Top

2. Rapid Burner

3. Semi-rapid Burner

4. Auxiliary Burner

5. Control knob for back right burner (semi-rapid)

6. Control knob for back left burner (semi-rapid)

7. Control knob for front left burner (rapid)

8. Control knob for front right burner (auxiliary)

Description of the Hob

1

3

3

5

6

7

8

2

4

8 electrolux

Hob Burners

To light a burner:

z turn the relevant knob anticlockwise to

maximum position and push down the knob to
ignite.

z After lighting the flame, keep the knob pushed

down for about 5 seconds. This will allow the
"thermocouple" (Fig. 2 - lett. D) to be heated
and the safety device to be switched off,
otherwise the gas supply would be interrupted.
Then, check the flame is regular and adjust it
as required.
If you cannot light the flame even after several
attempts, check the "cap" (Fig. 1 - lett. A) and
“crown” (Fig. 1 - lett. B) are in the correct position.
To put the flame out, turn the knob to the symbol

.

In the absence of electricity, ignition can
occur without the electrical device; in this case approach the burner with a
flame, push the relevant knob down and turn it anti-clockwise until it reaches
the"maximum" position.

When switching on the mains, after installation or a power cut, it is quite normal
for the spark generator to be activated automatically

))

))

)

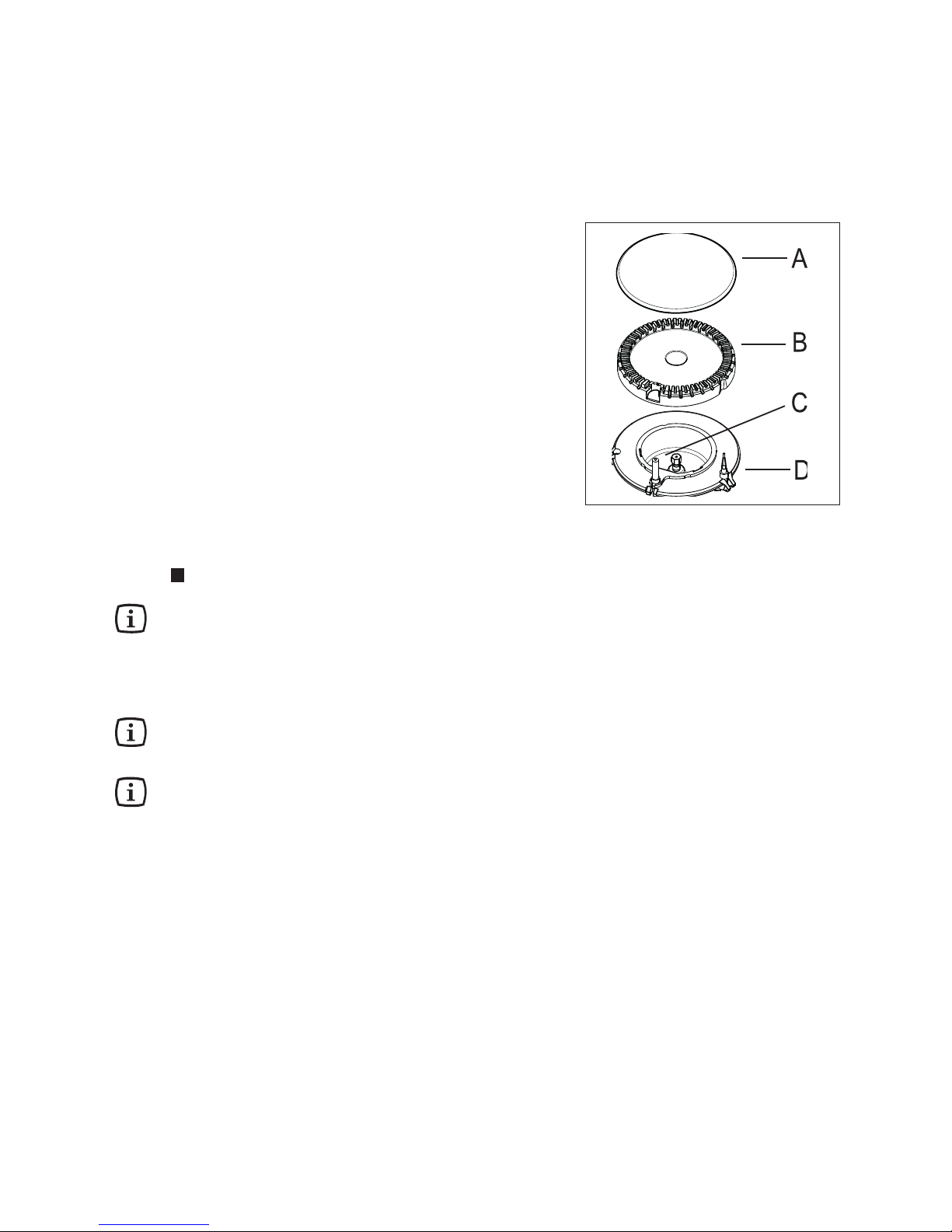

Fig. 1

A - Burner cap
B - Burner crown
C - Ignition electrode
D - Thermocouple

Operation

Do not keep the control knob pressed for more than 15 seconds.

If the burner does not light even after 15 seconds, release the control knob, turn
it the “off” position and wait for at least one minute before trying to light the burner
again.
If the burner accidentally goes out, turn the control knob to the “off” position and
wait for at least 1 minute before trying to light the burner again.

electrolux 9

Burner minimum maximum

diameter diameter

Large (rapid) 160 mm 260 mm
Medium (semi-rapid) 120 mm 220 mm
Small (auxiliary) 80 mm 160 mm

As soon as a liquid starts boiling, turn down the flame
so that it will barely keep the liquid simmering.

Use only pans or pots with flat bottom.
If you use a saucepan which is smaller than the

recommended size, the flame will spread beyond
the bottom of the vessel, causing the handle to
overheat.

Carefully supervise cooking with fat or oil, since
these types of foodstuff can result in a fire, if over­heated.

Prolonged cooking with potstones,
earthenware pans or cast-iron plates is
inadvisable. Also, do not use aluminium foil to protect the top during use.

Make sure pots do not protrude over the edges of the cooktop and that
they are centrally positioned on the rings in order to obtain lower gas
consumption.

Do not place unstable or deformed pots on the rings: they could tip
over or spill their contents, causing accidents.

Pots must not enter the control zone.

If the control knobs become difficult to turn, please contact your local Service
Force Centre.

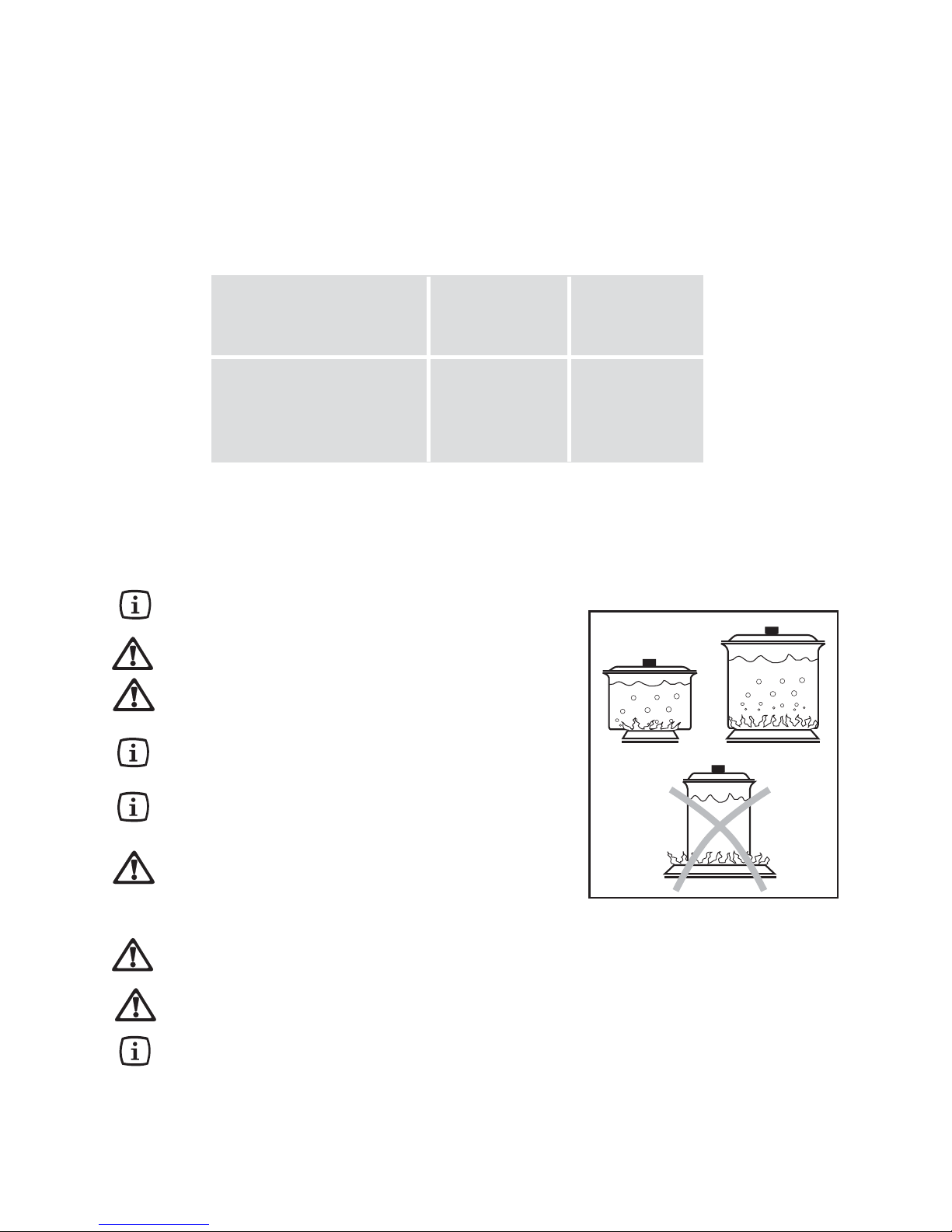

Using the hob correctly

To ensure maximum burner efficiency, it is strongly recommended that you use only pots
and pans with a flat bottom fitting the size of the burner used, so that flame will not spread
beyond the bottom of the vessel (see the table beside).

10 electrolux

Before any maintenance or cleaning can be carried out, you must DISCONNECT
the hob from the electricity supply.

The hob is best cleaned whilst it is still warm, as spillage can be removed more
easily than if it is left to cool.

This appliance cannot be cleaned with steam or with a steam cleaning machine.

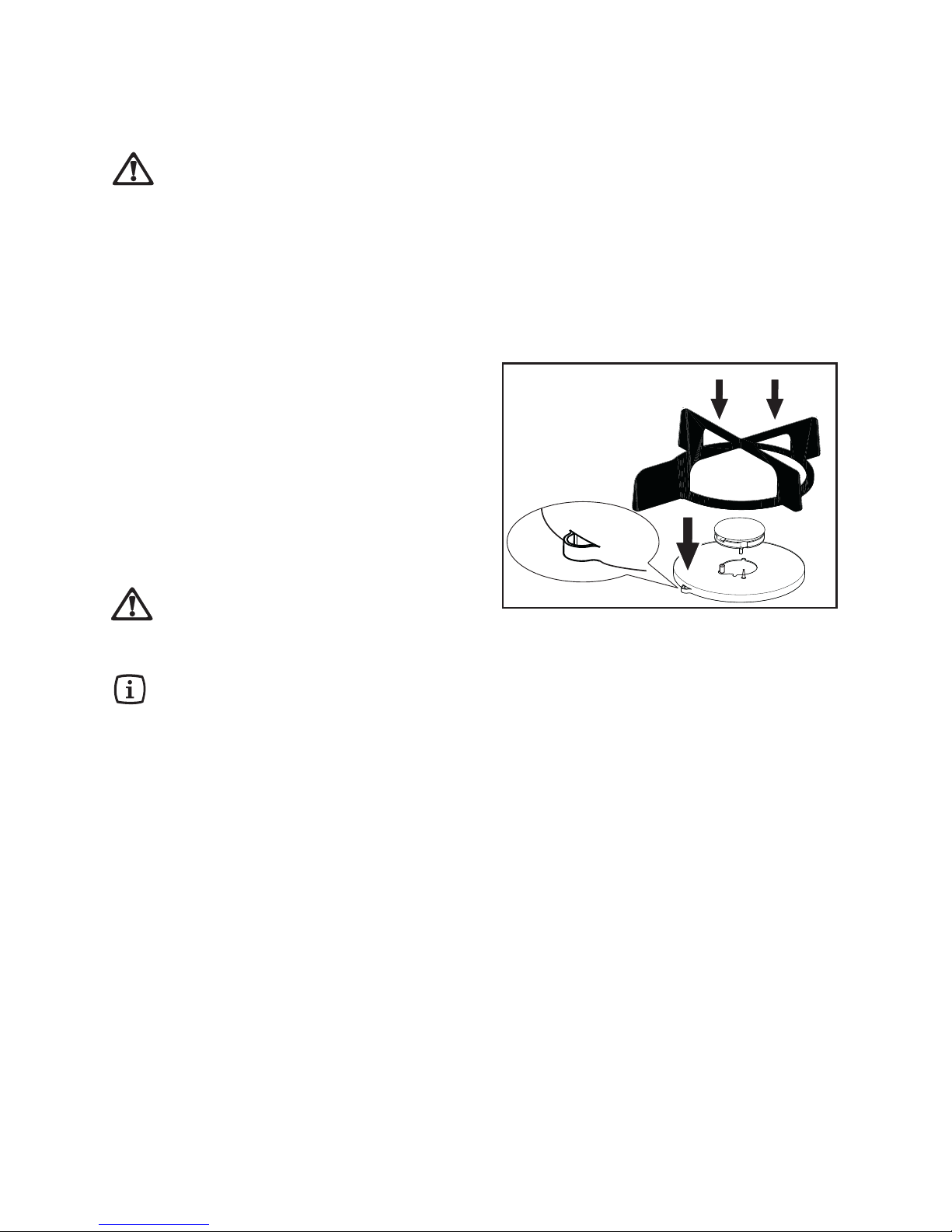

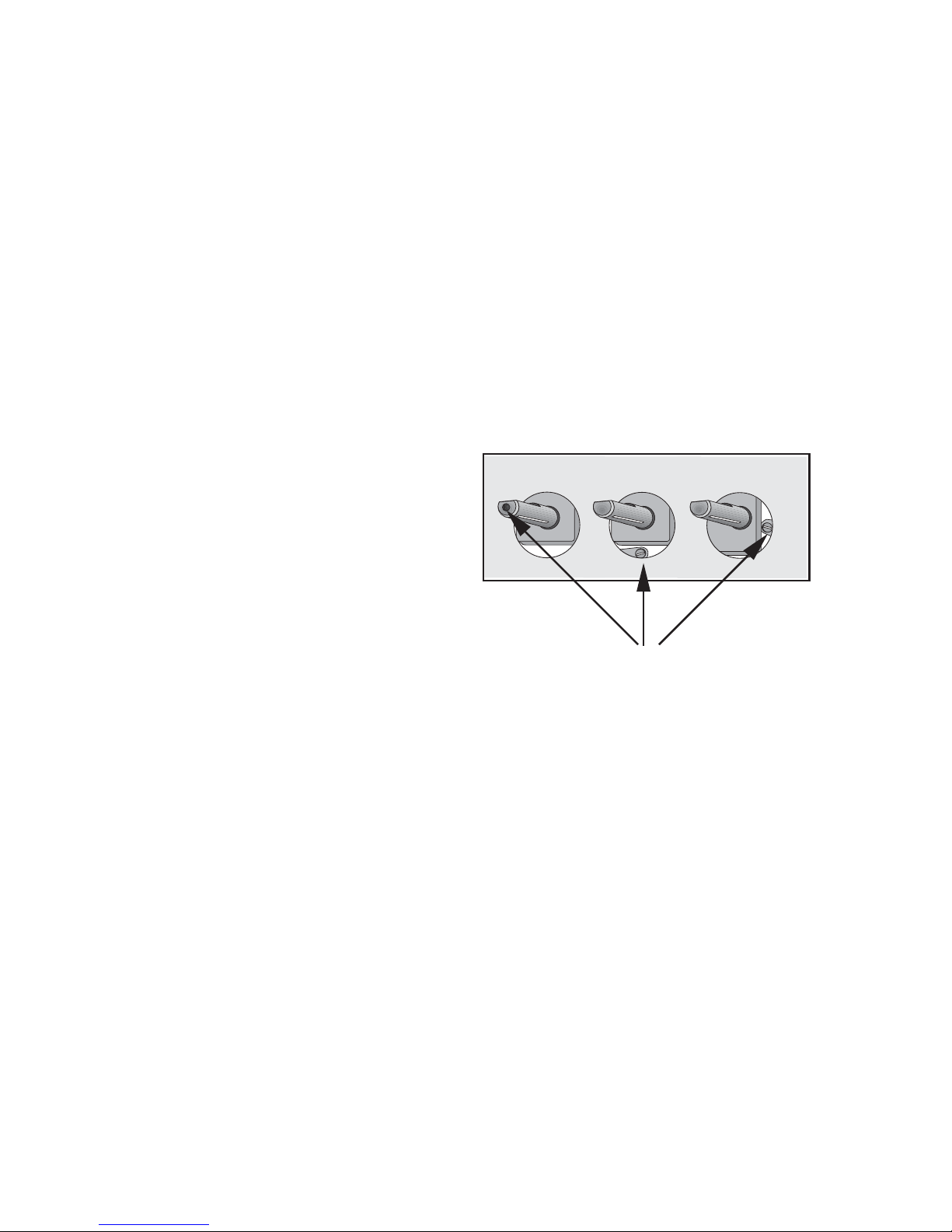

The pan supports

The pan supports can be removed to easily clean
the hob. After cleaning the hob, make sure the pan
supports are correctly positioned.In order to properly
place the pan supports, make sure that the longest
arm of the pan support is positioned in
correspondance with the hole placed at the base of
the burner as shown in the picture.
This way, the pan support will be stable and fixed
(Fig. 2).

Pay attention when replacing the pan
supports in order to avoid scratching
the glass hob top.

If washing the pan supports by hand, take care when drying them as the enamelling
process occasionally leaves rough edges. If necessary, remove stubborn stains

using a paste cleaner.

The hob top

Clean the hob while it is still warm.
Never use aggressive or abrasive agents, such as oven sprays, stain or rust removers, scouring
powders, or sponges with an abrasive effect.
Special cleaning agents and ceramic hob scrapers are available from department stores.
Slight, non-burnt soilage can be wiped off with a damp cloth. Burnt soilage has to be removed with a
scraper . Afterwards wipe of f the ceramic hob with a damp cloth.
Light metallic stains (aluminium residues) can be removed from the cooking zone with a ceramic hob
cleaning agent such as Vitroclen when cool.
Sugar solutions, food stuffs with a high sugar content must be removed immediately with a scraper . If this
type of soilage is not removed immediately it can cause irreparable damage to the ceramic surface.
When the surface has cooled wipe over with a damp cloth and Vitroclen.
Before using any detergent or cleaning agent on the ceramic top, ensure they are recommended by the
manufacturer for use on ceramic hobs.

Maintenance and Cleaning

Fig. 2

electrolux 11

Periodic maintenance

Periodically ask your local Service Centre to check the conditions of the gas supply pipe
and the pressure adjuster, if fitted.

Ignition electrode

The electric ignition is obtained through a ceramic "electrode" and a metal electrode
(Fig. 1 - letter C). Keep these components well clean, to avoid difficult lighting, and check
that the burner crown holes are not obstructed.

Do not apply any cleaning agents to hot cooking zones. Ensure any residues are wiped off before the
cooking zones are used again.

If scratches or cracks are noticed, disconnect the appliance from the
electrical supply to avoid the risk of electric shock and call your nearest
Service Force Centre.

Keep all objects and materials which can melt away from the cooking surface, e.g. plastics,
aluminium foil.
Care should be taken when preparing food or drinks containing sugar . If anything of this nature
accidentally comes into contact with the ceramic surface it must be scraped off immediately while
stlll hot and wiped away to avoid damage to the surface.

The burners

The burner caps and crowns can be removed for cleaning.
Wash the burners taps and crowns using hot soapy water, and remove marks with a mild
paste cleaner. A well moistened soap impregnated steel wool pad can be used with
caution, if the marks are particularly difficult to remove.
After cleaning, be sure to wipe dry with a soft cloth.

12 electrolux

Something Not Working?

If the hob is not working correctly , please carry out the following checks before contacting
your local Electrolux Service Force Centre.

SYMPTOM

 There is no spark when lighting the

gas.

 The gas ring burns unevenly.

SOLUTION

 Check that the unit is plugged in and

the electrical supply is switched on.

 Check that the general safety switch

has not tripped (if fitted).

 Check the mains fuse has not blown.
 Check the burner cap and crown

have been replaced correctly, e.g.
after cleaning.

 Check the main jet is not blocked and

the burner crown is clear of food
particles.

 Check the burner cap and crown

have been replaced correctly, e.g.
after cleaning.

electrolux 13

Burner Ø By-pass

in 1/100

of mm

Auxiliary 28
Semi-rapid 3 2
Rapid 4 2

Table 1 : By-pass diameters

OVERALL DIMENSIONS Width: 580 mm

Depth: 510 mm

CUT OUT DIMENSIONS Width: 550 mm

Depth: 470 mm
Thickness 30 mm

APPLIANCE CLASS 3
SUPPLY CONNECTIONS Gas:

RC 1/2 inch (1/2 inch male) Rear right hand corner

Electric:

230 V

~ 50 Hz supply , 3 core flexible cable

HEAT INPUT
Rear Left Burner 1.9 kW

(semi rapid)
Front Left Burner 2.9 kW Natural gas

(rapid) 2.7 kW Liquid gas
Rear Right Burner 1.9 kW

(semi rapid)
Front Right Burner 1.0 kW

(auxiliary)
APPLIANCE CATEGORY II2H3+
GAS SUPPLY Natural gas

G20-2H-20 mbar

Instructions for the Installer

Engineer technical data

14 electrolux

TYPE BURNER INJECTORS NORMAL REDUCED NORMAL FEEDING

OF GAS POWER POWER POWER PRESSURE

1/100 mm kW kW m3/ h g / h mbar

G30

Rapid 119 2,9 0,75 0,276 - -

Semi-rapid 96 1,9 0,45 0,181 - - 20

Auxiliary 70 1,0 0,33 0,09 - -

Rapid 86 2,7 0,75 - 196 192

Semi-rapid 71 1,9 0,45 - 138 136 28-30

Auxiliary 50 1,0 0,33 - 73 71

NATURAL

GAS

LIQUID

GAS

Table 2 : Injectors

Important safety requirements

This hob must be installed in accordance with the Gas Safety (Installation and Use)
Regulations (Current Edition) and the IEE Wiring Regulations (Current Edition).
For appliances installed in the Republic of Ireland please refer to NSAI- Domestic Gas
Installation I.S. 813 Current Editions and the ETCI Rules for Electrical Installations.
Detailed recommendations are contained in the following British Standards Codes Of Practice:
B.S. 6172/ B.S. 5440, Par. 2 and B.S. 6891 Current Editions.

Provision for ventilation

The hob should not be installed in a bed sitting room with a volume of less than 20 m3. If it is
installed in a room of volume less than 5 m

3

an air vent of effective area of 1 10 cm2 is required.

If it is installed in a room of volume between 5 m

3

and 10 m3 an air vent of effective area of 50

cm

2

is required, while if the volume exceeds 11 m3 no air is required.
However, if the room has a door which opens directly to the outside no air vent is required even
if the volume is between 5 m

3

and 11 m3.
If there are other fuel burning appliances in the same room, B.S. 5440 Part 2 Current Edition,
should be consulted to determine the requisite air vent requirements.
For appliances installed in the Republic of Ireland please refer to the NSAI- Domestic
Gas Installation I.S. 813 Current Editions Table Four.

g/h

G31

electrolux 15

Location

The hob may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a
bathroom or shower room.
Before making the cut out in the worktop ensure that there is a minimum distance of 55
mm between the rear edge of the hob and the wall.
A minimum distance of 100 mm must be left between the side edges of the hob and any
adjacent cabinets or walls.
The minimum distance combustible material can be fitted above the hob in line with the
edges of the hob is 400 mm If it is fitted below 400 mm a space of 50 mm must be
allowed from the edges of the hob.
The minimum distance combustible material can be fitted directly above the hob is 700
mm.
For appliances installed in the Republic of Ireland please refer to NSAI- Domestic Gas
Installation I.S 813 Current Edition Section 7- Permitted Locations of Appliance.

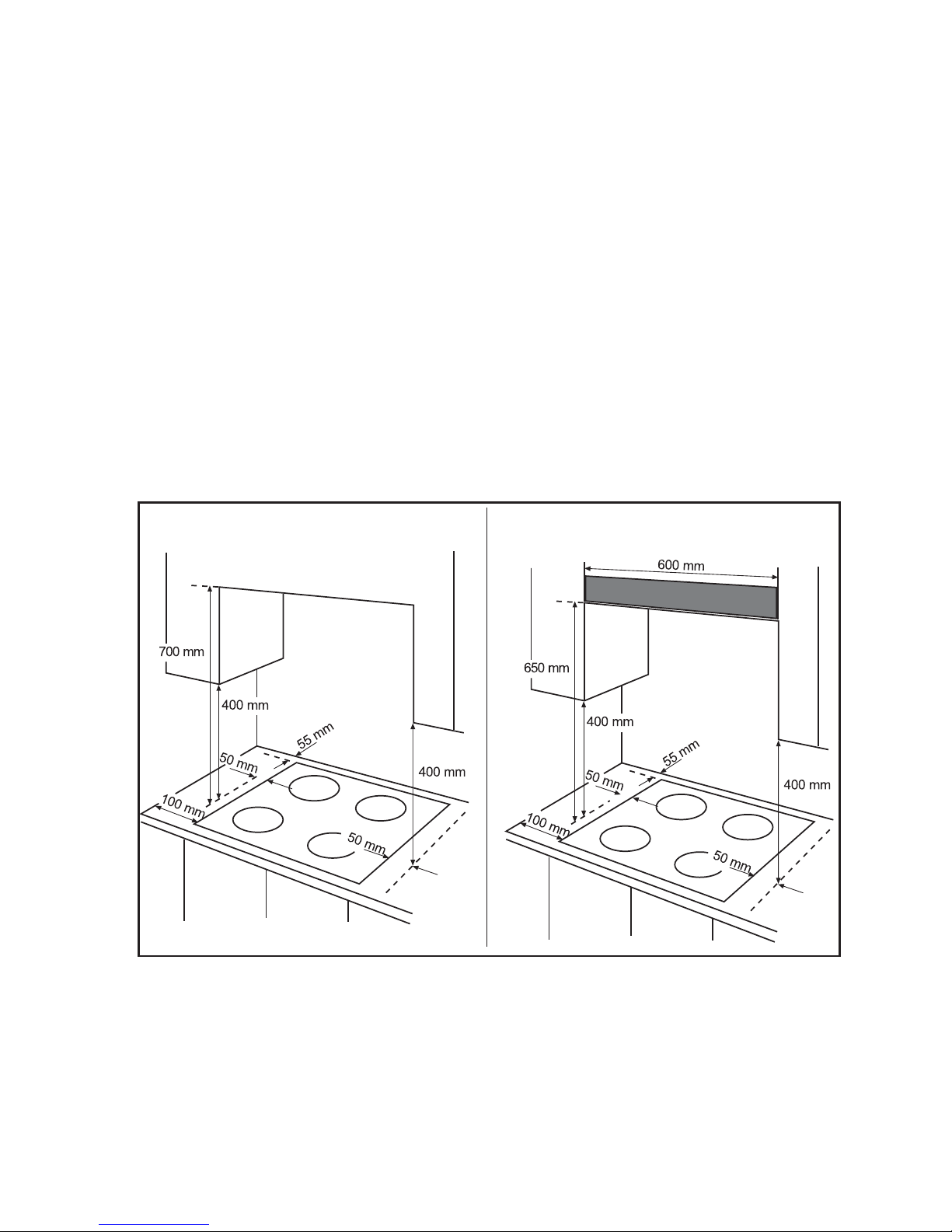

CLEARANCES REQUIRED

WHEN FITTING THE GAS HOB

WITHOUT A COOKER HOOD ABOVE

CLEARANCES REQUIRED

WHEN FITTING THE GAS HOB

WITH A COOKER HOOD ABOVE

FO 0813FO 0812

700 mm

16 electrolux

z The following instructions about installation and maintenance must be carried out

by qualified personnel in compliance with the regulation in force.

z The appliance must be electrically disconnected before all interventions. If any

electric supply to the appliance is required to carry out the work, ensure all the
necessary precautions are followed.

z The side walls of the unit in which the hob is going to be installed, must not exceed

the height of the working top.

z Avoid installing the appliance in the proximity of inflammable materials (e.g. curtains,

tea towels etc.).

THE MANUFACTURER WILL NOT ACCEPT LIABILITY, SHOULD ANY OF THE OTHER
SAFETY INSTRUCTIONS INCORPORA TED IN THIS BOOKLET OR THE REGULA TION IN
FORCE BE IGNORED.

Instruction for the Installer

electrolux 17

Installation

IMPORTANT

This hob must be installed by a competent person to the relevant Gas
Standards.

Any gas installation must be carried out by a registered competent person.

The manufacturer will not accept liability, should the above instructions or any of the
other safety instructions incorporated in this book be ignored.

On the end of the shaft, which includes the GJ 1/2" threaded elbow, adjustment is
fixed so that the washer is fitted between the components as shown in the diagram.
Screw the parts together without using excessive force.

A) End of shaft with nut
B) Washer
C) Elbow

FO 0264

It is important to install the elbow correctly, with the shoulder on the end of the
thread, fitted to the hob connecting pipe.

Failure to ensure the correct assembly will cause leakage of gas.

Gas Connection

Connection to the gas supply should be with either rigid or semi-rigid pipe, i.e. steel
or copper.

The connection should be suitable for connecting to RC 1/2 (1/2 BSP male
thread).

When the final connection has been made, it is essential that a thorough leak test is
carried out on the hob and installation.

Ensure that the main connection pipe does not exert any strain on the hob.

18 electrolux

Commissioning

When the hob has been fully installed it will be necessary to check the minimum flame setting. T o do
this, follow the procedure below .

1) Turn the gas tap to the MAX position and ignite.

2) Set the gas tap to the MIN flame position then turn the control knob from MIN to MAX
several times. If the flame is unstable or is extinguished follow the procedure below .

Procedure:

1) Re-ignite the burner and set to MIN.

2) Remove the control knob.

3) To adjust, use a thin bladed
screwdriver and turn the adjustment
screw (it can be located down the
centre of the gas tap shaft or on the
tap body , according to the different
models - see Fig. 3) until the flame
is steady and does not extinguish,
when the knob is turned from MIN
to MAX. Repeat this procedure for
all burners.

Pressure Testing

1) Remove left hand pan support and front left burner cap and crown.

2) Fit manometer tube over the injector.

3) Turn on the burner gas supply and ignite another burner supply.
The pressure reading should be nominally 20 mbar and must be between 17 mbar

and 25 mbar.

4) Turn off the burner supplies.

))

))

)

))

))

)

))

))

)

Minimum adjustment screw

Fig. 3

electrolux 19

Conversion from Natural Gas to LPG

IMPORTANT

The replacement/conversion of the gas hob should only be undertaken by a competent
person.

It is important to note that this model is designed for use with natural gas but can be converted
for use with butane or propane gas providing the correct injectors are fitted and the gas rate
is adjusted to suit.

Method

1) Ensure that the gas taps are in the 'OFF' position

2) Isolate the hob from the electricity supply

3) Remove all pan supports, burner caps, rings, crowns and control knobs.

4) With the aid of a 7mm box spanner the burner injectors can then be unscrewed and
replaced by the appropriate LPG injectors.

To adjust the gas rate

With the aid of a thin bladed screwdriver completely tighten down the by pass adjustment
screw . Upon completion stick the replacement rating plate on the under side of the hob.

))

))

)

20 electrolux

Electrical Connections

Any electrical work required to install this hob should be carried
out by a qualified electrician or competent person, in accordance
with the current regulations.
THIS HOB MUST BE EARTHED

..

..

.
The manufacturer declines any liability should these safety measures not
be observed.
This hob is designed to be connected to a 230 V 50 Hz AC electrical
supply.
Before switching on, make sure the electricity supply voltage is the same
as that indicated on the hob rating plate. The rating plate is located on
the bottom of the hob. A copy is attached on the back cover of this book.
The hob is supplied with a 3 core flexible supply cord incorporating a 3
amp plug fitted. In the event of having to change the fuse, a 3 amp ASTA
approved (BS 1362) fuse must be used.

Should the plug need to be replaced for any reason, the wires in the
mains lead are coloured in accordance with the following code:
Green and Yellow - Earth

Blue - Neutral

Brown - Live

1) Connect the green and yellow (earth)

wire to the terminal in the plug which
is marked with the letter 'E' or the

earth symbol

or coloured green

and yellow.

2) Connect the blue (neutral) wire to the

terminal in the plug which is marked
with the letter 'N' or coloured black.

3) Connect the brown (live) wire to the

terminal in the plug which is marked

with the letter 'L' or coloured red.
Upon completion there must be no cut, or stray strands of wire present
and the cord clamp must be secure over the outer sheath.

A cut off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that the cut off plug is disposed of safely.

FO 0390

))

))

)

electrolux 21

Permanent Connection

In the case of a permanent connection, it is necessary that you install a
double pole switch between the hob and the electricity supply (mains),
with a minimum gap of 3 mm between the switch contacts and of a type
suitable for the required load in compliance with the current electric
regulations.
The switch must not break the yellow and green earth cable at any point.

Ensure that the hob supply cord does not come into contact with
surfaces with temperatures higher than 50 deg. C.

The replacement of electric cable must be carried out
exclusively by the service force centre or by personnel with
similar competencies, in accordance with the current regu-

lations.

22 electrolux

Wiring diagram

1. TAPS IGNITOR SWITCHES

2. IGNITOR UNIT

electrolux 23

Fault Finding

Preliminary Electrical Systems Check

START

Isolate appliance
and carry out:
A: Earth Continuity
check.

Has inlet fuse blown?

Carry out:
C: Polarity check.

Electricity supply
should now be
satisfactory.

Carry out:
D: Resistance to
Earth check.

Inlet wiring
faulty.
Rectify any
fault.

Isolate appliance and
carry out:
B: Insulation check.
Rectify any fault
including replacing
fuses as necessary.

NO

YES

SOCKET

(face view)

PLUG (with cover removed)

Earth Wire
Green/Yellow

Neutral Wire
Blue

( )

FUSE

( )

E

N

L

Brown

Blue

Green
Yellow

Green
Yellow

Brown

Blue

NO YES

24 electrolux

A. EARTH CONTINUITY CHECK

Appliance must be electrically disconnected - meter set on Ω (Ohms) x 1 scale and adjust
zero if necessary .

— Test leads from any appliance earth point to earth pin on plug. Resistance should be less

than 0.1 Ω (Ohm), check all earth wires for continuity and all contacts are clean and tight.

B. INSULA TION CHECK

Appliance electrically disconnected, all switches ON.
a) meter set on Ω (Ohms) x 1 scale.

T est leads from L to N in appliance terminal block. If meter reads «0» then there is a short

circuit.
b) meter set on Ω (Ohm) x 100 scale.

Repeat test with leads from L to E. If meter reads less than ∞ (infinity) there is a fault.

NOTE - Should it be found that the fuse has failed but no fault is indicated - a detailed continuity check
(i.e. by disconnecting and checking each component) is required to trace the faulty component.

It is possible that a fault could occur as a result of local burning/arcing but no fault could be found under
test. However a detailed visual inspection should reveal evidence of burning around the fault.

electrolux 25

Check gas supply at
burner

Ignition System / Gas Ignition

YES

Check plug top fuse and
replace if necessary

Check polarity and earth
continuity of supply point

Check earth continuity
of appliance

Ignitor does not spark

Check fitting of
burners

Check position of the
electrode

Check by pass simmer
adjusted

Light burner manually

Check continuity from 'N' on the
mains connector block and "O" on
the ignitor unit

Check continuity from 'L' on the
mains connector block and the
taps ignition switches

Check continuity from ignition
switches connector to ignitor unit

Check continuity from the tip of
each electrode to the terminals 1
to 4 on the ignitor unit

Check for breaks in the insulation
of the HT leads

NO

Change the ignitor unit

Change the taps ignition
switches

26 electrolux

Fitting the hob to the worktop

Before fitting the hob into the cut out, an adhesive
seal must be fitted to the underside outside edge
of the hob. It is essential that no gaps are left in this
seal in order to prevent spillage near the hob
seeping into the cabinet below.

1) Remove the pan supports, the burners caps
and crowns and turn the hob upside down,
taking care the ignition candles are not
damaged in this operation.

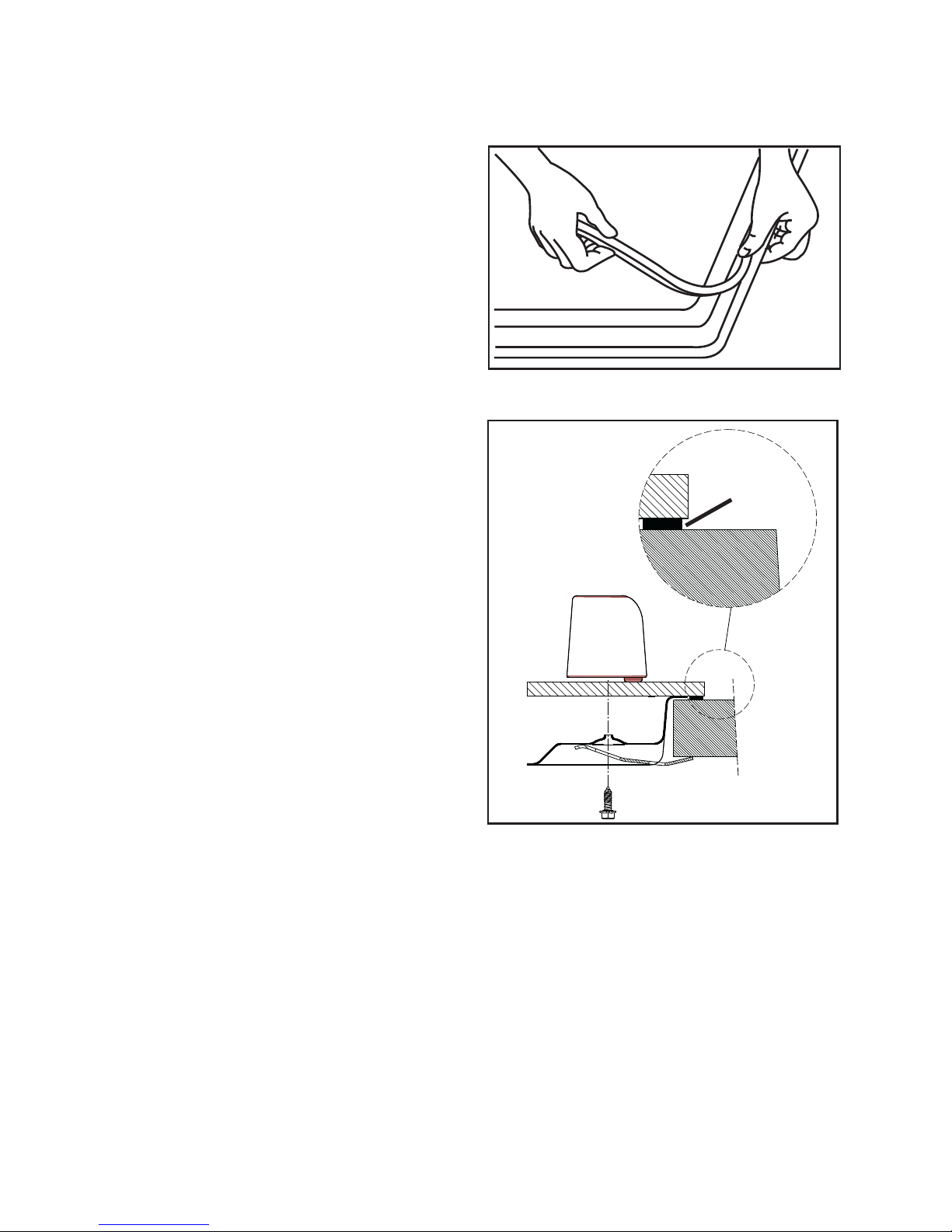

2) Place the relevant sealing all around the glass
top edge, taking care that the sealings meet
without overlapping (Fig. 6).

3) Place the hob in the cut out, taking care of its
centring.

4) Fix the hob with the relevant screws supplied
with the injectors kit (Fig. 7).

A) Sealing gasket

Fig. 6

Fig. 7

A

electrolux 27

Possibilities for Insertion

Kitchen unit with door

Proper arrangements must be taken in designing the
forniture unit, in order to avoid any contact with the bottom
of the hob which can be heated when it is operated. The
recommended solution is shown in Fig. 8. The panel fitted
under the hob should be easily removable to allow an
easy access if a technical assistance intervention is
needed.

Kitchen unit with oven

The hob recess dimensions must comply the indication given in Figs. 5 and must be provided with
brackets to allow a continuous supply of air . T o avoid overhating, the building in should be carried out
as shown in Figs. 9 and 10.
The hob's electric connection and the oven's one must be carried out separately , both for safety
reasons and to allow the oven to be easily taken off the unit.

a) Removable panel
b) Space possibly useful

for connections

Fig. 8

28 electrolux

Fig. 9

Fig. 10

FO 0938 FO 0939

Cut Out Size

The dimensions of the cut-out are given in the diagram.

550

470

30

electrolux 29

This machine, before leaving the factory, has been tested and studied by many experts
and specialists, in order to give you the best results.
Any repair work which needs to be carried out should be done with the utmost care and
attention.
For this reason we recommend that for any problem you contact the dealer who sold it
to you, or our nearest authorized Service Centre, specifying the nature of the problem,
the appliance model (Mod.), the product number (Prod. No.) and the serial number
(Ser. No.) marked on the identification plate.
Original spareparts, certified by the product manufacturer and carrying
this symbol are only available at our Service Centre and authorized
spareparts shops.

Service and original spare parts

30 electrolux

Standard Guarantee Conditions

We, Electrolux, undertake that if within 12 months of the date of the purchase this
Electrolux appliance or any part thereof is proved to be defective by reason only of
faulty workmanship or materials, we will, at our option repair or replace the same
FREE OF CHARGE for labour, materials or carriage on condition that:

•The appliance has been correctly installed and used only on the gas and electricity
supply stated on the rating plate.

•The appliance has been used for normal domestic purposes only, and in accordance
with the manufacturer’s instructions.

•The appliance has not been serviced, maintained, repaired, taken apart or tampered
with by any person not authorised by us.

•Electrolux Service Force Centre must undertake all service work under this
guarantee.

•Any appliance or defective part replaced shall become the Company’s property.

•This guarantee is in addition to your statutory and other legal rights.

Exclusions

•Damage or calls resulting from trans-portation, improper use or neglect, the
replacement of any light bulbs or removable parts of glass or plastic.

•Costs incurred for calls to put right an appliance which is improperly installed or
calls to appliances outside the United Kingdom.

•Appliances found to be in use within a commercial environment, plus those which
are subject to rental agreements.

electrolux 31

Customer CareCustomer Care

Customer CareCustomer Care

Customer Care

For general enquiries concerning your Electrolux appliance, or for further
information on Electrolux products please contact our Customer Care
Department by letter or telephone at the address below or visit our website
at

wwwwww

wwwwww

www

.electr.electr

.electr.electr

.electr

olux.co.ukolux.co.uk

olux.co.ukolux.co.uk

olux.co.uk

Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)

(*) Calls may be recorded for training purposes

•Products of Electrolux manufacturer that are not marketed by Electrolux.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare
parts, please contact your local Service Force Centre by telephoning

0870 5 929 929

Your telephone call will be automatically routed to the Service Force Centre co­vering your postcode area.
For the address of your local Service Force Centre and further information about
Service Force, please visit the website at

www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the
heading “Something not working”. When you contact the Service Force Centre you
will need to give the follo-wing details:

1.Your name, address and postcode.

2.Your telephone number.

3. Clear concise details of the fault.

4. The model and Serial number of the appliance (found on the rating plate).

5.The purchase date.

Please note a valid purchase receipt or guarantee documentation is required for in
guarantee service calls.

32 electrolux

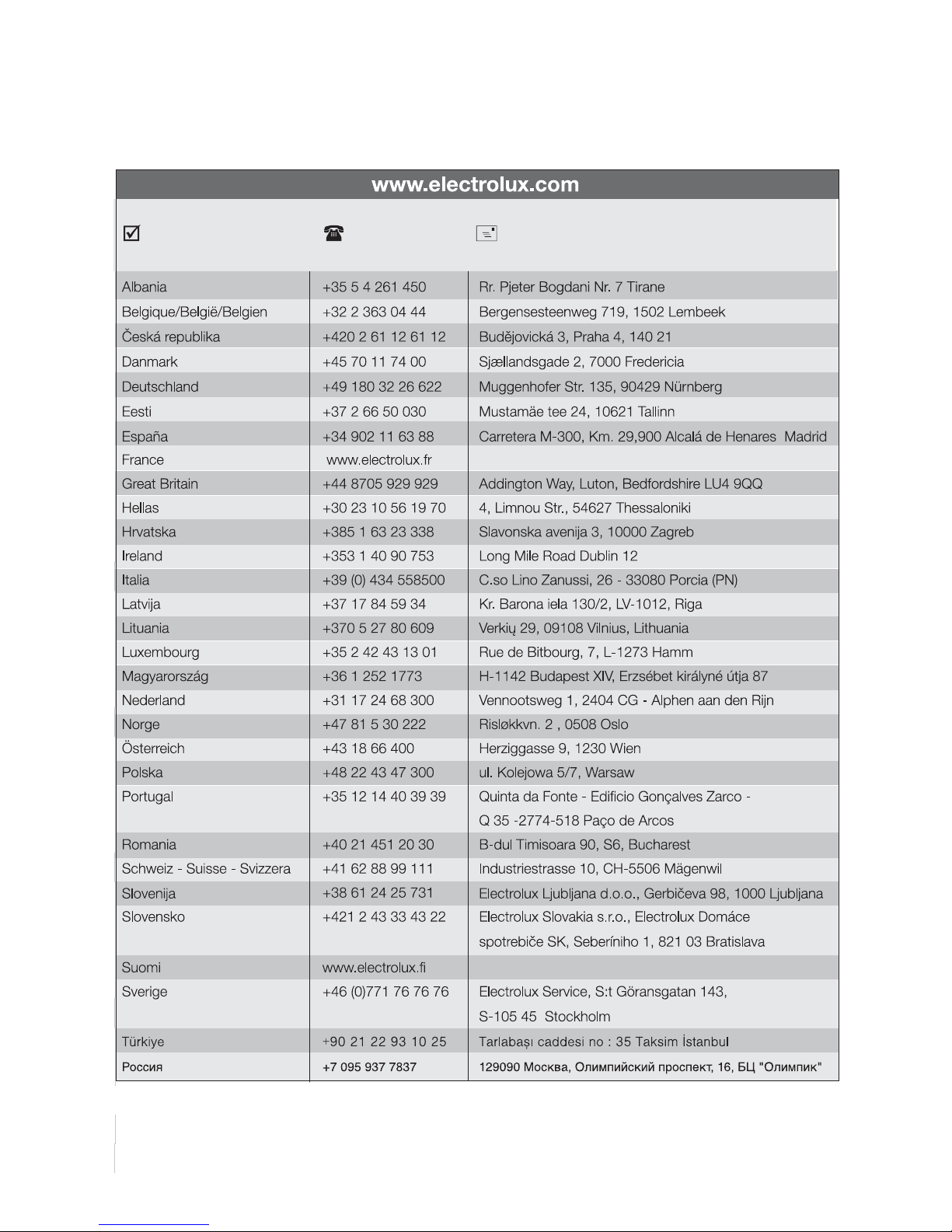

This appliance is guaranteed by Electrolux in each of the countries listed
at the back of this user manual, for the period specified in the appliance
guarantee or otherwise by law. If you move from one of these countries to
another of the countries listed below the appliance guarantee will move
with you subject to the following qualifications:

• The appliance guarantee starts from the date you first purchased the
appliance which will be evidenced by production of a valid purchase
document issued by the seller of the appliance.

• The appliance guarantee is for the same period and to the same extent
for labour and parts as exists in your new country of residence for this
particular model or range of appliances.

• The appliance guarantee is personal to the original purchaser of the
appliance and cannot be transferred to another user.

• The appliance is installed and used in accordance with instructions
issued by Electrolux and is only used within the home, i.e. is not used
for commercial purposes.

• The appliance is installed in accordance with all relevant regulations in
force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights
granted to you by law.

European GuaranteeEuropean Guarantee

European GuaranteeEuropean Guarantee

European Guarantee

electrolux 33

35694-9401 04/07 R.0

www .electrolux.co.uk
