Ceramic Glass Hob
Operating and Assembly Instructions
EHO 602 K
319 5729-00 |
GB |
PE-D 2000.11.27
Dear Customer
Please read these instructions carefully for using your new appliance. Pay special attention to the chapter “Hints on safety”.
Keep these instructions in a safe place for future reference and pass them on to any subsequent owner of the appliance.
The warning triangle and/or specific words (war- ning, caution, important) are used to highlight information that is important for your safety or the functioning of the appliance.
After this symbol you will find supplementary information on operating and practical use of the appliance.
Tips and instructions for the economical and environmentally sound use of the appliance are marked with this symbol.
These instructions contain informations on how to rectify faults yourself. See the section “What to do if ... “
Should you require further assistance, please contact your local Service Force Centre.
Customer Care Department Electrolux
55--77 High Street Slough
Berkshire
SL1 1DZ
Tel: 08705 950950*
* Calls to this number may be recorded for training purposes.
Help us to help you
To register your 12 month guarantee, please complete and return the enclosed guarantee card.
2
Content
For the user
Dear Customer |
2 |
Safety information |
4 |
Disposal |
5 |
of packaging material |
5 |
Hints of disposal |
5 |
Description of the hob |
6 |
Before the first use |
6 |
Cleaning for the first time |
6 |
Operating instructions |
7 |
General information |
7 |
Heat control knobs |
7 |
Residual heat indicator |
7 |
Application, charts, tips |
8 |

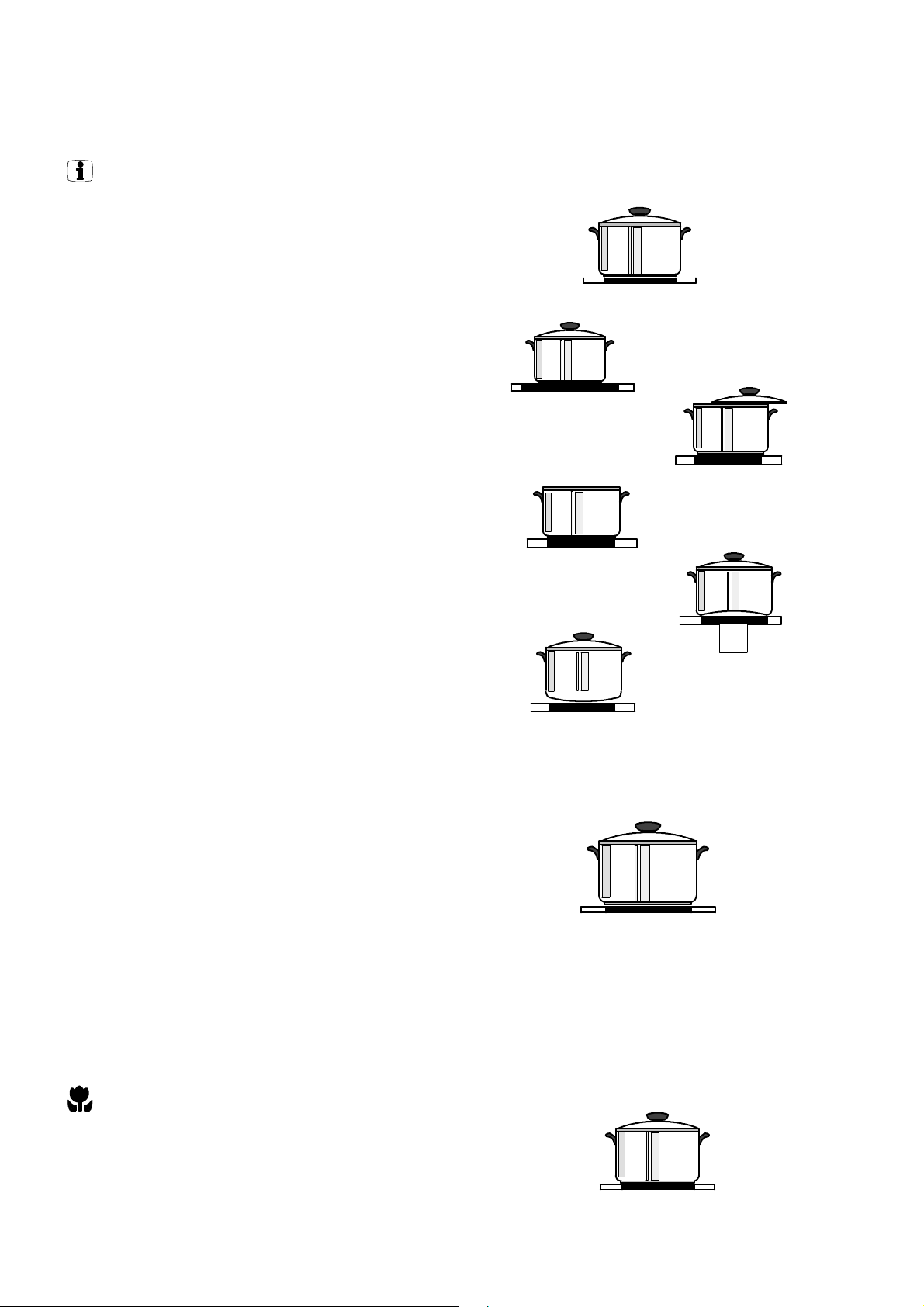

Cooking and frying utensils |
8 |
General hints |
8 |
Energy consumption |
8 |

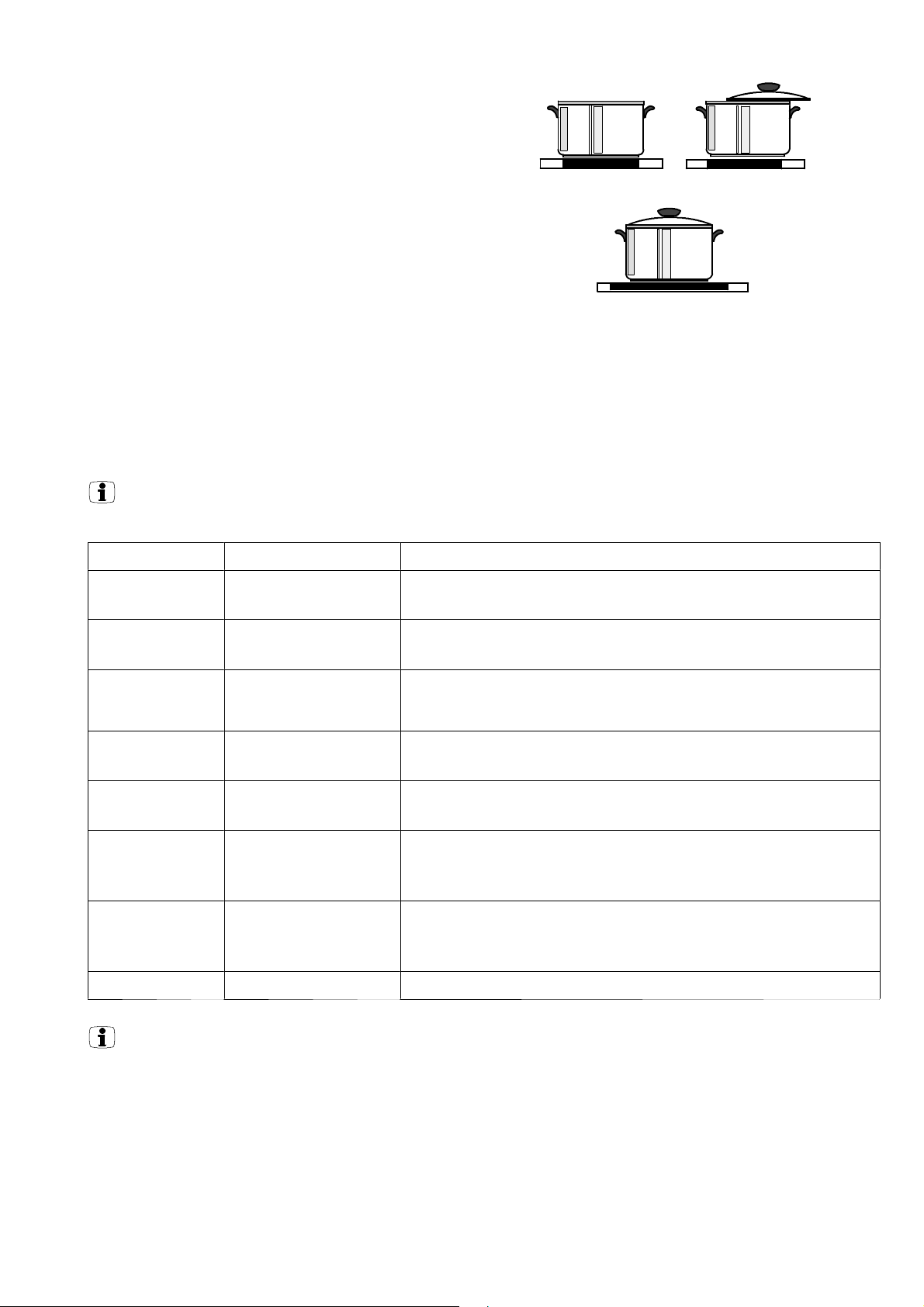

Chart: boiling and frying |
8 |
Cleaning and care |
9 |

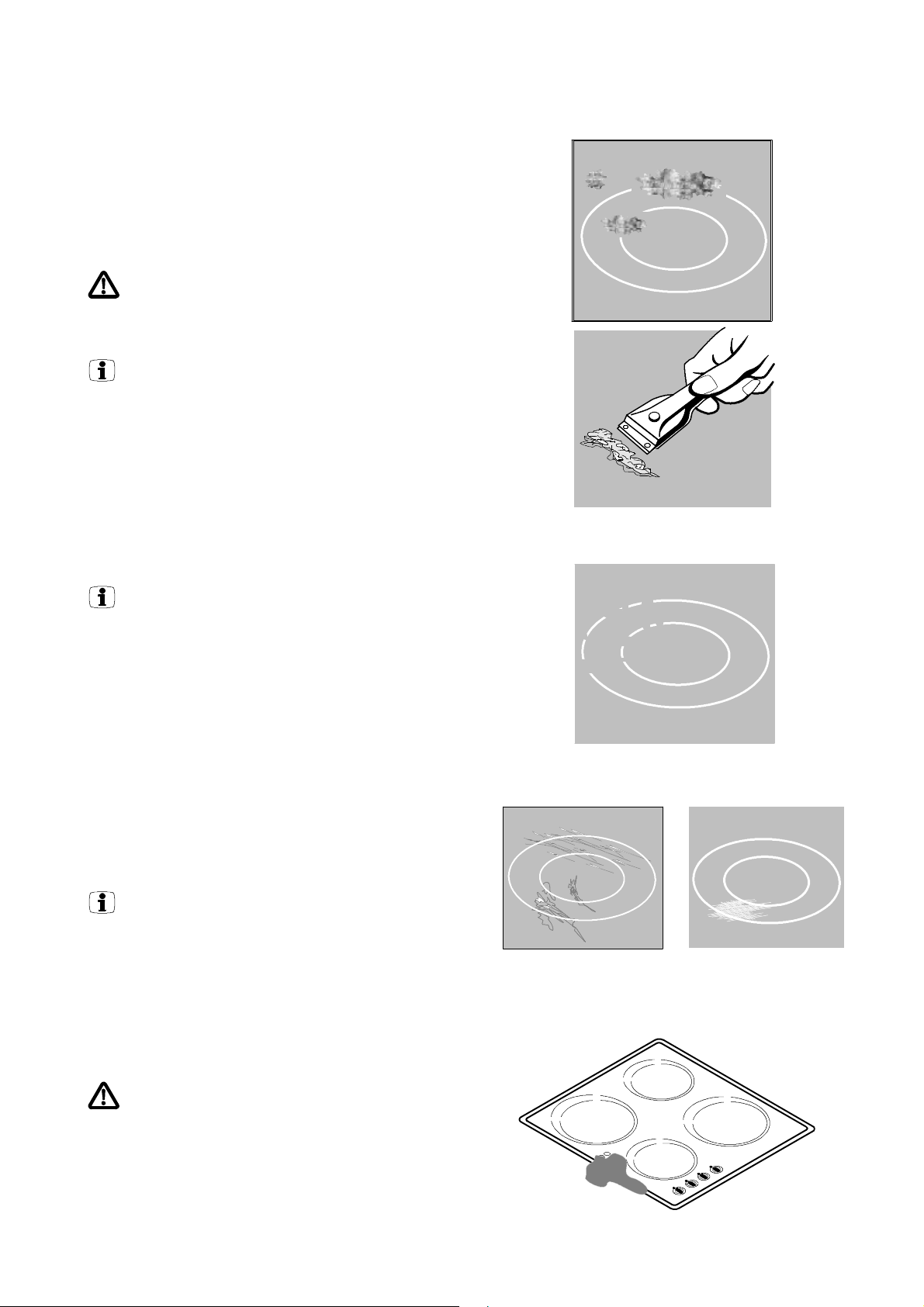

Ceramic glass surface |
9 |
Light soilage |
9 |
Stubborn soilage |
9 |
Special soilage |
10 |
Sugar |
10 |
Dark spots and decor damages |
10 |
Scratches in the ceramic glass surface |
10 |
The hob frame |
10 |
What to do ... |
16 |
Guarantee conditions, Customer care |
17 |
For the installer

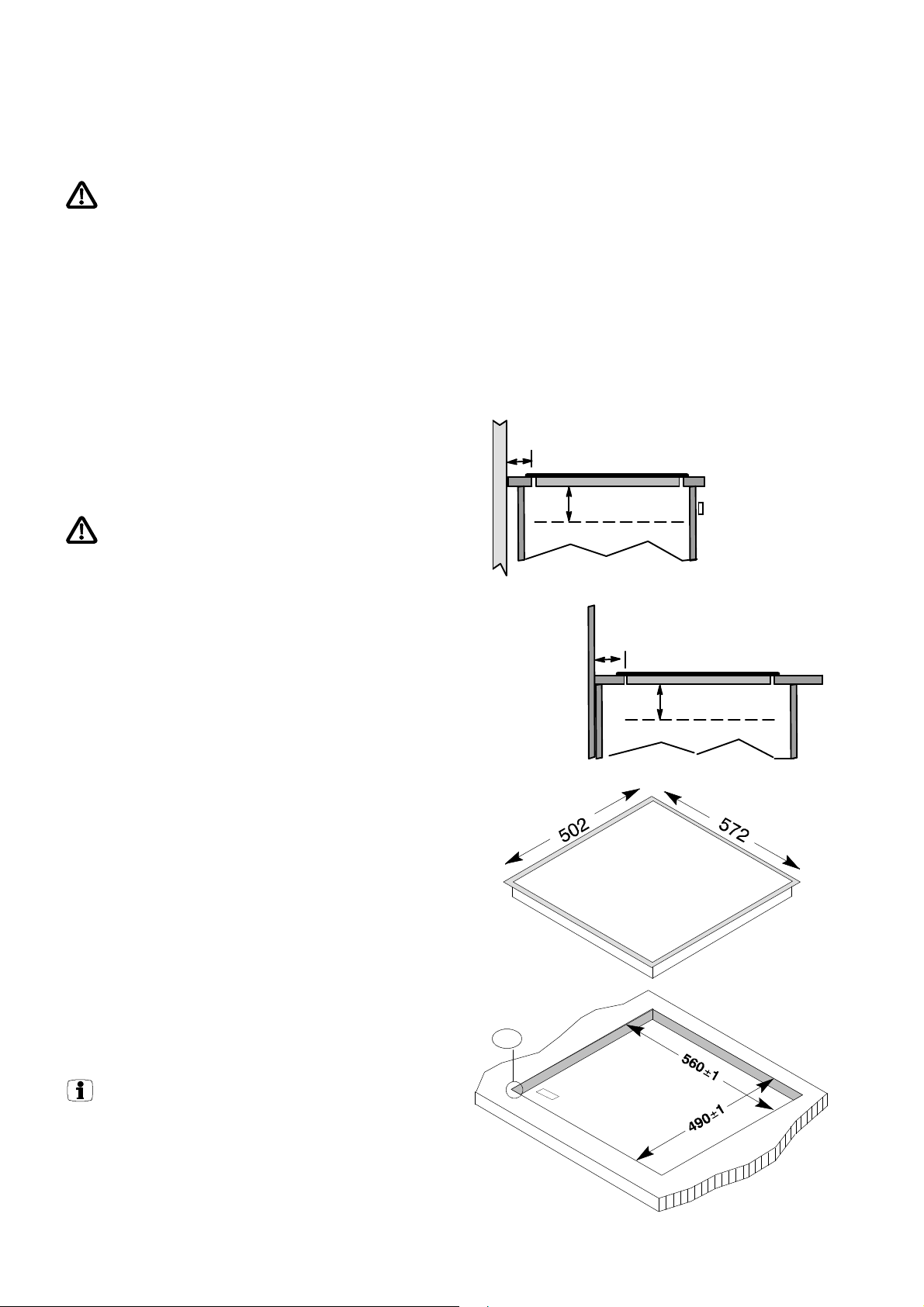

Installation instructions |
12 |
Hints on safety |
12 |

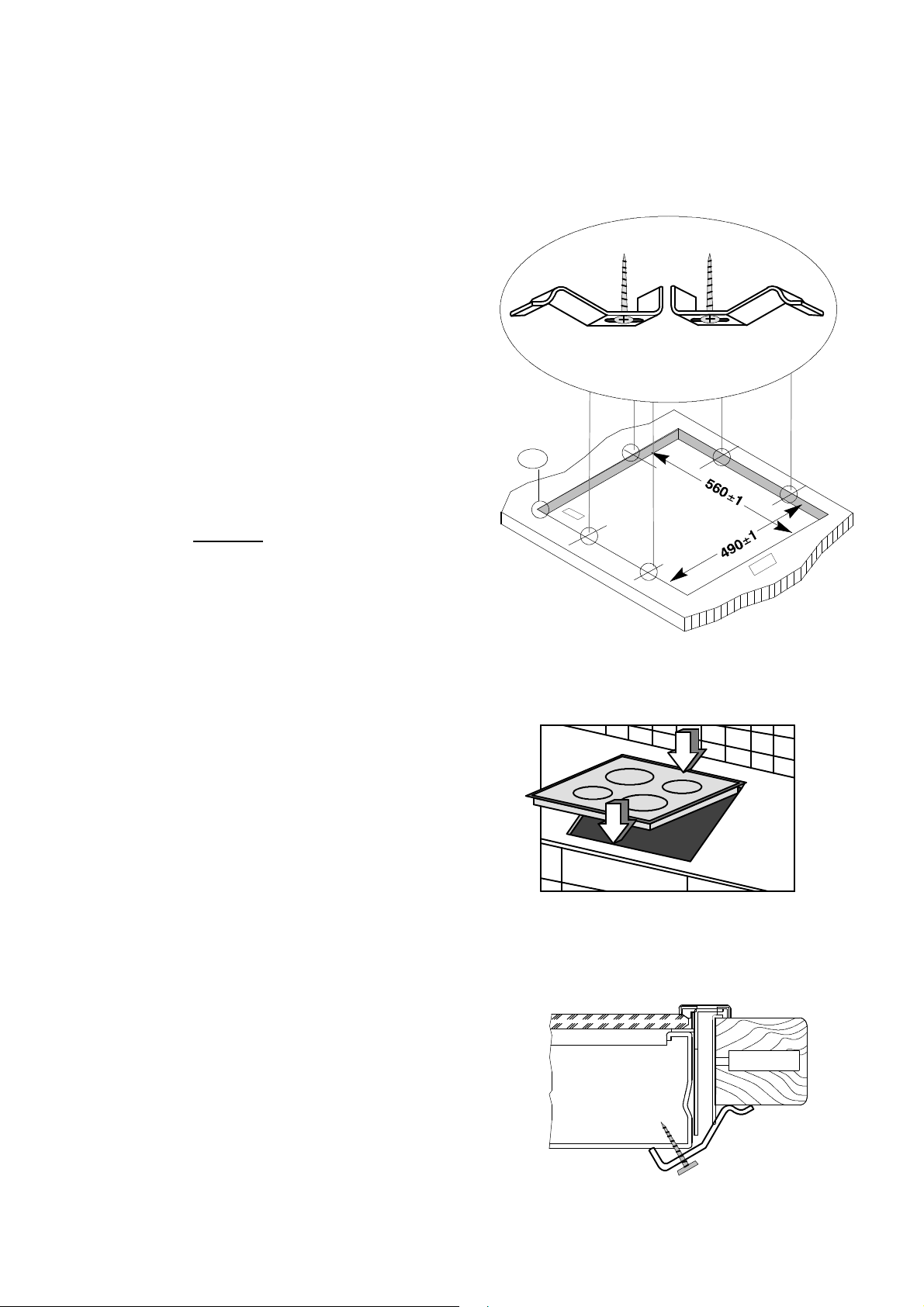

Building into the kitchen worktop |
12 |

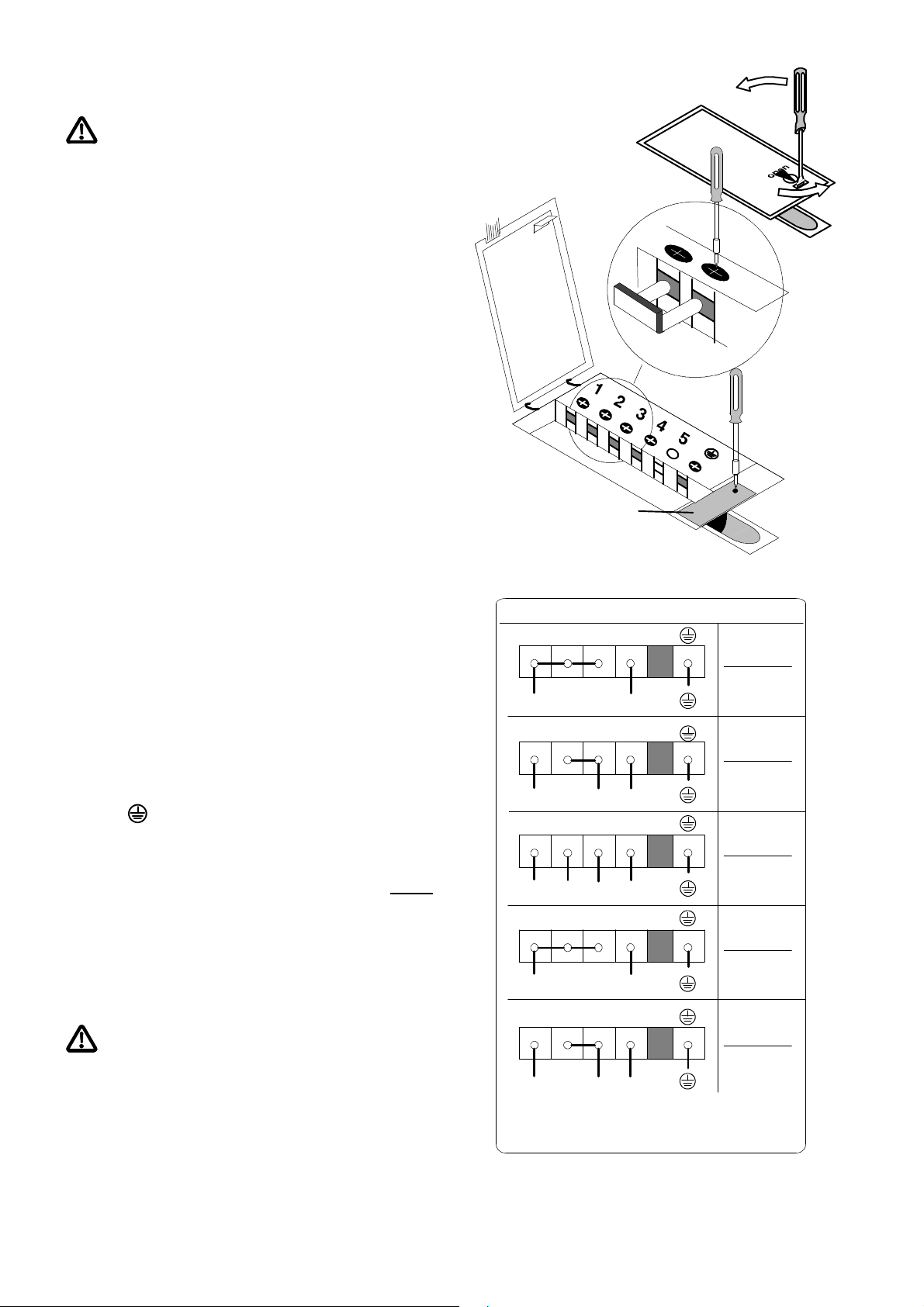

Electrical connection |
14 |
Technical data, rating plate |
15 |
3
Important Safety Information
This information is provided in the interest of your safety. Please read it carefully before installing or using the hob. If your are unsure of any of these warning please contact our Customer Care Department on 08705 950950.
Electrical safety
. This appliance must be installed by qualified personnel.
. Repairs to the appliance should only be carried out by authorised service enginneers. Improper repairs can lead to injury or serious malfunction. If your appliance need repairing please contact your local Service Force Centre.
Please observe this instruction, otherwise the
guarantee will not cover any damage that may occur.
. Built--in appliances must be installed in built--in cupboards and worktops. The cupboards have to be located and fastened in a way that they are stable. The protection against accidental contact required by the VDE will then be ensured.
. Damaged appliances must not be installed.
. Do not use the hob if the ceramic glass is damaged:
-switch off the cooking zones,
-disconnect from the electricity supply.
Safety for children
. This appliance is designed to be operated by adults only. Do not allow children to play with the product or tamper with the controls.
. The appliance gets hot when it is in use. Children should be kept away until it has cooled.
. Children can also injure themselves by pulling pots or pans off the hob.
Safety during use
. This hob is intended for domestic cooking only. It is not designed for commercial or industrial purposes.
. The appliance gets hot when in use. In case of careless handling there is danger of burning oneself at the heating zones.
. Hot oils can ignite very quickly. Do not leave the hob unattended when preparing foods in pans of oil, i.e. frying chips.
. The sensor technique provides best--possible safety with the manipulation of the appliance, but to the same extent it needs care when setting cooking zones, output or periods of time.
. After use make sure that the appliance is switched off.
Safety when cleaning
. Ensure that all heating zones are switched off while cleaning the hob.
. For safety reasons do not clean the appliance with a steam jet or high pressure cleaner.
How to avoid damaging your appliance
. Do not use the hob surface as a working surface or for storage.
. Do not use the cooking zones with empty pans or without pans. This could cause damage to the pans or the hob.
. Ceramic glass is insensitive to temperature shock and very robust, however, it is not unbreakable. Hard and sharp objects, in particular, can damage the cooking surface if they fall on it.
. Do not use cast iron pots or pans with damaged bases that are rough or burred. Scratching may occur when the pans are slid.
. Do not place any pans on the hob frame. Scratching may occur or the paint damaged.
. Ensure that liquids containing acids, e.g. vinegar, lemon limescale removing agents do not come into contact with the hob frame, otherwise matt spots will appear.
. If sugar or a dish containing sugar comes into contact with a hot cooking zone and then melts, remove the soiling immediately whilst still warm, using a glass scraper. If it cools, damage to the surface may occur.
.
.
Do not use the cooking zones to heat the room. |
. |
Keep all items and materials that melt away from |
Take care when plugging electrical items into |
|
the ceramic glass surface, e.g. plastics, alumi- |
|
nium foil or oven foils. If something of this nature |
|
mains sockets near the hob. Connecting leads |
|
should melt onto the ceramic glass surface, it |
must not come into connection with the hot |
|
must be removed immediately using a glass scra- |
surface or vessels. |
|
per. |
4
Disposal
Disposal of packaging material
All parts of the packaging can be recycled and hard foam parts are appropriately marked.
PE = Polyethylene
(outer wrapping and the bag inside) PS = Polystyrene foam (eg. packing pieces)
Please dispose of all packaing and old appliances with due regard for safety and the environment.
Please observe the national and regional regulations on appliances and packing material as well as the material marking (material separation, refuse collection, waste disposal sites).
Hints on disposal
The appliance must not be disposed of with the household rubbish.
Please contact your local council or Environmental Health Office to see if there are facilities in your area to recycle the appliance.
5
Description of the hob
Cooking Zone |
145 mm |
180 mm |
|
1200 W |
|||
rear left |
1800 W |
||
|
Halolight-- |
180 mm |
145 mm |
Cooking Zone |
||
front left |
1800 W |
1200 W |
H
Residual heat indicator

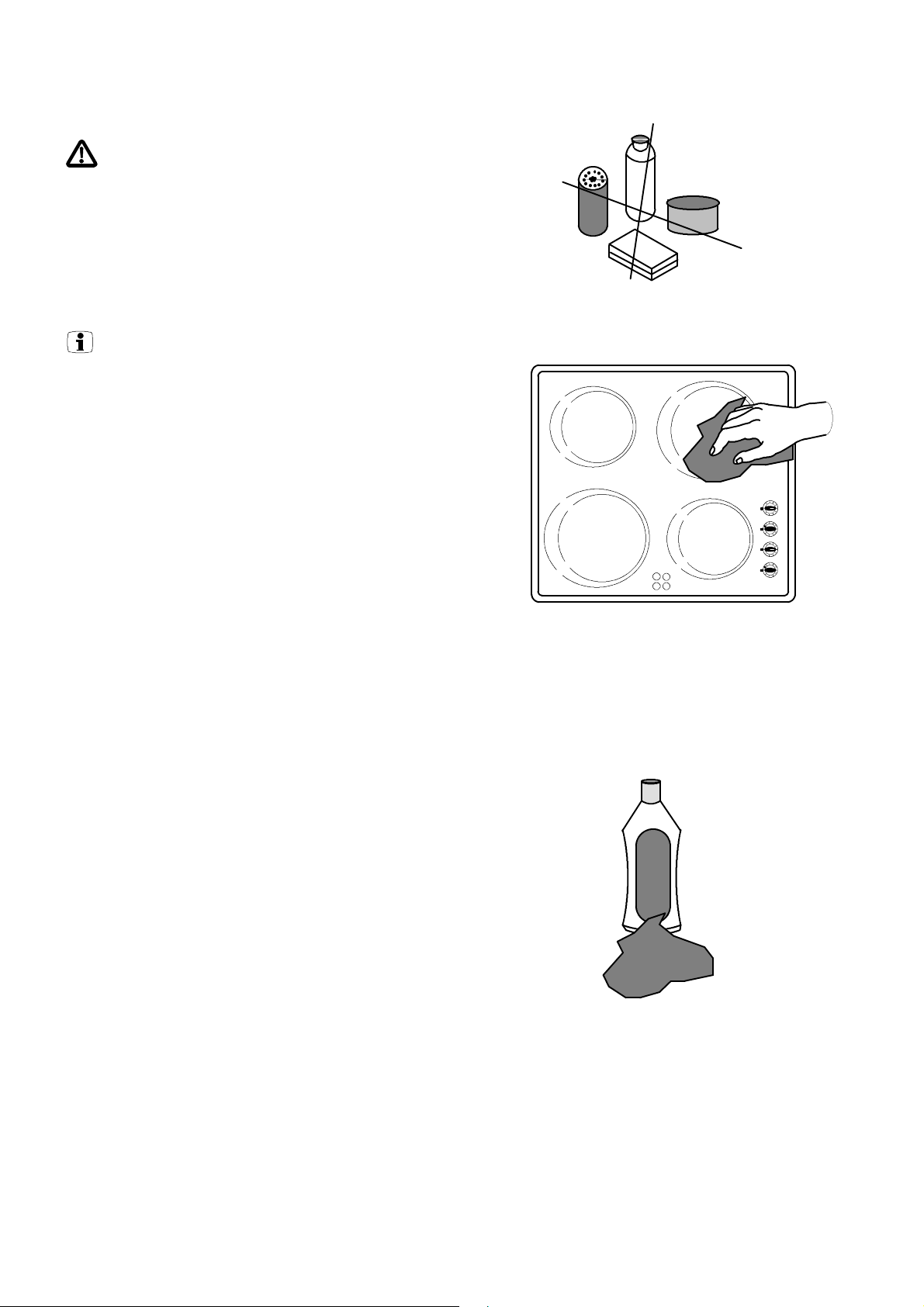

Before the first use
Cleaning for the first time
The hob has to be cleaned thouroughly before it is first used.
. Wash the ceramic glass surface and the frame with warm water with a little washing up liquid added and wipe dry.
Never use aggressive or abrasive cleaning agents, they may damage the ceramic glass and hob frame.
Cooking Zone rear right
Cooking Zone front right

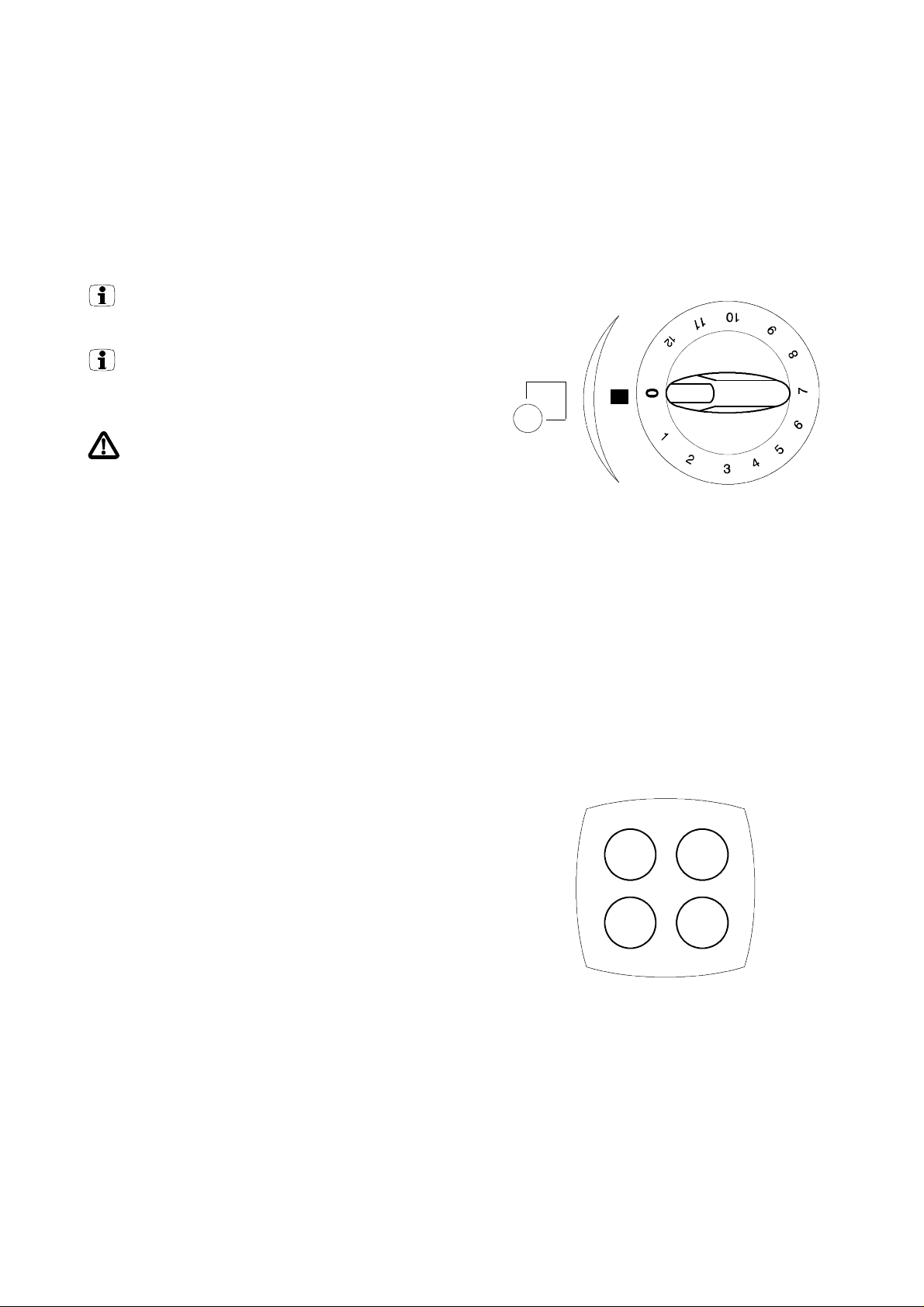

Hotplate Control
Knob
rear right
rear left
front right
front left
6
