Please read these user instructions carefully and keep them to refer to later.
Please pass the user instructions on to any future owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning! Notes that concern your personal safety.
Important! Notes that show how to avoid damage to the appliance.
3 Please comply with these instructions. If you do not, any damage resulting
is not covered by the warranty.
5 This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di-
rective 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Correct use
• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or
fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Child safety
• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.
• To avoid small children and pets unintentionally switching the appliance
on, we recommend activation of the child safety device.
General safety
• The appliance may only be installed and connected by trained, registered
service engineers, or competent persons.
• Built-in appliances may only be used after they have been built in to suitable built-in units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered
service engineers.
4
Safety during use
• Remove stickers and film from the glass ceramic.
• There is the risk of burns from the appliance if used carelessly.
• Cables from electrical appliances must not touch the hot surface of the
appliance or hot cookware.
• Overheated fat and oil can ignite quickly. When cooking with fat or oil (e.g.
frying chips) do not leave the appliance unattended.
• Switch the cooking zones off after each use.
• Users with implanted pacemakers should keep their upper body at least
30 cm from induction cooking zones that are switched on.
• Risk of burns! Do not place objects made of metal, such as knives, forks,
spoons and saucepan lids on the cooking surface, as they can get hot.
Safety when cleaning
• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-
pressure cleaning equipment is not permitted.
How to avoid damage to the appliance
• The ceramic glass can be damaged by objects falling onto it.
• The edge of the ceramic glass can be damaged by being knocked by the
cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms
can scratch the ceramic glass if pushed across the surface.
• Objects that melt and things that boil over can burn onto the ceramic
glass and should be removed straightaway.
• Do not use the cooking zones with empty cookware or without cookware.
• To avoid damaging cookware and glass ceramics, do not allow saucepans
or frying pans to boil dry.

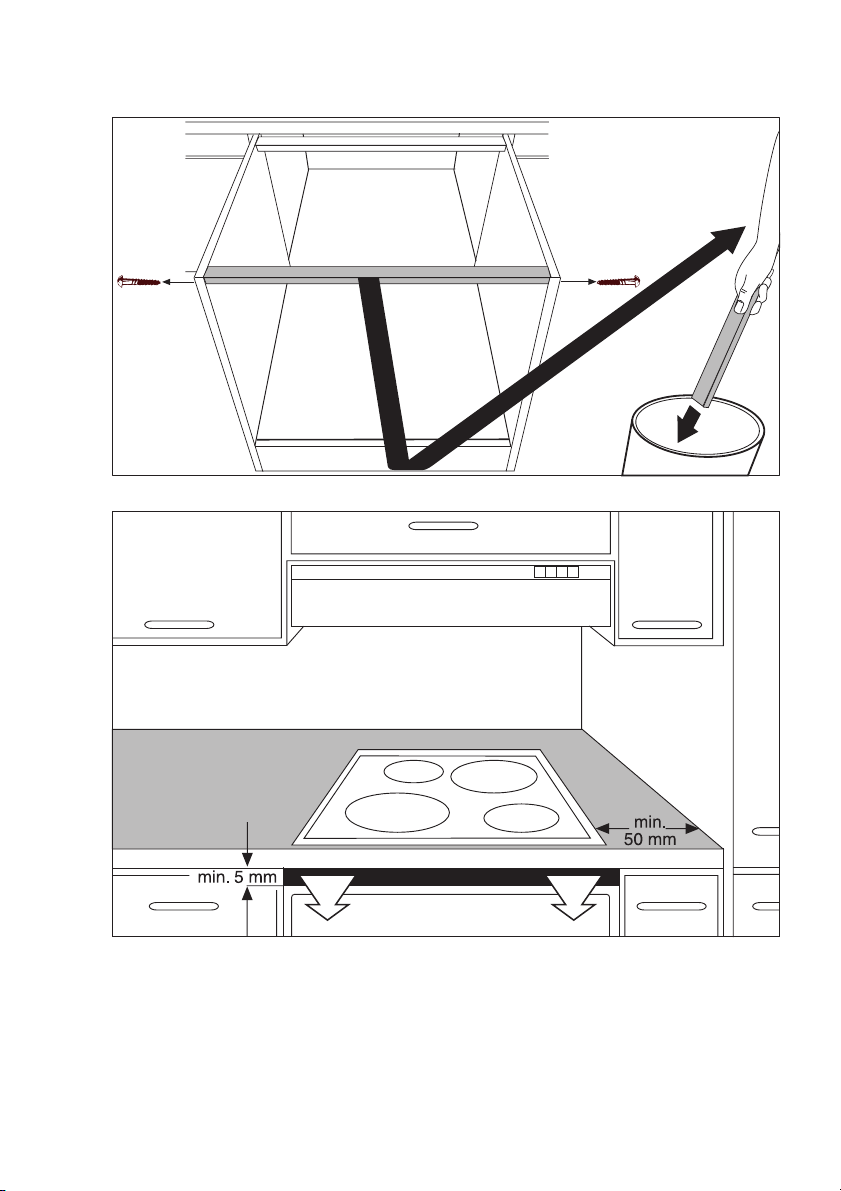

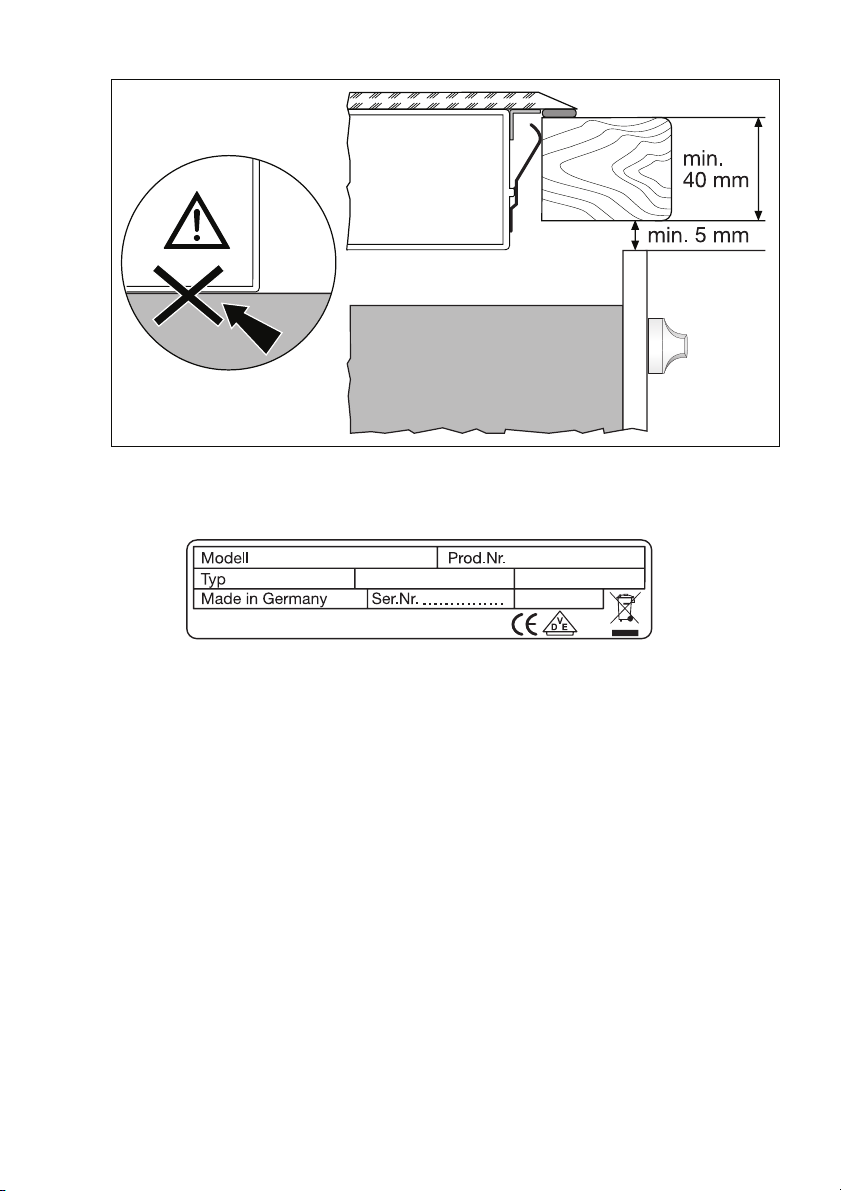

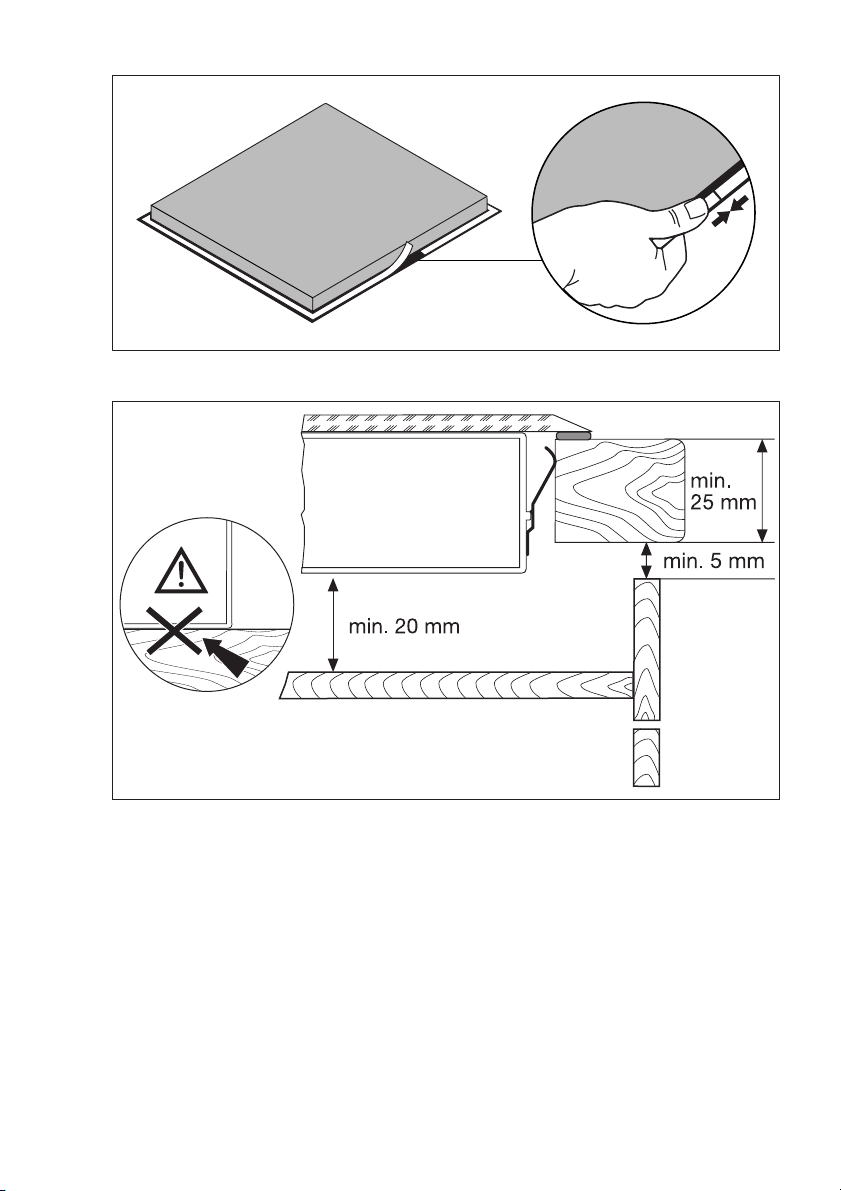

• The ventilation gap of 5mm between the worktop and front of the unit underneath it must not be covered.
5
Description of the Appliance
Cooking surface layout
Induction cooking zone 1400 W
Induction cooking zone 2200 W
with power function 2800 W
Control panel layout
Display
Heat setting
selection
Induction cooking zone 1800 W
Control
panel
Induction cooking zone 1800 W
with power function 2800 W
Cooking zone indicators
Timer function
Timer display
On/Off
Timer
Power function
with power indicator
Lock
6
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are
controlled by touching sensor fields and confirmed by displays and acoustic
signals.
Touch the sensor fields from above, without covering other sensor fields.
Sensor fieldFunction
On / OffSwitches appliance on and off
Increase settingsIncreasing heat setting/time
Decrease settingsDecreasing heat setting/time
TimerTimer selection
LockLocking/unlocking the control panel
PowerSwitching the power function on
and off
Displays
Display Description
Cooking zone is switched off
- Heat settingsHeat setting is set
FaultMalfunction has occurred
Pan detectionCookware is unsuitable or too small
or no cookware has been placed on
the cooking zone
Residual heatCooking zone is still hot
Child safety deviceLock/child safety device is set.
PowerPower function is switched on
Safety cut-outSafety cut-out has been activated
7
Residual heat indicator
1 Warning! Risk of burns from residual heat. After being switched off, the
cooking zones need some time to cool down. Look at the residual heat indicator
.
3 Residual heat can be used for melting and keeping food warm.
The induction cooking zones create the heat required for cooking directly
in the base of the cookware. The glass ceramic is merely heated by the residual heat of the cookware.
The cooling fan switches itself on and off depending upon the temperature
of the electronics.
8
Operating the appliance
3 Use the induction cooking zones with suitable cookware.
Switching the appliance on and off
Control panelDisplayPilot light
Switch onTouch for 2 seconds / lights up
Switch offTouch for 1 second / nonegoes out
3 After switching on, within approx. 10 seconds a heat setting or a function
must be set, otherwise the appliance automatically switches itself off.
Selecting the heat setting
Control panel Display
IncreaseTouch to /
DecreaseTouch to
Switch offTouch and at the same time
Locking/unlocking the control panel
The control panel, with the exception of the “On/Off” sensor field, can be
locked at any time in order to prevent the settings being changed e.g. by
wiping over the panel with a cloth.
Control panelDisplay
Switch onTouch (for 5 seconds)
Switch offTouch previously set heat setting
3 When you switch the appliance off, the locking function is automatically
switched off.
9
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Setting the child safety device
Step Control panel Display/Signal
1. Switch on the appliance
(Do not set a heat setting)
2.Touch until the signal soundsAcoustic signal
3.Touch
Appliance switches off. The child safety device is set.
Overriding the child safety device
The child safety device can be released in this way for a single cooking session; it remains activated afterwards.
StepControl panelDisplay/Signal
1. Switch on the appliance
2.Touch and at the same time / acoustic signal
Until the appliance is next switched off, it can used as normal.
Releasing the child safety device
Step Control panel Display/Signal
1.
Switch on the appliance
2.Touch until the signal soundsAcoustic signal
3.Touch
Appliance switches off. The child safety device is released.
