Electrolux EGG 666 Instruction Booklet
Gas hob
Mod. EGG 666
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
35679-2401
2
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental information
F
Guide to Use the instructions
About Installation, Cleaning and Manteinance
It is mandatory that all operations required for the
installation are carried out by a qualified or competent
person, in accordance with existing rules and regulations.
Disconnect the appliance from the electrical supply, before
carrying out any cleaning or manteinance work.
Ensure a good ventilation around the appliance. A poor air
supply could cause lack of oxygen.
Ensure that the gas supply complies with the gas type
stated on the identification label, placed near the gas
supply pipe.
Using a gas cooking appliance will produce heat and
moisture in the room which it has been installed in.
Ensure a continuous air supply, keeping the air vents in
good conditions or installing a cooker hood with
discharge tube.
In case of intensive or long time use of the appliance,
make the ventilation more efficient, by opening a
window or increasing the electric exhaust fan power.
Once you removed all packaging from the appliance,
ensure that it is not damaged and the electric cable is in
perfect conditions. Otherwise, contact your dealer before
proceeding with the installation.
The manufacturer disclaims any responsability should
all the safety measures not be carried out.
Under no circumstances should you attempt to repair the
appliance yourself. Repairs carried out by unexperienced
persons may cause injury or serious malfunctioning.
Refer to your local Service Centre. Always insist on
genuine spare parts.
Child Safety
This appliance has been designed to be operated by
adults and children under supervision. Young children
MUST NOT be allowed to tamper with the controls or play
near or with the oven.
Accessible parts of this appliance may become hot
when it is in use. Children should be
KEPT AWAY until it has
cooled.
English
These warnings are provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
Important Safety Information
During Operation
It is most important that this instruction book should be
retained with the appliance for future reference. Should
the appliance be sold or transferred, always ensure that
the book is left with the appliance in order that the new
owner can get to know the functions of the appliance and
the relevant warnings.
This appliance has been designed for non professional
purpose in private houses only. It is meant to cook edible
foodstuff only and
MUST NOT be used for any other purposes.
It is dangerous to alter the specification in any way.
For hygiene and safety reasons, this appliance should be
kept clean at all times. A build-up of fats or other foodstuff
could result in a fire.
Under no circumstances should you attempt to repair the
appliance yourself. Repairs carried out by unexperienced
persons may cause injury or serious malfunctioning.
Refer to your local Service Centre. Always insist on
genuine spare parts.
Ensure that all control knobs are in the OFF position when
not in use.
Should you connect any electrical tool to a plug near this
cooking appliance, ensure that electric cables are not in
contact with it and keep them far enough from the heated
parts of this appliance.
If the appliance is out of order, disconnect it from the
electric supply.
Environmental Information
After installation, please dispose of the packaging with due
regard to safety and the environment.
When disposing of an old appliance, make it unusable, by
cutting off the cable.
These instructions are only for the countries
stated by the symbol printed on the front cover
of this instruction book.
3
Once the hob has been installed, it is
important to remove any protective materials,
which were put on in the factory.
Hob burners control knobs
The hob burners control knobs are situated on the hob
right hand side. The symbols on the knobs mean that:
l there is no gas supply
there is maximum gas supply
there is minimum gas supply
Lighting the burners
For easier lighting, proceed before putting a
pan on the pan support.
To light a burner, push in the relevant knob and
turn it anticlockwise to "maximum position".
After lighting the flame, keep the knob pushed
down for about 5 seconds. This will allow the
"thermocouple" (Fig. 1, lett. C) to be heated and
the safety device to be switched off, otherwise the
gas supply would be interrupted.
Then, check the flame is regular and adjust it as
required.
If you cannot light the flame even after several
attempts, check the "cap" (Fig. 1, lett. A) is in the
correct position.
To put the flame out, turn the knob to the symbol l.
Always turn the flame down or put it out before
taking the pans off the burner.
Burner minimum maximum
diameter diameter
Big (rapid) 160 mm. 260 mm.
Medium (semirapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
Contents
For the User
Important Safety Information 2
Instruction for the User 3
Cleaning and Maintenance 4
Service and original spare parts 5
Instruction for the User
F
A - Burner cap
B - Ignition candle
C - Thermocouple
Using the hob correctly
To ensure maximum burner efficiency, it is strongly
recommended that you use only pots and pans with a
bottom fitting the size of the burner used, so that flame will
not spread beyond the bottom of the vessel.
It is also advisable, as soon as a liquid starts boiling, to
turn down the flame so that it will barely keep the liquid
simmering.
Use only pans or pots with flat bottom.
Carefully supervise cookings with fats or
oil, since these types of foodstuff can result
in a fire, if over-heated.
This appliance complies with the following
E.E.C. Directives:
- 73/23 - 90/683 (Low Voltage Directive);
- 89/336
(Electromagnetical Compatibility Directive);
- 93/68 (General Directives)
and subsequent modifications.
Fig. 1
FO 0204
MANUFACTURER:
ELECTROLUX HOME PRODUCTS ITALY S.p.A.
Viale Bologna 298 - 47100 FORLI (Italy)
For the Installer
Technical Data 6
Instruction for the Installer 6

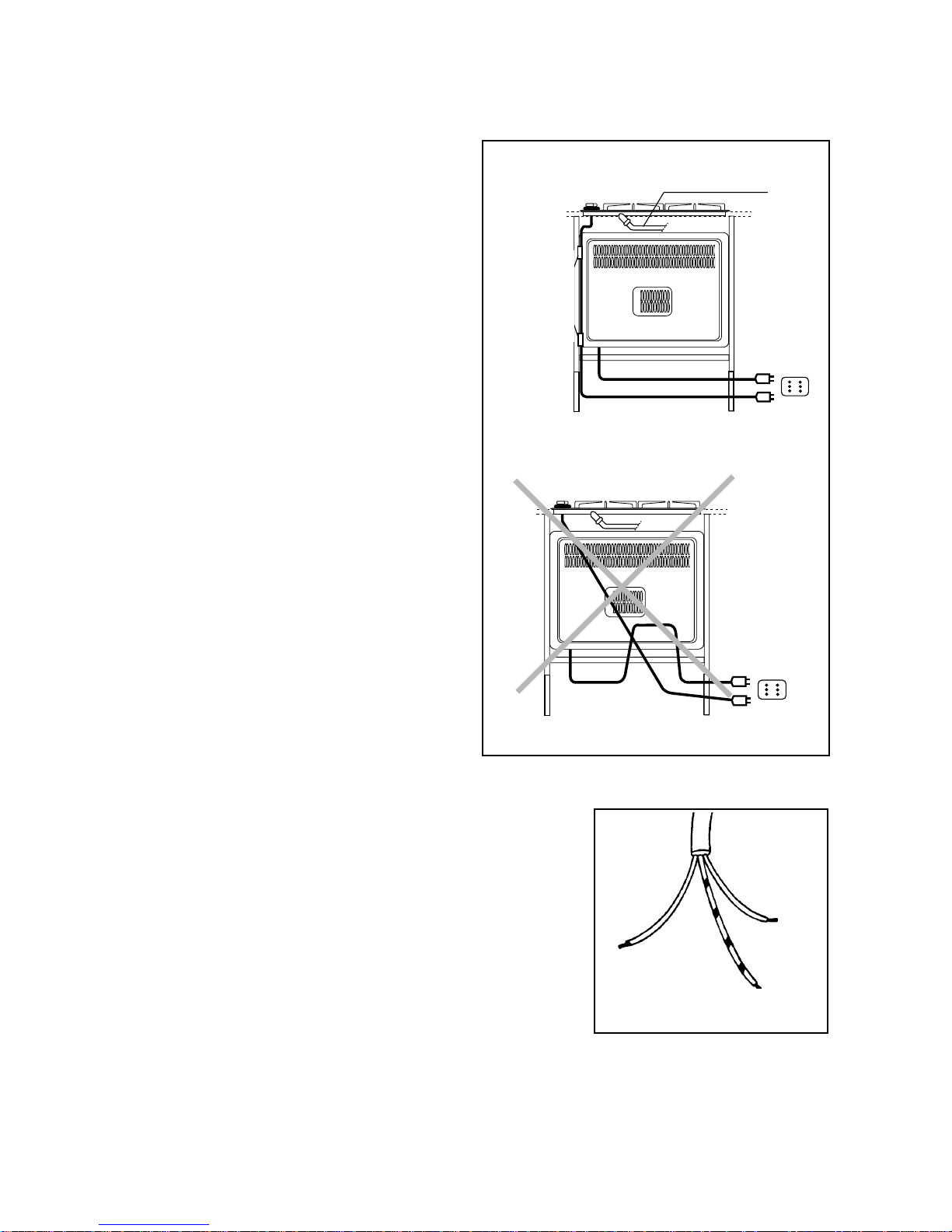

Electrical Connection 7

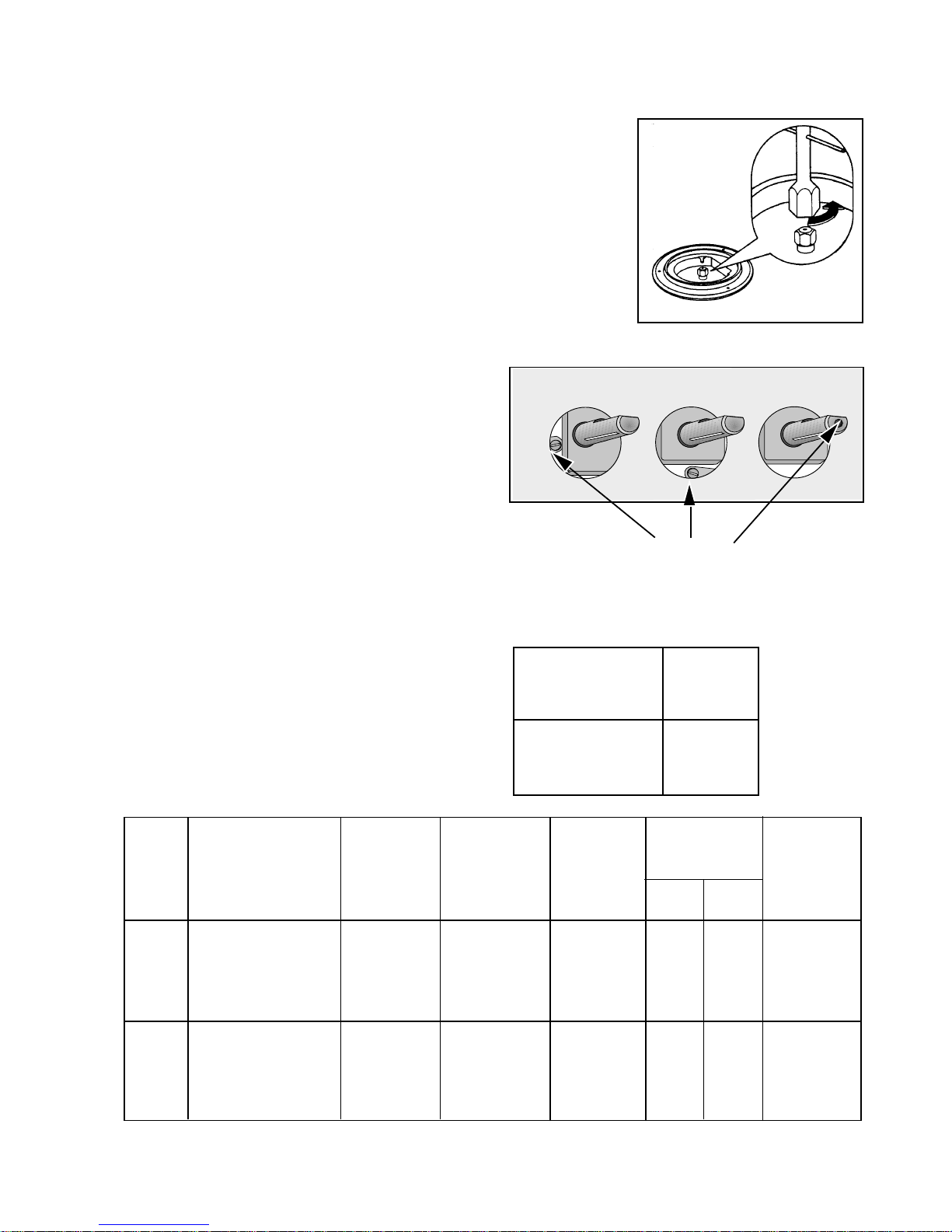

Adaptation to different types of gas 8

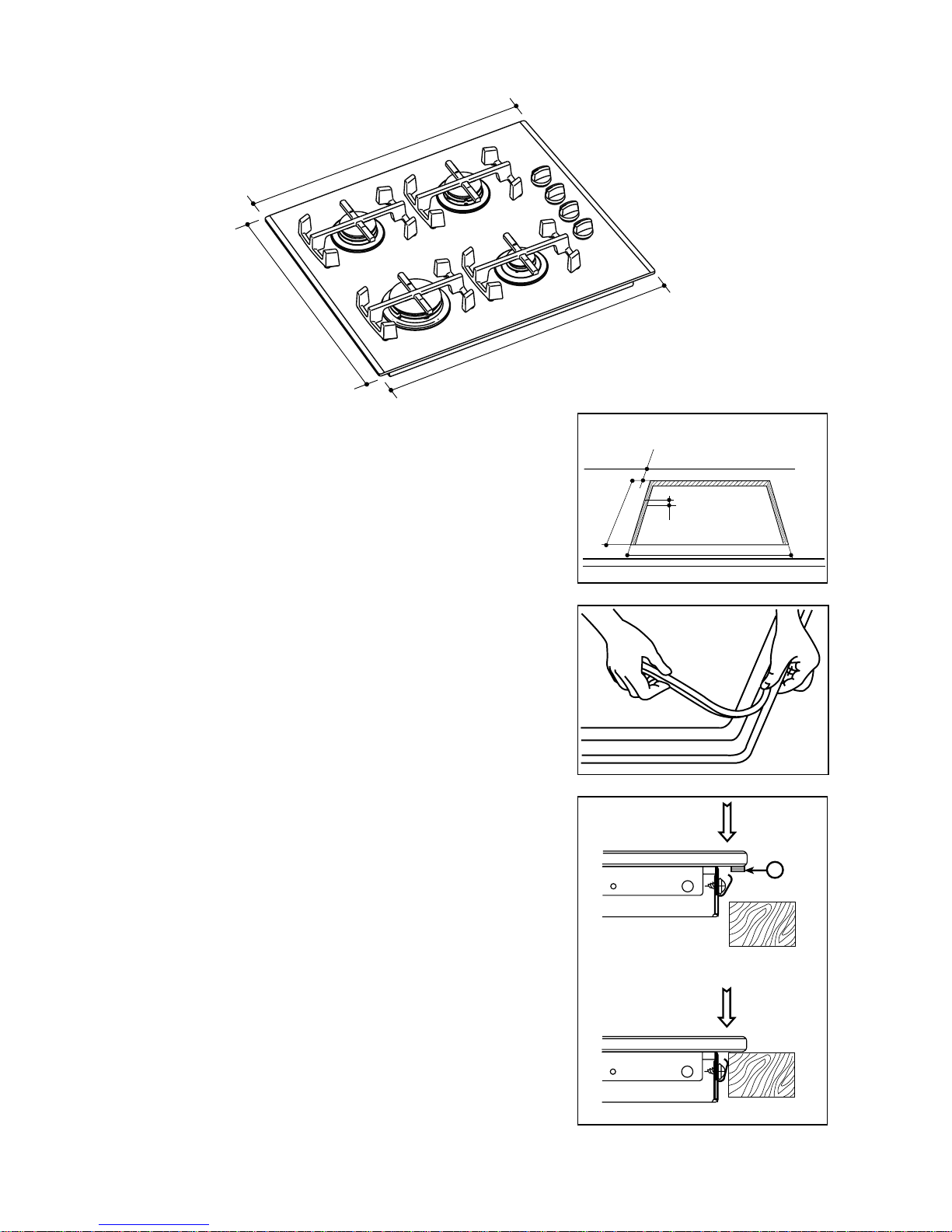

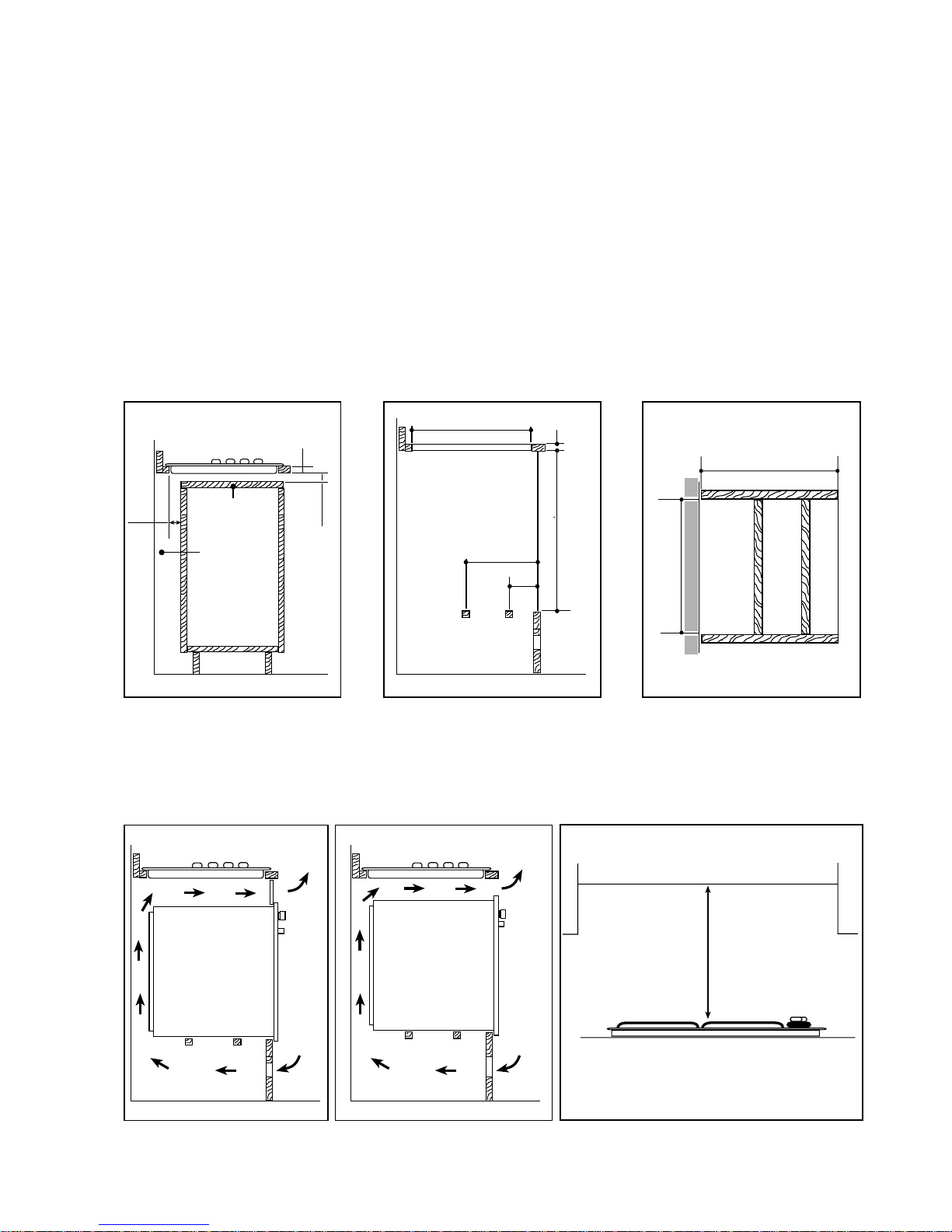

Building In 9
Possibilities for insertion 10
4
Cleaning and Maintenance
Disconnect the appliance from the electrical
supply, before carrying out any cleaning or
manteinance work.
General cleaning
Wash the enamelled components with warm soapy
water. Never use abrasive cleaners
Frequently wash the "caps" and the "crowns" with hot
soapy water, carefully taking away any built-up of food.
The cap and crown of each burner are secured
with two screws. To separate the two pieces, lift
the cap, turn it upside down, then undo the two
fixing screws as shown in Fig. 3
After a thorough cleaning, reassemble the two
parts and refit the cap in its correct position on
the burner.
Regularly wipe over the hob top using a soft cloth weel
wrung out in warm water to which a little liquid detergent
has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a proper cleaning product is used.
Pan supports
The pan supports are dishwasher proof.
If the marks are particularly difficult to remove, use
common non-abrasive cleaners or specific products.
Never use steel wool pads or acids.
Ignition candle
The electric ignition is obtained through a ceramic
"candle" and a metal electrode (Fig.1-lett. C). Keep
these components well clean, to avoid difficult lighting,
and check that the burner crown holes are not
obstructed.
Hob top
Regularly wipe over the hob top and the aluminium
frame using a soft cloth weel wrung out in warm water to
which a little liquid detergent has been added. Avoid the
use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a proper cleaning product is used.
Fig. 2
FO 2265
Fig. 3
