Electrolux EFT610B User Manual

INSTRUCTION BOOK
cod. 4329084 05 - 220300
FOR ELECTROLUX
COOKER HOOD
EFT 610
UK
Thank you for buying an Electrolux product.
Customer Care Department Electrolux 55 - 77 High Street Slough Berkshire Tel: 08705 950 950 SL1 1DZ Fax: 01635 42970
To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.
For the User
For the Installer
Important Safety Information
Your Appliance
Operating Instructions
The Controls To Operate Recirculation Extraction
Maintenance and Cleaning
External Cleaning Charcoal Filter To Replace the Charcoal Filter Synthetic Paper Grease Filter To Replace the Paper Grease Filter Changing the Light Bulb
Something Not Working
Service and Spare Parts
Guarantee Conditions
Installation Instructions
Technical Information
Electrical Connections
Electrical Requirements Electrical Connection
Installing the Cooker Hood

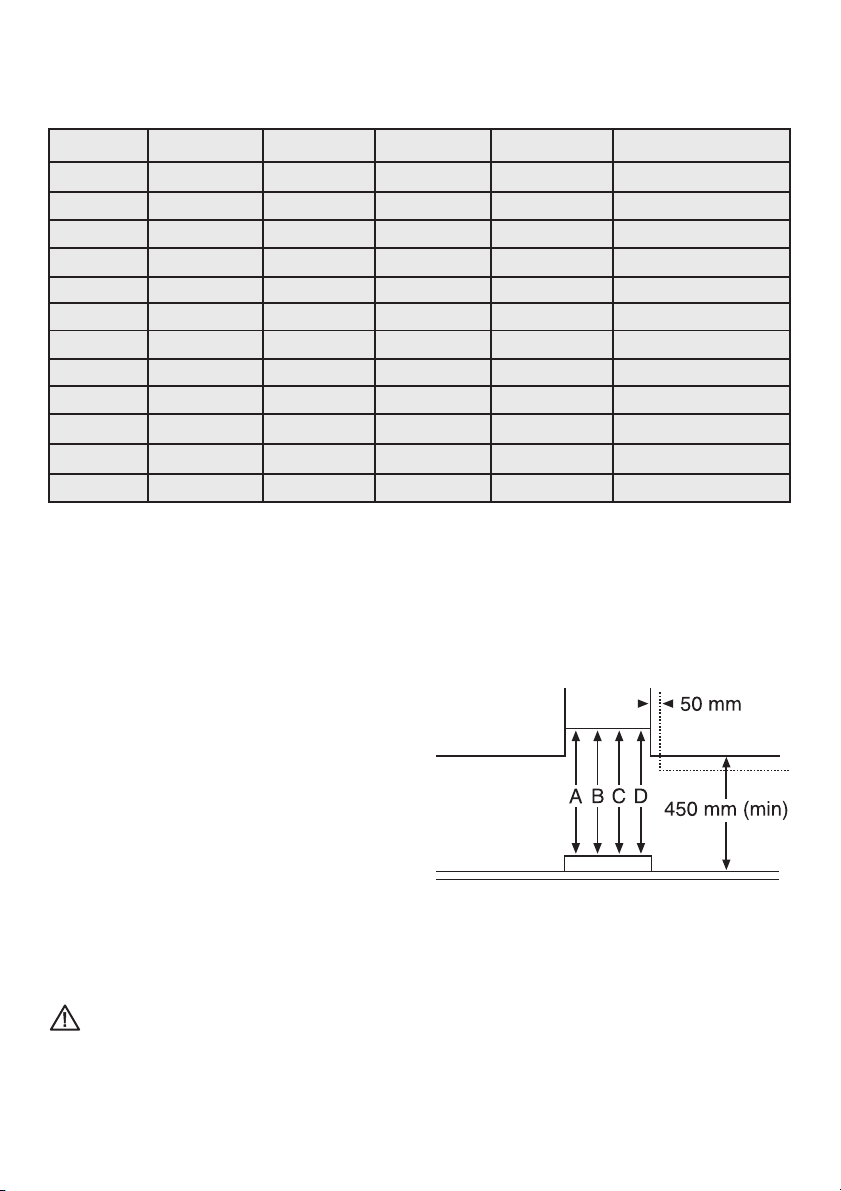

Installation Requirements Ducting Positioning Clearance Height Clearance Height above other Manufacturers Cooking Appliances Charcoal Filter Unpacking Fitting the Wall Brackets Venting To Fit the Ducting To Remove the Charcoal Filter Recirculation Wall Cabinet Fitting Fitting the Cooker Hood to the Wall Levelling
Service Force Centres
To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions
2
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a qualified electrician or a competent person.
• This hood must be installed in accordance with the installation instructions and all measurements must be adhered to.
• If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 and BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a cut-out device which will operate if the cooker hood is installed below the minimum height recommended under section ‘Clearance Height’, or if the motor becomes overheated. If the cut-out device is activated, switch off the fan motor and allow the cooker hood to cool. The cut-out device will reset itself when the fan motor has cooled significantly.
• It is dangerous to alter the specifications or modify this product in any way.
• When installed between adjoining wall cabinets the wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.
• Do not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as over-heated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• Do not leave naked flames under the hood.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper and charcoal filters are not replaced as recommended.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunction. Refer to your local Electrolux Service Force Centre. Always insist on genuine spare parts.
• If other types of flue or appliances are fitted ensure that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose.
3
OPERATING INSTRUCTIONS
This cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.
YOUR APPLIANCE
To obtain the best performance it is advisable to switch on the hood a few minutes before you start cooking and leave it running for approximately 15 minutes after finishing.
The cooker hood controls are located on the right hand side, in the front fascia panel above the glass visor.
The Controls
Fan ON/OFF/Speed Control
Position 0 - Off Position 1 - Low Position 2 - Normal Position 3 - Boost
Light ON/OFF control
0 - Off 1 - On
To Operate
Select the required fan speed and light if required.
4
The appliance can be installed to recirculate or extract contaminated air. The cooker hood is more effective when used in the extraction mode.
Recirculation
The cooker hood is supplied specified for use in the recirculation mode with the charcoal filter fitted.
In the recirculation mode contaminated air is passed through the charcoal filter to be purified and recirculated into the kitchen through a recirculation grille.
Extraction
In the extraction mode the contaminated air enters the cooker hood, passes through the grease filter and out through the ducting to the atmosphere.
When the ducting position is selected the charcoal filter is not required.
Never do flambé cooking under this cooker hood.
Take extra care when frying and never leave frying pans unattended during use as over­heated fats and oils might catch fire.
Do not leave naked flames under the cooker hood.
Ensure the visor is open when using the hob even if the fan on the hood is not switched on.
Ensure heating areas on your hob are covered with pots and pans when using the hob and cooker hood simultaneously.
5
MAINTENANCE AND CLEANING
Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.
The cooker hood must be kept clean, a build up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm soapy water using a mild detergent.
Always wear protective gloves when cleaning the hood.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when cleaning particularly around the control panel.
Charcoal Filter
The charcoal filter cannot be cleaned. The filter should be replaced at least every three months or more frequently if the hood is used more than three hours per day.
To Remove/Replace the Charcoal Filter

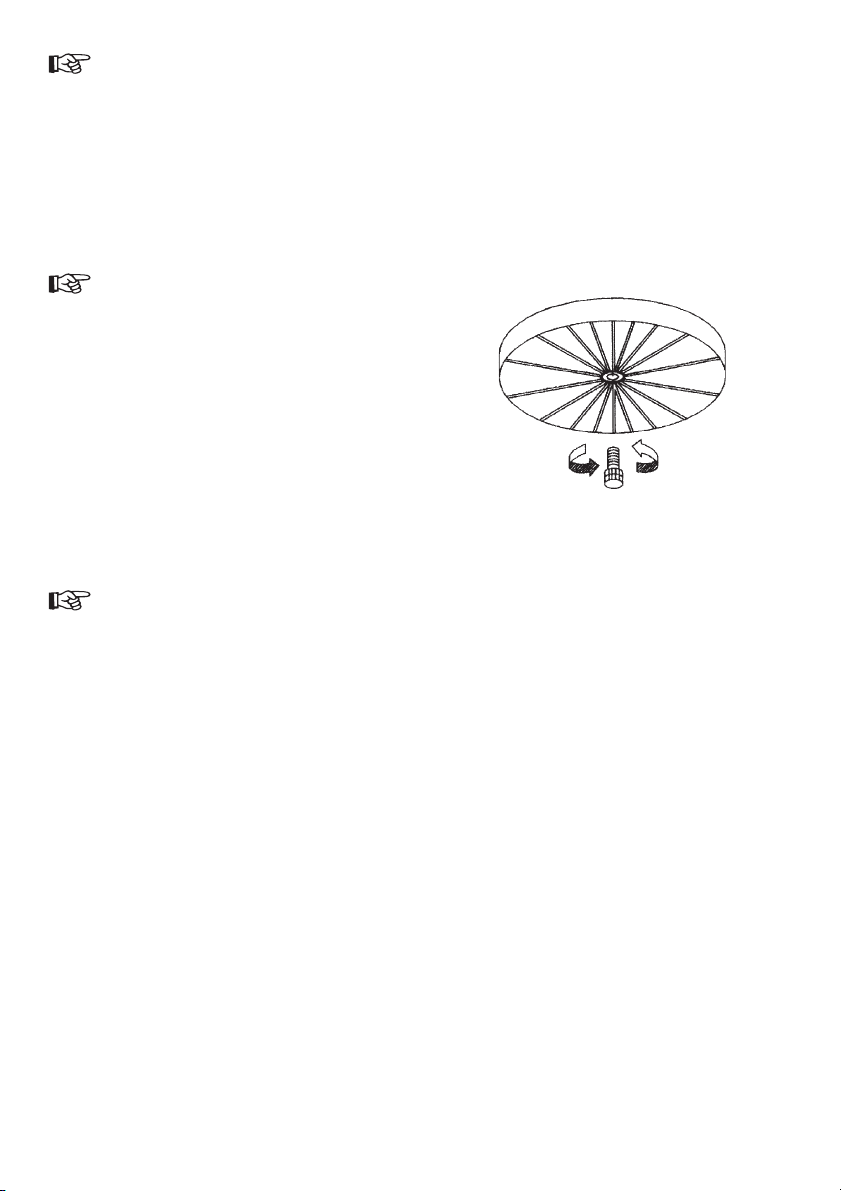

1. Open the visor and remove the metal inlet
grille.
2. Carefully remove the screw from the centre of
the charcoal filter, while holding the filter securely.
3. Clean the metal inlet grille and motor support
before replacing the charcoal filter.
6
Synthetic Paper Grease Filter
The filter has saturation indicators, which are small squares made from a series of dots. When the white paper inside the squares becomes saturated with grease the coloured dots start to run and spread across the paper, indicating that the filter has reached saturation point and must be replaced.
The synthetic paper grease filter cannot be cleaned.
It must not be washed.
To Replace the Synthetic Paper Grease Filter
1. Open the glass visor.
2. Press inwardly on the two slide catches and
the grille will open from the front.
3. Slide the right edge of the grille forward until it
clears the guide and then unhook the left hinge pin.
4. Carefully ease out the metal wire retaining
clips.
5. Clean the metal grille and clips before
replacing the filter.
Handle the wire clips with care and keep away from children as they have sharp points.
This appliance can be a fire hazard if the grease and charcoal filters are not cleaned and replaced as recommended.
Changing the Light Bulb
If a lamp fails to function check that the bulb is screwed into the holder.
If bulb failure has occurred then it should be replaced with a 220-240V 40W clear cylindrical shape bulb with a small E14 screw thread.
Charcoal filters, grease filters and light bulbs can be obtained from your local Service Force
7
