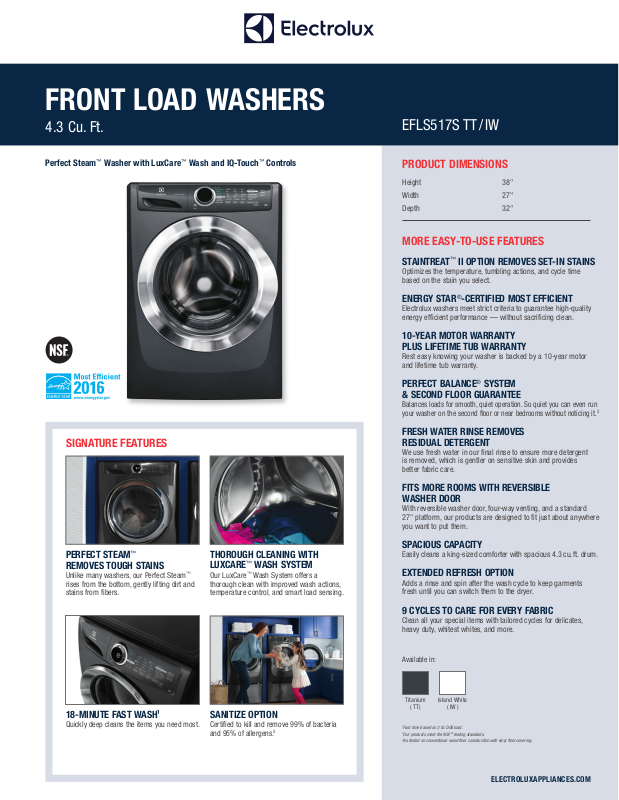

Page 1

FRONT LOAD WASHERS

4.3 Cu. Ft.

Perfect Steam™ Washer with LuxCare™ Wash and IQ-Touch™ Controls

EFLS517S TT / IW

PRODUCT DIMENSIONS

Height 38"

Width 27"

Depth 32"

MORE EASY-TO-USE FEATURES

STAINTREAT™ II OPTION REMOVES SET-IN STAINS

Optimizes the temperature, tumbling actions, and cycle time based on the stain you select.

ENERGY STAR®-CERTIFIED MOST EFFICIENT

Electrolux washers meet strict criteria to guarantee high-quality energy efficient performance — without sacrificing clean.

10-YEAR MOTOR WARRANTY PLUS LIFETIME TUB WARRANTY

Rest easy knowing your washer is backed by a 10-year motor and lifetime tub warranty.

PERFECT BALANCE® SYSTEM & SECOND FLOOR GUARANTEE

Balances loads for smooth, quiet operation. So quiet you can even run your washer on the second floor or near bedrooms without noticing it.

SIGNATURE FEATURES

PERFECT STEAM™ REMOVES TOUGH STAINS

Unlike many washers, our Perfect Steam™ rises from the bottom, gently lifting dirt and stains from fibers.

18-MINUTE FAST WASH

Quickly deep cleans the items you need most.

THOROUGH CLEANING WITH LUXCARE™ WASH SYSTEM

Our LuxCare™ Wash System offers a thorough clean with improved wash actions, temperature control, and smart load sensing.

SANITIZE OPTION

Certified to kill and remove 99% of bacteria and 95% of allergens.

FRESH WATER RINSE REMOVES RESIDUAL DETERGENT

We use fresh water in our final rinse to ensure more detergent is removed, which is gentler on sensitive skin and provides better fabric care.

FITS MORE ROOMS WITH REVERSIBLE WASHER DOOR

With reversible washer door, four-way venting, and a standard 27" platform, our products are designed to fit just about anywhere you want to put them.

SPACIOUS CAPACITY

Easily cleans a king-sized comforter with spacious 4.3 cu. ft. drum.

EXTENDED REFRESH OPTION

Adds a rinse and spin after the wash cycle to keep garments fresh until you can switch them to the dryer.

9 CYCLES TO CARE FOR EVERY FABRIC

Clean all your special items with tailored cycles for delicates, heavy duty, whitest whites, and more.

Available in:

Titanium

Fast time based on 3 lb. DOE load.

Our products meet the NSF® testing standards.

As tested on conventional wood floor construction with vinyl floor covering.

( TT )

Island White

( IW )

ELECTROLUXAPPLIANCES.COM

Page 2

FRONT LOAD WASHERS

EFLS517S TT / IW

27" FRONT LOAD WASHER

Capacity D.O.E.

FEATURES

Pull-to-Open Door

™

Controls

IQ-Touch Perfect Steam Balance System Sound System Lighting Pull-to-Open Dispenser Drawer Wash System Integral Water Heater Wash Drum Automatic Temperature Control Automatic Water Level Adjustment Auto Prewash Detergent Dispenser (Liquid / Powder) Auto Bleach Dispenser (Liquid Only) Auto Detergent Dispenser (Liquid / Powder) Auto Fabric Softener Dispenser (Liquid Only) Tumble Speed (RPM) Spin Speed (RPM) Reversible Door Adjustable Leveling Legs ENERGY STAR NSF® Certified / Sanitize

CYCLES

Heavy Duty, Whitest Whites, Normal, Casual, Colors, 18-Min. Fast Wash, Delicates, Rinse & Spin, Clean Washer

OPTIONS

Wash / Rinse Temperature Combinations Temperature Selections Add Steam Spin Speed Selections Soil Level Selections Delay Start End-of-Cycle Chime

INSTALLATION OPTIONS

Freestanding, Under Counter *, Stacked (Under Dryer), Pedestal, Hidden (In Closet), Second Floor

ACCESSORIES

Lu xury-Glide® Pedestal with Spacious Storage Drawer–

Dryer Stacking Kit – PN # STACKIT7X Drain Hose Extension Kit – PN # 137098000

SPECIFICATIONS

Color – Titanium Island White Power Supply Location Water Inlet Location Voltage Rating Connected Load (kW Rating) @ 120 Volts Watts @ 120 Volts Amps @ 120 Volts Shipping Weight (Approx.)

* Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.

‡

An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (NFPA 70) and local codes & ordinances.

NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

™

Wash System

Titanium – PN # EPWD157STT Island White – PN # EPWD157SIW

‡

4.3 Cu. Ft.

Yes Yes Yes Perfect Balance Luxury-Quiet Luxury-Design Yes

™

LuxCare Yes Stainless Steel Yes Yes Yes Yes Yes Yes Variable 1,300 Yes Yes Most Efficient Yes

7 5 Yes 5 5 Yes On / Off

Yes

Optional Optional

TT IW Top Right Rear Top Left Rear 120V / 60 Hz

1.2 1,200 12 230 Lbs.

™

PRODUCT DIMENSIONS

Height (without 15" Pedestal)

(with 15" Pedestal) Width Depth (to Center of Arc Not Including Hose)

(with Door 90° Open)

38" 53-1/4"

27" 32"

53-1/2"

Electrolux Major Appliances, N.A.

USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca

High standards of quality at Electrolux Home Products, Inc.

mean we are constantly working to improve our products.

We reserve the right to change specifications or

discontinue models without notice.

Page 3

FRONT LOAD WASHERS

Front Load Washer - EFLS517S & EFLS617S

(steam & reversible door)

Electrolux

EFLS517S TT / IW

Front

27"

38"

(75

3/4" min.

for stacked

units)

15" Pedestal Drawer Installation

Elevates washer height to 53 For detailed pedestal installation, refer to instructions included with pedestal or on web. Pedestal Installation may require modified utility hookup locations. For details, refer to Product Installation Guide on web.

27"

Front

1/2"

Side

Overall depth with drawer fully extended – 42

/2"

Built-In Installations

0"min. 0"min. 0"min.* 1"min.

1/4".

Front

15"

*Installation with steam dryer requires additional 3/4" hose clearance.

Closet Installation: If washer and dryer are installed in same closet, door(s) MUST be vented with 120 sq. in. minimum louvered

1/4"

opening, equally divided, located 3" from top and bottom of door. Louvered door(s) with equivalent air openings for full-length of door is acceptable. Air openings MUST remain unobstructed with door(s) installed.

32"

Left

Reversible

Door Swing

Vented door

Side

1/2"

35"

22"

Installation Clearances: Washer can be built in alone or with dryer (side by side or stacked) in closet, recess or

under counter installation with 0" minimum clearance required around sides and back of

unit(s). To achieve 0" minimum rear clearance when installed with dryer, dryer MUST be vented

straight back or with quick-turn 90° elbow.

Steam dryer requires additional 3/4" steam hose

clearance at back of unit(s). Installation of closet door(s) requires additional 1" between front of unit(s) and door(s). Location of plumbing, exhaust and utility hookups MUST be considered when planning any built-in installation. For additional installation details,

refer to Product Installation Guides on web.

Under Counter Installation: Installation of washer alone or side by side

with dryer under counter, requires custom-built countertop and/or cabinetry to accommodate unit(s) height.

Stacking Units:

Stacking dryer above washer requires use of optional Stacking Kit (PN# STACKIT7X) with modified utility hookup locations for dryer. For complete installation details, refer to instructions included with Stacking Kit or on web.

Rear

Drain

H/C

hose

(approx.

59")

minimum clearance

321/2"

1/2"

351/2"

1/2"

120V

Power

cord

(approx.

60")

Water

inlets

Front Load Washer Specifications

•

Product Weight – 213 Lbs. / Shipping Weight – 230 Lbs.

•

(Do not use same circuit as dryer.)

•

Voltage Rating – 120V / 60Hz

•

Connected Load (kW Rating) @ 120 Volts = 1.2 kW

•

Amps @ 120V = 12A

•

Equipped with 120V 3-wire power supply cord, approx. 60" long.

•

Always consult local and national electric & plumbing codes.

•

To maximize detergent effectiveness, ambient temperature should never be below 60°F.

•

Can be installed alone, with or without optional 15" pedestal drawer, or stacked beneath matching Electrolux Dryer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions

included with optional pedestal or stacking kit or on web.)

•

Can be built in alone or with matching Electrolux Dryer (side by side or stacked) in closet, recess or under counter installation with 0" minimum clearance required around sides and back of unit(s). To achieve 0" minimum rear clearance when installed with dryer, dryer MUST be vented straight back or with quick-turn 90° elbow. Steam dryer requires additional 3/4" steam hose clearance at back of unit(s). Installation of closet door(s) requires additional 1" minimum clearance between front of unit(s) and door(s). Location of plumbing, exhaust and utility hookups MUST be considered when planning any built-in installation.

•

Under-counter installation requires custom-built countertop and/or cabinetry to accommodate unit(s) height.

•

Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored.

•

For garage installation, washer MUST be located minimum 18" above floor.

•

Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface.

•

Leveling legs supplied to level washer properly and reduce excessive noise and vibration.

•

H / C water faucets MUST be installed within 42" of washer’s water inlet and MUST be 3/4" garden hose type, to connect to 48-1/2" inlet hoses.

•

Water pressure MUST be between 30 and 120 psi with NOT more than 10 psi pressure difference between hot and cold.

•

Drain required with standpipe diameter of 1-1/4" min. and height of 24" min. / 96" max. above floor, capable of eliminating 17 gallons per minute. Attached 59" drain hose can reach 79"-high standpipe.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•

Pedestal Drawers – Titanium (PN # EPWD157STT), Island White (PN # EPWD157SIW).

•

Dryer Stacking Kit – (PN # STACKIT7X).

•

Drain Hose Extension Kit – (PN # 137098000).
