Electrolux EFC 9670-6670, EFC 9671-6671, EFC 9673 User Manual

EFC 9670-6670

EFC 9671-6671

EFC 9673

User manual

Manual de instrucciones

Manual de instruções

electroluxelectrolux

electrolux

safety warnings

33

3

GB

WW

W

elcome to the world of Electrelcome to the world of Electr

elcome to the world of Electr

oluxolux

olux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!

44

4

electr electr

electr

oluxolux

olux contents

GB

Contents

Safety warnings ................................ 5

Description of the Appliance ............. 7

Control Panel.................................... 8

Maintenance and Care ................... 14

Special accessories ........................ 19

Something Not Working.................. 19

Installation ...................................... 20

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance.

General information and tips.

Environmental information.

electroluxelectrolux

electrolux

safety warnings

55

5

GB

Safety warnings

For the userFor the user

For the user

• The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

• Always cover lighted elements, to prevent excess heat from damaging the appliance. In the case of oil, gas and coal fired cookers it is essential to avoid open flames.

• Also, when frying, keep the deep frying pan on the cooker top/cooker under careful control.

• The hot oil in the frying pan might ignite due to overheating.

• The risk of self-ignition increases when the oil being used is dirty.

• It is extremely important to note that overheating can cause a fire.

•

Never carry out any flambé cookingNever carry out any flambé cooking

Never carry out any flambé cooking under the hood.under the hood.

under the hood.under the hood.

under the hood.

•

Always disconnect the unit frAlways disconnect the unit fr

Always disconnect the unit fr

om theom the

om the

power supply beforpower supply befor

power supply befor

e carrying oute carrying out

e carrying out

any work on the hood, includingany work on the hood, including

any work on the hood, including rr

rr

r

eplacing the light bulbeplacing the light bulb

eplacing the light bulb (take the cartridge fuse out of the fuse holder or switch off the automatic circuit breaker).

•

It is very important to clean the hoodIt is very important to clean the hood

It is very important to clean the hood and rand r

and rand r

and r

eplace the filter at theeplace the filter at the

eplace the filter at the

rr

r

ecommended intervals. Failurecommended intervals. Failur

ecommended intervals. Failur

e toe to

e to

do so could cause grdo so could cause gr

do so could cause gr

ease depositsease deposits

ease deposits

to build up, rto build up, r

to build up, r

esulting in a firesulting in a fir

esulting in a fir

e hazare hazar

e hazar

d.d.

d.

• The appliance is not intended for use by young children or infirm persons without supervision.

• Older children must be supervised if using the appliance.

• Young children should be supervised to ensure that they do not play with the appliance.

••

•

WW

W

ARNING - ARNING -

ARNING - Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance

may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

66

6

electr electr

electr

oluxolux

olux safety warnings

GB

For the installerFor the installer

For the installer

• When used as an extractor unit, the hood must be fitted with a hose having preferably the same diameter as the outlet hole. Attention: Attention:

Attention: Attention:

Attention: The hose is not supplied and must be purchased separately.

••

•

When installing the hood, make surWhen installing the hood, make sur

When installing the hood, make sur

ee

e

you observe the following minimumyou observe the following minimum

you observe the following minimum distance frdistance fr

distance frdistance fr

distance fr

om the top edge of theom the top edge of the

om the top edge of the

cooking hob/ring surfaces:cooking hob/ring surfaces:

cooking hob/ring surfaces: electric cookerselectric cookers

electric cookerselectric cookers

electric cookers

500 mm500 mm

500 mm

gas cookersgas cookers

gas cookers

650 mm650 mm

650 mm If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

• The national Standard on fuelburning systems specifies a maximum depression of 0.04 mbar in such rooms.

• The air outlet must not be connected to chimney flues or combustion gas ducts. The air outlet must under no circumstances be connected to ventilation ducts for rooms in which fuel-burning appliances are installed.

• The air outlet installation must comply with the regulations laid down by the relevant local authorities.

• When the unit is used in extraction mode, a sufficiently large ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole.

• National and regional building regulations impose a number of restrictions on using hoods and fuelburning appliances connected to a chimney, such as coal or oil roomheaters and gas fires, in the same room.

• Hoods can only be used safely with appliances connected to a chimney if the room and/or flat (air/environment combination) is ventilated from outside using a suitable ventilation hole approximately 500-600 cm

2

large to avoid the possibility of a depression being created during operation of the hood.

• If you have any doubts, contact the relevant controlling authority or building inspector’s office.

• Since the rule for rooms with fuel burning appliances is “outlet hole of the same size as the ventilation hole”, a hole of 500-600 cm2, which is to say a larger hole, could reduce the performance of the extractor hood.

• If the hood is used in its recirculation mode, it will operate simply and safely in the above conditions without the need for any of the aforementioned measures.

• When the hood is used in its extraction mode, the following rules must be followed to obtain optimal operation:

- short and straight outlet hose

- keep bends in outlet hose to a

minimum

- never install the hoses with an

acute angle, they must always follow a gentle curve.

- keep the hose as large as possible

(preferably the same diameter as the outlet hole).

- the length should be no more than:

3 metres with one 90° bend 2 metres with two 90° bends Bends of more than 90° will reduce the efficiency of the hood and reduce the airflow.

• Failure to observe these basic instructions will drastically reduce the performance and increase the noise levels of the extractor hood.

electrolux electrolux

electrolux description of the appliance

77

7

GB

Description of the Appliance

•

The cooker hood is designed toThe cooker hood is designed to

The cooker hood is designed to extract unpleasant odours frextract unpleasant odours fr

extract unpleasant odours frextract unpleasant odours fr

extract unpleasant odours fr

om theom the

om the

kitchen, it will not extract steam.kitchen, it will not extract steam.

kitchen, it will not extract steam.

• The hood is supplied as an extractor unit and can also be used with a recirculation mode by fitting a charcoal filter.

Extraction modeExtraction mode

Extraction mode

• In this mode fumes are extracted to the outside via a

hosehose

hose connected to

the

coupling ringcoupling ring

coupling ring.

• In order to obtain the best performance the hose should have a diameter equal to the outlet hole.

RecirRecir

Recir

culation modeculation mode

culation mode

• The air is filtered through a

charchar

char

coalcoal

coal

filterfilter

filter and returned to the kitchen.

• You will need an original charcoal filter for the recirculation mode. (See Special Accessories).

Coupling ringCoupling ring

Coupling ring

88

8

electr electr

electr

oluxolux

olux control panel

GB

Control Panel

• Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking. The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared.

•

ONLONL

ONL

Y EFC 9671-6671-9673Y EFC 9671-6671-9673

Y EFC 9671-6671-9673

models: models:

models: The hood can also be commanded from the control panel or the remote control. (the remote control is a special accessory and is ordered separately).

•

CorrCorr

Corr

ect ventilation:ect ventilation:

ect ventilation: If the cooker hood is to work correctly there must be an under pressure in the kitchen. It is important to keep the kitchen windows closed and have a window in an adjacent room open.

• The control switches are located on the hood’s front panel

electrolux electrolux

electrolux control panel

99

9

GB

Light switchLight switch

Light switch

(ON/OFF)(ON/OFF)

(ON/OFF)

ON/OFF motorON/OFF motor

ON/OFF motor speed keyspeed key

speed keyspeed key

speed key

Push-button 2Push-button 2

Push-button 2 (ON/OFF)(ON/OFF)

(ON/OFF)(ON/OFF)

(ON/OFF)

Push-button 1Push-button 1

Push-button 1

(ON/OFF)(ON/OFF)

(ON/OFF)

Push-button 3Push-button 3

Push-button 3

(ON/OFF)(ON/OFF)

(ON/OFF)

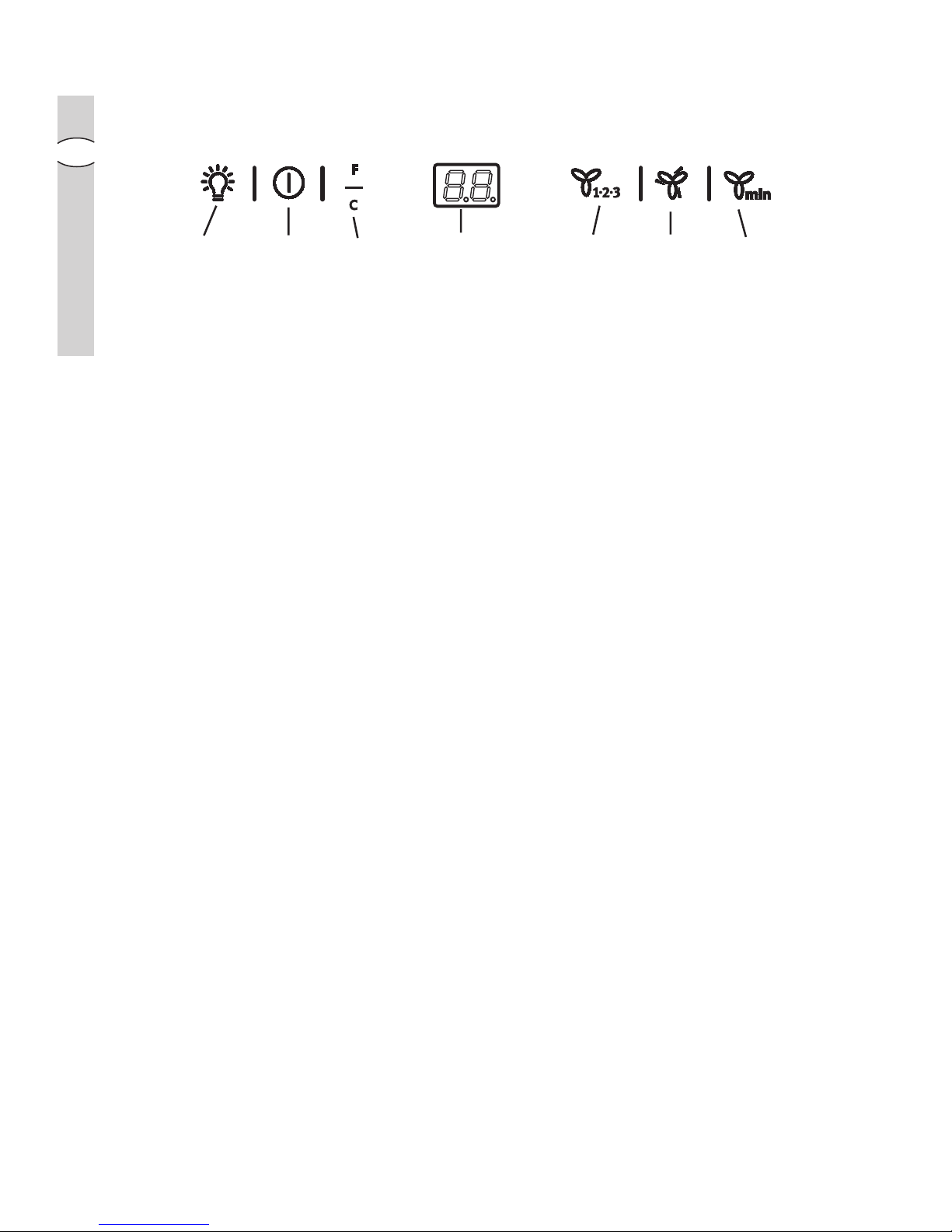

Model EFC 9670-6670Model EFC 9670-6670

Model EFC 9670-6670

•

Light switch (ON/OFF):Light switch (ON/OFF):

Light switch (ON/OFF): this switch is used to turn the light fitted in the hood on and off.

•

ON/OFF motor speed key:ON/OFF motor speed key:

ON/OFF motor speed key: serves to enable and disenable the speed selection keys.

•

Push-button 1 (ON/OFF):Push-button 1 (ON/OFF):

Push-button 1 (ON/OFF): used to set the fan to speed 1.

•

Push-button 2 (ON/OFF):Push-button 2 (ON/OFF):

Push-button 2 (ON/OFF): used to set the fan to speed 2.

•

Push-button 3 (ON/OFF):Push-button 3 (ON/OFF):

Push-button 3 (ON/OFF): used to set the fan to speed 3.
