Electrolux EC4231AOW User Manual
EC4231AOW
EN Chest Freezer User Manual 2
FR Congélateur coffre Notice d'utilisation 16
IT Congelatore a pozzo Istruzioni per l’uso 32
www.electrolux.com2
CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. INSTALLATION.................................................................................................. 6
4. OPERATION.......................................................................................................7
5. DAILY USE......................................................................................................... 8
6. HINTS AND TIPS............................................................................................... 9
7. CARE AND CLEANING....................................................................................10
8. TROUBLESHOOTING......................................................................................11
9. TECHNICAL DATA...........................................................................................14
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
ENGLISH 3
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• This appliance may be used by children between 3
and 8 years of age and persons with very extensive
and complex disabilities, if they have been properly
instructed.
• Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
• This appliance is intended to be used in household
and similar applications such as:
– Farm houses; staff kitchen areas in shops, offices
and other working environments
– By clients in hotels, motels, bed and breakfast and
other residential type environments
• WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
• WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
www.electrolux.com4
• WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
• Do not use water spray and steam to clean the
appliance.
• Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate
around the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not expose the appliance to the
rain.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
WARNING!
When positioning the
appliance, ensure the supply
cord is not trapped or
damaged.
WARNING!
Do not use multi-plug
adapters and extension
cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
ENGLISH 5
• Follow the storage instructions on the
packaging of frozen food.
• Wrap the food in any food contact
material before putting it in the freezer
compartment.
2.4 Internal lighting
WARNING!
Risk of electric shock.
• The type of lamp used for this
appliance is for household appliances
only. Do not use it for house lighting.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
The appliance contains flammable
gas, isobutane (R600a), a natural gas
with a high level of environmental
compatibility. Be careful not to cause
damage to the refrigerant circuit
containing isobutane.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
www.electrolux.com6
municipal authority for information on
how to discard the appliance
correctly.
3. INSTALLATION
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
WARNING!
Refer to Safety chapters.
3.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Ambient temperature
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
If the ambient temperature is
lower than +10°C there is a
risk for condensation on the
surface. This gives an
increased risk for corrosion
which is not covered by
warranty. To minimize the
risk please be sure to clean
this condensation and
provide free air circulation
around the appliance.
The plug should be
accessible after installation.
3.2 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.
3.3 Ventilation requirements
The airflow behind the appliance must be
sufficient.
1. Put the freezer in horizontal position
on a firm surface. The cabinet must
be on all four feet.
2. Make sure that the clearance
between the appliance and rear wall
is 5 cm.
3. Make sure that the clearance
between the appliance and the sides
is 5 cm.
4. OPERATION
1 2 3 4

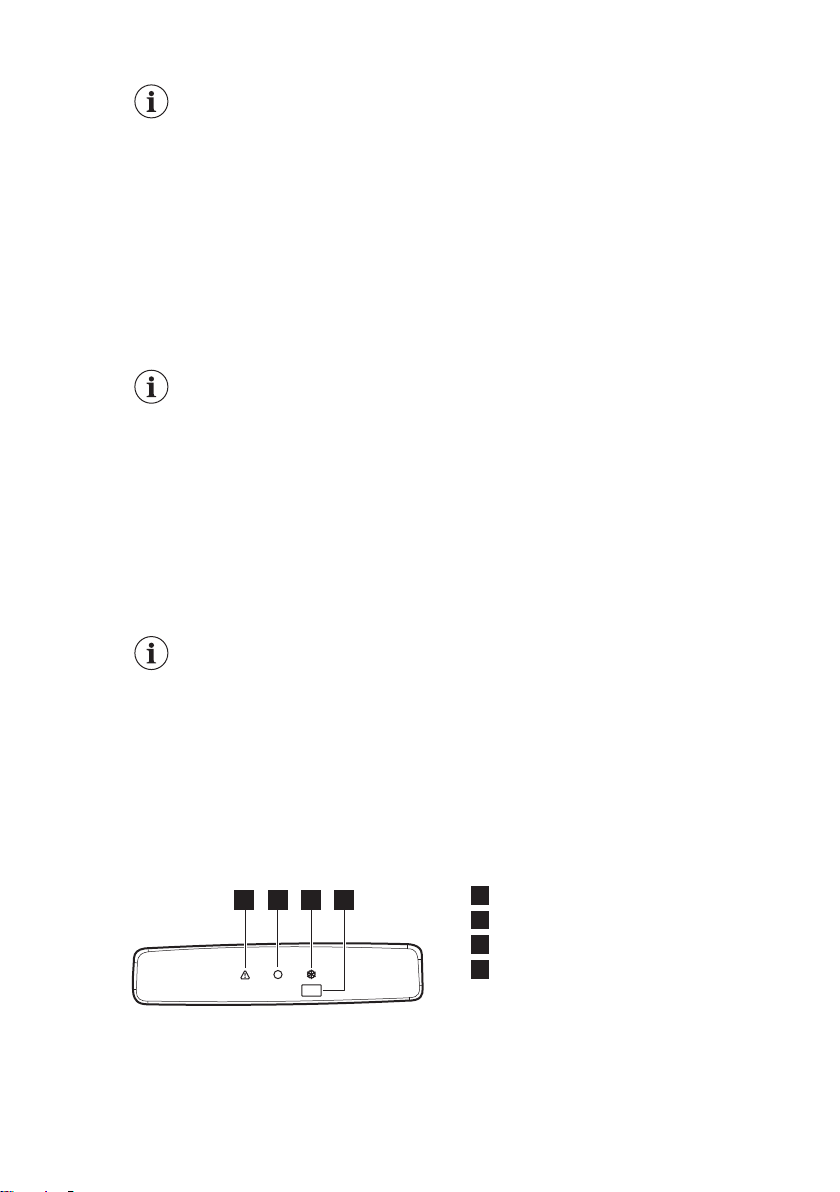

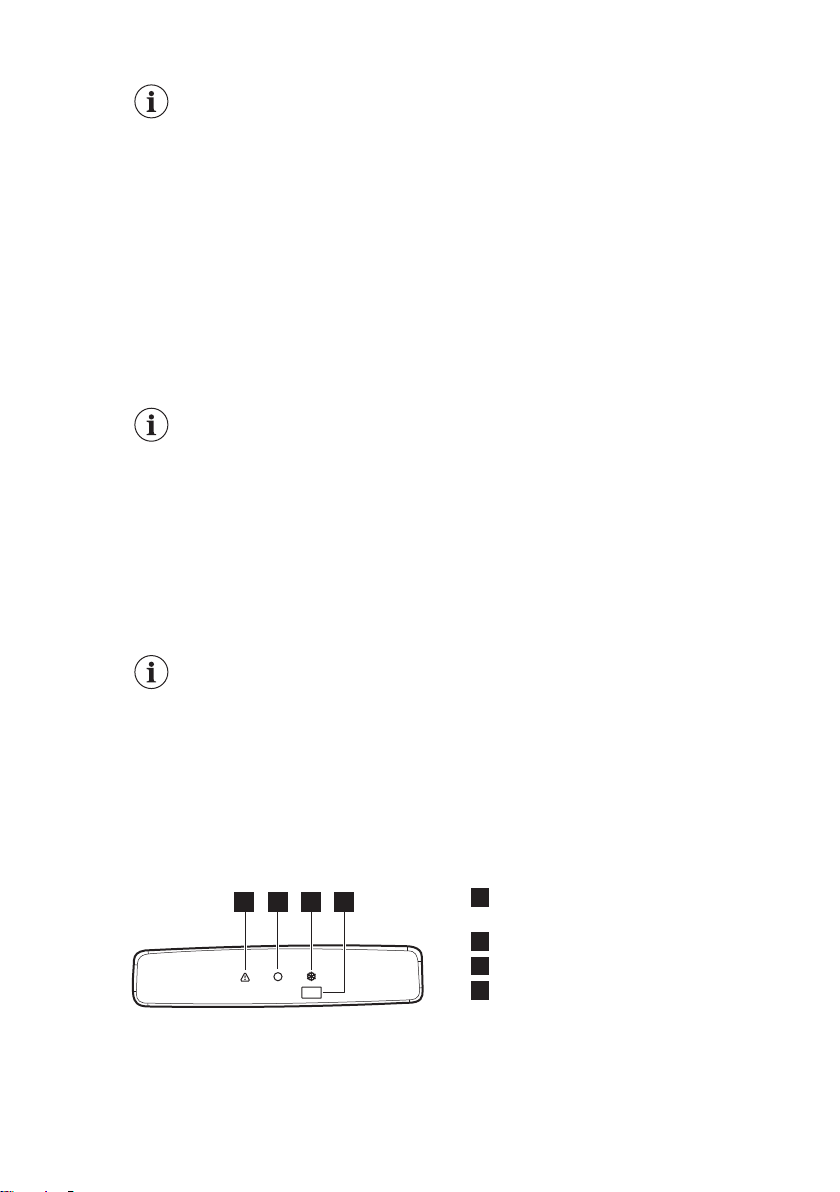

4.1 Control panel
ENGLISH 7
High temperature alarm light
1
Power indicator light
2
FastFreeze light
3
FastFreeze switch and Alarm reset
4
4.2 Switching on
1. Insert the plug into the wall socket.
2. Turn the Temperature regulator
clockwise to a medium setting.
The power indicator light will light up.
If the temperature inside the
appliance is too high the
Alarm light will blink. Active
the FastFreeze function.
4.3 Switching off
Turn the Temperature regulator to the
OFF position.

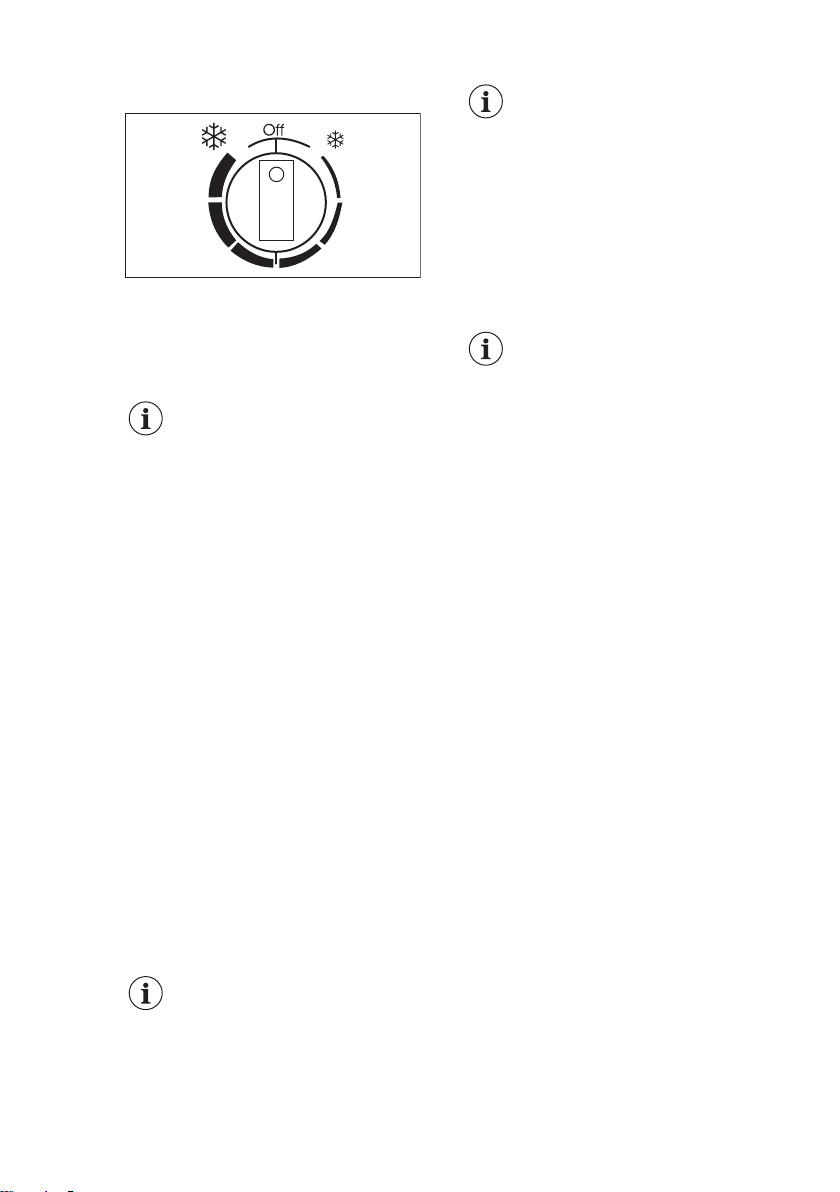

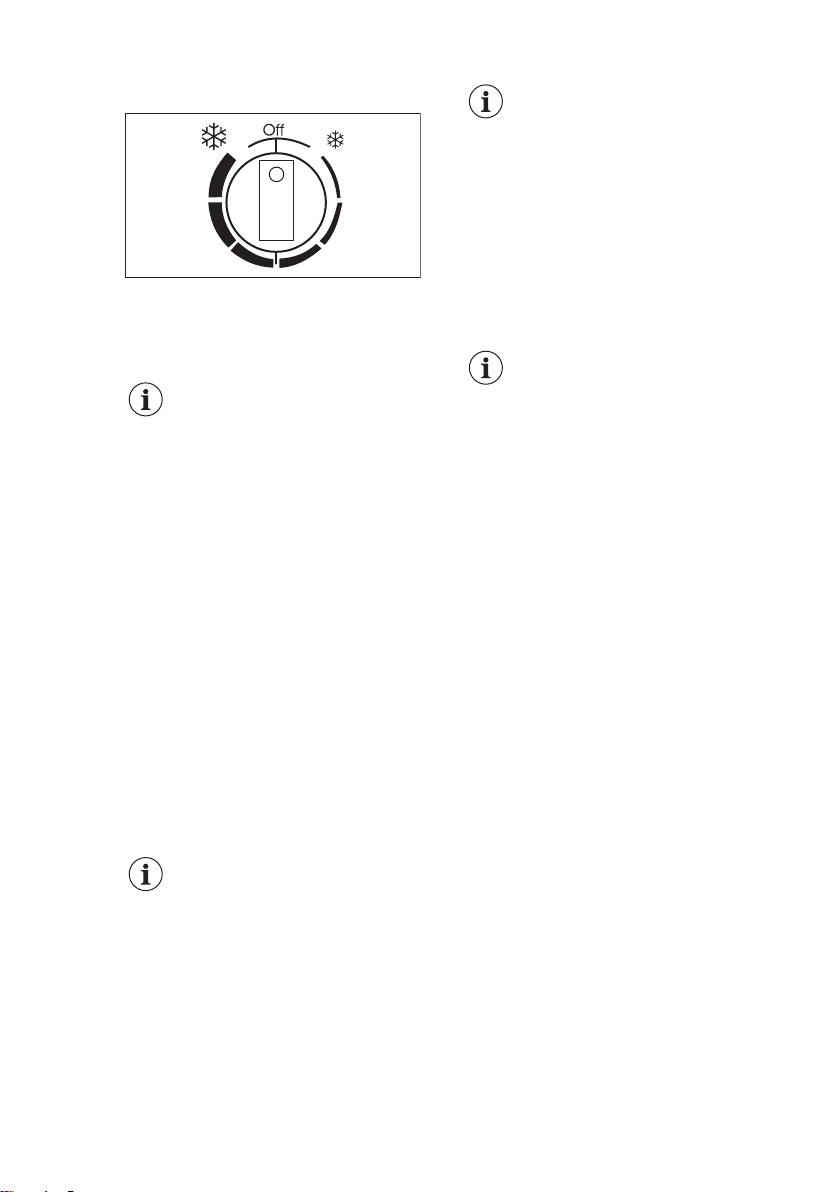

4.4 Temperature regulation
The temperature within the appliance is
controlled by the Temperature Regulator
situated on the control panel.
To operate the appliance, proceed as
follows:
• to obtain a lower temperature inside
the appliance, turn the Temperature
Regulator clockwise.
• to obtain a higher temperature inside
the appliance, turn the Temperature
Regulator counterclockwise .
A medium setting is
generally the most suitable.
However, the exact setting
should be chosen keeping in
mind that the temperature
inside the appliance
depends on:
• room temperature
• how often the lid is
opened
• the quantity of food
stored
• the location of the
appliance.
Chest freezer can be placed
at -15°C but the user should
take care about the
thermostat setting if the
appliance is assembled with
mechanical thermostat:
• When the room
temperature is lower than
-10°C, the consumer
should turn the
thermostat into the
setting number 4 to reach
good storing temperature
in the chest freezer (less
or equal -18°C).
• If the thermostat setting is
number 1 and the
ambient temperature is
-15°C, the compressor
will be not switched on by
the thermostat so the
frozen foods will warm up
to the ambient
temperature (in this case
-15°C).
www.electrolux.com8
4.5 High temperature alarm
An increase in the temperature in the
freezer (for example due to a power
failure) is indicated by switching on of the
Alarm light and sounding of buzzer.
The buzzer can be switched off by
pressing the Alarm reset switch.
During the alarm phase, do not place
food inside the freezer.
When normal conditions are restored,
the Alarm light will switch off
automatically.
4.6 FastFreeze function
The FastFreeze function accelerates the
freezing of fresh food and, at the same
5. DAILY USE
time, protects foodstuffs already stored
from undesirable warming.
Activate the FastFreeze function at least
24 hours before placing the food to be
frozen in the freezer compartment.
To activate the FastFreeze function,
press the FastFreeze switch.
The FastFreeze light will light up.
This function stops automatically after 52
hours.
It is possible to deactivate the function at
any time by pressing FastFreeze switch.
The FastFreeze light will switch off.
WARNING!
Refer to Safety chapters.
5.1 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the
FastFreeze function (refer to "FastFreeze
function").
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate (refer to "Technical data").
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
5.2 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 2 hours on the higher settings.
CAUTION!
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
in the technical
characteristics chart under
"rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then refrozen (after cooling).
5.3 Opening and closing the lid
CAUTION!
Never pull the handle with
immense force.
As the lid is equipped with a tightly
closing seal, it is not easy to reopen it
shortly after closing (due to the vacuum
formed inside). Wait for few minutes
before reopening the appliance.
The vacuum valve will help you to open
the lid.
5.4 Security lock
The freezer is equipped with a special
A B
230
806606 946 1061
1201 1336 1611
lock in order to avoid accidental locking.
The lock is designed in such manner that
you can turn the key and thus close the
lid only if you previously push the key
into the lock.
1. To lock the freezer, push the key into
the lock gently and turn the key
clockwise towards the symbol .
2. To open the freezer, push the key
into the lock gently and turn the key
counter-clockwise towards the
symbol .
Spare keys are available at
the local Authorised Service
Centre.
WARNING!
Keep the keys well away
from children.
Make sure to remove the
key from the lock before you
discard the old appliance.
5.5 Low frost system
The appliance is equipped with Low frost
system (you can see a valve inside the
freezer in the backside) what reduces
ice-build-up in the chest freezer by up to
80 percent.
ENGLISH 9
is valid depends on the quality of the
foods and treating before freezing.

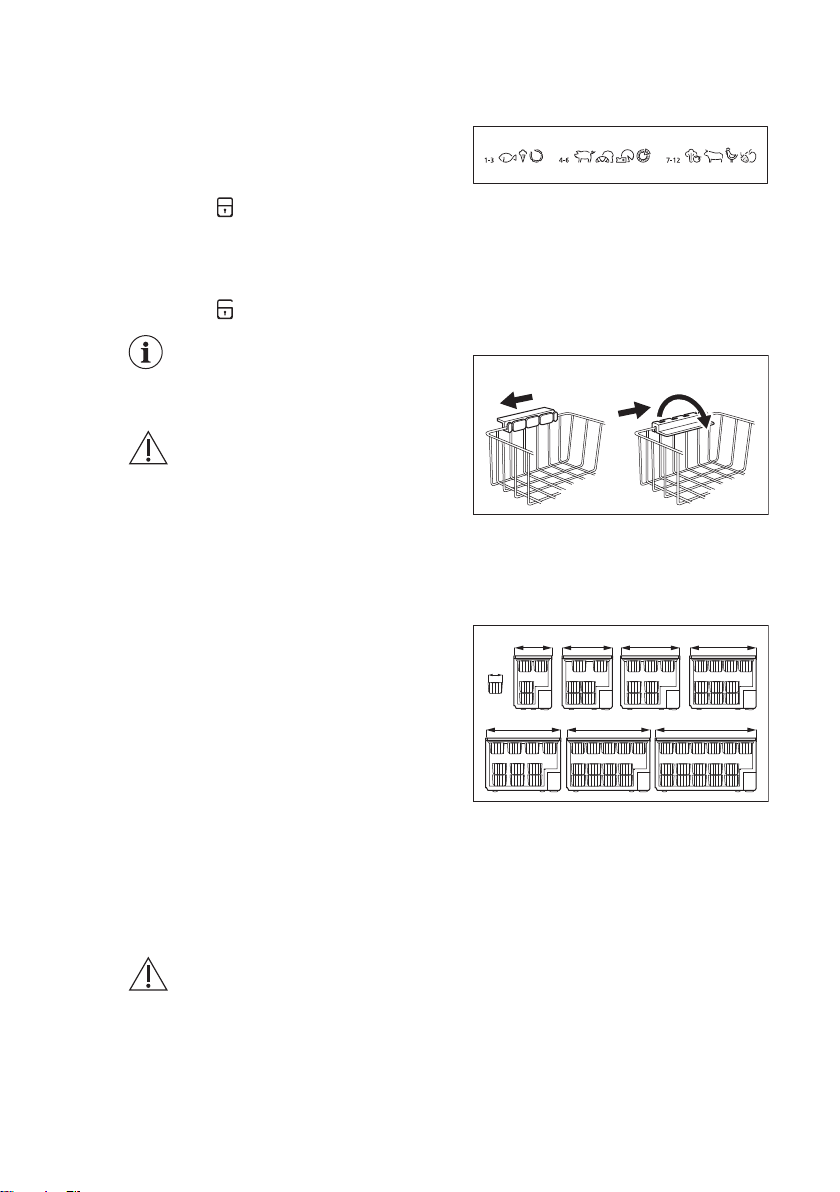

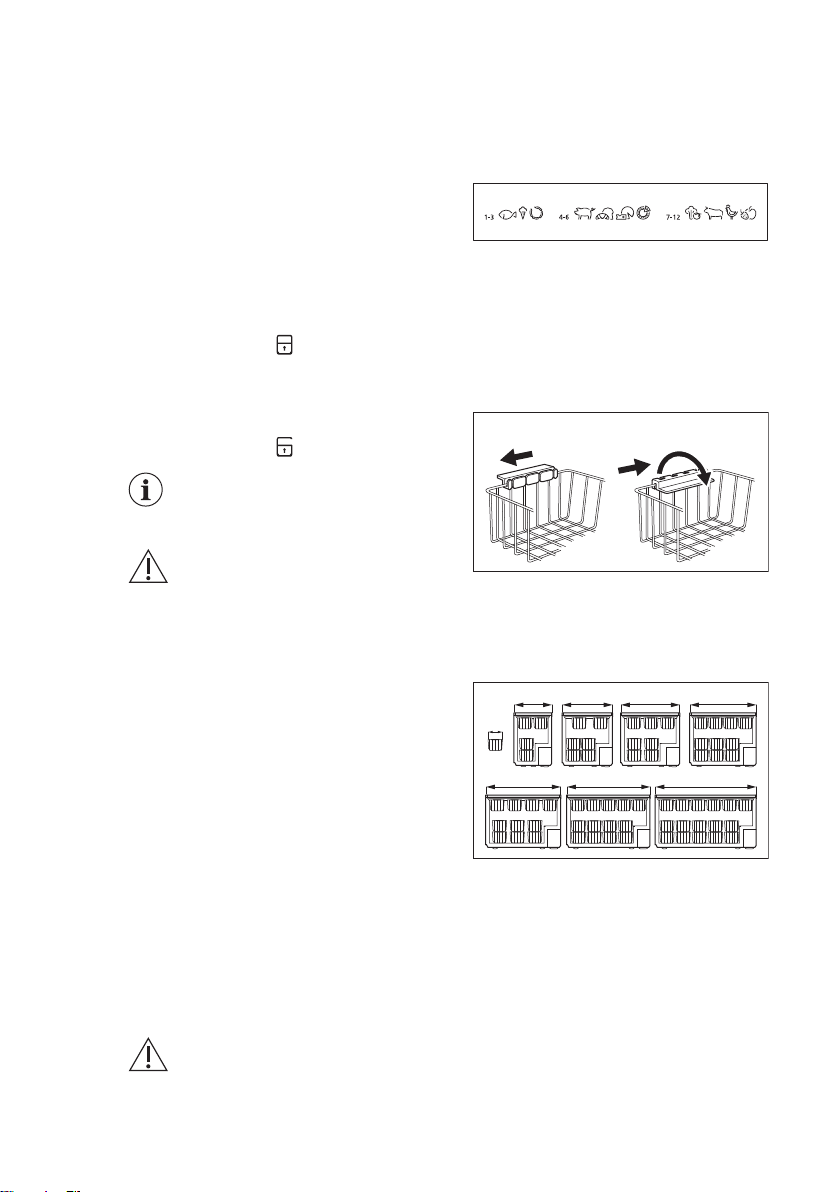

5.7 Storage baskets
Hang the baskets on the upper edge of
the freezer (A) or place them inside the
freezer (B). Turn and fix the handles for
these two positions as shown in the
picture.
The following pictures show how many
baskets can be placed inside the various
freezer models.
The baskets will slide into each other.
5.6 Freezing Calendar
The symbols show different types of
frozen goods.
The numbers indicate storage times in
months for the appropriate types of
frozen goods. Whether the upper or
lower value of the indicated storage time
6. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
6.1 Hints for freezing
To help you make the most of the
freezing process, here are some hints:
You can purchase additional baskets
from your local Authorised Service
Centre.
• The maximum quantity of food which
can be frozen in 24 hours is shown on
the rating plate.
• The freezing process takes 24 hours.
No further food to be frozen should be
added during this period.
• Freeze only top quality, fresh and
thoroughly cleaned foodstuffs.
• Prepare food in small portions to
enable it to be rapidly and completely
www.electrolux.com10
frozen and to make it possible
subsequently to thaw only the quantity
required.
• Wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight.
• Do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter.
• Lean foods store better and longer
than fatty ones; salt reduces the
storage life of food.
• Water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt.
• It is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
7. CARE AND CLEANING
6.2 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the store to the
freezer in the shortest possible time;
• not open the lid frequently or leave it
open longer than absolutely
necessary.
• Once defrosted, food deteriorates
rapidly and cannot be refrozen.
• Do not exceed the storage period
indicated by the food manufacturer.
WARNING!
Refer to Safety chapters.
7.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brandnew product, then dried thoroughly.
CAUTION!
Do not use detergents,
abrasive powders, chlorine
or oil-based cleaners as they
will damage the finish.
7.2 Periodic cleaning
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
Do not use detergents,
abrasive products, highly
perfumed cleaning products
or wax polishes to clean the
inner side of the appliance.
Prevent damage to the
cooling system.
There is no need to clean
the compressor area.
1. Switch off the appliance.
2. Regularly clean the appliance and
the accessories with warm water and
neutral soap.
Clean the lid seal carefully.
3. Fully dry the appliance.
4. Connect the mains plug to the mains
socket.
5. Switch on the appliance.
7.3 Defrosting the freezer
CAUTION!
Never use sharp metal tools
to scrape off frost as you
could damage the appliance.
Do not use a mechanical
device or any artificial
means to speed up the
thawing process (other than
those recommended by the
manufacturer). A
temperature rise of the
frozen food packs, during
defrosting, may shorten their
safe storage life.
The amount of frost on the
walls of the appliance will be
increased by the high level
of the outer environment
humidity and if the frozen
food is not wrapped
properly.
Defrost the freezer when the frost layer
reaches a thickness of about 10-15 mm.
1. Switch off the appliance.
2. Remove any stored food, wrap it in
several layers of newspaper and put
it in a cool place.
ENGLISH 11
3. Leave the lid open, remove the plug
from the defrost water drain and
collect all defrost water on a tray.
4. When defrosting is completed, dry
the interior thoroughly and refit the
plug.
5. Switch on the appliance.
6. Set the temperature regulator to
obtain the maximum coldness and
run the appliance for two or three
hours using this setting.
7. Reload the previously removed food
into the compartment.
7.4 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Switch off the appliance and
disconnect the appliance from
electricity supply.
2. Remove all food
3. Defrost and clean the appliance and
all accessories.
4. Leave the lid open to prevent
unpleasant smells.
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent
the food inside from spoiling
in case of a power failure.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
Problem Possible cause Solution
The appliance does not
operate.
The mains plug is not con‐
There is no voltage in the
The appliance is switched
off.
nected to the mains socket
correctly.
mains socket.
Switch on the appliance.
Connect the mains plug to
the mains socket correctly.
Connect to a different elec‐
trical mains socket. Con‐
tact a qualified electrician.
www.electrolux.com12
Problem Possible cause Solution
The appliance is noisy. The appliance is not sup‐
ported properly.
Audible or visual alarm is
on.
The cabinet has been re‐
cently switched on or the
temperature in the appli‐
ance is too high.
Check if the appliance
stands stable.
Refer to "High Tempera‐
ture Alarm" and if the prob‐
lem still occurs contact the
nearest Authorized Service
Centre.
Large quantities of food to
be frozen were inserted at
the same time.
The lid has been left open
for a long time.
Power indicator light is
flashing.
An error has occurred in
measuring the temperature
Wait a few hours and then
check the temperature
again.
Open the lid only if neces‐
sary.
Contact the nearest Au‐
thorized Service Centre.
or the appliance is not
working properly.
The lid doesn't close com‐
pletely.
Food packages are block‐
ing the lid.
Arrange the packages in
the right way, see the stick‐
er in the appliance.
There is excessive frost. Eliminate excess frost.
The lid is difficult to open. The lid gaskets are dirty or
Clean the lid gaskets.
sticky.
The valve is blocked. Check the valve.
The lamp does not work. The lamp is defective. Refer to "Replacing the
lamp".
The compressor operates
continually.
Large quantities of food to
The room temperature is
Food placed in the appli‐
The lid is not closed prop‐
Temperature is set incor‐
rectly.
be frozen were inserted at
the same time.
too high.
ance was too warm.
erly.
Refer to "Operation" chap‐
ter.
Wait a few hours and then
check the temperature
again.
Refer to climate class chart
on the rating plate.
Allow food to cool to room
temperature before storing.
Check if the lid closes well
and the gaskets are un‐
damaged and clean.
The FastFreeze function is
switched on.
Refer to "FastFreeze func‐
tion".
Problem Possible cause Solution
There is too much frost
and ice.
The compressor does not
start immediately after
pressing the FastFreeze,
or after changing the tem‐
perature.
Temperature cannot be
set.
The temperature in the ap‐
pliance is too low/too high.
The lid is not closed cor‐
The products' temperature
Many products are stored
The lid has been opened
Products to be frozen are
The lid is not closed cor‐
rectly or the gasket is de‐
formed/dirty.
The water drainage plug is
not correctly positioned.
Temperature is set incor‐
rectly.
This is normal, no error
has occurred.
The FastFreeze function is
switched on.
The temperature regulator
is not set correctly.
rectly.
is too high.
at the same time.
The thickness of the frost
is greater than 4-5 mm.
often.
The FastFreeze function is
switched on.
placed too closely to each
other.
Refer to "Opening and
closing the lid".
Position the water drain‐
age plug in the correct
way.
Refer to "Operation" chap‐
ter.
The compressor starts af‐
ter a period of time.
Refer to "FastFreeze func‐
tion".
Set a higher/lower temper‐
ature.
Refer to "Opening and
closing the lid".
Let the product tempera‐
ture decrease to room tem‐
perature before storage.
Store less products at the
same time.
Defrost the appliance.
Open the lid only if neces‐
sary.
Refer to "FastFreeze func‐
tion".
Make sure that there is
cold air circulation in the
appliance.
ENGLISH 13
8.2 Customer Service
If your appliance is still not working
properly after making the above checks,
contact the nearest Authorised Service
Centre.
To obtain fast service, it is essential that
when you apply for it you specify the
model and serial number of your
appliance which can be found either on
the guarantee certificate or on the rating
plate located on the external right side of
the appliance.

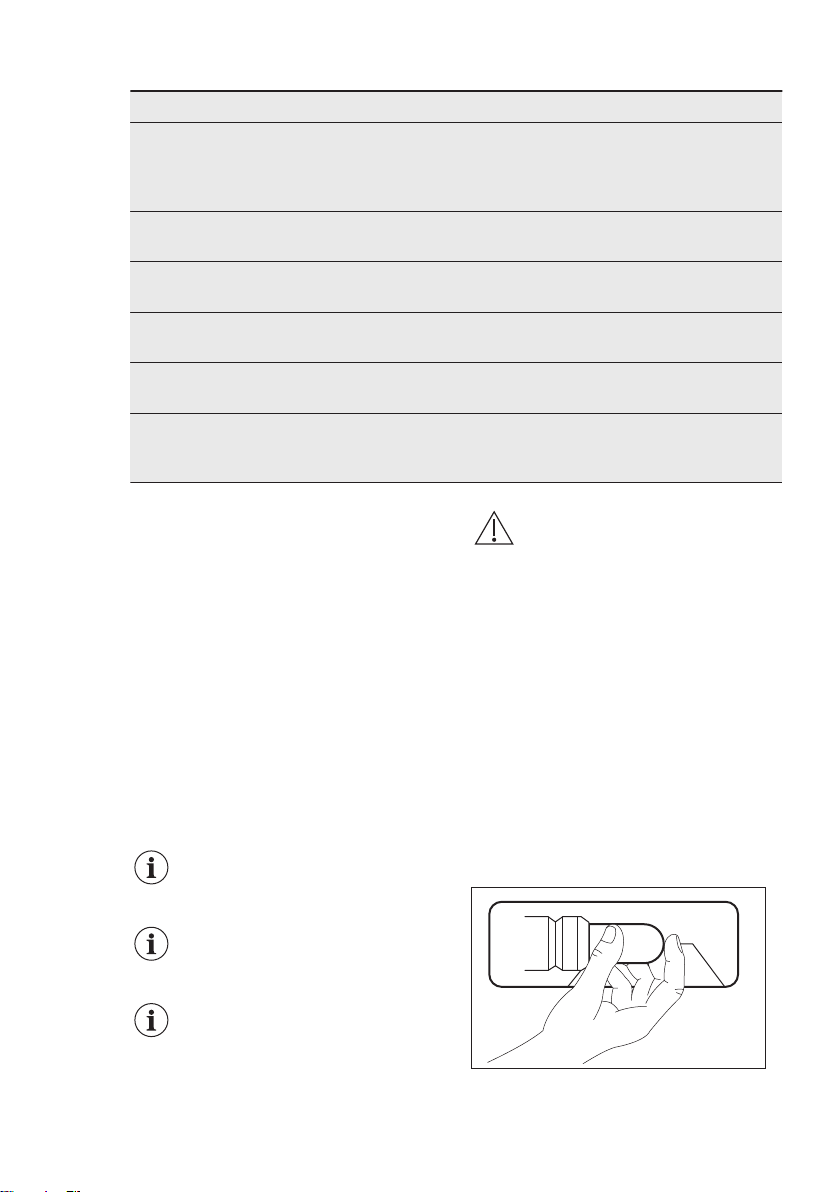

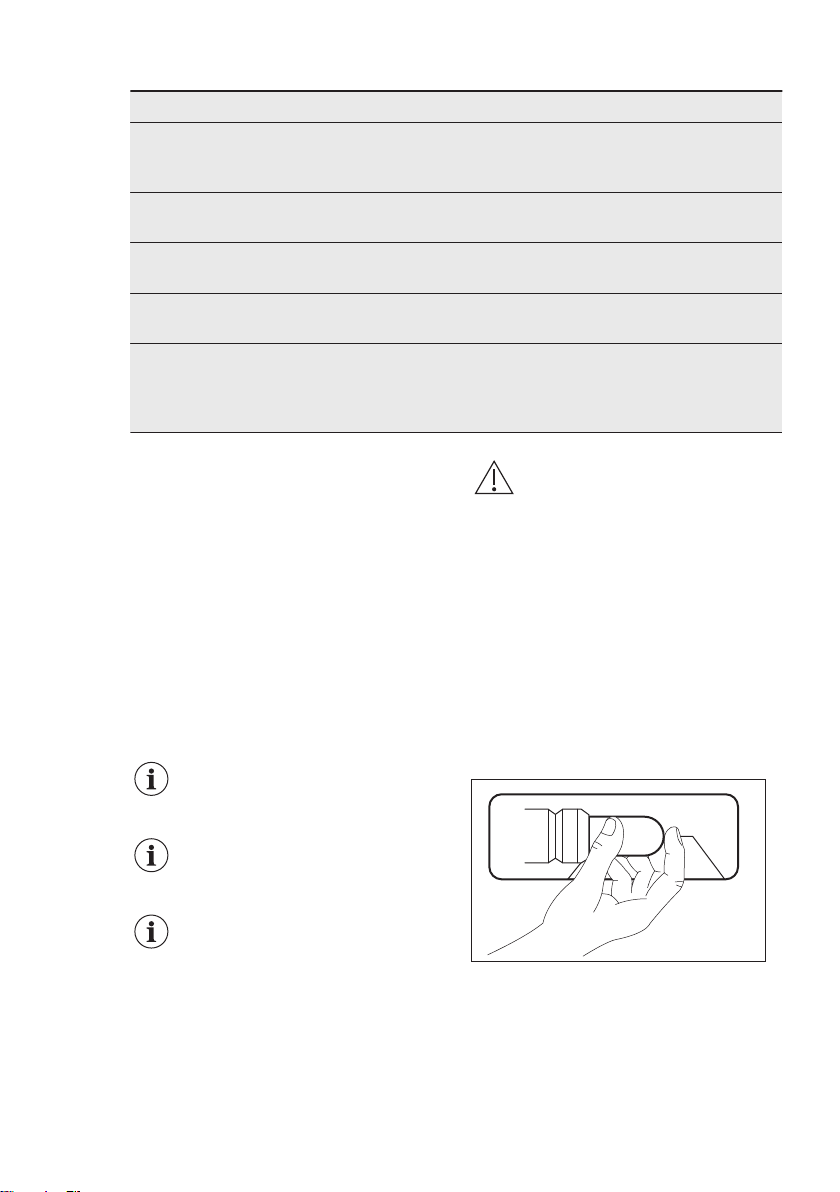

8.3 Replacing the lamp
The appliance is equipped
with a longlife LED interior
light.
www.electrolux.com14
It is strongly recommended
to use original spare parts
only.
Use LED bulbs (E14 base)
only. The maximum power is
shown on the lamp unit.
WARNING!
Do not remove the lamp
cover at the time of
replacement. Do not operate
the freezer if the lamp cover
is damaged or missing.
1. Disconnect the mains plug from the
mains socket.
2. Replace the used lamp with a new
lamp of the same power and
9. TECHNICAL DATA
9.1 Product information sheet
Trade Mark Electrolux
Model EC4231AOW PNC920478992
Category 9. Chest freezer
Energy efficiency class A+
Energy consumption in kWh per year, based on
standard test results for 24 hours. The actual en‐
ergy consumption will depend on how the appli‐
ance is used and where it is located
Storage volume in litres, Fridge -
Storage volume in litres, Star -
Storage volume in litres, Cellar zone -
Storage volume in litres, Wine -
Storage volume in litres, Total 400
Storage volume in litres, Freezer 400
Storage volume in litres, Chiller -
Storage volume in litres, Other compartments -
Star rating of freezer compartment with highest
storage volume (l)
Design temperature of other compartments > 14
°C (°C), if any
specifically designed for household
appliances (the maximum power is
shown on the lamp cover).
3. Connect the mains plug to the mains
socket.
4. Open the lid. Make sure that the
lamp comes on.
323
****
-
Frost free (Y/N), Fridge -
Frost free (Y/N), Freezer No
Power cut safe in h 31
Freezing capacity in kg/24h 19
Climate class SN-N-ST-T
Lowest ambient temperature at which this appli‐
ance is intended to be used, in °C
Highest ambient temperature at which this appli‐
ance is intended to be used, in °C
Acoustical noise emissions dB(A) re1 pW 45
Built in appliance Y/N No
This appliance is intended to be used exclusively
for the storage of wine Y/N
10
43
No
ENGLISH 15
9.2 Additional technical data
Voltage 230 - 240 V
Height 876 mm
Width 1336 mm
Depth 667,5 mm
Frequency 50 Hz
The technical information is situated in
the rating plate, on the external or
internal side of the appliance and on the
energy label.
10. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
Loading...
