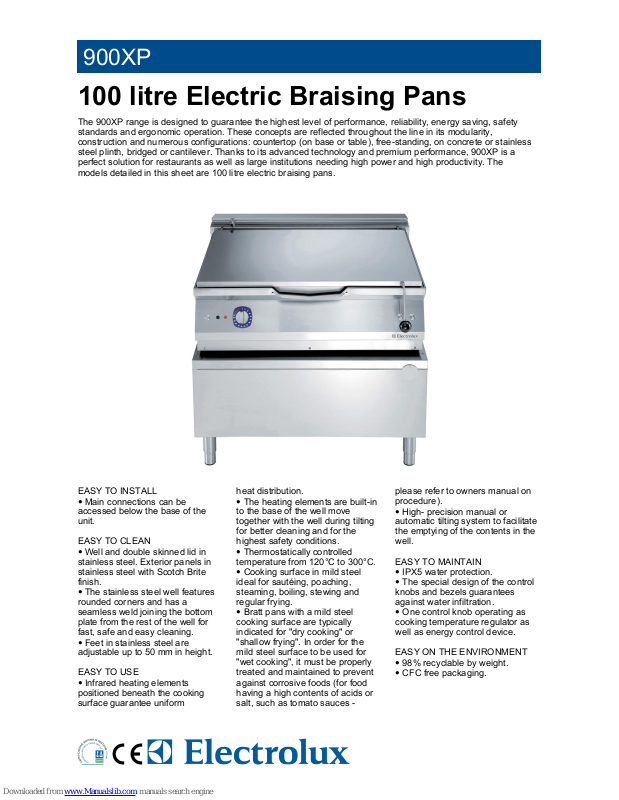

Electrolux E9BREJMPF0, E9BREJMPFM Quick Manual

900XP

100 litre Electric Braising Pans

The 900XP range is designed to guarantee the highest level of performance, reliability, energy saving, safety
standards and ergonomic operation. These concepts are reflected throughout the line in its modularity,
construction and numerous configurations: countertop (on base or table), free-standing, on concrete or stainless
steel plinth, bridged or cantilever. Thanks to its advanced technology and premium performance, 900XP is a
perfect solution for restaurants as well as large institutions needing high power and high productivity. The
models detailed in this sheet are 100 litre electric braising pans.

EASY TO INSTALL

• Main connections can be
accessed below the base of the
unit.

EASY TO CLEAN

• Well and double skinned lid in
stainless steel. Exterior panels in
stainless steel with Scotch Brite
finish.

• The stainless steel well features
rounded corners and has a
seamless weld joining the bottom
plate from the rest of the well for
fast, safe and easy cleaning.

• Feet in stainless steel are
adjustable up to 50 mm in height.

EASY TO USE

• Infrared heating elements
positioned beneath the cooking
surface guarantee uniform

heat distribution.

• The heating elements are built-in
to the base of the well move
together with the well during tilting
for better cleaning and for the
highest safety conditions.

• Thermostatically controlled
temperature from 120°C to 300°C.

• Cooking surface in mild steel
ideal for sautéing, poaching,
steaming, boiling, stewing and
regular frying.

• Bratt pans with a mild steel
cooking surface are typically
indicated for "dry cooking" or
"shallow frying". In order for the
mild steel surface to be used for
"wet cooking", it must be properly
treated and maintained to prevent
against corrosive foods (for food
having a high contents of acids or
salt, such as tomato sauces -

please refer to owners manual on
procedure).

• High- precision manual or
automatic tilting system to facilitate
the emptying of the contents in the
well.

EASY TO MAINTAIN

• IPX5 water protection.

• The special design of the control

knobs and bezels guarantees
against water infiltration.

• One control knob operating as
cooking temperature regulator as
well as energy control device.

EASY ON THE ENVIRONMENT

• 98% recyclable by weight.

• CFC free packaging.

900XP

100 litre Electric Braising Pans

Internet: http://www.electrolux.com/foodservice

CIMD0102013-10-03Subject to change without notice

REAR PANELING 1200MM 206376 206376

REAR PANELING 1000MM 206375 206375

KIT 4 FEET GRILL/BRATT PAN-CONCRETE INST 206163 206163

FRONTAL KICKING STRIP 1600 MM 206179 206179

FRONTAL KICKING STRIP 1200 MM 206178 206178

FRONTAL KICKING STRIP 1000 MM 206177 206177

FLANGED FEET KIT 206136 206136

CHIMNEY UPSTAND 1000MM 206305 206305

2 SIDE KICKING STRIPS - 900 LINE 206180 206180

2 PANELS FOR SERVICE DUCT (SINGLE INST.) 206181 206181

2 PANELS FOR SERVICE DUCT (BACK TO BACK) 206202 206202

ACCESSORIES

Automatic tilting ●

Supply voltage 400 V, 3N, 50/60 400 V, 3N, 50/60

Net weight - kg. 180 180

installed-electric 17 17

Power - kW

Maximum Well Capacity -lt 100 100

Temperature limiter ● ●

material Mild Steel Mild Steel

Cooking surface

height adjustment 50 50

height 850 850

depth 930 930

width 1000 1000

External dimensions - mm

Power supply Electric Electric

TECHNICAL DATA

E9BREJMPF0

391147

E9BREJMPFM

391148
