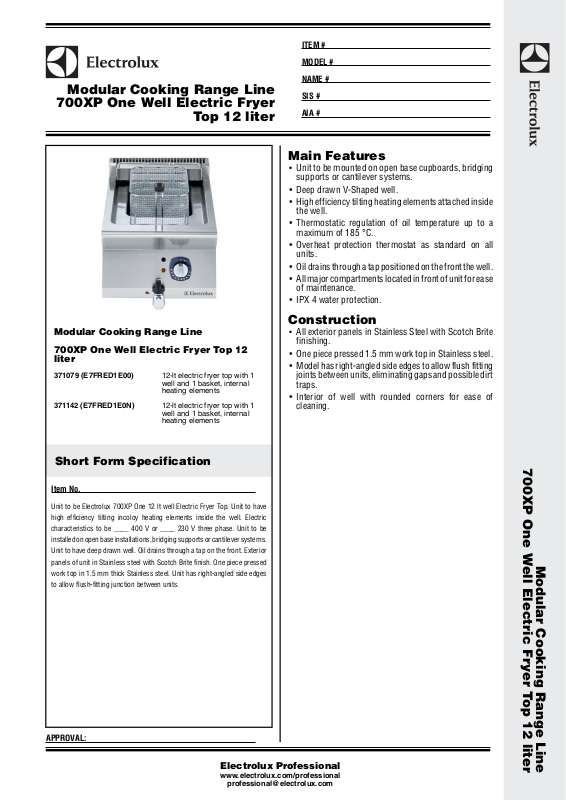

Page 1
Modular Cooking Range Line
700XP One Well Electric Fryer
Top 12 liter
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Unit to be mounted on open base cupboards, bridging
supports or cantilever systems.
•Deep drawn V-Shaped well.
•High efficiency tilting heating elements attached inside
the well.
•Thermostatic regulation of oil temperature up to a
maximum of 185 °C.
•Overheat protection thermostat as standard on all
units.
•Oil drains through a tap positioned on the front the well.
•All major compartments located in front of unit for ease
of maintenance.
•IPX 4 water protection.
Modular Cooking Range Line
700XP One Well Electric Fryer Top 12
liter
371079 (E7FRED1E00)12-lt electric fryer top with 1
371142 (E7FRED1E0N)12-lt electric fryer top with 1
well and 1 basket, internal
heating elements
well and 1 basket, internal
heating elements
Short Form Specification
Item No.
Unit to be Electrolux 700XP One 12 lt well Electric Fryer Top. Unit to have
high efficiency tilting incoloy heating elements inside the well. Electric
characteristics to be ____ 400 V or ____ 230 V three phase. Unit to be
installed on open base installations, bridging supports or cantilever systems.
Unit to have deep drawn well. Oil drains through a tap on the front. Exterior
panels of unit in Stainless steel with Scotch Brite finish. One piece pressed
work top in 1.5 mm thick Stainless steel. Unit has right-angled side edges
to allow flush-fitting junction between units.
Construction
•All exterior panels in Stainless Steel with Scotch Brite
finishing.
•One piece pressed 1.5 mm work top in Stainless steel.
•Model has right-angled side edges to allow flush fitting
joints between units, eliminating gaps and possible dirt
traps.
•Interior of well with rounded corners for ease of
cleaning.
700XP One Well Electric Fryer Top 12 liter
Modular Cooking Range Line
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
Page 2
Included Accessories
•1 of Basket for 12lt electric fryer topsPNC 921629
Optional Accessories
•Kit 4 wheels - 2 swivelling with brake - it is
mandatory to install base support and
wheels
•Support for bridge type installation,
800mm
•Support for bridge type installation,
1000mm
•Support for bridge type installation,
1200mm
•Support for bridge type installation,
1400mm
•Support for bridge type installation,
1600mm
•Support for bridge type installation,
400mm
•Chimney upstand, 400mmPNC 206303 ❑
•Right and left side handrailsPNC 206307 ❑
•Base support for feet or wheels - 400mm
(700/900)
•Base support for feet or wheels - 800mm
(700/900)
•Rear paneling - 600mm (700/900XP)PNC 206373 ❑
•Rear paneling - 800mm (700/900)PNC 206374 ❑
•Rear paneling - 1000mm (700/900)PNC 206375 ❑
•Rear paneling - 1200mm (700/900)PNC 206376 ❑
•Chimney grid net, 400mm (700XP/900)PNC 206400 ❑
•Frontal handrail, 400mmPNC 216046 ❑
•Frontal handrail, 800mmPNC 216047 ❑
•Frontal handrail, 1200mmPNC 216049 ❑
•Frontal handrail, 1600mmPNC 216050 ❑
•Large handrail - portioning shelf, 400mmPNC 216185 ❑
•Large handrail - portioning shelf, 800mmPNC 216186 ❑
•2 side covering panels for top appliancesPNC 216277 ❑
•Basket for 12lt electric fryer topsPNC 921629 ❑
•2 baskets for 2x5lt and 7lt electric fryers PNC 960638 ❑
PNC 206135 ❑
PNC 206137 ❑
PNC 206138 ❑
PNC 206139 ❑
PNC 206140 ❑
PNC 206141 ❑
PNC 206154 ❑
PNC 206366 ❑
PNC 206367 ❑
Modular Cooking Range Line
700XP One Well Electric Fryer
Top 12 liter
700XP One Well Electric Fryer Top 12 liter
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Modular Cooking Range Line
2014.08.29
Page 3
Modular Cooking Range Line
700XP One Well Electric Fryer
Top 12 liter
Front
Electric
Supply voltage:
371079 (E7FRED1E00)400 V/3N ph/50/60 Hz
371142 (E7FRED1E0N)230 V/3 ph/50/60 Hz
Total Watts:8.7 kW
Key Information:
Usable well dimensions (width):240 mm
Usable well dimensions (height):235 mm
Usable well dimensions (depth):420 mm
Well capacity:10 lt MIN; 12 lt MAX
Top
Thermostat Range:105 °C MIN; 185 °C MAX
Net weight:25 kg
Shipping weight:32 kg
Shipping height:540 mm
Shipping width:460 mm
Shipping depth:820 mm
Shipping volume:0.2 m³
If appliance is set up or next to or against temperature sensitive
furniture or similar, a safety gap of approximately 150 mm should be
maintained or some form of heat insulation fitted.
EI=Electrical connection
EQ=Equipotential screw
Side
700XP One Well Electric Fryer Top 12 liter
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Modular Cooking Range Line
2014.08.29
