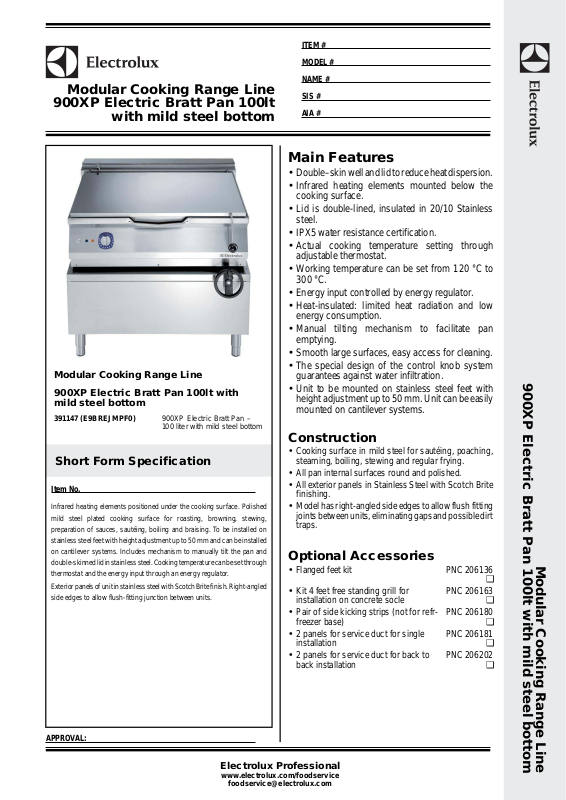

Modular Cooking Range Line
900XP Electric Bratt Pan 100lt
with mild steel bottom
Modular Cooking Range Line
900XP Electric Bratt Pan 100lt with
mild steel bottom
391147 (E9BREJMPF0)900XP Electric Bratt Pan –
Short Form Specification
Item No.
Infrared heating elements positioned under the cooking surface. Polished
mild steel plated cooking surface for roasting, browning, stewing,
preparation of sauces, sautéing, boiling and braising. To be installed on
stainless steel feet with height adjustment up to 50 mm and can be installed
on cantilever systems. Includes mechanism to manually tilt the pan and
double-skinned lid in stainless steel. Cooking temperature can be set through
thermostat and the energy input through an energy regulator.
Exterior panels of unit in stainless steel with Scotch Brite finish. Right-angled
side edges to allow flush-fitting junction between units.
100 liter with mild steel bottom
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Double–skin well and lid to reduce heat dispersion.
•Infrared heating elements mounted below the
cooking surface.
•Lid is double-lined, insulated in 20/10 Stainless
steel.
•IPX5 water resistance certification.
•Actual cooking temperature setting through
adjustable thermostat.
•Working temperature can be set from 120 °C to
300 °C.
•Energy input controlled by energy regulator.
•Heat-insulated: limited heat radiation and low
energy consumption.
•Manual tilting mechanism to facilitate pan
emptying.
•Smooth large surfaces, easy access for cleaning.
•The special design of the control knob system
guarantees against water infiltration.
•Unit to be mounted on stainless steel feet with
height adjustment up to 50 mm. Unit can be easily
mounted on cantilever systems.
Construction
•Cooking surface in mild steel for sautéing, poaching,
steaming, boiling, stewing and regular frying.
•All pan internal surfaces round and polished.
•All exterior panels in Stainless Steel with Scotch Brite
finishing.
•Model has right-angled side edges to allow flush fitting
joints between units, eliminating gaps and possible dirt
traps.
Optional Accessories
•Flanged feet kitPNC 206136
•Kit 4 feet free standing grill for
installation on concrete socle
•Pair of side kicking strips (not for refrfreezer base)
•2 panels for service duct for single
installation
•2 panels for service duct for back to
back installation
PNC 206163
PNC 206180
PNC 206181
PNC 206202
900XP Electric Bratt Pan 100lt with mild steel bottom
Modular Cooking Range Line
❑
❑
❑
❑
❑
APPROVAL:
Electrolux Professional
www.electrolux.com/foodservice
foodservice@electrolux.com
Modular Cooking Range Line
900XP Electric Bratt Pan 100lt
with mild steel bottom
Front
Electric
Supply voltage:
391147(E9BREJMPF0)400 V/3N ph/50/60 Hz
Total Watts:17 kW
Key Information:
Cooking Surface Depth:565 mm
Cooking Surface Width:880 mm
Cooking Well Height:130 mm
Well Capacity, Max:100 lt
Working Temperature MIN:120 °C
Working Temperature MAX:300 °C
Net weight:180 kg
Shipping weight:200 kg
Top
Shipping height:1040 mm
Shipping width:1100 mm
Shipping depth:1020 mm
Shipping volume:1.17 m³
No clearance needed on rear sides of unit if wall is of non combustible
type. If wall is combustible, minimum 50 mm wall clearance should be
maintained.
CWI
=Cold Water inlet
EI=Electrical connection
Side
900XP Electric Bratt Pan 100lt with mild steel bottom
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Modular Cooking Range Line
2012.09.28
