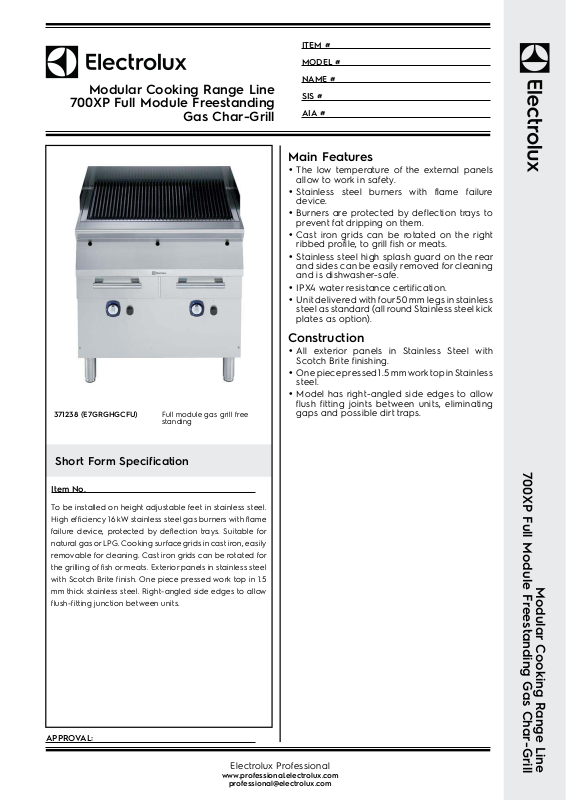

Electrolux E7GRGHGCFU Datasheet
Modular Cooking Range Line
700XP Full Module Freestanding
ITEM #
MODEL #
NAME #
SIS #
Gas Char-Grill
AIA #
Main Features
•The low temperature of the external panels
allow to work in safety.
•Stainless steel burners with flame failure
device.
•Burners are protected by deflection trays to
prevent fat dripping on them.
•Cast iron grids can be rotated on the right
ribbed profile, to grill fish or meats.
•Stainless steel high splash guard on the rear
and sides can be easily removed for cleaning
and is dishwasher-safe.
•IPX4 water resistance certification.
•Unit delivered with four 50 mm legs in stainless
steel as standard (all round Stainless steel kick
plates as option).
371238 (E7GRGHGCFU)Full module gas grill free
standing
Short Form Specification
Item No.
To be installed on height adjustable feet in stainless steel.
High efficiency 16 kW stainless steel gas burners with flame
failure device, protected by deflection trays. Suitable for
natural gas or LPG. Cooking surface grids in cast iron, easily
removable for cleaning. Cast iron grids can be rotated for
the grilling of fish or meats. Exterior panels in stainless steel
with Scotch Brite finish. One piece pressed work top in 1.5
mm thick stainless steel. Right-angled side edges to allow
flush-fitting junction between units.
Construction
•All exterior panels in Stainless Steel with
Scotch Brite finishing.
•One piece pressed 1.5 mm work top in Stainless
steel.
•Model has right-angled side edges to allow
flush fitting joints between units, eliminating
gaps and possible dirt traps.
700XP Full Module Freestanding Gas Char-Grill
Modular Cooking Range Line
APPROV AL:
Electrolux Professional
www.professional.electrolux.com
professional@electrolux.com
Modular Cooking Range Line
700XP Full Module Freestanding
Gas Char-Grill
Optional Accessories
•Junction sealing kitPNC 206086
•Draught diverter, 150 mm diameterPNC 206132
•Matching ring for flue condenser, 150
mm diameter
•Kit 4 wheels - 2 swivelling with brake - it
is mandatory to install base support
and wheels
•Flanged feet kitPNC 206136
•Frontal kicking strip for concrete
installation, 800mm
•Frontal kicking strip for concrete
installation, 1000mm
•Frontal kicking strip for concrete
installation, 1200mm
•Frontal kicking strip for concrete
installation, 1600mm
•Frontal kicking strip, 800mm (not for
refr-freezer base)
•Frontal kicking strip, 1000mm (not for
refr-freezer base)
•Frontal kicking strip, 1200mm (not for
refr-freezer base)
•Frontal kicking strip, 1600mm (not for
refr-freezer base)
•Kit 4 feet for concrete installation (not
for 900 line free standing grill)
•Central support for installation of
drawers and grid (on 800/1200mm
bases) and of doors (on 1200mm bases)
•Flue condenser for 1 module, 150 mm
diameter
•Pair of side kicking stripsPNC 206249
•Pair of side kicking strips for concrete
installation
•Water filling tap for free standing grillsPNC 206281
•Chimney upstand, 800mmPNC 206304
•Right and left side handrailsPNC 206307
•Back handrail 800mm, MarinePNC 206308
•Base support for feet or wheels -
800mm (700/900)
•Base support for feet or wheels -
1200mm (700/900)
•Base support for feet or wheels -
1600mm (700/900)
•Base support for feet or wheels -
2000mm (700/900)
•Rear paneling - 800mm (700/900)PNC 20637 4
•Rear paneling - 1000mm (700/900)PNC 206375
•Rear paneling - 1200mm (700/900)PNC 206376
•Kit town gas nozzles (G150) for 700 grillPNC 206389
❑
❑
PNC 206133
❑
PNC 206135
❑
❑
PNC 206148
❑
PNC 206150
❑
PNC 206151 ❑
PNC 206152
❑
PNC 206176
❑
PNC 206177
❑
PNC 206178
❑
PNC 206179
❑
PNC 206210
❑
PNC 206245
❑
PNC 206246
❑
❑
PNC 206265
❑
❑
❑
❑
❑
PNC 206367
❑
PNC 206368
❑
PNC 206369
❑
PNC 206370
❑
❑
❑
❑
❑
•Stainless steel grid for free standing wide
grills (700XP)
•Stainless steel grids with drain shape for
free standing wide grills (700XP)
•Scraper for grids with drainage channels -
top grills
•Scraper for free standing grillsPNC 206422 ❑
•2 side covering panels for free standing
appliances
•Frontal handrail, 800mmPNC 216047 ❑
•Frontal handrail, 1200mmPNC 216049 ❑
•Frontal handrail, 1600mmPNC 216050 ❑
•Large handrail - portioning shelf, 800mmPNC 216186 ❑
•Pressure regulator for gas unitsPNC 927225 ❑
PNC 206410 ❑
PNC 206411 ❑
PNC 206421 ❑
PNC 216000 ❑
700XP Full Module Freestanding Gas Char-Grill
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Modular Cooking Range Line
2018.02.13
