EDH9000W3
EN Tumble Dryer User Manual
Page 2
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve
chosen a product that brings with it decades of professional
experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that
you have the following data available: Model, PNC, Serial
Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2/52
Page 3
CONTENTS
1. SAFETY INFORMATION.......................................................... 6
1.1 Children and vulnerable people safety.............................6
1.2 General Safety ................................................................ 7
2. SAFETY INSTRUCTIONS.........................................................9
2.1 Installation........................................................................ 9
2.2 Electrical connection........................................................ 9
2.3 Use.................................................................................10
2.4 Internal lighting...............................................................10
2.5 Care and cleaning.......................................................... 10
2.6 Compressor....................................................................11
2.7 Service........................................................................... 11
2.8 Disposal......................................................................... 11
3. PRODUCT DESCRIPTION......................................................12
4. CONTROL PANEL..................................................................13
4.1 Display........................................................................... 14
5.
6. PROGRAMME TABLE............................................................20
7. OPTIONS.................................................................................23
WI-FI - CONNECTIVITY SETUP.......................................16
5.1 Installing and configuring My Electrolux.........................16
5.2 Configuring the dryer wireless connection..................... 17
5.3 Remote Start...............................................................18
5.4 Over-the-air update........................................................ 18
6.1 Woolmark Apparel Care - Blue...................................... 22
7.1 Extra Anticrease ............................................................23
7.2 Dryness Level ............................................................... 23
7.3 Time Dry.........................................................................23
7.4 Time Dry on Wool programme....................................... 23
7.5 Refresh...........................................................................23
7.6 End Alert ....................................................................... 23
7.7 Reverse Plus .................................................................24
7.8 Extra Silent.....................................................................24
7.9 Options table.................................................................. 24
3/52
Page 4
CONTENTS
8. SETTINGS...............................................................................26
8.1 Child lock function.......................................................... 26
8.2 Adjustment of the remaining moisture............................27
8.3 Water container indicator............................................... 28
9. BEFORE FIRST USE.............................................................. 29
10. DAILY USE............................................................................30
10.1 Start a programme without delay start......................... 30
10.2 Starting the programme with delay start...................... 30
10.3 Change a programme.................................................. 30
10.4 At the end of the programme....................................... 31
10.5 Stand-by function......................................................... 32
11. HINTS AND TIPS.................................................................. 33
11.1 Preparing the laundry...................................................33
12. CARE AND CLEANING........................................................ 34
12.1 Cleaning the filter......................................................... 34
12.2 Emptying the water container.......................................35
12.3 Cleaning the Heat Exchanger...................................... 35
12.4 Cleaning the drum........................................................36
12.5 Cleaning the control panel and housing.......................37
12.6 Cleaning the airflow slots............................................. 37
13. TROUBLESHOOTING.......................................................... 38
13.1 If the drying results are not satisfactory....................... 40
14. TECHNICAL DATA............................................................... 42
14.1 Consumption data........................................................ 44
15. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U.
REGULATION 1369/2017........................................................... 46
4/52
Page 5
GET IT ON
electrolux.com/app
CONTENTS
5/52
Page 6
1. SAFETY INFORMATION
Before beginning the installation and use of this appliance,
carefully read the supplied instructions. The manufacturer is
not responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the instructions
in a safe and accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
• Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the
door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
6/52
Page 7
SAFETY INFORMATION
1.2 General Safety
• Do not change the specification of this appliance.
• If the tumble dryer is put on top of a washing machine, use
the stacking kit. The stacking kit, available from your
authorized vendor, can be used only with the appliance
specified in the instructions supplied with the accessory.
Read it carefully before installation (refer to the Installation
leaflet).
• The appliance can be installed as freestanding or below a
kitchen counter with correct space (refer to the Installation
leaflet).
• Do not install the appliance behind a lockable door, a sliding
door or a door with a hinge on the opposite side, that would
prevent the appliance door from being fully open.
• The ventilation opening in the base must not be covered by
a carpet, mat, or any floor covering.
• CAUTION: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by a utility.
• Connect the mains plug to the mains socket only at the end
of the installation process. Make sure that the mains plug is
accessible after installation.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
• Do not use the appliance if items have been soiled with
industrial chemicals.
• Wipe away lint or packaging debris that has accumulated
around the appliance.
7/52
Page 8
SAFETY INFORMATION
• Do not run the appliance without a filter. Clean the lint filter
before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in
the tumble dryer.
• Fabric softeners, or similar products, should only be used as
specified by the product manufacturer’s instructions.
• Remove all objects from items that could be a source of fire
ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
• Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
8/52
Page 9
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy.
Always use safety gloves and enclosed footwear.
• Do not install or use the appliance where the temperature can be
lower than 5°C or higher than 35°C.
• The floor area on which the appliance is to be installed must be
flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and
the floor.
• Always keep the appliance vertical when it is being moved.
• The rear surface of the appliance must be put against a wall.
• When the appliance is in its permanent position, check if it is
levelled correctly with the aid of a spirit level. If it is not, adjust the
feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• Connect the mains plug to the mains socket only at the end of the
installation. Make sure that there is access to the mains plug after
the installation.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible
with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Do not pull the mains cable to disconnect the appliance. Always
pull the mains plug.
9/52
Page 10
SAFETY INSTRUCTIONS
• Do not touch the mains cable or the mains plug with wet hands.
2.3 Use
WARNING!
Risk of injury, electric shock, fire, burns or damage to the
appliance.
• This appliance is for household use only.
• Do not dry damaged (torn, frayed) items that contain padding or
fillings.
• If laundry has been washed with a stain remover, carry out an
additional rinse cycle before starting a drying cycle.
• Dry only fabrics that are suitable to dry in the appliance. Follow
the cleaning instruction on the item label.
• Do not drink or prepare food with the condensed water/distilled
water. It can cause health problems to people and pets.
• Do not sit or stand on the open door of the appliance.
• Do not dry dripping wet clothes in the appliance.
2.4 Internal lighting
WARNING!
Risk of injury.
• Visible LED radiation, do not look directly into the beam.
• The LED lamp is dedicated to drum lighting. This lamp cannot be
reused for other lighting purposes.
• To replace the internal lighting, contact the Authorised Service
Centre.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to the appliance.
• Do not use water spray and steam to clean the appliance.
10/52
Page 11
SAFETY INSTRUCTIONS
• Clean the appliance with a moist soft cloth. Use only neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• Be careful when you clean the appliance to prevent damage to
the cooling system.
2.6 Compressor
WARNING!
Risk of damage to the appliance.
• The compressor and its system in the tumble dryer is filled with a
special agent which is free from fluoro-chloro-hydrocarbons. This
system must stay tight. The damage of the system can cause a
leakage.
2.7 Service
• To repair the appliance contact the Authorised Service Centre.
• Use original spare parts only.
2.8 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains electrical and water
supplies.
• Cut off the mains electrical cable close to the appliance and
dispose of it.
• Remove the door catch to prevent children or pets from
becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements
for the disposal of Waste Electrical and Electronic Equipment
(WEEE).
11/52
Page 12

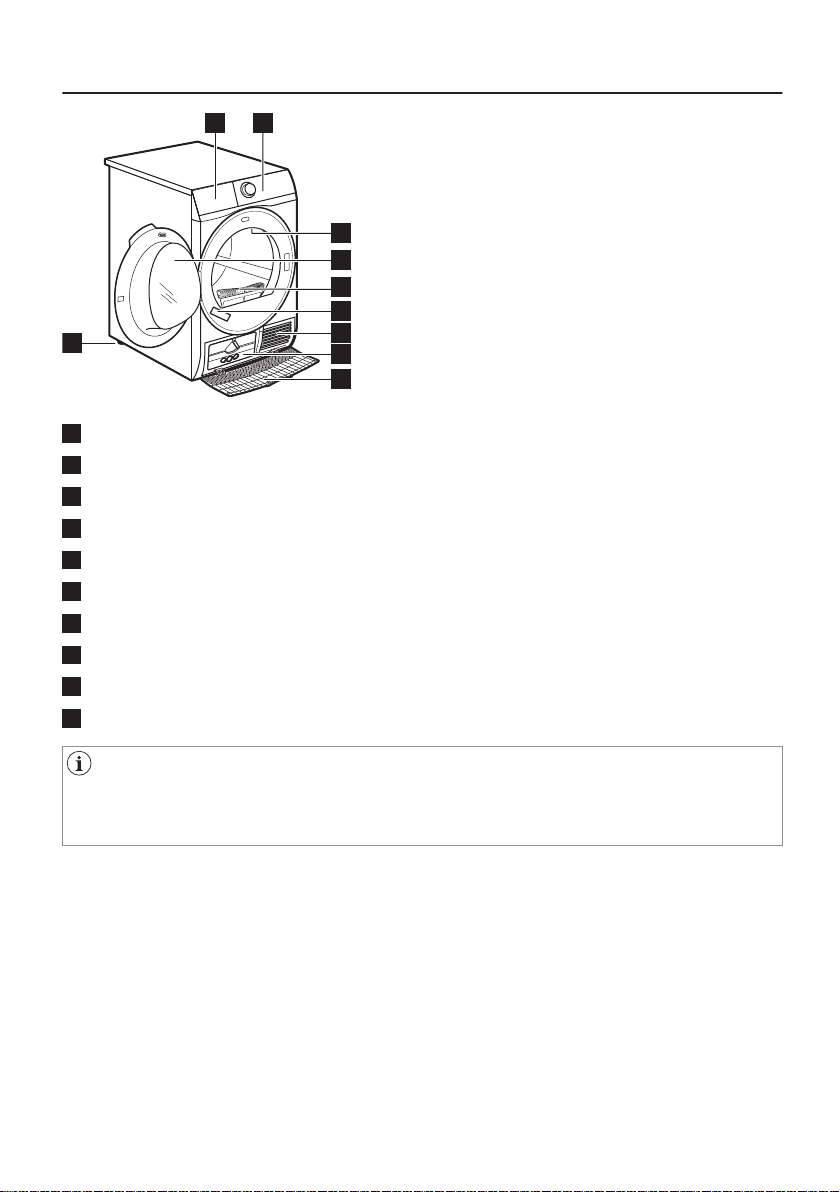

3. PRODUCT DESCRIPTION
1 2
6
3
4
5
7
8
9
10
1
Water container
2
Control panel
3
Internal light
4
Appliance door
5
Filter
6
Rating plate
7
Airflow slots
8
Heat Exchanger lid
9
Heat Exchanger cover
10
Adjustable feet
For ease of loading laundry or ease of installation the door is
reversible. (see separate leaflet).
12/52
Page 13

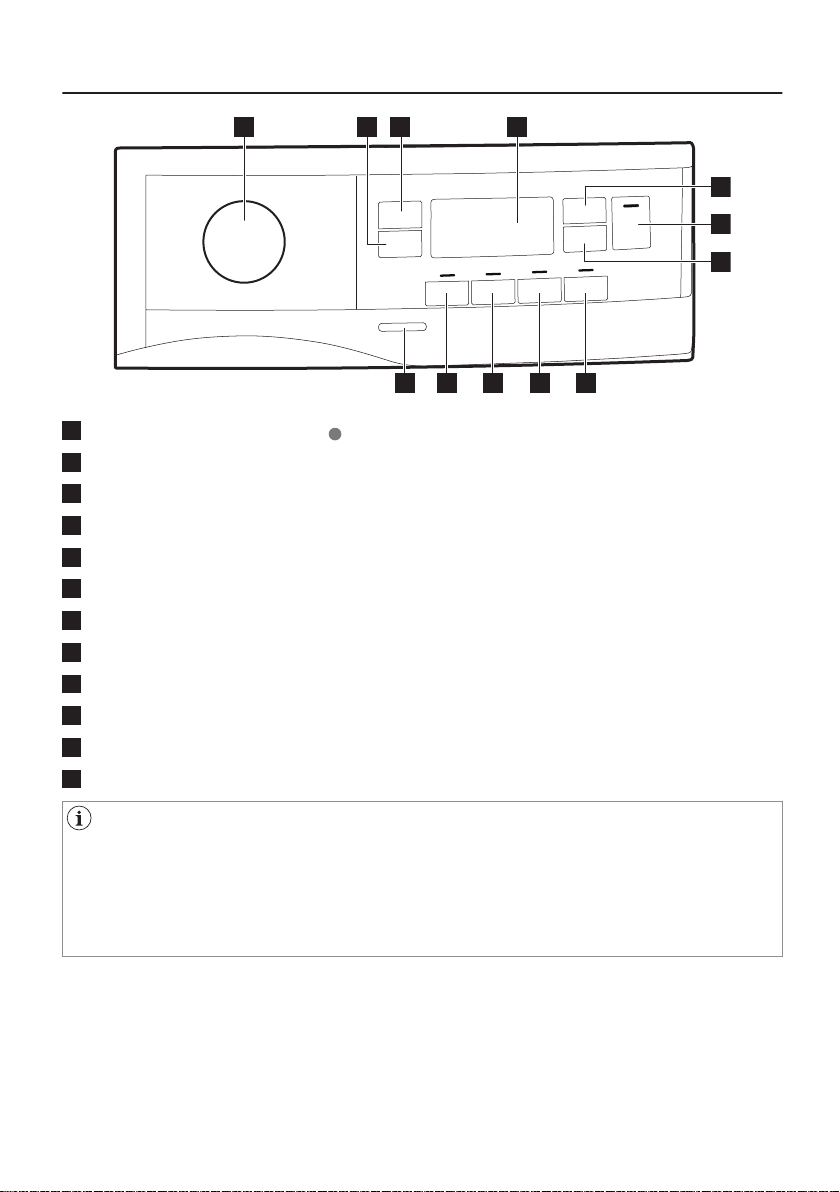

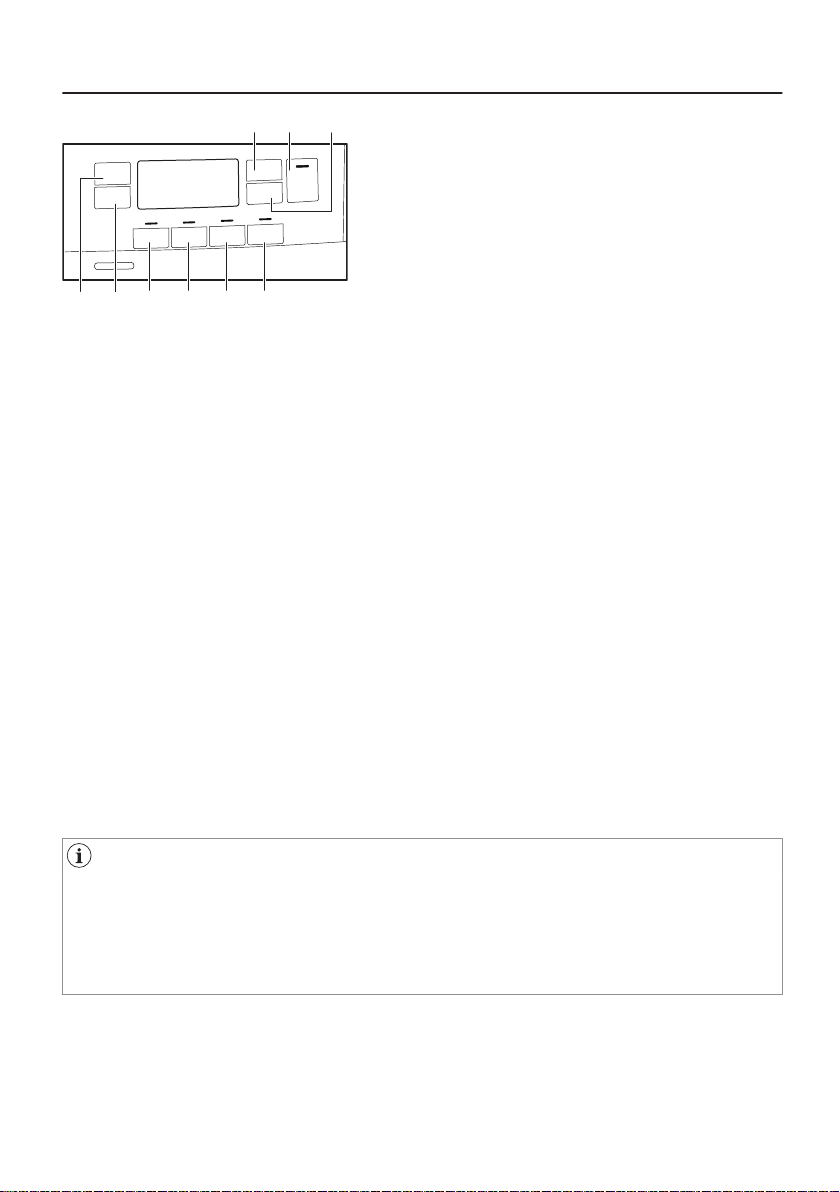

4. CONTROL PANEL
1
1112 10 9 8
5
7
6
432
1
Programme knob and RESET switch
2
Extra Anticrease touch button
3
Dryness Level touch button
4
Display
5
Time Dry touch button
6
Start/Pause touch button
7
Delay Start touch button
8
Refresh touch button
9
End Alert touch button
10
Reverse Plus touch button
11
Extra Silent touch button
12
On/Off button
Press the touch buttons with your finger in the area with the
symbol or name of the option. Do not wear gloves when you
operate the control panel. Make sure that the control panel is
always clean and dry.
13/52
Page 14
CONTROL PANEL

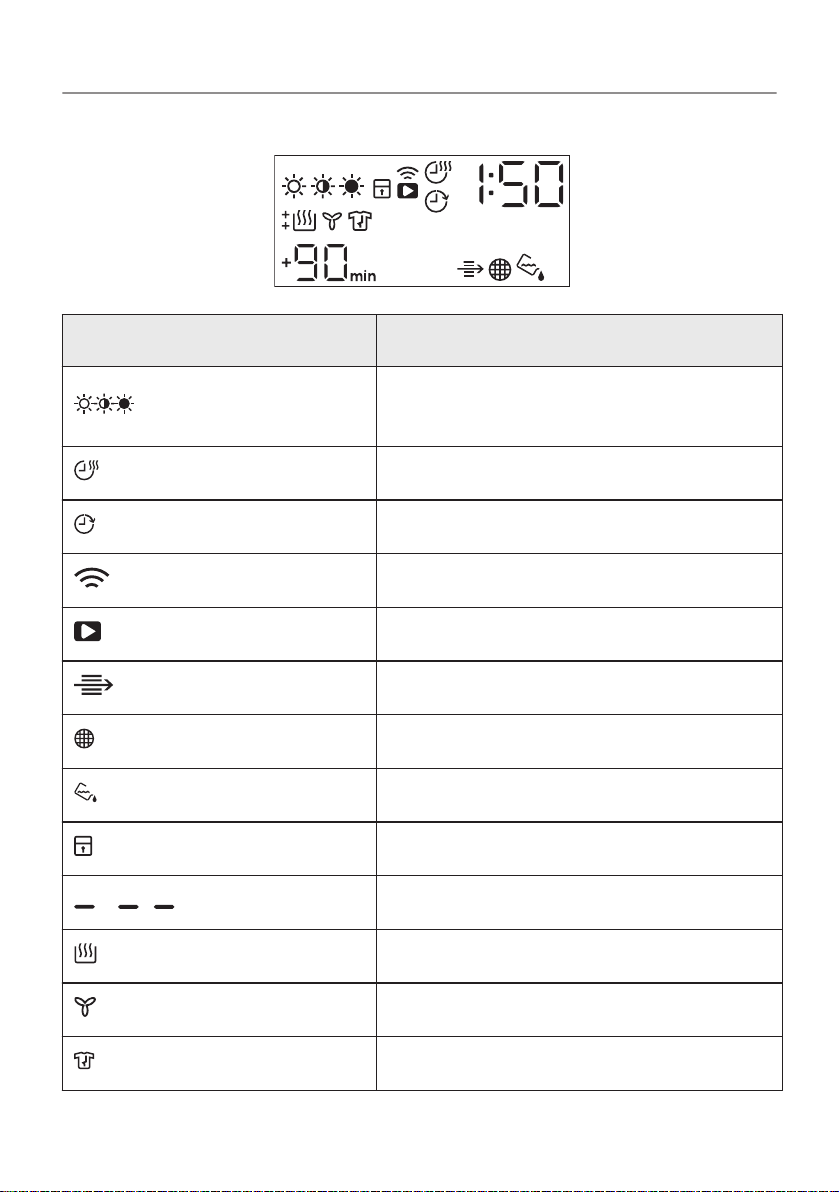

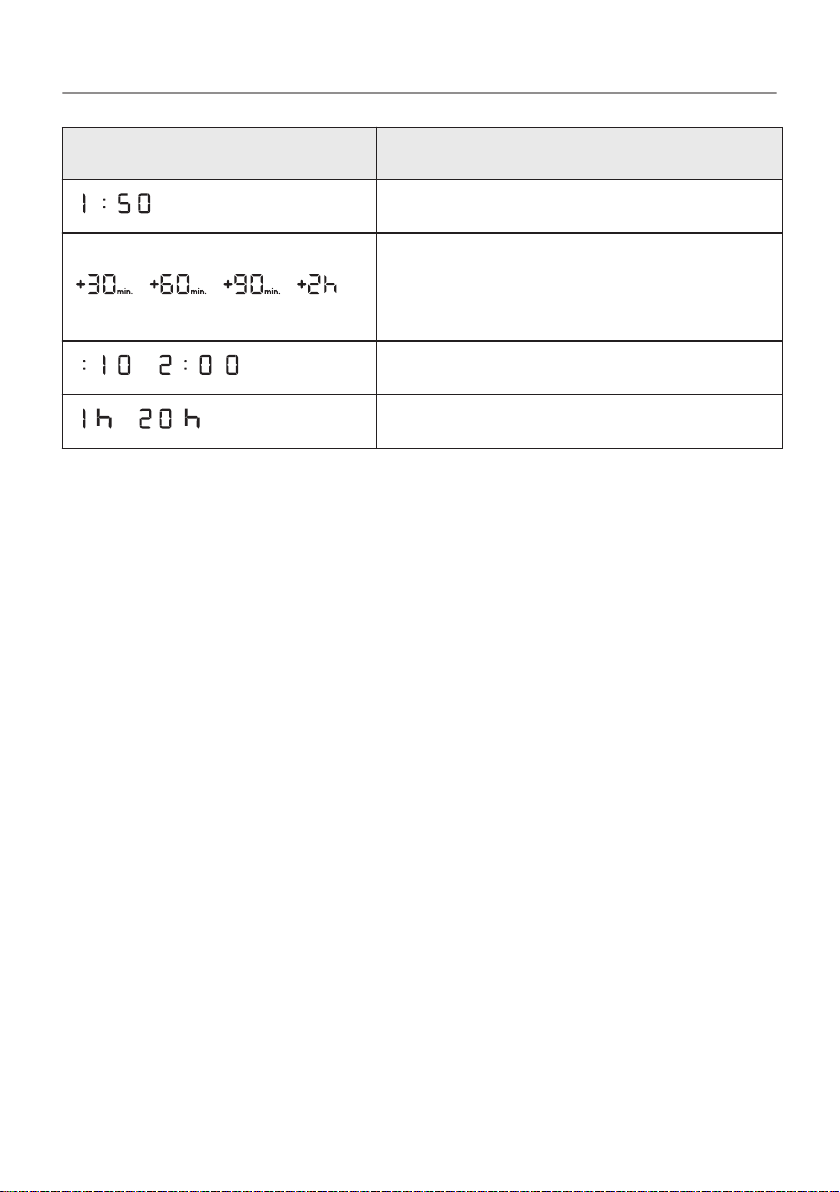

4.1 Display
Symbol on the display Symbol description
laundry dryness option: iron dry,
cupboard dry, extra dry
time drying option on
delay start option on
14/52
indicator:
remote start option on
indicator:
indicator:
indicator:
child lock on
wrong selection
indicator:
indicator:
indicator:
Wi-Fi connection
check Heat Exchanger
clean filter
drain the water container
drying phase
cooling phase
anti-crease phase
Page 15
CONTROL PANEL
Symbol on the display Symbol description
programme duration
extension of default anti-crease
, , ,
phase: +30min, +60min, +90min,
+2h)
-
-
time drying selection (10min-2h)
delay start selection (1h-20h)
15/52
Page 16

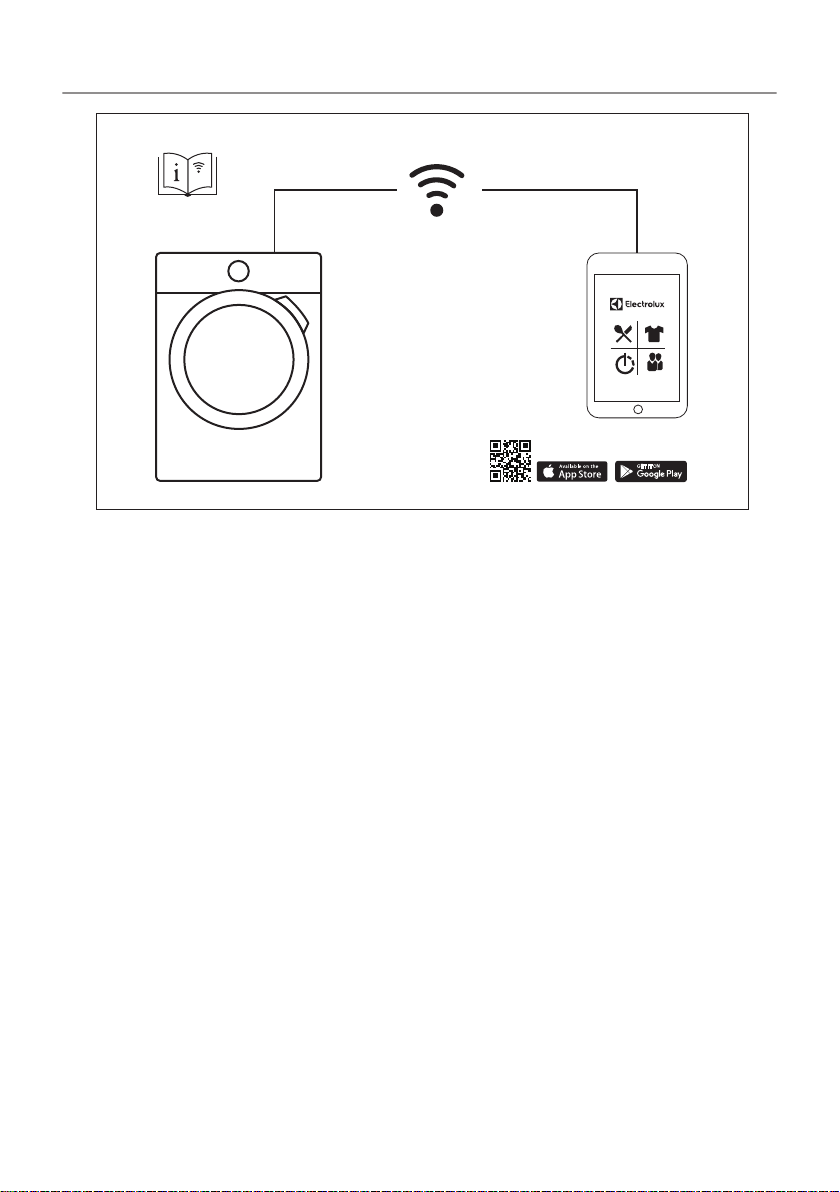

5. WI-FI - CONNECTIVITY SETUP
This chapter describes how to connect the smart appliance to the
Wi-Fi network and to link it to a mobile devices.
By this functionality you can receive notifications, monitor and
control your tumble dryer from your mobile devices.
To connect the appliance to enjoy the full range of features and
services you need:
• Wireless network at home with internet connection enabled.
• Mobile device connected to wireless network.
Fre‐
quency
Protocol IEEE 802.11b/g/n two stream radio
Max
power
2.412 - 2.472 GHz for European market
< 20dBm
5.1 Installing and configuring My Electrolux
When connecting the tumble dryer to the application, stand near it
with Your smart device.
Make sure that your smart device is connected to the wireless
network.
1. Go to the App Store on your smart device.
2. Download and install App My Electrolux .
3. Make sure you started a Wi-fi connection in the tumble dryer. If
not, read the next paragraph
connection'
4. Start the application. Select the country and language and login
with Your email and password. If you do not have an account,
create a new one following the instructions in My Electrolux
5. Follow the instructions on the App for the appliance registration
and configuration.
.
'Configuring the dryer wireless
16/52
Page 17
WI-FI - CONNECTIVITY SETUP
5.2 Configuring the dryer wireless connection
Have My Electrolux downloaded and installed on your smart
device.
1. Press the on/off button for a few seconds to activate the
appliance.
2. Select a programme by turning the programme dial.
3. Press and hold Time Dry and Delay Start touch buttons for 3
seconds .
The text pop up for about 5 seconds and the icon starts
flashing and wireless module begins starting up. It may takes about
45 seconds before it is ready. When the wireless module is ready,
the text (Access Point) is on to inform you, that the access
point will be open for about 3 minute.
4. Configure the My Electrolux app on your smart device.
5. If the connectivity is configured,
and the icon will stop blinking and lit steadily to confirm that
the configuration was successful.
Every time you switch the appliance on, the appliance takes
45 seconds to connect to the network automatically. When
the indicator stops blinking the connection is ready.
(Access Point) symbol is off
To switch the wireless connection off, press and hold Time Dry
and Delay Start touch buttons for 3 seconds until the first acoustic
signal: appears on the display.
If you switch the appliance off and on again, the wireless
connection is automatically off.
To remove the wireless credentials, press and hold Time Dry
and Delay Start touch buttons for 10 seconds until the second
acoustic signal: appears on the display.
17/52
Page 18
WI-FI - CONNECTIVITY SETUP

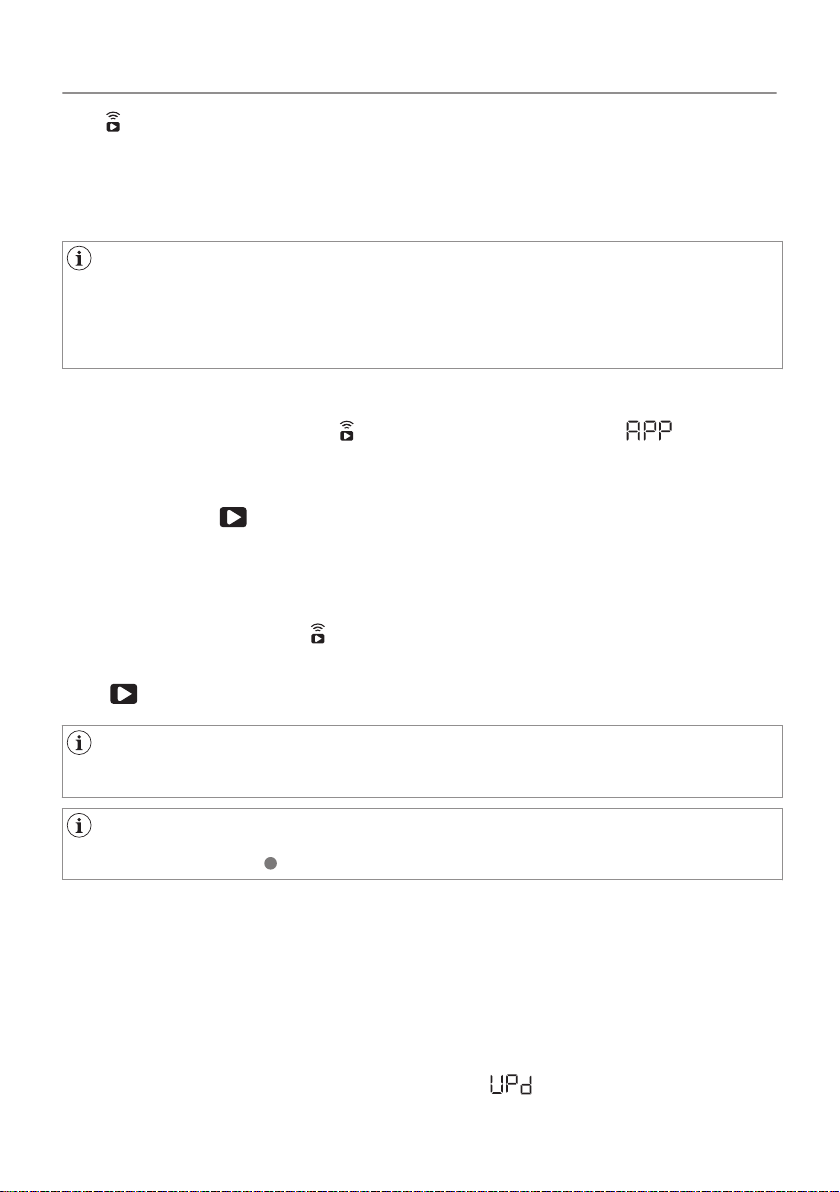

5.3 Remote Start
When the App is installed and the wireless connection is complete,
you can start and stop a drying programme remotely by activate
remote start.
The Remote Control activates automatically when you press the
Start/Pause button to start the programme, but it is also
possible to start a drying programme
Activate Remote Start
1. Press the Delay Start ( ) button and the indicator appears
on the display.
2. Press the Start/Pause button to activate the Remote Start.
The indicators
appears on the display. Now it is possible to start
the programme remotely.
Deactivate Remote Start
Press the Delay Start ( ) touch button and confirm by pressing the
Start/Pause button.
The icon is off and the remote start is deactivated.
If the door is open, the Remote Start is deactivated.
The reset position deactivates the Remote Start.
5.4 Over-the-air update
The App may propose an update for downloading new features.
The update is accepted via App only.
If a programme is running, the App notifies that the update will start
at the end of the programme.
During the update, the appliance shows
in the display.
18/52
Page 19
WI-FI - CONNECTIVITY SETUP
The appliance will usable again at the end of the update, without
any notification about successful update.
If an error occurs, the appliance shows in the display: just
press any buttons or turn the knob to return to normal use.
19/52
Page 20
6. PROGRAMME TABLE
Programme
3) Cotton Eco
Load
8 kg
Cotton 8 kg
Synthetics 3,5 kg
Mixed XL 6 kg
Delicates 4 kg
1)
Properties / Fabric type
Cycle to be used to dry
cotton with "cotton cup‐
board" dryness level,
with maximum energy
saving.
Cycle defined to dry all
types of cotton ready to
store (cupboard dry).
Synthetic and mixed fab‐
rics.
Mix of garments made of
cotton, cotton-synthetic
blend and synthetic fab‐
ric.
Delicate fabrics such as
viscose, rayon, acrylic,
and their blends.
2)
/
/
/
/
/
Sport 2 kg
Down Jacket
20/52
2 kg
Sportswear, thin and
light fabrics, microfiber,
polyester.
Feather and down jack‐
ets, also with synthetic
filling and technical cov‐
er fabric. Dry with zips
closed.
/
/
Page 21
PROGRAMME TABLE
Programme
Load
Bedlinen XL 4,5 kg
Outdoor
2 kg
Denim 4 kg
1)
Properties / Fabric type
Up to three bed linen
sets, one of which can
be double size.
Outdoor clothing, techni‐
cal, sports fabrics, wa‐
terproof and breathable
jackets, shell jackets
with a removable fleece
or inner insulation. Suit‐
able for drying in tumble
dryer.
Leisure clothing such as
jeans, sweat-shirts of
different material thick‐
nesses (e.g. at the neck,
cuffs and seams).
2)
/
/
/
Silk
1 kg
Gentle drying of handwashable silks.
/
Woollen fabrics. Gentle drying for
Wool
1 kg
hand-washable woollens. Remove
items immediately when the pro‐
gramme is completed.
1)
The maximum weight refers to dry items.
2)
For fabric mark meaning see chapter
3)
The Cotton Cupboard Dry ECO programme is the “Standard cotton programme” according to
Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is
the most efficient programme in terms of energy consumption for drying wet cotton laundry.
HINTS AND TIPS: Preparing the laundry.
21/52
Page 22
PROGRAMME TABLE
6.1 Woolmark Apparel Care - Blue
The wool drying cycle of this ma‐
chine has been approved by The
Woolmark Company for the drying
of wool garments labelled as
"hand wash" provided that the gar‐
ments are dried according to the
instructions issued by the manu‐
facturer of this machine. Follow the
garment care label for other laun‐
dry instructions. M1741
The Woolmark symbol is a Certifi‐
cation mark in many countries.
22/52
Page 23
7. OPTIONS
7.1 Extra Anticrease
Extends the anti-crease phase by 30,60, 90 or 2 hours at the end of
the drying cycle. This function reduces creases. The laundry can be
removed during the anti-crease phase.
7.2 Dryness Level
This function helps to increase dryness of the laundry. There are 3
options:
• Extra Dry
• Cupboard Dry
• Iron Dry
7.3 Time Dry
You can set the programme duration, from a minimum of 10
minutes to a maximum of 2 hours. The required duration is related
to the quantity of laundry in the appliance.
We recommend that you set a short duration for small quantities
of laundry or for only one item.
7.4 Time Dry on Wool programme
Option suitable for Wool programme to adjust final dryness level.
7.5 Refresh
To refresh clothes that were in storage. Maximum load cannot
exceed 1 kg.
7.6 End Alert
The buzzer sounds at the:
• cycle end
• start and end of the anti-crease phase
• cycle interruption
23/52
Page 24
OPTIONS
The buzzer function is by default always on. You can use this
function to activate or deactivate the sound.
You can activate the End Alert option with all programmes.
7.7 Reverse Plus
Increase drum reversing frequency to reduce items twisting and
entanglement. To increase uniformity of drying result and help
reduce creases. Recommended for large or long items (e.g. sheets,
trousers, long dresses)"
7.8 Extra Silent
The appliance operates with low noise without effect on the drying
quality. The appliance operates slowly with longer cycle time.
7.9 Options table
Pro‐
grammes
Dryness Lev‐
1)
el
Ex‐
tra
An‐
ti‐
cre
ase
Ex‐
tra
Si‐
lent
Re‐
ver
se
Plu
s
Re‐
fres
h
Cotton
Eco
■ ■
Cotton ■ ■ ■ ■ ■ ■ ■ ■
Synthetics ■ ■ ■ ■ ■ ■ ■ ■
Mixed XL ■ ■ ■ ■ ■
24/52
Tim
e
Dry
Page 25
OPTIONS
Pro‐
grammes
Dryness Lev‐
1)
el
Ex‐
tra
An‐
ti‐
cre
ase
Ex‐
tra
Si‐
lent
Re‐
ver
se
Plu
s
Re‐
fres
h
Tim
Dry
Delicates ■ ■
Sport ■ ■
Down Jacket
■ ■
Bedlinen XL ■ ■ ■ ■ ■
Outdoor
■
Denim ■ ■ ■ ■
e
Silk
Wool
1)
Together with the programme you can set 1 or more options. To activate or deactivate them, press
the related touch button.
2)
See chapter OPTIONS: Time Drying on Wool programme
■ ■
■
25/52
2)
Page 26
8. SETTINGS
A B C
E
DFGHI
A. Time Dry touch button
B. Start/Pause touch button
C. Delay Start touch button
D. Refresh touch button
E. End Alert touch button
F. Reverse Plus touch button
G. Extra Silent touch button
H. Extra Anticrease touch button
I. Dryness Level touch button
8.1 Child lock function
This option prevents children playing with the appliance while a
programme is operating. The touch buttons are locked.
Only the on/off button is unlocked.
Activating the child lock option:
1. Press the on/off button to activate the appliance.
2. Press and hold touch button (D) for a few seconds.
The child lock indicator comes on.
It is possible to deactivate the child lock option while a
programme operates. Press and hold the same touch buttons
until the child lock indicator goes off. The Child Lock function
isn't available for 8 s after switching on the appliance.
26/52
Page 27
SETTINGS

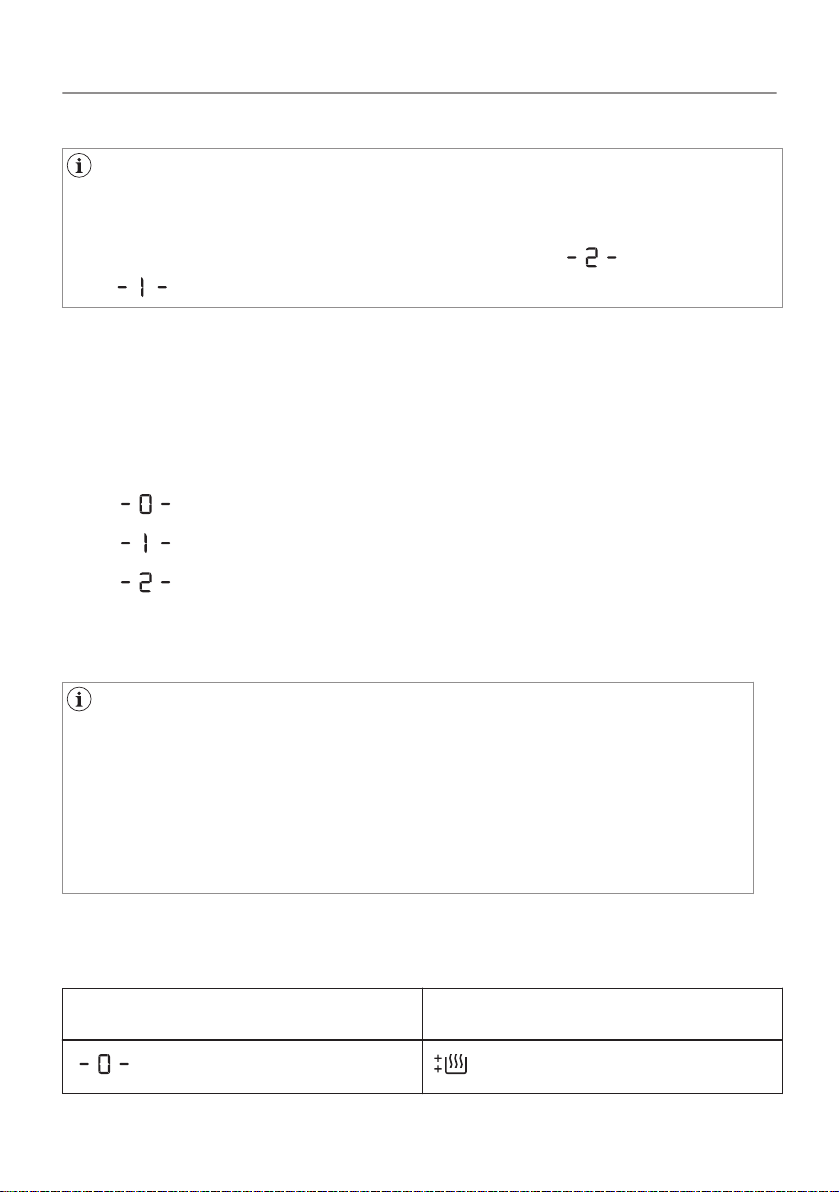

8.2 Adjustment of the remaining moisture
Every time you enter in the "Adjustment of remaining laundry
moisture" mode, previously set degree of remaining moisture
will change into next value ( e.g previously set will change
into ).
To change the default degree of remaining moisture:
1. Press the on/off button to activate the appliance.
2. Use the programme knob to set any programme.
3. Wait approximately 8 seconds.
4. Press and hold buttons (G) and (F) at the same time.
One of these indicators comes on:
•
• more dry laundry
maximum dryness
•
5. Press and hold buttons (G) and (F) again until the indicator of the
correct level comes on.
If the display returns to the normal mode (the time of the
selected programme from step 2. will be displayed), while
setting the degree of remaining moisture, press and hold
buttons (G) and (F) once again to enter to the "Adjustment of
remaining laundry moisture" mode (previously set degree of
remaining moisture will change into next value).
6. To accept the selected degree of remaining moisture, wait 5 s
and the display returns to the normal mode.
Dryness level Display symbol
standard dry laundry
maximum dryness
27/52
Page 28
SETTINGS
more dry laundry
standard dry laundry
8.3 Water container indicator
By default, the water container indicator is on. It comes on when
the programme is completed or when it is necessary to empty the
water container.
If a draining kit is installed (additional accessory), the appliance
automatically drains the water from the water container. In this
case we recommend that you deactivate the indicator of the
water container.
Deactivating the water container indicator:
1. Press the on/off button to activate the appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (H) and (I) at the same time.
The display shows one of these 2 configurations:
• The display shows "Off". After 5 s the display returns to normal
mode.
• The display shows "On". After 5 s the display returns to normal
mode.
28/52
Page 29
9. BEFORE FIRST USE
Rear drum locks are removed automatically when dryer is
activated for the first time. Possible to hear some noise.
To unlock the rear drum locks:
1. Switch on the appliance.
2. Set any programme.
3. Press the Start/Pause button.
Drum starts to rotate. Rear drum locks are deactivated.
Before you use the appliance to dry items:
• Clean the tumble dryer drum with a moist cloth.
• Start a 1 hour programme with moist laundry.
At the beginning of the drying cycle (first 3-5 min) there could be
a slightly higher sound level. This is due to the compressor
starting up. This is normal for compressor powered appliances
such as refrigerators and freezers.
29/52
Page 30
10. DAILY USE
10.1 Start a programme without delay start
1. Prepare the laundry and load the appliance.
CAUTION!
Make sure that when you close the door, the laundry does
not get caught between the appliance door and the rubber
seal.
2. Press the on/off button to activate the appliance.
3. Set the correct programme and options for the type of load.
The display shows the programme duration.
Real drying time will depend on type of the load (quantity and
composition), the room temperature and the humidity of your
laundry after spin drying phase.
4. Press the Start/Pause touch button.
The programme starts.
10.2 Starting the programme with delay start
1. Set the correct programme and options for the type of load.
2. Press the delay start button again and again until the display
shows the delay time you want to set.
You can delay the start of a programme from a minimum of 1
hour to a maximum of 20 hours.
3. Press the Start/Pause touch button.
The display shows the countdown of the delay start.
When the countdown is completed, the programme starts.
10.3 Change a programme
1. Press the on/off button to deactivate appliance
2. Press the on/off button to activate the appliance.
3. Set the programme.
30/52
Page 31
DAILY USE
Alternatively:
1. Rotate the selector knob to the "Reset" position.
2. Wait for 1 second. The display shows .
3. Set the programme.

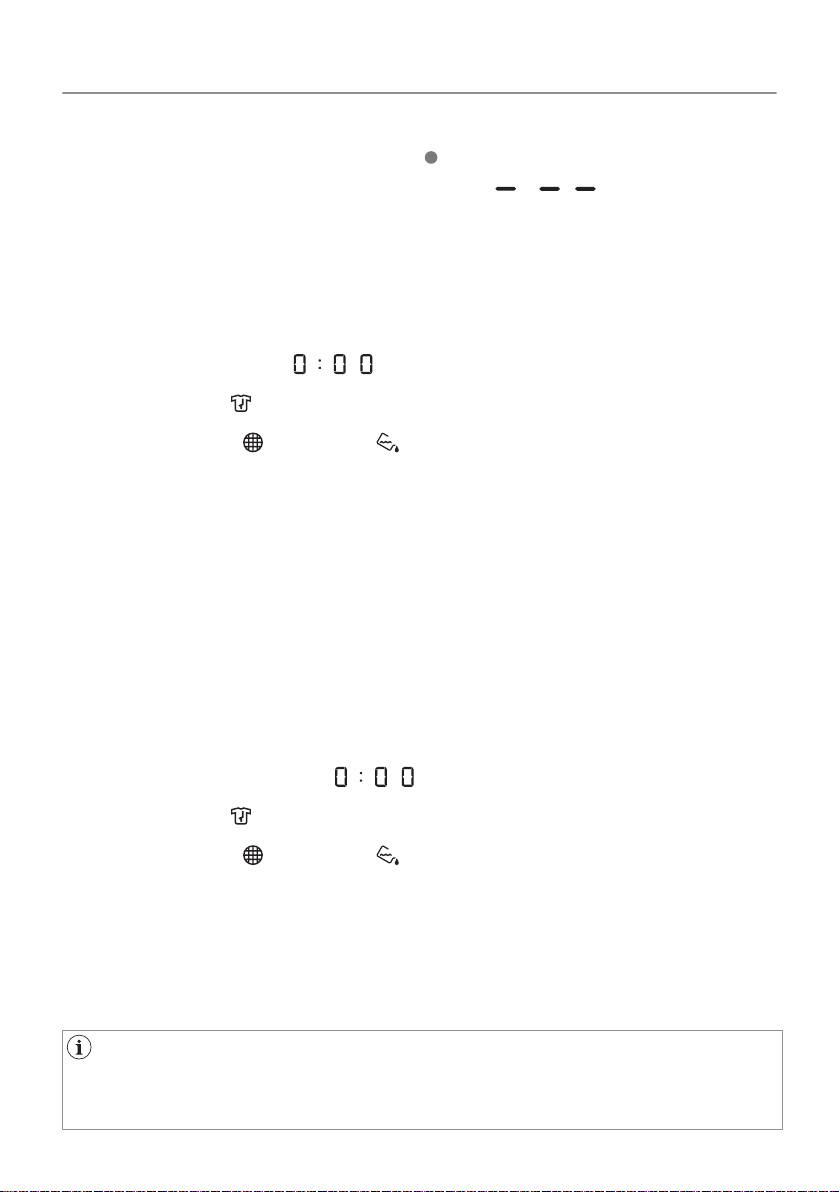

10.4 At the end of the programme
When the programme is completed:
• An intermittent acoustic signal operates.
• The display shows
• The indicator is on.
• The indicators Filter and Tank may come on.
• The Start/Pause indicator is on.
The appliance continues to operate with the anti-crease phase for
approximately 30 minutes or more if Extra Anticrease option was
set (see chapter
The anti-crease phase reduces creasing.
You can remove the laundry before the anti-crease phase is
completed. We recommend, for better results, that you remove the
laundry when the phase is almost completed.
Option - Extra Anticrease
).
When the anti-crease phase is completed:
• The display still shows
• The indicator is off.
• The indicators Filter and Tank remain on.
• Start/Pause indicator goes off.
1. Press the on/off button to deactivate the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Always clean the filter and empty the water container when
a programme is completed.
31/52
Page 32
DAILY USE
10.5 Stand-by function
To reduce energy consumption, this function automatically
deactivates the appliance:
• After 5 minutes if you do not start the programme.
• After 5 minutes from the end of the programme.
The time is reduced to 30 seconds if the selector knob is
pointing to "Reset" position.
32/52
Page 33
11. HINTS AND TIPS
11.1 Preparing the laundry
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g. apron ribbons). Tie them
before you start a programme.
• Remove all items from pockets.
• Turn items with the internal layer made of cotton inside out.
Cotton layer must be faced outwards.
• Always set the programme suitable for the type of laundry.
• Do not put light and dark colours together.
• Use suitable programme for cottons, jersey and knitwear to
reduce shrinkage.
• Do not exceed the maximum load stated in the programmes
chapter or shown on the display.
• Dry only the laundry that is suitable for tumble drying. Refer to
the fabric label on the items.
• Do not dry large and small items together. Small items can be
trapped inside the large items and remain wet.

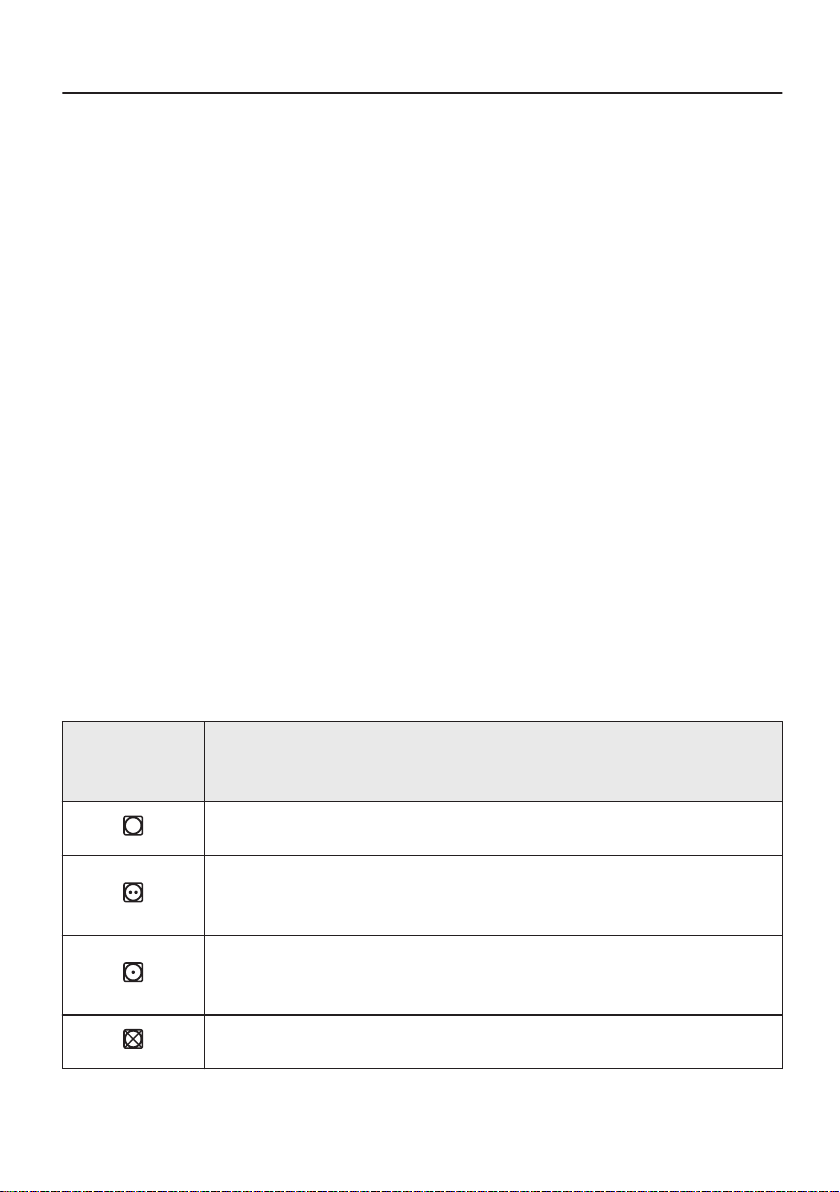

Fabric la‐
bel
Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher tem‐
peratures.
Laundry is suitable for tumble drying at low temper‐
atures only.
Laundry is not suitable for tumble drying.
33/52
Page 34
12. CARE AND CLEANING
1
2
2
1

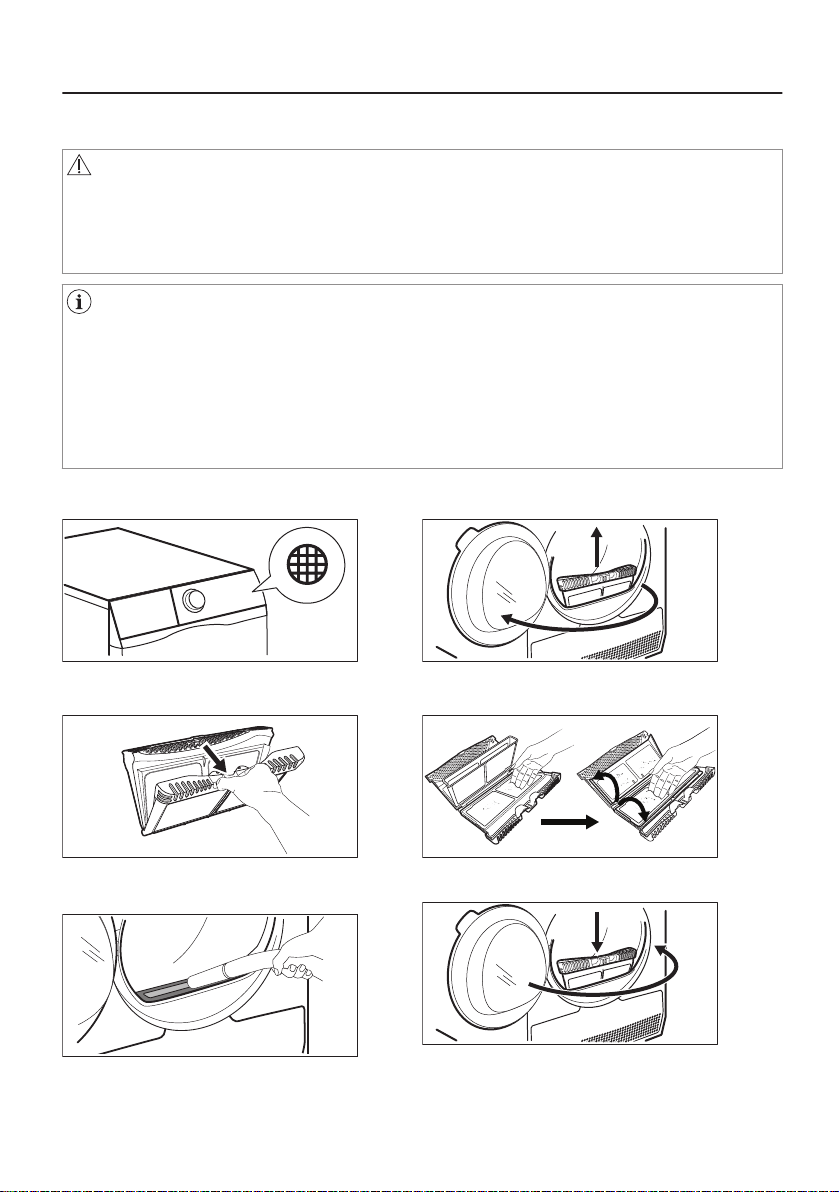

12.1 Cleaning the filter
CAUTION!
Avoid the use of water to clean the filter. Instead throw away lint
in the dustbin ( avoid dispersion of plastic fiber in water
ambient).
To achieve the best drying performances clean the filter
regularly , clogged filter lead to longer cycles and energy
consumption increase.
Use your hand to clean the filter , and if necessary , a vacuum
cleaner .
1. 2.
3. 4.
1)
5.
1)
If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner.
34/52
6.
Page 35
1
2
11
22
CARE AND CLEANING

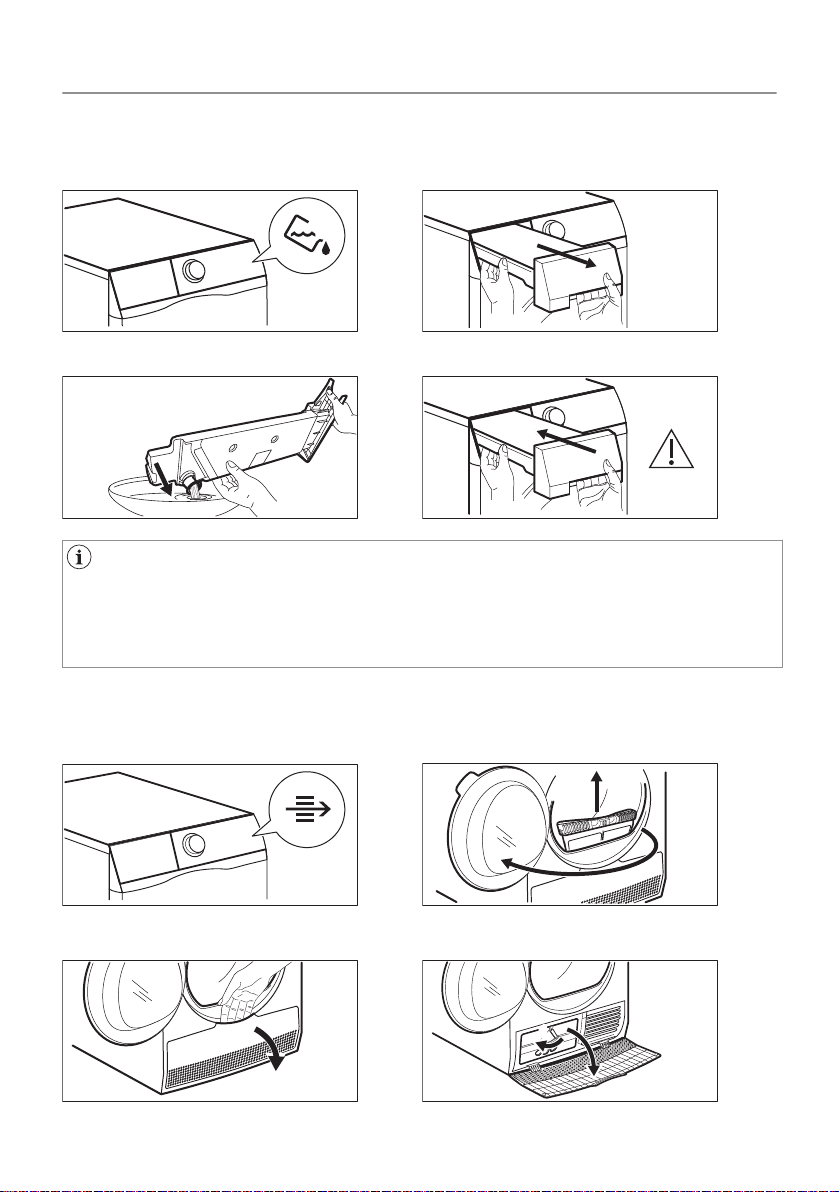

12.2 Emptying the water container
1. 2.
3. 4.
You can use the water from the water container as an
alternative to distilled water (e.g. for steam ironing). Before you
use the water, remove dirt residues with a filter.
12.3 Cleaning the Heat Exchanger
1. 2.
3. 4.
35/52
Page 36
2
1
CARE AND CLEANING

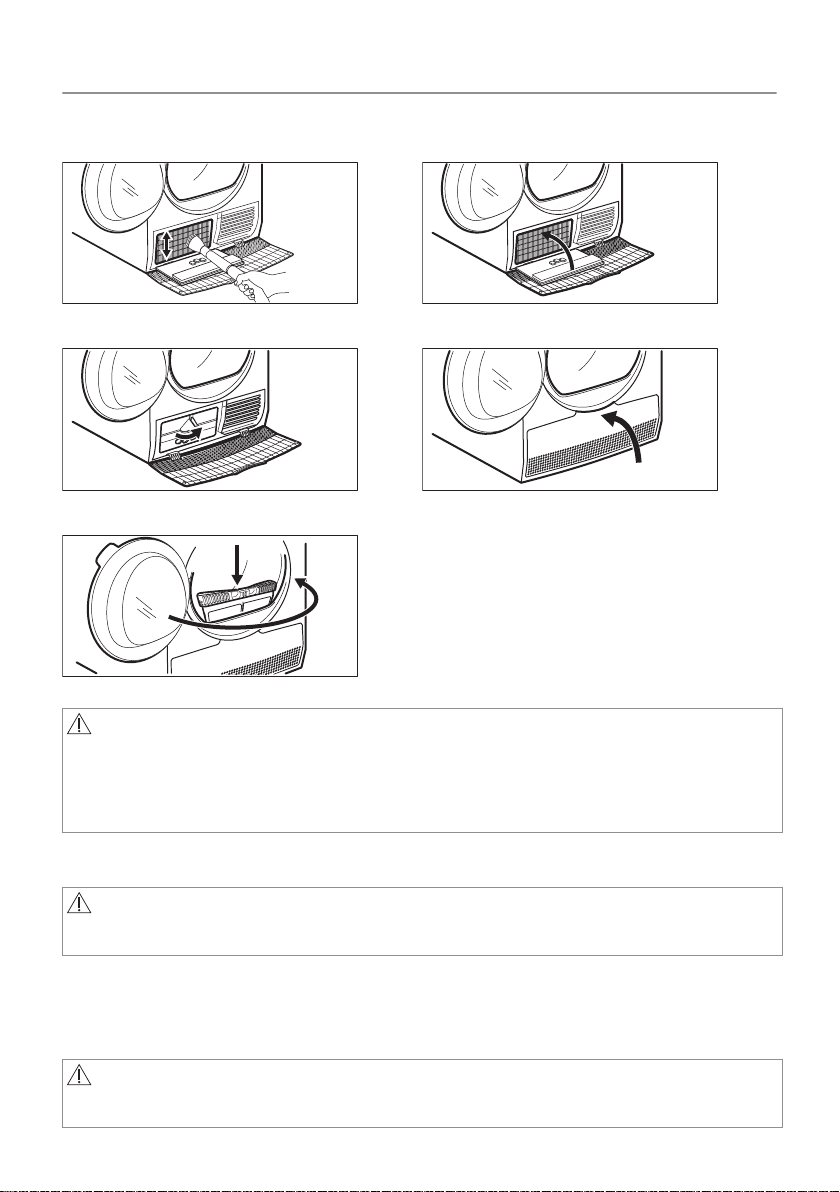

5. 6.
7. 8.
9.
CAUTION!
Do not touch the metal surface with bare hands. Risk of injury.
Wear protective gloves. Clean carefully to avoid damaging the
metal surface.
12.4 Cleaning the drum
WARNING!
Disconnect the appliance before you clean it.
Use a standard neutral soap detergent to clean the inner surface of
the drum and drum lifters. Dry the cleaned surfaces with a soft
cloth.
CAUTION!
Do not use abrasive materials or steel wool to clean the drum.
36/52
Page 37
CARE AND CLEANING
12.5 Cleaning the control panel and housing
Use a standard neutral soap detergent to clean the control panel
and housing.
Use a moist cloth to clean. Dry the cleaned surfaces with a soft
cloth.
CAUTION!
Do not use furniture cleaning agents or cleaning agents which
can cause corrosion.
12.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff from the airflow slots.
37/52
Page 38
13. TROUBLESHOOTING
Problem Possible solution
You cannot activate the appli‐
ance.
Make sure that the mains plug
is connected to the mains sock‐
et.
Check fuse in fuse box (do‐
mestic installation).
The programme does not start. Press Start/Pause.
Make sure that the appliance
door is closed.
The appliance door does not
close.
Make sure that the installation
of the filter is correct.
Make sure that the laundry is
not caught between the appli‐
ance door and the rubber seal.
The appliance stops during op‐
eration.
Make sure that the water con‐
tainer is empty. Press Start/
Pause to start the programme
again.
Load is too small, increase the
load or use the Time Drying
programme.
The cycle time is too long or
unsatisfactory drying result.
1)
Make sure that the weight of
the laundry is suitable for the
duration of the programme.
Make sure that the filter is
clean.
38/52
Page 39
TROUBLESHOOTING
Problem Possible solution
The laundry is too wet. Spin the
laundry in the washing machine
again.
Ensure that the room tempera‐
ture is higher than +5°C and
lower than +35°C. Optimal
room temperature is 19°C to
24°C.
Set the Time Drying or the Ex‐
tra Dry programme.
2)
The App cannot connect to the
dryer.
Check if your smart device is
connected to the wireless net‐
work.
Check your home network and
router.
Restart the router.
Contact your wireless service
provider if there are problems
with the wireless network.
The dryer, the smart device, or
both, need to be configured
again.
The App frequently cannot con‐
nect to the dryer.
Try to move the home router as
near the dryer as possible or
consider purchasing a wireless
range extender.
39/52
Page 40
TROUBLESHOOTING
Problem Possible solution
Turn the microwave off. Avoid
using the microwave and the
Remote Control of the oven at
the same time. The micro‐
waves disrupt the Wi-Fi signal.
The display shows .
If you want to set a new pro‐
gramme, deactivate and acti‐
vate the appliance.
Make sure that the options are
suitable for the programme.
The display shows Error code
(e.g. E51).
Deactivate and activate the ap‐
pliance. Start a new pro‐
gramme. If the problem occurs
again, contact the Service cen‐
tre.
1)
After maximum 5 hours, the programme ends automatically.
2)
It can happen that some area remains humid when drying big items (e.g. bed sheets ).
13.1 If the drying results are not satisfactory
• The set programme was incorrect.
• The filter is clogged.
• The Heat Exchanger is clogged.
• There was too much laundry in the appliance.
• The drum is dirty.
• Incorrect setting of the conductivity sensor ( See chapter
"
Settings - Adjustment of the remaining laundry moisture degree
for better setting).
• The airflow slots are clogged.
40/52
"
Page 41
TROUBLESHOOTING
• Room temperature is too low or too high ( optimal room
temperature 19°C to 24°C )
41/52
Page 42
14. TECHNICAL DATA
Height x Width x Depth 850 x 596 x 638 mm (maximal
662 mm)
Max. depth with the appliance
1107 mm
door open
Max. width with the appliance
958 mm
door open
Adjustable height 850 mm (+ 15 mm - feet regu‐
lation)
Drum volume 118 l
Maximum load volume 8 kg
Voltage 230 V
Frequency 50 Hz
Sound power level 63 dB
Total power 700 W
Energy efficiency class A+++
Energy consumption on the
standard cotton programme
with the full load.
1)
Energy consumption on the
standard cotton programme
with the partial load.
2)
Annual energy consumption
42/52
1,47 kWh
0,83 kWh
3)
176,50 kWh
Page 43
TECHNICAL DATA
Left-on mode power absorp‐
4)
tion
Off mode power absorption
Power consumption in net‐
worked standby
4)
Time to networked standby
4)
4)
0,05 W
0,05 W
2,0 W
15 min.
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against in‐
IPX4
gress of solid particles and
moisture ensured by the pro‐
tective cover, except where the
low voltage equipment has no
protection against moisture
This product contains fluorinated greenhouse gases, hermetically
sealed
Gas designation R134a
Weight 0,30 kg
43/52
Page 44
TECHNICAL DATA
Global-warming potential
1430
(GWP)
1)
With reference to EN 61121. 8 kg of cotton centrifuged at 1000 rpm.
2)
With reference to EN 61121. 4 kg of cotton centrifuged at 1000 rpm.
3)
Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton pro‐
gramme at full and partial load, and the consumption of the low-power modes. Actual energy con‐
sumption per cycle will depend on how the appliance is used (REGULATION (EU) No. 392/2012).
4)
With reference to EN 61121.
The information given in the chart above is compliant with the EU Commission regulation 392/2012
implementing directive 2009/125/EC.
14.1 Consumption data
Energy
Programme
Spun at / residual hu‐
midity
Cotton Eco 8 kg
Drying
1)
time
con‐
sump‐
2)
tion
Cupboard Dry 1400 rpm / 50% 134 min.
1000 rpm / 60% 152 min.
Cotton 8 kg
Iron Dry 1400 rpm / 50% 103 min.
1000 rpm / 60% 125 min.
44/52
1,30
kWh
1,47
kWh
0,93
kWh
1,09
kWh
Page 45
Programme
Spun at / residual hu‐
midity
Cotton Eco 4 kg
TECHNICAL DATA
Energy
Drying
1)
time
con‐
sump‐
2)
tion
Cupboard Dry 1400 rpm / 50% 90 min.
1000 rpm / 60% 97 min.
0,76
kWh
0,83
kWh
Synthetics 3,5 kg
Cupboard Dry 1200 rpm / 40% 57 min.
800 rpm / 50% 66 min.
1)
For partial loads, the cycle time is shorter and appliance uses less energy.
2)
Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and in‐
crease the energy consumption.
0,47
kWh
0,58
kWh
45/52
Page 46
15. PRODUCT INFORMATION SHEET IN
REFERENCE TO E.U. REGULATION 1369/2017
Product Information Sheet
Trade Mark Electrolux
Model EDH9000W3
PNC916098727
Rated capacity in kg 8
Air vented or condenser tumble dryer Condenser
Energy efficiency class A+++
Energy consumption in kWh per year, based
on 160 drying cycles of the standard cotton
programme at full and partial load, and the
consumption of the low-power modes. Actual
energy consumption per cycle will depend on
how the appliance is used.
Automatic tumble drier or non-automatic tum‐
ble drier
Energy consumption of the standard cotton
programme at full load in kWh
Energy consumption of the standard cotton
programme at partial load in kWh
Power consumption of the off-mode in W 0,05
Power consumption in left-on mode in W 0,05
Duration of the left on mode in minutes 10
176,50
Automatic
1,47
0,83
46/52
Page 47
PRODUCT INFORMATION SHEET IN
REFERENCE TO E.U. REGULATION 1369/2017
The 'standard cotton programme' used at full
and partial load is the standard drying pro‐
gramme to which the information in the label
and the fiche relates, this programme is suita‐
ble for drying normal wet cotton laundry and it
is the most efficient programme in terms of en‐
ergy consumption for cotton.
Weighted programme time of the 'standard
cotton programme at full and partial load' in
minutes
Programme time of the 'standard cotton pro‐
gramme at full load' in minutes
Programme time of the 'standard cotton pro‐
gramme at partial load' in minutes
Condensation efficiency class on a scale from
G (least efficient) to A (most efficient)
Average condensation efficiency of the stand‐
ard cotton programme at full load as a per‐
centage
121
152
97
A
91
Average condensation efficiency of the stand‐
ard cotton programme at partial load as a per‐
centage
Weighted condensation efficiency for the
'standard cotton programme at full and partial
load'
Sound power level in dB 63
Built in appliance Y/N No
91
91
47/52
Page 48
PRODUCT INFORMATION SHEET IN
REFERENCE TO E.U. REGULATION 1369/2017
The information given in the chart above is compliant with the EU Commission regulation 392/2012
implementing directive 2009/125/EC.
48/52
Page 49
16. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the packaging in relevant
containers to recycle it. Help protect the environment and human
health by recycling waste of electrical and electronic appliances. Do
not dispose of appliances marked with the symbol
household waste. Return the product to your local recycling facility
or contact your municipal office.
with the
49/52
*
Page 50
50/52
Page 51
51/52
Page 52
electrolux.com/app
The software included in this product contains copyrighted software that is licensed under the BSD, GPL-2.0, LGPL-
2.0, LGPL-2.1, zLib, MIT, ISC, Apache 2.0 and others. It is possible to display the complete copy of the licenses
in the Electrolux App that can be downloaded from the corresponding App store from the License menu section.
It is possible to download the source code of the open source software used in the product by searching for Wi-Fi
Module Software version in NIUX subfolder at the following website: http://electrolux.opensoftwarerepository.com.
www.electrolux.com/shop
136964421-A-322019
Loading...
