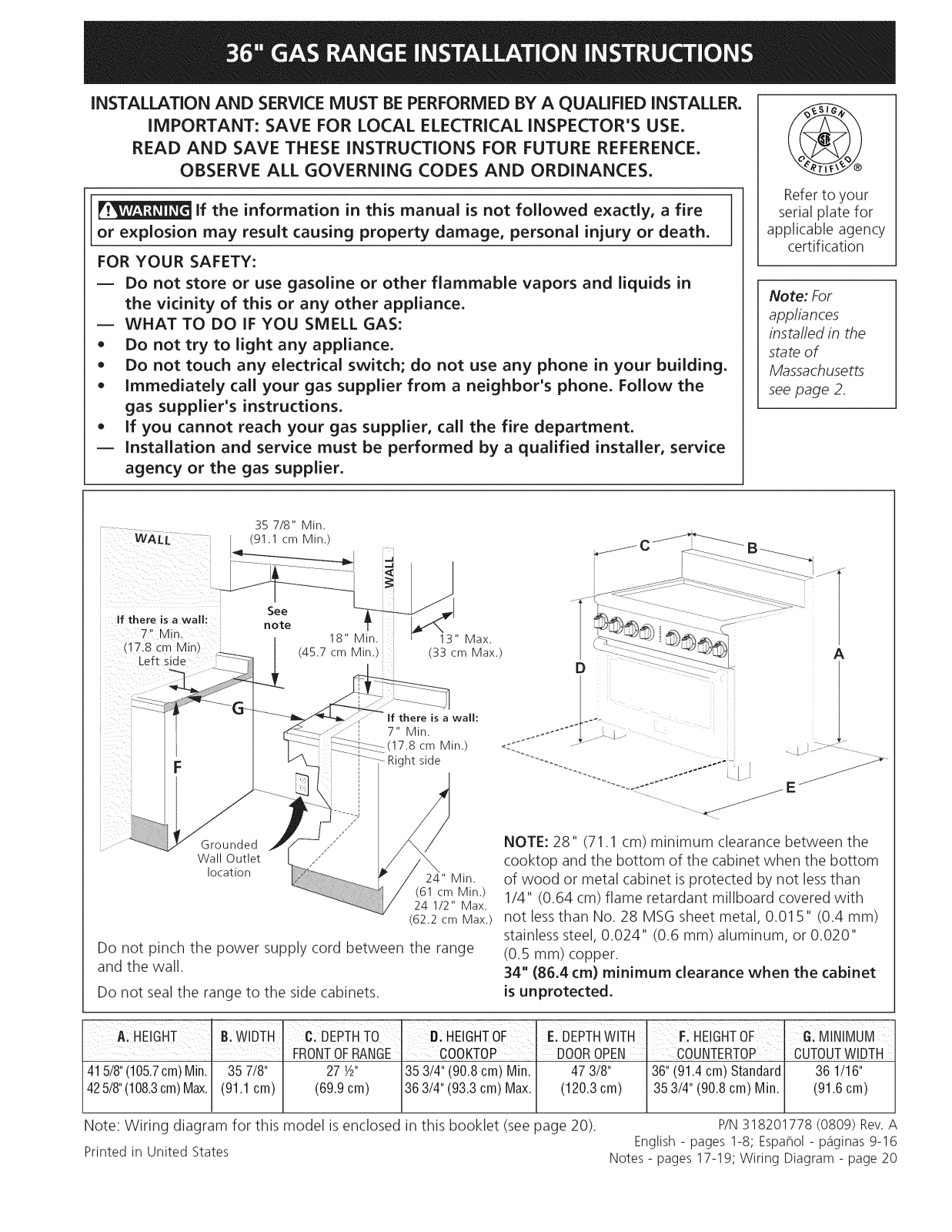

Electrolux E36GF76HPS2, E36GF76HPS3 Installation Guide

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.

iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.

READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.

OBSERVE ALL GOVERNING CODES AND ORDINANCES.

If the information in this manual is not followed exactly, a fire

or explosion may result causing property damage, personal injury or death.

FOR YOUR SAFETY:

-- Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.

-- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

-- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.

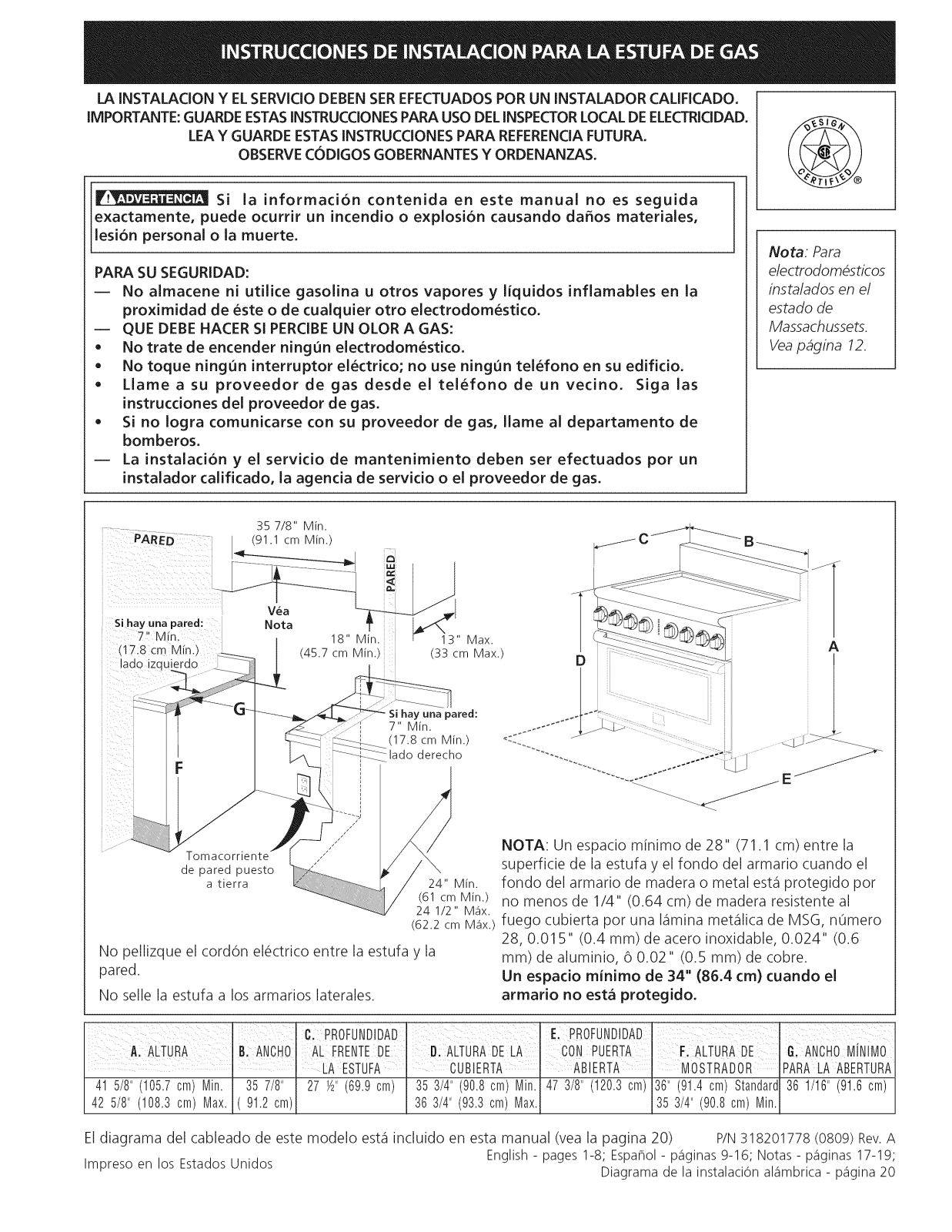

35 7/8" Min.

(91.1 cm Min.)

/._/_ C_

Refer to your

serial plate for

applicable agency

certification

Note: For
app/iances

instafled in the
state of

Massachusetts

see page 2,

If there is a wall:

7" Min.

(!7.8 cm Mir

Left side

See

note

18" Min. I 13" Max.

(45.7 cm Min.) (33 cm Max.)

If there is a wall:

i 7" Min.

17.8 cm Min.)

, Right side

-.-_...................... _-[ j_J"

J

J

NOTE: 28" (71.1 cm) minimum clearance between the

Grounded ,/,-Wall Outlet

location

24" Min.

(61 cm Min.)

24 1/2" Max.

(62.2 cm Max.)

cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not less than

1/4" (0.64 cm) flame retardant millboard covered with
not lessthan No. 28 MSG sheet metal, 0.01 5" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020"

Do not pinch the power supply cord between the range
and the wall.

Do not seal the range to the side cabinets.

A HEIGHT B:WIDTH C. DEPTHTO, D, HEIGHTOF E.DEPTHWITH F.HEIGHTOF &MINIMUM

I

!

FRONTOFRANGE COOKTOP DOOROPEN COUNTERTOP, CUTOUTWIDTH

(0.5 mm) copper.
34" (86.4 cm) minimum clearance when the cabinet

is unprotected.

I I '

415/8"(105.7cm)Min. 35 7/8" 27 W' 35 3/4"(90.8cm)Min. 47 3/8" 36"(91.4cm)Standard 36 1/16"
425/8"(108.3cm)Max. (91.1cm) (69.9cm) 363/4"(93.3cm)Max. (120.3cm) 353/4"(90.8cm)Min. (91.6cm)

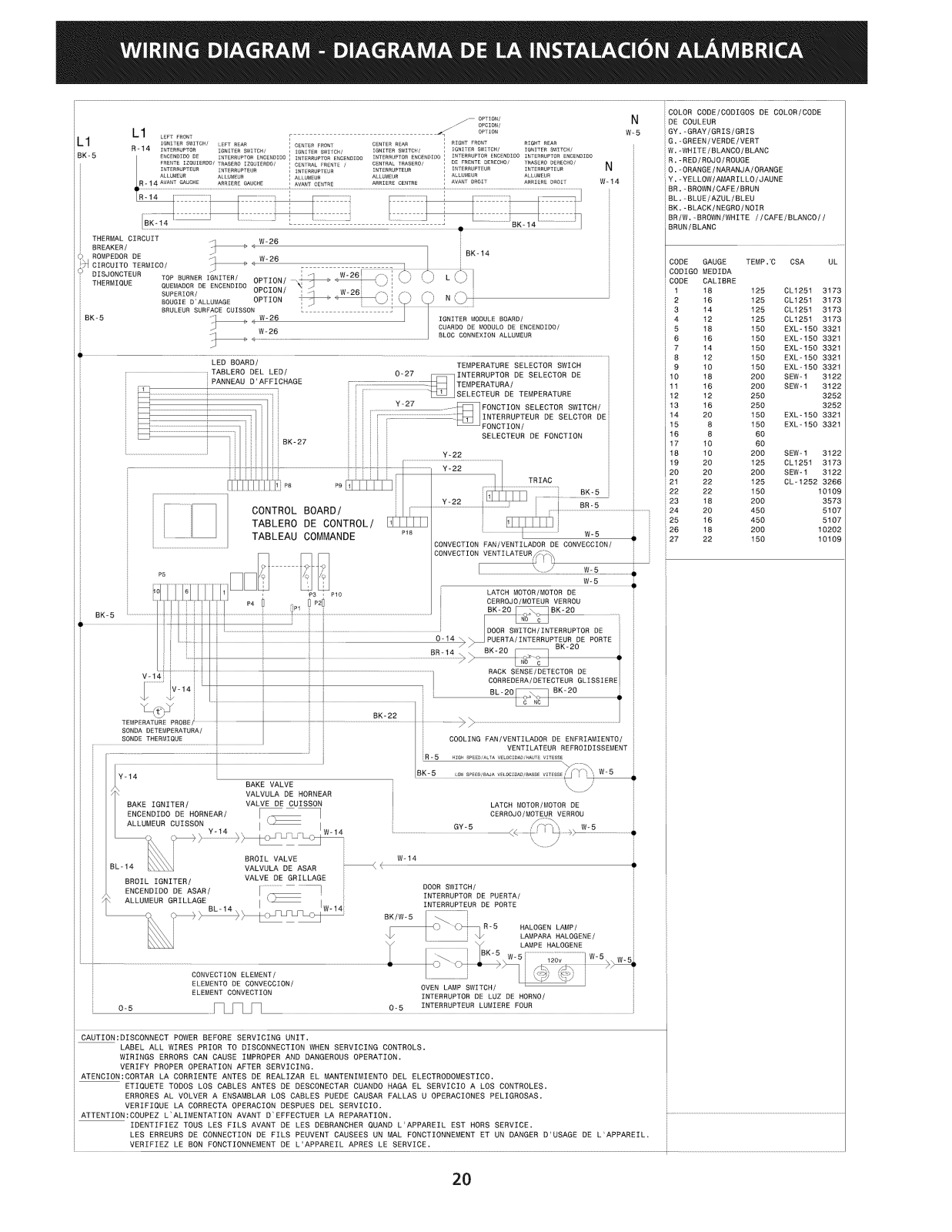

Note: Wiring diagram for this model is enclosed in this booklet (see page 20). P/N318201778 (0809) Rev. A

English - pages 1-8; Espahol - p_iginas 9-16

Printed in United States Notes - pages 17-19; Wiring Diagram - page 20

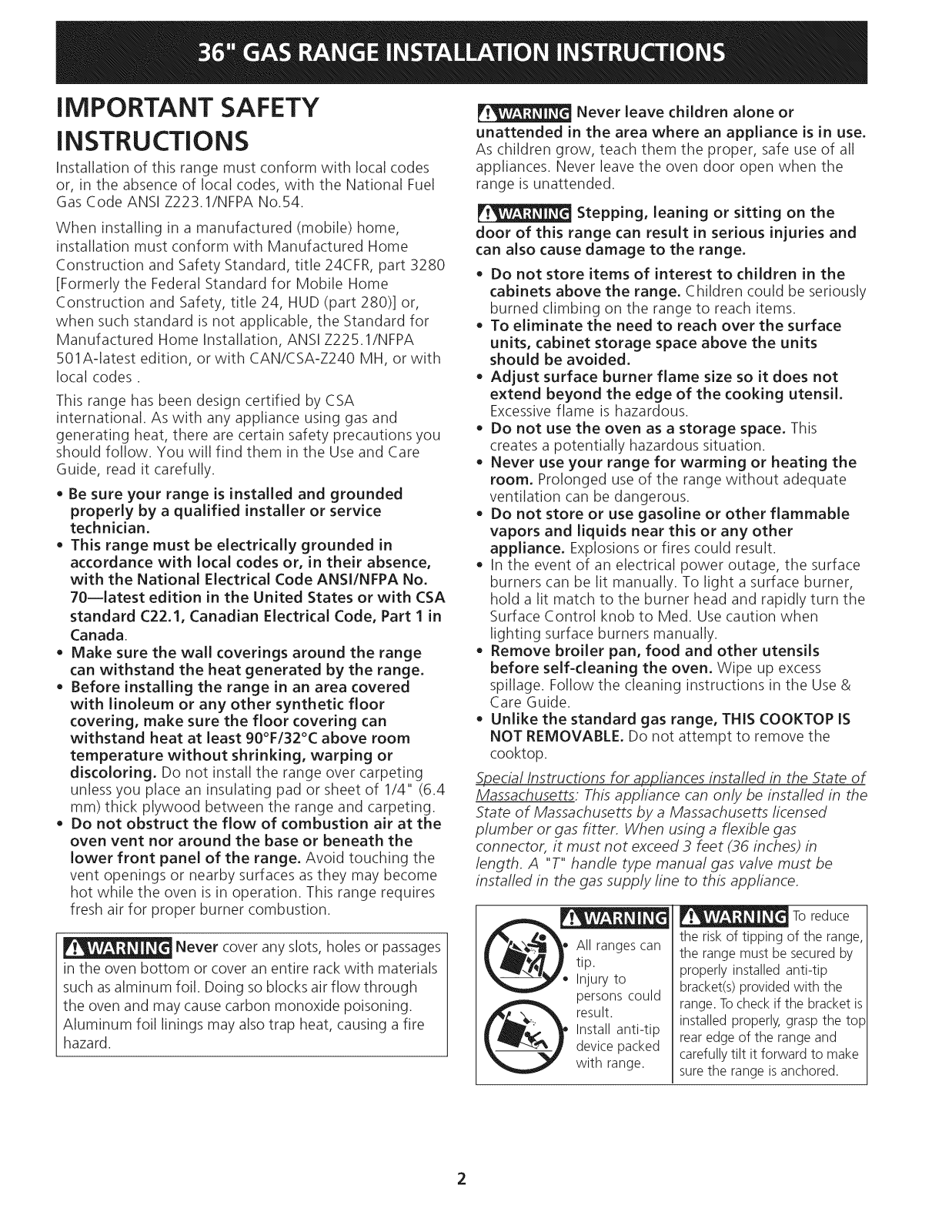

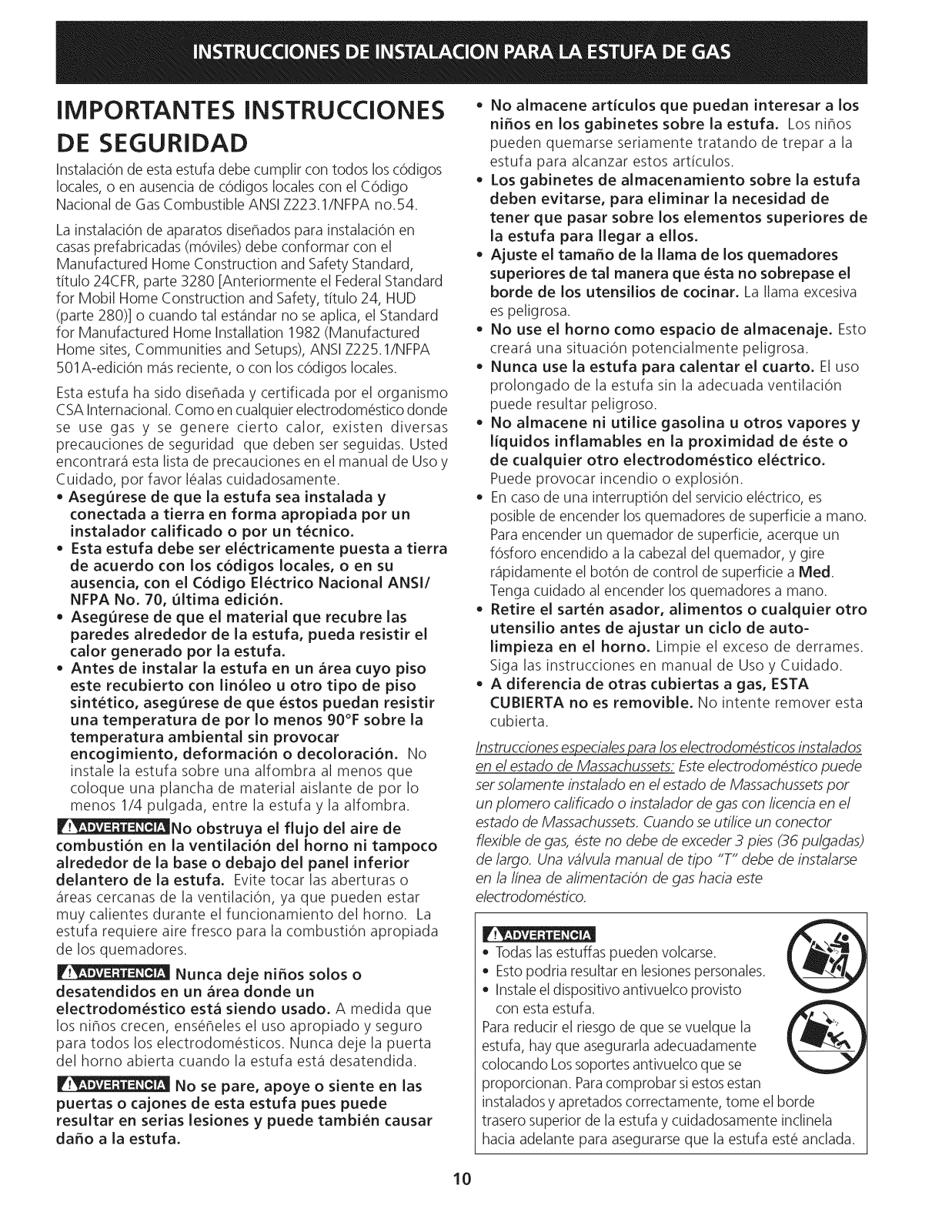

iMPORTANT SAFETY

iNSTRUCTiONS

Installation of this range must conform with local codes
or, in the absence of local codes, with the National Fuel

Gas Code ANSI Z223.1/NFPA No.54.
When installing in a manufactured (mobile) home,

installation must conform with Manufactured Home
Construction and Safety Standard, title 24CFR, part 3280

[Formerly the Federal Standard for Mobile Home
Construction and Safety, title 24, HUD (part 280)] or,
when such standard is not applicable, the Standard for
Manufactured Home Installation, ANSI Z225.1/NFPA
501 A-latest edition, or with CAN/CSA-Z240 MH, or with

local codes.
This range has been design certified by CSA

international. As with any appliance using gas and
generating heat, there are certain safety precautions you

should follow. You will find them in the Use and Care
Guide, read it carefully.

* Be sure your range is installed and grounded

properly by a qualified installer or service
technician.

* This range must be electrically grounded in

accordance with local codes or, in their absence,
with the National Electrkal Code ANSI/NFPA No.
70--latest edition in the United States or with CSA

standard C22.1, Canadian Electrical Code, Part I in
Canada

* Make sure the wall coverings around the range

can withstand the heat generated by the range.

* Before installing the range in an area covered

with linoleum or any other synthetic floor
covering, make sure the floor covering can

withstand heat at least 90°F/32°C above room
temperature without shrinking, warping or

discoloring. Do not install the range over carpeting
unless you place an insulating pad or sheet of 1/4" (6.4
mm) thick plywood between the range and carpeting.

* Do not obstruct the flow of combustion air at the

oven vent nor around the base or beneath the
lower front panel of the range. Avoid touching the

vent openings or nearby surfaces as they may become
hot while the oven is in operation. This range requires
fresh air for proper burner combustion.

Never cover any slots, holes or passages

in the oven bottom or cover an entire rack with materials

such asalminum foil. Doing so blocks air flow through
the oven and may cause carbon monoxide poisoning.
Aluminum foil linings may also trap heat, causing a fire

hazard.

Never leave children alone or

unattended in the area where an appliance is in use.
As children grow, teach them the proper, safe use of all
appliances. Never leave the oven door open when the
range is unattended.

Stepping, leaning or sitting on the

door of this range can result in serious injuries and
can also cause damage to the range.

* Do not store items of interest to children in the

cabinets above the range. Children could be seriously
burned climbing on the range to reach items.

* To eliminate the need to reach over the surface

units, cabinet storage space above the units
should be avoided.

* Adjust surface burner flame size so it does not

extend beyond the edge of the cooking utensil.

Excessiveflame is hazardous.

* Do not use the oven as a storage space. This

creates a potentially hazardous situation.

* Never use your range for warming or heating the

room. Prolonged use of the range without adequate
ventilation can be dangerous.

* Do not store or use gasoline or other flammable

vapors and liquids near this or any other
appliance. Explosions or fires could result.

* In the event of an electrical power outage, the surface

burners can be lit manually. To light a surface burner,
hold a lit match to the burner head and rapidly turn the

Surface Control knob to Med. Usecaution when
lighting surface burners manually.

* Remove broiler pan, food and other utensils

before self-cleaning the oven. Wipe up excess
spillage. Follow the cleaning instructions in the Use &

Care Guide.

* Unlike the standard gas range, THIS COOKTOP IS

NOT REMOVABLE. Do not attempt to remove the
cooktop.

Special Instructions for appliances installed in the State of
Massachusetts: This appliance can only be installed in the
State of Massachusetts by a Massachusetts licensed
plumber or gas fitter. When using a flexible gas

connector, it must not exceed 3 feet (36 inches) in
length. A "T" handle type manual gas valve must be

installed in the gas supply line to this appliance.

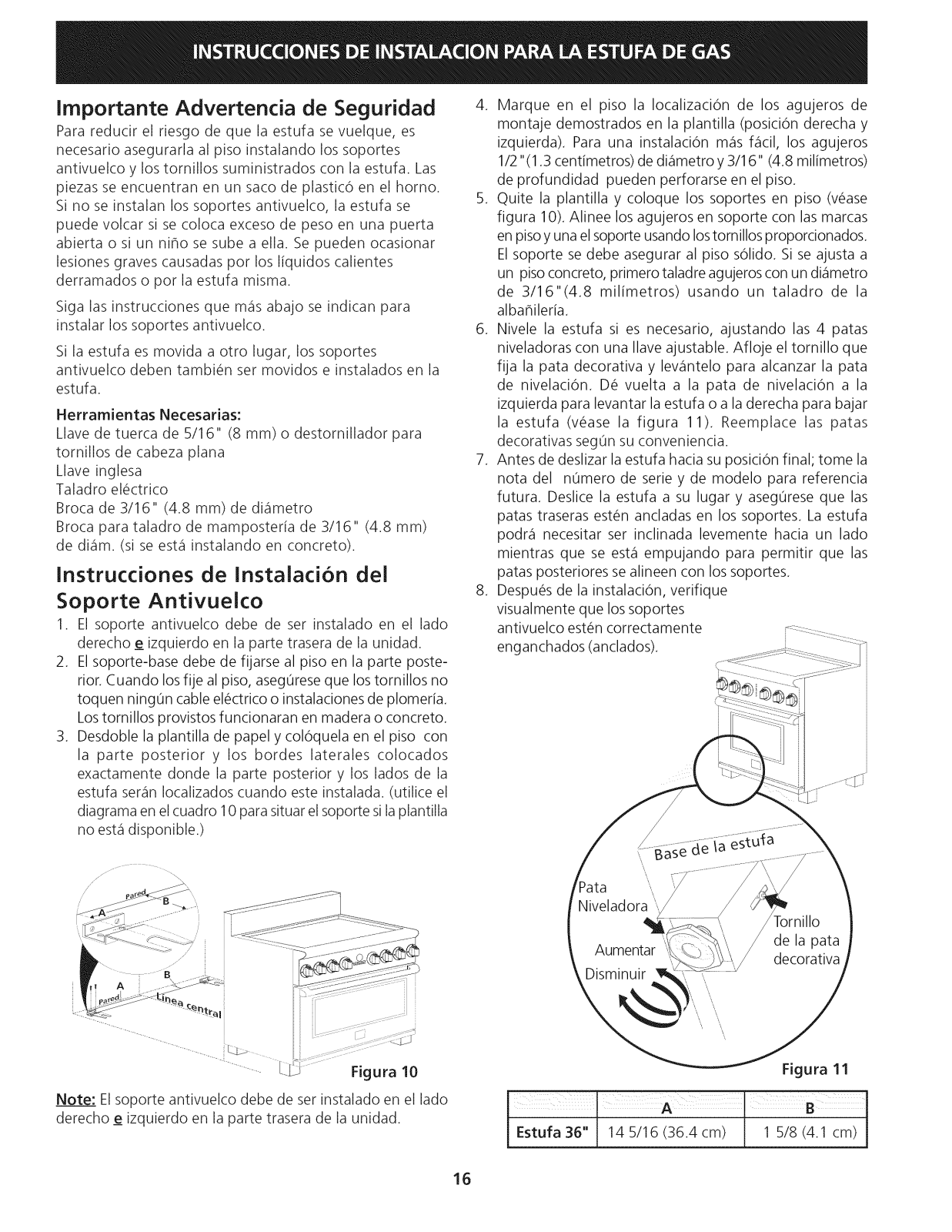

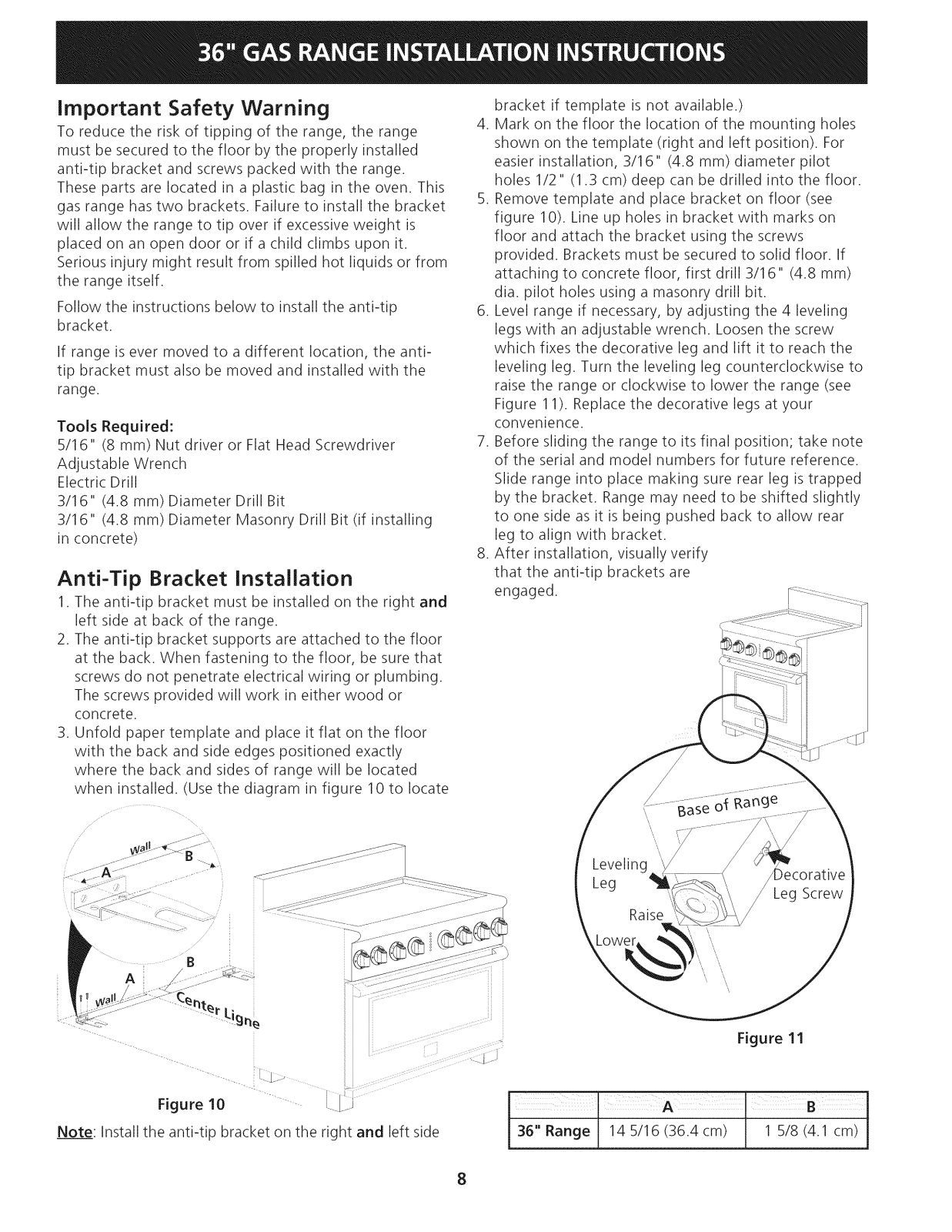

__r To reduce

_® All rangescan

\ J tip.

" Injury to

personscould
Installanti-tip

devicepacked

result.

with range.

the risk of tipping of the range,
the range must be secured by
properly installed anti-tip
bracket(s) provided with the

range. To check if the bracket is
installed properly, grasp the top
rear edge of the range and
carefully tilt it forward to make
sure the range is anchored.

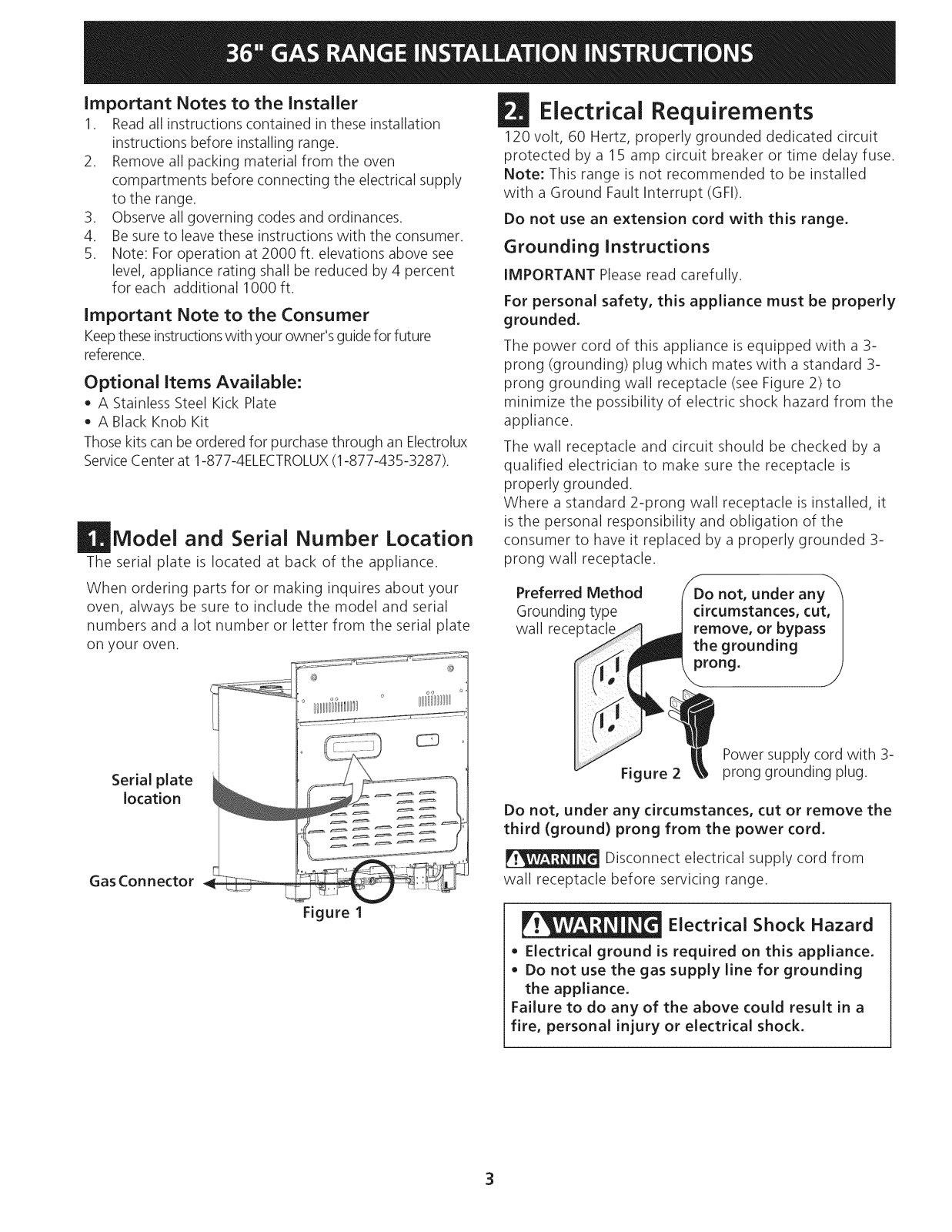

Important Notes to the Installer

1. Read all instructions contained in these installation
instructions before installing range.

2. Remove all packing material from the oven
compartments before connecting the electrical supply
to the range.

3. Observe all governing codes and ordinances.

4. Be sure to leavethese instructions with the consumer.

5. Note: For operation at 2000 ft. elevations above see
level, appliance rating shall be reduced by 4 percent

for each additional 1000 ft.

Important Note to the Consumer
Keeptheseinstructionswith your owner's guide for future

reference.
Optional Items Available:

• A Stainless Steel Kick Plate

• A Black Knob Kit

Those kitscan be ordered for purchase through an Electrolux
ServiceCenter at 1-877-4ELECTROLUX(1-877-435-3287).

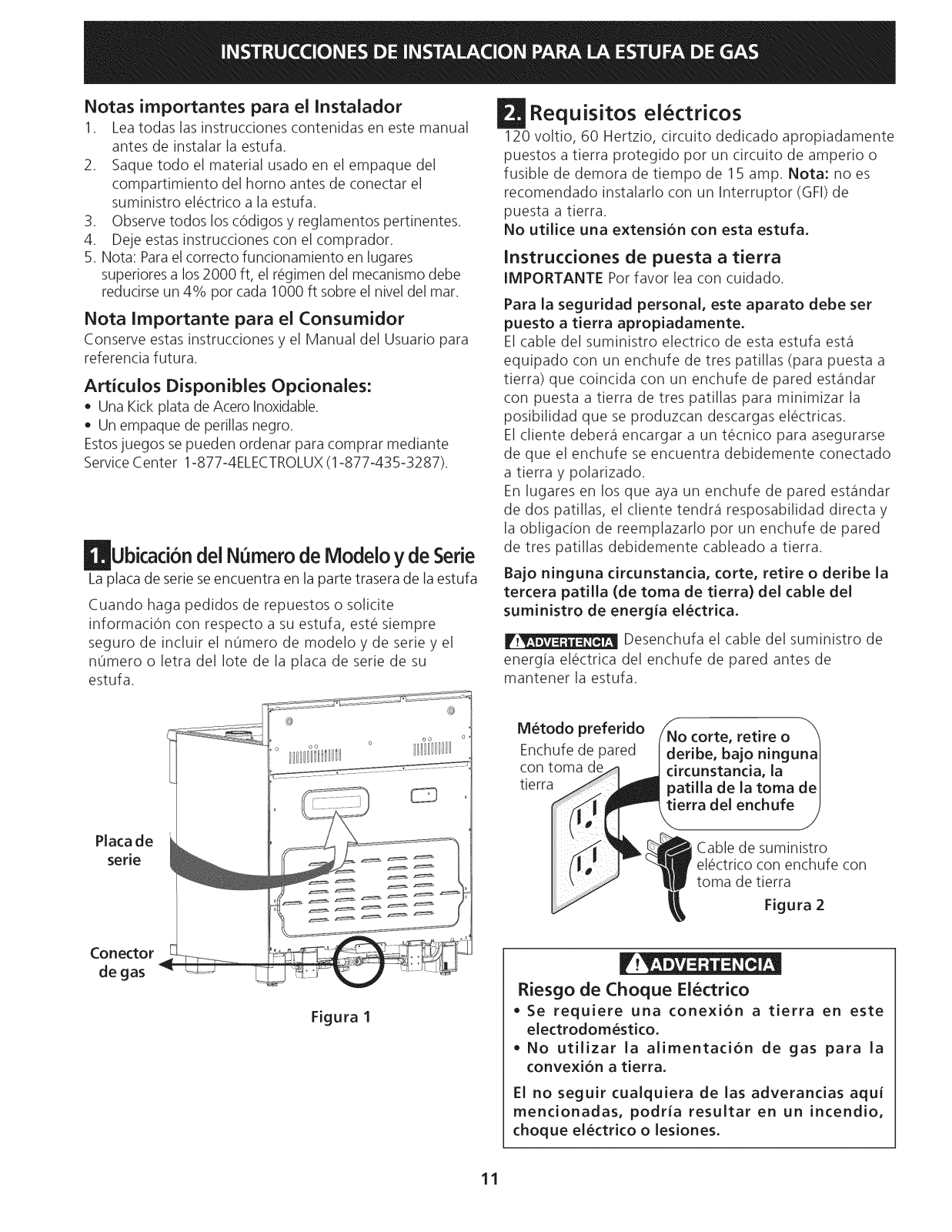

Model and Serial Number Location

The serial plate is located at back of the appliance.
When ordering parts for or making inquires about your

oven, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your oven.

®

o

° IHHIii mIH

Electrical Requirements

120 volt, 60 Hertz, properly grounded dedicated circuit
protected by a 15 amp circuit breaker or time delay fuse.
Note: This range is not recommended to be installed
with a Ground Fault Interrupt (GFI).

Do not use an extension cord with this range.
Grounding Instructions

IMPORTANT Please read carefully.
For personal safety, this appliance must be properly

grounded.
The power cord of this appliance isequipped with a 3-

prong (grounding) plug which mates with a standard 3-
prong grounding wall receptacle (see Figure 2) to
minimize the possibility of electric shock hazard from the
appliance.

The wall receptacle and circuit should be checked by a
qualified electrician to make sure the receptacle is
properly grounded.
Where a standard 2-prong wall receptacle is installed, it
is the personal responsibility and obligation of the
consumer to have it replaced by a properly grounded 3-
prong wall receptacle.

Preferred Method
Grounding type

wall receptack

o

Do not, under any
circumstances, cut,

remove, or bypass
the grounding
prong.

Serial plate

location

Gas Connector

Figure I

Power supply cord with 3-

Figure 2

prong grounding plug.

Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.

Disconnect electrical supply cord from

wall receptacle before servicing range.

Electrical Shock Hazard

• Electrical ground is required on this appliance.

• Do not use the gas supply line for grounding
the appliance.

Failure to do any of the above could result in a

fire, personal injury or electrical shock.

3

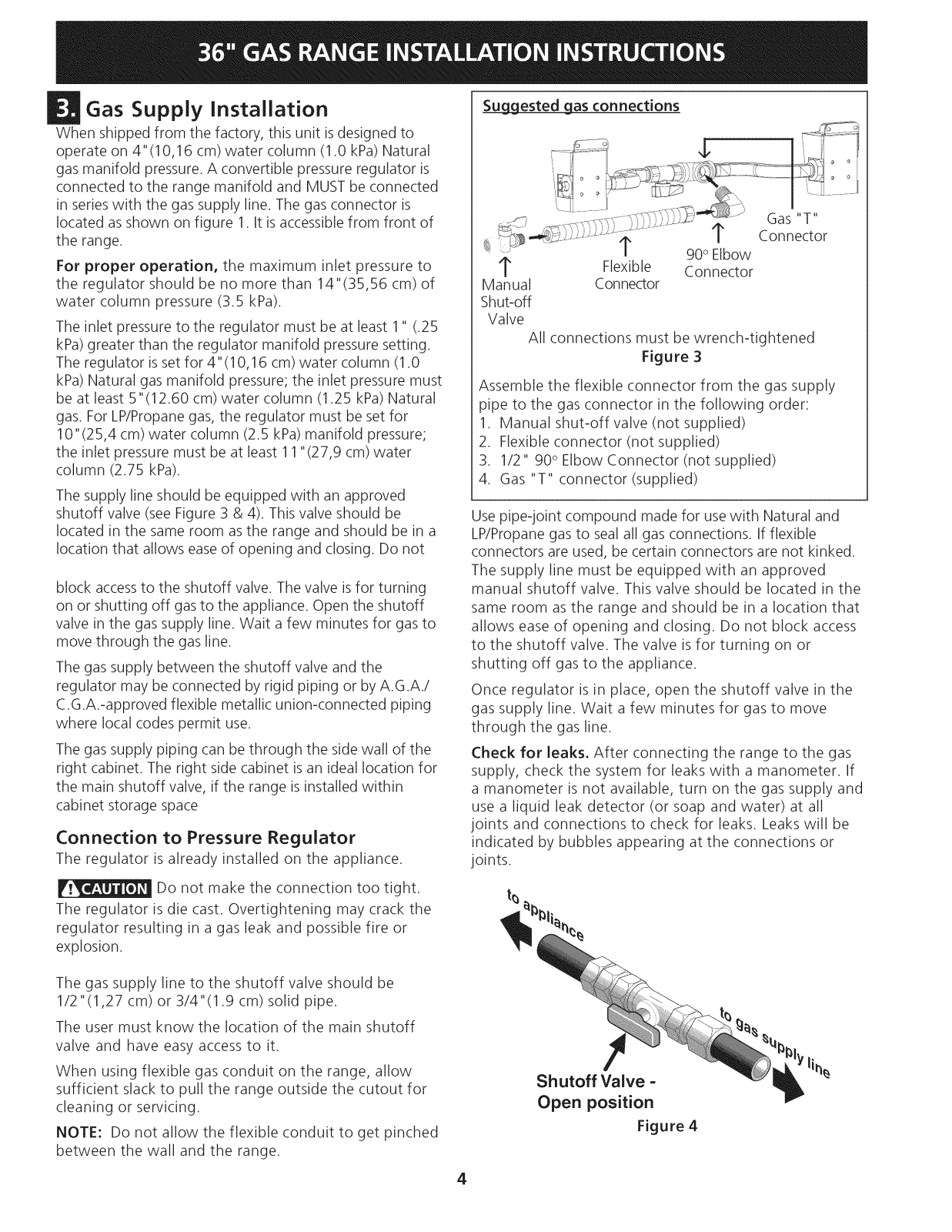

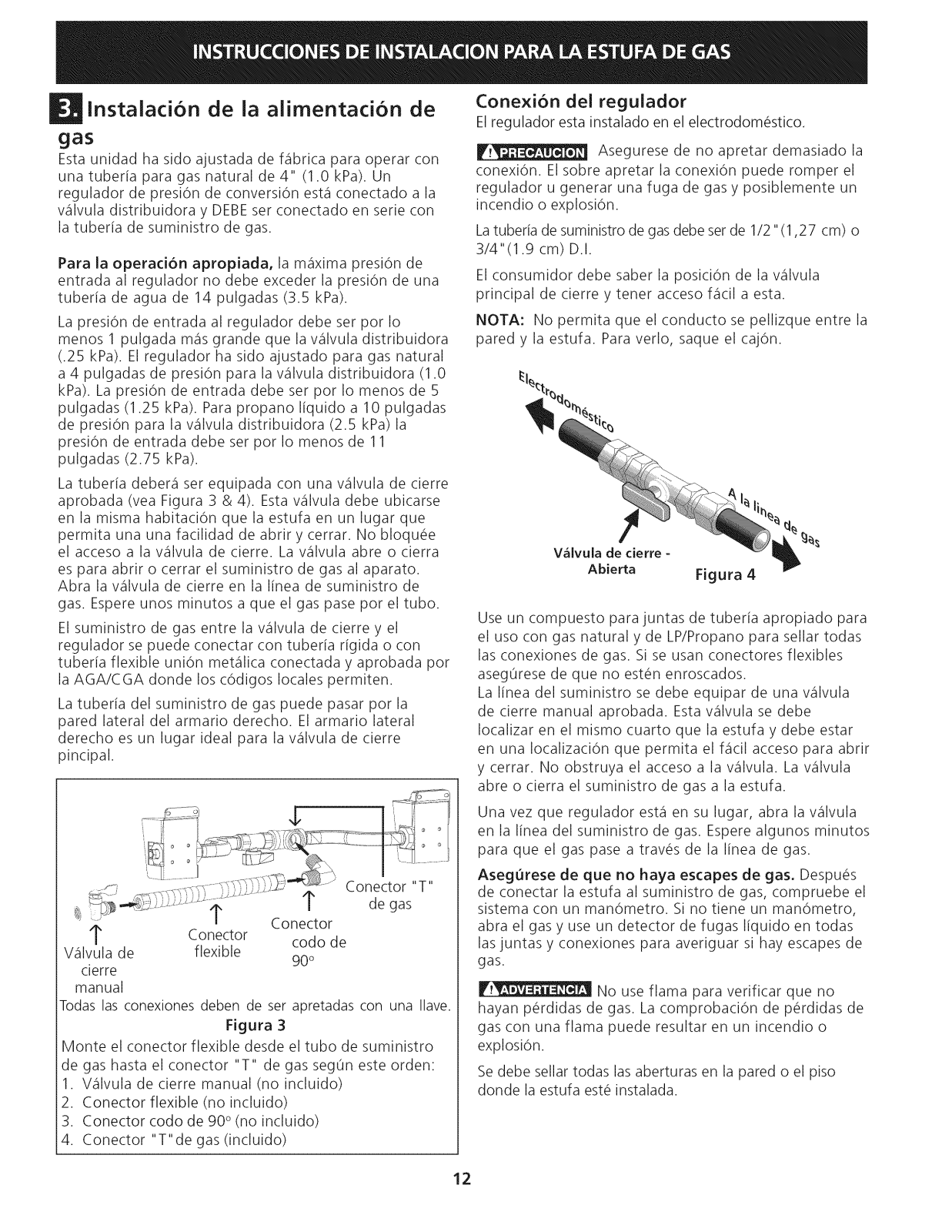

Gas Supply Installation

When shipped from the factory, this unit is designed to
operate on 4"(10,16 cm) water column (1.0 kPa) Natural

gas manifold pressure. A convertible pressure regulator is
connected to the range manifold and MUST be connected

in series with the gas supply line. The gas connector is
located as shown on figure 1. It is accessiblefrom front of

the range.
For proper operation, the maximum inlet pressure to

the regulator should be no more than 14"(35,56 cm) of
water column pressure (3.5 kPa).

The inlet pressure to the regulator must be at least 1" (.25
kPa)greater than the regulator manifold pressure setting.

The regulator isset for 4"(10,16 cm) water column (1.0
kPa) Natural gas manifold pressure; the inlet pressure must
be at least 5"(12.60 cm) water column (1.25 kPa) Natural

gas. For LP/Propanegas, the regulator must be set for

10"(25,4 cm) water column (2.5 kPa)manifold pressure;
the inlet pressure must be at least 11 "(27,9 cm) water
column (2.75 kPa).

The supply line should be equipped with an approved
shutoff valve (see Figure 3 & 4). This valve should be

located in the same room asthe range and should be in a
location that allows easeof opening and closing. Do not

block accessto the shutoff valve. The valve isfor turning
on or shutting off gas to the appliance. Open the shutoff

valve in the gas supply line. Wait a few minutes for gas to
move through the gas line.

The gas supply between the shutoff valve and the
regulator may be connected by rigid piping or by A.G.A./
C.G.A.-approved flexible metallic union-connected piping
where local codes permit use.

The gas supply piping can be through the side wall of the
right cabinet. The right side cabinet isan ideal location for
the main shutoff valve, if the range is installed within
cabinet storage space

Connection to Pressure Regulator
The regulator is already installed on the appliance.

Do not make the connection too tight.

The regulator is die cast. Overtightening may crack the
regulator resulting in a gas leak and possible fire or
explosion.

Suggested gas connections

$ I, o o'!

/_i _ 90° Elbow

1_ Flexible Connector

Manual Connector

Shut-off

Valve

All connections must be wrench-tightened

Figure 3

Assemble the flexible connector from the gas supply
pipe to the gas connector in the following order:

1. Manual shut-off valve (not supplied)

2. Flexible connector (not supplied)

3. 1/2" 90° Elbow Connector (not supplied)

4. Gas "T" connector (supplied)

Use pipe-joint compound made for use with Natural and
LP/Propane gas to seal all gas connections. If flexible

connectors are used, be certain connectors are not kinked.
The supply line must be equipped with an approved

manual shutoff valve. This valve should be located in the
same room as the range and should be in a location that

allows ease of opening and closing. Do not block access
to the shutoff valve. The valve is for turning on or
shutting off gas to the appliance.

Once regulator is in place, open the shutoff valve in the
gas supply line. Wait a few minutes for gas to move
through the gas line.

Check for leaks, After connecting the range to the gas
supply, check the system for leaks with a manometer. If

a manometer is not available, turn on the gas supply and
use a liquid leak detector (or soap and water) at all

joints and connections to check for leaks. Leaks will be

indicated by bubbles appearing at the connections or

joints.

The gas supply line to the shutoff valve should be

1/2"(1,27 cm) or 3/4"(1.9 cm) solid pipe.
The user must know the location of the main shutoff

valve and have easy access to it.
When using flexible gas conduit on the range, allow

sufficient slack to pull the range outside the cutout for
cleaning or servicing.

NOTE: Do not allow the flexible conduit to get pinched
between the wall and the range.

Sh utoff Valve -

Open position

Figure 4

4

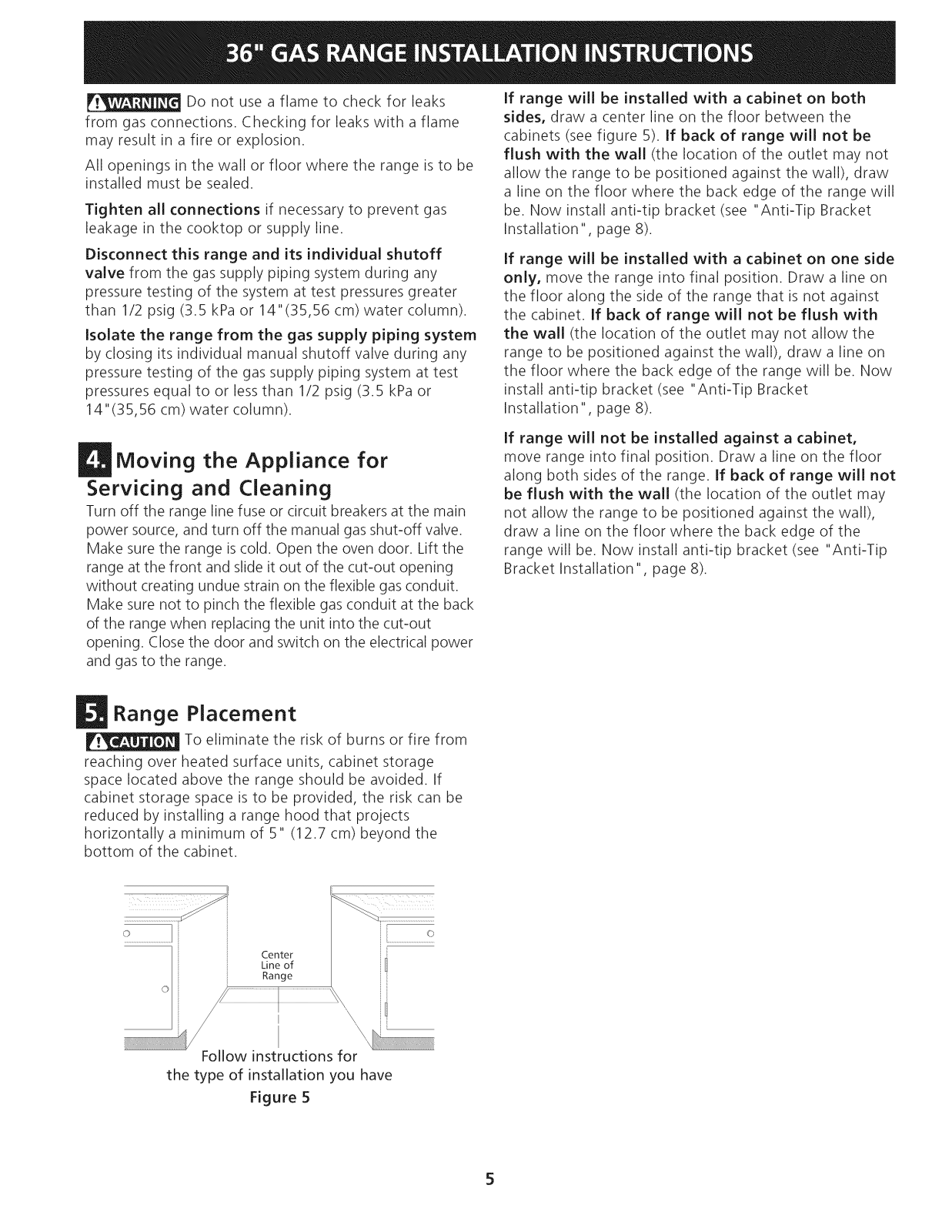

Do not use a flame to check for leaks

from gas connections. Checking for leaks with a flame

may result in a fire or explosion.

All openings in the wall or floor where the range is to be

installed must be sealed.

Tighten all connections if necessary to prevent gas

leakage in the cooktop or supply line.
Disconnect this range and its individual shutoff

valve from the gas supply piping system during any

pressure testing of the system at test pressures greater

than 1/2 psig (3.5 kPa or 14"(35,56 cm) water column).

Isolate the range from the gas supply piping system
by closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa or

14"(35,56 cm) water column).

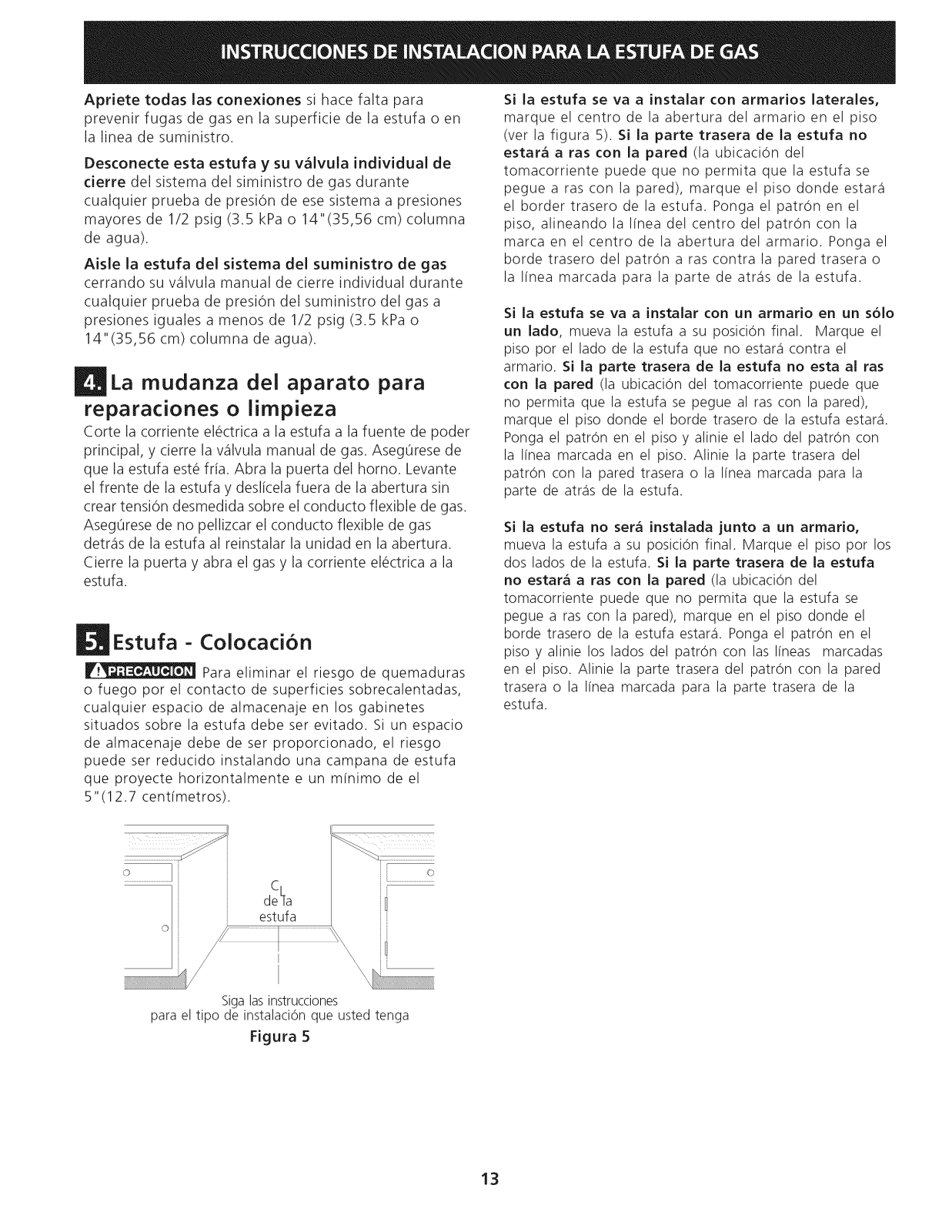

B Moving the Appliance

for

Servicing and Cleaning

Turn off the range line fuse or circuit breakers at the main

power source, and turn off the manual gas shut-off valve.
Make sure the range iscold. Open the oven door. Lift the
range at the front and slide it out of the cut-out opening

without creating undue strain on the flexible gas conduit.

Make sure not to pinch the flexible gas conduit at the back
of the range when replacing the unit into the cut-out
opening. Closethe door and switch on the electrical power
and gas to the range.

If range will be installed with a cabinet on both
sides, draw a center line on the floor between the

cabinets (see figure 5). If back of range will not be
flush with the wall (the location of the outlet may not
allow the range to be positioned against the wall), draw
a line on the floor where the back edge of the range will
be. Now install anti-tip bracket (see "Anti-Tip Bracket
Installation", page 8).

If range will be installed with a cabinet on one side
only, move the range into final position. Draw a line on
the floor along the side of the range that is not against
the cabinet. If back of range will not be flush with
the wall (the location of the outlet may not allow the
range to be positioned against the wall), draw a line on
the floor where the back edge of the range will be. Now
install anti-tip bracket (see "Anti-Tip Bracket
Installation", page 8).

If range will not be installed against a cabinet,
move range into final position. Draw a line on the floor
along both sides of the range. If back of range will not
be flush with the wall (the location of the outlet may
not allow the range to be positioned against the wall),
draw a line on the floor where the back edge of the
range will be. Now install anti-tip bracket (see "Anti-Tip
Bracket Installation", page 8).

Range Placement

To eliminate the risk of burns or fire from

reaching over heated surface units, cabinet storage
space located above the range should be avoided. If

cabinet storage space is to be provided, the risk can be
reduced by installinc a range hood that projects

horizontally a minimum of 5" (12.7 cm) beyond the
bottom of the cabinet.

Center
Line of

Range

\

\\

Follow instructions for

the type of installation you have

Figure 5

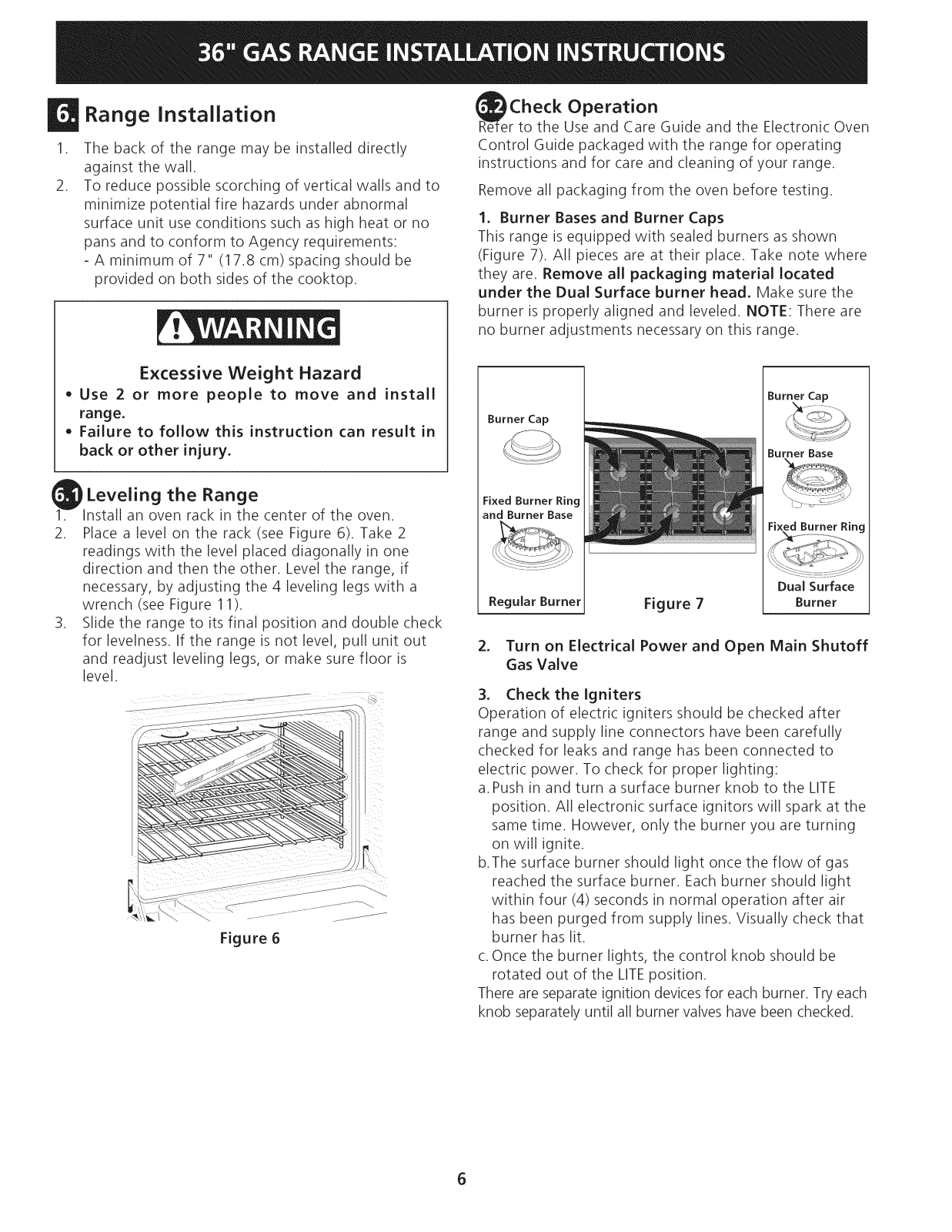

Range Installation

,

The back of the range may be installed directly
against the wall.

,

To reduce possible scorching of vertical walls and to
minimize potential fire hazards under abnormal
surface unit use conditions such as high heat or no
pans and to conform to Agency requirements:

- A minimum of 7" (17.8 cm) spacing should be
provided on both sides of the cooktop.

Excessive Weight Hazard

o Use 2 or more people to move and install

range.
Failure to follow this instruction can result in

back or other injury.

Check Operation

r to the Use and Care Guide and the Electronic Oven

Control Guide packaged with the range for operating

instructions and for care and cleaning of your range.
Remove all packaging from the oven before testing.

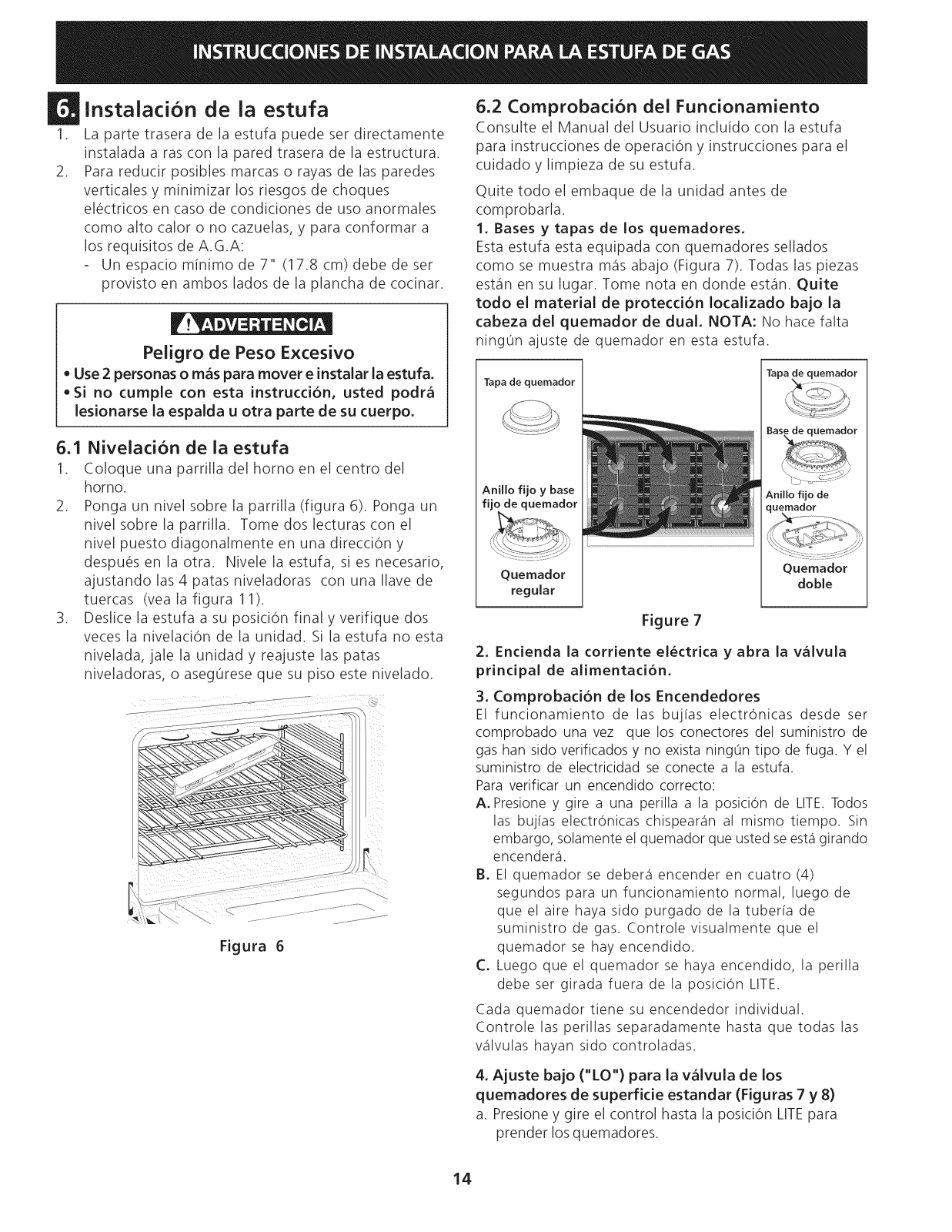

1. Burner Bases and Burner Caps
This range is equipped with sealed burners as shown
(Figure 7). All pieces are at their place. Take note where
they are. Remove all packaging material located

under the Dual Surface burner head, Make sure the
burner is properly aligned and leveled. NOTE: There are

no burner adjustments necessary on this range.

Burner Cap

Burner Cap

Burner Base

t_ Leveling the Range

1. Install an oven rack in the center of the oven.

2. Place a level on the rack (see Figure 6). Take 2
readings with the level placed diagonally in one

direction and then the other. Level the range, if
necessary, by adjusting the 4 leveling legs with a

wrench (see Figure 11).

3. Slide the range to its final position and double check
for levelness. If the range is not level, pull unit out

and readjust leveling legs, or make sure floor is
level.

Figure 6

Fixed Burner Ring

and Burner Base

Regular Burner

Figure 7

Fixed Burner Ring

Dual Surface

Burner

2. Turn on Electrical Power and Open Main Shutoff
Gas Valve

3. Check the Igniters

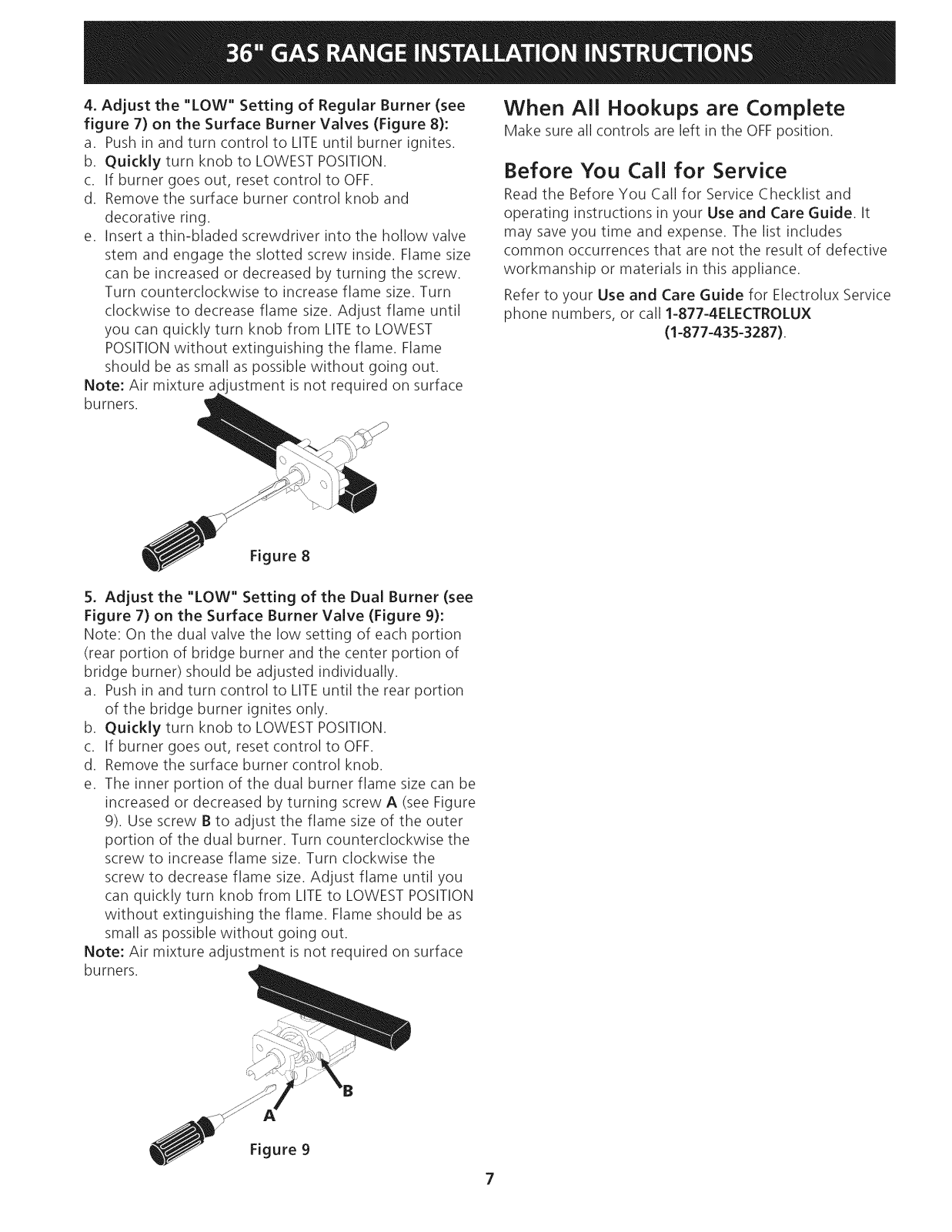

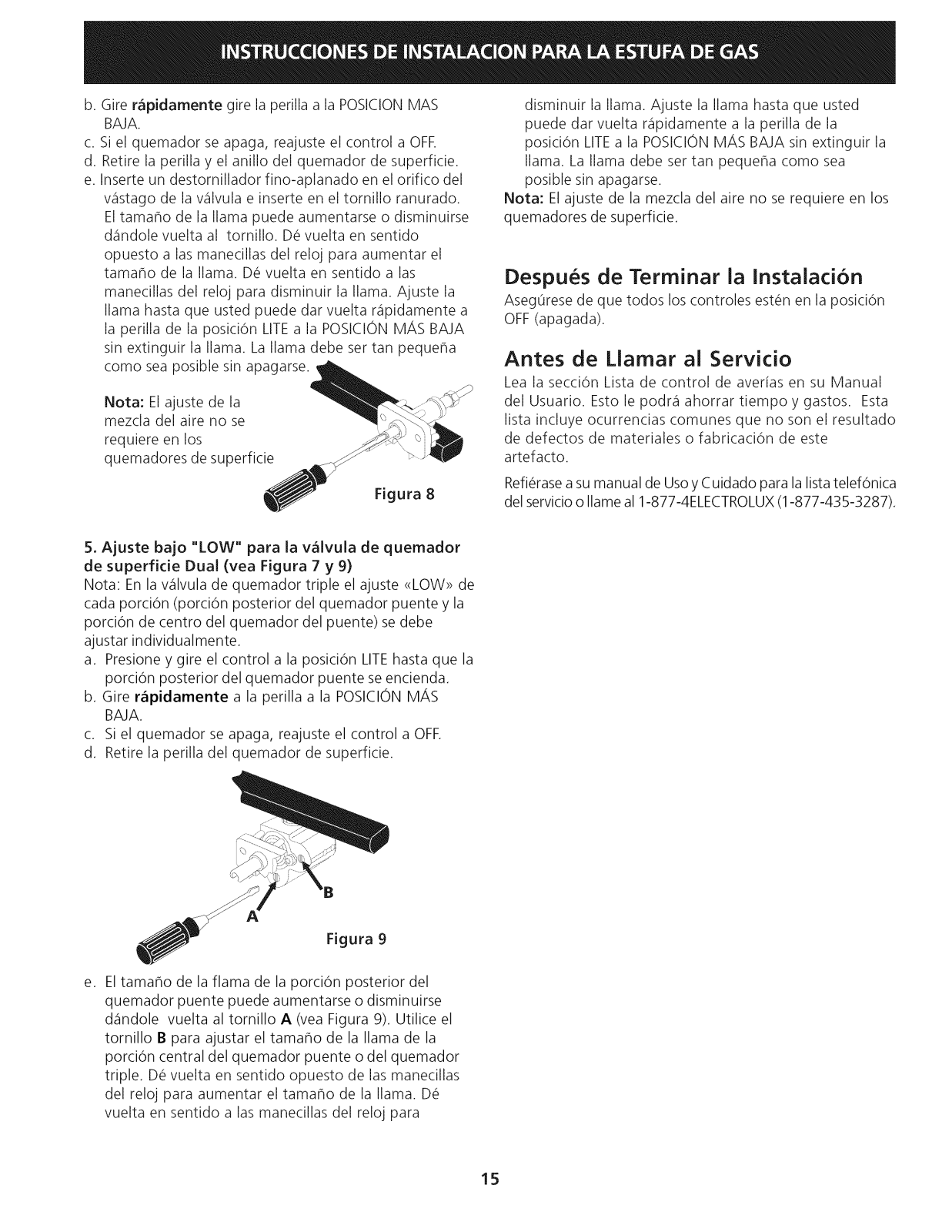

Operation of electric igniters should be checked after

range and supply line connectors have been carefully
checked for leaks and range has been connected to
electric power. To check for proper lighting:

a. Push in and turn a surface burner knob to the LITE

position. All electronic surface ignitors will spark at the
same time. However, only the burner you are turning
on will ignite.

b.The surface burner should light once the flow of gas

reached the surface burner. Each burner should light
within four (4) seconds in normal operation after air

has been purged from supply lines. Visually check that

burner has lit.

c. Once the burner lights, the control knob should be

rotated out of the LITEposition.

There are separate ignition devicesfor each burner. Try each

knob separately until all burner valves have been checked.
