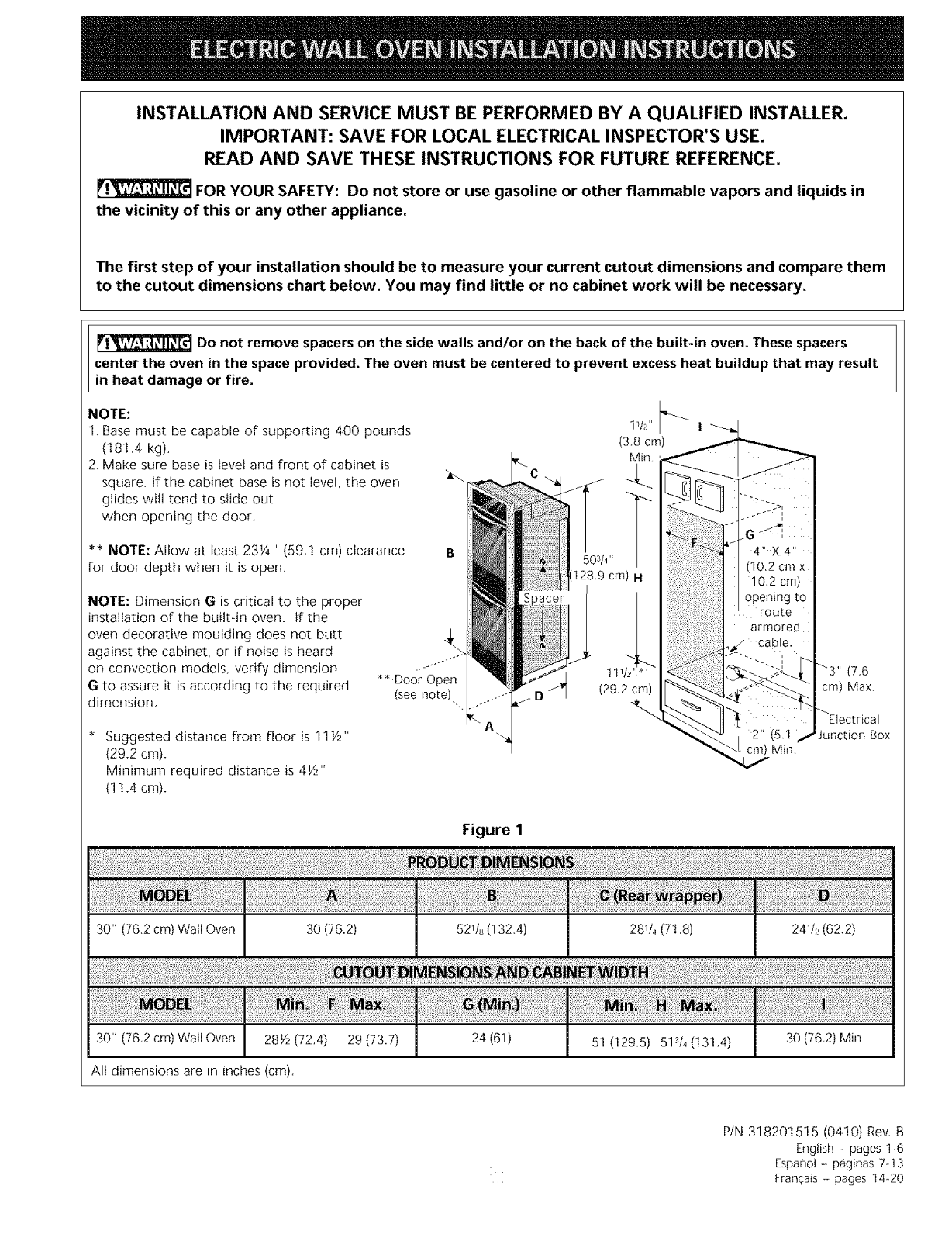

Electrolux E30EW85ESS1, E30EW85ESS2, E30EW8CESS1, E30EW8CESS2 Installation Guide

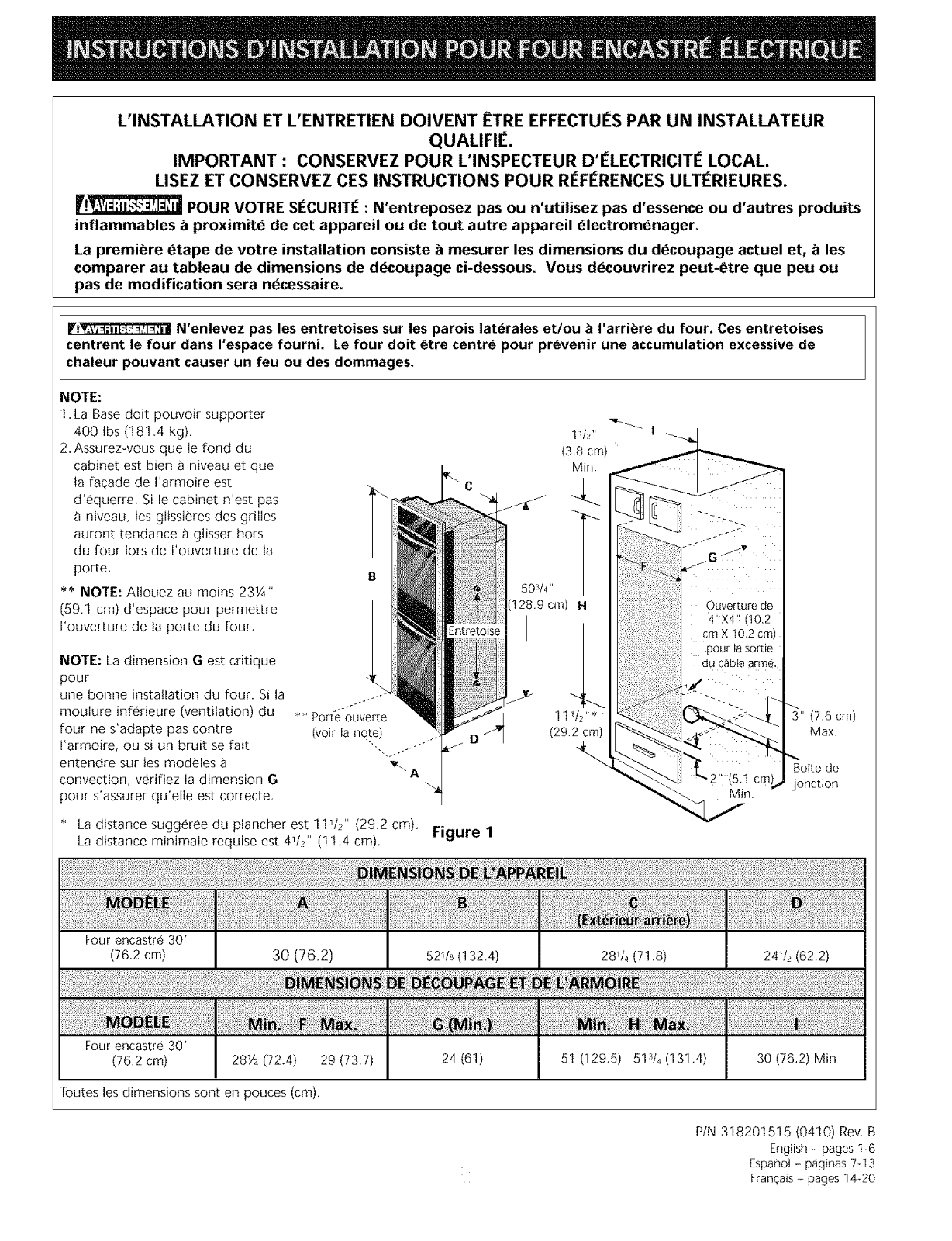

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
The first step of your installation should be to measure your current cutout dimensions and compare them to the cutout dimensions chart below, You may find little or no cabinet work will be necessary.
_Do not remove spacers on the side walls and/or on the back of the built*in oven. These spacers
in heat damage or fire.
NOTE:
1. Base must be capable of supporting 400 pounds
_'3" (76
cm) Max
Suggested distance from floor is 11Y2"
Junction Box
(29.2 cm). Minimum required distance is 4Y2'r
(11.4 cm).
Figure 1
30" (76,2 cm) Wall Oven 30 (76.2) 52_/_ (132,4) 28_/4 (7I ,8) 24_/2 (62.2)
30" (76,2 cm) Wall Oven 28Y2 (72,4) 29 (73.7)
All dimensions are in inches (cm),
24 (61) 51 (129.5) 51s/4 (131,4) 30 (76,2) Min
Electrical
P/N 318201515 (0410) Rev. B
English - pages 1-6
Espailol -- paginas 7-13
Franqais - pages 14-20

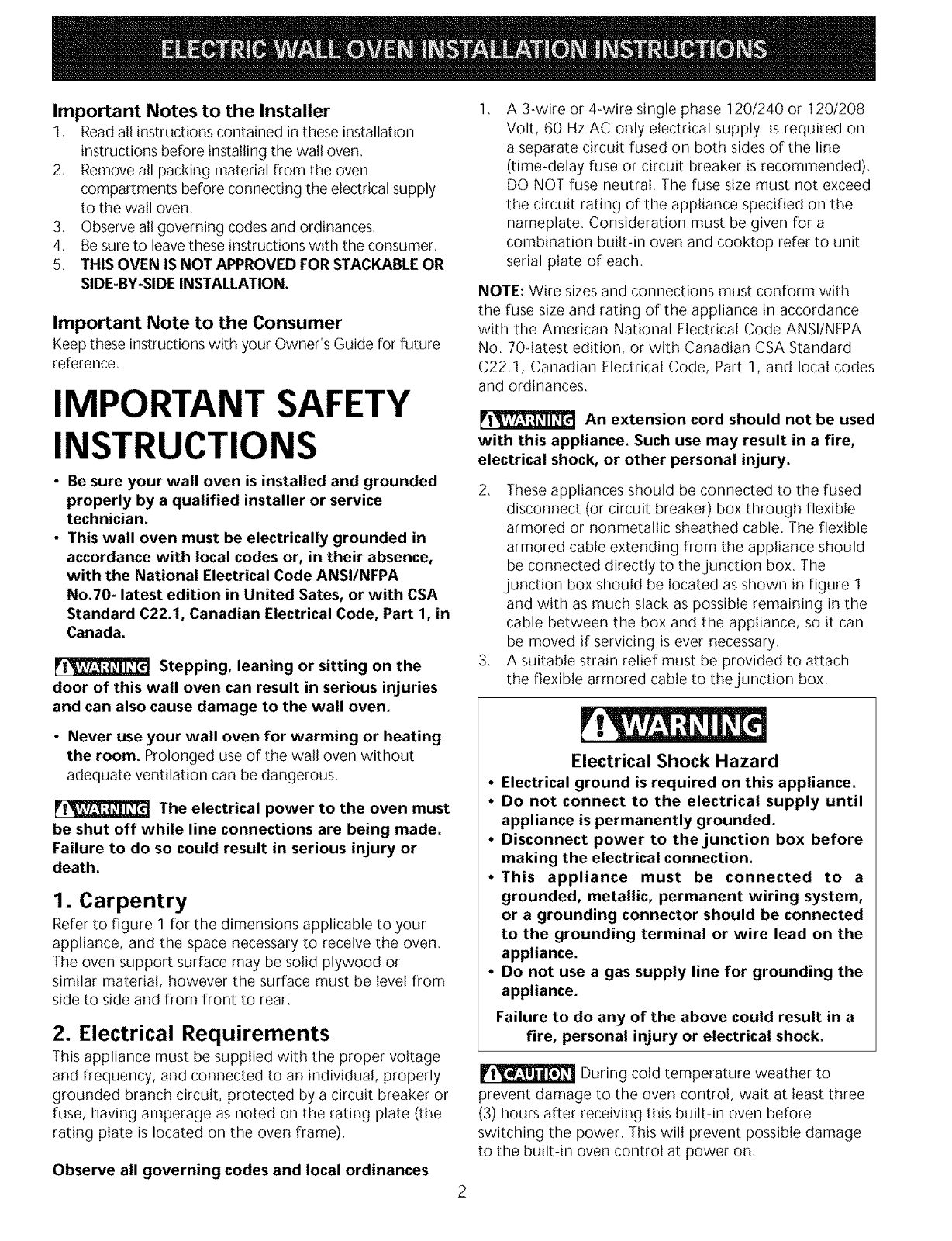

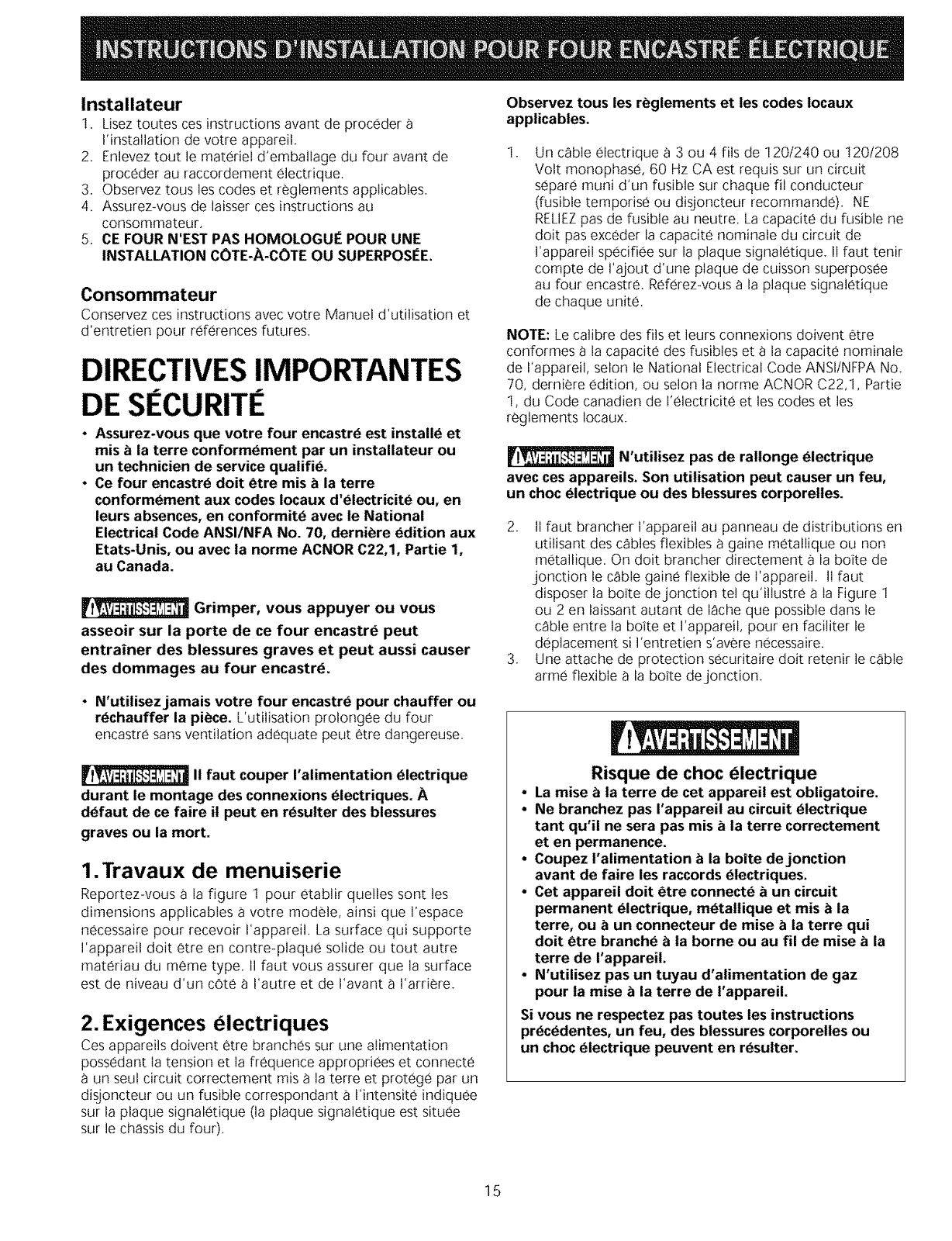

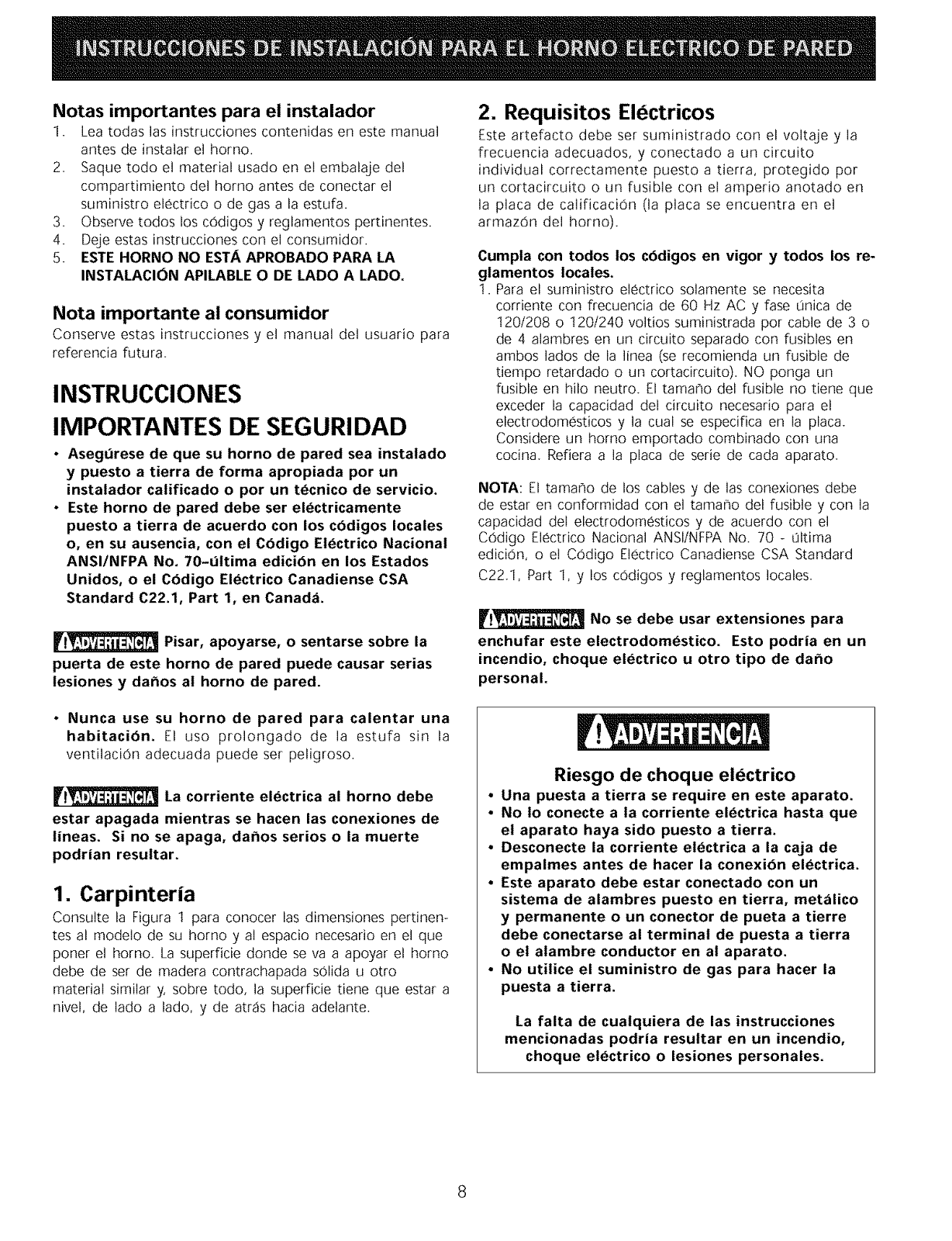

Important Notes to the Installer
1, Read all instructions contained in these installation
instructions before installing the wall oven,
2, Remove all packing material from the oven
compartments before connecting the electrical supply to the wall oven,
3, Observe all governing codes and ordinances,
4, Be sure to leavethese instructions with the consumer, 5, THIS OVEN IS NOT APPROVED FOR STACKABLEOR
SIDE-BY-SIDE INSTALLATION,
Important Note to the Consumer
Keep these instructions with your Owner's Guide for future
reference,
IMPORTANT SAFETY
INSTRUCTIONS
Be sure your wall oven is installed and grounded
properly by a qualified installer or service technician.
This wall oven must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA
No.70- latest edition in United Sates, or with CSA Standard C22.1, Canadian Electrical Code, Part 1, in
Canada.
Stepping, leaning or sitting on the
door of this wall oven can result in serious injuries and can also cause damage to the wall oven.
1.
A 3-wire or 4-wire single phase 120/240 or 120/208 Volt, 60 Hz AC only electrical supply is required on a separate circuit fused on both sides of the line
(time-delay fuse or circuit breaker is recommended), DO NOT fuse neutral, The fuse size must not exceed
the circuit rating of the appliance specified on the
nameplate. Consideration must be given for a combination built-in oven and cooktop refer to unit serial plate of each.
NOTE: Wire sizes and connections must conform with the fuse size and rating of the appliance in accordance
with the American National Electrical Code ANSI/NFPA No. 70-latest edition, or with Canadian CSA Standard
C22.1, Canadian Electrical Code, Part 1, and local codes and ordinances.
An extension cord should not be used
with this appliance. Such use may result in a fire, electrical shock, or other personal injury.
2. These appliances should be connected to the fused disconnect (or circuit breaker) box through flexible
armored or nonmetallic sheathed cable. The flexible armored cable extending from the appliance should
be connected directly to the junction box. The
junction box should be located as shown in figure 1
and with as much slack as possible remaining in the cable between the box and the appliance, so it can
be moved if servicing is ever necessary.
3. A suitable strain relief must be provided to attach the flexible armored cable to the junction box,
Never use your wall oven for warming or heating the room. Prolonged use of the wail oven without
adequate ventilation can be dangerous,
The electrical power to the oven must
be shut off while line connections are being made. Failure to do so could result in serious injury or
death.
1. Carpentry
Refer to figure 1 for the dimensions applicable to your appliance, and the space necessary to receive the oven, The oven support surface may be solid plywood or
similar material, however the surface must be level from side to side and from front to rear,
2. Electrical Requirements
This appliance must be supplied with tile proper voltage and frequency, and connected to an individual, properly grounded branch circuit, protected by a circuit breaker or fuse, having amperage as noted on the rating plate (the rating plate is located on the oven frame),
Observe all governing codes and local ordinances
Electrical Shock Hazard
Electrical ground is required on this appliance.
Do not connect to the electrical supply until
appliance is permanently grounded.
Disconnect power to the junction box before
making the electrical connection.
This appliance must be connected to a
grounded, metallic, permanent wiring system, or a grounding connector should be connected
to the grounding terminal or wire lead on the appliance.
Do not use a gas supply line for grounding the
appliance.
Failure to do any of the above could result in a
fire, personal injury or electrical shock.
During cold temperature weather to
prevent damage to the oven control, wait at least three (3) hours after receiving this builbin oven before switching the power. This will prevent possible damage to the built-in oven control at power on,
2

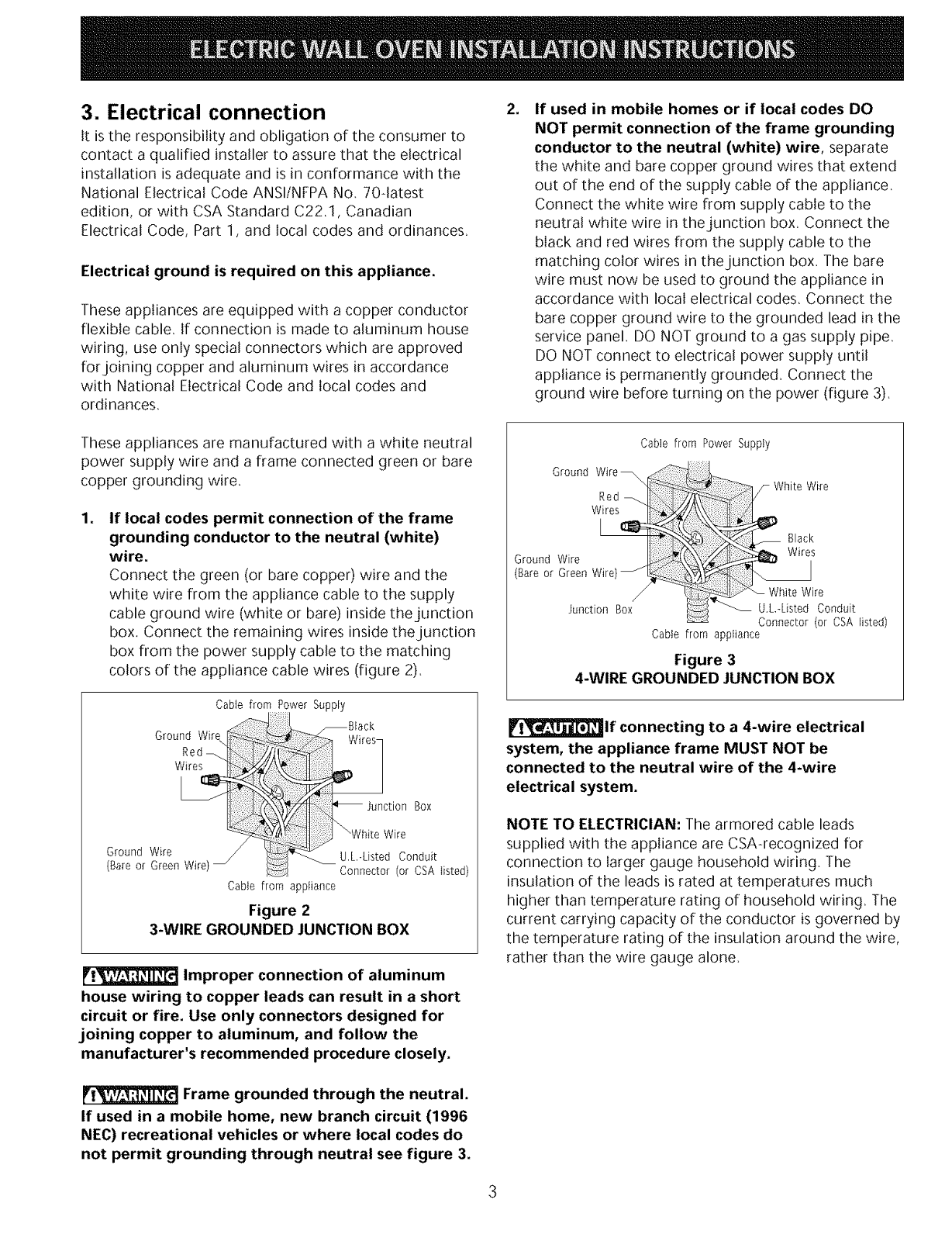

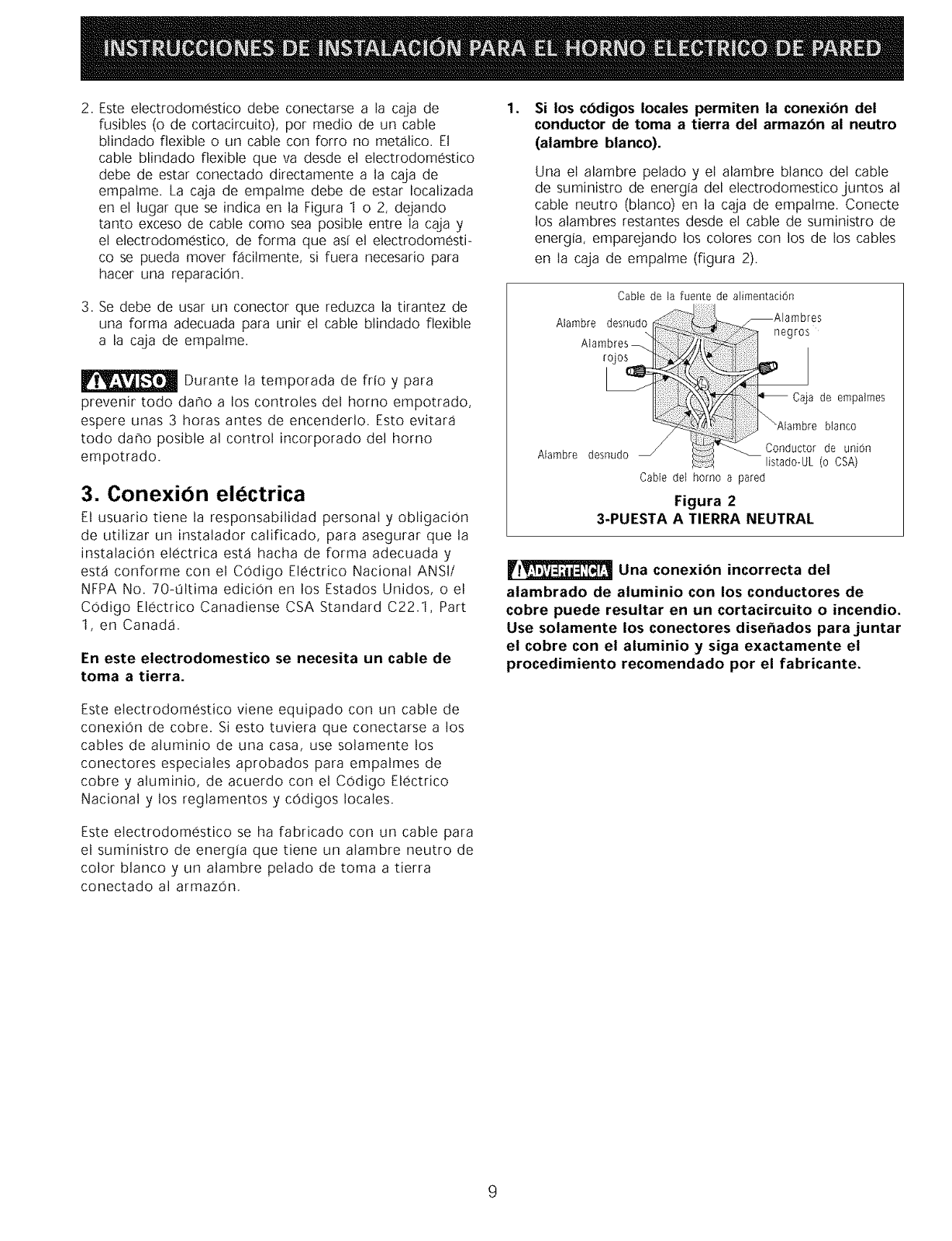

3. Electrical connection
It isthe responsibility and obligation of the consumer to contact a qualified installer to assure that the electrical
installation isadequate and is in conformance with the National Electrical Code ANSI/NFPA No, 70qatest
edition, or with CSA Standard C22,1, Canadian Electrical Code, Part 1, and local codes and ordinances,
Electrical ground is required on this appliance.
These appliances are equipped with a copper conductor flexible cable, If connection is made to aluminum house
wiring, use only special connectors which are approved for joining copper and aluminum wires in accordance
with National Electrical Code and local codes and ordinances,
2, If used in mobile homes or if local codes DO
NOT permit connection of the frame grounding conductor to the neutral (white) wire, separate
the white and bare copper ground wires that extend out of the end of the supply cable of the appliance, Connect the white wire from supply cable to the neutral white wire in the junction box, Connect the black and red wires from the supply cable to the matching color wires in the junction box, The bare wire must now be used to ground the appliance in
accordance with local electrical codes, Connect the bare copper ground wire to the grounded lead in the
service panel, DO NOT ground to a gas supply pipe,
DO NOT connect to electrical power supply until appliance is permanently grounded, Connect the ground wire before turning on the power (figure 3),
These appliances are manufactured with a white neutral power supply wire and a frame connected green or bare copper grounding wire,
1.
If local codes permit connection of the frame grounding conductor to the neutral (white)
wire.
Connect the green (or bare copper) wire and the white wire from the appliance cable to the supply cable ground wire (white or bare) inside the junction
box. Connect the remaining wires inside the junction box from the power supply cable to the matching
colors of the appliance cable wires (figure 2),
Cable from Power Supply
Cabb from appliance
Figure 2
3-WIRE GROUNDED JUNCTION BOX
Improper connection of aluminum
house wiring to copper leads can result in a short circuit or fire. Use only connectors designed for
joining copper to aluminum, and follow the
manufacturer's recommended procedure closely.
Cable from Power Supply
U L-[ sted Conduit Connector (or CSA listed)
Cabb from appliance
Figure 3
4-WIRE GROUNDED JUNCTION BOX
_lf connecting to a 4-wire electrical
system, the appliance frame MUST NOT be connected to the neutral wire of the 4-wire
electrical system,
NOTE TO ELECTRICIAN: The armored cable leads
supplied with the appliance are CSA-recognized for connection to larger gauge household wiring, The
insulation of the leads is rated at temperatures much
higher than temperature rating of household wiring, The current carrying capacity of the conductor is governed by the temperature rating of the insulation around the wire, rather than the wire gauge alone,
Frame grounded through the neutral.
If used in a mobile home, new branch circuit (1996 NEC) recreational vehicles or where local codes do
not permit grounding through neutral see figure 3.

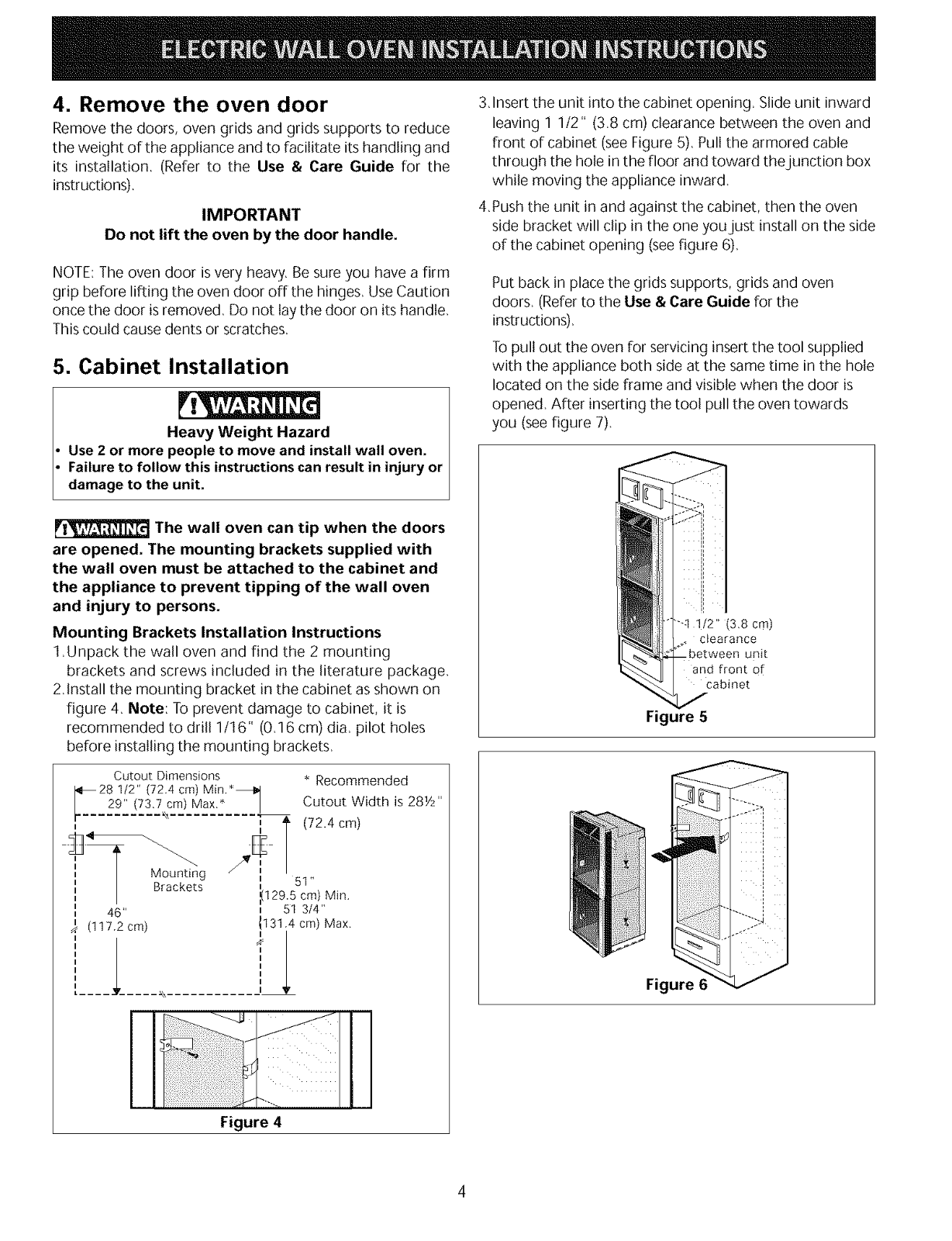

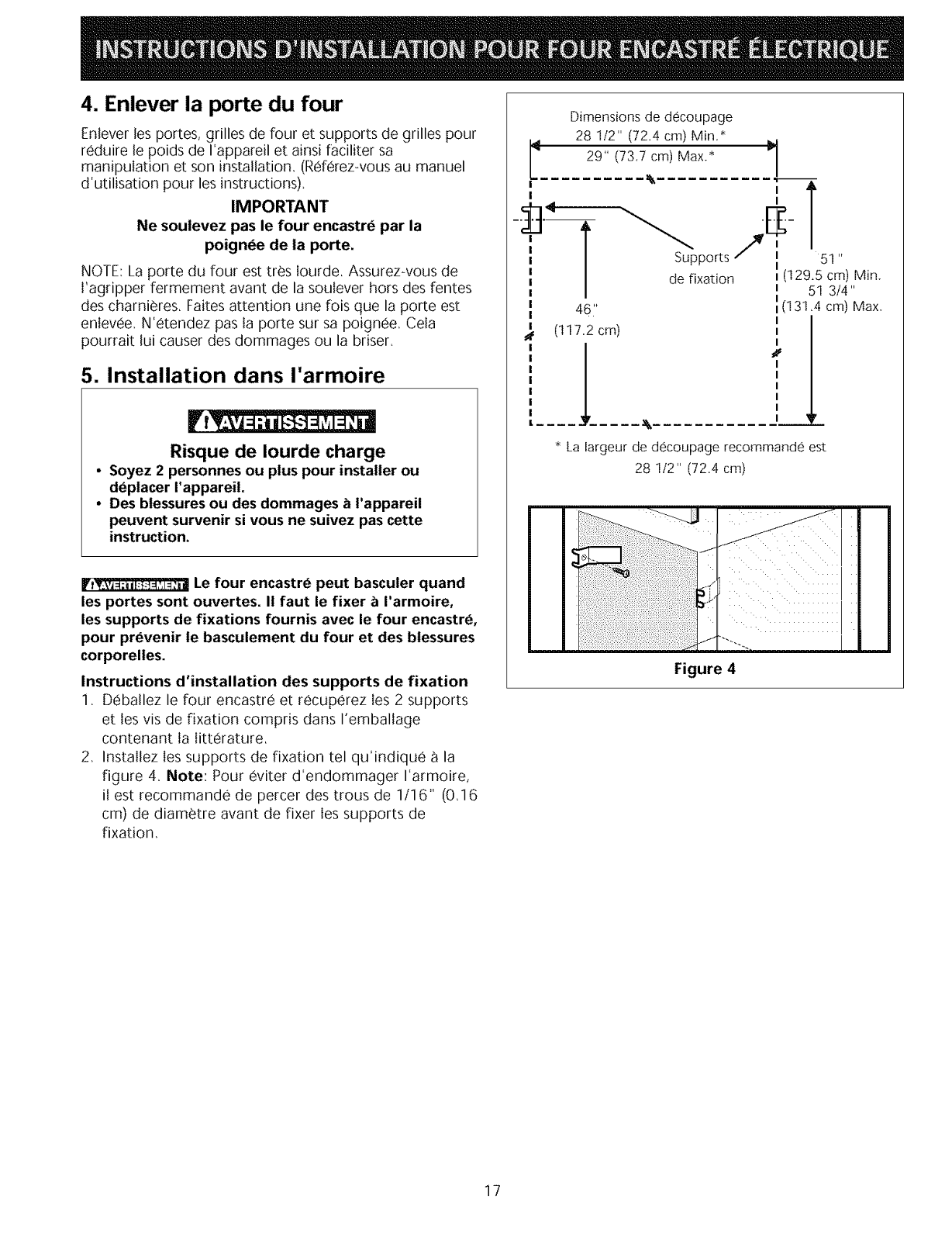

4. Remove the oven door
Remove the doors, oven grids and grids supports to reduce
the weight of the appliance and to facilitate its handling and
its installation. (Refer to the Use & Care Guide for the instructions).
IMPORTANT
Do not lift the oven by the door handle.
NOTE:Theoven door isvery heavy. Be sure you have a firm
grip before lifting the oven door off the hinges, Use Caution once the door isremoved. Do not lay the door on its handle,
This could cause dents or scratches,
5. Cabinet Installation
Heavy Weight Hazard
Use 2 or more people to move and install wall oven. Failure to follow this instructions can result in injury or damage to the unit.
The wall oven can tip when the doors
are opened. The mounting brackets supplied with the wall oven must be attached to the cabinet and
the appliance to prevent tipping of the wall oven and injury to persons.
Mounting Brackets Installation Instructions
1,Unpack the wall oven and find the 2 mounting
brackets and screws included in the literature package,
2,Install the mounting bracket in the cabinet as shown on
figure 4, Note: To prevent damage to cabinet, it is recommended to drill 1/16" (0.16 cm) dia, pilot holes
before installing the mounting brackets,

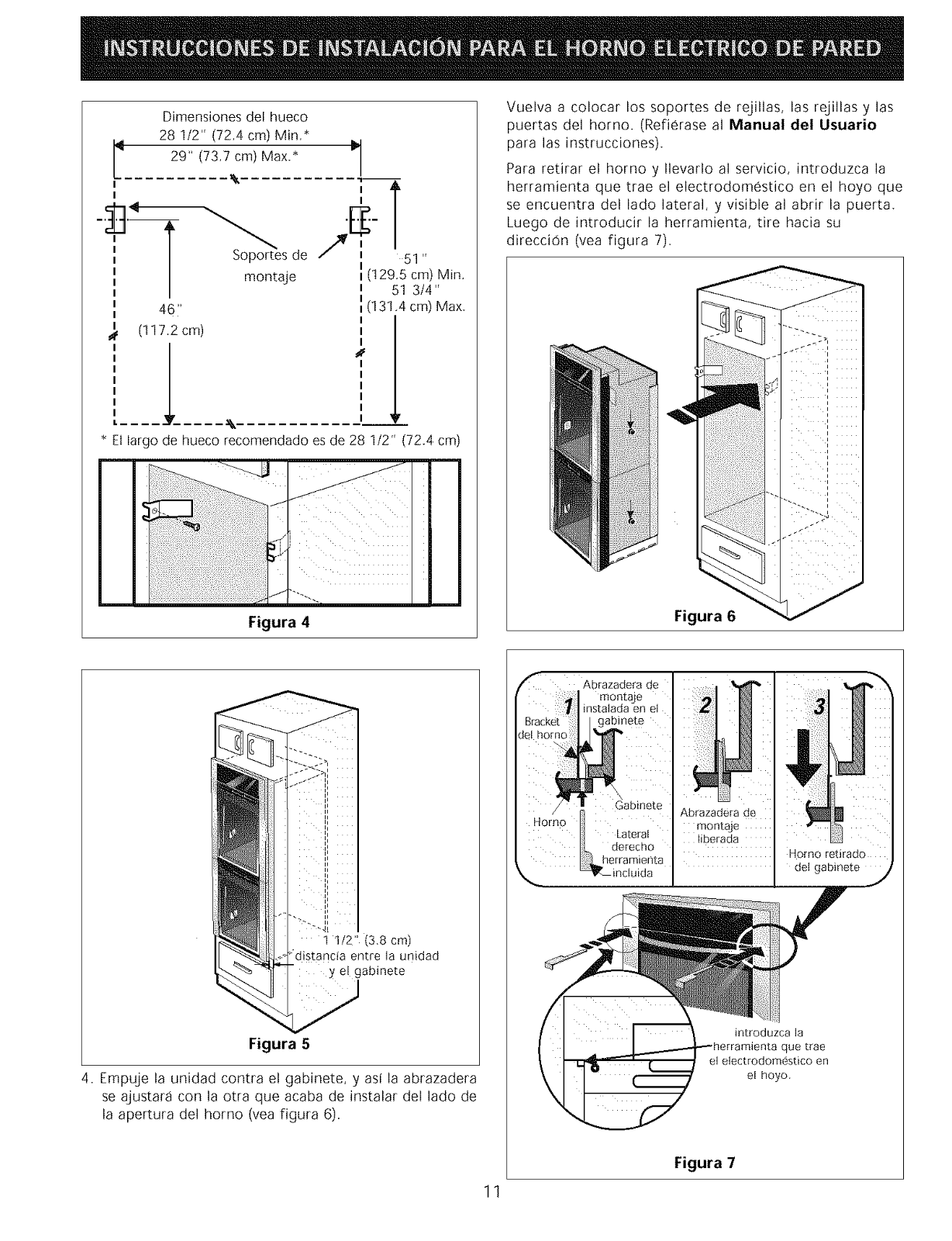

Cutout Dimensions
_28 1/2" (724 cm) Min*_
29" (73 7cm) Max*
* Recommended
Cutout Width is 28Y2"
I
(72.4 cm)
I

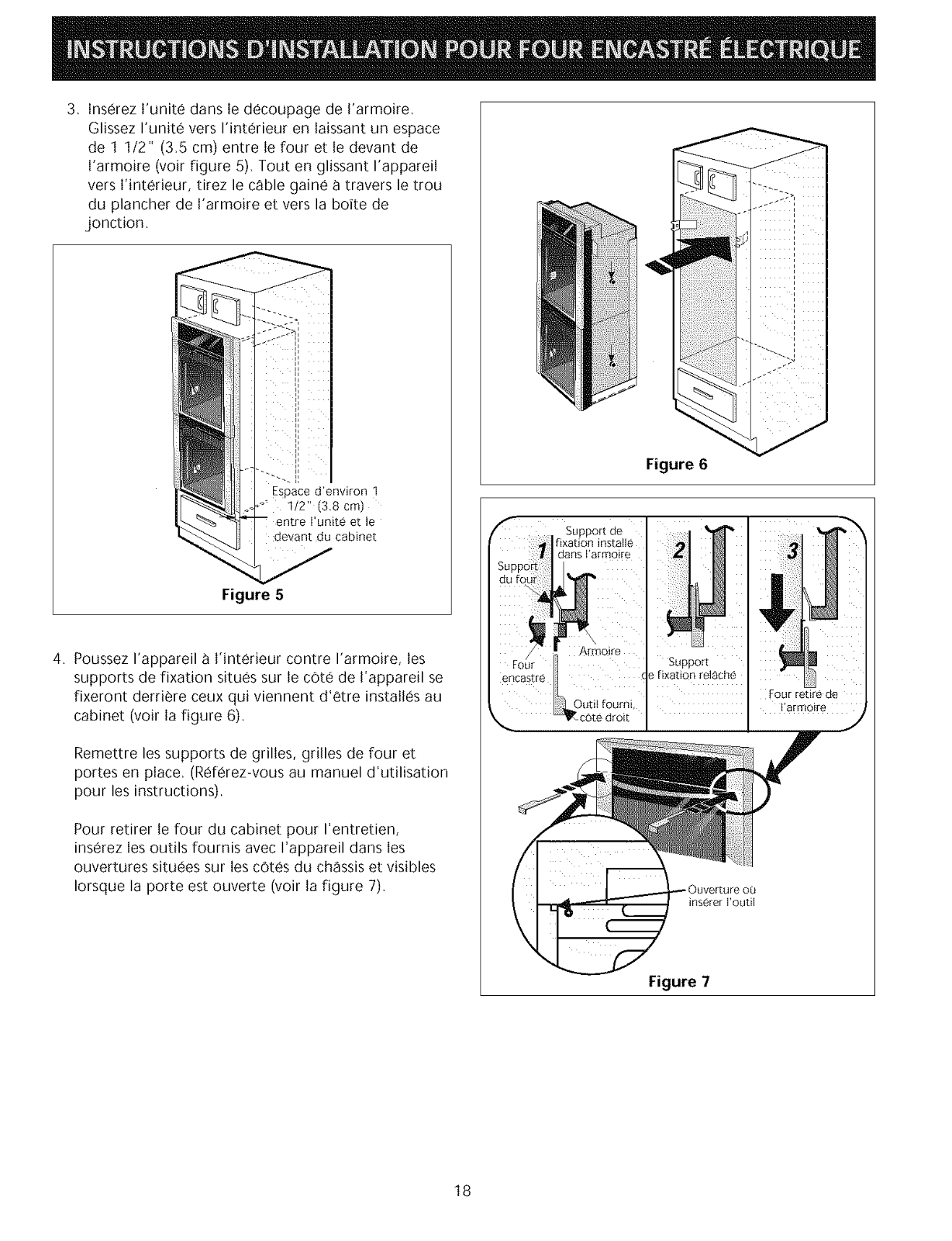

3.Insert the unit into the cabinet opening, Slide unit inward leaving 1 1/2" (3,8 cm) clearance between the oven and
front of cabinet (see Figure 5), Pull the armored cable through the hole in the floor and toward the junction box while moving the appliance inward,
4,Push the unit in and against the cabinet, then the oven
side bracket will clip in the one you just install on the side of the cabinet opening (see figure 6),
Put back in place the grids supports, grids and oven doors, (Refer to the Use & Care Guide for the
instructions),
To pull out the oven for servicing insert the tool supplied with the appliance both side at the same time in the hole
located on the side flame and visible when the door is
opened, After inserting the tool pull the oven towards you (see figure 7),
dearance
unit
and front of
cabinet
Figure 5
46"
(117 2 cm)
1
.... s,\
I 51"
I
I129.5 cm) Min i 51 3/4"
11314 crn) Max
I
Figure 4
4
21

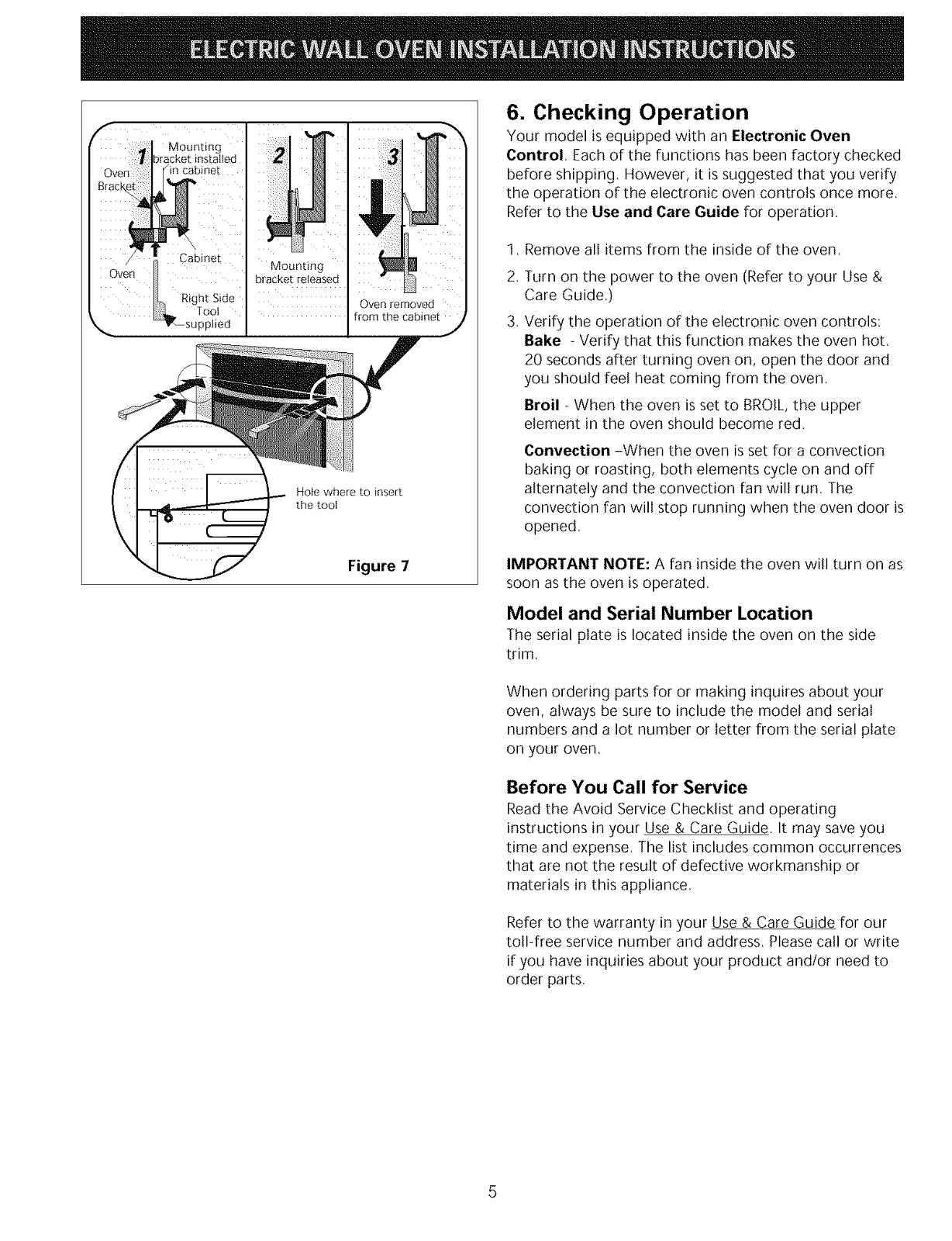

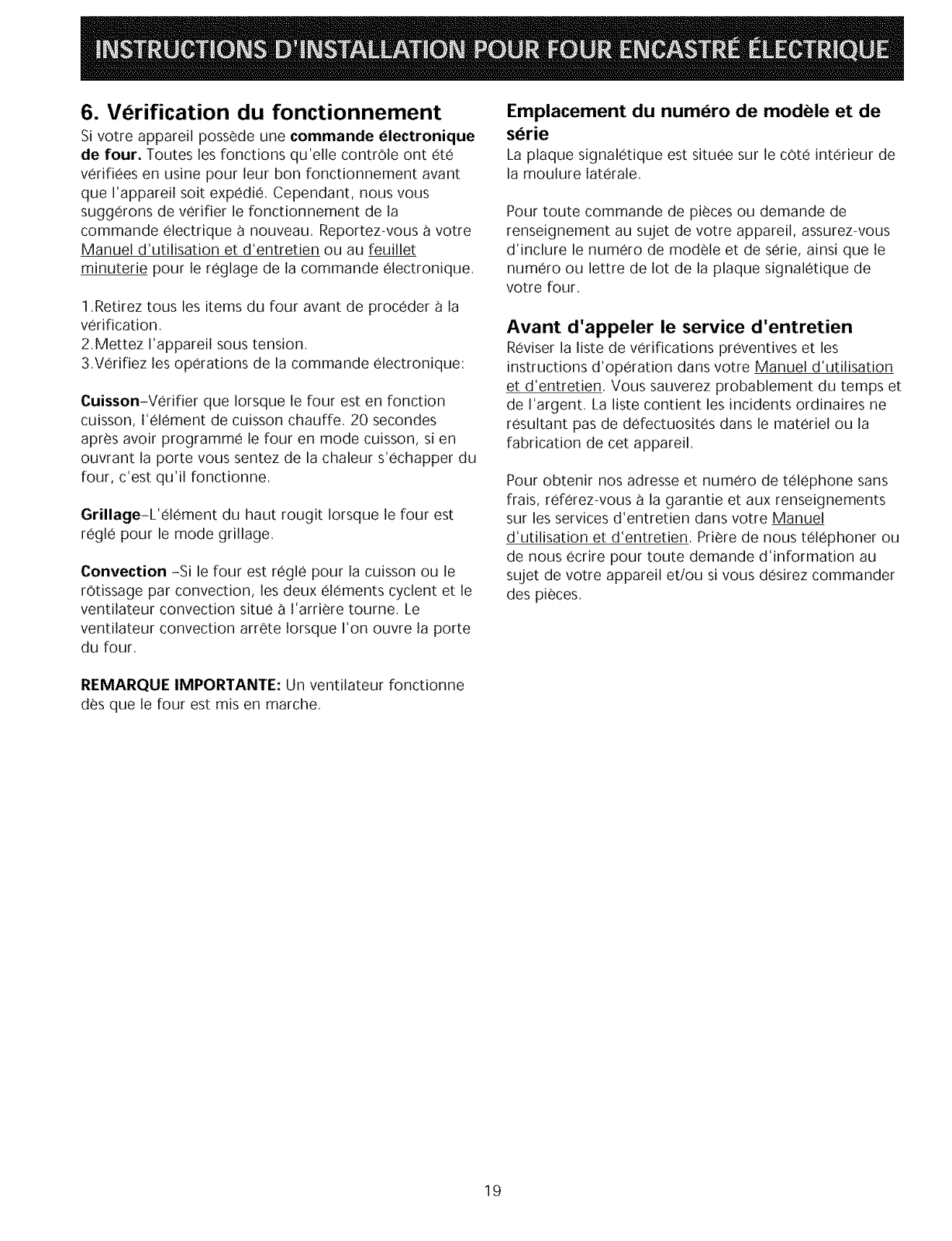

6. Checking Operation
Your model is equipped with an Electronic Oven Control, Each of the functions has been factory checked
before shipping. However, it is suggested that you verify
the operation of the electronic oven controls once more.
Refer to the Use and Care Guide for operation,
1. Remove all items from the inside of the oven.
ight Side
TOOl
supplied
bracket released
Hole where to insert
the tool
Oven removed
from the cabinet
Figure 7
2, Turn on the power to the oven (Refer to your Use &
Care Guide,)
3, Verify the operation of the electronic oven controls:
Bake - Verify that this function makes the oven hot. 20 seconds after turning oven on, open the door and
you should feel heat coming from the oven.
Broil - When the oven is set to BROIL,the upper element in the oven should become red,
Convection =When the oven is set for a convection baking or roasting, both elements cycle on and oft
alternately and the convection fan will run, The convection fan will stop running when the oven door is opened,
IMPORTANT NOTE: A fan inside the oven will turn on as soon as the oven is operated.
Model and Serial Number Location
The serial plate is located inside the oven on the side trim,
When ordering parts for or making inquires about your oven, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your oven,
Before You Call for Service
Read the Avoid Service Checklist and operating instructions in your Use & Care Guide, It may save you
time and expense, The list includes common occurrences that are not the result of defective workmanship or
materials in this appliance,
Refer to the warranty in your Use & Care Guide for our
toll-free service number and address, Please call or write
if you have inquiries about your product and/or need to
order parts,
