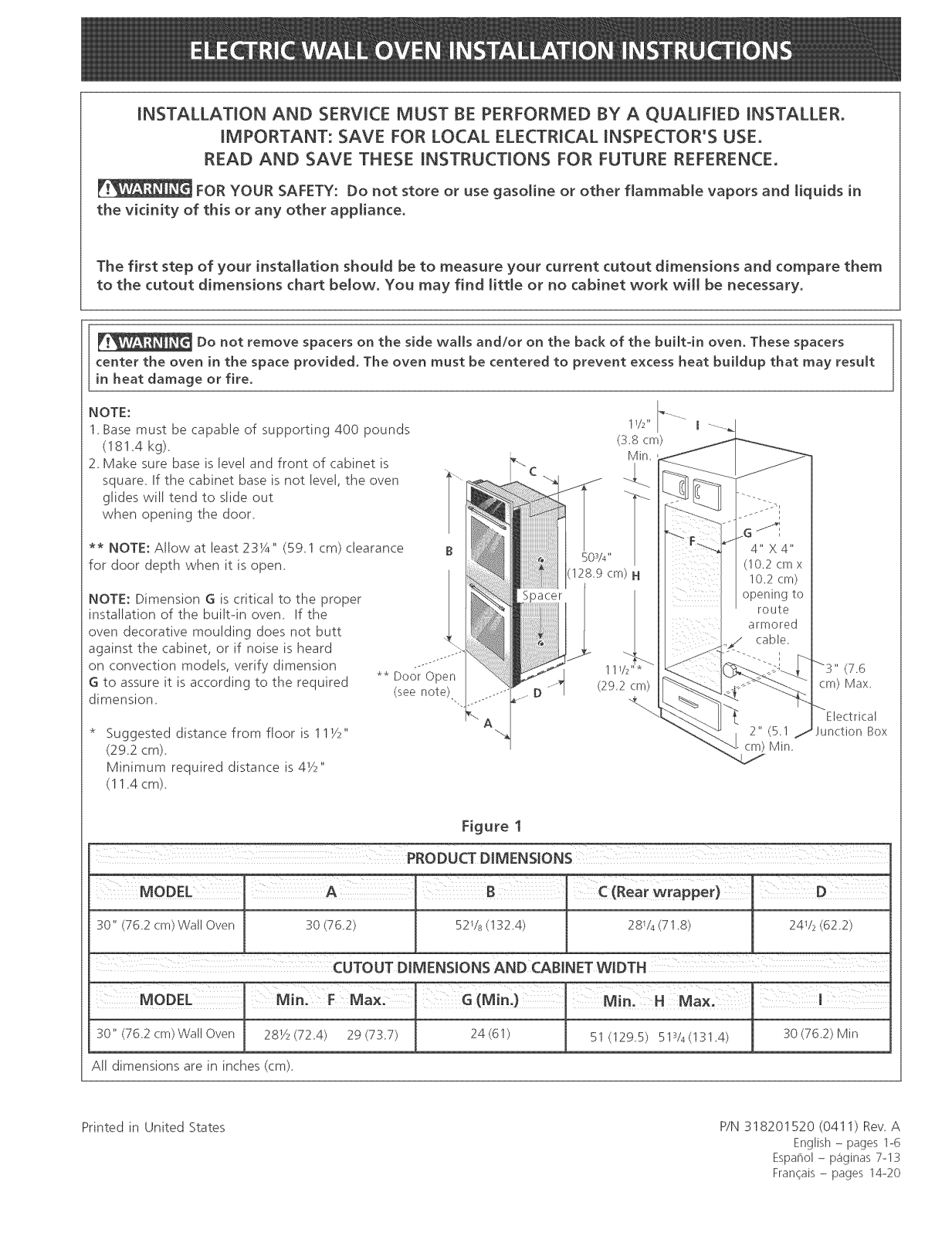

Electrolux E30EW85EPS1, E30EW85EPS2, E30EW85EPS3, E30EW85EPS4, E30EW8CEPS1 Installation Guide

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUAUF[ED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids [n

the vk[n[ty of this or any other appliance.

The first step of your insta[[ation should be to measure your current cutout dimensions and compare them
to the cutout dimensions chart below, You may find little or no cabinet work wH[ be necessary,

Do not remove spacers on the side walls and/or on the back of the built-in oven. These spacers

center the oven [n the space provided. The oven must be centered to prevent excess heat b@[dup that may result
in heat damage or fire.

NOTE:

Base must be capable of supporting 400 pounds

* Suggested distance from floor is 11Y2"

(292 cm)

Minimum required distance is 4Yz"

(I 14 cm)

1I/2" [ .....

"3" (7.6

cm) Max,

"Electrical

Junction Box

Figure 1

30" (76.2 crn)Wall Oven 30 (762) 52% (1324) 28% (71.8) 241/2 (622)

30" (76.2 crn)Wall Oven 28Y2(724) 29 (737)

24(61)

51(1295) 51%(1314)

30 (76.2) Min

All dimensions are in inches (cm)

Printed in United States P/N 318201520 (0411) Rev A

English - pages 1-6

Espanol - paginas 7-13
Francais - pages 1520

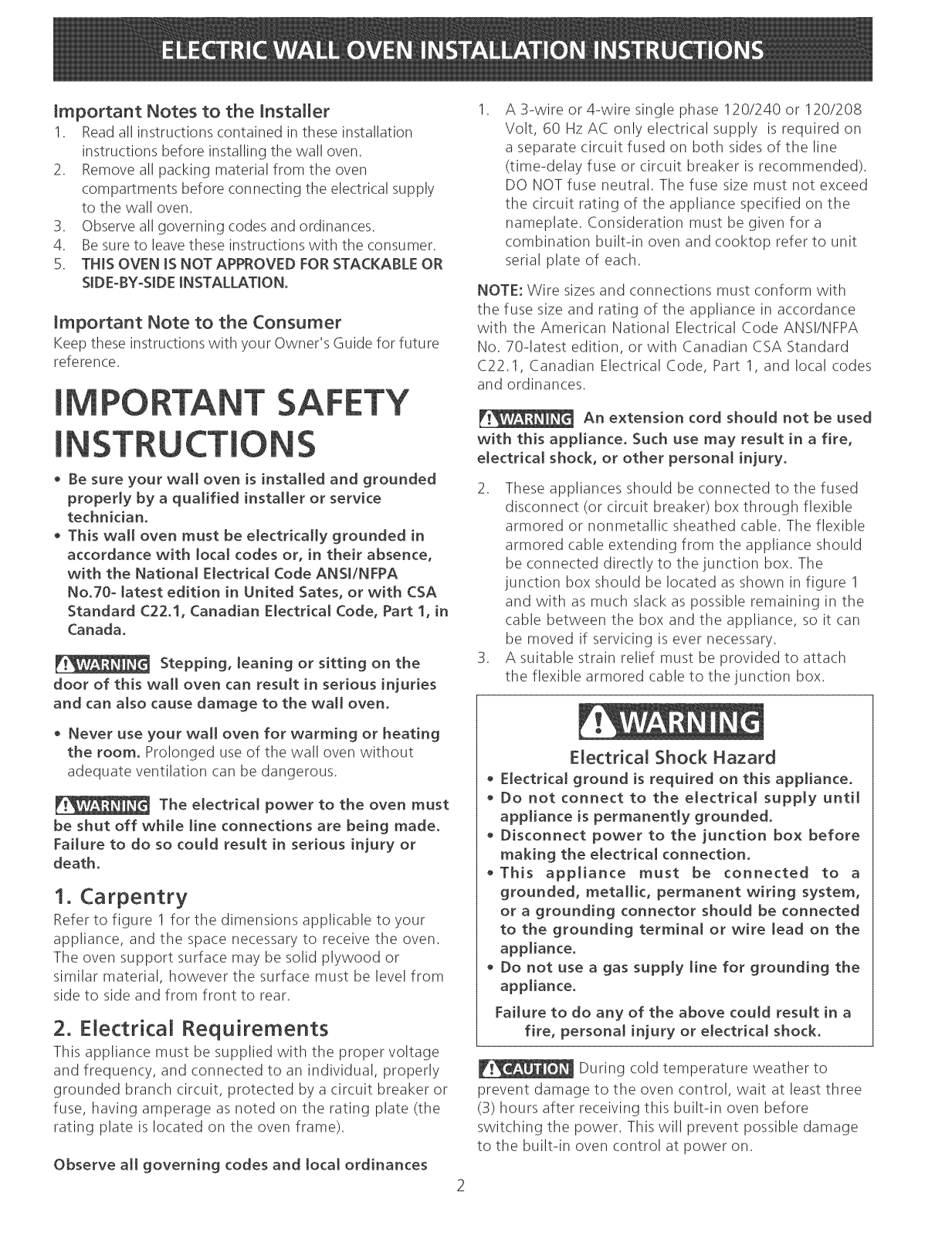

Important Notes to the Installer

1. Read all instructions contained in these installation
instructions before installing the wall oven.

2. Remove all packing material from the oven
compartments before connecting the electrical supply

to the wall oven.

3. Observe all governing (;odesand ordinances.

4. Be sure to leavethese instructions with the consumer.

5. THIS OVEN IS NOT APPROVED FORSTACKABLE OR
SDE-BY-SDE INSTALLATION.

Important Note to the Consumer
Keep these instructions with your Owners Guide for future

reference.

IMPORTANT SAFETY

NS

• Be sure your wall oven is installed and grounded

properly by a qualified installer or service
technician,

• This wall oven must be electrically grounded [n

accordance with local codes or, in their absence,
with the National Electrical Code ANSJ/NFPA

No.TO- latest edition in United Sates, or with CSA
Standard C22.1, Canadian Electrical Code, Part 1, in

Canada.

Stepping, leaning or sitting on the

door of this wall oven can result in serious injuries
and can also cause damage to the wall oven,

.

A 3-wire or 4-wire single phase 120/240 or 120/208
Volt, 60 Hz AC only electrical supply is required on
a separate circuit fused on both sides of the line
(time-delay fuse or circuit breaker is recommended).

DO NOTfuse neutral. Tile fuse size must not exceed
the circuit rating of the appliance specified on the

nameplate. Consideration must be given for a
combination builtqn oven and cooktop refer to unit
serial plate of each.

NOTE: Wire sizesand connections must conform with
the fuse size and rating of the appliance in accordance

with the American National Electrical Code ANS!/NFPA
No. 70qatest edition, or with Canadian CSA Standard

C22.1, Canadian Electrical Code, Part 1, and local codes
and ordinances.

An extension cord should not be used

with this appliance, Such use may result in a fire,
electrical shock, or other personaJ injury,

2. These appliances should be connected to the fused
disconnect (or circuit breaker) box through flexible

armored or nonmetallic sheathed cable. The flexible
armored cable extending from the appliance should

be connected directly to the junction box. The

junction box should be located as shown in figure 1

and with as much slack as possible remaining in the
cable between the box and the appliance, so it can
be moved if servicing is ever necessary.

3. A suitable strain relief must be provided to attach
tile flexible armored cable to the junction box.

Never use your wall oven for warming or heating
the room, Prolonged use of the wall oven without
adequate ventilation can be dangerous.

The electrical power to the oven must

be shut off while line connections are being made,
Failure to do so could result in serious injury or

death.

1. Carpentry

Refer to figure I for the dimensions applicable to your
appliance, and tile space necessary to receive the oven.
Tile oven support surface may be solid plywood or

similar material, however the surface must be level from
side to side and from front to rear.

2. Electrical Requirements

This appliance must be supplied with the proper voltage
and frequency, and connected to an individual, properly
grounded branch circuit, protected by a circuit breaker or
fuse, having amperage as noted on the rating plate (the
rating plate is located on the oven frame).

Observe all governing codes and local ordinances

Electrical Shock Hazard

• Electrical ground is required on this appliance.

• Do not connect to the electrical supply until
appliance is permanently grounded.

• Disconnect power to the junction box before
making the electrical connection,

• This appliance must be connected to a
grounded, metallic, permanent wiring system,
or a grounding connector should be connected
to the grounding terminal or wire lead on the
appliance,

• Do not use a gas supply line for grounding the
appliance.

Failure to do any of the above could result in a

fire, personal injury or eIectrica[ shock,

During cold temperature weather to

prevent damage to the oven control, wait at least three
(3) hours after receiving this built-in oven before
switching the power. Thiswill prevent possible damage
to the builtqn oven control at power on.

3. Electrical connection

It is the responsibility and obligation of the consumer to
contact a qualified installer to assure that tile electrical

installation is adequate and is in conformance with the
National Electrical Code ANS!/NFPA No. 70qatest

edition, or with CSA Standard C22.1, Canadian
Electrical Code, Part 1, and local codes and ordinances.

Electrical ground is required on this appliance.

These appliances are equipped with a copper conductor
flexible cable. If connection is made to aluminum house

wiring, use only special connectors which are approved
for joining copper and aluminum wires in accordance

with National Electrical Code and local codes and
ordinances.

tf used in mobile homes or if local codes DO
NOT permit connection of the frame grounding

conductor to the neutral (white) wire, separate
tile white and bare copper ground wires that extend
out of the end of the supply (:able of the appliance.
Connect the white wire from supply cable to tile
neutral white wire in the junction box. Connect the
black and red wires from the supply (:able to the
matching color wires in the junction box. The bare
wire must now be used to ground the appliance in

accordance with local electrical (:odes. Connect the
bare copper ground wire to the grounded lead in the

service panel. DQ BlOTground to a gas supply pipe.
DQ BlOTconnect to electrical power supply until
appliance is permanently grounded. Connect tile
ground wire before turning on tile power (figure 3).

These appliances are manufactured with a white neutral
power supply wire and a frame connected green or bare
copper grounding wire.

tf local codes permit connection of the frame
grounding conductor to the neutral (white)

wire.
Connect the green (or bare copper) wire and the

white wire from the appliance (:able to the supply
cable ground wire (white or bare) inside the junction
box. Connect the remaining wires inside the junction
box from the power supply cable to the matching
colors of the appliance cable wires (figure 2).

Cable from Power Supply

Ground Wire _/
(Bareor Green Wire)

Cable from appliance

Figure 2

3-WIRE GROUNDED JUNCTION BOX

Improper connection of aluminum

house wiring to copper leads can result in a short
circuit or fire, Use only connectors designed for

joining copper to aluminum, and follow the

manufacturer's recommended procedure closely.

Cable from Power Supply

Ground Wire _

Bed

Wires

Ground Wire
(Bareor Green Wir_

Xlnction Box U,L,-Listed Conduit

j White Wire

Cable from appliance

White Wire

Black
Wires

Connector (or CSA listed)

Figure 3

4-WIRE GROUNDED JUNCTION BOX

_lf connecting to a 4-wire electrical

system, the appliance frame MUST NOT be
connected to the neutrat wire of the 4-wire

electrical system.
NOTE TO ELECTRICIAN: The armored (:able leads

supplied with the appliance are CSA-recognized for
connection to larger gauge household wiring. The
insulation of the leads is rated at temperatures much
higher than temperature rating of household wiring. The
current carrying capacity of the conductor is governed by
the temperature rating of the insulation around the wire,
rather than the wire gauge alone.

Frame grounded through the neutral

if used in a mobile home, new branch circuit (1996
NEC) recreational vehicles or where local codes do

not permit grounding through neutrat see figure 3.

4. Remove the oven door

Remove the doors, oven grids and grids supports to reduce
the weight of the appliance andto facilitate its handling and

its installation. (Refer to tile Use & Care Guide for tile
instructions).

IMPORTANT

Do not lift the oven by the door handle.

NOTE:Tile oven door isvery heavy. Be sure you have a firm
grip before lifting the oven door off the hinges. UseCaution
once tile door is removed. Do not lay the door on its handle.

This could causedents or scratches.

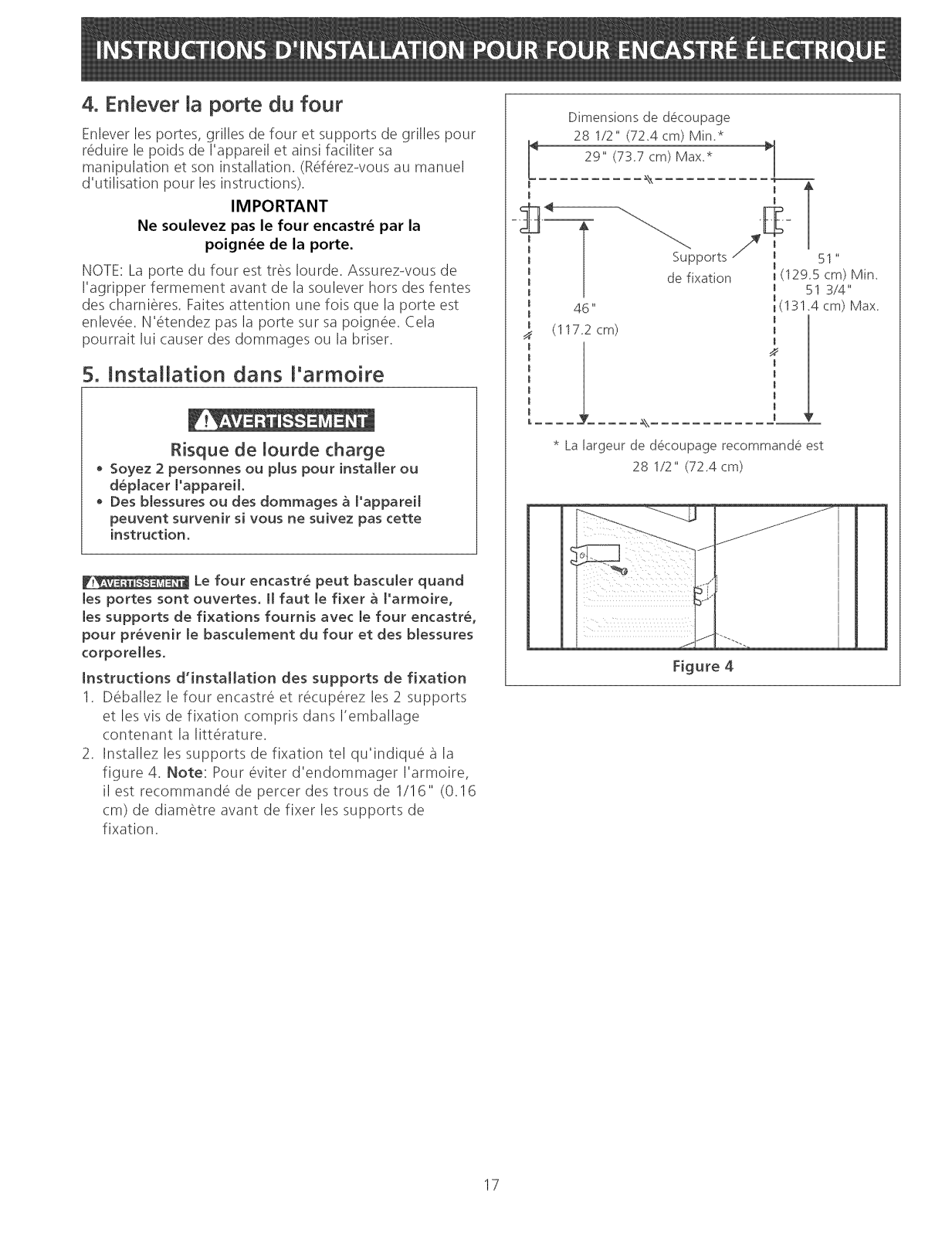

5. Cabinet JnstaNNation

Heavy Weight Hazard

Use 2 or more people to move and install wall oven.
Failure to follow this instructions can result in injury or
damage to the unit.

The walt oven can tip when the doors

are opened. The mounting brackets supplied with
the wall oven must be attached to the cabinet and

the appliance to prevent tipping of the watt oven
and injury to persons.

Mounting Brackets installation Instructions

1.Unpack the wall oven and find the 2 mounting
brackets and screws included in the literature package.

2.Install the mounting bracket in the cabinet as shown on
figure 4. Note: To prevent damage to cabinet, it is
recommended to drill I/16" (0.16 cm) dia. pilot holes
before installing the mounting brackets.

Cutout Dimensions

* Recommended
Cutout Width is 28_"

B

(72,4 cm)

B

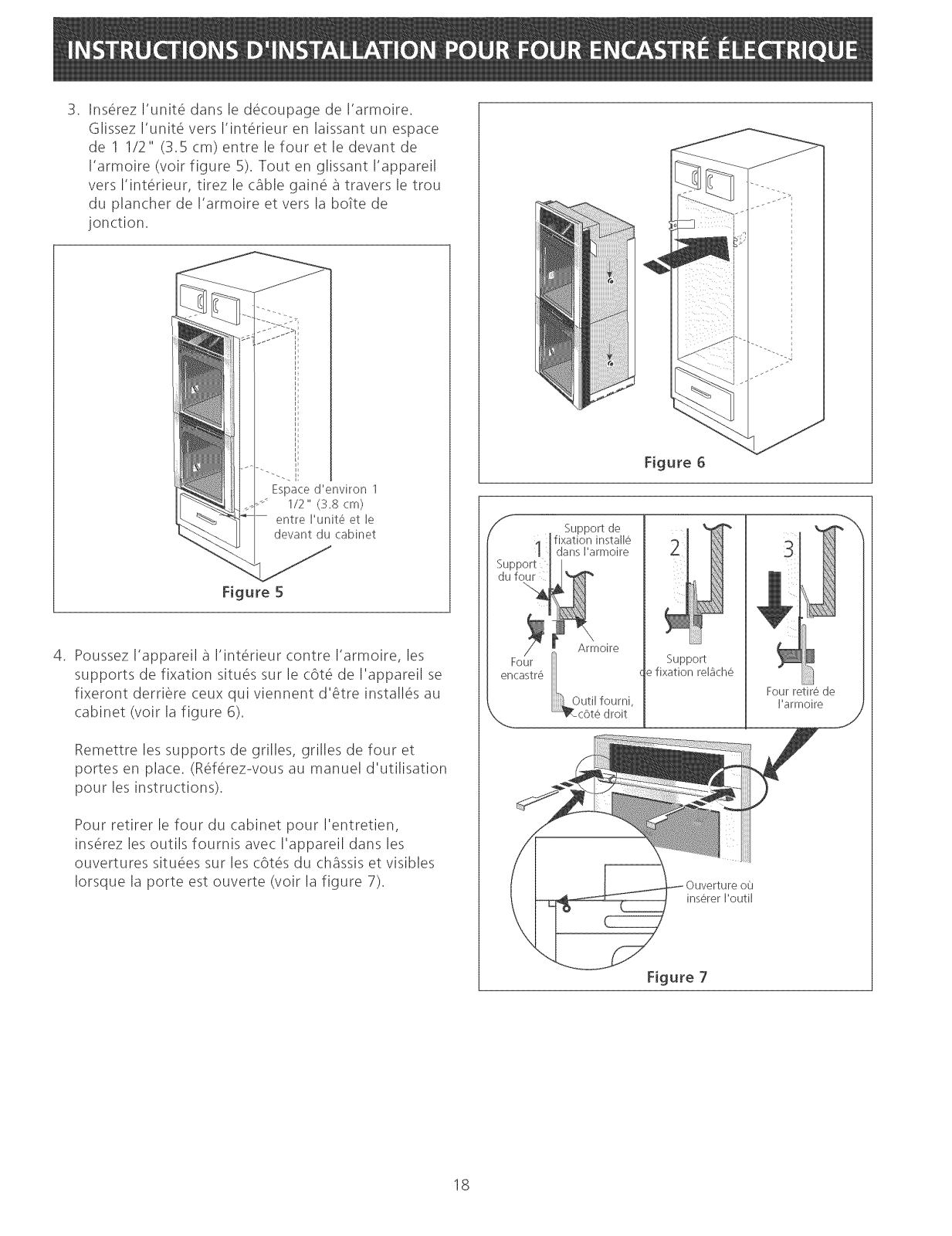

3.Insert tile unit into the cabinet opening. Slide unit inward
leaving 1 I/2" (3.8 cm) clearance between the oven and

front of cabinet (seeFigure 5). Pull the armored cable
through the hole in the floor and toward the junction box
while moving the appliance inward.

4.Push the unit in and against the cabinet, then the oven
side bracket will (:lip in the one you just install on the side

of the cabinet opening (seefigure 6).

Put back in place tile grids supports, grids and oven
doors. (Refer to the Use & Care Guide for the
instructions).

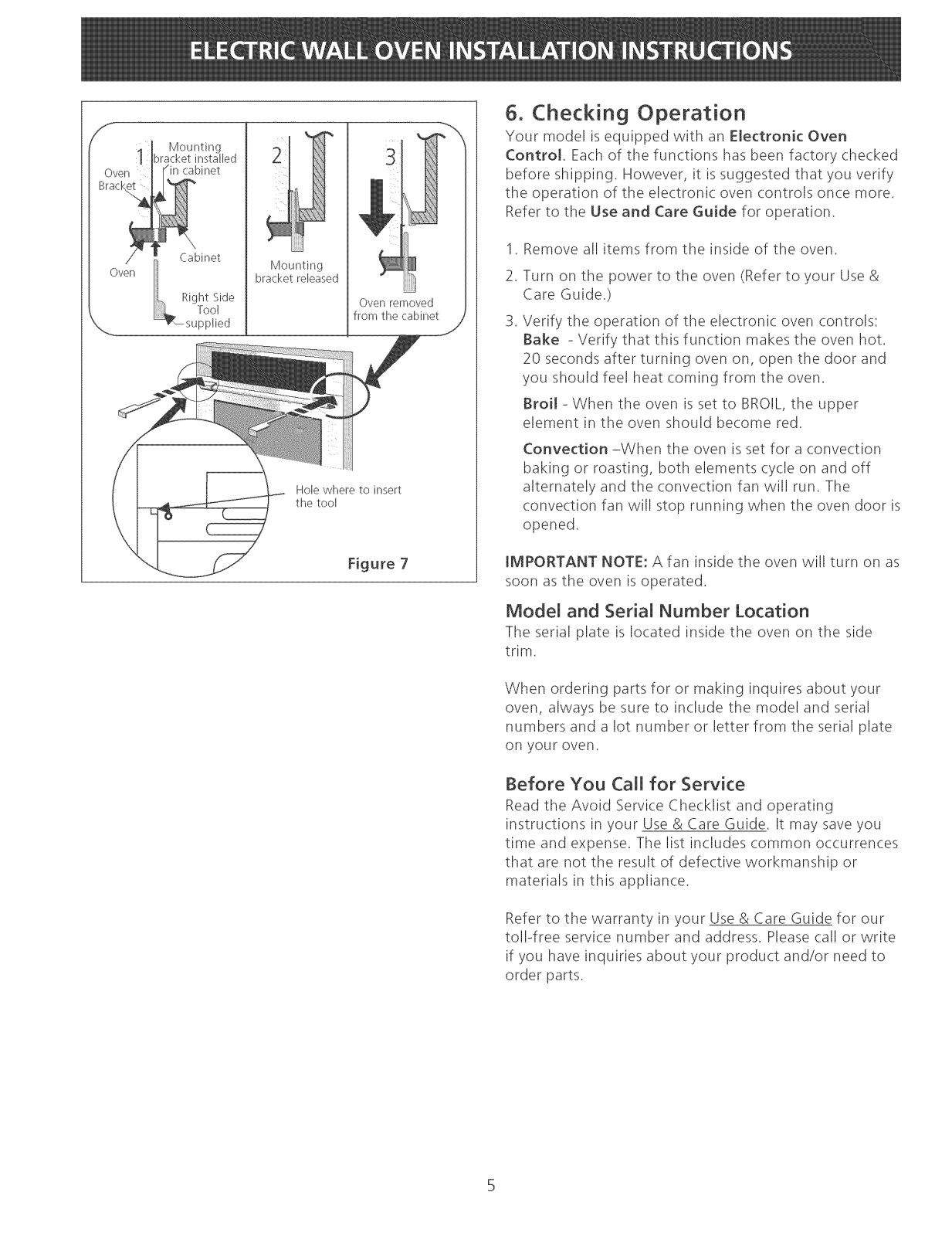

Topull out the oven for servicing insert the tool supplied
with the appliance both side at the same time in tile hole

located on the side frame and visible when the door is
opened. After inserting the tool pull the oven towards

you (seefigure 7).

1/2" (3,8 cm)

clearance

unit

and front of

cabinet

Figure 5

46"

(117,2 cm)

Mounting

Brackets

B

_129,5 cm) Min,

Figure 4

51"

51 3/4"

Figure 6

f

Mounting

}racket installed

Cabinet

Oven

/

I

Mounting

bracket released

Hole where to insert

the tool

Oven removed

from the cabinet

Your model is equipped with an Electronic Oven
Control, Each of the functions has been factory checked
before shipping. However, it is suggested that you verify
the operation of the electronic oven controls once more.
Refer to the Use and Care 6uide for operation.

.

Remove all items from the inside of the oven.

2.

Turn on the power to the oven (Refer to your Use &
Care Guide.)

Verify the operation of the electronic oven controls:

Bake - Verify that this function makes the oven hot.
20 seconds after turning oven on, open the door and
you should feel heat coming from the oven.

Broil - When the oven is set to BROIL, the upper
element in tile oven should become red.

Convection -When the oven is set for a convection

baking or roasting, both elements cycle on and off
alternately and the convection fan will run. The
convection fan will stop running when the oven door is
opened.

6. Checking Operation

Figure 7

IMPORTANT NOTE: A fan inside the oven will turn on as
soon as the oven isoperated.

Model and Serial Number Location

The serial plate is located inside tile oven on tile side
trim.

When ordering parts for or making inquires about your

oven, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your oven.

Before You Call for Service

Read tile Avoid Service Checklist and operating
instructions in your Use & Care Guide. It may save you
time and expense. The list includes common occurrences
that are not the result of defective workmanship or
materials in this appliance.

Refer to the warranty in your Use & Care Guide for our
toll-free service number and address. Please (:all or write

if you have inquiries about your product and/or need to
order parts.

NOTES
