Electrolux E30EW75DSS User Manual

2
Finding Information
MAKE A RECORD FOR FUTURE USE
Brand_______________________________________________________________
Purchase Date______________________________________________________
Model Number______________________________________________________
Serial Number______________________________________________________
NONO
TETE
NO
TE
NONO
TETE
See the Features page later in this manual for the location of your product’s serial number.
QUESTIONS?
1-877-4ELECTROLUX (1-877-435-3287)
For online support and internet product information:
www.electrolux.com
©2003 Electrolux Home Products, Inc. Post Office Box 212378, Augusta, Georgia 30917, USA All rights reserved. Printed in the USA
Finding Information
TABLE OF CONTENTS
3
Finding Information ............................................ 2
Make a Record for Future use ......................... 2
Questions? ....................................................... 2
Safety ................................................................... 4
Important Safety Instructions ........................... 4
Feature Overview ................................................ 7
Your Wall Oven................................................. 7
Getting Started .................................................... 8
Oven Vent Location .......................................... 8
Installing Oven Rack Supports ......................... 8
Removing and Replacing Oven Racks ............. 8
Arranging Oven Racks ..................................... 8
Setting oven controls ......................................... 9
Control Pads Functions .................................... 9
Setting the Clock ............................................ 10

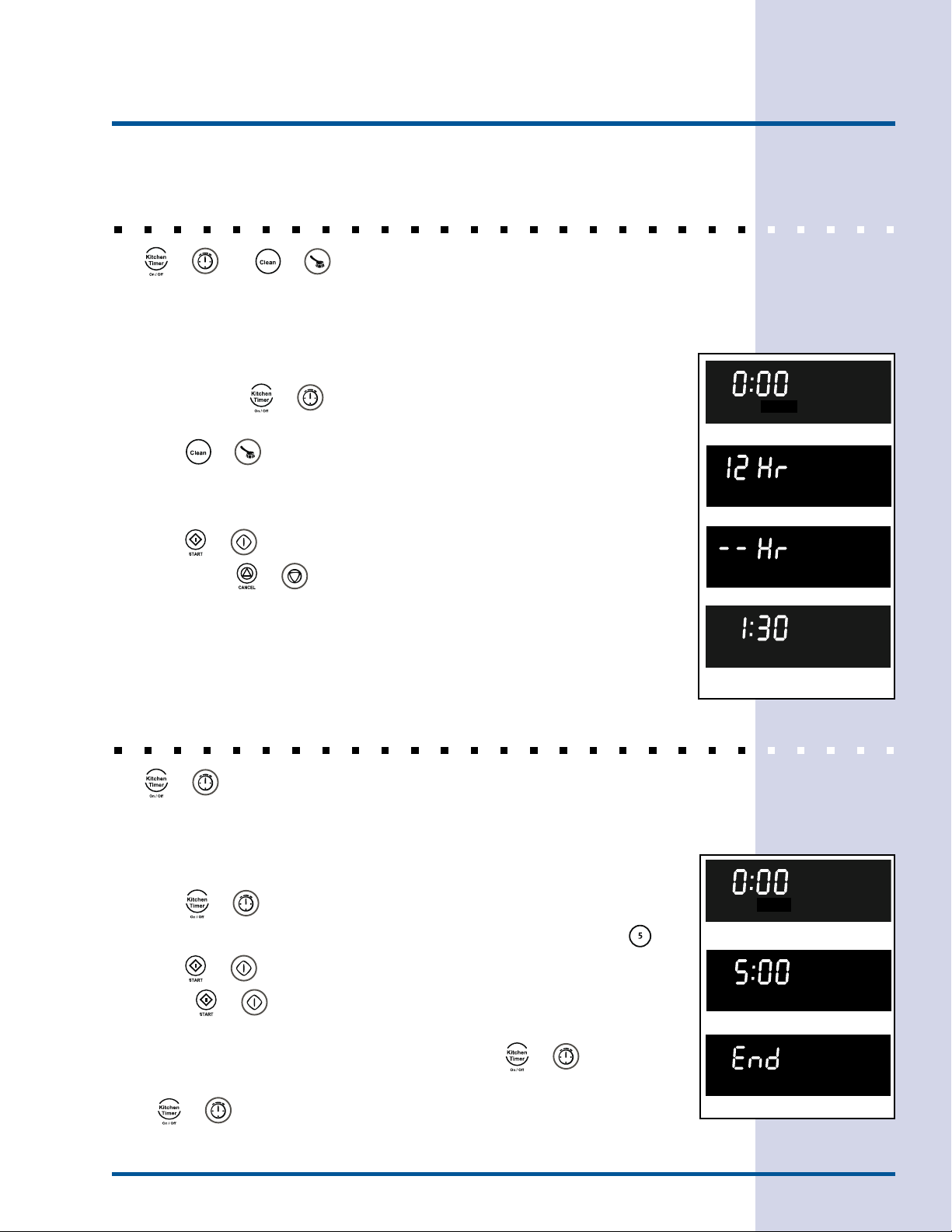

Setting Continuous Bake
or 12 hours Energy Saving .............................. 11
Setting the Kitchen Timer ................................11
Setting Oven Lockout Feature ....................... 12
Setting Temperature Display .......................... 12
Setting Silent Control Operation ..................... 13
Adjusting Oven Temperature .......................... 13
Care & Cleaning ................................................ 24

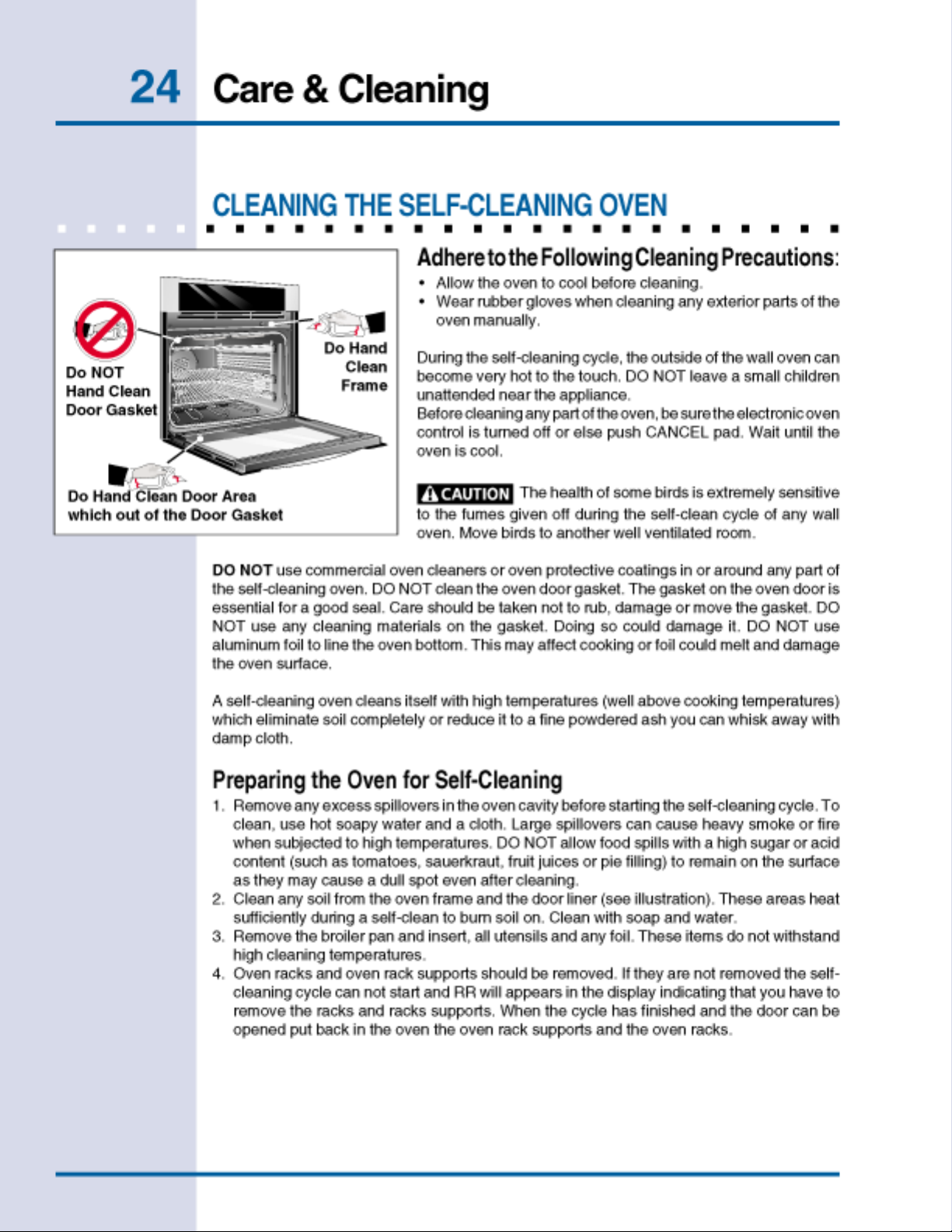

Cleaning the Self-Cleaning Oven ................... 24

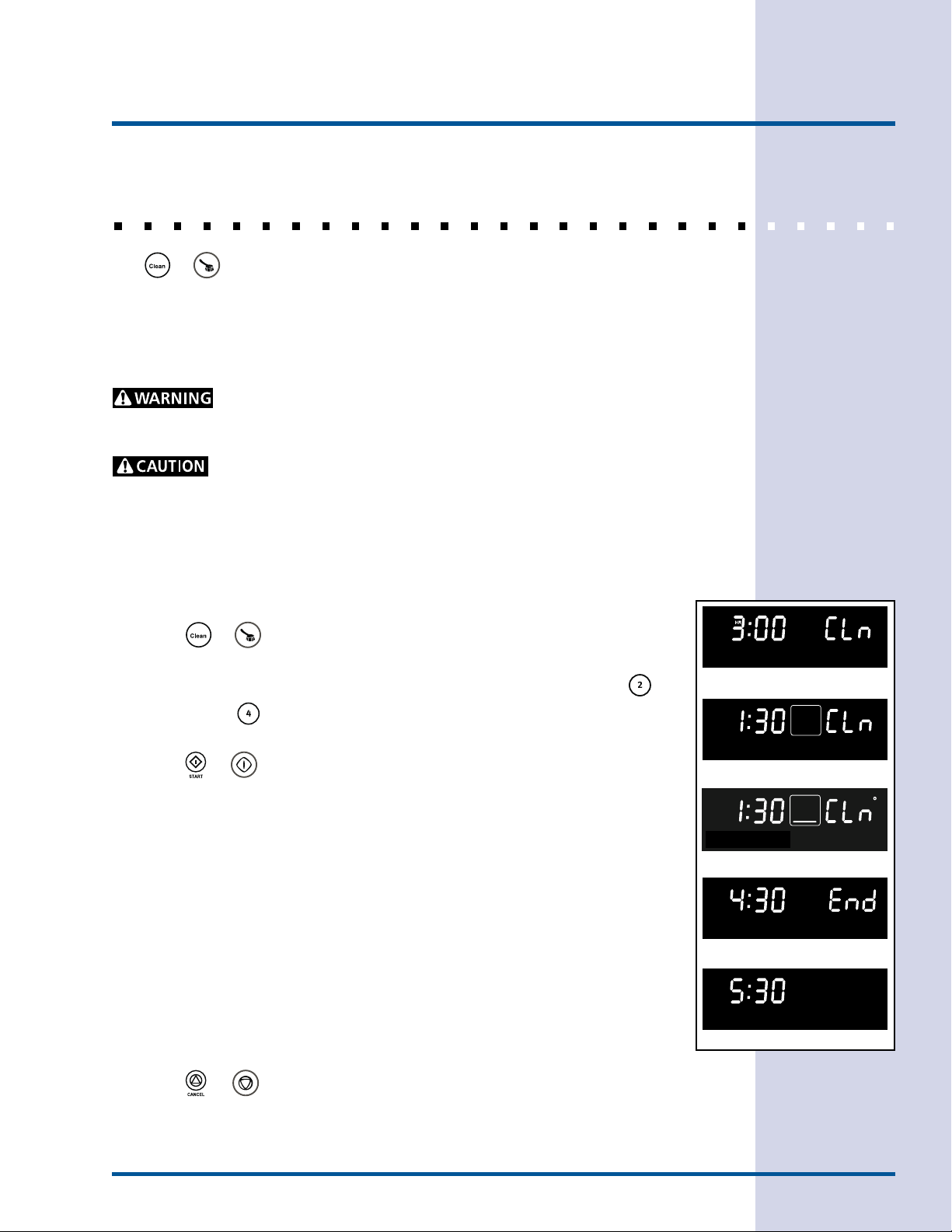

Starting Self-Cleaning Cycle .......................... 25
To Start Delayed Self-Cleaning Cycle ............ 26
General Cleaning ........................................... 27
Care and Cleaning of Stainless Steel ............ 28

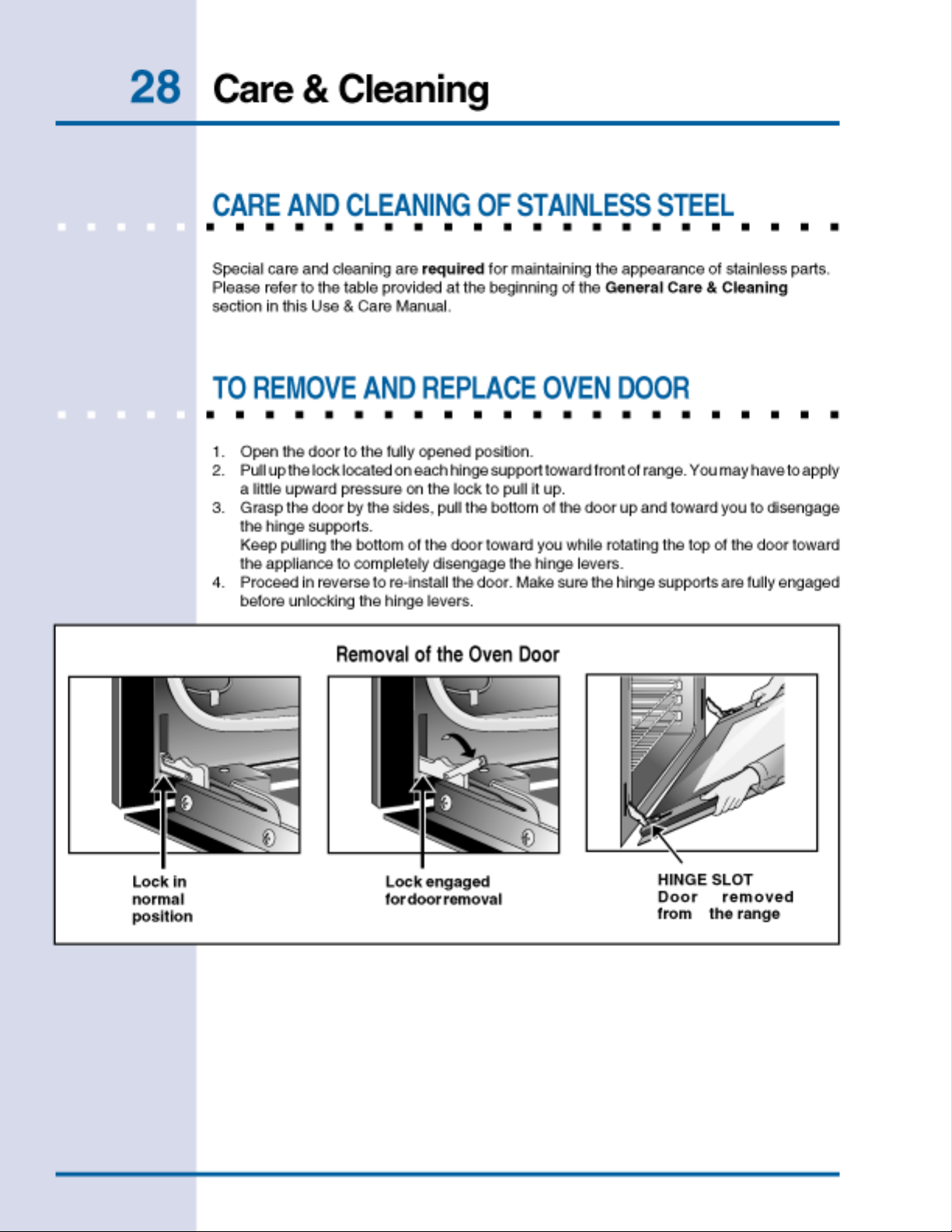

To Remove and Replace Oven Door ............. 28

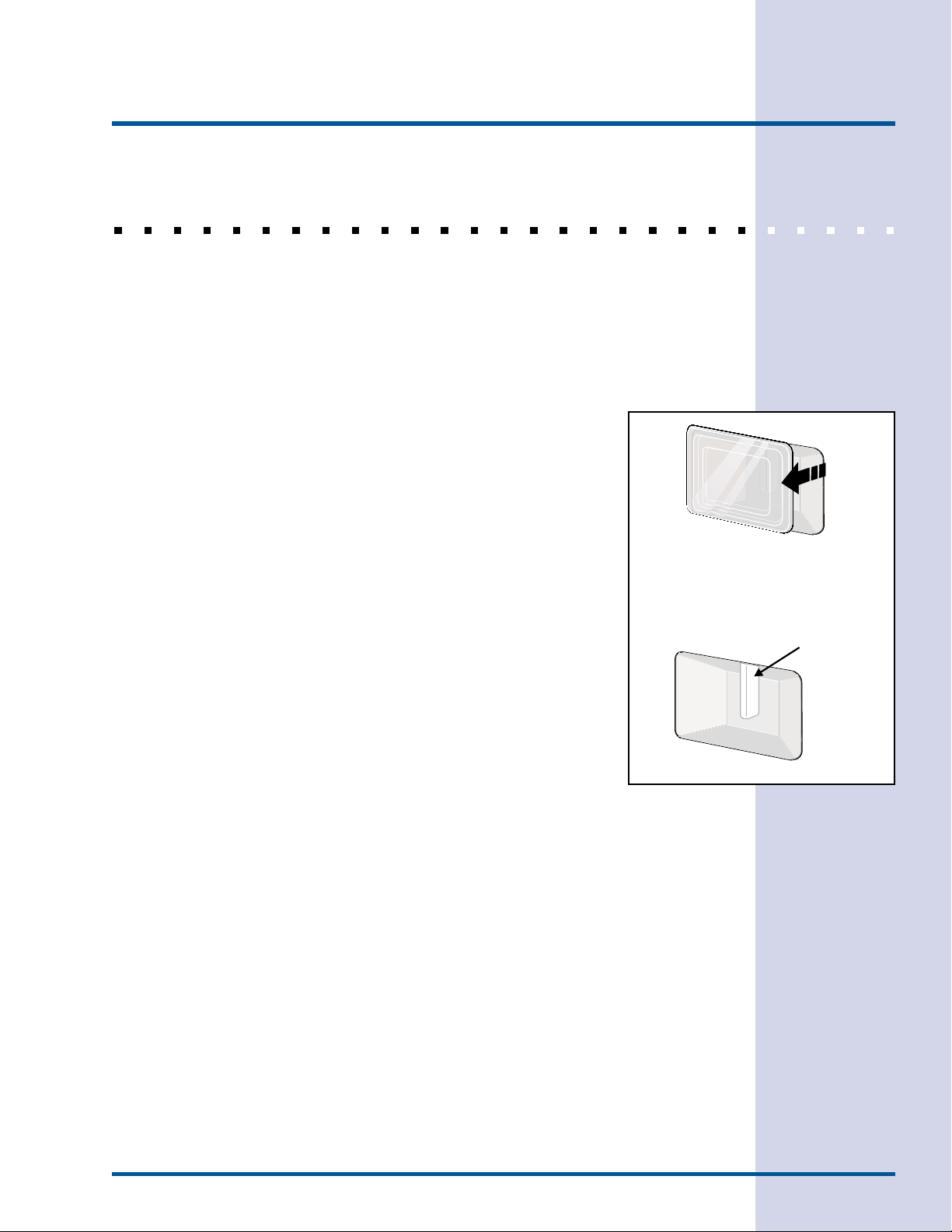

Oven Light ...................................................... 29
Solutions to Common Problems ..................... 30
Oven Controls Beeps and Display F1 to F10 . 30
F8 Is Displayed .............................................. 30
Installation ...................................................... 30
Entire Oven Does Not Operate ................. 30-31
Oven Light Does Not Operate ........................ 31
Self-Clean Cycle Does Not Work ................... 31
Oven Smokes Excessively During Broiling .... 31
Soil Not Completely Removed After
Self-Cleaning Cycle Is Completed ................. 32
Poor Baking Results ....................................... 32
Flames Inside Oven Or Smoke From Vent .... 32
Notes .................................................................. 33
Warranty Information ........................................ 36
Cooking Instructions ........................................ 14
Preheating ...................................................... 14

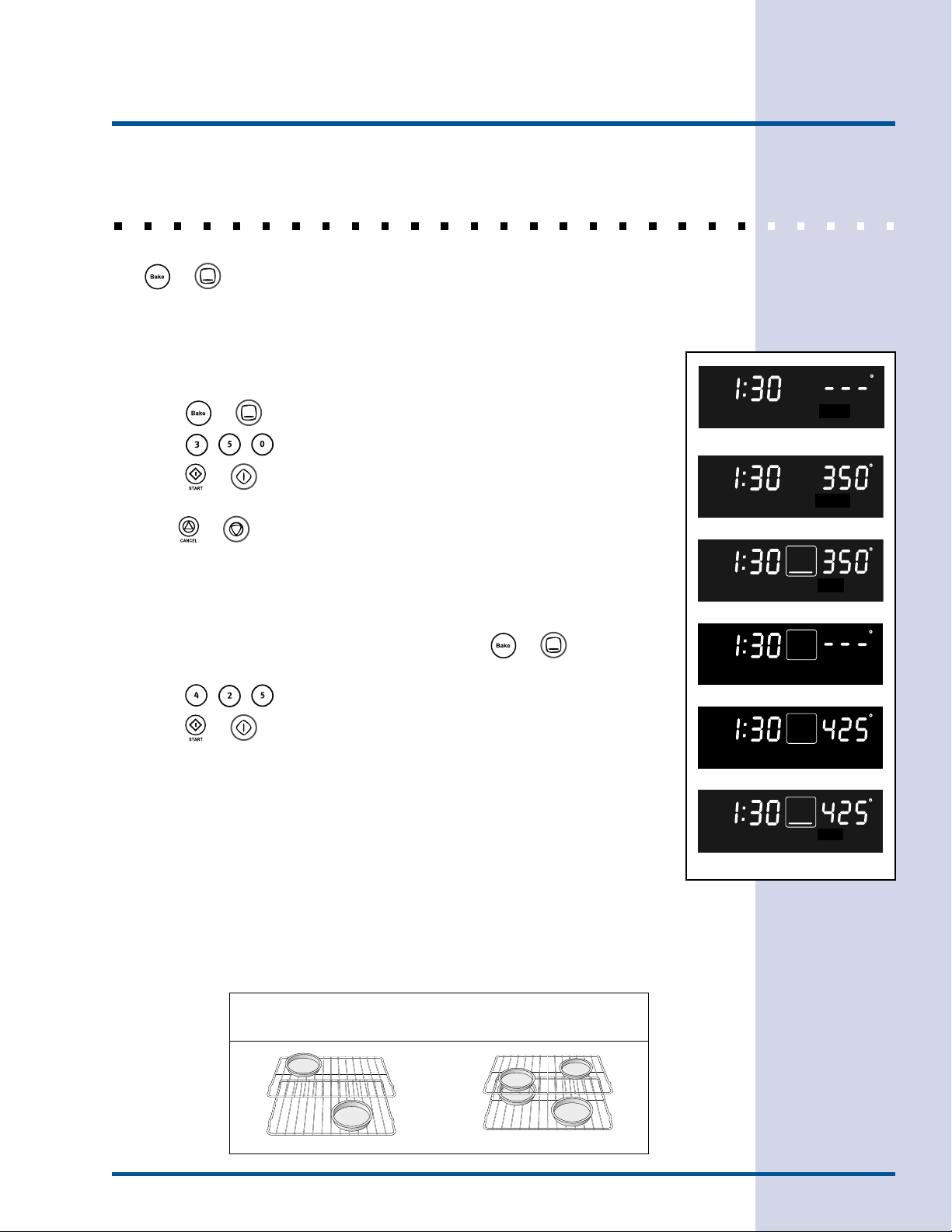

Baking ............................................................ 15

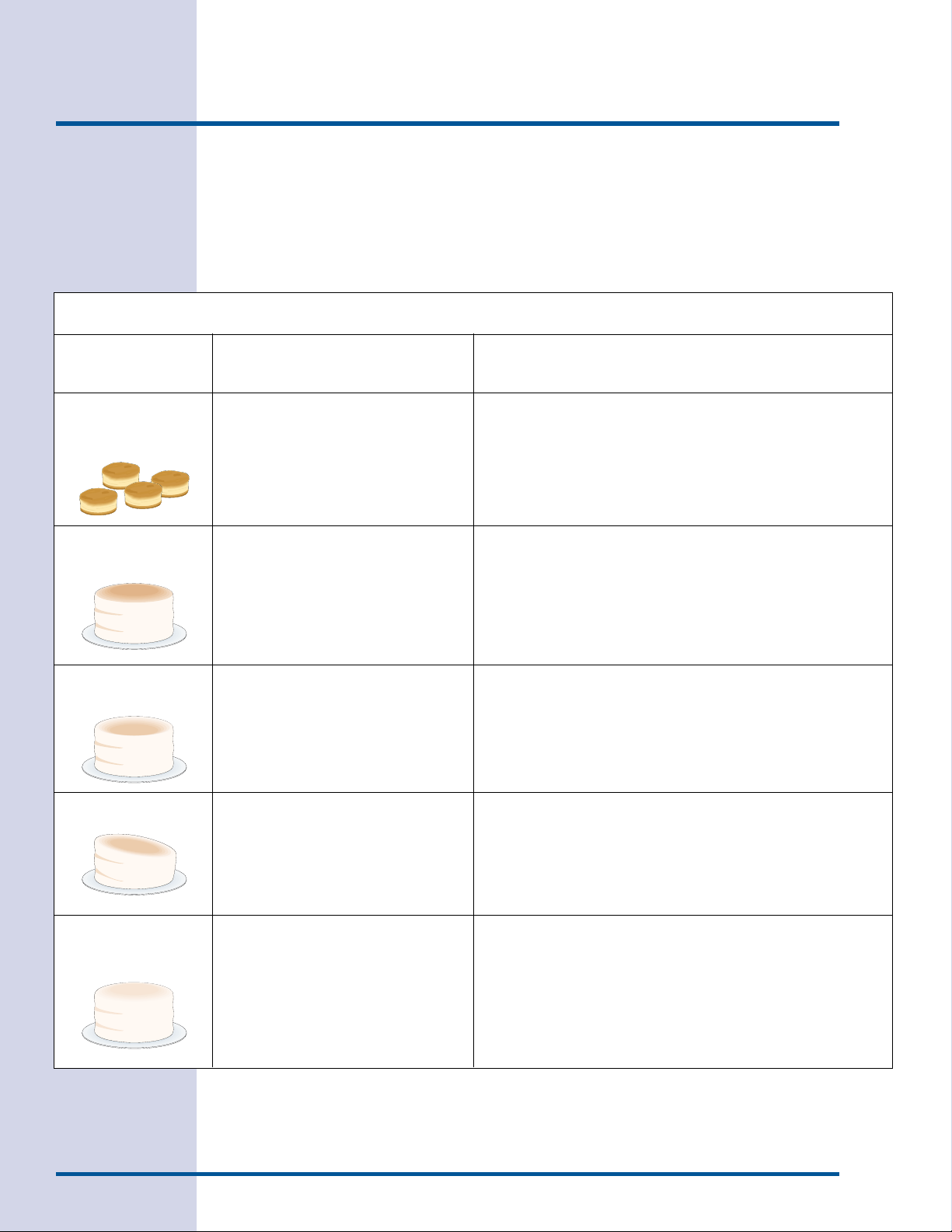

Baking Problems ............................................ 16
Convection Baking ......................................... 17

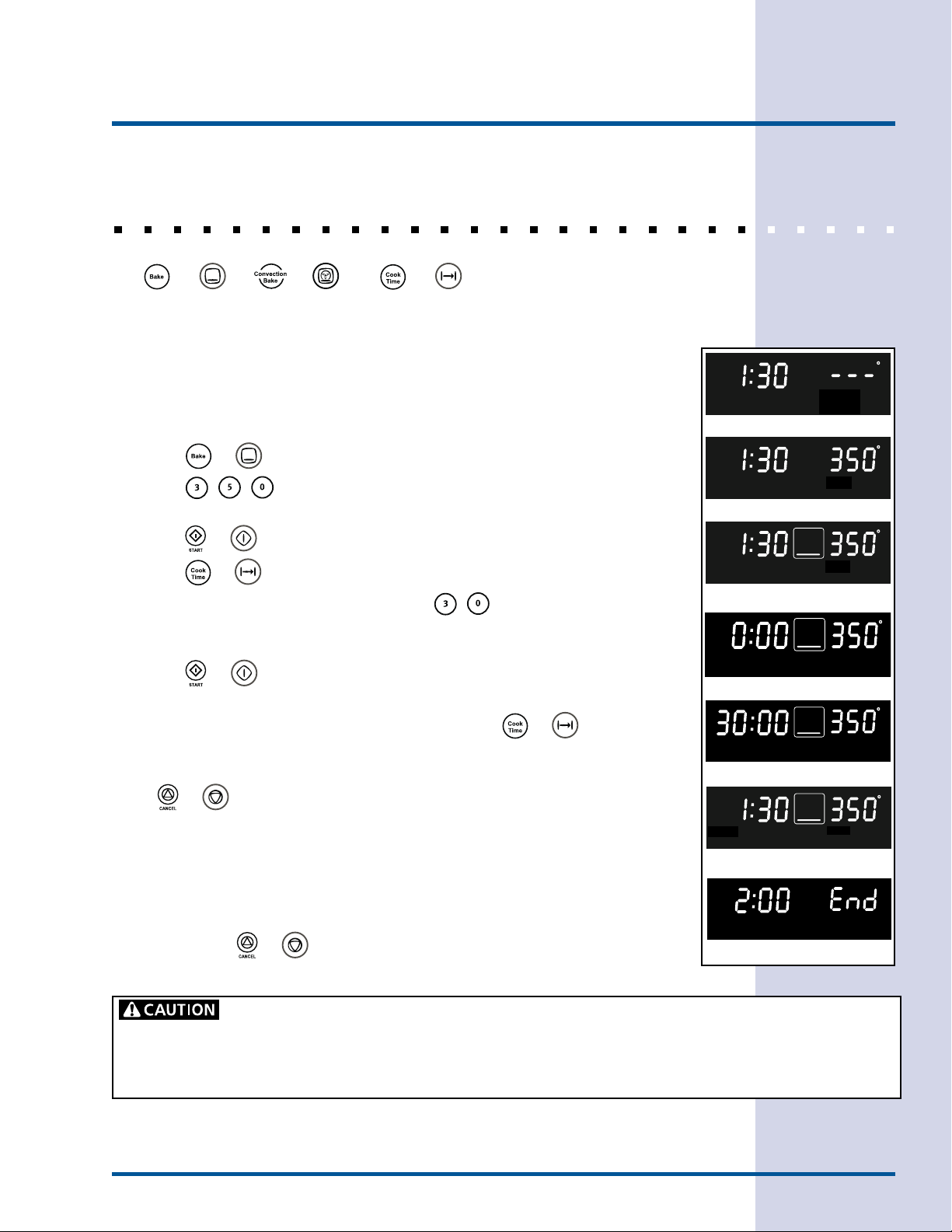

Setting Timed Bake or
Timed Convection Bake ................................. 19
Seting Delayed Timed Bake or
Delayed Timed Convection Bake ................... 20
Broiling ........................................................... 21
Convection Roasting ...................................... 23
4
Safety
IMPORTANT SAFETY INSTRUCTIONS
Please read all safety instructions before using your new Electrolux wall oven.
WARNING WARNING
WARNING
WARNING WARNING
To reduce the risk of fire, electrical shock, or injury when using your wall oven, follow basic precautions including the following:
• Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material. Do not remove the wiring label and other literature attached to the back of the wall oven. Do not remove model/serial number plate.
• Proper Installation—Be sure your appliance is properly installed and grounded by a qualified electrician or installer in accordance with the National Electrical Code ANSI/NFPA No. 70 (U.S.A.) or CSA C22.1, PART 1 (Canada)—latest editions and local code requirements. Install only per installation instructions provided in the literature package for this appliance.
Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency.
Electronic controllers can be damaged by cold temperatures. When you use
your appliance for the first time, or if it has not been used for a long period of time, make sure that it has been exposed to a temperature above 0°C/32°F for at least 3 hours before connecting it to the power supply.
• User Servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a qualified technician to reduce the risk of personal injury and damage to the appliance.
• Never modify or alter the construction of the appliance by removing panels, wire covers, or any other part of the product.
• Remove the oven door from any unused appliance if it is to be stored or discarded.
Stepping, leaning, sitting or pulling down on the door of this appliance can result in serious injuries and may also cause damage to the appliance. Do not allow children to climb or play around the appliance.
• Storage in or on Appliance—Flammable materials should not be stored in an oven.
This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, in or near the appliance.
Do not use the oven for storage.
Do not store items of interest to children in the cabinets above an appliance. Children climbing on the oven can be seriously injured.
Safety
To reduce the risk of tipping of the appliance. The appliance must be secured by properly install anti tip device. To check if devices are installed properly open the oven door and verify that the anti-tip device are engaged see installation instructions.
Do not leave children alone—Children should not be left alone or unattended in the area
where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
• DO NOT TOUCH INTERIOR OVEN ELEMENTS OR INTERIOR SURFACES OF THE
WALL OVEN UNTIL THEY HAVE COOLED. The oven heating elements may be hot even though the elements are dark in color. Areas near the elements may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the oven vent openings, the surfaces near these openings, oven door and window.
• Wear Proper Apparel—Loose-fitting or hanging garments should never be worn while using
the appliance. Do not let clothing or other flammable materials contact hot surfaces.
Never use your appliance for warming or heating the room.
5
• Do Not Use Water or Flour on Grease Fires—Smother the fire with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to
become too hot.
• Use Only Dry Pot holders—Moist or damp pot holders on hot surfaces may result in burns
from steam. Do not let the pot holders touch the hot heating elements. Do not use a towel or other bulky cloth instead of a pot holder.
• Do Not Heat Unopened Food Containers—Build-up of pressure may cause the container to
burst and result in injury.
IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN
• Use Care When Opening an Oven Door—Stand to the side of the appliance when opening
the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The wall oven is vented at the upper control panel or
at the center trim depending of the model. Touching the surfaces in this area when the wall oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items near the oven vent. These items could melt or ignite.
Placement of Oven Racks. Always place oven racks in desired location while oven is cool.
Remove all utensils from the rack before removing rack. If rack must be moved while oven is hot, use extreme caution. Use pot holders and grasp the rack with both hands to reposition. Do not let pot holders contact the hot oven element or interior of the oven.
Do not use the broiler pan without its insert. The broiler pan and grid allow dripping fat
to drain and be kept away from the high heat of the broiler.
6
Safety
IMPORTANT SAFETY INSTRUCTIONS
Do not cover the broiler grid or oven bottom with aluminum foil. Exposed fat and grease could ignite.
Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. Disconnect the appliance or shut off the power to the appliance before removing and replacing the bulb.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR OVEN
• Clean the appliance regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease to accumulate. Greasy deposits in the fan could catch fire. Refer to the hood manufacturer's instructions for cleaning.
• Cleaners/Aerosols—Always follow the manufacturer's recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and/or injury.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts of the appliance listed in this Owner's Guide. Before using the self-cleaning cycle of the appliance, remove the broiler pan, oven racks and any utensils stored in the appliance. Also the side rails of the oven racks must be removed for the self-clean function to operate.
• Do not clean the oven door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
• Do not use oven cleaners. No oven cleaner or oven liner protective coating of any kind should be used in or around any part of the appliance
The health of some birds is extremely sensitive to the fumes given off during
the self-clean cycle of any wall oven. Move birds to another well ventilated room.
IMPORIMPOR
IMPOR
IMPORIMPOR
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
NONO
TETE
NO
TE
NONO
TETE
TT
ANT SAFETY NOANT SAFETY NO
T
ANT SAFETY NO
TT
ANT SAFETY NOANT SAFETY NO
TICETICE
TICE
TICETICE
Save these important safety instructions for future reference.
Setting Oven Controls
CONTROL PAD FUNCTIONS
Read the instructions carefully before using the oven. For satisfactory use of your
oven, become familiar with the various functions of the oven as described below. Note: The graphics on your timer may look like one of those shown. Both are operating the same way.
9
Roast Convection Pad- Used to
select the convection roasting mode.
Preheat Pad­Used to select the preheat mode.
Lock Pad- Used to disable all oven function.
Clean Pad- Used to select the self­cleaning mode.
Oven Light- Used to turn the oven light on and off.
Note: See illustration above for pad description.
Roast Convection Pad
Bake Convection Pad-
Used to select the convection baking mode.
Clock Pad- Used to set the time of day.
Bake Convection Pad
Bake Pad- Used to
enter the normal baking mode temperature.
Bake Pad
Broil Pad- Used
to select the variable broil mode.
Kitchen Timer ON/OFF Pad- Used to set or
cancel the minute timer. The minute timer does not start or stop cooking.
Broil Pad
0 Thru 9 number pads- Used to
enter temperature and times.
Start Time Pad- Used to set the desired start time for baking or cleaning. Can be used with BAKE or CLEAN cycles to program a delayed bake cycle.
0 Thru 9 number pads
Cancel- Used to
cancel any function previously entered except the time of day and minute timer. Push Cancel pad to stop cooking.
Start- Used to start all oven functions. Not used with Oven Light.
Cook Time Pad­Used to enter the length of the cooking time.
Preheat Pad
Lock Pad
Clean Pad
Oven Light
Clock Pad
Kitchen Timer ON/OFF Pad
Start Time Pad
Cancel pad
Start pad
Cook Time Pad
10
Setting Oven Controls
SETTING THE CLOCK
The or pad is used to set the clock. The clock may be set for 12 or 24 hour time
of day operation. The clock has been preset at the factory for the 12 hour operation. When the range is first plugged in, or when the power supply to the range has been interrupted, the timer in the display will flash with "PF" (power failure, See Figure 1). Note: The clock cannot be set when the oven is on.
When PF appears in the display, press or . No sound will be heard, but after 10
seconds a beep will sounds and PF will disappear.
To set the clock (example below for 1:30):
1. Press or . "CLO" will appear in the display (Figure 2).
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
2. Press pads to set the time of day to 1:30 (Figure 3). "CLO" will
appear in the display. Press or . "CLO" will disappear and the clock
will start (Figure 4).
Changing between 12 or 24 hour time of day display:
1. Press and hold or for 8 seconds (Figure 3). While holding the pad
down the current time of day will remain and "CLO" will disappear from the display (Figure 4). CONTINUE holding the pad until a beep is heard.
2. The display will show either "12Hr" (Figure 5) or "24Hr" (Fig.6).
3. Press or to switch between the 12 and 24 hour time of day display.
The display will show either "12Hr" (Figure 5) or "24Hr" (Figure 6).
4. Press or to accept the change or press or to reject the
change.
5. Reset the correct time as described in To set the Clock above. Please note that if the 24 hour time of day mode was chosen, the clock will now display time from 0:00 through 23:59 hours.
