UNDER-COUNTER
EI24WC10QS
(RIGHT DOOR SWING)
WINE COOLERS
Featuring IQ-Touch™ Electronic Controls
SIGNATURE FEATURES
EI24WL10QS
(LEFT DOOR SWING)
PRODUCT DIMENSIONS
Height 33-3/4"
Width 23-7/8"
Depth (Including Handle) 26"
MORE EASY-TO-USE FEATURES
UV-FILTERED GLASS DOOR
Helps protect wine’s flavor from deterioration caused by
harmful UV rays.
INTEGRATED CONTROLS
Controls are located on the top of the door — so they’re
easy to set when needed, and hidden from view when the
door is closed.
PLATINUM STAR® LIMITED WARRANTY
Our exclusive limited warranty that includes a 3-year coverage
on parts and one year on labor without charge
VERSATILE INSTALLATION OPTIONS
Models are available in either right or left swing — making
placement easier.
REFRIGERATOR ALARM SYSTEM
Notifies you if there’s been a power failure, if a door stays
open longer than five minutes and if the interior temperature
of the wine cooler exceeds 10 degrees from set-point for more
than 60 minutes.
1
.
WINE COOLER 45 BOTTLES
With 5 Luxury-Glide® Shelves and a wine
display rack at the bottom, you have ample
storage for up to 45 bottles of wine.
LUXURY-GLIDE® SHELVES
With a ball bearing system, shelves are so
smooth they extend effortlessly.
PERFECT SET®
TEMPERATURE CONTROL
Keep your wine perfectly chilled with a
temperature setting between 40 and 65 °F.
LUXURY-DESIGN® LIGHTING
Blue LED display is as beautiful as it is
functional, keeping your wine clearly visible.
In display mode, the lights can stay on to
display your wine collection.
A.D.A. COMPLIANT
When properly installed, this model is A.D.A.-qualified based
on the United States Access Board’s A.D.A./A.B.A. Accessibility
Guidelines and the Department of Justice’s 2010 A.D.A.
Standards for Accessible Design.
Available in:
Stainless
(S)
1
Eligibility based on product registration with Electrolux North America within 60 days of purchase.
Products must have been purchased on or after July 1, 2013. Coverage includes material parts
for 3 years and labor for 1 year.
ELECTROLUXAPPLIANCES.COM
UNDER-COUNTER WINE COOLERS
EI24WC10QS (RIGHT DOOR SWING)
EI24WL10QS (LEFT DOOR SWING)
24" UNDER-COUNTER WINE COOLERS
Maximum Storage
Installation Type
FEATURES
IQ-Touch™ Electronic Controls
Fully Integrated Control Panel
Blue LED Display
®
Luxury-Glide
Lower Level Display Rack
Silver Metallic Trim on Racks
Luxury-Design
Exhibit Lighting
Perfect Set
Electronic Control Lock
Display Temp Mode (°C or °F)
Door Ajar Acoustic Alarm
High-Temperature Acoustic Alarm
Power Failure Acoustic Alarm
Power-On/Off Control
Vacation Mode
Sabbath Mode (Star-K
Frost-Free Performance
Dynamic Condenser
3/4-Extension Shelves
®
LED Lighting
®
Controls
®
Certified)
ADDITIONAL FEATURES
UV-Filtered, Tinted Glass Window
™
Luxury-Close
Adjustable Leveling Legs
A.D.A. Compliant*
Door
SPECIFICATIONS
Color –
Stainless Steel
Temperature Range
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
* When properly installed, this model is A.D.A.-qualified based on the United States Access
Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A.
Standards for Accessible Design.
‡
For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
‡
45 Bottles
Built-In / Freestanding
Yes
Yes
Yes
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
4
Yes
S
40°F – 65°F
Right Bottom Rear
115V / 60 Hz
0.15
15A
125 Lbs.
PRODUCT DIMENSIONS
Height
Width
Depth (Including Handle)
(with Door 90° Open)
33-3/4"
23-7/8"
26"
46-13/32"
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EI24WC10Q 11/14 © 2014 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
UNDER-COUNTER WINE COOLERS
EI24WC10QS (RIGHT DOOR SWING)
EI24WL10QS (LEFT DOOR SWING)
Under-Counter Wine Cooler Specifications
•
Product Weight – 115 Lbs.
•
Voltage Rating – 115V / 60Hz / 15 Amps
•
Connected Load (kW Rating) @ 115 Volts = 0.15 kW
(For use on adequately wired 115V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @ 115V = 1.5A
•
Electrical cable supplied.
•
Always consult local and national electric codes.
•
Unit is designed for either freestanding or built-in, under-counter installation
with right or left door swing.
•
Built-in, under-counter installation does not require additional airspace
for top, sides or rear of unit.
•
Proper built-in, under-counter installation requires that both electrical
outlet and plug be completely recessed to ensure unit will fit flush against
rear wall.
•
To allow for ease of installation and removal, it is recommended that cabinet
rough opening dimensions be increased by at least 1/4" over product’s
dimensions.
•
For proper ventilation, unit can NOT be installed behind closed doors; front grille
MUST remain unobstructed.
•
Must be positioned on flat, level surface, capable of supporting entire weight
when fully loaded.
•
Leveling legs supplied to adjust height and level unit.
•
Do not position unit near any heat source to ensure optimum performance.
•
Unit requires zero clearance when installing flush with cabinet or wall.
•
When installing against cabinet or wall that extends beyond front edge of
unit, 2-1/2" minimum handle clearance required to allow for 90° door swing,
providing sliding shelves with necessary clearance.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EI24WC10Q 11/14 © 2014 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.

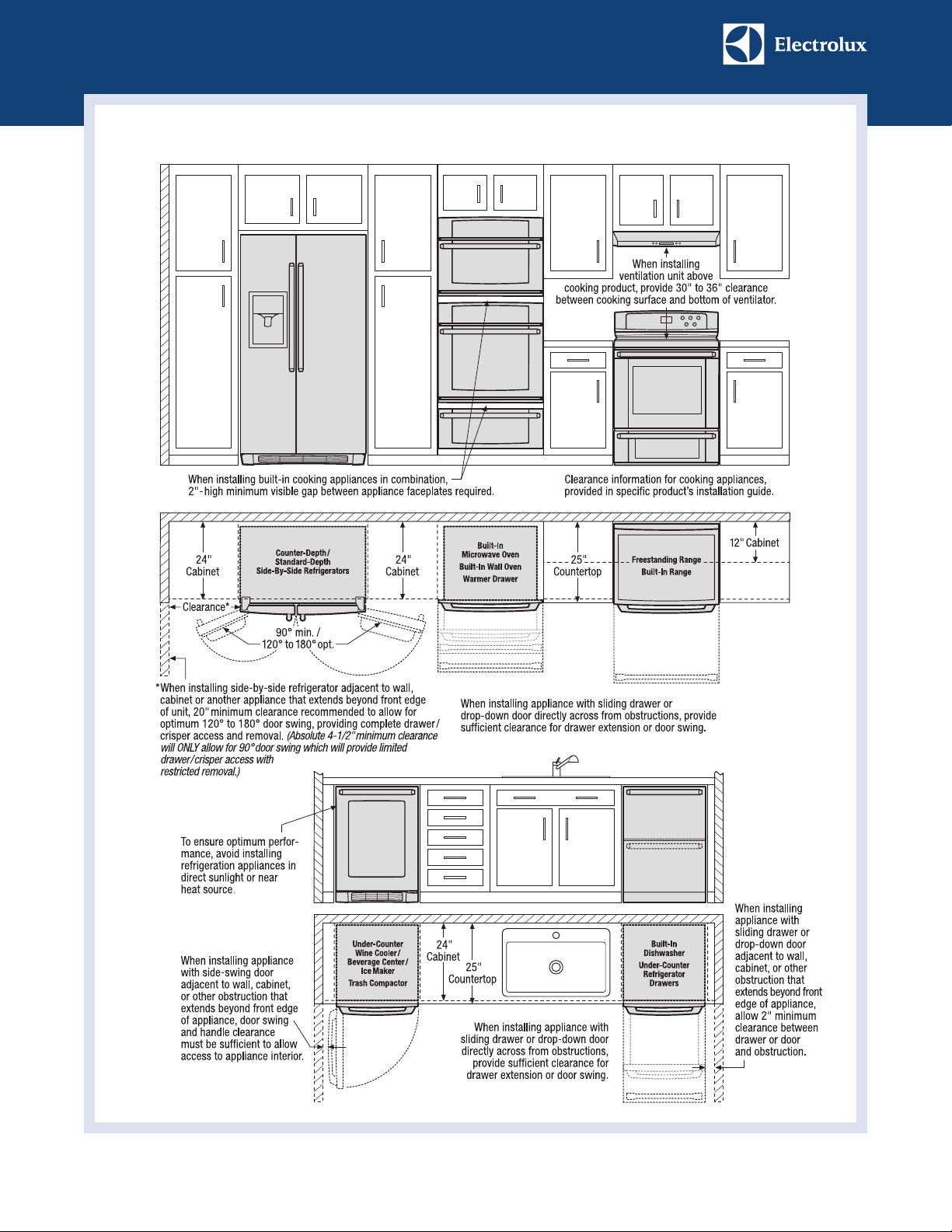

General Installation Guidelines
For Installation with Side-by-Side Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
INSTGDLNS_SSR EL 02/12 © 2012 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
Top
Front
Front
Top
General Installation Guidelines
For Installation with French Door Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
INSTGDLNS_FDR EL 02/12 © 2012 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
Front
Front
Top
Top
General Installation Guidelines
For Installation with All Refrigerator or All Freezer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
INSTGDLNS_ARAF EL 02/12 © 2012 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
Front
Front
Top
Top
