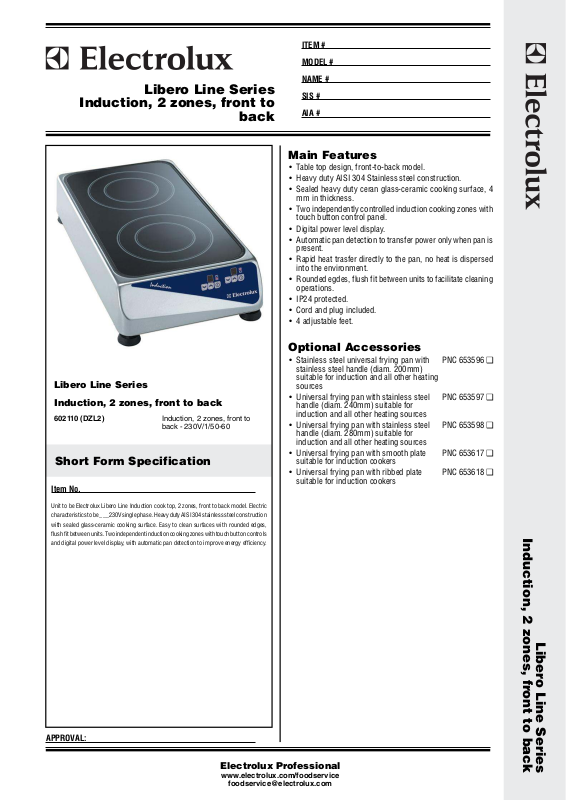

Electrolux DZL2 User Manual
Libero Line Series
Induction, 2 zones, front to
ITEM #
MODEL #
NAME #
SIS #
back
AIA #
Main Features
•Table top design, front-to-back model.
•Heavy duty AISI 304 Stainless steel construction.
•Sealed heavy duty ceran glass-ceramic cooking surface, 4
mm in thickness.
•Two independently controlled induction cooking zones with
touch button control panel.
•Digital power level display.
•Automatic pan detection to transfer power only when pan is
present.
•Rapid heat trasfer directly to the pan, no heat is dispersed
into the environment.
•Rounded egdes, flush fit between units to facilitate cleaning
operations.
•IP24 protected.
•Cord and plug included.
•4 adjustable feet.
Libero Line Series
Induction, 2 zones, front to back
602110 (DZL2)Induction, 2 zones, front to
back - 230V/1/50-60
Short Form Specification
Item No.
Unit to be Electrolux Libero Line Induction cook top, 2 zones, front to back model. Electric
characteristics to be ___230V single phase. Heavy duty AISI 304 stainless steel construction
with sealed glass-ceramic cooking surface. Easy to clean surfaces with rounded edges,
flush fit between units. Two independent induction cooking zones with touch button controls
and digital power level display, with automatic pan detection to improve energy efficiency .
Optional Accessories
•Stainless steel universal frying pan with
stainless steel handle (diam. 200mm)
suitable for induction and all other heating
sources
•Universal frying pan with stainless steel
handle (diam. 240mm) suitable for
induction and all other heating sources
•Universal frying pan with stainless steel
handle (diam. 280mm) suitable for
induction and all other heating sources
•Universal frying pan with smooth plate
suitable for induction cookers
•Universal frying pan with ribbed plate
suitable for induction cookers
PNC 653596 ❑
PNC 653597 ❑
PNC 653598 ❑
PNC 653617 ❑
PNC 653618 ❑
Induction, 2 zones, front to back
APPROVAL:
Libero Line Series
Electrolux Professional
www.electrolux.com/foodservice
foodservice@electrolux.com
Libero Line Series
Induction, 2 zones, front to
back
Front
Electric
Supply voltage:
602110(DZ/L2CE)230 V/1N ph/50/60 Hz
Plug type:CE-SCHUKO
Minimum supply AMP:16
Key Information
Front Plates Power:1.8 - 0 kW (6136.2 - 0 Btu/hr)
Back Plates Power:1.8 - 0 kW (6136.2 - 0 Btu/hr)
Front Plates dimensions:Ø 180
Back Plates dimensions:Ø 180
External dimensions, Height130 mm
External dimensions, Width325 mm
External dimensions, Depth600 mm
External dimensions, Weight12 kg
Net weight:12 kg
Productivity in food type quantity per hour
Top
Omelettes:34
Poached eggs:40
Bacon slices:110
Fried eggs:80-90
Breakfast sausages*:80
Hash browns**:80
*Pre-cooked/Chilled
**80mm round x 10mm thick
The use of a teflon-coated induction pan is suggested, to facilitate
cleaning and for a higher product output. Clean surface with a mild
detergent or a ceran cleaner.
EI=Electrical connection
V=Air vents
Side
Induction, 2 zones, front to back
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Libero Line Series
2009.10.24
