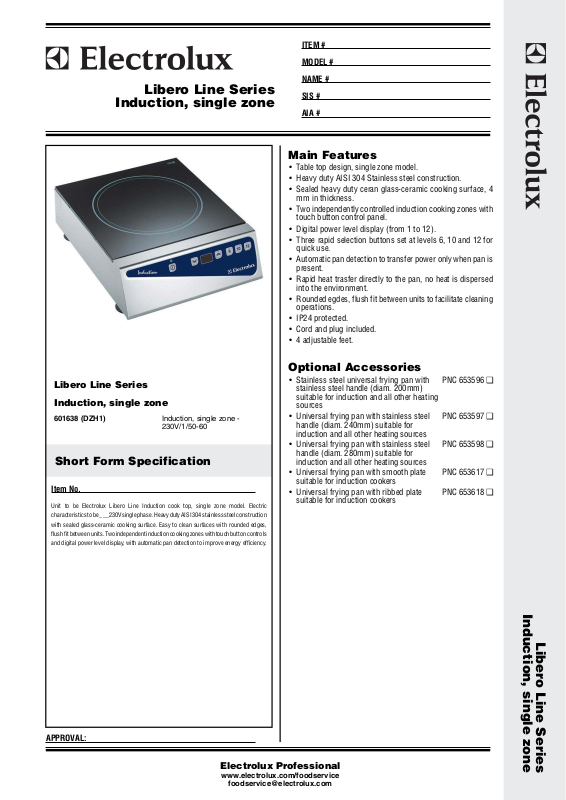

Electrolux DZH1 User Manual

ITEM #

MODEL #

NAME #

Libero Line Series

SIS #

Induction, single zone

AIA #

Main Features

•Table top design, single zone model.

•Heavy duty AISI 304 Stainless steel construction.

•Sealed heavy duty ceran glass-ceramic cooking surface, 4

mm in thickness.

•Two independently controlled induction cooking zones with

touch button control panel.

•Digital power level display (from 1 to 12).

•Three rapid selection buttons set at levels 6, 10 and 12 for

quick use.

•Automatic pan detection to transfer power only when pan is

present.

•Rapid heat trasfer directly to the pan, no heat is dispersed

into the environment.

•Rounded egdes, flush fit between units to facilitate cleaning

operations.

•IP24 protected.

•Cord and plug included.

•4 adjustable feet.

Libero Line Series
Induction, single zone

601638 (DZH1)Induction, single zone -

230V/1/50-60

Short Form Specification

Item No.

Unit to be Electrolux Libero Line Induction cook top, single zone model. Electric
characteristics to be ___230V single phase. Heavy duty AISI 304 stainless steel construction
with sealed glass-ceramic cooking surface. Easy to clean surfaces with rounded edges,
flush fit between units. Two independent induction cooking zones with touch button controls
and digital power level display, with automatic pan detection to improve energy efficiency.

Optional Accessories

•Stainless steel universal frying pan with

stainless steel handle (diam. 200mm)
suitable for induction and all other heating
sources

•Universal frying pan with stainless steel

handle (diam. 240mm) suitable for
induction and all other heating sources

•Universal frying pan with stainless steel

handle (diam. 280mm) suitable for
induction and all other heating sources

•Universal frying pan with smooth plate

suitable for induction cookers

•Universal frying pan with ribbed plate

suitable for induction cookers

PNC 653596 ❑

PNC 653597 ❑

PNC 653598 ❑

PNC 653617 ❑
PNC 653618 ❑

Induction, single zone

Libero Line Series

APPROVAL:

Electrolux Professional

www.electrolux.com/foodservice

[e-mail]

Libero Line Series

Induction, single zone

Front

Electric

Supply voltage:

601638(DZ/H1CE)230 V/1N ph/50/60 Hz
Plug type:CE-SCHUKO
Minimum supply AMP:13

Key Information

Back Plates Power:3 - 0 kW (10227 - 0 Btu/hr)
Back Plates dimensions:Ø 270

Top

External dimensions, Height130 mm
External dimensions, Width325 mm
External dimensions, Depth400 mm
External dimensions, Weight10 kg
Net weight:10 kg

Productivity in food type quantity per hour
Omelettes:24
Poached eggs:28
Bacon slices:78
Fried eggs:50-60
Breakfast sausages*:56
Hash browns**:56

*Pre-cooked/Chilled
**80mm round x 10mm thick

The use of a teflon-coated induction pan is suggested, to facilitate
cleaning and for a higher product output. Clean surface with a mild
detergent or a ceran cleaner.

EI=Electrical connection

V=Air vents

Side

Libero Line Series

Induction, single zone

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2012.02.22
