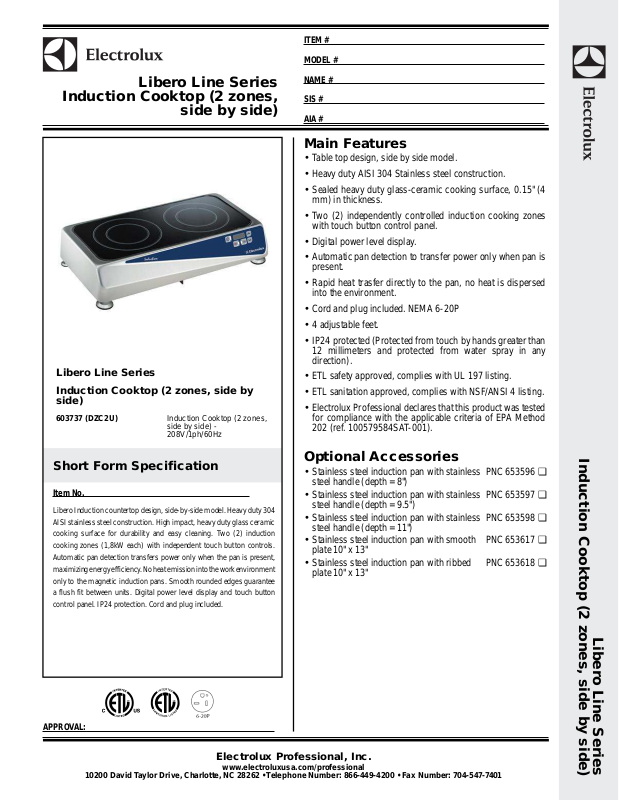

Electrolux DZC2U User Manual
ITEM #
MODEL #
Libero Line Series
Induction Cooktop (2 zones,
side by side)
Libero Line Series
Induction Cooktop (2 zones, side by
side)
603737 (DZC2U)Induction Cooktop (2 zones,
side by side) 208V/1ph/60Hz
NAME #
SIS #
AIA #
Main Features
•Table top design, side by side model.
•Heavy duty AISI 304 Stainless steel construction.
•Sealed heavy duty glass-ceramic cooking surface, 0.15" (4
mm) in thickness.
•Two (2) independently controlled induction cooking zones
with touch button control panel.
•Digital power level display.
•Automatic pan detection to transfer power only when pan is
present.
•Rapid heat trasfer directly to the pan, no heat is dispersed
into the environment.
•Cord and plug included. NEMA 6-20P
•4 adjustable feet.
•IP24 protected (Protected from touch by hands greater than
12 millimeters and protected from water spray in any
direction).
•ETL safety approved, complies with UL 197 listing.
•ETL sanitation approved, complies with NSF/ANSI 4 listing.
•Electrolux Professional declares that this product was tested
for compliance with the applicable criteria of EPA Method
202 (ref. 100579584SAT-001).
Short Form Specification
Item No.
Libero Induction countertop design, side-by-side model. Heavy duty 304
AISI stainless steel construction. High impact, heavy duty glass ceramic
cooking surface for durability and easy cleaning. Two (2) induction
cooking zones (1,8kW each) with independent touch button controls.
Automatic pan detection transfers power only when the pan is present,
maximizing energy efficiency. No heat emission into the work environment
only to the magnetic induction pans. Smooth rounded edges guarantee
a flush fit between units. Digital power level display and touch button
control panel. IP24 protection. Cord and plug included.
APPROVAL:
Optional Accessories
•Stainless steel induction pan with stainless
PNC 653596 ❑
Induction Cooktop (2 zones, side by side)
steel handle (depth = 8")
•Stainless steel induction pan with stainless
PNC 653597 ❑
steel handle (depth = 9.5")
•Stainless steel induction pan with stainless
PNC 653598 ❑
steel handle (depth = 11")
•Stainless steel induction pan with smooth
PNC 653617 ❑
plate 10" x 13"
•Stainless steel induction pan with ribbed
PNC 653618 ❑
plate 10" x 13"
Libero Line Series
Electrolux Professional, Inc.
10200 David Taylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401
www.electroluxusa.com/professional
Libero Line Series
Induction Cooktop (2 zones,
side by side)
Front
Top
EI=Electrical connection
V=Air vents
Electric
Supply voltage:
603737(DZC2U)208V/1ph/60Hz
Amps:14.1
Total Watts:3.6 kW
Plug Type:NEMA 6-20P
Motor electrical power:
Key Information:
Front Plates Power:
Back Plates Power:0 - 0 kW (0 - 0 Btu/hr)
External dimensions, Width:23 5/8" (600 mm)
External dimensions, Depth:12 13/16" (325 mm)
External dimensions, Height:5 5/16" (135 mm)
Net weight:26 lbs (12 kg)
Shipping width:16 9/16" (420 mm)
Shipping depth:25 9/16" (650 mm)
Shipping height:9 13/16" (250 mm)
Shipping weight:29 lbs (13 kg)
Shipping volume:2.41 ft³ (0.07 m³)
1.8 - 1.8 kW (6136.2 - 6136.2
Btu/hr)
Side
Induction Cooktop (2 zones, side by side)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Libero Line Series
2013.08.05
