Electrolux DVK006 User Manual

DryerDryer

Venting KitVenting Kit

OO Externally vent your Clothes Dryer for

maximum effi ciency & comfort

OO This complete D.I.Y. system fi ts the latest

Electrolux rear exhaust Dryers

OO Eliminates Hot, Moist, Lint laden air from

your laundry

Eliminates
re-entry of cold
air, moisture
and pests

Silent louvred
action allows
maximum
exhaust fl ow

Model No. DVK006

Kit Components

1. Rear Vent Diverter

Mounts over clothes dryer rear air outlet

to divert the air to the side, top or bottom
of the dryer, into a 100mm diameter
exhaust duct.

2. Self Adhesive Foam Seal

Seals between dryer outlet and rear vent

diverter. Adhesive holds diverter in place.

3. Saddle Clamp

Can also be used to secure diverter to

back of many popular brand dryers.

4. Aluminium Duct

2 metre long, 100mm diam. fl exible

aluminium duct. Should be cut to length to
stretch between diverter and outlet pipe.

5. Hose Clamps

Two self locking plastic hose clamps.

6. Internal Wall Collar

The external vent requires a 100 -110mm

diam. hole through the wall. This collar
gives a neat professional appearance on
the inside.

7. Through The Wall Pipe

Supplied as a fl at sheet so it is easy to

cut to the required length. Clips together
to form a 100mm diam. pipe.

8. External Louvre Vent

Hinged Louvres lift to allow air to fl ow out.

Louvres then drop down to prevent cold
air etc. going back into the dryer.

Assembled in Australia using
local and imported components

Distributed by:

To order call
Spare Parts on 13 13 50

24 Month Warranty

Any defective component will

be replaced free of charge within

24 months of original purchase.

Contact Electrolux Pty Ltd

with proof of purchase.

Dryer

Venting Kit

Dryer

Model No. DVK006

Other options available for effi cient
clothes dryer venting

LTKA A water-bath clothes dryer
Lint Trap Kit for the removal
of dust & fl uff where external
venting is impractical.

DVK005 Universal Vent Kit for
clothes dryers positioned directly
against an outside wall.

DVS – Dryer Venting System

Low Profi le Rectangular Ducting Components

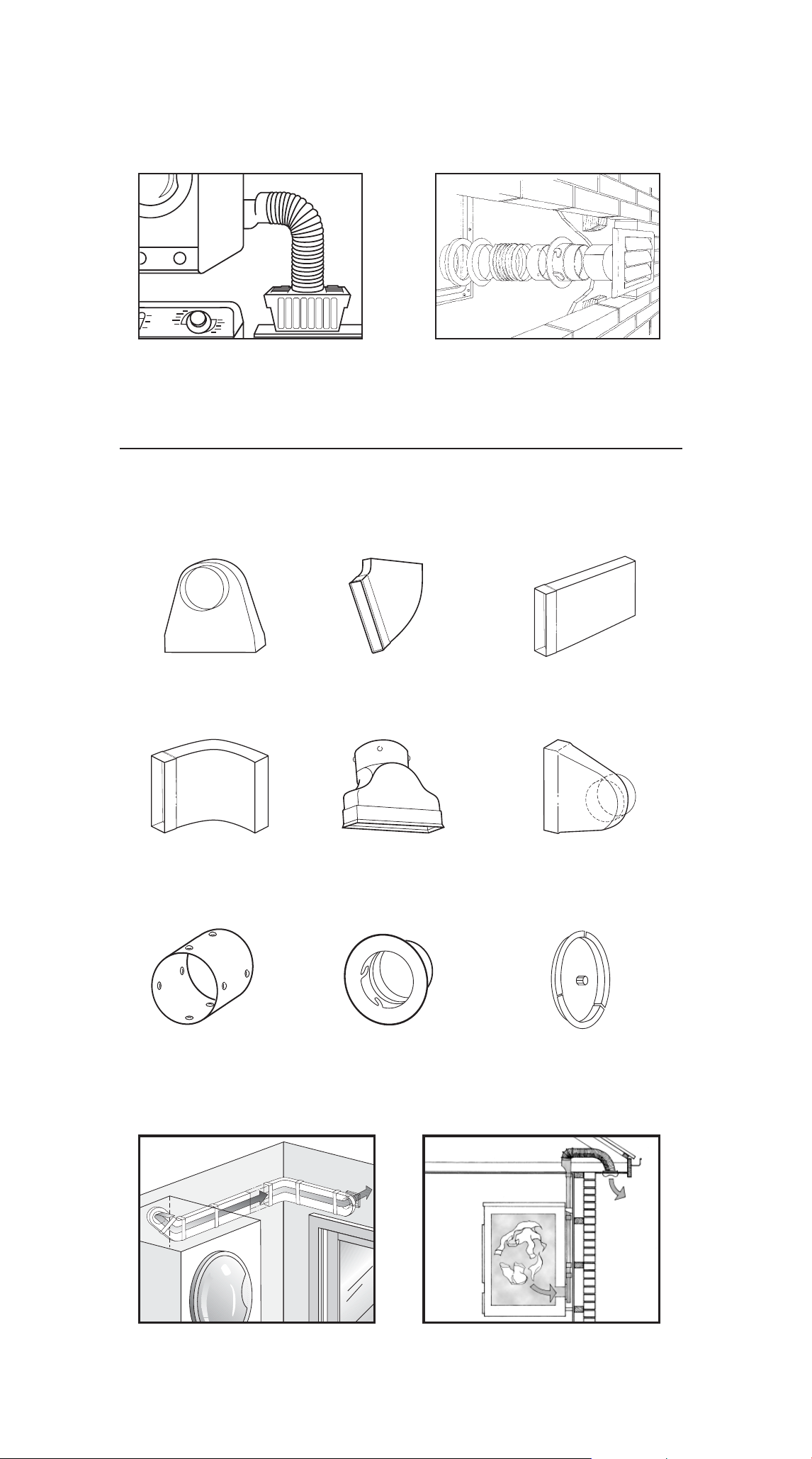

DVSWI Connects to the
dryers rear outlet to begin
the retangular ducting
system.

DVSE 45° elbow. Can
be fi tted in a Left or Right
connection.

DVSD 300mm long
extension. Can be fi tted in
a Left or Right connection.

DVSC 90° internal corner
low profi le duct extension.

DVSO Converts low
profi le duct to a 100mm
round outlet for connec­tion to fl exible ducting.

DVSWO Plugs into DVSWP
wall plate when a fully low
profi le venting system is
required.

DVSA Adaptor connects
100mm fl exible duct to
DVSWP wall plate. Turns
and locks into position.

DVSWP 100mm fl ush
fi tting wall plate. Accepts
both DVSA adaptor or
DVSWO low profi le outlet.

DVSP Internal blank off
plug when through the
wall system is not in use.

DVS components may be painted to blend
with your laundry’s decor.

DVS components can be vented through
the roof & out through the eaves.
