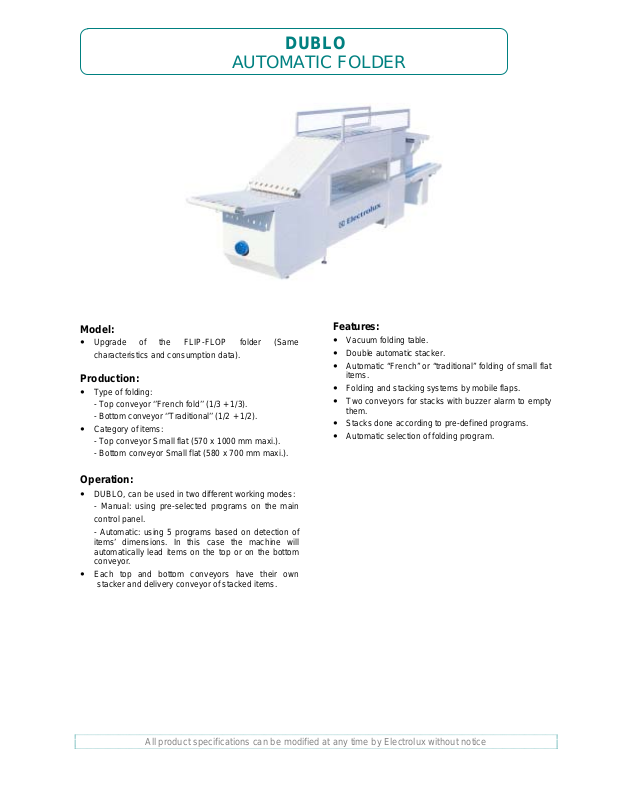

Electrolux DUBLO DATASHEET
DUBLO
AUTOMATIC FOLDER
Model:
! Upgrade of the FLIP-FLOP folder (Same
characteristics and consumption data).
Production:
Type of folding:
!
- Top conveyor ‘’French fold’’ (1/3 + 1/3).
- Bottom conveyor ‘’Traditional’’ (1/2 + 1/2).
Category of items:
!
- Top conveyor Small flat (570 x 1000 mm maxi.).
- Bottom conveyor Small flat (580 x 700 mm maxi.).
Operation:
DUBLO, can be used in two different working modes:
!
- Manual: using pre-selected programs on the main
control panel.
- Automatic: using 5 programs based on det ection of
items’ dimensions. In this case the machine will
automatically lead items on the top or on the bottom
conveyor.
Each top and bottom conveyors have their own
!
stacker and delivery conveyor of stacked items.
Features:
! Vacuum folding table.
! Double automatic stacker.
Automatic “French” or “traditional” folding of small flat
!
items.
Folding and stacking systems by mobile flaps.
!
! Two conveyors for stack s with buzzer alarm to empt y
them.
! Stacks done according to pre-defined program s.
Automatic selection of folding program.
!
All product specifications can be modified at any time by Electrolux without notice
DUBLO
Electrical connection DUBLO
Voltage:
400V 3N AC 50Hz kW (A) 2.28 (10)
230V 3N AC 50Hz kW (A) 2.28 (10)
Compressed air connection
Air mm 12
Air pressure kPa 800
Air consumption NL/min 90
Sound level
Airborne sound level dB(A) < 70
Shipping data
Weight kg 530
Static load Kg/cm² 1.5
Dimensions in mm
Overall width mm 670
Overall depth mm 5350
Overall height mm 1360
AUTOMATIC FOLDER
French fold: 1/3 + 1/3
Mixed :
French fold 1/3 +
Traditional 1/2
Traditional : 1/2 + 1/2
All product specifications can be modified at any time by Electrolux without notice
