Electrolux D2160 User Manual

COMPETENCE D2160

Build-in Electric Fanned
Double Oven

Operating And Installation
Instructions

IMPORTANT SAFETY INFORMATION

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing
or using the cooker. Your safety is of paramount importance. If you are unsure about any of the information in
this book contact the Customer Care Department. Telephone [phone]

INSTALLATION

The cooker must be installed according to the
instructions supplied.
The cooker must be installed in an adequately

ventilated room.
NOTE: It is imperative that the appliance is left
in the base to protect both the appliance and
the floor.
This cooker is heavy and care must be taken
when moving it. Do not try to move the cooker
by pulling the door handles.
Warning: Do Not attempt to lift this appliance
by the handles.
All packaging, both inside and outside the
cooker must be removed before the cooker is
used.
It is dangerous to alter the specifications or
modify the cooker in any way.

After installation please dispose of the
packaging with due regard for safety and the
environment. Your local authority can arrange
this.

CHILD SAFETY

Do not allow young children to play with any
part of the packaging.
This cooker is designed to be operated by
adults. Young children must not be allowed to
tamper with the controls or play near or with
the cooker.
The cooker and accessible parts especially
around the grill area become hot when the
cooker is in use. Keep children away until it has
cooled.

DURING USE

This cooker has been designed for domestic
use to cook edible foodstuffs only, and must
not be used for any other purpose.
Take great care when heating fats and oils as
they will ignite if they become too hot.
Never place plastic or any other material which
may melt in or on the oven.
Do not stand too close to the oven or grill while
in use as warm air will exhaust from the grill
cavity and the vents on the front frame of the
cooker.
Always use oven gloves to remove and place
food in the oven.
Ensure that all vents are left unobstructed to
ensure ventilation of the oven cavity.
Never line any part of the cooker with
aluminium foil.

Stand clear when opening the drop down oven
doors. Support the doors using the handles
until fully open.

Never leave the cooker unattended when
the oven door is open.

Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated.
Ensure that all control knobs are in the OFF
position when not in use.
Do not stand on the cooker or on the open
oven doors.
Do not hang towels, dishcloths or clothes from
the cooker or its handles. They are a safety
hazard.

CLEANING AND MAINTENANCE

The cooker is heavy and care must be taken
when moving it.

For Hygiene and safety reasons this cooker
should be kept clean at all times. A
build-up of fats or other
foodstuffs could result in a fire especially
in the grill pan.

This cooker should be kept clean at all times. A
build-up of fats or other foodstuffs could result
in a fire, especially in the grill pan.
Do not leave cookware containing foodstuffs,
e.g. fat or oil in the cooker in case it is
inadvertently switched on.
Always allow the cooling fan to cool the cooker
down before switching off at the wall prior to
carrying out any cleaning / maintenance work.
Only clean this cooker in accordance with the
instructions given in this book.

SERVICE

Repairs should not be carried out by
inexperienced persons as this may cause injury
or serious malfunction. This cooker should be
serviced by an authorised Service Engineer
and only genuine approved spare parts should
be used. Details of servicing and repair
arrangements are supplied on page 35 of this
book.

AT THE END OF THE COOKERS LIFE

When the time comes to dispose of your
cooker please contact your local Council
Authority. They can arrange to dispose of the
cooker in a safe and controlled manner. The
number will be in the telephone book.

Please read this

instruction book carefully

before use and retain

for future reference.

1

CONTENTS

FOR THE USER

Important Safety Information ................ 1

Description Of The Oven .................... 3

Getting To Know Your Oven ................... 4

The Cooling Fan For The Controls ............. 4

Control Panel Indicator Neons ................. 4

Grill And Oven Furniture ....................... 5

Before Using For The First Time ............... 6

When First Switching On ...................... 6

Rating Plate ................................... 6

Condensation And Steam ..................... 6

Cookware .................................... 6

The Electronic Timer ......................... 7

The Dual Grill ............................... 11

Using The Grill ............................... 11

Things To Note .............................. 11

The Grill Pan And Handle ..................... 12

Hints And Tips ............................... 12

Grilling Chart ................................. 13

FOR THE INSTALLER

Technical Details ........................... 32

Warnings ..................................... 33

Choice Of Electrical Connection ............ 33

Things To Note .............................. 34

Preparing Cabinet For Fitting Oven ........... 34

Recommended Cabinet Dimensions .......... 35

How To Finish Unpacking .................... 36

Tools Required ............................... 36

Making The Electrical Connections ......... 36

Preparing Cable .............................. 36

To Remove Cover Of Mains Terminal ......... 37

Connecting To The Mains Terminal ........... 38

Connecting To A Hob Or Cooker Point ........ 38

Checking Electrical Connections .............. 38

Fitting Into The Cabinet ..................... 39

The Second Oven ........................... 14

Using The Second Oven ..................... 14

Things To Note .............................. 14

To Fit The Second Oven Shelf ................ 14

Hints And Tips ............................... 15

The Main Fan Oven ......................... 16

Using The Fan Oven ......................... 16

Things To Note .............................. 16

To Fit The Main Oven Shelves ................ 16

Hints And Tips ............................... 17

Oven Cooking Chart ........................ 18

Roasting Chart .............................. 19

Defrosting .................................. 20

Using Defrost Feature ........................ 20

Things To Note .............................. 20

Hints And Tips ............................... 20

Helpful Hints When Buying And Preparing

Food ..................................... 22

Care And Cleaning .......................... 23

Cleaning Materials ........................... 23

Cleaning The Outside Of The Oven ........... 23

Cleaning Inside The Ovens ................... 23

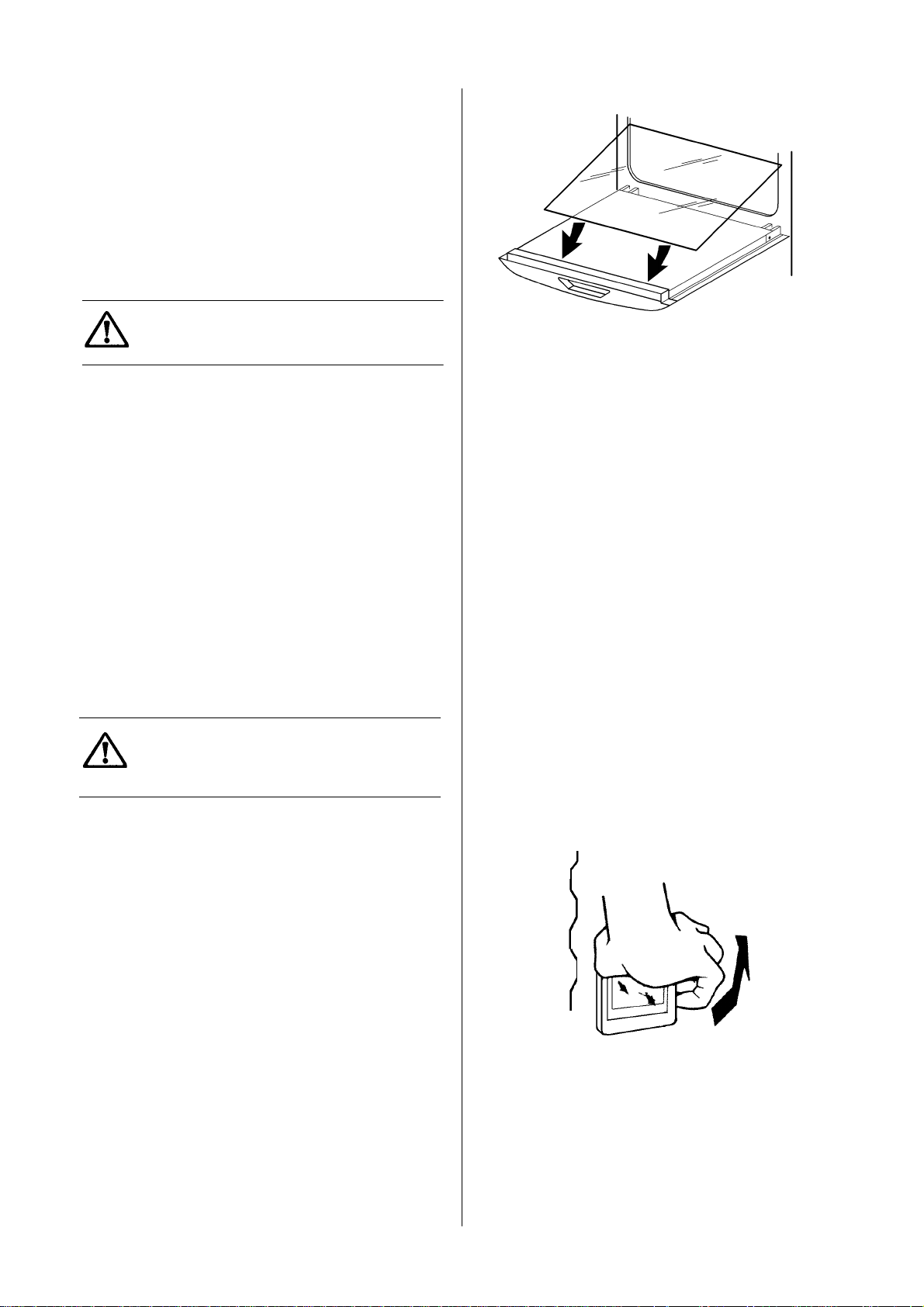

Cleaning The Door Glass ..................... 24

Cleaning The Grill And Oven Furniture ........ 25

Replacing An Oven Light Bulb ................ 25

If Something Doesn't Work ................. 26

Guarantee Conditions ...................... 28

Service and Spare Parts .................... 29

Service Force Centres ...................... 30

2

DESCRIPTION OF THE OVEN

Build-in electric fanned double oven.

Electronic Timer

Control Panel

Top Oven

Main Oven

Please note that the handle type on your product may differ in type and shape from that shown in the diagram.
Your build-in oven comprises of a conventional second oven and dual grill in the top compartment.

The main fanned oven is the larger of the two ovens. It can be automatically controlled by the electronic timer.

To help you the following symbols
will be found in the text.

Safety Instructions

1, 2, 3,

Step by Step Instructions

Hints and Tips

3

GETTING TO KNOW YOUR OVEN

The Control Panel

A - Main Oven Temperature Control
B - Main Oven Indicator Neon
C - Electronic Timer
D - Dual Grill Control
E - Grill Indicator Neon
F - Second Oven Indicator Neon
G - Second Oven Temperature Control

The Cooling Fan for the Controls

The cooling fan comes on immediately when the grill is switched on and after a short time when either of the
ovens are in use. It may run on after the controls are switched off until the appliance has cooled. During the
initial period the cooling fan may turn ON and OFF, this is quite normal.

Control Panel Indicator Neons

These lights indicate whether the grill or ovens are switched ON. In the case of the ovens, the neons also
indicate when the set temperature has been reached. The indicator neon will go out when the oven has
reached the set temperature. It will turn on and off during cooking to show that the oven temperature is being
maintained.

If the neons do not operate as the instructions indicate the controls have been incorrectly set. Return all
controls to zero and reset following the instructions for the required setting.

4

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have
been supplied with the cooker. If you require
replacements of any of the items listed below,
please contact your local Service Force Centre
quoting the relevant part number.

1 grill pan

2 straight shelves
(for main oven
cooking)

The grill deflector sits above the grill element and
prevents fat splashing onto the grill roof.

(311409401)

1 grill pan handle
(311468100)

Note

If you require an additional handle for your grill pan,
this can be ordered from your local AEG Service
Centre by quoting part number 311479800\6

1 grill pan grid
(311419801)

The deflector may be easily removed for cleaning.

1 grill deflector

1 meat tin
(311409401)

1 trivet
(311419701

1 cranked shelf
(for grilling and
second oven
cooking only)

5

BEFORE USING THE OVEN FOR THE FIRST TIME

When first switching on

When the cooker is first switched on at the wall the
timer will flash. Press buttons ( and ) together,
while holding them down press (+) button until the
correct time of day is reached.
To use the timer refer to instructions on page 7.

Rating plate

Record the model, product and serial numbers on
the inside back cover of this instruction book from
the rating plate. This is situated on the lower front
frame of the oven and can be seen upon opening
the main oven door.
The oven must be protected by a suitably rated
fuse or circuit breaker. The rating of the oven is
given on the rating plate.

The rating plate must not be removed from the
oven front frame as this may invalidate the
guarantee.

Preparing to use your oven

Clean the ovens with a soft cloth and hot soapy
water and wash the grill and oven furniture before
use.
The grill and ovens should be heated without food
to burn off any residue from the elements. To do
this, run the ovens at 220°C for 10 - 15 minutes.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for
ventilation.

Condensation and Steam

When food is heated it produces steam in the
same way as a boiling kettle does. The ovens are
vented to allow some of this steam to escape.
However, always stand back from the cooker when
opening the oven doors to allow any build up of
steam or heat to be released. If the steam comes
into contact with a cool surface on the outside of
the cooker, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is
not caused by a fault on the cooker.
To prevent discolouration occurring, regularly wipe
away condensation and any soilage from the
cooker surfaces.

Cookware

Baking trays, oven dishes etc., should not be
placed directly against the grid covering the fan at
the back of the oven.

Do not use baking trays larger than 30cm x 35cm
(12" x 14") as they will restrict the circulation of
heat and may affect performance.
Do not place bakeware directly on the second oven
base when the oven is on as damage to the oven
enamel and bakeware will occur.

6

ELECTRONIC TIMER

KEY
A AUTO DISPLAY

B COOKPOT SYMBOL
C BELL SYMBOL
D MINUTE MINDER BUTTON
E COOKING HOURS BUTTON
F STOP TIME BUTTON

A B C

G MANUAL SELECTOR BUTTON
H DECREASE CONTROL
I INCREASE CONTROL

NOTE:
The time of day must be set before the main

oven will operate manually.

1. SET THE TIME OF DAY

When the electricity supply is first switched ON, the
display will flash both 0.00 and AUTO as Fig. 1.

Press the two buttons marked ( ) and ( ) while
holding them down, press the increase control
button (+) and if necessary, the decrease control
button (-) until the correct time on the 24 hour clock
is reached, e.g. 10.00am as Fig. 2.
The AUTO symbol will go out.

Note: The increase and decrease control
buttons operate slowly at first, and then more
rapidly. They should be pressed separately.

2. THE MINUTE MINDER

D E F G H I

Fig. 1

Fig. 2

The minute minder gives an audible reminder at
the end of any period of cooking up to 23 hrs 59
mins. It is not part of the automatic control.

To set, press the minute minder button ( ) and
the display will read 0 . 00 as Fig.3.

While holding it down, depress the increase control
(+) until the display indicates the interval to be
timed, e.g. 1hr 45 mins as Fig. 4. If necessary
depress the decrease control (-) to achieve the
correct time interval.

NOTE: This must be completed within 5
seconds of first pressing the minute minder
button.

Release the minute minder button and the display
will return to the time of day after 5 seconds.

During the operation of the minute minder, the
remaining time period can be shown in the display

Fig. 3

Fig. 4

7

by pressing the minute minder button ( ) as Fig.

5.
The minute minder will sound intermittently for up
to 7 minutes at the end of the timed period. The
sound can be stopped by pressing the ( ) button.

TO CANCEL THE MINUTE MINDER

If you change your mind and want to cancel the
minute minder, press the minute minder button
( ) and then the decrease control ( - ) until 0 . 00
shows in the display and the alarm sounds.
To stop the sound, press ( ) button.
The time of day shows in the display after a few
seconds.

3. SETTING THE OVEN TIMER
CONTROL

The main oven only can be automatically timed.
When using the timer control for the very first time,

it is advisable to let it operate while you are at
home. The displays can be checked to show that it
is operating correctly and you will feel confident to
leave a meal to cook automatically in the future.

A) TO SET THE TIMER TO SWITCH ON

AND OFF AUTOMATICALLY

i) Ensure the electricity supply is switched ON

and that the correct time of day is displayed,
e.g. 9.a.m. as Fig. 6.

ii) Place food in oven.
iii) To set the length of cooking time, press the

cooking hours button ( ) while holding it
down, press the increase control ( + ) until
the required length of cooking time is
displayed, e.g. 2 hrs 15 mins as Fig. 7. If
necessary depress the decrease control ( - )
until the correct time interval is achieved.

iv) Release the buttons. The AUTO display will

glow.

Remember, this must be completed within 5
seconds of first pressing the cooking hours
button.

v) Set the STOP time. Press the stop time

button ( ), while holding it down, press the
increase control ( + ) until the required stop
time is displayed, e.g. 12.15p.m. as Fig. 8.
If necessary depress the decrease control
( - ) until the correct time interval is
achieved.

vi) Release the buttons. The time of day will

be displayed after 5 seconds.

vii) Set the main oven control to the required

temperature. The oven indicator neon
should be OFF and the AUTO display will
glow.

Note: When the automatic timed period starts,
the oven indicator neon will turn ON and OFF
during cooking. The cookpot symbol will show
in the display.

Fig. 5

Fig. 6

Fig. 7

Fig. 8

8

B) TO SET THE TIMER TO SWITCH OFF
ONLY

i) Ensure the electricity supply is switched ON

and that the correct time of day is displayed,

e.g. 10.00am as Fig. 9.
ii) Place food in oven.
iii) To set the length of cooking time, press the

cooking hours button ( ), while holding it

down, depress the increase control ( + )

until the required length of cooking time is

displayed, e.g. 2 hrs 15 mins as Fig. 10.

Depress the decrease control (-) if

necessary.
iv) Release the buttons. The AUTO display will

glow and the time of day will be displayed

after 5 seconds.

Fig. 9

v) Set the oven temperature. The oven

indicator neon should be ON.
vi) To check the stop time during the cooking

period, simply press the stop time button

( ) and the stop time will be displayed, as

Fig. 11.

4. TO CANCEL AN AUTOMATIC
PROGRAMME

i) To cancel an automatic programme, press

( ) button. The AUTO display will go out
and the cookpot symbol will light, as Fig.12.

ii) Turn off oven control.

5. TO RETURN THE COOKER TO
MANUAL

At the end of a timed cooking period, the AUTO
display will flash and an alarm will sound for up
to 7 minutes.
i) To stop the sound press any of the first

three buttons, as Fig. 13.

ii) Turn off oven control. AUTO display will

continue to flash.

iii) Press ( ) button. See Fig. 14.

The AUTO display goes out and the
cookpot symbol will show.

iv) Turn the oven control on to check the oven

operates normally. The oven indicator neon
will glow.

v) Turn off the oven control.

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

9

6. THINGS TO NOTE

l

A programme may be cancelled by returning
the cooking time to zero. Press the cooking
hours button ( ) while holding it down press
( - ) button until 0.00 is displayed as Fig. 15.

Release all buttons. The AUTO display will
flash. Reset the cooker to manual by pressing
the ( ) button.
In the event of an interruption of the electricity
supply, the timer will reset itself to zero, and all
programming will be cancelled.

7. AUTOMATIC COOKING

It is advisable to leave food in the oven for as
short a time as possible before automatic
cooking. Always ensure commercially prepared
food is well within its use by date and that
home prepared food is fresh and of good
quality.

When cooking is complete, do not leave food to
stand in the oven, but remove and cool it
quickly if the food is not to be consumed
immediately.

Fig.15

Always ensure food in the oven has been
covered before cooking if it is not possible to
remove food immediately after cooking.

10

THE DUAL GRILL

CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS
IN USE. CHILDREN SHOULD BE KEPT AWAY.

The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes,
the centre section only can be used when cooking smaller quantities of food.

USING THE GRILL

1. To operate the grill turn the grill control

clockwise for full grill or anticlockwise for centre
section only.

2. The highest number represents the hottest

setting and the lowest the coolest setting.

3. Ensure the second oven control is in the OFF

position '0'.

THE GRILL DOOR MUST BE LEFT
OPEN DURING GRILLING. IF
CLOSED THE ELEMENTS WILL
SWITCH OFF AND THE OVEN
LIGHT WILL TURN ON AND OFF
AS A WARNING

THINGS TO NOTE

l

The cooling fan for the controls will operate in

conjunction with the grill. For more information
on the operation of the cooling fan see page 4.

l

The grill indicator neon will glow until the

desired power level has been reached. It will
turn ON and OFF periodically during cooking
showing that the temperature is being
maintained.

l

The outer grill element may appear to glow

slightly brighter than the inner element. This is
quite normal.

l

The cranked shelf MUST only be used in the

grill compartment.

l

Some smoke from fat splashes may be evident

as the grill cleans itself.

11

THE GRILL PAN AND HANDLE

The grill pan is supplied with a removable handle.

1. To attach the handle, place the wirework under

the cut out in the pan so that the metal plate
hooks over the top of the grill pan.

2. Slide the handle to the left and over the central

bump on the grill pan.

Ensure the handle is correctly located.
The grill pan handle should be in place
when grilling.

Place the grill pan on the shelf so that the pan is
positioned centrally beneath the grill.

1.

2.

3. To remove the handle, slide the handle to the

right and lift the handle away from the cut out
on the grill pan.

HINTS AND TIPS

l

Most foods should be placed on the grid in the
grill pan to allow maximum circulation of air to
lift the food out of the fats and juices. Food
such as fish, liver and kidneys may be placed
directly on the trivet or grill pan base if
preferred.

l

Use the trivet to keep fat splashing to a
minimum when grilling meat items.

l

Adjust the grid and grill pan runner position to
allow for different thicknesses of food. Position
the food close to the element for faster cooking
and further away for more gentle cooking.

l

Food should be thoroughly dried before grilling
to minimise splashing. Brush lean meats and
fish lightly with a little oil or melted butter to
keep them moist during cooking.

3.

l

Accompaniments such as tomatoes and
mushrooms may be placed around the outer
edges or underneath the grid when grilling
meats.

l

When toasting bread, we suggest that the top
runner position is used with the grid in its 'high'
position.

12

l

Preheat the grill on full setting for a few minutes
to seal meat or for toasting. Adjust the heat
setting and the shelf as necessary during
cooking.

l

The food should be turned over during cooking
as required.

l

When using the centre section grill, ensure food
is placed centrally on the grilling grid directly
beneath the grill element.

Note

If you require an additional handle for your grill pan,
this can be ordered from your local AEG Service
Centre by quoting part number 311479800\6.

GRILLING CHART

FOOD SHELF GRILL TIME

(mins in total)
Toast 2crk. 4-6
Bacon Rashers

2crk.

10
Beefburgers
Chicken Joints
Chops - Lamb

Pork
Fish - Whole

Trout/Mackerel
Fillets - Plaice/Cod
Kebabs
Kidneys - Lamb/Pig
Sausages
Steaks - Rare

Medium
Well Done

Toasted Sandwiches

2crk.
2crk.
2crk.

2crk.
2crk.

2crk.
2crk.
2crk.
2crk.
2crk.
2crk.

2crk.
2crk.

2crk.

10-15
30-40
15-20

20-30

15-25

15

20-30

8-12

20-30

6-12
12-16
14-20

3-4

crk. = Cranked Shelf
Shelf positions are counted from the bottom

upwards.
The times quoted above are given as a guide and

should be adjusted to suit personal taste.
The cranked shelf should be used for grilling and

second oven cooking only.

13
