Electrolux CSM 559 User Manual

SLOT-IN

ELECTRIC COOKER

WITH GAS HOB

CSM 559

OPERATING AND INSTALLATION INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing
or using the appliance. Your safety is of paramount importance. If you are unsure about any of the information in
this book contact the Customer Care Department. Telephone [phone].

INSTALLATION

· The appliance must be installed according to the

instructions supplied. The installation work must
be undertaken by a competent person as stated
in the Gas Safety (Installation & Use)
Regulations current edition. For appliances
installed in the Republic of Ireland please refer
to NSAI - Domestic Gas installation IS813
Current Editions.

· This appliance should be serviced by an

authorised Service Engineer and only genuine
approved spare parts should be used.

· It is important that the appliance is suitable for

your gas supply. Your installer should check the
rating plate.

· The appliance must be installed in an

adequately ventilated room.

· This appliance is heavy and care must be taken

when moving it. Do not try to lift or move the
appliance by pulling the door handles.

· All packaging, both inside and outside the

appliance must be removed before the appliance
is used.

· Do not allow children to play with any part of the

packaging.

· If the appliance is to be placed on a base,

measures must be taken to prevent the
appliance from slipping.

· It is dangerous to alter the specifications or

modify the appliance in any way.

CHILD SAFETY

· This appliance is designed to be operated by

adults. Young children must not be allowed to
tamper with the controls or play near or with the
appliance.

· During use the appliance becomes Hot. Care

should be taken to avoid touching the heating
elements inside the appliance.

· CAUTION: Accessible parts may be hot

when the grill is in use. Young children
should be kept away.

· Always use oven gloves to remove and place

food in the oven.

· Ensure that the vents at the top of the oven are

not obstructed to ensure ventilation of the oven
cavity.

· Never line any part of the appliance with foil.

· Do not allow heatproof cooking material, e.g.

roasting bags to come into contact with oven
elements because they may catch fire.

· Always stand back from the appliance when

opening the oven door to allow any build up of
steam or heat to release.

· Never leave the appliance unattended when

the oven doors are open.

· Do not place sealed cans or aerosols inside the

oven. They may explode if they are heated.

· Ensure that all control knobs are in the OFF

position when not in use.

· For hygiene and safety reasons this

appliance should be kept clean at all times.
A build up of fats or other foodstuffs could
result in a fire, especially in the grill pan.

· Do not stand on the appliance or on the open

oven doors.

· Do not hang towels, dishcloths or clothes from

the appliance or its handles.

CLEANING AND MAINTENANCE

· Do not leave cookware containing foodstuffs,

e.g. fat or oil in the appliance in case it is
inadvertently switched on.

· Do not disconnect the appliance from the gas

supply if the supply pipe does not have a
bayonet connection as described in the
installation section. If this is the case contact the
person who installed the appliance.

· Only clean this appliance in accordance with the

instructions given in these books.

· Always switch off the electric supply before

cleaning the appliance.

AT THE END OF THE APPLIANCE'S LIFE

· When the time comes to dispose of your

DURING USE

· This appliance is not intended to be operated by

means of an external timer or separate remote
control system.

appliance please contact your local Council
Authority. They can arrange to dispose of the
appliance in a safe and controlled manner. The
number will be in the telephone book.

· Do not use this appliance if it is in contact with

water. Never operate it with wet hands.

· Take great care when heating fats and oils as

they will ignite if they become too hot.

Please read this

instruction book carefully

before use and retain for

future reference.

· When you are lighting any burner check that it is

lit before you leave the appliance. When turning
off a burner, do not leave the appliance until the
flame has gone out.

To help you the following symbol will be found in the
text.

2

Safety Instruction

CONTENTS

FOR THE USER

Important Safety Information 2

Preface 4

Introduction 5

Rating Plate 5
General Notes On Using Your Appliance 5
About Condensation and Steam 5
The Cooling Fan for the Controls 5
Control Panel Indicator Neons 5
Cookware 5
Grill and Oven Furniture 6

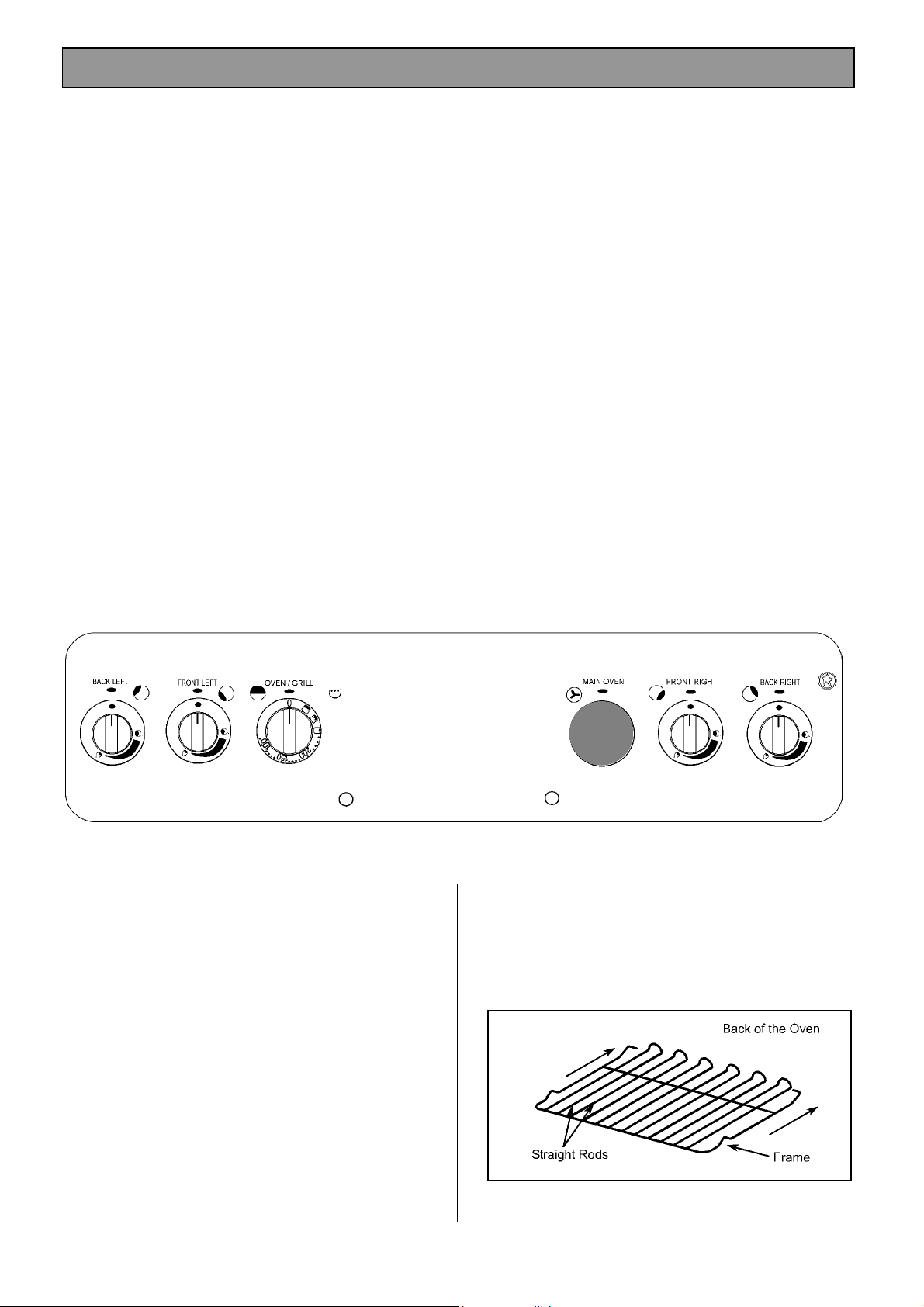

The Control Panel 7

The Gas Hob 8

Uses of the Hob 8
To Light the Hob Burners 8
To Turn Off Any Burner 8
Things to Note 8
Hints & Tips 9

The Dual Grill 10
Uses of the Dual Grill 10
Selecting the Dual Grill 10
Things to Note 10
The Grill Pan and Handle 10
Hints and Tips 11
Grilling Chart 11

Defrost Feature 18
Uses of Defrost Feature 18
Selecting Defrost 18
Things to Note 18
Hints and Tips 18

Care and Cleaning 19
Cleaning Materials 19
Cleaning the Hob 19

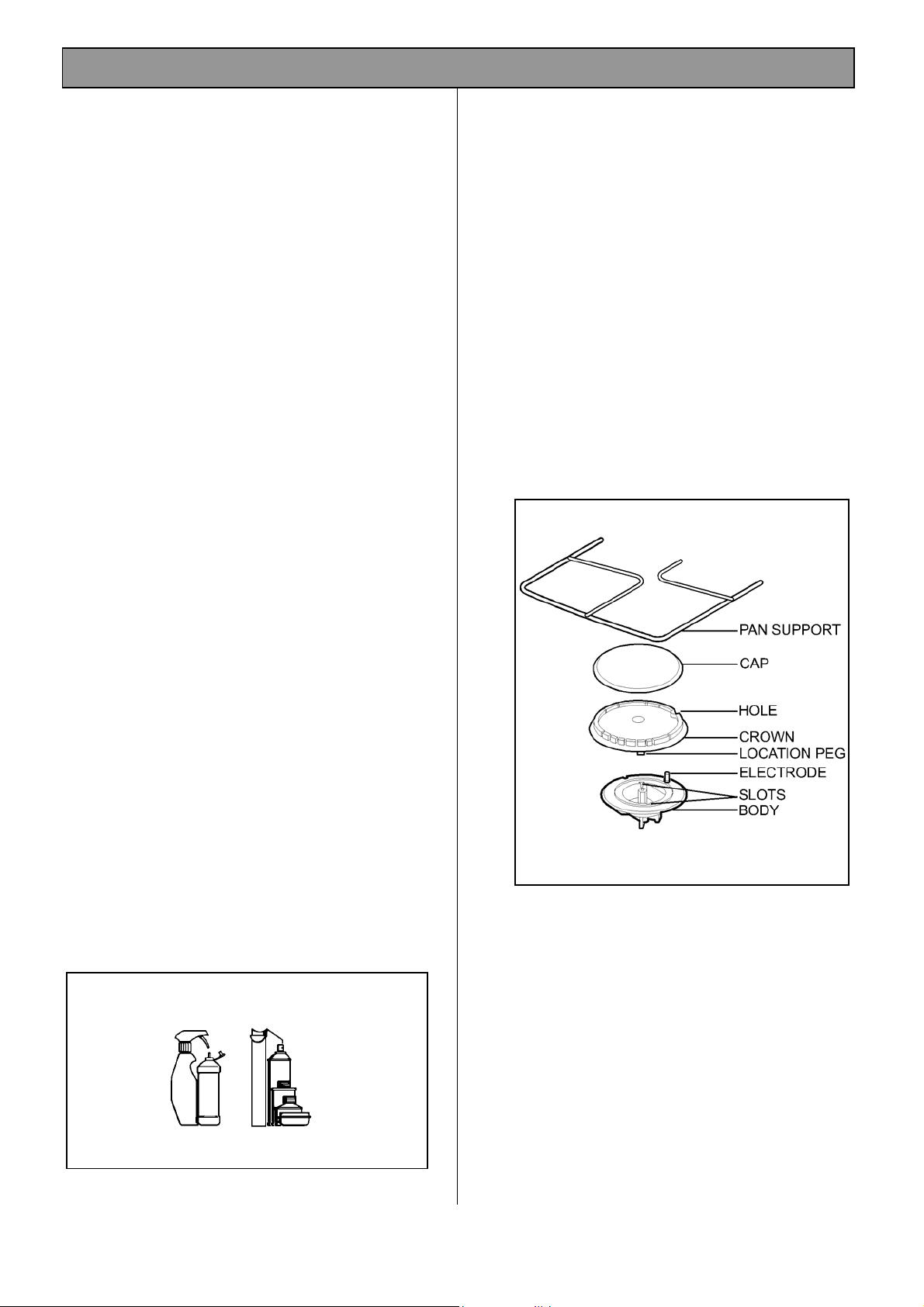

When Replacing Hotplate Burner Parts 19
Cleaning the Outside of the Appliance 20
Cleaning the Plated Handles 20
Cleaning the Grill and Oven Furniture 20
Cleaning Inside the Ovens / Grill Compartments 20
Care of Stayclean Surfaces 20
Hints and Tips 21
Cleaning the Door Glass 21
Cleaning Between the Outer and Inner Door
Glass 21
To Remove the Outer Glass 21
To Replace the Outer Glass 22
To Clean the Inner Glass Door Panels 22

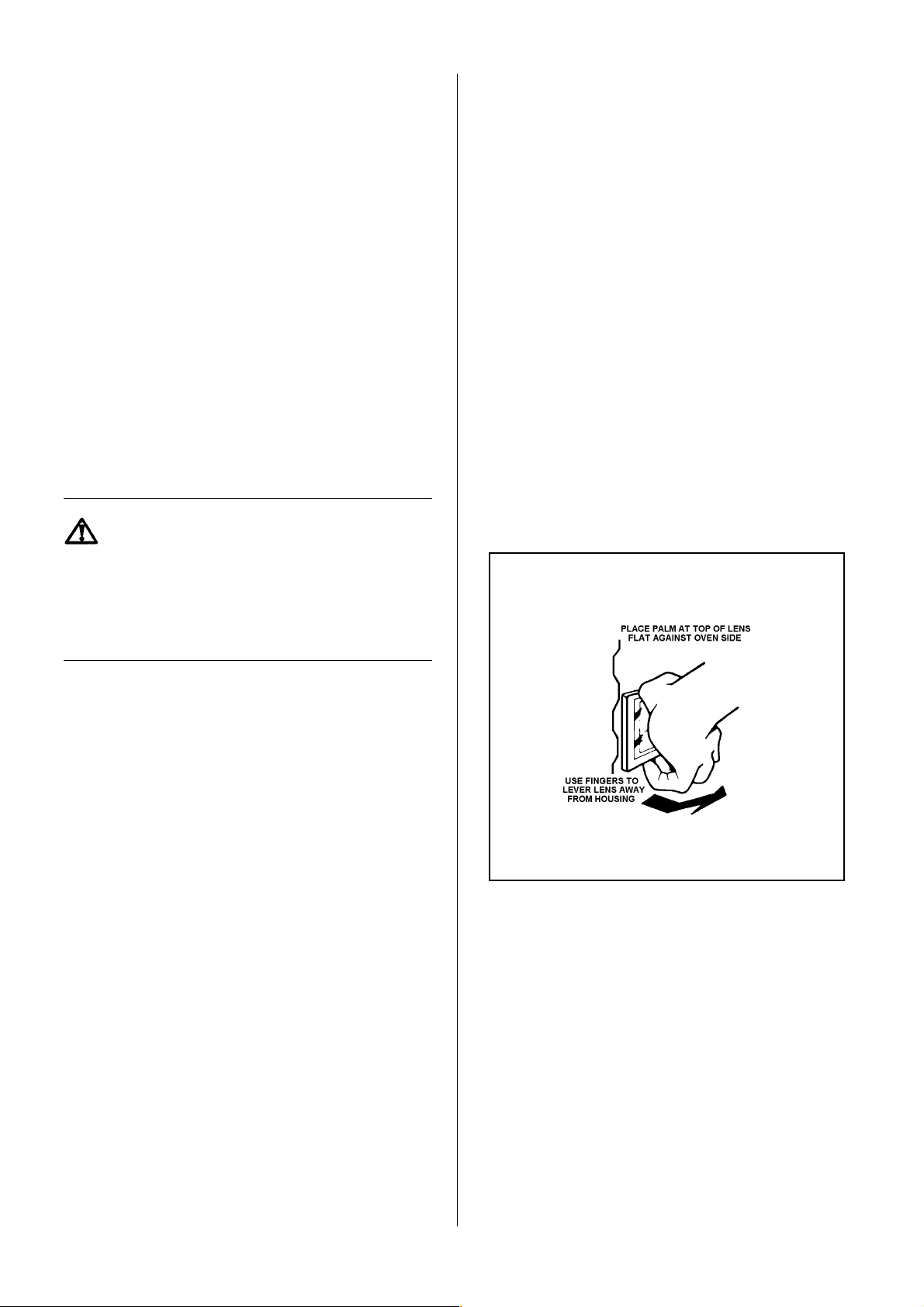

Replacing the Oven Light Bulb 22

Something Not Working? 23

Service and Spare Parts 24

Guarantee Conditions 25

The Top Oven 12

Uses of the Top Oven 12
Selecting the Top Oven 12
Things to Note 12
To Fit the Top Oven Shelf 12
Hints and Tips 13

The Main Fan Oven 14
Uses of the Main Fan Oven 14
Preheating 14
Cooking Temperatures 14
Batch Baking 14
Selecting the Main Fan Oven 14
Things to Note 14
To Fit the Main Fan Oven Shelves 14
Hints and Tips 15

Oven Cooking Chart 16

Roasting Chart 17

FOR THE INSTALLER

Technical Details 26
For Your Safety 27
Warnings 27
Choice of Electrical Connection 27
Things to Note 27
Important Safety Requirements 28
Provision For Ventilation 28
Moving Your Appliance 28
For Your Safety 28

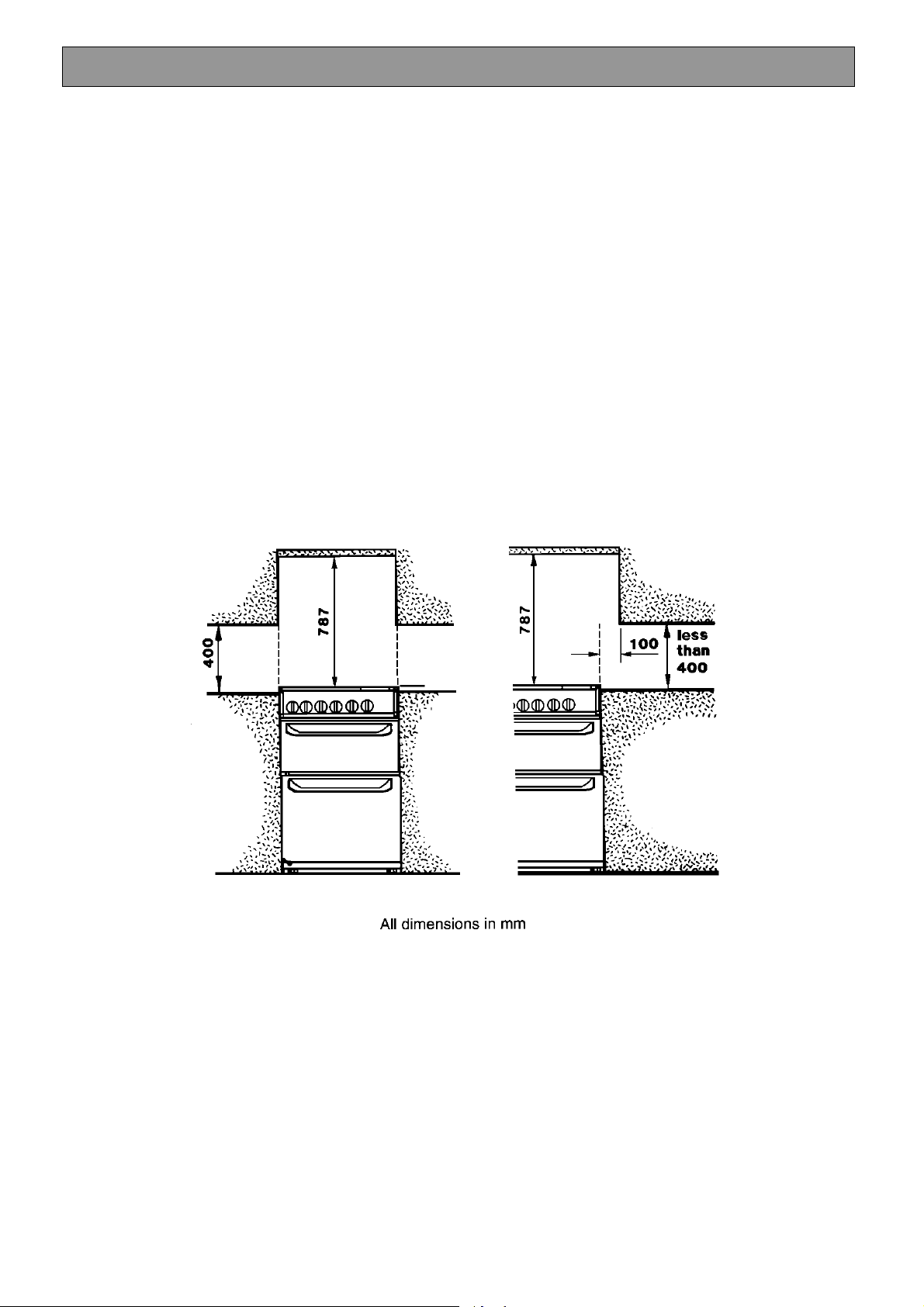

Location of Appliance 29

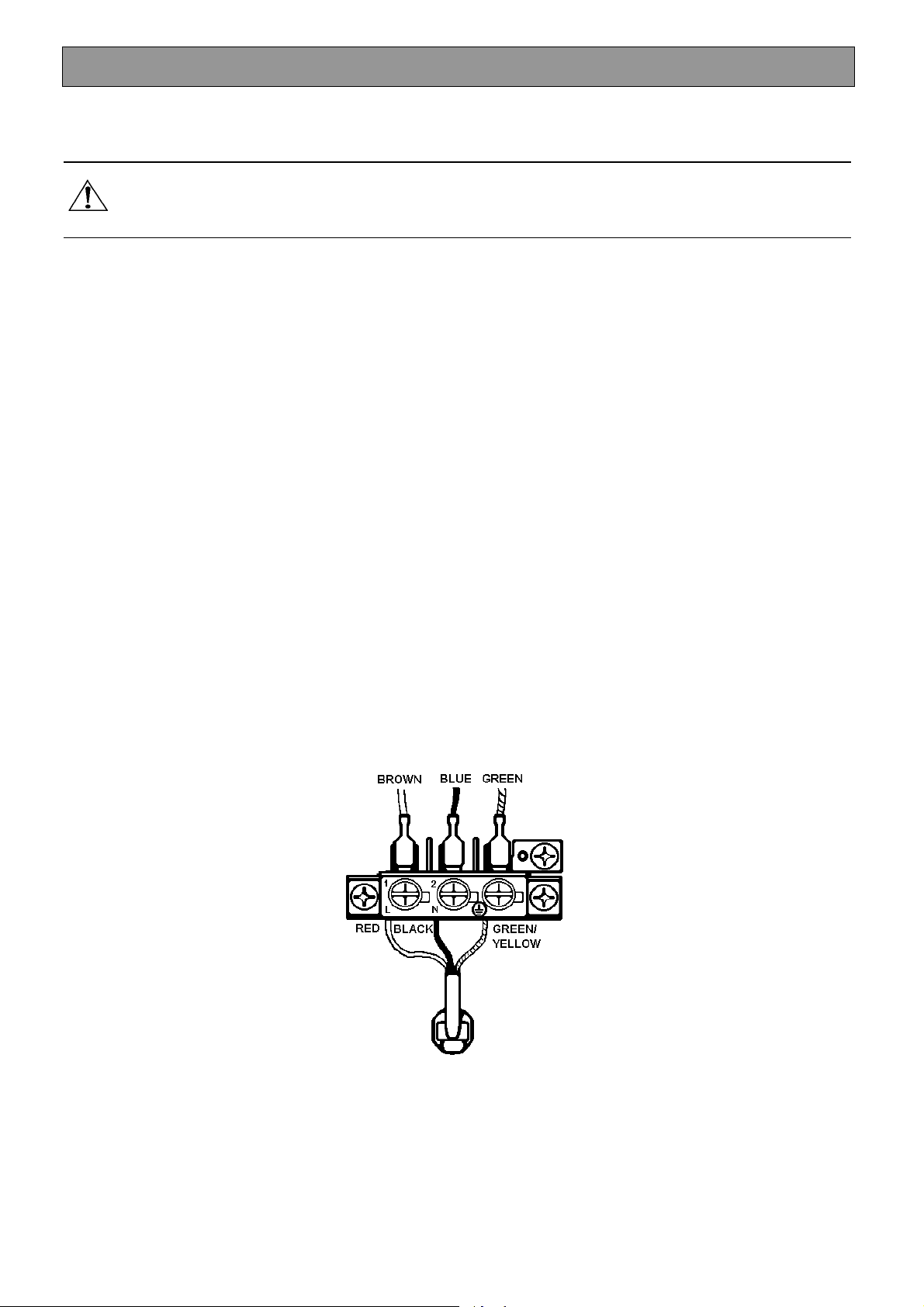

Connecting to the Electricity Supply 30
Connecting to Gas Supply 31

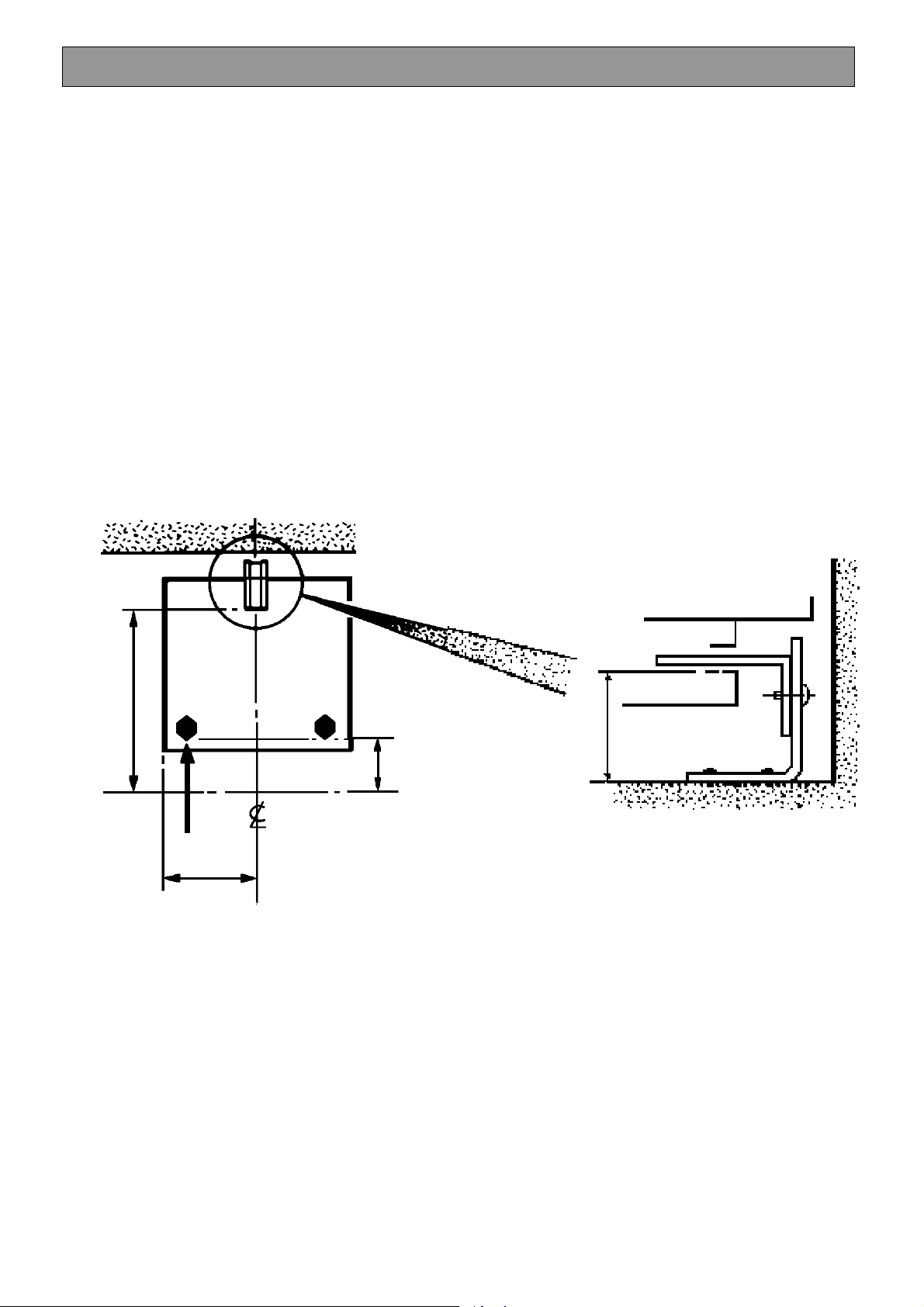

Fitting the Stability Bracket 32
Pressure Testing 33
Checking the Grill 33
Checking the Hotplate 33
Checking the Lid Shut-Off Device 33
Checking the Main Oven 33
Checking the Second Oven 33
General Note 33

3

PREFACE

Dear Customer,

Thank you for buying a Parkinson Cowan appliance. With our 80 years
experience in developing and manufacturing the very best in U.K. appliances, you
can be assured that you have purchased a hard working, reliable, quality product.

Parkinson Cowan appliances comply with British Standard safety and
performance requirements. They are covered by a 12 month parts and labour
guarantee.

To get the best from your new Parkinson Cowan appliance, we ask that you
PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention
should be made to cooking times and temperatures, which may differ, from your
previous appliance.

It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and leave
the appliance, always ensure that the book remains with the appliance. This will
enable the new owner to be acquainted with the functioning of the appliance and
the relevant warnings.

Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.

4

INTRODUCTION

WARNING: THIS APPLIANCE MUST BE
EARTHED

RATING PLATE

This is situated on the front frame of the appliance and
can be seen upon opening the door. Alternatively the
rating plate may also be found on the back or top of
some models (where applicable).

The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.

Do not remove the rating plate from the appliance
as this may invalidate the guarantee.

GENERAL NOTES ON USING YOUR
APPLIANCE

We suggest that you run the oven elements for 10 – 15
minutes at 220
surfaces.
The procedure should be repeated with the grill for
approximately 5 – 10 minutes. During this period an
odour may be emitted, it is therefore advisable to open
a window for ventilation.

o

C to burn off any residue from their

ABOUT CONDENSATION AND STEAM

THE COOLING FAN FOR THE CONTROLS

The cooling fan operates immediately when the grill or
top oven is switched on. It may run on after the
controls are switched off until the appliance has
cooled.

The cooling fan may operate after a time when the fan
oven is in use. This will depend on the temperature
setting and the length of time the oven has been in
use.

CONTROL PANEL INDICATOR NEON(S)

The indicator neon will operate when the grill (where
applicable) or oven(s) is switched on. The indicator
neon will glow. It may turn on and off during use to
show that the setting is being maintained. If the neon
does not operate as the instructions indicate the
controls have been incorrectly set. Return all controls
to zero and reset following the instructions for the
required setting.

COOKWARE

Baking trays, oven dishes etc., should not be placed
directly against the grid covering the fan at the back of
the oven.

Do not use baking trays larger than 30cm x 35cm (12”
x 14”) as they will restrict the circulation of heat and
may affect performance

.

When food is heated it produces steam similar to a
boiling kettle. The oven is vented to allow some of this
steam to escape. However, always stand back from
the appliance when opening the oven door to allow
any build up of steam or heat to release.

If the steam comes into contact with a cool surface on
the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces, including
the vent at the rear of the hob.

For your safety wallcoverings at the rear of the
appliance should be securely fixed to the wall.

5

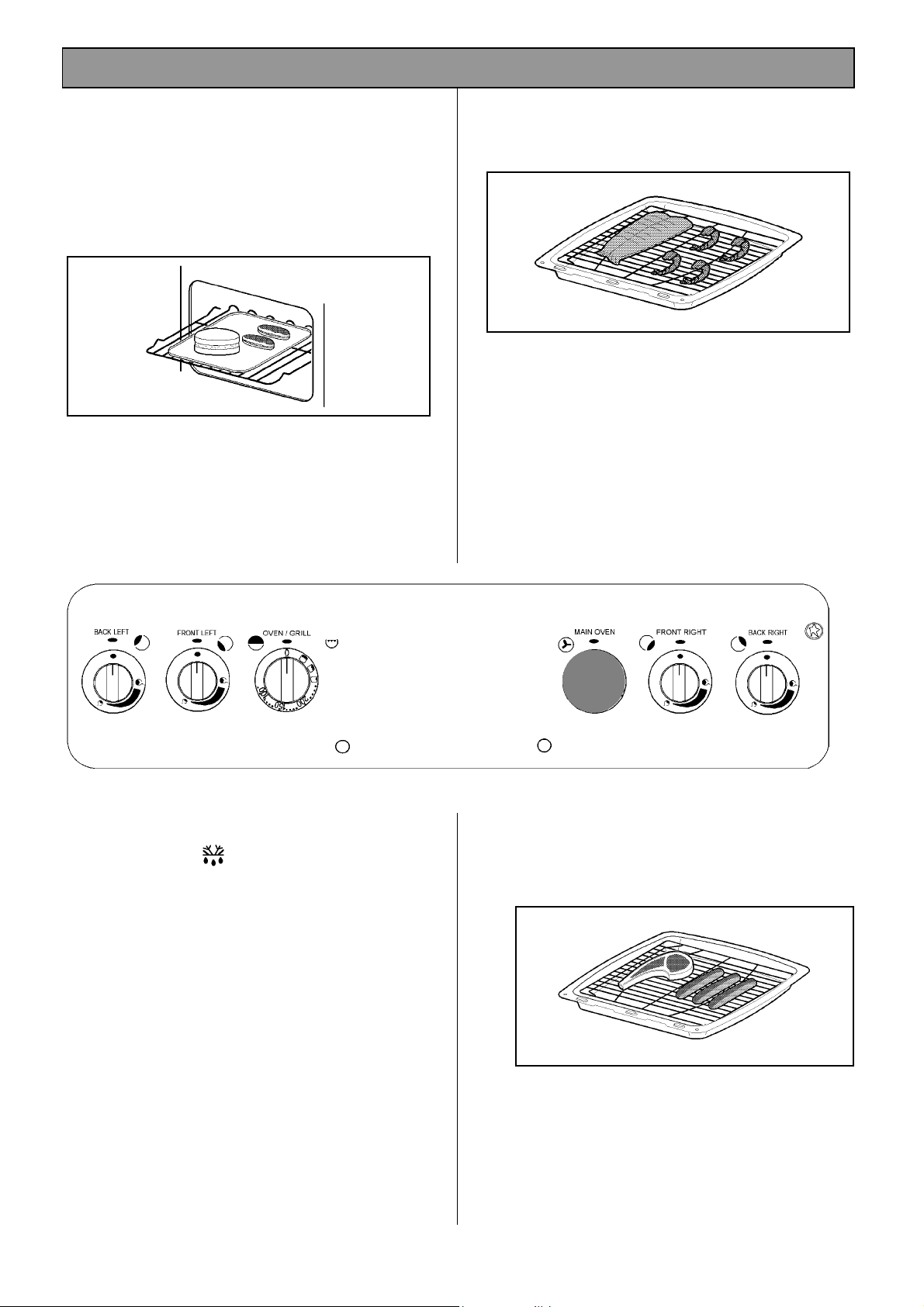

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have
been supplied with the appliance. If you require
replacements of any of the items listed below please
contact your local Service Force Centre, quoting the
relevant part number.

1 grill pan
(311409401)

1 grill pan handle
(311468100)

Note:

If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 311479800\6.

1 grill pan grid
(311419801)

1 straight shelf
for grilling and top
oven cooking only

2 straight shelves
for main oven cooking

Scuffing of the Stayclean panel/s by the oven furniture
pack may occur during transit. These marks will
disappear after the oven elements have been burnt off
for the first time.

6

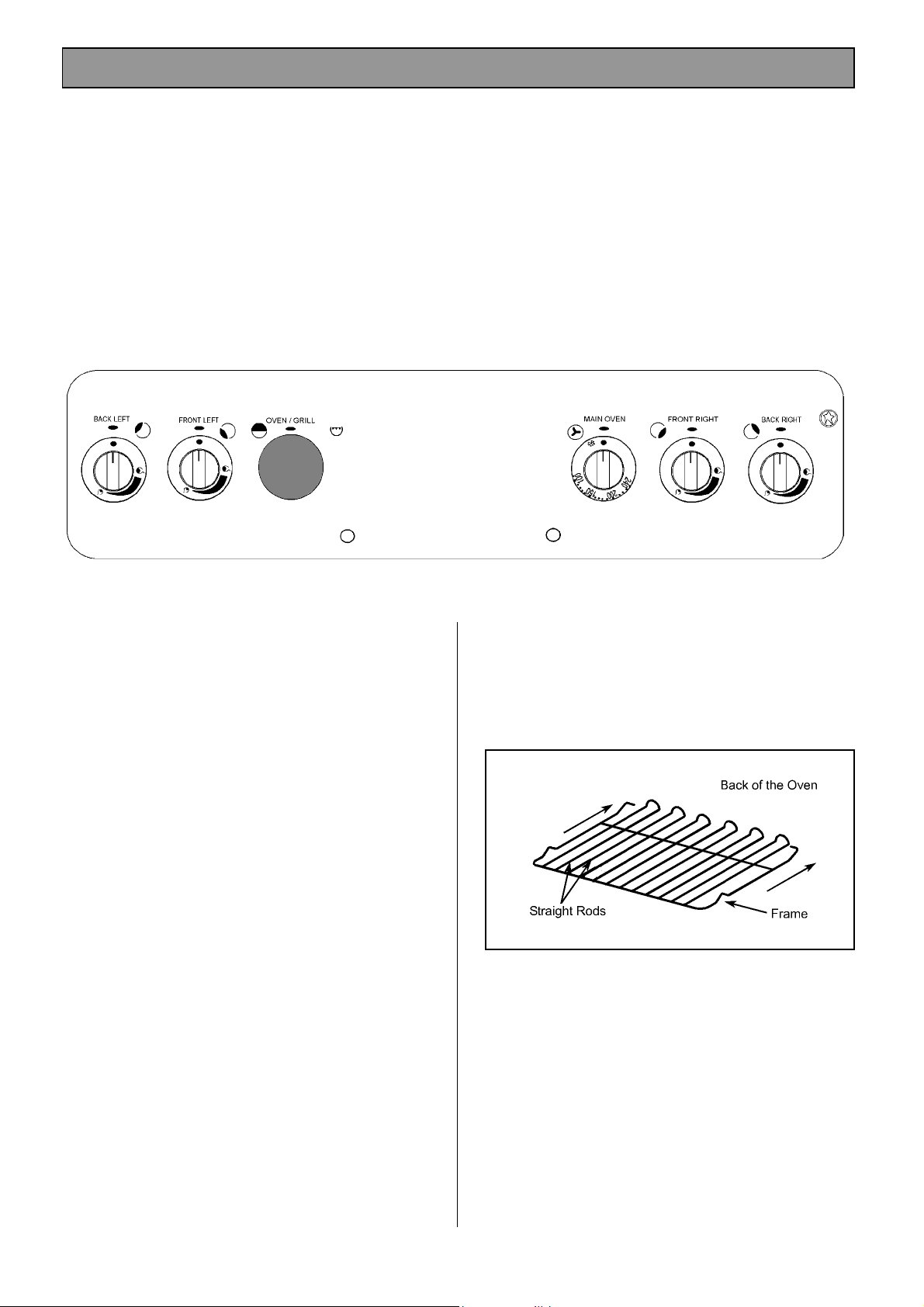

THE CONTROL PANEL

THE CONTROL PANEL - CSM 559

A

B

F

FEATURES

A - Hotplate Controls
B - Top Oven/Grill Temperature Control
C - Main Oven Temperature Control
D - Hotplate Controls
E - Ignition Switch
F - Grill/Top Oven Indicator Neon
G - Main Oven Indicator Neon

C

G

D

E

7

THE GAS HOB

SELECTING THE HOB

USES OF THE HOB

The gas hob has three different burner sizes to suit
different types of cooking:

To ensure maximum burner efficiency only use pots
and pans with flat bases appropriate to the burner
size used.

Larger burner (Rapid) - use a large pan for food
such as chips.

Medium burners (Normal) - use for everyday
cooking.

Small burner (Simmer) - use for simmering foods
such as soups and stews.

The largest pan which you should use on any burner
is 230mm (9"). The base of the smallest pan should
not measure less than 100mm (4").

Lift pans on and off the pan supports. Do not slide
them across the hob.

Ensure the pan supports are correctly
fitted before using the hob.

See page 19.

TO LIGHT THE HOB BURNERS

Warning: If the ignition button is not
pressed immediately a build up of gas
may cause the flame to spread.

If you close the lid of the appliance while
any of the hotplate burners are lit, the gas
will go out. This is because it would be
dangerous if the burners stayed on when
the lid was closed.

Always use the control knob to turn off a
burner. Do not use the lid as a cut-off
device. This will only cut off the gas
when the lid is closed. The gas will flow
again when the lid is opened.

TO TURN OFF ANY BURNER

1. Turn the control knob to the off position. This is
shown by a large dot.

When lighting any burner, ensure that it
is lit before you leave the appliance.

When turning off a burner, ensure the
flame has gone out before leaving the
appliance.

The hob ignition works by means of an electric spark
system.

1. Lift up the lid. You cannot use the hob when the
lid is down.

2. Push in and turn the control knob to the left to
the highest setting. This is shown by a large
flame symbol. Press the ignition button
immediately.

3. When the burner has lit release the control and
adjust the setting as required.

In the event of the burner flames being
accidentally extinguished, turn off the
burner control and do not attempt to re­ignite the burner for at least 1 min.

THINGS TO NOTE

If you are having any difficulty lighting a hob burner
turn all the hob controls off and make sure the
burner parts have been replaced correctly.
See page 19 for more information.

8

HEAT CONTROL

The hotplate control knobs turn anticlockwise from
'OFF' to 'HIGH' and then to 'LOW'. You can adjust
the heat by turning the control between the highest
and lowest settings. These are shown as a large
and a small flame symbol.

HINTS AND TIPS

· Keep flames under the base of pans. If the

flames lick round the sides of the pan you are
wasting gas.

· Do not overfill pans or they will boil over.

· Do not use pans with very heavy handles which

cause the pan to tip.

· Use pans with flat bases. They are more stable

than pans which are warped.

· Do not use the lid as a work surface or chopping

board. This could damage the glass and reduce
its strength.

Place pans on the centre of the burners.

Position pans so the handles cannot be
accidentally knocked or overhang the
appliance.

Lift pans on and off the pan supports.

Do not slide them across the hob.

· Do not leave accidental spillage on the hob or

removable parts. The spillage should be wiped
up and the parts washed and carefully dried as
soon as the hob, pan supports and burner parts
are cool enough to touch.
See page 19 for full cleaning instructions.

· Cover pans with a lid whenever possible. Food

will heat up more quickly and there will be less
steam in the kitchen.

· A flat based Wok will stand stable on the pan

supports. If you use a round Wok with a collar
support, the collar must be the open wirework
type otherwise the performance of the burner will
be affected.

Take care to avoid burns and scalds
when reaching across the hotplate.

Take extra care when deep fat frying, do
not cover the pan with a lid. Do not leave
a pan unattended. If the pan catches fire,
leave it where it is and turn off all
controls. Place a damp cloth or a fitting
lid over the pan to smother the flames.
Never put water on the fire. Leave to cool
for 30 minutes.

9

THE DUAL GRILL

USES OF THE DUAL GRILL

CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD
BE KEPT AWAY.

The grill is a dual circuit grill which means that the full area of the grill can be used for economy purposes, the
centre section only can be used when cooking smaller quantities of food.

SELECTING THE DUAL GRILL

To operate the grill turn the top oven/grill control
clockwise to the full power setting ( ), then turn
down as necessary.
The grill settings are as follows:-

· ( ) Full grill area at ¼ power.

· ( ) Centre grill area at full power.

· ( ) Full grill area at full power.

THINGS TO NOTE

THE GRILL DOOR MUST BE LEFT OPEN DURING
GRILLING.

· The cooling fan will operate. For more details

about the cooling fan see page 5.

· Some smoke from fat splashes may be evident

as the grill cleans itself.

· The top oven cannot be operated when the grill

is in use.

THE GRILL PAN AND HANDLE

The grill pan is supplied with a removable handle.

To attach the handle, place the wirework under the
cut out in the pan so that the metal plate hooks over
the top of the grill pan.

Ensure the handle is correctly located. It is not
necessary to remove the grill pan handle during
grilling.

To remove the handle, slide the handle to the right
and lift the handle away from the cut out on the grill
pan.

Slide the handle to the left and over the central bump
on the grill pan.

Place the grill pan on the shelf so that the pan is
positioned centrally beneath the grill.

10

HINTS AND TIPS

GRILLING CHART

· In order to become acquainted with the

performance of the Dual Grill it is advisable to
check food regularly when grilling.

· Food should be thoroughly dried before grilling

to minimise splashing. Brush lean meats and
fish lightly with a little oil or melted butter to keep
them moist during cooking.

· Adjust the height of the grilling grid and grill pan

runner position to allow for different thicknesses
of foods.

· Accompaniments such as tomatoes and

mushrooms may be placed underneath the grid
when grilling meats.

FOOD SHELF GRILL TIME

(mins in total)

Bacon Rashers Adjust 5 - 6

Beefburgers grill setting 10 - 15

Chicken Joints shelf 30 - 40

Chops – Lamb position 15 - 20

Pork 20 - 30

and
Fish – Whole
Trout/Mackerel grill 15 - 25

Fillets – Plaice/Cod pan 10 - 15

Kebabs grid 20 - 30

Kidneys – Lamb/Pig to 8 - 12

Liver – Lamb/Pig suit 10 - 20

Sausages different 20 - 30

Steaks – Rare thicknesses 6 - 12

Medium 12 - 16
Well Done of 14 - 20

· When toasting bread use the shelf in position 1

with the grid in the high position.

· Preheat the grill on a full setting for a few

minutes before cooking. Adjust the heat setting
and the shelf as necessary during cooking.

· The food should be turned over during cooking

as required.

· When using the centre section of the dual grill,

ensure food is positioned centrally on the grill
pan grid in the grill pan.

Toasted Sandwiches food 3 - 4

The times quoted above are given as a guide and
should be adjusted to suit personal taste.

NOTE:

If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 311479800\6.

11
