Electrolux CSIG 223 W User Manual

INSTRUCTION BOOKLET

MIXED FUEL COOKER

CSIG 223 W

Please read this instruction booklet before using the appliance

Important Safety Information

Installation

You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950

● This cooker must be installed by qualified

personnel, according to the manufacturer’s instructions and to the relevant British Standards.

• This cooker is heavy. Take care when moving it.

● Any gas installation must be carried out by a

registered CORGI installer .

● Remove all packaging before using the cooker.

● Ensure that the gas and electrical supply complies

with the type stated on the rating plate, located near the gas supply pipe.

● Do not attempt to modify the cooker in any way.

Child Safety

● This cooker is designed to be operated by adults.

Do not allow children to play near or with the cooker.

● The cooker gets hot when it is in use. Children

should be kept away until it has cooled.

● Children can also injure themselves by pulling

pans or pots off the cooker.

● When using other electrical appliances, ensure the

cable does not come into contact with the hot surfaces of the cooker.

● Unstable or misshapen pans should not be used on

the hob burners as unstable pans can cause an accident by tipping or spillage.

● Never leave the cooker unattended when cooking

with oil and fats.

● This cooker should be kept clean at all times. A

build-up of fats or foodstuffs could result in a fire.

● Never use plastic dishes in the oven or on the hob

burners.

Never line any part of the oven with

aluminium foil.

● Always ensure that the oven vent which is located

at the centre back of the hob is left unobstructed to ensure ventilation of the oven cavity.

● Perishable food, plastic items and areosols may be

affected by heat and should not be stored above the cooker.

During Use

● This cooker is intended for domestic cooking only.

It is not designed for commercial or industrial purposes.

● When in use a gas cooker will produce heat and

moisture in the room in which it has been installed. Ensure there is a continuous air supply, keeping air vents in good condition or installing a cooker hood with a venting hose.

● When using the cooker for a long period time, the

ventilation should be improved, by opening a window or increasing the extractor speed.

● Do not use this cooker if it is in contact with

water. Do not operate the cooker with wet hands.

● Ensure the control knobs are in the ‘OFF’ position

when not in use.

● Do not store flammable materials such as oven

gloves, tea towels etc. in the drawer.

Service

● This cooker should only be repaired or serviced by

an authorised Service Engineer and only genuine approved spare parts should be used.

Environmental Information

● After installation, please dispose of the packaging

with due regard to safety and the environment.

● When disposing of an old appliance, make it

unusable, by cutting off the cable.

Keep this instruction book for future

reference and ensure it is passed on

to any new owner.

Contents

For the User

Important Safety Information.............. 2

Description of the Cooker.................... 4

Control Panel ...................................... 5

The Oven Cavity.........................................5

Accessories ................................................5

Operation ............................................ 6

Hob burners ...............................................6

Gas oven and Electric grill......................... 7

Using the Oven .................................... 8

Oven light pushbutton................................9

Using the Gas oven .............................. 9

Gas Oven Cooking Charts .................. 10

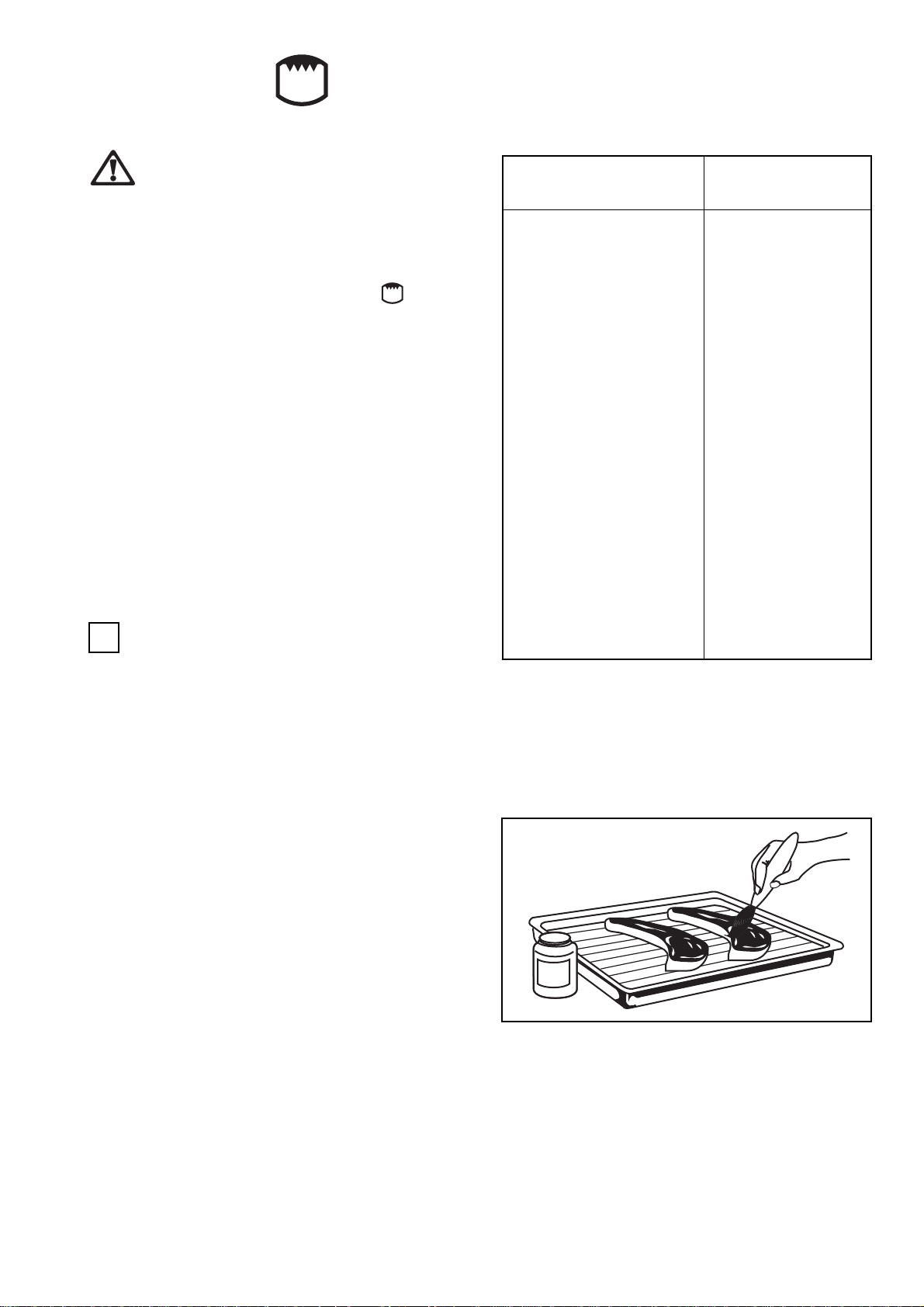

Grilling.............................................. 12

Maintenance and Cleaning................. 13

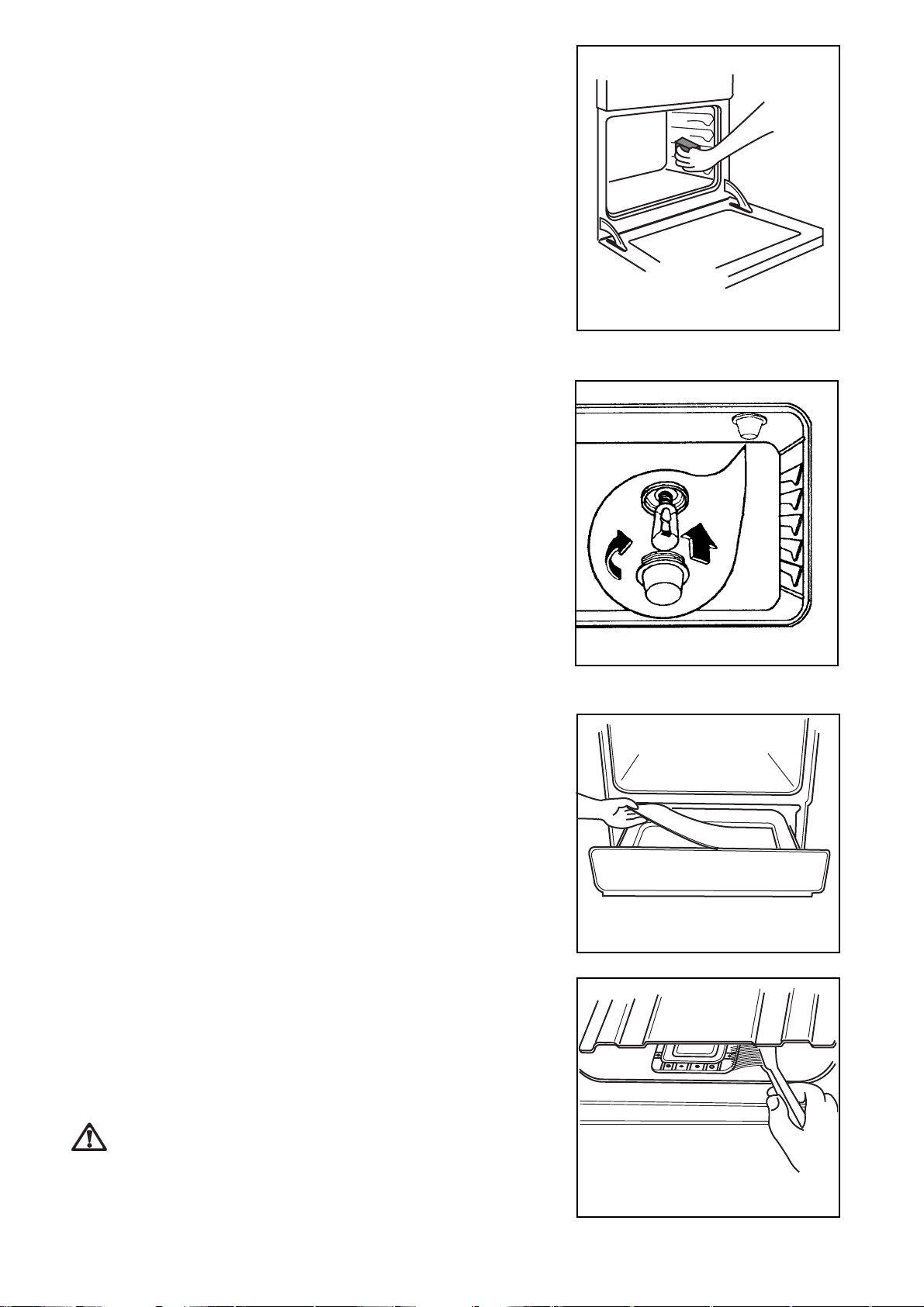

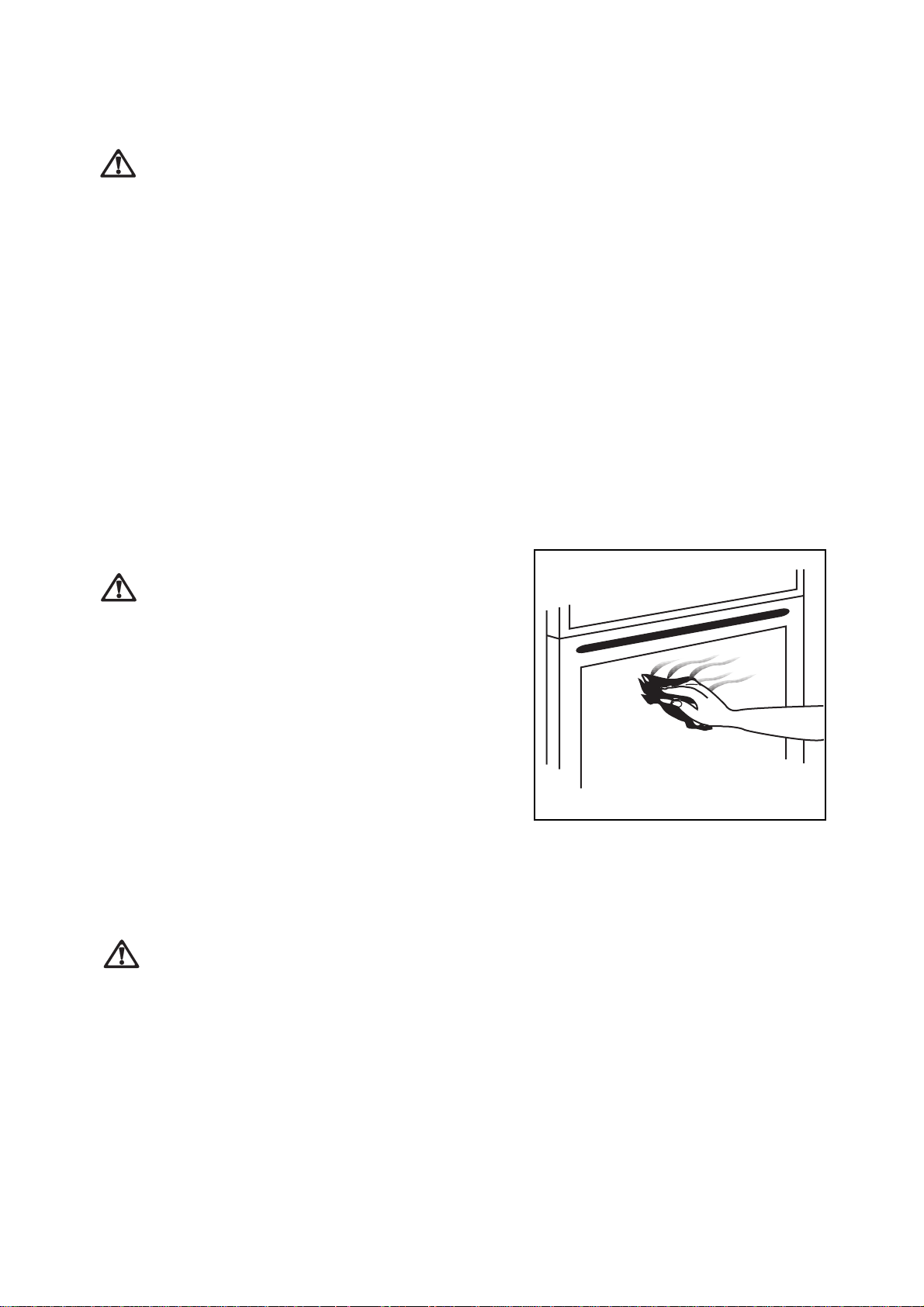

Cleaning the Oven ............................. 14

For the Installer

Instructions for the Installer ............. 20

Important Safety Requirements......... 21

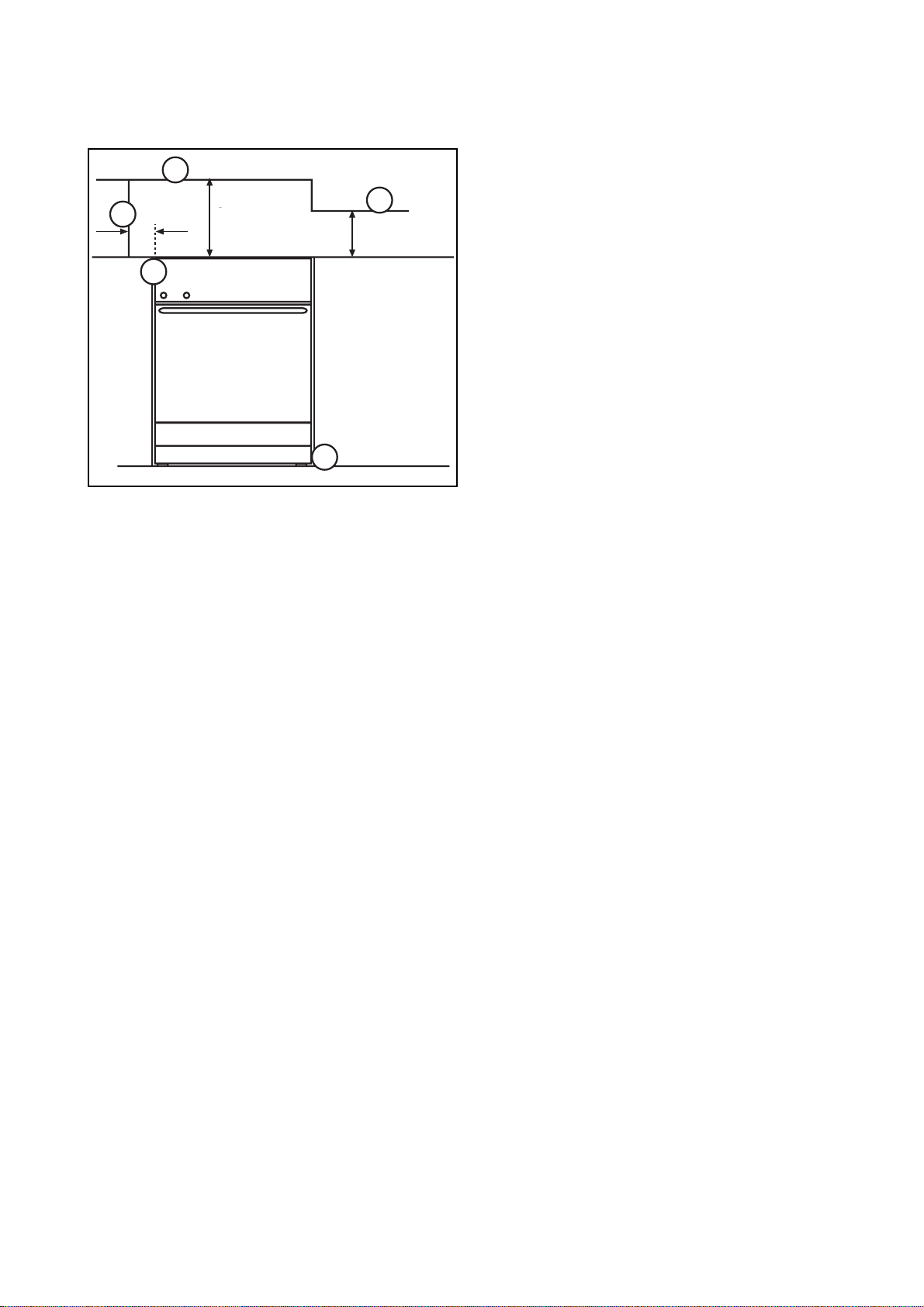

Installation........................................ 22

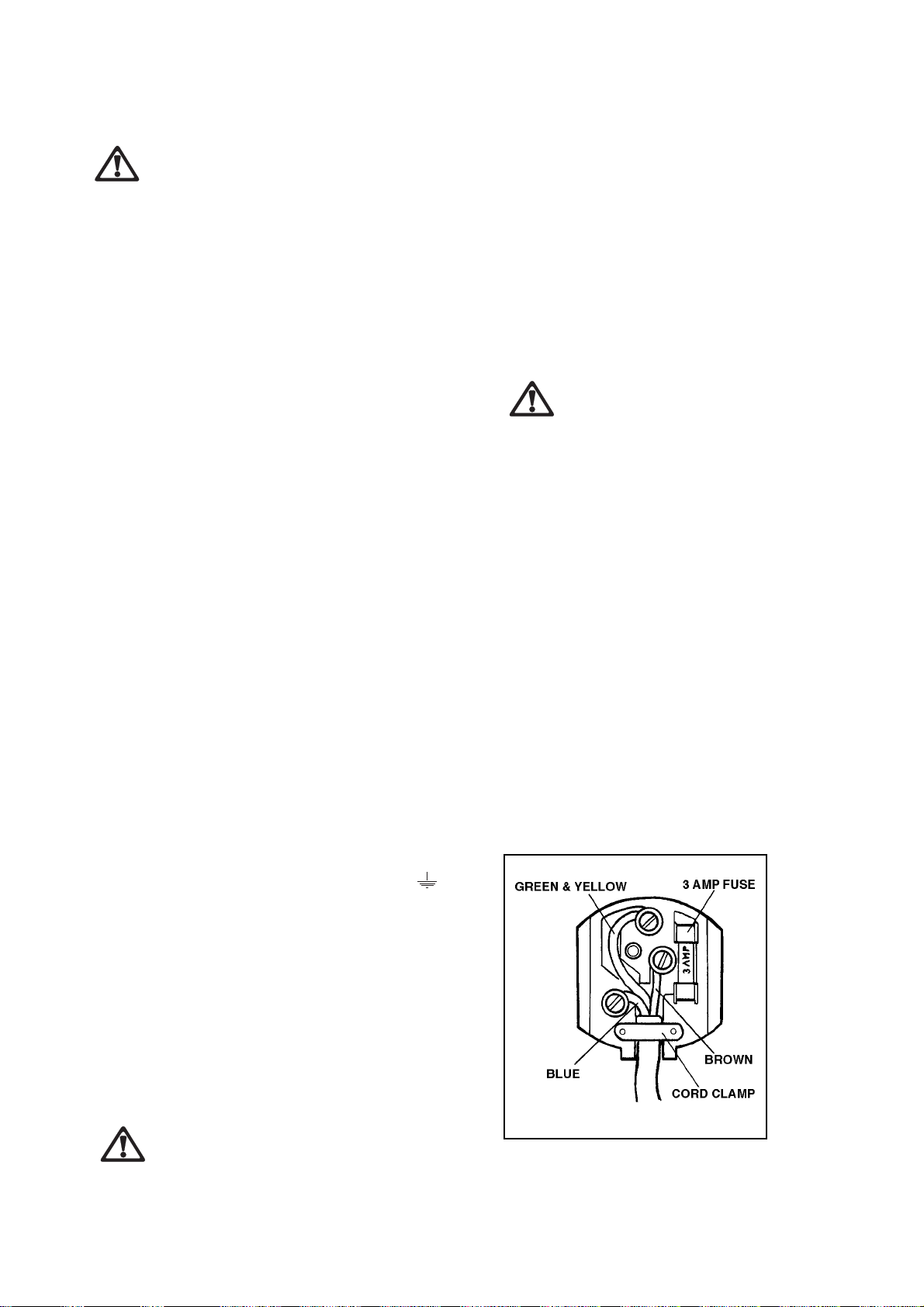

Electrical connections....................... 24

Commissioning.................................. 25

Conversion from Natural to LPG Gas.. 26

Something Not Working ..................... 16

Service and Spare Parts ..................... 17

Guarantee Conditions........................ 17

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

☞

Step by step instructions for an operation

Hints and Tips

This appliance is manufactured according to the following EEC directives: 73/23 EEC - 90/683 EEC - 93/68 EEC 89/336 EEC - 90/396 EEC, current edition.

Oven Door Protection Device

All our appliances comply with the European safety standards. Nevertheless, in order to ensure the highest safety level, and avoid small children to be exposed to the heat when the appliance is operated, it is possible to fit a special protection device to the oven door. This device can be purchased in our Service Force Centres, specifying the relevant code (35791) and the Product No. shown on the rating plate.

Description of the Cooker

Semi-rapid

Rapid burner

Semi-rapid burner

Control panel

RAPID NORMAL SIMMER NORMAL

GAS OVEN &

ELECTRIC GRILL

GRILL

burner

Auxiliary burner

Oven door

Storage drawer

Control Panel

RAPID NORMAL SIMMER NORMAL

1. Grill Function Pilot Light

2. Electric Ignition push button

3. Oven Light push button

4. Back left burner control knob (rapid)

5. Front left burner control knob (semi-rapid)

6. Front right burner control knob (auxiliary)

7. Back right burner control knob (semi-rapid)

8. Oven function control knob

GAS OVEN &

ELECTRIC GRILL

8765

GRILL

The Oven Cavity

Grill element

Accessories

Oven Light

Grill trivet

Removable

handle

Grill/roasting pan

Operation

Hob burners

To light a burner, push in and turn the relevant control knob anticlockwise to maximum position. At the same time push the electric ignition button which is marked with a little spark. Then adjust the flame as required. If the burner does not ignite, turn the control knob to zero, and try again.

When switching on the mains, after installation or a power cut, it is quite normal

for the spark generator to be activated automatically.

To ensure maximum burner efficiency, you should only use pots and pans with a flat bottom fitting the size of the burner used (see table).

Burner minimum maximum

diameter diameter

Large (rapid) 180 mm. 260 mm. Medium (semi-rapid) 120 mm. 220 mm. Small (Auxiliary) 80 mm. 160 mm.

If you use a saucepan which is smaller than the recommended size, the flame will spread beyond the bottom of the pan, causing the handle to overheat.

As soon as a liquid starts boiling, turn down

the flame so that it will barely keep the liquid simmering.

Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.

If the control knobs become difficult to turn, please contact your local Parkinson Cowan Service Centre.

Gas oven and Electric grill

Oven Function Control Knob

0 Oven switched off

0-MAX Range of temperature regulation for gas

oven

Grill - The heat comes only from the top element

240

200

140

160

Before the First Use of the Cooker

Remove all packaging, both inside and outside the cooker, before using it.

Before first use, the oven should be heated without food. During this time, an unpleasant odour may be emitted. This is quite normal.

☞

This procedure should be repeated with the grill function for approximately 5-10 minutes.

1. Ignite the gas oven burner (see page 9) and set the oven function control knob to MAX.

2. Open a window for ventilation.

3. Allow the oven to run empty for approximately 45 minutes.

Using the Oven

• Always cook with the oven door closed.

• Stand clear when opening the drop down oven door. Do not allow it to fall open - support the door using the door handle, until it is fully open.

• The oven has four shelf levels, and is

supplied with two shelves. The shelf positions are counted from the

bottom of the oven as shown in the diagram.

It is important that these shelves are correctly positioned as shown in the diagram.

• Do not place cookware directly on the oven base.

4 3 2 1

Hints and Tips

Condensation and steam

When food is heated it produces steam in the same way as a boiling kettle. The oven vents allow some of this steam to escape. However, always stand back from the oven when opening the oven door to allow any build up of steam or heat to release. If the steam comes into contact with a cool surface on the outside of the oven, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not a fault with the oven. To prevent discoloration, regularly wipe away condensation and also soilage from surfaces.

Cookware

• Use any oven proof cookware which will

withstand temperatures of 250°C.

• Baking trays, oven dishes, etc. should not be placed directly against the grid covering the fan at the back of the oven, or placed on the oven base.

• Do not use baking trays larger than 30 cm x 35 cm (12 in x 14 in) as they will restrict the circulation of heat and may affect performance.

The effects of dishes on cooking results

Dishes and tins vary in their thickness, conductivity, colour, etc. which affects the way they transmit heat to the food inside them.

A Aluminium, earthenware, oven glassware and

bright shiny utensils reduce cooking and underneath browning.

B Enamelled cast iron, anodized aluminium,

aluminium with non-stick interior and coloured exterior and dark, heavy utensils increase cooking and underneath browning.

Storage Drawer

The storage drawer is located underneath the oven cavity.

During cooking the storage drawer may become hot if the oven is on high for a long period of time, therefore flammable materials such as oven gloves, tea towels, plastic aprons etc. should not be stored in the drawer.

Oven accessories such as baking sheets, will also become hot, therefore care should be taken when removing these items from the drawer whilst the oven is in use or still hot.

Using the Gas oven

Before using your oven

Switch the oven to MAX. and leave it to run empty for about 30 minutes to remove any unpleasant smell.

During cooking, the door should be opened as little as possible to avoid heat loss, and excessive fuel consumption.

☞ To ignite the oven gas burner:

1. Open the oven door.

2. Hold a flame to the right-hand side hole (see fig.)

3. Press the oven control knob and turn it anticlockwise until the maximum temperature is reached.

4. Firmly press the oven control knob for approximately 5 seconds, until the safety valve automatically keeps the oven burner lit.

5. Release the control knob and then gently close the oven door. To adjust the temperature, turn the knob to the required setting after a few minutes.

If the oven burner accidentally goes out, turn the oven knob to "O" and wait at least 1 minute before trying to light the burner again.

Oven safety device

The cooker features a thermocouple; if for any reason the flame should extinguish, the device will stop the gas flow.

Oven light pushbutton

This button will turn the oven light on.
