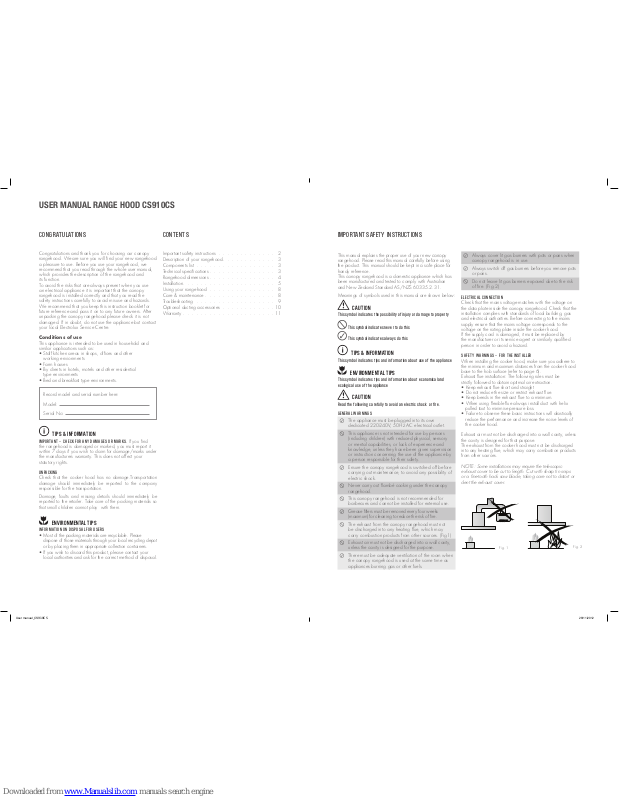

Electrolux CS910CS User Manual

This manual explains the proper use of your new canopy
rangehood. Please read this manual carefully before using
the product. This manual should be kept in a safe place for
handy reference.
This canopy rangehood is a domestic appliance which has
been manufactured and tested to comply with Australian
and New Zealand Standard AS/NZS 60335.2.31.

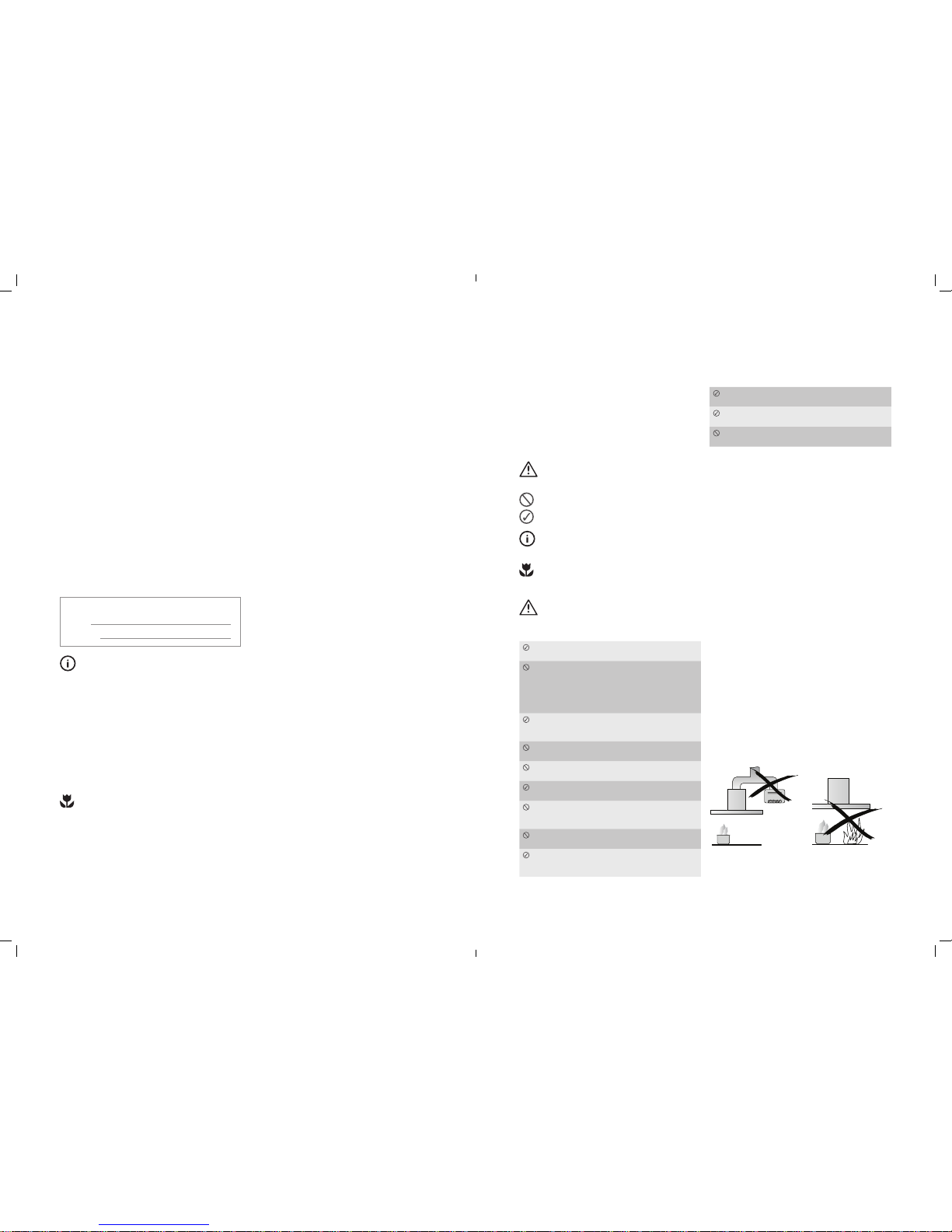

Meanings of symbols used in this manual are shown below:

CAUTION

This symbol indicates the possibility of injury or damage to property

This symbol indicates never to do this

This symbol indicates always do this

TIPS & INFORMA

TION

This symbol indicates tips and information about use of the appliance

ENVIRONMENTAL TIPS

This symbol indicates tips and information about economical and
ecological use of the appliance

CAUTION

Read the following carefully to avoid an electric shock or fire.

GENERAL WARNINGS

The appliance must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.

This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by
a person responsible for their safety.

Ensure the canopy rangehood is switched off before
carrying out maintenance, to avoid any possibility of
electric shock.

Never carry out flambé cooking under the canopy
rangehood.

This canopy rangehood is not recommended for
barbecues and cannot be installed for external use.

Grease filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of fire.

The exhaust from the canopy rangehood must not
be discharged into any heating flue, which may
carry combustion products from other sources. (Fig1)

Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for the purpose.

There must be adequate ventilation of the room when
the canopy rangehood is used at the same time as
appliances burning gas or other fuels.

Always cover lit gas burners with pots or pans when
canopy rangehood is in use.

Always switch off gas burners before you remove pots
or pans.

Do not leave lit gas burners exposed due to the risk
of fire. (Fig 2)

ELECTRICAL CONNECTION

Check that the mains voltage matches with the voltage on
the data plate inside the canopy rangehood. Check that the
installation complies with standards of local building, gas
and electrical authorities. Before connecting to the mains
supply ensure that the mains voltage corresponds to the
voltage on the rating plate inside the cooker hood.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or similarly qualified
person in order to avoid a hazard.

SAFETY WARNINGS – FOR THE INSTALLER

When installing the cooker hood, make sure you adhere to
the minimum and maximum distances from the cooker hood
base to the hob surface (refer to page 6).
Exhaust flue installation: The following rules must be
strictly followed to obtain optimal air extraction.

• Keep exhaust ue short and straight

• Do not reduce the size or restrict exhaust ue.

• Keep bends in the exhaust ue to a minimum.

• When using exible ue always install duct with helix

pulled taut to minimise pressure loss.

• Failure to observe these basic instructions will drastically

reduce the performance and increase the noise levels of
the cooker hood.

Exhaust air must not be discharged into a wall cavity, unless
the cavity is designed for that purpose.
The exhaust from the cooker hood must not be discharged
into any heating flue, which may carry combustion products
from other sources.

NOTE: Some installations may require the telescopic
exhaust cover to be cut to length. Cut with sharp tin snips
or a fine-tooth hack saw blade, taking care not to distort or
dent the exhaust cover.

Fig. 1

Fig. 2

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions . . . . . . . . . . . . . 2

Description of your rangehood

. . . . . . . . . . . . 3

Components list . . . . . . . . . . . . . . . . . . 3

Technical specifications

. . . . . . . . . . . . . . . 3

Rangehood dimensions

. . . . . . . . . . . . . . . 4

Installation

. . . . . . . . . . . . . . . . . . . . . 5

Using your rangehood

. . . . . . . . . . . . . . . 8

Care & maintenance

. . . . . . . . . . . . . . . . 8

Troubleshooting

. . . . . . . . . . . . . . . . . . 9

Optional ducting accessories

. . . . . . . . . . . . 10

Warranty

. . . . . . . . . . . . . . . . . . . . .11

Congratulations and thank you for choosing our canopy
rangehood. We are sure you will find your new rangehood
a pleasure to use. Before you use your rangehood, we
recommend that you read through the whole user manual,
which provides the description of the rangehood and
its function.
To avoid the risks that are always present when you use
an electrical appliance it is important that the canopy
rangehood is installed correctly and that you read the
safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for
future reference and pass it on to any future owners. After
unpacking the canopy rangehood please check it is not
damaged. If in doubt, do not use the appliance but contact
your local Electrolux Service Centre.

Conditions of use

This appliance is intended to be used in household and
similar applications such as:

• Staff kitchen areas in shops, ofces and other
working envionments

• Farm houses

• By clients in hotels, motels and other residential

type environments

• Bed and breakfast type environments.

Record model and serial number here:

Model:

Serial No:

TIPS & INFORMATION

IMPORTANT – CHECK FOR ANY DAMAGES OR MARKS. If you find
the rangehood is damaged or marked, you must report it
within 7 days if you wish to claim for damage/marks under
the manufacturers warranty. This does not affect your
statutory rights.

UNPACKING

Check that the cooker hood has no damage.Transportation
damage should immediately be reported to the company
responsible for the transportation.

Damage, faults and missing details should immediately be
reported to the retailer. Take care of the packing materials so
that small children cannot play with them.

ENVIRONMENTAL TIPS

INFORMATION ON DISPOSAL FOR USERS

• Most of the packing materials are recyclable. Please

dispose of those materials through your local recycling depot
or by placing them in appropriate collection containers.

• If you wish to discard this product, please contact your

local authorities and ask for the correct method of disposal.

CONTENTS

User manual_CS910CS 28/11/2012

CONGRATULATIONS

USER MANUAL RANGE HOOD CS910CS

DESCRIPTION OF YOUR RANGEHOOD RANGEHOOD DIMENSIONS

56mm

500mm

320mm

900mm

1135mm (maximum)
690mm (minimum)

290mm

538mm

Fig. 4

1

2

3

4

5

6

7

8

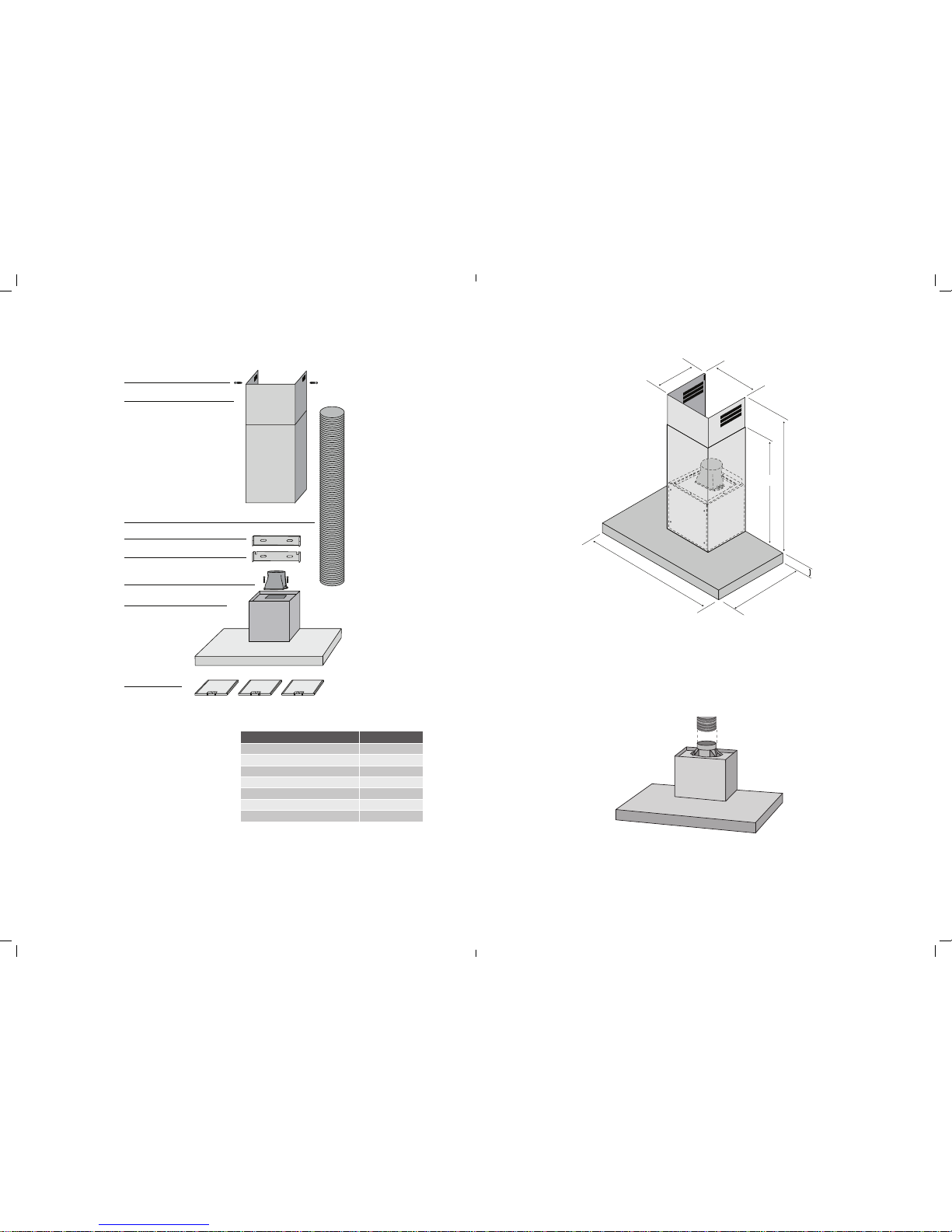

Components list

1. Screws x 2

2. Telescopic flue cover set

3. Flexible flue pipe

4. Upper flue cover mounting bracket

5. Lower flue cover mounting bracket

6. Flue transition duct

7. Main body and fan housing assembly

8. Grease filters

Additional items required for installation

• Fixings required to attach rangehood body and

anti tilt points.

• Fixings required to attach flue cover mounting

brackets to the wall.

• Duct tape or cable ties.

Technical specifications

Height 69-113.5cm

Width 90cm

Depth 50cm

Maximum absorbed power 330W

Lighting 2 x 50W

Outlet diameter 150mm

Electrical connection 220-240V, 50Hz

The manufacturer reserves the right to effect any
technological improvement or modification without
prior notice.

150mm

NOTE: The fan housing flue transition duct is 150mm in diameter.
(See page 13 for optional ducting accessories).

Fig. 5

Fig. 3

User manual_CS910CS 28/11/2012

MODEL

CS910CS

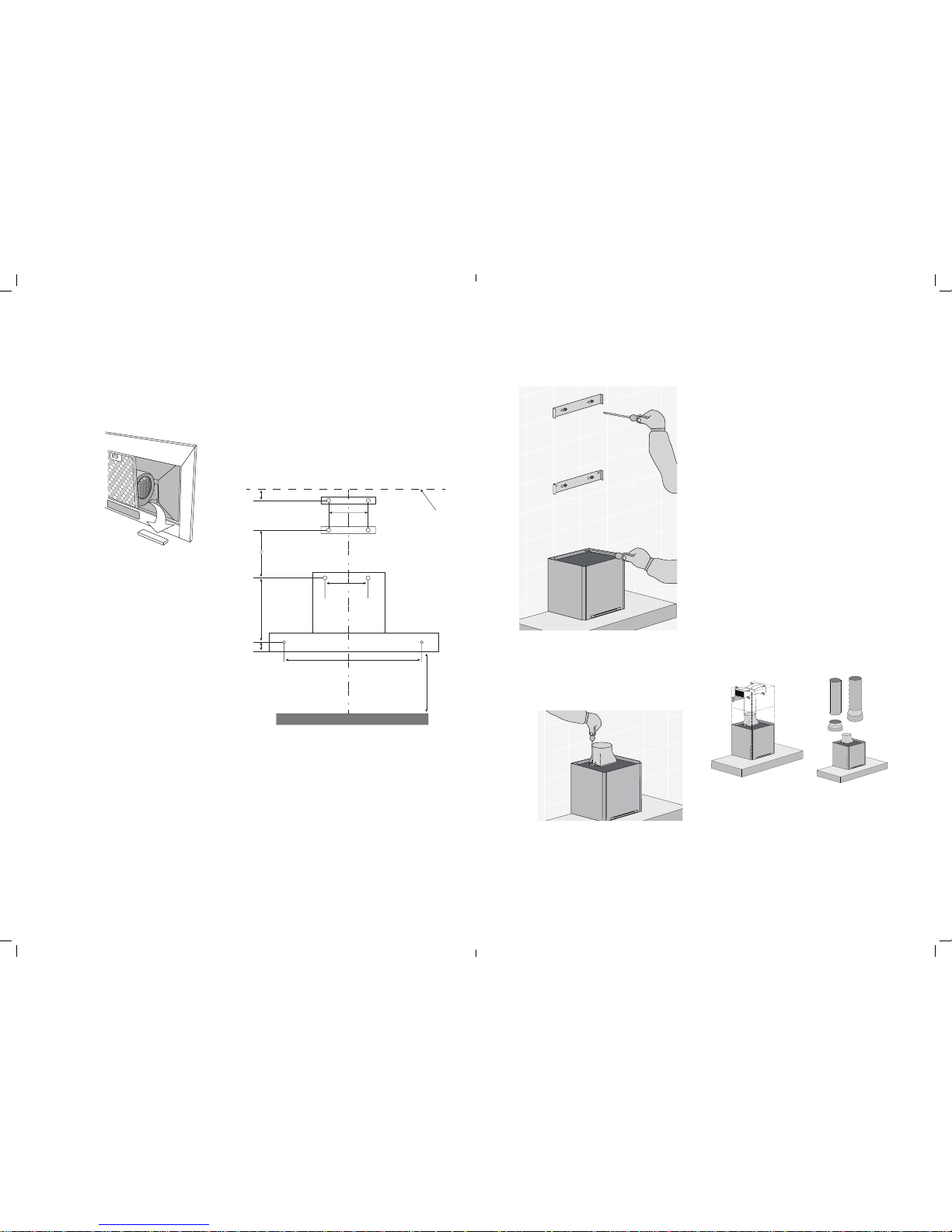

PRE-INSTALLATION

Before installing the cooker hood, peel off any protective
plastic covering and remove polystyrene from inside behind
the fan motor. See diagram below.

LOCATION

The underside of the hood body must be a minimum
of 600mm* above an electric cooktop and 650mm*
above a gas cooktop and a maximum height of 800mm.

*If the instructions of the hob specify a greater distance than the minimum above,
then that shall be the minimum height for installation.

INSTALLATION

1. Using a spirit level mark a vertical centre line on the
wall where the hood is to be positioned, and a
horizontal line at the hood base position (refer
Fig. 6 below).

2. Mark the location for flue cover wall mounting brackets
and rangehood mounting points and anti-tilt fixing
points above the hood base using the hood base as
the reference point (Fig. 6 below).

3. Install flue cover wall mounting brackets with suitable
fixings. Install suitable screws for rangehood mounting
points (to support a total weight of 30kg) to the wall as
marked (Fig. 7).

INSTALLATION

4. Remove the protective plastic film from the hood body
and hang hood on the mounting screws then secure at
the anti-tilt locations as indicated in Fig. 6 & 7.

5. Fix exhaust transition duct using screws supplied
(Fig. 8).

Depending on the preferred installation/ducting mode,
follow step 6a or 6b below.

6a.Recirculating mode (Fig. 9). Using the centre line,

secure the recirculating T-piece to the wall with suitable

screws/fixings (optional kit AR910RK). Install flexible

pipe between T-piece and the exhaust transition duct.
Use cable ties or suitable duct tape to secure flexible
pipe to T-piece and transition duct (Fig. 11).

NOTE: When installed in recirculating mode, it is
recommended to use a carbon filter (included in
recirculation kit AR910RK) to prevent odours being
emitted back into the room.

6b.Ducted mode (Fig 10.) The canopy rangehood has

been supplied with flexible flue pipe and duct transition
piece, alternatively a 150mm diameter non-combustible
flue pipe can be used. Continue the centre line to the
ceiling. Fit preferred flue pipe to the fan transition duct.
Use cable ties or suitable duct tape to secure flexible
pipe to the transition duct.

NOTE: For ducted mode, extend the flue pipe through
the roof to external ‘china hat’ to vent exhaust externally.
Do not vent into the ceiling cavity.

NOTE: To ensure optimum performance of the
rangehood, the use of rigid ducting is recommended.
The use of bends should be avoided. Rigid flexible
ducting is suitable, although loose flexible ducting is
unacceptable. All ducting must be fire retardant.

INSTALLATION

Fig. 7

Fig. 9 Fig. 10

Fig. 8

ceiling

235mm

580mm

25mm

270mm

250mm

36mm

Min. 650mm
Max. 800mm

• Recommended working heights

• Cover flue mounting bracket locations

• Telescopic cover flue fixing points

Fig. 6

250mm

User manual_CS910CS 28/11/2012

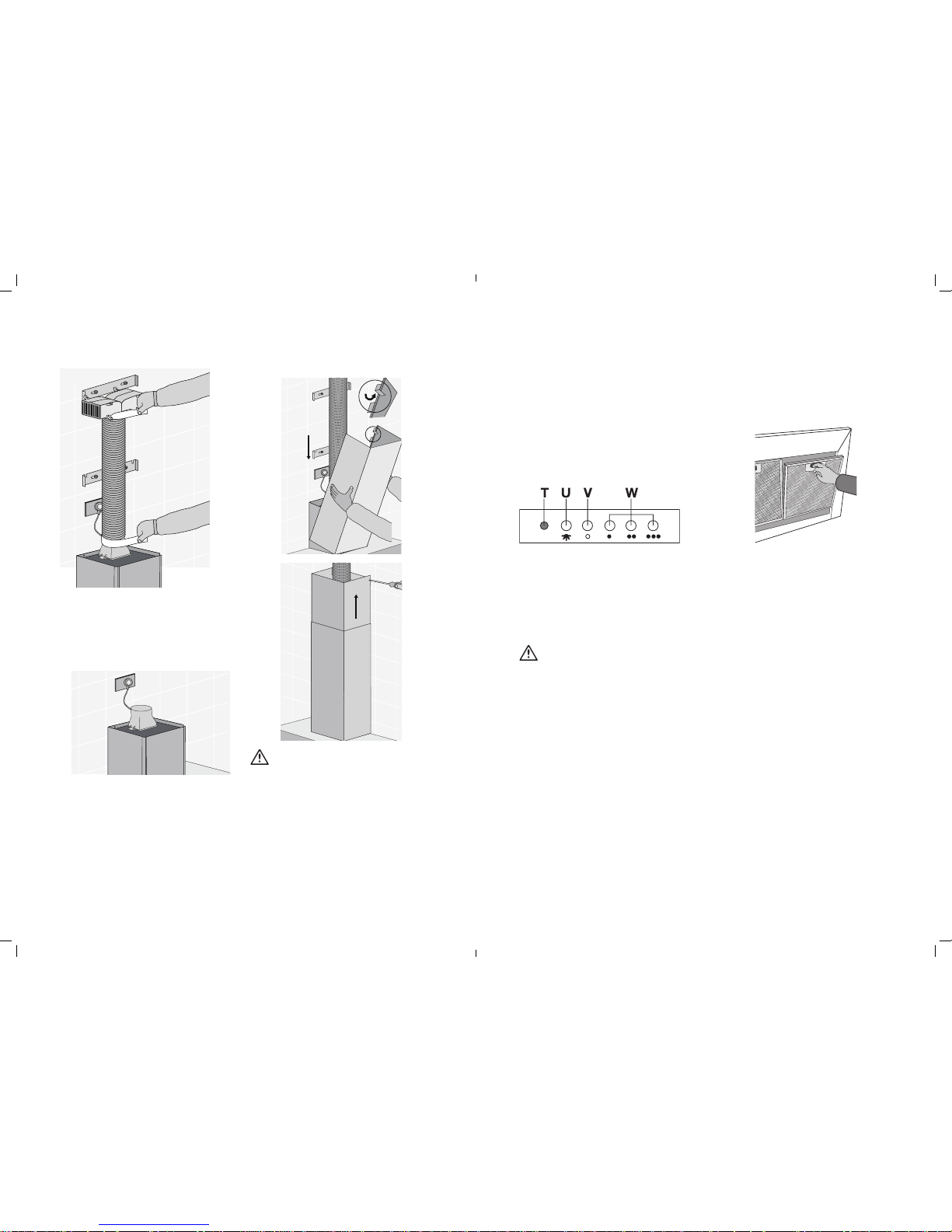

CAUTION

Care must be taken to ensure the screws are not cross threaded when
attaching the upper flue cover.

If installed in recirculating mode, insert the optional carbon

filter (included in recirculation kit AR910RK).

To complete the rangehood installation, insert the three
filters to the underside of the hood body. Place back edge
of filter into position and push up front edge so that the
filter clips into place.

Your Westinghouse rangehood is now ready to use.

INSTALLATION

7. Electrical connection

Check that the installation complies with the standards
of local building, gas and electrical authorities. Before
connecting to the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate
inside the rangehood.

Installation of telescopic flue covers

Separate the inner and outer flue covers, and carefully
remove the protective coating from both. Carefully
reassemble the upper and lower flue covers sections by
sliding the inner into the outer flue cover. Carefully lower
the assembled upper and lower flue covers onto the top
of the rangehood body, and insert the flue cover into the
rangehood body approximately 5mm. Fix upper flue cover
to the wall mounting bracket with screws supplied. Ensure
that the upper section is extended.

CONTROL PANEL

• Best results are obtained by using a low speed for

normal conditions and a high speed when odours are
more concentrated.

• Turn the hood on for a few minutes before you

start cooking.

• The hood should be left on for 15 minutes after cooking

or until all odours have dispersed.

• The control switches are located on the front panel of the

unit. See Fig. 12 below.

Fig. 12

• The control panel comprises of:

– T: Indicator lamp
– U: Light button
– V: Off button
– W: 3 control switches for the motor

(speed positions 1, 2, and 3)

CONTROL PANEL

Fig. 11

User manual_CS910CS 28/11/2012

CARE & MAINTENENCE

CAUTION

External surfaces are susceptible to scratches and abrasions, so
please follow the cleaning instructions to ensure the best possible
result is achieved without damage.

Cleaning the hood

• Clean the outside of the hood using a damp cloth and

a solution of water and mild washing up liquid. Clean
stainless steel surfaces using non-abrasive cleaning
products that are specifically for use on stainless steel.
To ensure best results also use an even pressure and
follow the grain of the stainless steel. Use of a soft cloth
reduces the risk of scratching. If the cloth is wet ensure
that a dry soft cloth is used to wipe down the surface
again reducing the risk of any surface rust appearing.

• Never use corrosive, abraisive or flammable cleaning

products or products containing bleach.

• Never insert pointed objects in the motor’s

protective grid.

• Only ever clean the switch panel and filter grill using a

damp cloth and mild washing up liquid.

• It is extremely important to clean the unit and change the

filters at the recommended intervals. Failure to do so will
cause grease deposits that could cause a fire.

Removing the metal grease filters

• Push the grease filter towards the back of the unit and

then pull it down and out.

Hand washing

Soak grease filters for about one hour in hot water with a
grease-loosening cleaner, then rinse off thoroughly with hot
water. Repeat the process if necessary. Refit the grease filters
when they are dry.

Dishwasher

Place grease filters in the dishwasher. Select the most
powerful washing program and highest temperature, at
least 65°C. Repeat the process. Refit the grease filters when
they are dry. When washing the metal grease filter in the
dishwasher a slight discolouration of the filter can occur, this
does not have any impact on it’s performance.

NOTE: The metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.

• Clean the inner housing using a hand hot solution only

(never use caustic detergents, abrasive powders or brushes).

Charcoal filter

• The charcoal filter should only be used if you want to use

the hood in the recirculation function.

• This filter cannot be cleaned or re-used and as a general

rule, the activated charcoal filter should be changed once
every four months.

Fitting the charcoal filter

Fit one charcoal filter on the left and one on the right so as
to cover the plastic grids that protect the fan wheel.

• Always specify the hood model code number and

serial number when ordering replacement filters. This
information is shown on the registration plate located on
the inside of this unit.

• Replacement charcoal filters can be ordered from your

local Service Centre.

CARE & MAINTENENCE

WARNING

IMPORTANT: The hood must always be disconnected from the
electricity supply before beginning any maintenenace work.

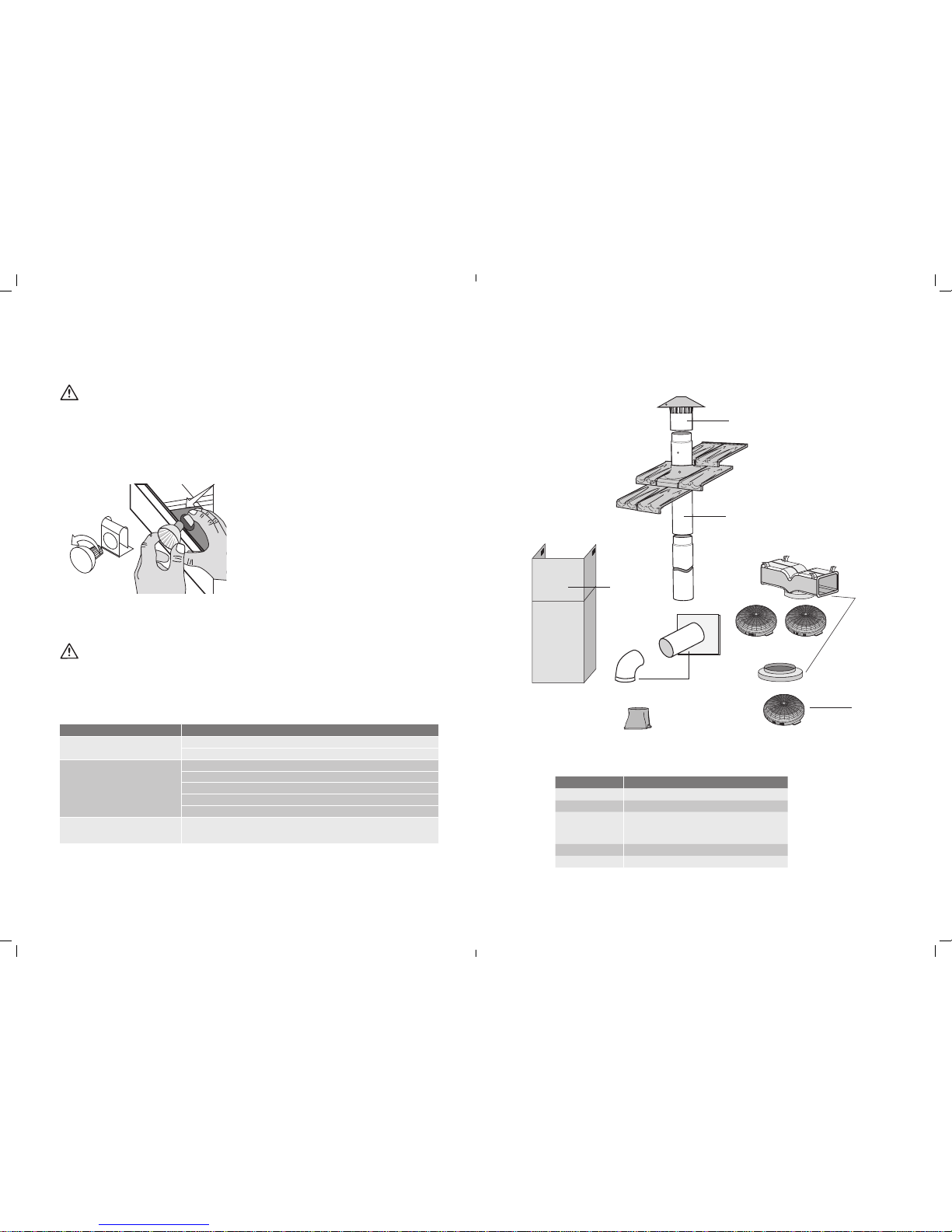

Changing the halogen lamps

If halogen lamps need replacing, they must be replaced by
lamps with an aluminium reflector, never dichronic lamps to
avoid unnecessary overheating in the lamp holders.

Ensure that the appliance is switched off before carrying
out maintenance to avoid any possibility of electric shock.

CAUTION

When handling lamps hold with a cloth or gloves to ensure perspiration
does not come into contact with the lamp as this can reduce the life of
the lamp.

User manual_CS910CS 28/11/2012

TROUBLESHOOTING GUIDE

PROBLEM REMEDY

The cooker hood will not start

Check that the hood is connected to an electrical supply

Check that a fan speed has been selected

The cooker hood is not working

Check that the fan speed is set high enough for the task

The grease filters are clean

The kitchen is adequately vented to allow the entry of fresh air

If set up for recirculation, check that the charcoal filter is still effective

If set up for extraction, check that the ducting and outlets are not blocked

The cooker hood has switched off
during operation

The safety cut-out device has been tripped – turn off the hob and wait for the device to reset.
If the hood has been installed below the heights indicated in the installation instructions the
motor will cut out frequently which will damage the hood

If you have completed all of the above checks and are still experiencing difficulty, please contact your local Electrolux
Service Centre.

AR150RC

AR150F

AR610CF

AR910RK

AR150WV

AR610FS

OPTIONAL DUCTING ACCESSORIES

Part Numbers Description

AR150RC 150mm G/Bond Roof Cowl
AR150F 150mm G/Bond Flue 1200mm
AR150WV 150mm Wall Vent & duct
AR910RK Recirculating Kit (150-120mm reducer,

T-piece & carbon filters
AR610CF Replacement carbon filter
AR610FS Stainless steel exhaust cover extension 1200mm

ACCESSORIESTROUBLESHOOTING

User manual_CS910CS 28/11/2012

This docum ent sets out the ter ms and condition s of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it w ith your proof of pur chase document s in a safe place for
future ref erence should you r equire servi ce for your Applian ce.

1. In this warranty

(a) ‘acceptable quality’ as referred to in c lause 10 of this warranty has the

same meaning refe rred to in the ACL;

(b) ‘ACL’ means Trade Practices Amendm ent (Australian Consumer

Law) Act (No.2) 2010;

(c) ‘Appliance’ mean s any Electrolux product purcha sed by you

accompanied by this document;

(d) ‘ASC’ means Electrolux’ author ised serviced centres;

(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163

O’Riordan Street, Masc ot, NSW 2020, ABN 51 004 762 341 in respect
of Appliances pu rchased in Australia and Elec trolux (NZ) Limited of 3-5
Niall Burgess Ro ad, Mount Wellington, in respect
of Appliances pu rchased in New Zealand;

(f) ‘major failure’ as referr ed to in clause 10 of this warranty has the sam e

meaning referre d to in the ACL and includes a situation wh en an
Appliance cannot be repaired or it is uneconomic for Electrolux, at its
discretion, to repair an A ppliance during the Warran ty Period;

(g) ‘Warranty Period’ me ans:

(i) where the Appliance is used for personal, domestic or household

use (i.e. normal single f amily use) as set out in the instruc tion
manual, the Applia nce is warranted against manu facturing defects
in Australia for 24 months and i n New Zealand for 24 months,
following the date of original purchase of the Appliance;

(ii) where the Appliance is used for commercial purposes (including

being used to directl y assist a business or where th e Appliance is
used in a multi-famil y communal or share type env ironment), the
Appliance will th en be warranted against manu facturing defects in
Australia for 3 months a nd in New Zealand for 3 months, followi ng
the date of original purc hase of the Appliance.

(h) ‘you’ means the purchaser of the App liance not having purchased th e

Appliance for re- sale, and ‘your’ has a correspond ing meaning.

2. This warranty on ly applies to Appliances pu rchased and used in Australia
or New Zealand and is i n addition to (and does not exclude, restri ct, or
modify in any way) any no n-excludable statutory war ranties in Australia or
New Zealand.

3. During the Warrant y Period Electrolux or its ASC wil l, at no extra charge
if your Appliance i s readily accessible for se rvice, without special
equipment and su bject to these terms and conditio ns, repair or replace
any parts which it c onsiders to be defective. Electr olux or its ASC may use
remanufactured p arts to repair your Applianc e. You agree that any replaced
Appliances or p arts become the proper ty of Electrolux. This warran ty does
not apply to light glob es, batteries, filters or simila r perishable parts.

4. Parts and Applia nces not supplied by Electrol ux are not covered by
this warranty.

5. You will bear the cost of transp ortation, travel and deliver y of the Appliance
to and from Electrolux o r its ASC. If you reside outside of the ser vice area,
you will bear the cost of:

(a) travel of an authori sed representative;

(b) transportation and de livery of the Appliance to an d from

Electrolux or its ASC,

In all instances, un less the Appliance is trans ported by Electrolux or an

Electrolux autho rised representative, the Appl iance is transported at the
owner’s cost and risk whi le in transit to and from Electrolux o r its ASC.

6. Proof of purchase is requ ired before you can make a claim unde r
this warranty.

7. You may not make a claim under this wa rranty unless the defect cl aimed
is due to faulty or defe ctive parts or workmanshi p. Electrolux is not liable in
the following situati ons (which are not exhaustive):

(a) the Applianc e is damaged by:

(i) accident

(ii) misuse o r abuse, including failure to prope rly maintain or servic e

(iii) norma l wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infe station

(viii) failure to comply with any additional instructions supplied with the

Appliance;

(b) the Appliance is modified without authority from Electrolux in writing;

(c) th e Appliance’s serial number or war ranty seal has been remove d

or defaced;

(d) the Appliance was ser viced or repaired by anyone othe r than

Electrolux, an auth orised repairer or ASC.

8. This warranty, the contra ct to which it relates and the relation ship between
you and Electrolux a re governed by the law applicable w here the Appliance
was purchased. Whe re the Appliance was purchase d in New Zealand for
business purposes the Consumer Guarantee Act does not apply.

9. To the extent permitted by law, Electro lux excludes all warranties an d
liabilities (other than as contained in this document) including liability for
any loss or damage wh ether direct or indirect ari sing from your purchase,
use or non use of the Appliance.

10. For Appliances a nd services provided by El ectrolux in Australia,
the Appliances c ome with a guarantee by Electrolu x that cannot be
excluded under the Au stralian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance re paired or replaced if the App liance fails to be of
acceptable qual ity and the failure does not am ount to a major failure.
The benefits to you given by t his warranty are in addition to your ot her
rights and remedi es under a law in relation to the Appli ances or services
to which the warrant y relates.

11. At all times during the Warran ty Period, Electrolux shall, at i ts discretion,
determine whethe r repair, replacement or refund will a pply if an Appliance
has a valid warrant y claim applicable to it.

12. For Appliances an d services provided by Ele ctrolux in New Zealand, the
Appliances co me with a guarantee by Electrolux p ursuant to the provisions
of the Consumer Gua rantees Act, the Sale of Goods Act and th e Fair
Trading Act.

13. To enquire about cl aiming under this warranty, plea se follow these steps:

(a) carefully check the operating i nstructions, user manual an d the terms

of this warranty;

(b) have the model and seri al number of the Appliance avai lable;

(c) have the proof of purcha se (eg an invoice) available;

(d) telephone the numbers shown below.

14. You accept that if you make a warran ty claim, Electrolux and its ASC m ay
exchange informatio n in relation to you to enable Electrolu x to meet its
obligations unde r this warranty.

Important Notice

Before calling for service, please ensure that the steps listed in point 13 above have been followed.

FOR SERVICE

or to find the address of your nearest

state service centre in Australia

PLEASE CALL 13 13 49

For the cost of a local call (Australia only)

SERVICE AUSTRALIA

ELECTROLUX HOME PRODUCTS

www.electrolux.com.au

FOR SPARE PARTS

or to find the address of your nearest

state spare parts centre in Australia

PLEASE CALL 13 13 50

For the cost of a local call (Australia only)

FOR SERVICE

or to find the address of your nearest

authorised service centre in New Zealand

FREE CALL 0800 10 66 10

(New Zealand only)

SERVICE NEW ZEALAND

ELECTROLUX HOME PRODUCTS

www.electrolux.co.nz

FOR SPARE PARTS

or to find the address of your nearest

state spare parts centre in New Zealand

FREE CALL 0800 10 66 20

(New Zealand only)

GRH_Warr_Apr11

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: RANGEHOOD

AUSTRALIA

phone: [phone]
fax: [phone]
email: [e-mail]
web: www.electrolux.com.au

NEW ZEALAND

phone: [phone]
fax: [phone]
email: [e-mail]
web: www.electrolux.co.nz

For more information on all appliances,
or for dimension and installation information, call into your retailer,
phone or email our customer care team or visit our website:

TOP SERVICE

Top Service encompasses the after sales service
provided by The Electrolux Group to consumers
including delivery, home service and spare parts.

Part number: 342-1-596 Rev A

© 2012 Electrolux Home Products Pty Ltd
ABN 51 004 762 341
Print code: CS910CS_ Nov12
