Electrolux Concept Counters 728511, 728543, HB3P2CU, HB4PU Specifications

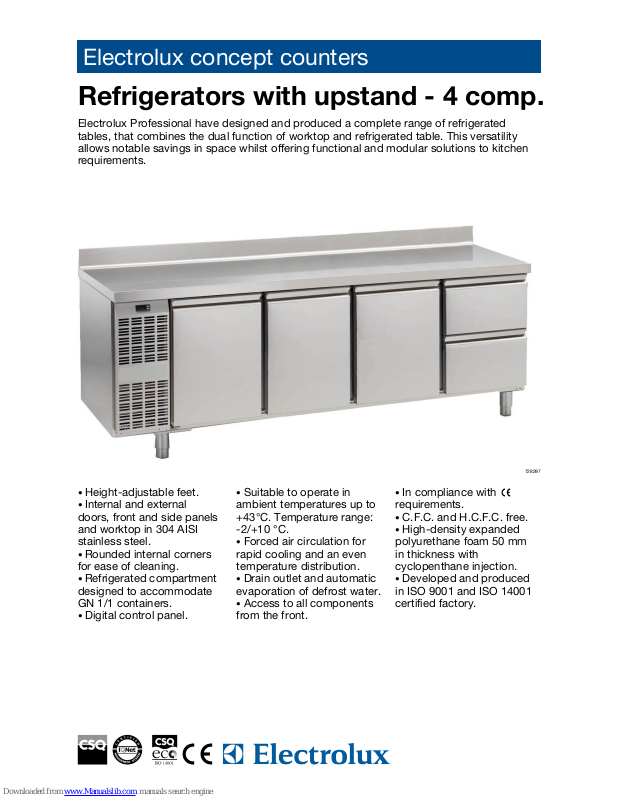

Electrolux concept counters

Refrigerators with upstand - 4 comp.

Electrolux Professional have designed and produced a complete range of refrigerated
tables, that combines the dual function of worktop and refrigerated table. This versatility
allows notable savings in space whilst offering functional and modular solutions to kitchen
requirements.

728297

• Height-adjustable feet.

• Internal and external

doors, front and side panels
and worktop in 304 AISI
stainless steel.

• Rounded internal corners

for ease of cleaning.

• Refrigerated compartment

designed to accommodate
GN 1/1 containers.

• Digital control panel.

• Suitable to operate in

ambient temperatures up to
+43°C. Temperature range:

-2/+10 °C.

• Forced air circulation for

rapid cooling and an even
temperature distribution.

• Drain outlet and automatic

evaporation of defrost water.

• Access to all components

from the front.

• In compliance with H

requirements.

• C.F.C. and H.C.F.C. free.

• High-density expanded

polyurethane foam 50 mm
in thickness with
cyclopenthane injection.

• Developed and produced

in ISO 9001 and ISO 14001
certified factory.

Electrolux concept counters

Refrigerators with upstand - 4 comp.

Internet: http://www.electrolux.com/foodservice

HBAC1002010-05-28Subject to change without notice

STRUCTURE TO SUPPORT 3 GRIDS(RIGHT+LEFT) 880047 880047

S/S STRUCTURE TO SUPPORT 6 GRIDS (R+L) 880140 880140

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457

LOCK KIT FOR REFRIGERATED TABLES 880130 880130

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205

KIT HACCP EKIS 922166 922166

KIT DOOR REVERSIBILITY FOR REF.TABLES 880046 880046

KIT 4 WHEELS (2 W/BRAKE)+4 (40MM)SPACERS 880025 880025

KIT 2 S/S GRIDS GN1/1 FOR REFRIG.TABLES 880139 880139

DRAWER KIT-1/3+2/3 (BOTTLES)-REF.TABLES 880126 880126

3x1/3 DRAWER KIT FOR REFRIGERATED TABLES 880115 880115

2x½ DRAWER KIT FOR REFRIGERATED TABLES 880118 880118

ACCESSORIES

1/1 GN GREY "RILSAN" GRID 4 3

INCLUDED ACCESSORIES

Power supply - V, phases, Hz 230 V, 1N, 50 230 V, 1N, 50

Net weight - kg. 187 191

installed-electric 0.34 0.34

Power - kW

at evaporation temperature - °C -20 -20

Refrigerant power

Refrigeration power - W 343 343

Refrigerant quantity - g. 210 210

Refrigerant type R404a R404a

N° defrost in 24 hrs. 4/20 4/20

Compressor power - HP 1/4 1/4

Door hinges 2 Left+2 Right 2 Left+1 Right

Door - n. 4 3

N° of drawers 2x1/2

Min/Max internal humidity - % 57 57

Upstand ● ●

height 543 543

depth 580 580

Internal dimensions - mm

height 950 950

depth/with open doors 700, 1102 700, 1102

width 2204 2204

External dimensions - mm

Cooling unit Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 560 560

Operating mode Ventilated Ventilated

Operating temperature - min/max °C -2/10 -2/10

TECHNICAL DATA

HB4PU
728511

HB3P2CU

728543

Electrolux concept counters

Refrigerators with upstand - 4 comp.

Internet: http://www.electrolux.com/foodservice

HBAC1002010-05-28Subject to change without notice

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50

D - Water drain 18mm 18mm

LEGEND

HB4PU
728511

HB3P2CU

728543

728511, 728543
