We have developed the Plug&Cook Combi Oven
to enable you to satisfy these criteria with ease.
Have a good meal!
Page 3
Compact Combi Oven - 3
5958 986 00
UK
Table of contents
Description of your Plug&Cook Combi Oven.........................................................................4
Safety instructions....................................................................................................................6
Functions and settings..............................................................................................................8
Before each use......................................................................................................................10
Cooking problems and solutions............................................................................................11
Cleaning.................................................................................................................................12
Assembly and disassembly of internal parts..........................................................................12
Technical data.........................................................................................................................13
Installation diagram................................................................................................................14
INSTRUCTIONS FOR USE
Compact Combi
Oven
UK
The symbol L on the product indicates that this product should not be treated as domestic waste, but must be
correctly disposed of in order to prevent possible negative consequences for the environment and the human health.
Regarding the recycling of this product, please contact the sales agent or dealer of your product, your after-sales
service or the appropriate waste disposal service.
Page 4
4 - Compact Combi Oven
5958 986 00
UK

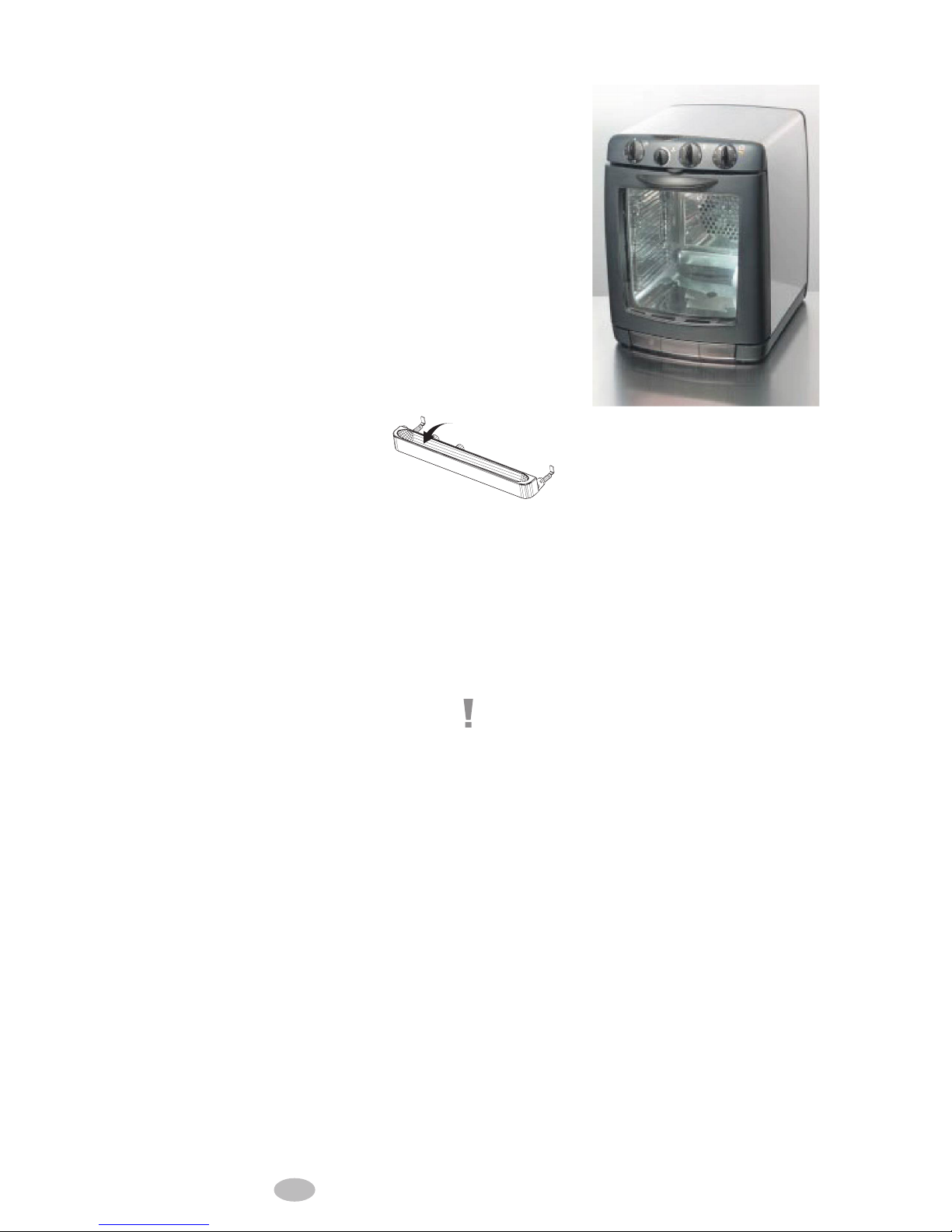

Description of your Plug&Cook Combi Oven
General view
Control panel
Oven door with
closing latch
Water tank with
integratedhandle
Control panel
Cool down
Ventilation hole
Low steam
Max steam
Convection
heat
Combi
cooking
1/2 open
Closed
Manual
position
Function
control
Ventilation
control
Temperature
control
Timer
control
Chimney
Oven light
Back plate
Runners
Steam generator
Water drainage
Important:
The rubber element in this hole
must not be removed or damaged
under any circumstances!
Oven interior
Level 5
Level 4
Level 3
Level 2
Level 1
Parte finale rimovibile
Important:
This element must always be
in its initial location before
switching on the appliance!
Open
Page 5
Compact Combi Oven - 5
5958 986 00
UK
Never pour water into this
part
Fresh water
The water level must
neverexceed this mark
Water tank
Lid of tank
Positioning the tank fitted with its lid
Fresh water filler cap
Water recovery port
Engage the tank fitted with its lid into this recess. Firm pressure is
required over the last centimetre to push it fully home. When you feel
that the tank cannot go any further, it is in its operating position.
Location of the tank.
The ends of the tank must not protrude beyond the external parts of the
oven base.
Page 6
6 - Compact Combi Oven
5958 986 00
UK
Safety instructions
Read these instructions carefully and put them in a safe place. They are designed to help you make optimum
use of your oven. You must in particular comply with the safety recommendations, which are indicated by an
exclamation mark
.Your appliancehas been designed to cook foodstuffs only and for no other purpose. It
complies with international safety standards. Nevertheless,the existing safety measures do not exclude the risk
of an accident.
Electrical safety
The oven must be connected to an earthed power socket
via a fuse with a minimum rating of 13 amps.Check that
the outlet cable and plug are in good condition before
connecting it.
If your oven displays any defect whatsoever, we
recommend that you do not use it.
Disconnect the appliance from the power socket or remove
the fuse or cut off the switch/breaker of the circuit to which
it is connected.
If you encounter operating problems, refer in priority to
the ‘‘Recommendations and tips”section of this document.
If the problem persists, contact our Technical Service. Do
not attempt to repair the appliance yourself, as this could
lead tomore problems.
Preventing toppling
Place the appliance on a flat surface.
Never rest a weight of more than 3 kg on the opened
oven door.
Children
The front of your oven gets hot during operation and
cleaning, therefore keep children away from it.
When the oven door is open:
· Do not place a heavy weight on it (3 kg maximum).
· Make sure that a child cannot climb or sit on top
of it, or pull the handle.
Utilization
Take care not to touch the oven surfaces or cooking
accessories with the bare hands when placing dishes in or
removing them from the oven, always wear ovengloves.
Do not place or stick anything on the external surfaces of
the appliance when the oven is operating or has just been
used.
Never leave the oven door open when the oven isstill hot,as
this risks damaging the controls.
If you have another electrical appliance near your oven
(e.g.an electric food mixer), make sure there is no risk of
its power cable coming into contact with a very hot surface
which could melt it,or of it being jammed in the oven door.
Take care not to catch your fingers in the door
if you release the handle while it is still open.
Before opening the doors, check that the water
tank is in its proper position.

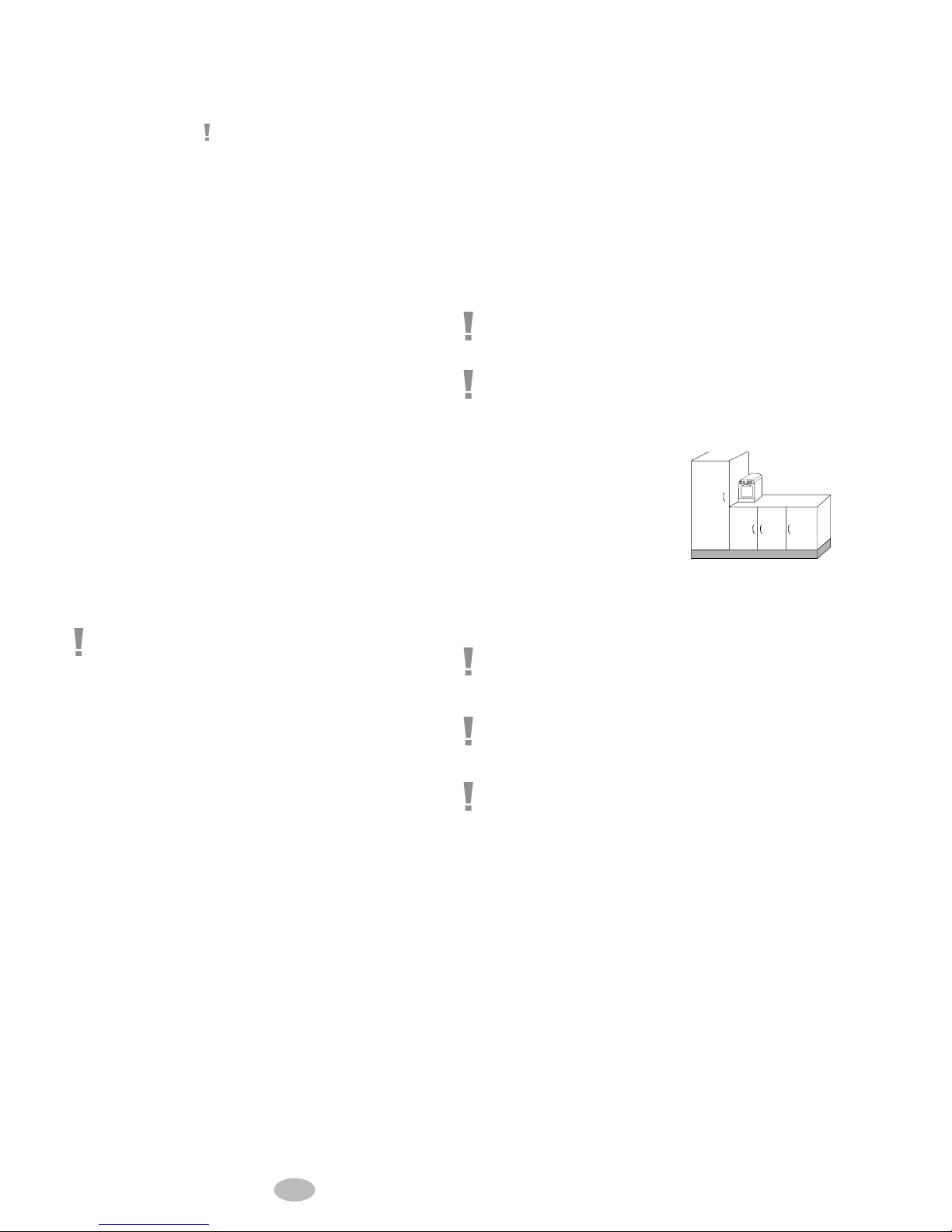

Position of the oven
Make sure that no more
than two of the oven
surfaces are covered.
Cleaning
Before cleaning your oven by hand, make sure that the
internal surfaces are sufficiently cool.
We advise against using high-pressure steam
appliances to clean the oven (for reasons of
electrical safety).
You must never clean your oven with
a water hose.
You must never clean the water tank and its
lid in a dishwashing machine.
Page 7
Compact Combi Oven - 7
5958 986 00
UK
Cooking accessories
Apart from the cooking accessories provided with your oven, we recommend that you only use dishes and
cake tins that can withstand high temperatures (follow the manufacturers’ instructions).
Before using your oven for the first time
Initial cleaning
Remove the cooking accessories and wash them in
soapy water, then rinse and dry them thoroughly.
Switching the oven on for the first
time
Remove the plastic film protecting the outer
stainless steel surface of the oven.
Heat up the oven with nothing in it before using it for
the first time.When doing this, check that the room
is sufficiently aired by switching on the fan and opening
the window.
Do not worry if the water in the steam generator
boils strongly during this heating up process.

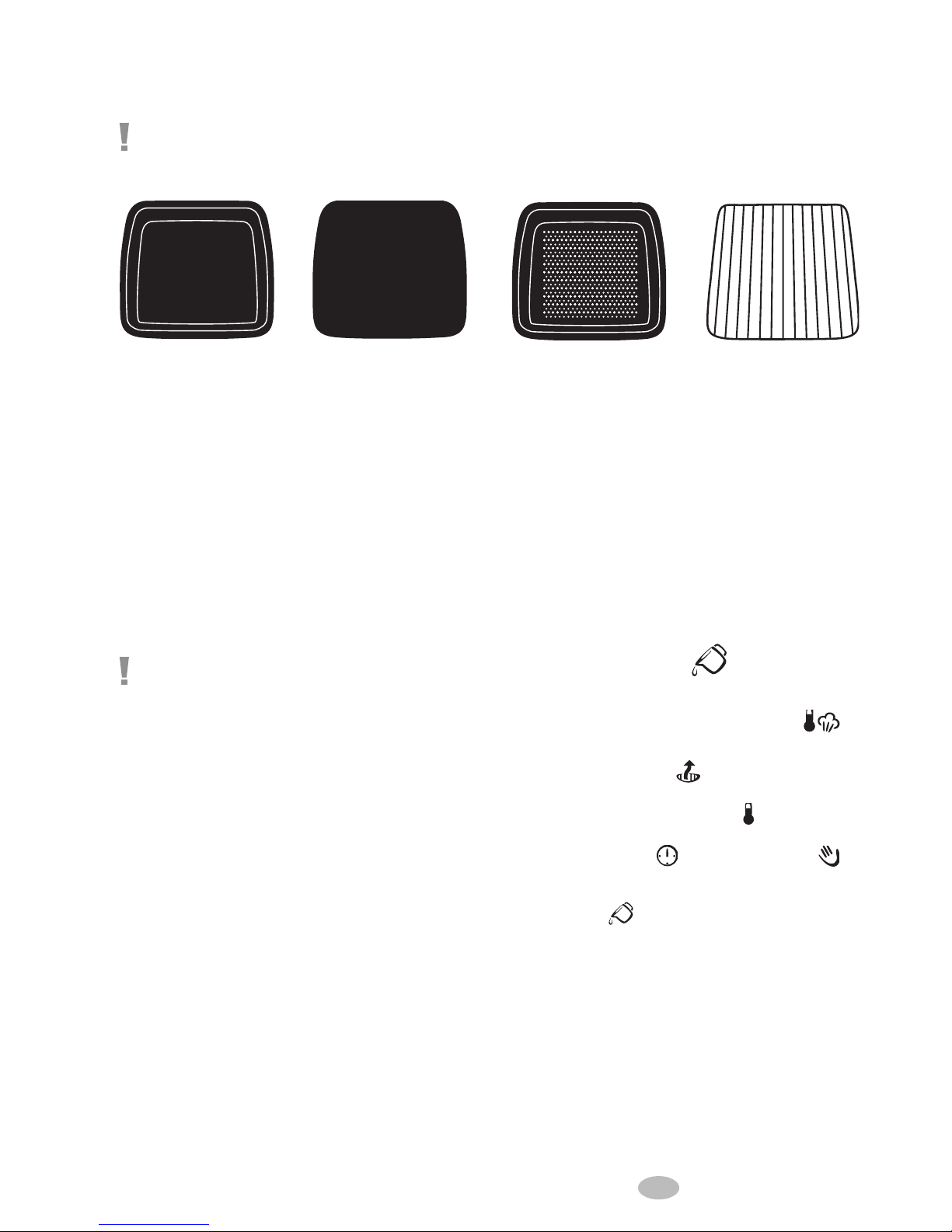

2 plain containers 3 baking plates 2 perforated containers 3 wire grids
Instructions
1 Remove all the cooking accessories from the oven.
2 Plug in the oven.
3 Fill the “fresh water” part of the tank with
100 cl of tap water.
4 Select the “Combi cooking” function
with the first control knob.
5 Set the ventilation to the fully open position.
6 Set the temperature control to 200°C.
7
Set the “Timer” scontrol to manual
8 When the water tank is empty, fill it with 100 cl
of water and reinstall it without changing the
settings.
9 Your oven is ready for use once the water tank
has been emptied again.
Page 8
8 - Compact Combi Oven
5958 986 00
UK
Functions and settings
Cooking functions
Max steam
The steam temperature is above98°C. This
rapid method of cooking featuring all the
necessary precautions is particularly sui-
ted to the majority of foodstuffs cooked
in water. The foodstuffs conserve their vitamins as
well as their shape and colour.This method is used
above all for vegetables and potatoes.
The food can be cooked just as well in the plain
containers as in the perforated containers.
Low steam
The steam temperature is about 85°C. Low
steam is a combination between high humidity
and precise temperature control. This method
protects the dishes while conserving their
mineral salts and vitamins, as well as their taste, form and
colour. Low steam means slow even cooking. Foodstuff
weight loss is kept to a minimum.This method of cooking
is ideal for fish and pâtés, warming up meat dishes, and
also for heating up “vacuumpacked” products.
Combi cooking
The steam temperature is about 85°C. Low
steam is a combination between high humidity
and precise temperature control. This method
protects the dishes while conserving their
mineral salts and vitamins, as well as their taste, form and
colour. Low steam means slow even cooking. Foodstuff
weight loss is kept to a minimum.This method of cooking
is ideal for fish and pâtés, warming up meat dishes, and
also for heating up “vacuumpacked” products.
Convection heat
This method is suitable for roasting. You
can also use it to cook fillets of fish and
meat, cutlets, pâtés, potato dishes, gratins,
cakes and biscuits.
Cooling function
This function is meant to be used when you want
to switch from one cooking process (Convection
heat or Combi) to another one at a much lower temperature (Low and Max steam).When you select this function
then only the fan will be on and not the heating elements.This
will enable the oven cavity temperature to cool down rapidly to
a suitable temperature for heat sensitive foods (vegetable or
fish). Make sure the ventilation control is set to the fully open
position. If you want to speed up this cooling process even more,
leave the door open while this function is selected.
Page 9
Compact Combi Oven - 9
5958 986 00
UK
It is as simple as that
The Plug & Cook Combi Oven is very simple to use.
You only have 4 settings to think about:
• The cooking function
• The ventilation
• The temperature
• The time

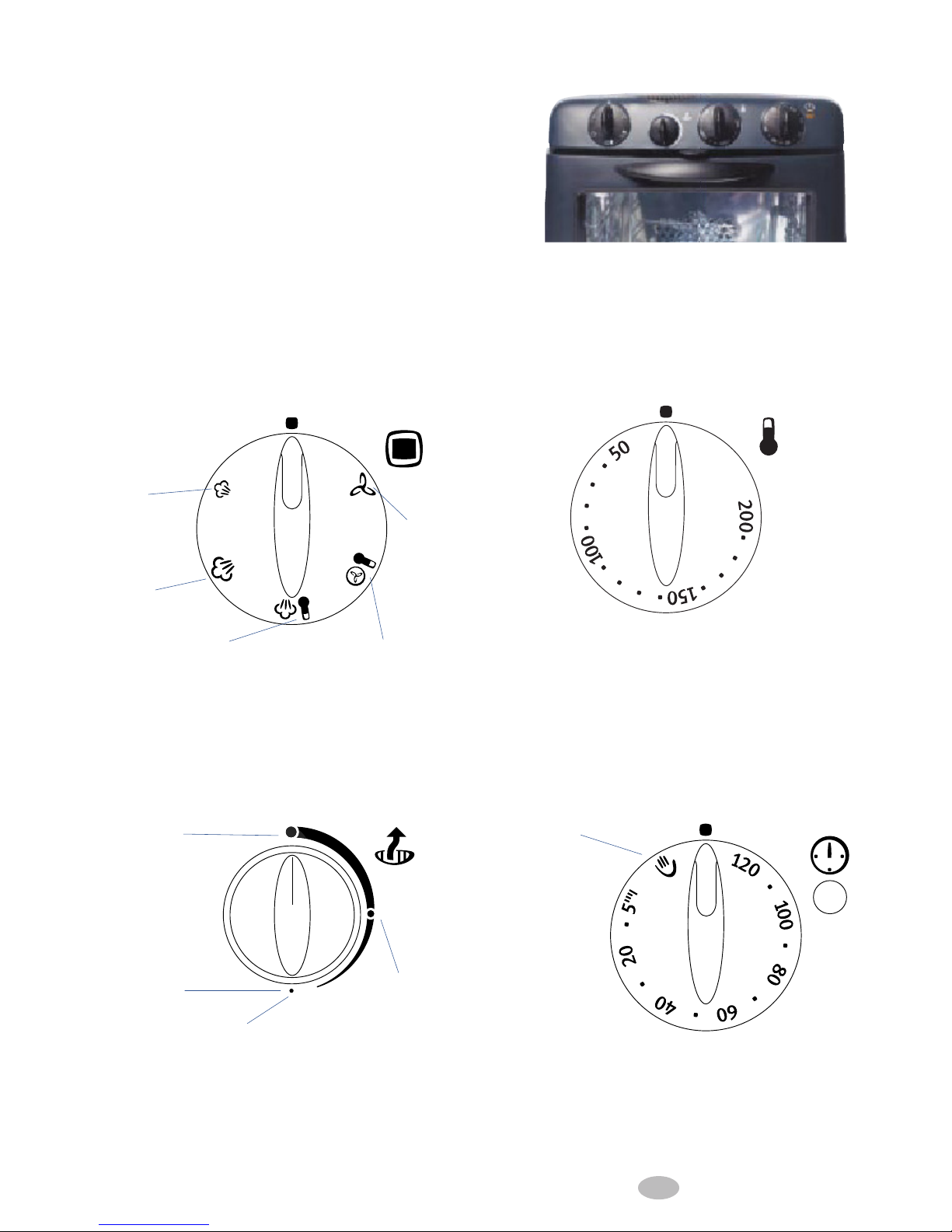

Setting the main functions
Setting the temperature
Setting the ventilation
Setting the timer
Low
steam
Max
steam
Combi
cooking
Cool
down
Convection
heat
Open
Closed
1/2 open
Important:
• Never select this position in “Combi cooking”
or “Convection heat” mode!
• Even if this position is selected, it is normal to
see a slight discharge of steam at the ventilation
hole on the panel.
The temperature is set using the thermostat knob.Turn it
clockwise to the desired temperature.
Manual position
Simply turn the knob clockwise to the desired
cooking duration.
Setting the ventilation
Page 10
10 - Compact Combi Oven
5958 986 00
UK
Before each use
Choice of accessory
The choice of cooking accessory is of great importance for
successful cooking.The wrong cooking accessory can cause
irregular heat distribution within the preparation itself or
within the oven. Save your ovenproof glass dishes for
cooking gratins and soufflés.
Certain food preparations increase in volume during
cooking, in such cases choose containers that leaves the
top third free.
The thickness, heat conductivity and colour of the
receptacles affect cooking results.
Even distribution of the ingredients in
the cooking accessory
Distribute the ingredients evenly in the cooking
container.To ensure even cooking, it is important that the
hot air and steam should be able to circulate freely among
the ingredients.
Steam
You can cook in either the non-perforated or the perforated
cooking accessories.With fish dishes, you should use a nonperforated accessory in order to be able to use the fish
stock.When cooking vegetables and potatoes it is preferable
to use the perforated accessories.
We advise you to season your dishes before cooking and
to check the seasoning after cooking.
Small cooking dishes
When using small dishes such as gratin dishes, better results
are obtained if they are laid on a wire grid.
General recommendations
Always place food that spatters in the bottom of the oven.
Leave as little lard in the pan as possible to reduce spattering
and obtain a dish with less fat in it.
To save time and energy, take advantage of the hot oven to
cook other dishes.
If you find that your dish is too dark in colour, reduce the
temperature.
If you find that your dish is too light in colour, not well
enough cooked, or is cooking too slowly, increase the temperature.
Each time before use
The technology implemented in the Plug&Cook Combi
Oven gives you a vast range of possibilities. We are making
our latest innovation available to you. Your culinary success
depends essentially on the quality of the ingredients used!
You need to experiment to get the best results using the
possibilities and qualities offered by this appliance.
Below are a few instructions to be followed before
switching on the oven.
Verification
Check that all the parts are operational. Always fill the water
tank with water before cooking, except when in
“Convection heat” mode.
In “Combi” and “Convection heat” mode make sure that
the ventilation is open. Check that the door-locking latch
is properly engaged before starting cooking.
Preheating
It is sometimes necessary to preheat the oven before
cooking certain dishes (see the Cooking guide
and Recipes).
The oven heats up and as soon as it reaches the selected
temperature the preheating indicator light goes out and you
can put your dish into the oven.
Page 11
Compact Combi Oven - 11
5958 986 00
UK
Cooking problems and solutions
We strongly recommend that you check the following points before calling our technician.
The problem might be a very simple one that you can solve yourself.
Problem
The oven does not function
The cooking results are unsatisfactory
Potatoes or green vegetables take an
abnormally long time to cook
Fish dishes break up
Irregular roasting results
Roasting surface dry and hard,
too browned
Irregular cooking results
Pastries brown too quickly
Correct colouring in the corners but too
light in the middle
The oven does not produce steam
In combi cooking mode, meats and
pastries become too brown
Preparations that should rise “do not rise”
or rise then fall
White meat dishes are too dry
Cause
Ventilation open
Type of potato
Temperature too high
Cooking accessory of inappropriate depth
Wrong ventilation setting
Oven not preheated
Temperature too high
Ill-adapted cooking accessories
Cooking accessory filled too full
Temperature too high
Incorrect ventilation setting
Ventilation open
Lack of water
Ventilation closed
Temperature too high
Ventilation closed
Dish at too low a level
Wrong cooking function
Solutions
Check that:
– the fuses are intact
– the oven is correctly connected
to the power supply
– there is not a power failure
– the oven door is properly closed
Check that:
– the preheating temperature and time
are correct
– the correct cooking function has been
chosen
– the temperature setting is correct
– the chosen cooking time is correct
– the grill or other cooking accessory
is correctly positioned in the oven
– the appropriate cooking container
is being used
– the ventilation knob is correctly set
Close the ventilation
No solution to offer
Certain types of potatoes take longer
to cook than others
Use the Low steam function
See “Recommendations and tips”
See “Recipes” or “Cooking guide”
Preheat oven before putting in the dishes
See “Recipes” or “Cooking guide”
Reduce the temperature. See “Recipes”
or “Cooking guide”
See “Recommendations and tips”
See “Recommendations and tips”
Reduce the temperature. See
“Recipes” or “Cooking guide”
See “Recommendations and tips”
Close the ventilation
Put water in the tank
Open the ventilation
Reduce the temperature
Open the ventilation
Move the dish up a level
Choose another function. See “Recipes”
or “Cooking guide”
Page 12
12 - Compact Combi Oven
5958 986 00
UK
Cleaning
General cleaning recommendations
The outside of the oven, the water tank and its lid must
only be cleaned with a sponge and soapy water. Rinse
thoroughly and dry.
We recommend that you do not use scouring cream.You
can clean the oven interior with a multipurpose cleaning
product.
The cooking accessories can be cleaned with a sponge and
soapy water, taking care to thoroughly rinse and dry them,
or they can be washed in a dish-washing machine.
Cleaning the steam generator
1 Pour a cleaning product (e.g. vinegar) directly into
the steam generator.
2 Leave it to act for 45 minutes.
3 Wipe the cavity and generator with a cloth.
Assembly and disassembly of internal parts
The chimney
1 The chimney is situated in the top of the cavity and
must be cleaned regularly.To remove it, simply turn
the screws anticlockwise using a coin.
2 You can wash the chimney in a dishwasher or with a
sponge soaked in soapy water. Put it back in place
after cleaning it.
Runners
1 Unscrew the screws in the front upper corner of each
runner and remove them.
2 Reinstall the runners in the reverse order of disas-
sembly.
Back plate
1 Remove the screw in the front upper part of the back
plate.
2 Lift and slide the back plate to remove it.
3 Reinstall the back plate in the reverse order of
removal.
Replacing the oven light
Before replacing the oven light, disconnect the oven
from the electrical power supply and check that the
interior is cool.
The 15W bulb is a special bulb that withstands high
temperatures.The bulb is located at the top of the oven
cavity and is accessible from the interior.
Access to the bulb
1 Unscrew the glass cover of the light by turning it
anticlockwise.
2 Unscrew the bulb.
3 Screw in the new bulb.
4 Screw the glass cover firmly back in place.
Vinegar
Page 13
Compact Combi Oven - 13
5958 986 00
UK
Cooking functions Convection heat, Steam cooking, Low temperature
steam, Combined steam/Convection heat
Electrical power supply 240 V 50 Hz
(200 V 50 Hz or 200 V 60 Hz, JAPAN version)
Power supply cord Power supply lead must only be replaced by
an authorised electrical installation engineer.
Power consumption
Steam 765 W (700 W JAPAN version)
Combined 2235 W (2050 W JAPAN version)
Convection heat 1470 W (1350 W JAPAN version)
Maximum consumption 2350 W (2150 W JAPAN version)
Oven lighting 15 W (15 W JAPAN version)
Dimensions
Height 466 mm
Width 352 mm
Depth 548 mm (900 mm with door open)
Net weight 22 kg
Effective volume 30 litres
Water tank
Capacity of “fresh water” section 1 litre
Capacity of “recovered water” section 0,55 litre
Supply cord as:
H05VV-F3G1.5
Technical data
Supply cord as:
H05VV-F3G2
L1 L2
JAPAN version
Page 14
14 - Compact Combi Oven
5958 986 00
UK
597832401

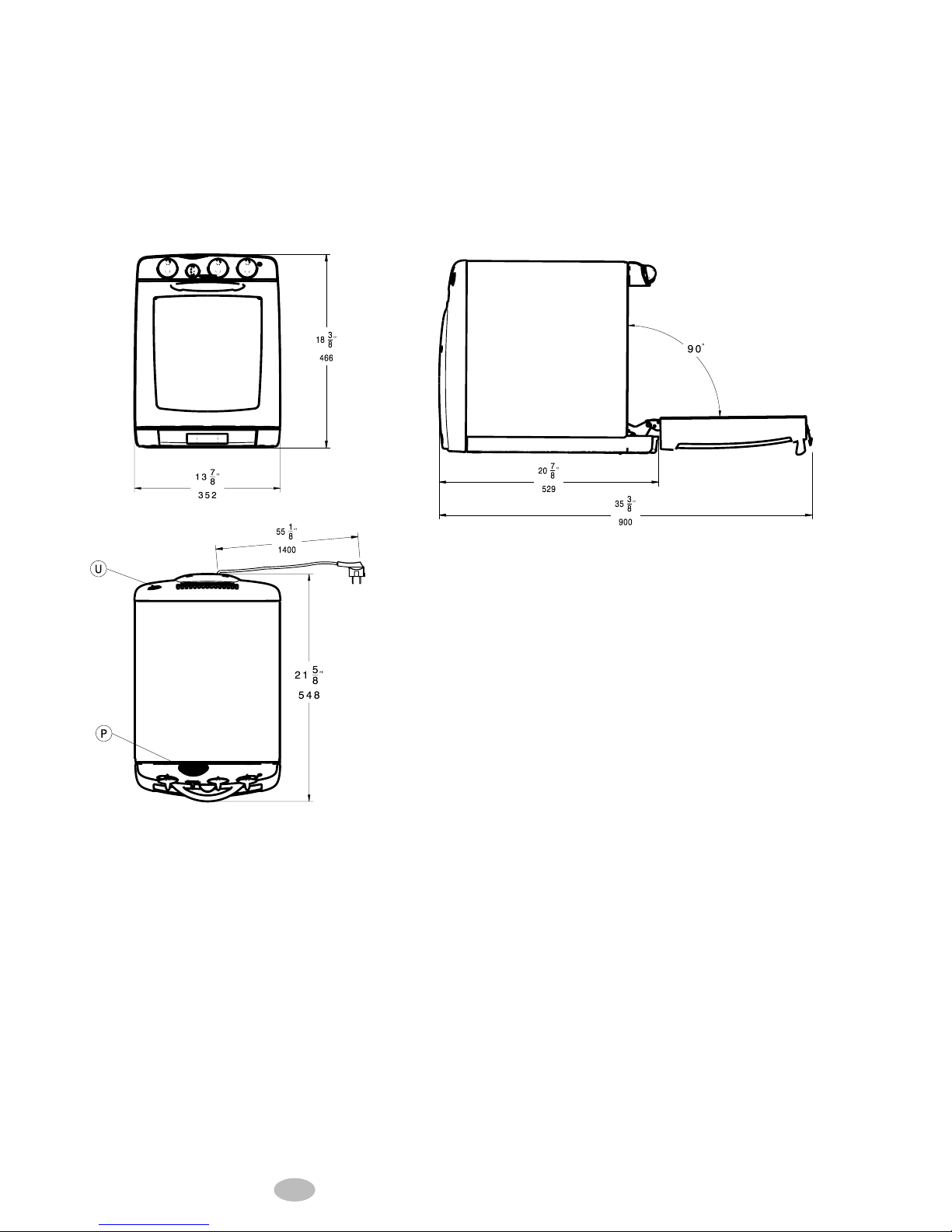

Installation diagram
U - Air intake
P - Fumes outlet
Page 15
Compact Combi Oven - 15
5958 986 00
UK
NO TEXT ON THIS PAGE
Page 16
5958 986 00 - (0511)
The Manufacturer reserves the right to modify the appliances presented in this publication without notice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux products (such as refrigerators,
cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each
year to a value of approx. 14 billion USD in more than 150 countries around the world.
Loading...
