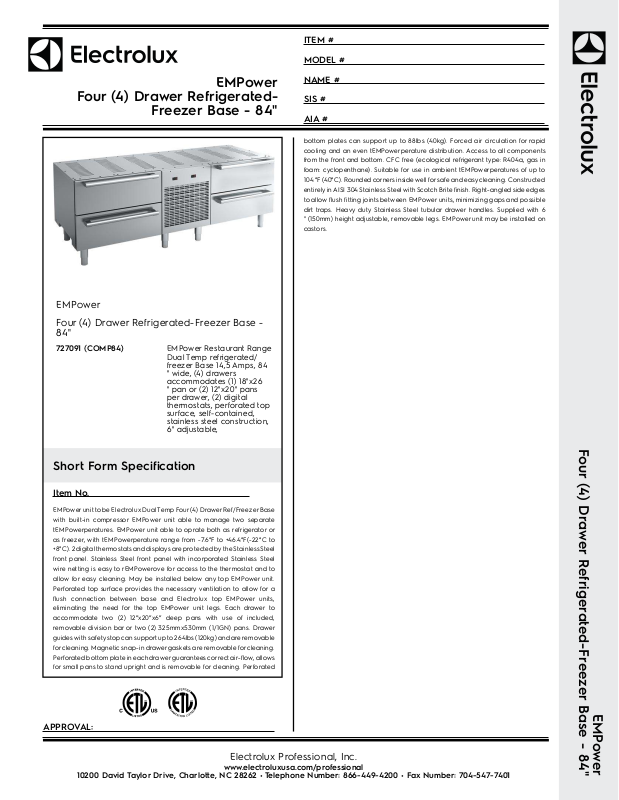

Electrolux COMP84 User Manual

ITEM #

MODEL #

EMPower

Four (4) Drawer Refrigerated-

Freezer Base - 84"

EMPower

Four (4) Drawer Refrigerated-Freezer Base ­84"

727091 (COMP84)EMPower Restaurant Range

Dual Temp refrigerated/
freezer Base 14,5 Amps, 84
" wide, (4) drawers
accommodates (1) 18"x26
" pan or (2) 12"x20" pans
per drawer, (2) digital
thermostats, perforated top
surface, self-contained,
stainless steel construction,
6" adjustable,

NAME #

SIS #

AIA #

bottom plates can support up to 88lbs (40kg). Forced air circulation for r apid
cooling and an even tEMPowerperature distribution. Access to all components
from the front and bottom. CFC free (ecological refrigerant type: R404a, gas in
foam: cyclopenthane). Suitable for use in ambient tEMPowerperatures of up to
104 °F (40°C). Rounded corners inside well for safe and easy cleaning. Constructed
entirely in AISI 304 Stainless Steel with Scotch Brite finish. Right-angled side edges
to allow flush fitting joints between EMPower units, minimizing gaps and possible
dirt traps. Heavy duty Stainless Steel tubular dr awer handles. Supplied with 6
" (150mm) height adjustable, removable legs. EMPo wer unit may be installed on
castors.

Four (4) Drawer Refrigerated-Freezer Base - 84"

Short Form Specification

Item No.

EMPower unit to be Electrolux Dual Temp Four ( 4) Drawer Ref/Freezer Base
with built-in compressor EMPower unit able to manage tw o separate
tEMPowerperatures. EMPower unit able to oprate both as refrigerator or
as freezer, with tEMPowerperature range from -7 .6 °F to +46.4°F(-22°C to
+8°C). 2 digital thermostats and displays are protected by the StainlessSteel
front panel. Stainless Steel front panel with incorporated Stainless Steel
wire netting is easy to rEMPowerove for access to the thermostat and to
allow for easy cleaning. May be installed below any top EMPower unit.
Perforated top surface provides the necessary ventilation to allow for a
flush connection between base and Electrolux top EMPower units,
eliminating the need for the top EMPower unit legs. Each dr awer to
accommodate two (2) 12”x20”x6” deep pans with use of included,
removable division bar or two (2) 325mmx530mm (1/1GN) pans. Drawer
guides with safety stop can support up to 264lbs (120kg) and are removable
for cleaning. Magnetic snap-in drawer gaskets are removable for cleaning.
Perforated bottom plate in each drawer guarantees correct air-flow, allows
for small pans to stand upright and is removable for cleaning. Perforated

APPROV AL:

Electrolux Professional, Inc.

www.electroluxusa.com/professional

10200 David T aylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401

EMPower

Main Features

•Four Drawer Refrigerated/Freezer Base with built-in

compressor unit able to manage two separate
temperatures.

•Unit able to oprate both as refrigerator or as freezer, with

temperature range from -7 .6 °F to +46.4 °F (-22°C to +8°C).

•Two (2) digital thermostats and displays are protected by

the Stainless Steel front panel.

•Stainless Steel front panel with incorporated Stainless Steel

wire netting is easy to remove for access to the thermostat
and to allow for easy cleaning.

•May be installed below any top unit.

•Perforated top surface provides the necessary ventilation

to allow for a flush connection between base and Electrolux
top units, eliminating the need for the top unit legs.

•Each drawer to accommodate two 12” x 20” x 6” deep pans

with use of included, removable division bar or two 325 mm
x 530 mm (1/1 GN) pans.

•Drawer guides with safety stop mechanism can support up

to 264 lbs. (120 kg) and are removable for cleaning.

•Magnetic snap-in drawer gaskets are removable for

cleaning.

•Perforated bottom plate in each drawer guarantees correct

air-flow, allows for small pans to stand upright and is
removable for cleaning.

•Perforated bottom plate can support up to 88lbs. (40 kg).

•Forced air circulation for rapid cooling and an even

temperature distribution.

•Access to all components from the front and bottom.

•Suitable for use in ambient temperatures of up to 104 °F

(40 °C).

•Rounded corners inside well for safe and easy cleaning.

•Right-angled side edges to allow flush fitting joints between

units, eliminating gaps and possible dirt traps.

•Heavy duty Stainless Steel tubular drawer handles.

•Supplied with 6" (150 mm) height adjustable, removable

legs.

•Unit may be installed on castors.

•Digital thermostat and display are protected by the

Stainless Steel front panel.

EMPower

Four (4) Drawer Refrigerated-

Freezer Base - 84"

Construction

•CFC free (ecological refrigerant type: R404a, - gas in foam:

cyclopenthane).

•Constructed entirely in AISI 304 Stainless Steel with Scotch

Brite finish.

•4 pins to install the top are supplied with the unit.

Optional Accessories

•EMPower kit of 6 wheels (3 with brake) for

refrigerated/freezer base 72" and 84"

•EMPower support for containers in

refrigerated bases

•EMPower 84" stainless steel top (with rear

splash & sides) for refrigerated/freezer
base

PNC 880125 ❑
PNC 880249 ❑
PNC 880317 ❑
