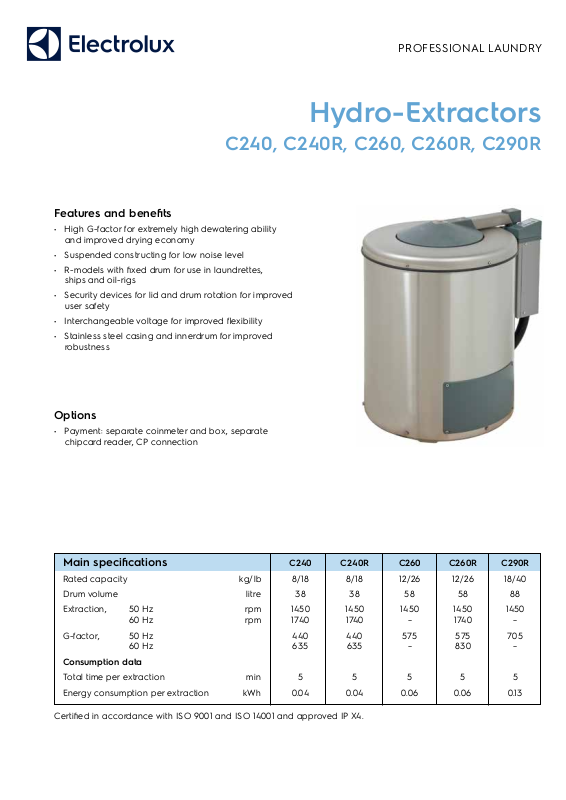

Electrolux C240 User Manual

C240, C240R, C260, C260R, C290R

Features and benefits

• High G-factor for extremely high dewatering ability
and improved drying economy

• Suspended constructing for low noise level

• R-models with fixed drum for use in laundrettes,
ships and oil-rigs

• Security devices for lid and drum rotation for improved
user safety

• Interchangeable voltage for improved flexibility

• Stainless steel casing and innerdrum for improved
robustness

PROFESSIONAL LAUNDRY

Hydro-Extractors

Options

• Payment: separate coinmeter and box, separate
chipcard reader, CP connection

Main specifications

Rated capacity kg/lb

Drum volume litre

Extraction, 50 Hz rpm
60 Hz rpm

G-factor, 50 Hz
60 Hz

Consumption data

Total time per extraction min

Energy consumption per extraction kWh

C240 C240R C260 C260R C290R

8/18 8/18 12/26 12/26 18/40

38 38 58 58 88

1450 1450 1450 1450 1450
1740 1740 – 1740 –

440 440 575 575 705
635 635 – 830 –

5 5 5 5 5

0.04 0.04 0.06 0.06 0.13

Certified in accordance with ISO 9001 and ISO 14001 and approved IP X4.

Electrical connections

C240 C240R C260 C260R C290R

Voltage

Motor 230V 3AC 50 Hz kW(A)

0.33(10) 0.33(10) 0.33(10) 0.55(10) 0.65(16)
208-240V 3AC 60 Hz kW(A)

0.33(10) 0.33(10) N/A 0.55(10) N/A
400-415V 3AC 50 Hz kW(A)

0.33(10) 0.33(10) 0.33(10) 0.55(10) 0.65(16)
440V 3AC 60 Hz kW(A)

0.33(10) 0.33(10) N/A 0.55(10) N/A

Floor requirements

Frequency of the dynamic force Hz

25 25 25 25 25

Max floor load at extraction at 50 Hz kN

1.0±0.10 1.0±0.25 1.4±0.15 1.9±0.4 3.0±0.6

Sound level

Airborne sound level dB(A)

<70 <70 <70 <70 <70

Shipping data

net, kg

67 91 98 126 171

crated, kg

74 101 109 140 190
boxed, kg

112 130 166 220 265
Shipping volume crated, m

0.5 0.5 0.73 0.8 1.2

0.79 0.79 0.88 0.88 1.38

boxed, m

3

3

Dimensions in mm

A Width

515 515 640 640 770

B Depth

660 660 785 785 910
C Height

850 910 870 980 1050
D

780 840 800 910 990
E

340 400 360 480 550
F

320 390 330 420 470

G

250 250 250 250 250

H

500 500 500 500 500

1 Control panel
2 Electrical connection
3 Drain ø75
4 Drum opening ø220 (C240/R),

ø300 (C260/R), ø355 (C290/R)

A

Rear side

www.electrolux.com/professional

B

1

H

2

3

C

D

F

E

G

Right side

6104

Top view

4

Share more of our thinking at www.electrolux.com

Art. No. 438908511/2015.01.14

We reserve the right to alter specifications without notice.
