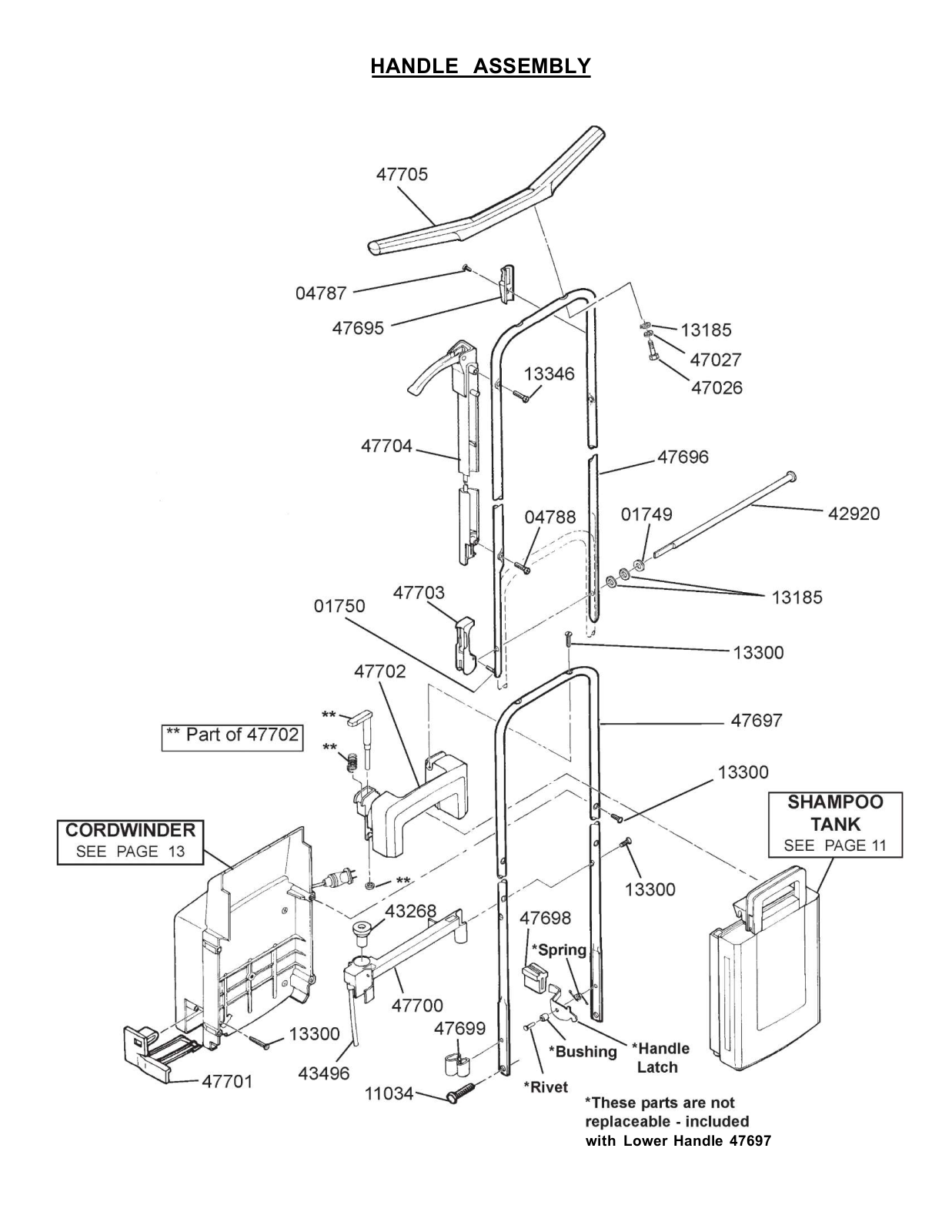

HANDLE ASSEMBLY
with Lower Handle 47697

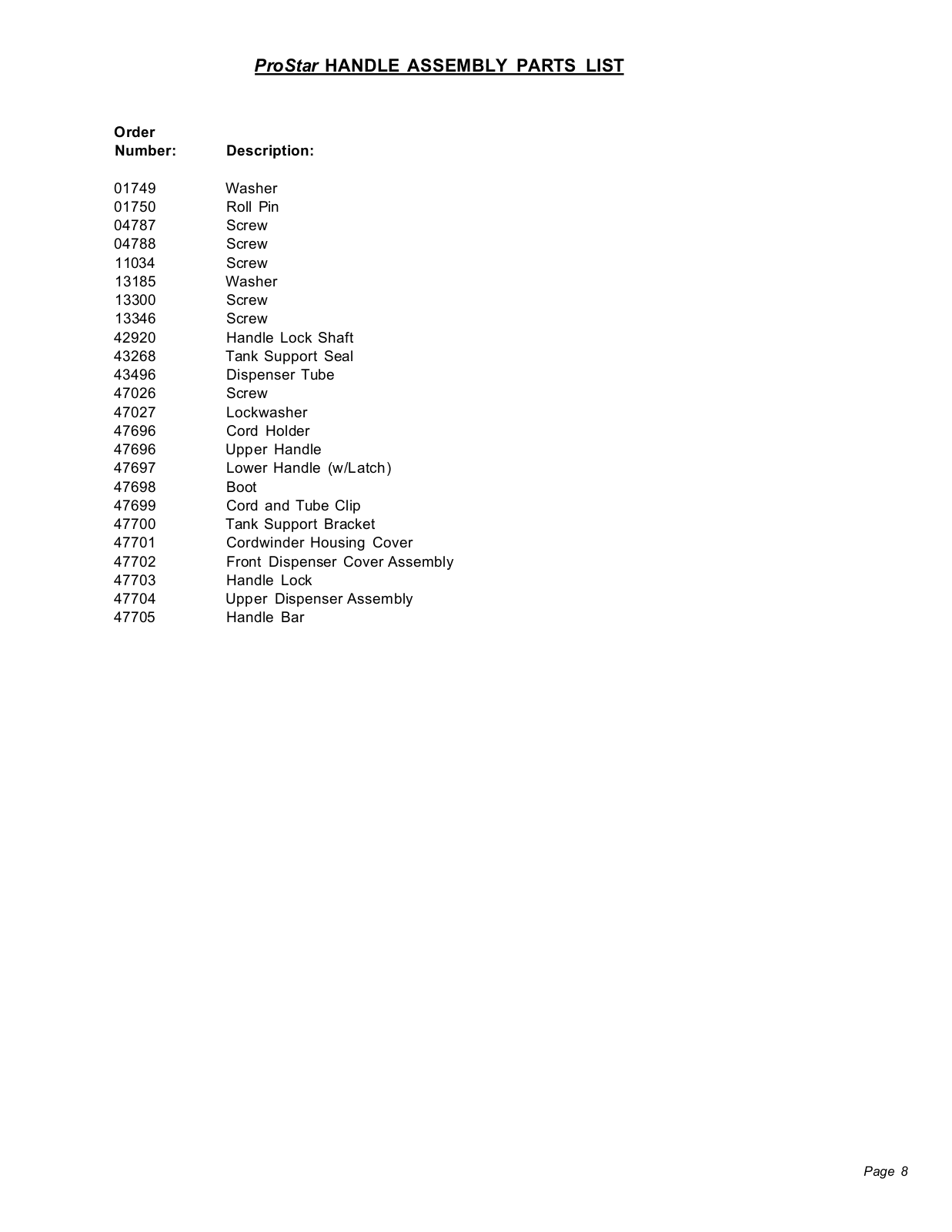

ProStar HANDLE ASSEMBLY PARTS LIST
Order
Number: Description:
01749 Washer
01750 Roll Pin
04787 Screw
04788 Screw
11034 Screw
13185 Washer
13300 Screw
13346 Screw
42920 Handle Lock Shaft
43268 Tank Support Seal
43496 Dispenser Tube
47026 Screw
47027 Lockwasher
47696 Cord Holder
47696 Upper Handle
47697 Lower Handle (w/Latch)
47698 Boot
47699 Cord and Tube Clip
47700 Tank Support Bracket
47701 Cordwinder Housing Cover
47702 Front Dispenser Cover Assembly
47703 Handle Lock
47704 Upper Dispenser Assembly
47705 Handle Bar
Page 8

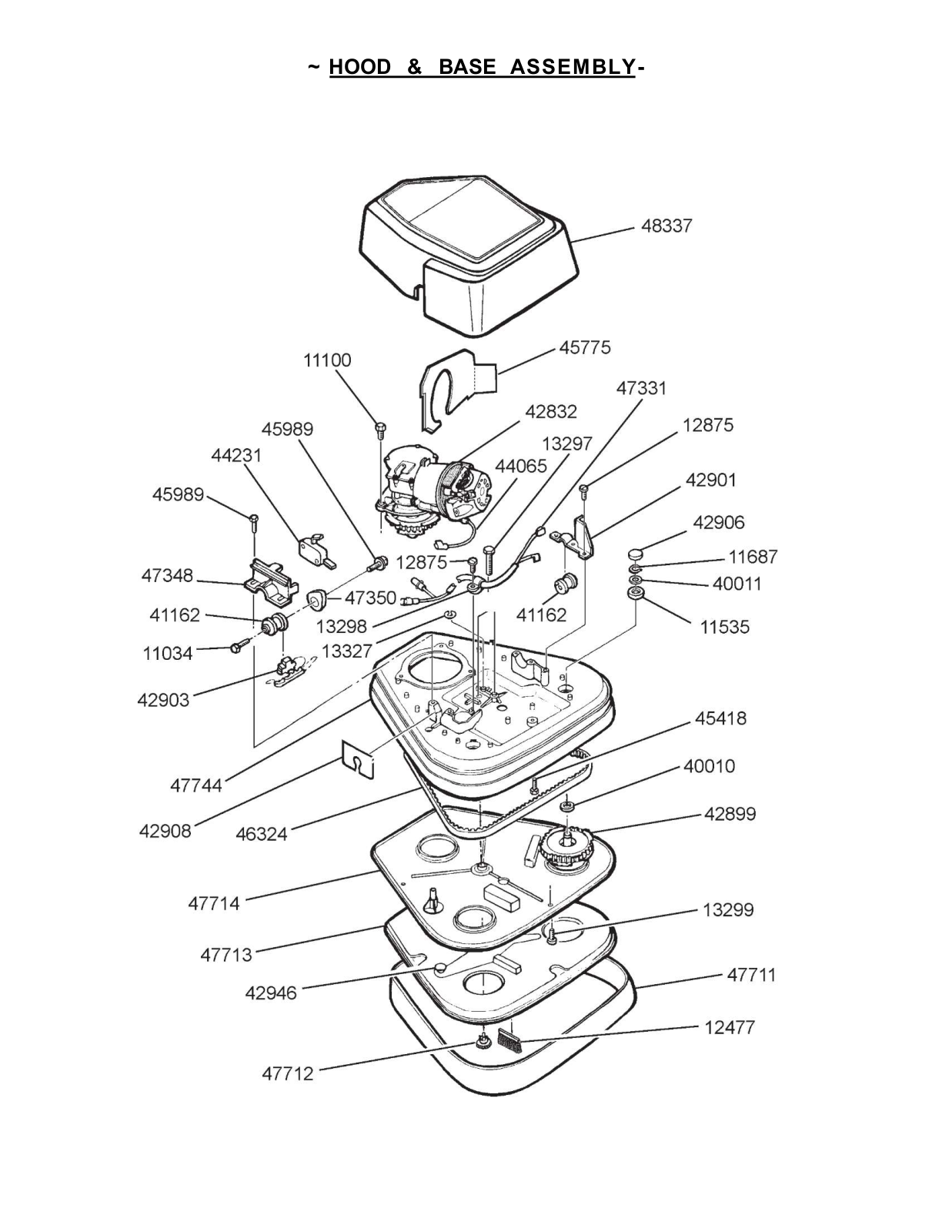

~ HOOD & BASE ASSEMBLY-

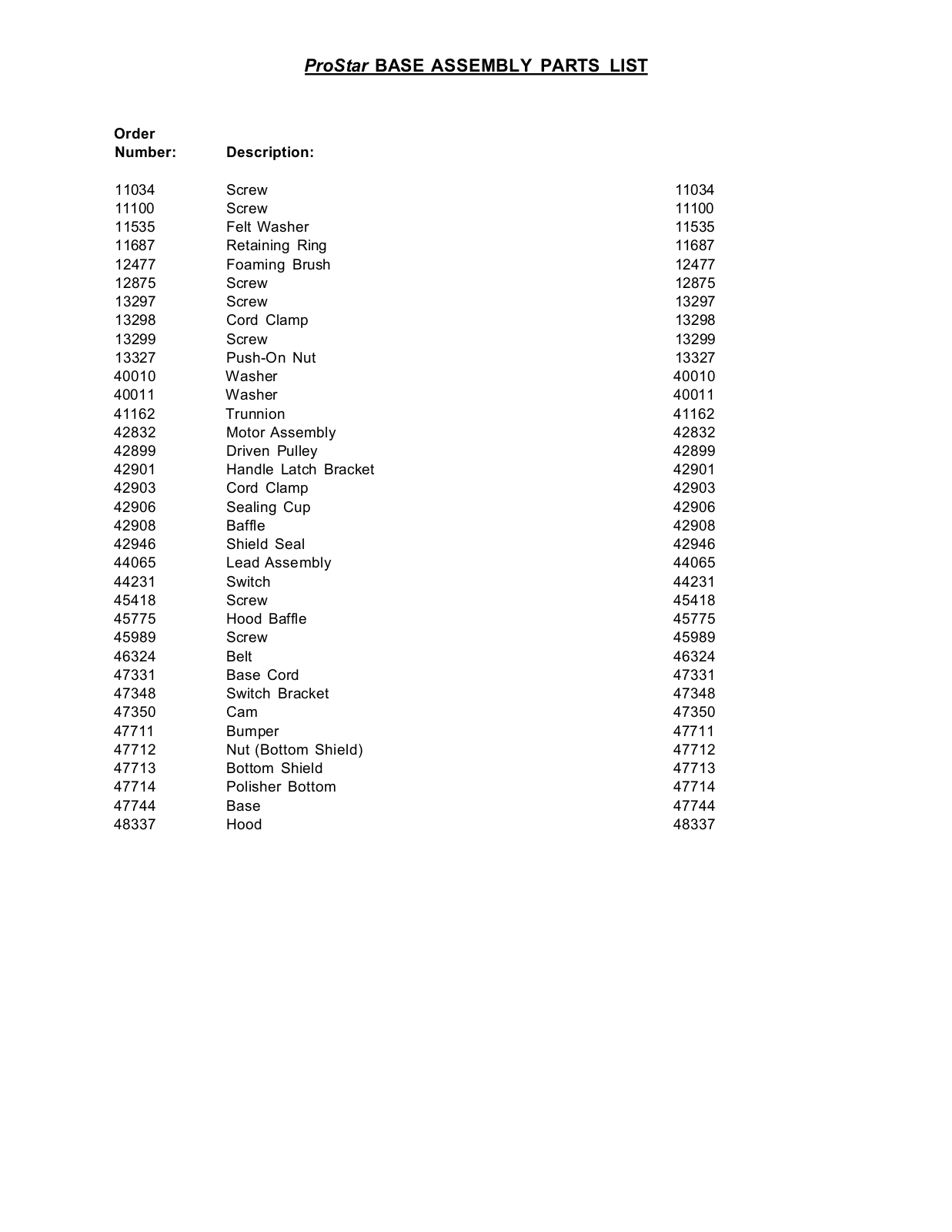

ProStar BASE ASSEMBLY PARTS LIST
Order
Number: Description:
11034 Screw 11034
11100 Screw 11100
11535 Felt Washer 11535
11687 Retaining Ring 11687
12477 Foaming Brush 12477
12875 Screw 12875
13297 Screw 13297
13298 Cord Clamp 13298
13299 Screw 13299
13327 Push-On Nut 13327
40010 Washer 40010
40011 Washer 40011
41162 Trunnion 41162
42832 Motor Assembly 42832
42899 Driven Pulley 42899
42901 Handle Latch Bracket 42901
42903 Cord Clamp 42903
42906 Sealing Cup 42906
42908
42946 Shield Seal 42946
44065 Lead Assembly 44065
44231 Switch 44231
45418 Screw 45418
45775 Hood Baffle 45775
45989 Screw 45989
46324 Belt 46324
47331 Base Cord 47331
47348 Switch Bracket 47348
47350 Cam 47350
47711 Bumper 47711
47712 Nut (Bottom Shield) 47712
47713 Bottom Shield 47713
47714 Polisher Bottom 47714
47744 Base 47744
48337 Hood 48337
Baffle
42908

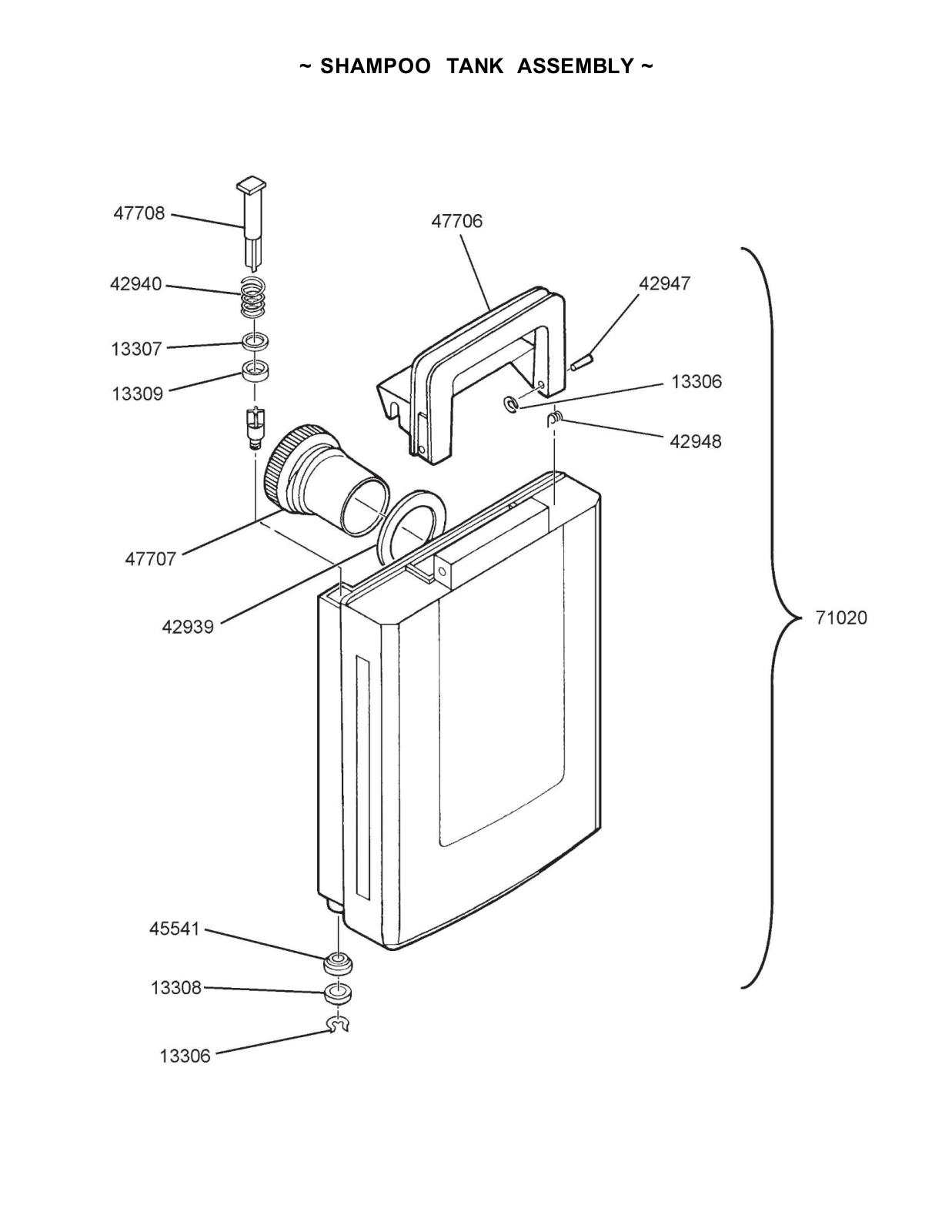

~ SHAMPOO TANK ASSEMBLY ~

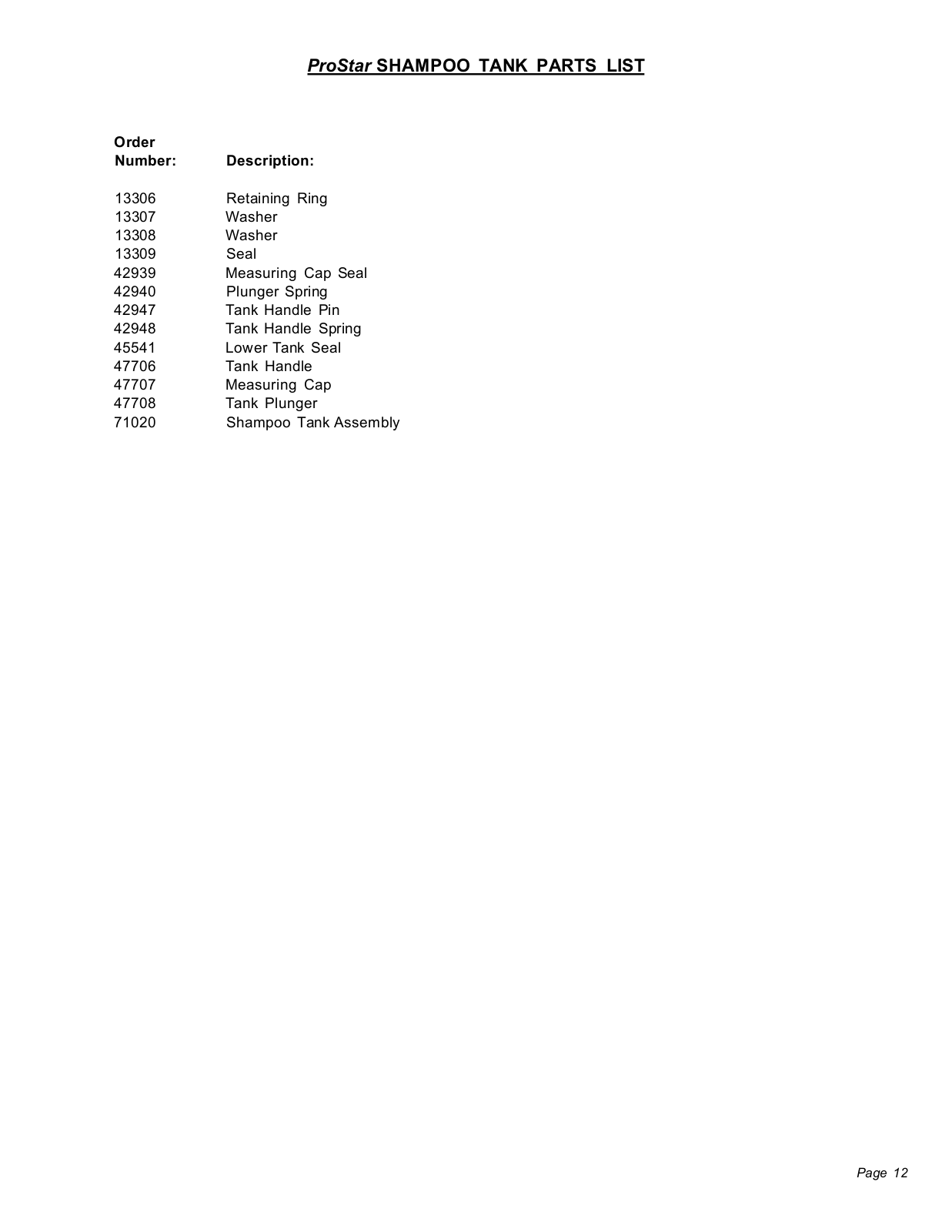

ProStar SHAMPOO TANK PARTS LIST
Order
Number: Description:
13306 Retaining Ring
13307 Washer
13308 Washer
13309 Seal
42939 Measuring Cap Seal
42940 Plunger Spring
42947 Tank Handle Pin
42948 Tank Handle Spring
45541 Lower Tank Seal
47706 Tank Handle
47707 Measuring Cap
47708 Tank Plunger
71020 Shampoo Tank Assembly
Page 12

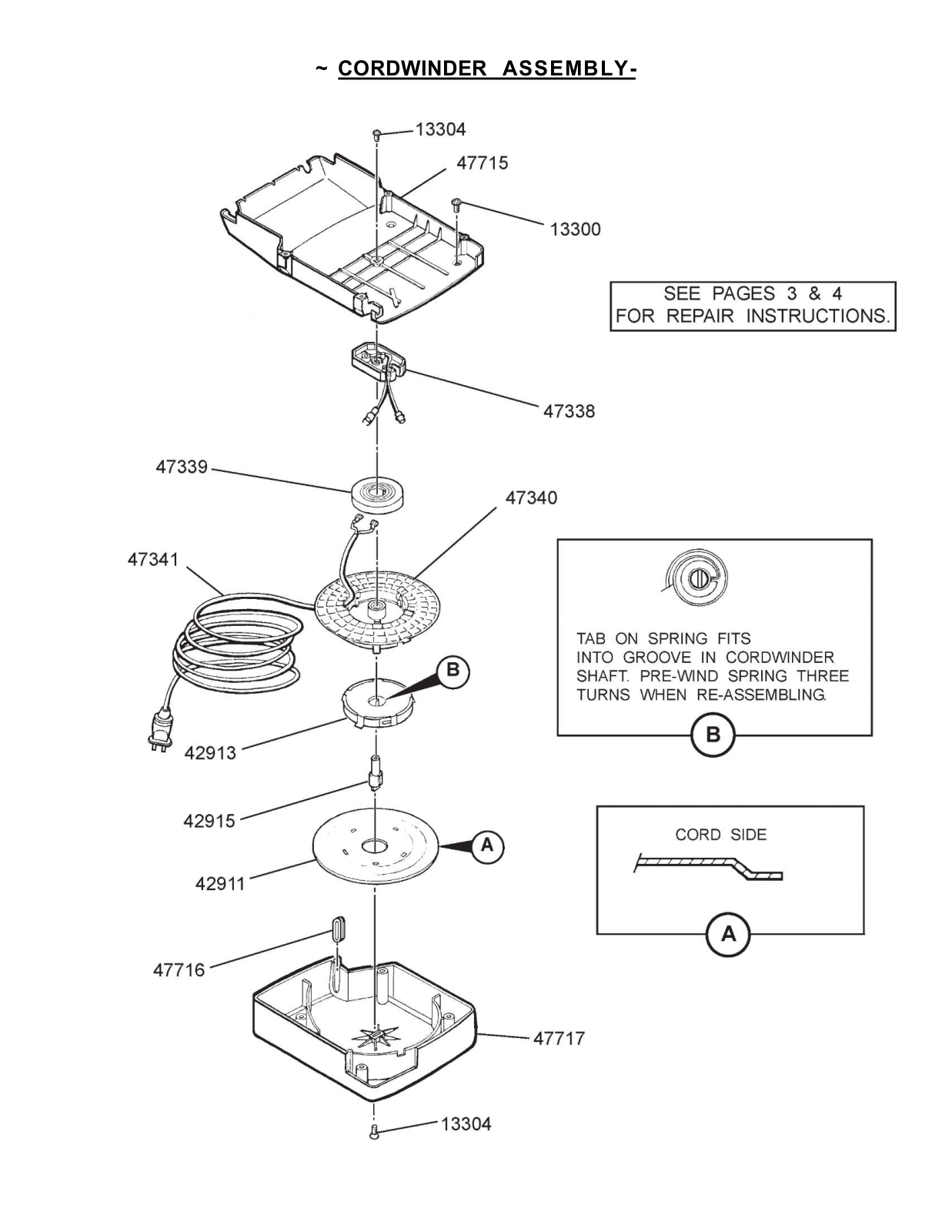

~ CORDWINDER ASSEMBLY-

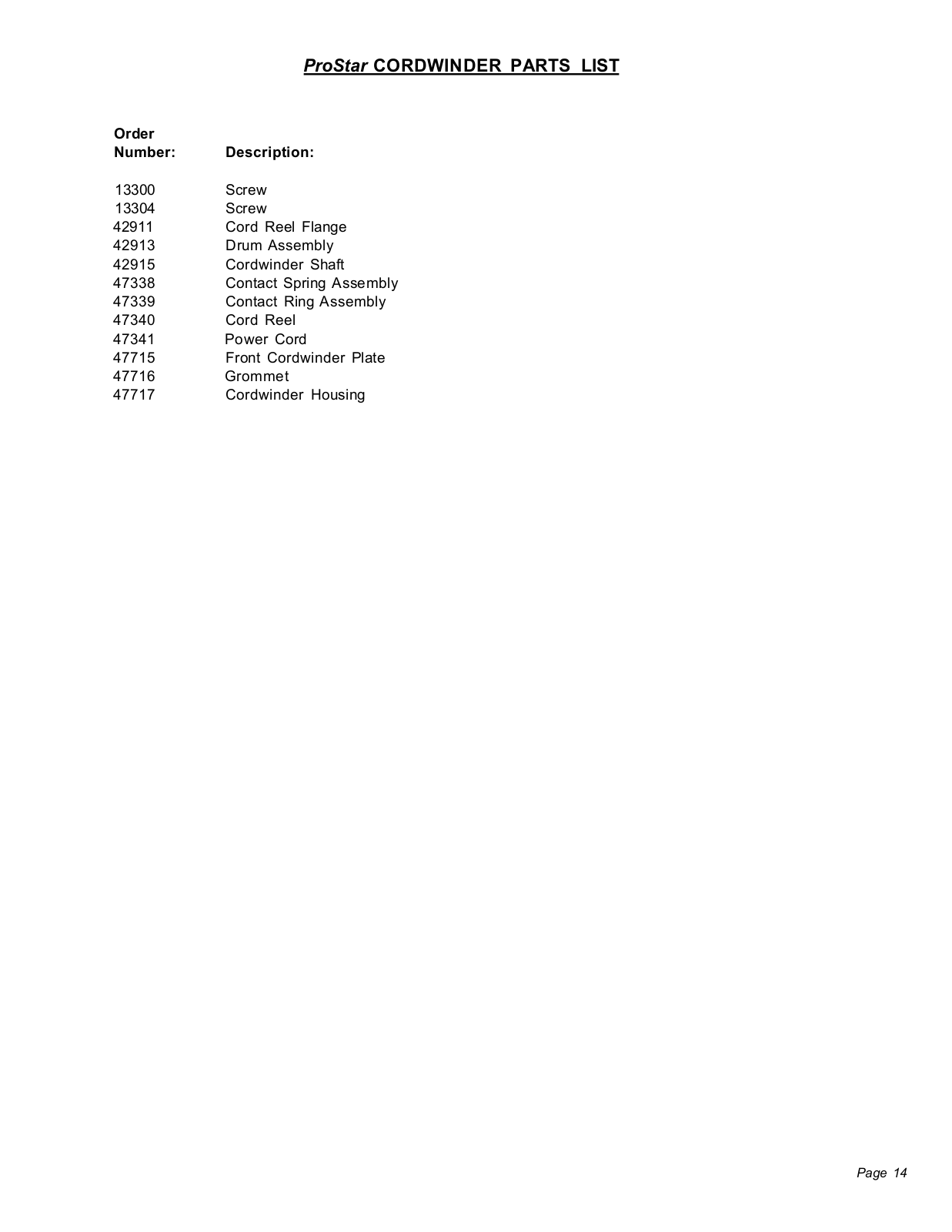

ProStar CORDWINDER PARTS LIST
Order
Number: Description:
13300
13304
42911 Cord Reel Flange
42913 Drum Assembly
42915 Cordwinder Shaft
47338 Contact Spring Assembly
47339 Contact Ring Assembly
47340 Cord Reel
47341 Power Cord
47715 Front Cordwinder Plate
47716 Grommet
47717 Cordwinder Housing
Screw
Screw
Page 14

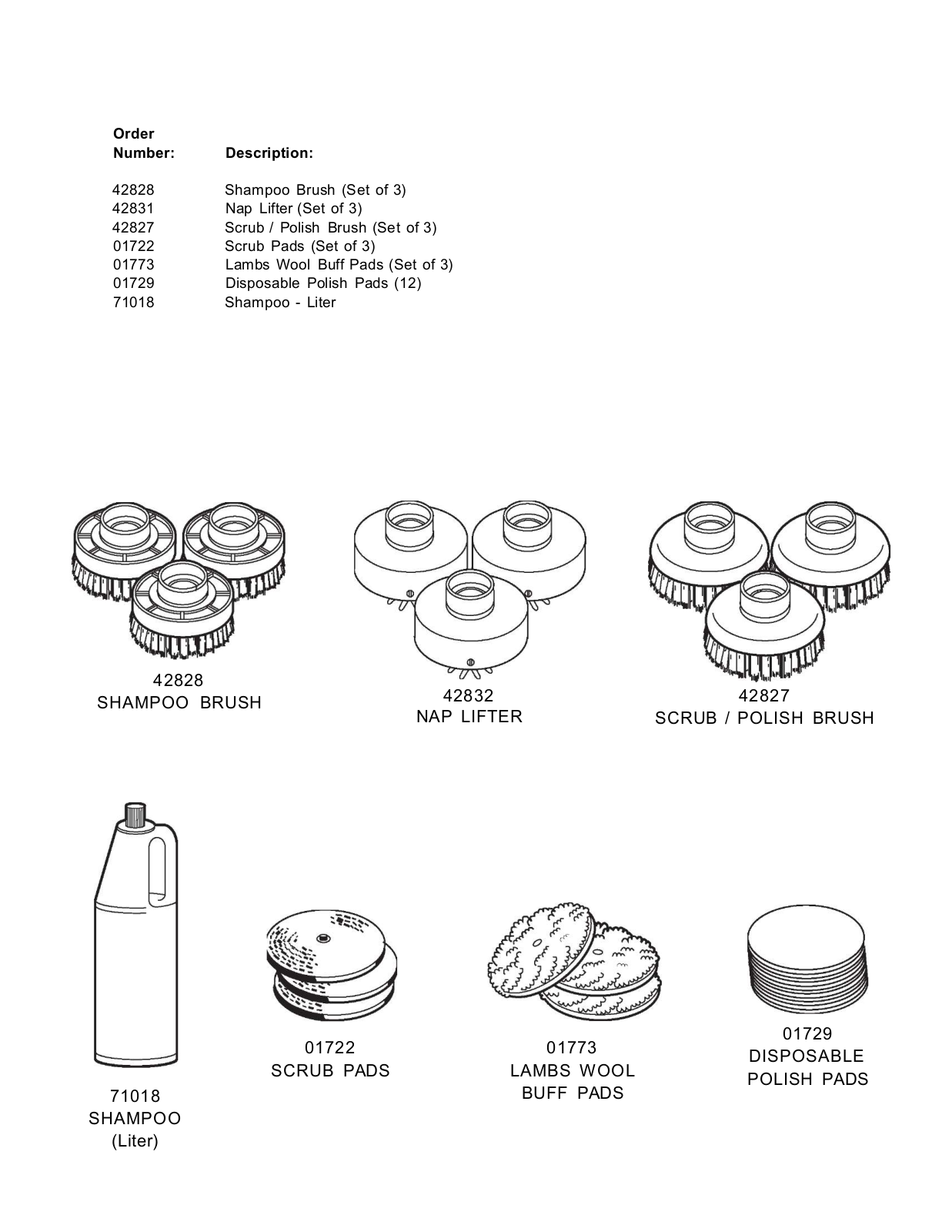

Order
Number: Description:
42828 Shampoo Brush (Set of 3)
42831 Nap Lifter (Set of 3)
42827 Scrub / Polish Brush (Set of 3)
01722 Scrub Pads (Set of 3)
01773 Lambs Wool Buff Pads (Set of 3)
01729 Disposable Polish Pads (12)
71018 Shampoo - Liter
42828
SHAMPOO BRUSH
71018
SHAMPOO
(Liter)
01722
SCRUB PADS
42832
NAP LIFTER
LAMBS WOOL
01773
BUFF PADS
42827
SCRUB / POLISH BRUSH
01729
DISPOSABLE
POLISH PADS

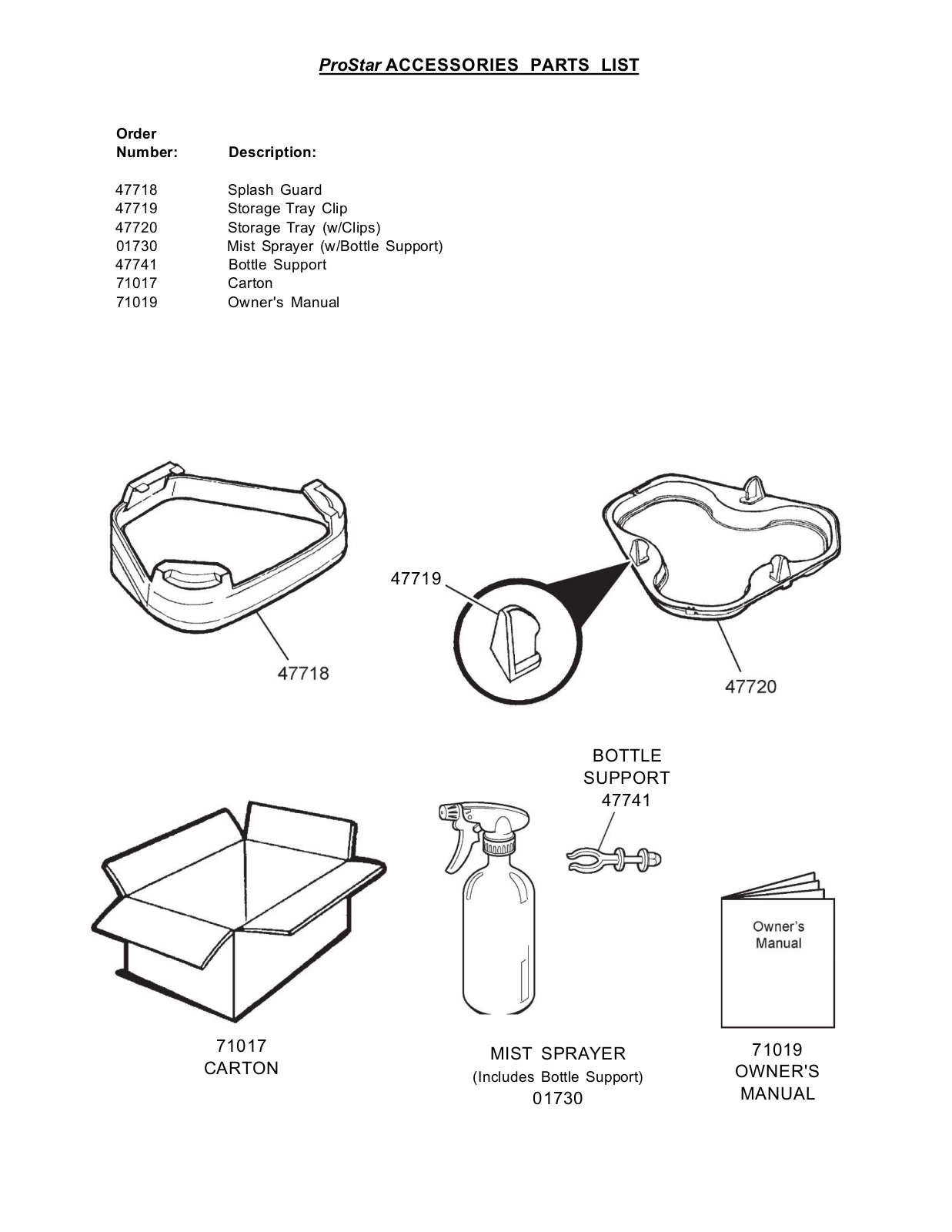

ProStar ACCESSORIES PARTS LIST
Order
Number: Description:
47718 Splash Guard
47719 Storage Tray Clip
47720 Storage Tray (w/Clips)
01730 Mist Sprayer (w/Bottle Support)
47741 Bottle Support
71017 Carton
71019 Owner's Manual
47719
BOTTLE
SUPPORT
47741
71017
CARTON
MIST SPRAYER
(Includes Bottle Support)
01730
71019
OWNER'S
MANUAL
