Electrolux B1100-1 User Manual

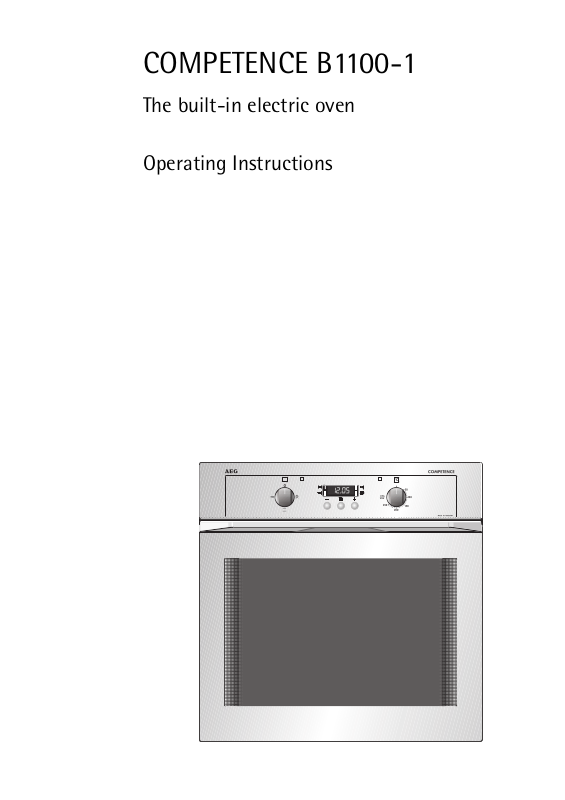

COMPETENCE B1100-1
The built-in electric oven
Operating Instructions
Dear customer,
Please read these operating instructions carefully.
In particular please note the "Safety"“ section on the first pages. Please
retain these operating instructions for later reference and pass them on
to any future owners of the appliance.
The warning triangle and/or key words (Warning!, Caution!,
1
Important!) highlight information that is important for your safety or
the function of the appliance. It is imperative that this information is
observed.
0 1. This symbol guides you step by step through the operation of the appli-
ance.
2. ...
This symbol gives you additional information and practical tips on using
3
the appliance.
Tips and information about the economical and ecological use of the
2
machine are marked with the clover sign.
These operating instructions contain information on steps you can take
yourself to rectify a possible malfunction. Refer to the section "What to
do if...“
In the event of any technical problems please contact your nearest
CUSTOMER SERVICE CENTRE at any time. (Addresses and telephone
numbers may be found in the appendix under "Customer Service
Centres“).
You should also refer to the section "Service"“.
Printed on environmentally friendly paper.
Thinking ecologically means acting ecologically ...
2
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Eco-insulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appliance Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Oven Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Oven Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Oven Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before Using for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Set the Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Resetting the Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initial Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Positioning the Shelf Unit and the Universal Baking Tray . . . . . . . . . . . . . 15
Switching the Oven On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the Automatic Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Countdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Uses, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Baking Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Tips for Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Roasting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Grilling table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Exterior of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Oven Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Oven Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Grill Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Oven Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Oven Door Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Oven Interior Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Regulations, Standards, Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4
1 Safety Instructions
The installation and connection of the new appliance must only be carried out by a registered specialist.
Where damage occurs the warranty will not apply if this instruction has
not been adhered to.
The safety features of AEG electrical appliances comply with recognised
technical standards and the German law covering equipment safety.
However, as manufacturers we also believe it is our responsibility to
familiarise you with the following safety instructions.
General Safety
• Take care when connecting electrical appliances to sockets near to
the appliance. Do not allow connecting leads to come into contact
with hot rings or to catch beneath the hot oven door.
• Do not store inflammable objects in the oven. They may ignite when
the oven is switched on.
• For safety reasons cleaning the appliance with a steam jet cleaner or
high-pressure water cleaner is not permissible.
• Using force, especially on the edges of the front glass panel, may
break the glass.
• Caution: Risk of burning! Whenever you bake, roast or grill the oven
door becomes hot, as do the inner surfaces of the oven, heating elements and accessories. Always use an oven cloth or oven gloves and
take every care to avoid burns. For this reason keep children away
from the appliance at all times.
• Overheated fats and oils catch fire quickly. Do not leave the appliance
unattended when cooking food in fat or oil (e.g. chips).
• Using ingredients containing alcohol in the oven may create an alcohol-air mixture that is easily ignited. In this case, open the door carefully. Do not have embers, sparks or naked flames in the vicinity when
opening the door. We recommend that you leave the cooked item in
the oven with the door closed and the oven turned off for about 10 15 minutes to cool.
• Repairs to the appliance may only be carried out by qualified spe-
cialists. Improperly effected repairs may result in significant risk to
the user. If your appliance needs repairing, please contact customer
service or your dealer.
• If the appliance malfunctions: remove fuses or switch off.
5
Intended Use
• This appliance is intended to be used for cooking, frying and baking
food in the home and must not be used for any other purpose.
• Only use the appliance to prepare food.
• Do not use the oven as a room heater.
To Avoid Damaging Your Appliance
• Do not line your oven with aluminium foil and do not place a baking
tray or dish on the oven floor, otherwise the oven enamel will be
damaged by the resulting build up of heat.
• Clean the appliance after each use. This is the easiest way to remove
spills and prevents them being burnt on.
• Juice from fruit that drips from baking trays will leave marks that
cannot be removed. For very moist cakes, use the universal baking
tray.
• Never pour water directly into the hot oven. The enamel may be damaged.
• Do not put any weight on the open oven door.
• Do not store moist food in the oven.
6
2 Disposal
Disposing of packaging material
All materials used can be fully recycled.
The cardboard container is made from 80% recycled paper.
Plastics are marked as follows:
• >PE< indicates polythene, as used on the outer covering and the
wrappings inside.
• >PS< indicates expanded polystyrene e.g., the padding materials. It is
entirely CFC-free.
Any unwanted packaging materials will be taken back by your dealer
free of charge.
Disposing of old appliances
To protect the environment, it is important that worn out appliances
are disposed of in the correct manner. This applies to your old appliance
and will also apply to your new appliance at some time in the future
when it is no longer required.
Warning! Before disposing of old appliances make them inoperable.
1
Disconnect the appliance from the mains supply and remove the mains
lead.
This prevents children getting into life-threatening situations when
playing.
Disposal advice
2
• The appliance must not be disposed of with household rubbish.
• You can obtain information about collection dates or public refuse
disposal sites from your local refuse department or council.
• You can also take the appliance to your AEG dealer; they will dispose
of it for you for a small contribution towards the costs.
Eco-insulation
The oven is fitted during manufacture with eco-insulation. This insulation has been tested for harmful substances by independent test centres and has been classified safe.
7
Appliance Assembly
Control Panel
Oven functions
Rotary switch used for selecting the required oven function.
Temperature selection
Rotary switch for selecting the required oven temperature.
Oven power indicator
The yellow oven power indicator comes on as soon as the oven or rings
are switched on.
Temperature pilot light
The red temperature pilot light comes on while the oven is warming up
and goes out once the set temperature has been reached.
Clock functions and time display
Buttons for setting the clock functions. The time or alarm time is displayed in the time display.
8
Clock Functions
Your appliance has a programmable clock by which you can see the
time, use the countdown timer as an "egg-timer“ or set baking and
roasting times using the automatic functions.
Time
The current time is shown in the display window provided no other
clock function has been selected.
Countdown timer
Using the countdown function ] you can set a maximum "alarm time“
of 2 hours 30 minutes. The countdown function ] works like a normal
kitchen alarm and does not affect the operation of the oven in any
way.
Automatic functions
Using the cook time < and end time functions > you can set the
clock so that the oven automatically switches on or on and then off.
9
Oven Features
Shelf positions
There is a shelf support rail on both
sides of the oven, with 5 shelf positions on which to insert the accessories.
Anti-tip device
All slide-in units are fitted with an
anti-tip device to prevent them
being pulled out of the oven unintentionally.
When the unit is inserted the antitip device must be to the rear of the
oven.
10
✘
Oven steam vent
Steam from the oven is fed out below the door handle.
Relates only to appliances with a metal front:
Steam from the oven is fed out between the upper door edge and the
control panel.
Fan run-on
The fan switches on automatically as soon as the oven is switched on.
Once the oven has been switched off, the fan continues running to cool
down the appliance and then switches itself off automatically.
Oven Accessories
The following parts are supplied with the oven:
Combination shelf
For dishes, cake tins, items for
roasting and grilling
Universal baking tray
For moist cakes, roasts or asa baking
tray or as a container to catch fat
Oven Functions
The oven has the following functions:
Conventional
Conventional is suitable for baking and roasting on one level.
Heat is supplied evenly from above and below.
F Grill
Grilling is particularly suitable for grilling or toasting flat foods, such
as steaks, escalopes, fish or toast.
The heat is supplied from the grill element on the oven ceiling.
11
Before Using for the First Time
Set the Time
The oven will only operate when the
3
time has been set.
When the power supply is switched
on, or after a power failure, the
function indicator flashes on the
clock display D.
0 1. Using buttons + or - set the cur-
rent time.
2. Wait for 5 seconds.
The flashing will stop and the set
time will be displayed in
the display window.
The appliance is ready for use.
12
Resetting the Time
0 Press button b until the function
indicator flashes on the clock
display D .
3. Using buttons + or - set the cur-
rent time.
4. Wait for 5 seconds.
The flashing will stop and the set
time will be displayed in the display
window.
The appliance is ready for use.
The time may only be reset when no automatic function (cook time <
3
or end time >) has been set.
13
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
You can switch on the oven light to make cleaning easier.
0 1. Set the temperature selection switch to oven lighting.
2. Remove all accessories and the shelf support rails and wash them with
warm water and washing up liquid.
3. Then clean the oven using warm water and washing up liquid, and dry.
4. Wipe off the front of the appliance with a damp cloth only.
To clean stainless steel fronts use commercially available cleaning
3
agents that create a protective film to prevent finger marks.
Important: Do not use any caustic, abrasive cleaners! The surface could
1
be damaged.
14
Loading...
