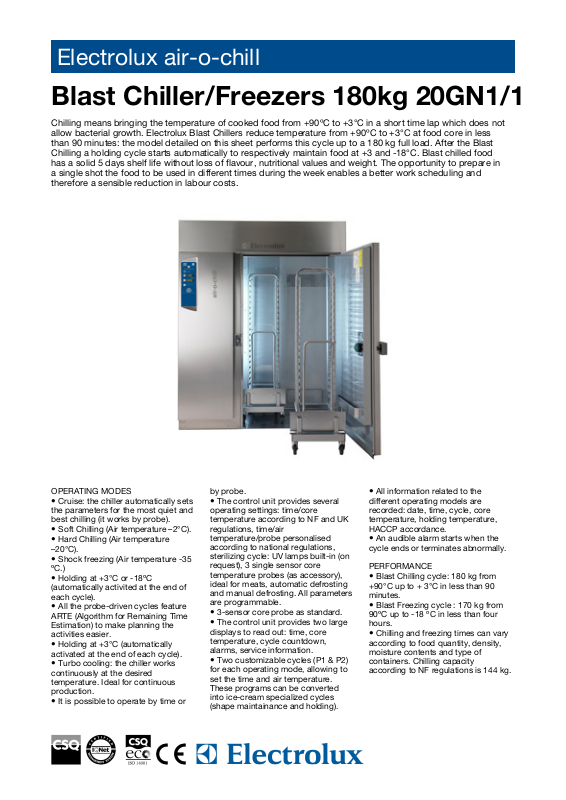

Electrolux air-o-chill
Blast Chiller/Freezers 180kg 20GN1/1
Chilling means bringing the temperature of cooked food from +90ºC to +3°C in a short time lap which does not
allow bacterial growth. Electrolux Blast Chillers reduce temperature from +90ºC to +3°C at food core in less
than 90 minutes: the model detailed on this sheet performs this cycle up to a 180 kg full load. After the Blast
Chilling a holding cycle starts automatically to respectively maintain food at +3 and -18°C. Blast chilled food
has a solid 5 days shelf life without loss of flavour, nutritional values and weight. The opportunity to prepare in
a single shot the food to be used in different times during the week enables a better work scheduling and
therefore a sensible reduction in labour costs.
OPERATING MODES
• Cruise: the chiller automatically sets
the parameters for the most quiet and
best chilling (it works by probe).
• Soft Chilling (Air temperature –2°C).
• Hard Chilling (Air temperature
–20°C).
• Shock freezing (Air temperature -35
ºC.)
• Holding at +3°C or -18ºC
(automatically activited at the end of
each cycle).
• All the probe-driven cycles feature
ARTE (Algorithm for Remaining Time
Estimation) to make planning the
activities easier.
• Holding at +3°C (automatically
activated at the end of each cycle).
• Turbo cooling: the chiller works
continuously at the desired
temperature. Ideal for continuous
production.
• It is possible to operate by time or
by probe.
• The control unit provides several
operating settings: time/core
temperature according to NF and UK
regulations, time/air
temperature/probe personalised
according to national regulations,
sterilizing cycle: UV lamps built-in (on
request), 3 single sensor core
temperature probes (as accessory),
ideal for meats, automatic defrosting
and manual defrosting. All parameters
are programmable.
• 3-sensor core probe as standard.
• The control unit provides two large
displays to read out: time, core
temperature, cycle countdown,
alarms, service information.
• Two customizable cycles (P1 & P2)
for each operating mode, allowing to
set the time and air temperature.
These programs can be converted
into ice-cream specialized cycles
(shape maintainance and holding).
• All information related to the
different operating models are
recorded: date, time, cycle, core
temperature, holding temperature,
HACCP accordance.
• An audible alarm starts when the
cycle ends or terminates abnormally.
PERFORMANCE
• Blast Chilling cycle: 180 kg from
+90°C up to + 3°C in less than 90
minutes.
• Blast Freezing cycle : 170 kg from
90ºC up to -18 ºC in less than four
hours.
• Chilling and freezing times can vary
according to food quantity, density,
moisture contents and type of
containers. Chilling capacity
according to NF regulations is 144 kg.
Page 2
Electrolux air-o-chill
Blast Chiller/Freezers 180kg 20GN1/1
CONSTRUCTION
• Automatic heated door frame.
• Internal and external finishing in
stainless steel 304 type.
• High density polyurethane
insulation, 60 mm tickness, CFC, HFC
and HCFC free (Cyclopenthane).
• Environmentally friendly: R404a as
refrigerant fluid.
• Developed and produced in ISO
9001 and ISO 14001 certified factory.
• Solenoid valves.
• Stand alone printer as optional, built
in on request.
• PC connection on request, gate RS
485.
INSTALLATION
• No water connections required.
• Waste can be plumbed into drain,
but can also be collected in optional
waste container.

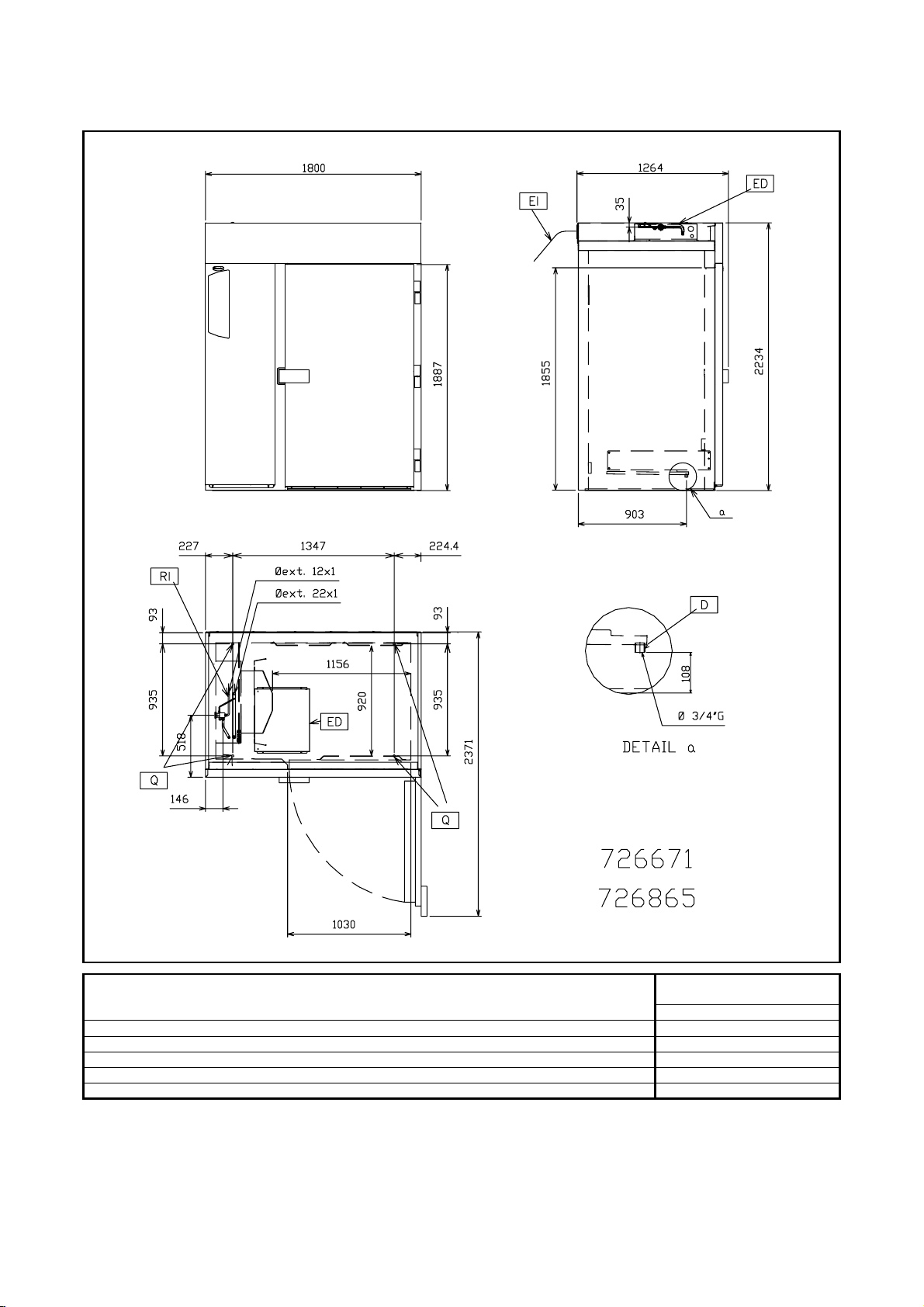

Installation diagram:
C - Water drain
I - Electrical connection
Y - Connection for appliance lifting
L - Remote electrical connection
N - Cooling water inlet
O - Cooling water outlet
• Inner cell with fully rounded corners.
• Door equipped with removable
magnetic gasket with hygienic design.
• All motors and fan waterproof
protected.
• Evaporator with anti-rust protection.
• Ventilator (fan) swinging hinged
panel for access to the evaporator for
cleaning.
AOFP401CRD
726865
TECHNICAL DATA
Type J - FREEZERS - 180 KG - GN
Productivity per cycle - kg.
UK Guide lines - chilling / freezing 180, 170
Gross capacity (D.I.N. 8952) - l. 2841
Cooling unit Remote
Thermostat Electronic
Thermometers Digital
External dimensions - mm
width 1800
depth/with open doors 1264, 2371
height 2234
Door hinges Right Side
Trays type GN 1/1; GN 2/1
Refrigerant type R404a
Refrigeration power - W 10910
Refrigerant power
at evaporation temperature - °C -30
Power - kW
installed-electric 3.28
Net weight - kg. 468
INCLUDED ACCESSORIES
3-SENSOR PROBE FOR CHILLER+C/FREEZER 1
ACCESSORIES
1 SINGLE SENSOR PROBE CHILLER+C/FREEZER 880089
2 SINGLE SENSOR PROBES CHILLER+C/FREEZER 880096
AIR REMOTE UNIT BC+BCF 180KG 2X20 GN1/1 881015
BANQ.TROLLEY-45PLATES-85MM PITCH-20GN1/1 922072
BANQ.TROLLEY-54PLATES-74MM PITCH-20GN1/1 922016
KIT 3 SINGLE SENSOR PROBES FOR BC/BCF 880269
KIT HACCP ADVANCED CONNECT. BC/BCF LW+CW 880183
KIT HACCP EKIS 922166
PASTRY TROLLEY 16(400X600)80MM-20 1/1 LW 922068
PRINTER FOR HACCP BASIC VERSION 881532
THERMAL COVER FOR 20X1/1GN 922014
TROLLEY TRAY RACK F. 20X1/1GN,63MM PITCH 922007
TROLLEY TRAY RACK F.16X1/1GN,80MM PITCH 922010
2/1
HDBB0602009-10-06Subject to change without notice
Internet: http://www.electrolux.com/foodservice
Page 3
726865
Electrolux air-o-chill
Blast Chiller/Freezers 180kg 20GN1/1
AOFP401CRD
726865
LEGEND
D - Water drain 3/4"
ED - Remote electrical connection ●
EI - Electrical connection 400 V, 3N, 50
Q - Appliance lifting connection ●
RI - Remote refrigeration connection ●
HDBB0602009-10-06Subject to change without notice
Internet: http://www.electrolux.com/foodservice
