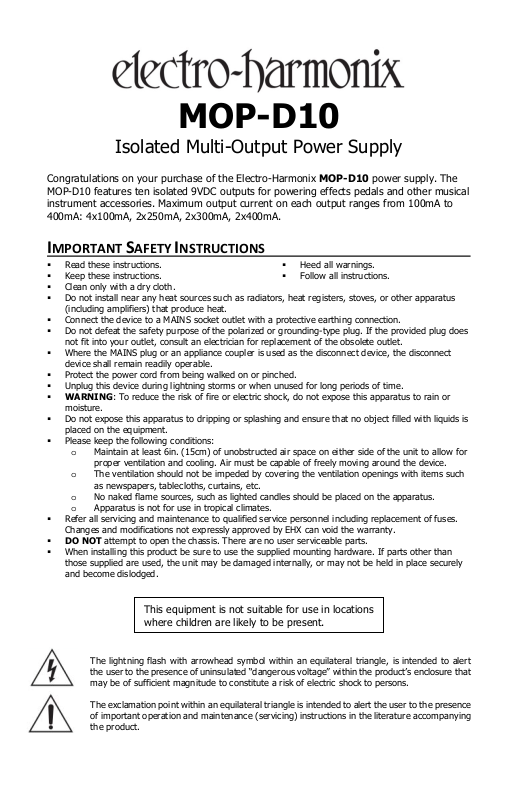

Electro Harmonix MOP-D10 User manual

MOP-D10

Isolated Multi-Output Power Supply

Congratulations on your purchase of the Electro-Harmonix MOP-D10 power supply. The
MOP-D10 features ten isolated 9VDC outputs for powering effects pedals and other musical
instrument accessories. Maximum output current on each output ranges from 100mA to
400mA: 4x100mA, 2x250mA, 2x300mA, 2x400mA.

IMPORTANT SAFETY INSTRUCTIONS

 Read these instructions.
 Keep these instructions.
 Clean only with a dry cloth.
 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

 Connect the device to a MAINS socket outlet with a protective earthing connection.
 Do not defeat the safety purpose of the polarized or grounding-type plug. If the provided plug does

not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

 Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect

device shall remain readily operable.

 Protect the power cord from being walked on or pinched.
 Unplug this device during lightning storms or when unused for long periods of time.
 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or

moisture.

 Do not expose this apparatus to dripping or splashing and ensure that no object filled with liquids is

placed on the equipment.

 Please keep the following conditions:

o Maintain at least 6in. (15cm) of unobstructed air space on either side of the unit to allow for

proper ventilation and cooling. Air must be capable of freely moving around the device.

o The ventilation should not be impeded by covering the ventilation openings with items such

as newspapers, tablecloths, curtains, etc.

o No naked flame sources, such as lighted candles should be placed on the apparatus.
o Apparatus is not for use in tropical climates.

 Refer all servicing and maintenance to qualified service personnel including replacement of fuses.

Changes and modifications not expressly approved by EHX can void the warranty.

 DO NOT attempt to open the chassis. There are no user serviceable parts.
 When installing this product be sure to use the supplied mounting hardware. If parts other than

those supplied are used, the unit may be damaged internally, or may not be held in place securely
and become dislodged.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operation and maintenance (servicing) instructions in the literature accompanying
the product.

This equipment is not suitable for use in locations
where children are likely to be present.

 Heed all warnings.
 Follow all instructions.

GETTING STARTED & INITIAL USE

Before powering up your MOP-D10 please ensure the AC Voltage switch
on the rear panel is set to the correct voltage for your region and the AC
voltage powering the MOP-D10.

IN THE BOX:

• 1 x MOP-D10 Isolated Multi-Output Power Supply

• 10 x DC cables with 5.5 x 2.1 (mm) plugs

• 1 x AC power cord

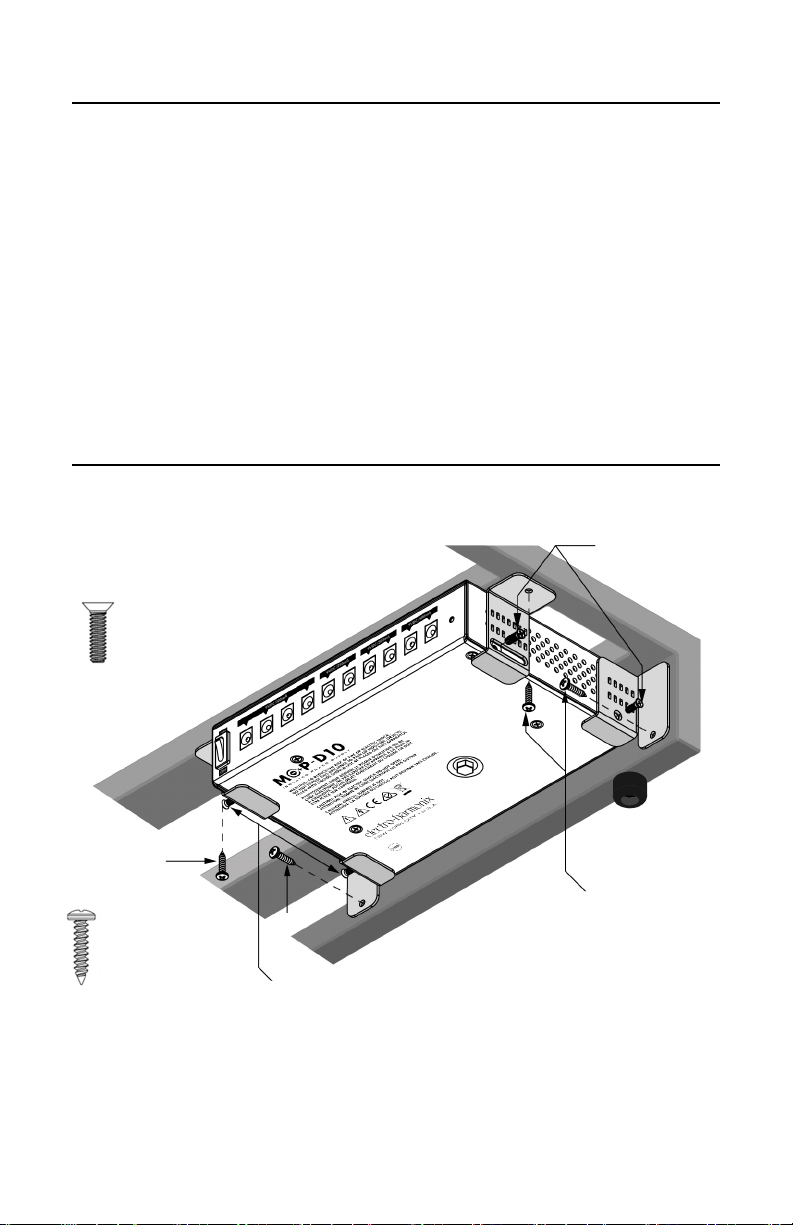

• 4 x Pedalboard mounting brackets

• 4 x Pedalboard mounting screws: Screw B

Before connecting the AC power cord—supplied with your MOP-D10—make all
cable connections from the MOP-D10 to the devices it will power.

Flip the MOP-D10’s front panel power switch to the ON position. The LED on the
front panel lights up. Power will now be supplied to all external devices connected
to the MOP-D10.

FRONT PANEL

Power Switch – Flip to the ON position to power up the MOP-D10. Setting the
power switch to the OFF-position cuts power to all ten output power connectors.

LED – The red LED lights when the unit is powered up.

9VDC/100mA – These four center-negative power connectors, located closest to
the power switch, provide up to 100mA at each output, at a voltage of 9VDC.

9VDC/250mA – These middle two center-negative power connectors provide up
to 250mA at each output, at a voltage of 9VDC.

9VDC/300mA – These middle two center-negative power connectors provide up
to 300mA at each output, at a voltage of 9VDC.

9VDC/400mA – These two center-negative power connectors, located near the
LED, provide up to 400mA at each output, at a voltage of 9VDC.

Please Note:

• All output power jacks are isolated from each other.

• Each output is center-negative.

• The dimensions of each output connector are 5.5 x 2.1 (mm).

• The MOP-D10 is supplied with ten DC power cables. Connect the output

power connectors on the front panel to the power connectors on your
pedals or devices.
