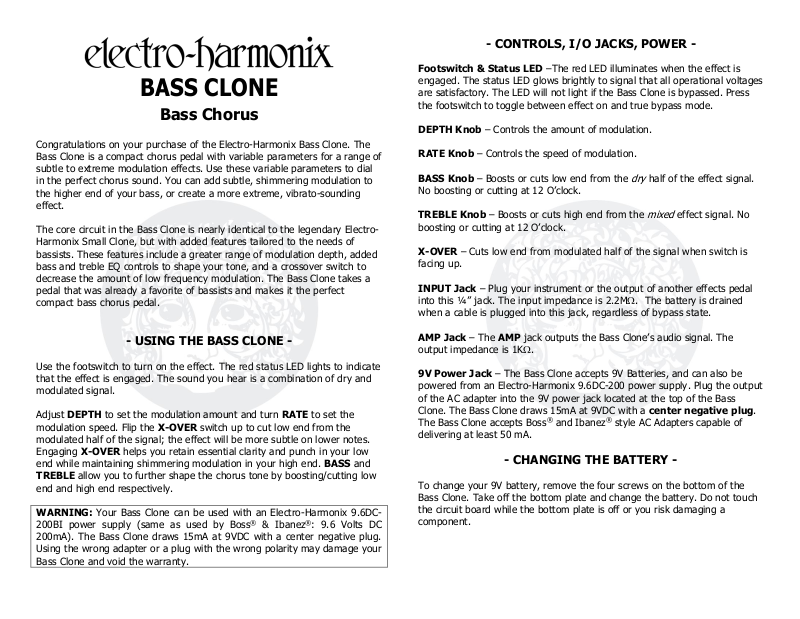

Electro-Harmonix Bass Clone User Manual

WARNING: Your Bass Clone can be used with an Electro-Harmonix 9.6DC-

200BI power supply (same as used by Boss® & Ibanez®: 9.6 Volts DC
200mA). The Bass Clone draws 15mA at 9VDC with a center negative plug.
Using the wrong adapter or a plug with the wrong polarity may damage your
Bass Clone and void the warranty.

BASS CLONE

Bass Chorus

Congratulations on your purchase of the Electro-Harmonix Bass Clone. The
Bass Clone is a compact chorus pedal with variable parameters for a range of
subtle to extreme modulation effects. Use these variable parameters to dial
in the perfect chorus sound. You can add subtle, shimmering modulation to
the higher end of your bass, or create a more extreme, vibrato-sounding
effect.

The core circuit in the Bass Clone is nearly identical to the legendary Electro­Harmonix Small Clone, but with added features tailored to the needs of
bassists. These features include a greater range of modulation depth, added
bass and treble EQ controls to shape your tone, and a crossover switch to
decrease the amount of low frequency modulation. The Bass Clone takes a
pedal that was already a favorite of bassists and makes it the perfect
compact bass chorus pedal.

- USING THE BASS CLONE -

Use the footswitch to turn on the effect. The red status LED lights to indicate
that the effect is engaged. The sound you hear is a combination of dry and
modulated signal.

Adjust DEPTH to set the modulation amount and turn RATE to set the
modulation speed. Flip the X-OVER switch up to cut low end from the
modulated half of the signal; the effect will be more subtle on lower notes.
Engaging X-OVER helps you retain essential clarity and punch in your low
end while maintaining shimmering modulation in your high end. BASS and
TREBLE allow you to further shape the chorus tone by boosting/cutting low
end and high end respectively.

- CONTROLS, I/O JACKS, POWER -

Footswitch & Status LED –The red LED illuminates when the effect is

engaged. The status LED glows brightly to signal that all operational voltages
are satisfactory. The LED will not light if the Bass Clone is bypassed. Press
the footswitch to toggle between effect on and true bypass mode.

DEPTH Knob – Controls the amount of modulation.

RATE Knob – Controls the speed of modulation.

BASS Knob – Boosts or cuts low end from the

No boosting or cutting at 12 O’clock.

TREBLE Knob – Boosts or cuts high end from the
boosting or cutting at 12 O’clock.

X-OVER – Cuts low end from modulated half of the signal when switch is
facing up.

INPUT Jack – Plug your instrument or the output of another effects pedal
into this ¼” jack. The input impedance is 2.2M. The battery is drained

when a cable is plugged into this jack, regardless of bypass state.

AMP Jack – The AMP jack outputs the Bass Clone’s audio signal. The
output impedance is 1K.

9V Power Jack – The Bass Clone accepts 9V Batteries, and can also be
powered from an Electro-Harmonix 9.6DC-200 power supply. Plug the output
of the AC adapter into the 9V power jack located at the top of the Bass
Clone. The Bass Clone draws 15mA at 9VDC with a center negative plug.
The Bass Clone accepts Boss® and Ibanez® style AC Adapters capable of
delivering at least 50 mA.

dry

half of the effect signal.

mixed

effect signal. No

- CHANGING THE BATTERY -

To change your 9V battery, remove the four screws on the bottom of the
Bass Clone. Take off the bottom plate and change the battery. Do not touch
the circuit board while the bottom plate is off or you risk damaging a
component.

- WARRANTY INFORMATION -

Please register online at http://www.ehx.com/product-registration or
complete and return the enclosed warranty card within 10 days of purchase.
Electro-Harmonix will repair or replace, at its discretion, a product that fails
to operate due to defects in materials or workmanship for a period of one
year from date of purchase. This applies only to original purchasers who
have bought their product from an authorized Electro-Harmonix retailer.
Repaired or replaced units will then be warranted for the unexpired portion
of the original warranty term.

If you should need to return your unit for service within the warranty period,
please contact the appropriate office listed below. Customers outside the
regions listed below, please contact EHX Customer Service for information on
warranty repairs at [e-mail] or [phone]. USA and Canadian
customers: please obtain a Return Authorization Number (RA#) from

EHX Customer Service before returning your product. Include  with your
returned unit  a written description of the problem as well as your name,

address, telephone number, e-mail address, RA# and a copy of your receipt
clearly showing the purchase date.

United States & Canada Europe

EHX CUSTOMER SERVICE JOHN WILLIAMS
ELECTRO-HARMONIX ELECTRO-HARMONIX UK
c/o NEW SENSOR CORP. 13 CWMDONKIN TERRACE
55-01 2ND STREET SWANSEA SA2 0RQ
LONG ISLAND CITY, NY 11101 UNITED KINGDOM

Tel: [phone] Tel: [phone]
Email: [e-mail] Email: [e-mail]

To hear demos on all EHX pedals visit us on the web at www.ehx.com
Email us at [e-mail]

- FCC COMPLIANCE -

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. If the device is
not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications and void the user's authority
to guarantee the equipment.

Note:

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.



Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment under FCC rules.
