Eldes EWK2, EWK2A User Manual

EN

EWK2/EWK2A

WIRELESS KEYFOB

User manual v1.2

EWK2 compatible with:

• ESIM264 v7.14.00 and up + EWT1 v16.18 and up.

• ESIM364 v02.04.10 and up.

• EPIR2 v01.01.08 and up.

• EPIR3 all versions

EWK2A compatible with:

• ESIM364 v02.10.03 and up.

• EPIR2 v01.02.00 and up.

• EPIR3 v01.03.00 and up.

Main features:

• Alarm system arming & disarming;

• Panic button;

• PGM output control;

• Visual and audio indication of command status.

EWK2/EWK2A is a wireless device intended to remotely arm and disarm ELDES alarm system, cause system alarm (Panic Button) or to
control any electric appliance connected to the alarm system’s PGM output. In order to start using wireless keyfob EWK2/EWK2A, it has
to be paired with ELDES wireless alarm system using ELDES Conguration Tool software or sending a corresponding SMS text message.
EWK2 keyfob features four congurable buttons intended to operate according to individual needs,while EWK2A keyfob model features
one congurable button. After the button is pressed, EWK2/EWK2A internal buzzer’s sound signal and red LED indicator conrms a trans­ferred command to ELDES alarm system via wireless connection. The status of the sent command can be checked by attempting to receive
the feedback signal from the alarm system. This can be performed by pressing down the same button again and holding it for 3 seconds. 3
short sound signals and LED indicator ashes indicate a successfully carried out command, while 1 long beep and LED indicator ash stands
for failed command and feedback signal failure. By default, one pair of buttons is already congured to arm and disarm the alarm system.

It is possible to connect up to 5 EWK2/EWK2A devices to ELDES alarm system at a time. The maximum wireless connection range is 150m
(492.13ft) (in open areas).

NOTE: For complete information on device operation with ELDES alarm system, please refer to ELDES alarm system installation

manual located at www.eldes.lt/download

1. CONTENTS OF PACK

Item Quantity

1. EWK2/EWK2A........... ............................................ 1

2. CR2032 3V lithium battery.................. ...............1

3. User manual......... ................................................. 1

4. Keychain .................................................................. 1

2. TECHNICAL SPECIFICATIONS

EWK2 EWK2A

LED
indicator

Arm the
system

Disarm the

system

Optional
functionality

NOTE: The picture above reects the default EWK2/EWK2A button conguration. All keyfob buttons are congurable according to individ-

ual needs.

2

2 EN

Optional

functionality

LED
indicator

Panic button

EWK2/EWK2A Manual v.1.2

1

2.1. Electrical & Mechanical Characteristics

Battery type ......................................................3V Lithium CR2032 type 5004LC (ANSI/NEDA)

Quantity of batteries .......................................1

Battery operation time ...................................~18 months*

Wireless band ...................................................ISM868/ISM915

Range of operating temperatures ................-20…+55 °C (-4... +131°F)

Humidity ............................................................0-90% RH @ 0... +40°C (0-90% RH @ +32... +104°F) (non-condensing)

Dimensions .......................................................53x37x12mm (2.09x1.46x0.47in)

Wireless communication range .....................Up to 30m (98.43ft) in premises; up to 150m (492.13ft) in open areas

Compatible with alarm systems ....................ELDES Wireless

* This operation time can be achieved by pressing the keyfob button up to 4 times per day. The operation time depends on dierent con­ditions and may vary.

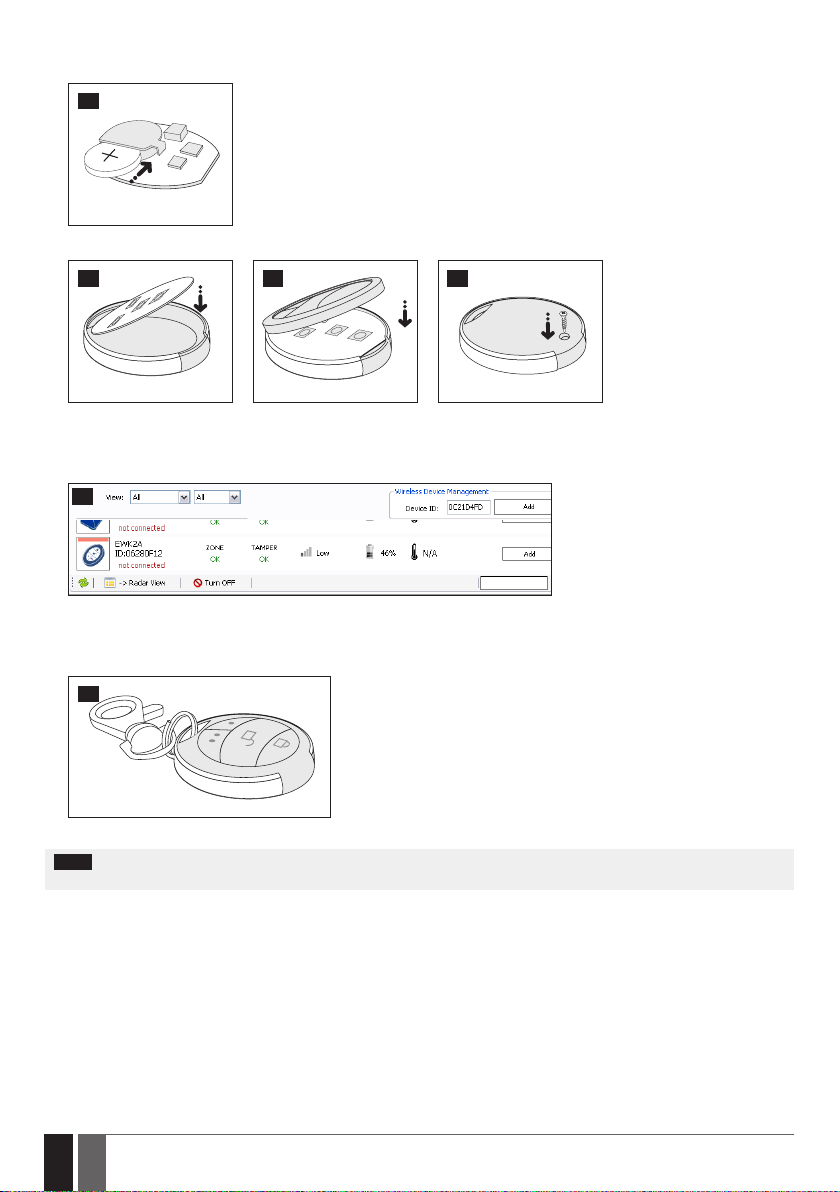

3. INSTALLATION

1. Remove the screw located on the back side of EWK2/EWK2A enclosure.

2

2. Open the enclosure.

3

3. Once the enclosure is opened, remove the PCB from the EWK2/EWK2A enclosure and ip the PCB so that the back side would be facing up.

4

EWK2/EWK2A Manual v.1.2

3

3EN
