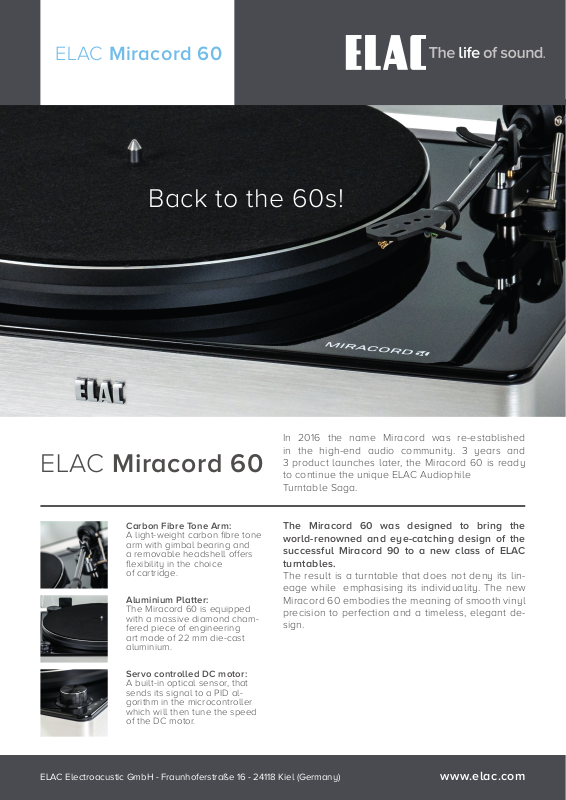

ELAC Miracord 60
Back to the 60s!
ELAC Miracord 60
Carbon Fibre Tone Arm:
A light-weight carbon fi bre tone
arm with gimbal bearing and
a removable headshell offers
fl exibility in the choice
of cartridge.
Aluminium Platter:
The Miracord 60 is equipped
with a massive diamond chamfered piece of engineering
art made of 22 mm die-cast
aluminium.
Servo controlled DC motor:
A built-in optical sensor, that
sends its signal to a PID algorithm in the microcontroller
which will then tune the speed
of the DC motor.
In 2016 the name Miracord was re-established
in the high-end audio community. 3 years and
3 product launches later, the Miracord 60 is ready
to continue the unique ELAC Audiophile
Turntable Saga.
The Miracord 60 was designed to bring the
world-renowned and eye-catching design of the
successful Miracord 90 to a new class of ELAC
turntables.
The result is a turntable that does not deny its lineage while emphasising its individuality. The new
Miracord 60 embodies the meaning of smooth vinyl
precision to perfection and a timeless, elegant design.
ELAC Electroacustic GmbH - Fraunhoferstraße 16 - 24118 Kiel (Germany)
www.elac.com
ELAC Miracord 60
TECHNICAL SPECIFICATIONS:
TURNTABLE SECTION
• Drive System
• Motor
• Selectable Speeds
• Rotation Speed Variation
• Wow and Flutter
• Platter
TONEARM SECTION
• Type
• Overhang
• Offset Angle
• Anti-Skating Adjustment
• Main Bearing
Belt-drive
DC motor
33⅓ and 45 rpm
+/- 0.33 %
< 0.12 %
Aluminum die-cast
Carbonfi bre tube
18.6 mm
25 degrees
0...4
Stainless steel
CONNECTOR
VOLTAGE
POWER CONSUMPTION
RCA pin jack
100 to 240 V AC / 50/60 Hz
1.5 W (less than 0.5 W at standby)
Frontview Rearview
