User’s Manual
Touch Panel Color LCD Monitor
It shall be assured that the final system is in compliance
to IEC60601-1-1 requirements.
English
SAFETY SYMBOLS
This manual uses the safety symbols below. They denote critical information. Please read them
carefully.
WARNING
Failure to abide by the information in a WARNING may result in serious injury and
can be life threatening.
CAUTION
Failure to abide by the information in a CAUTION may result in moderate injury
and/or property or product damage.
Indicates a prohibited action.
Indicates to ground for safety.
xPower supplied equipment can emit electromagnetic waves, that could influence, limit or
result in malfunction of the monitor. Install the equipment in a controlled environment, where
such effects are avoided.
xThis is a monitor intended for use in a medical setting.
Copyright© 2005 EIZO NANAO CORPORATION All rights reserved. No part of this manual
may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,
electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO
CORPORATION.
EIZO NANAO CORPORATION is under no obligation to hold any submitted material or
information confidential unless prior arrangements are made pursuant to EIZO NANAO
CORPORATION's receipt of said information. Although every effort has been made to ensure
that this manual provides up-to-date information, please note that EIZO monitor specifications
are subject to change without notice.
VGA is a registered trademark of International Business Machines Corporation.
DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards
Association.
Windows is a registered trademark of Microsoft Corporation.
ScreenManager, FlexScan and EIZO are registered trademarks of EIZO NANAO
CORPORATION in Japan and other countries.
2
TABLE OF CONTENTS
PRECAUTIONS ...................................................................................4
1. INTRODUCTION ..................................................................................... 9
1-1. Features ........................................................................................................9
1-2. Package Contents..........................................................................................9
1-3. Controls & Connectors ..............................................................................10
2. CABLE CONNECTION .........................................................................12
2-1. Before connecting .......................................................................................12
2-2. Connecting the signal cable ........................................................................13
2-3. Touch Operation.........................................................................................15
2-4. Connecting two PCs to the monitor............................................................15
3. ScreenManager.................................................................................... 16
3-1. How to use the ScreenManager ..................................................................16
3-2. Adjustments and Settings............................................................................17
3-3. Useful Functions .........................................................................................18
English
4. ADJUSTMENT ......................................................................................20
4-1. Screen Adjustment ......................................................................................20
4-2. Color Adjustment .......................................................................................23
5. ATTACHING A STAND.......................................................................... 25
6. TROUBLESHOOTING........................................................................... 27
7. CLEANING............................................................................................ 31
8. SPECIFICATIONS.................................................................................32
9. GLOSSARY........................................................................................... 35
APPENDIX/ANHANG/ANNEXE ..................................................................i
TABLE OF CONTENTS 3
English
PRECAUTIONS
IMPORTANT!
x This product has been adjusted specifically for use in the region to which it was
originally shipped. If operated outside the region to which it was originally shipped,
the product may not perform as stated in the specifications.
x To ensure personal safety and proper maintenance, please read this section and the
caution statements on the unit (refer to the figure below).
[Location of the Caution Statements]
[Symbols on the unit]
Symbol Location This symbol indicates
4
PRECAUTIONS
Front
Control panel
Rear
Name Plate
Rear Alerting electrical hazard
Rear Caution
Power button
Press to turn the monitor’s power on or off.
Alternating current
Refer to SAFETY SYMBOLS section in this
manual.
WARNING
If the unit begins to emit smoke, smells like something is burning, or
makes strange noises, disconnect all power connections immediately
and contact your dealer for advice.
Attempting to use a malfunctioning unit can be dangerous.
Do not dismantle the cabinet or modify the unit.
Dismantling the cabinet or modifying the unit may result in electric shock or
burn.
Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards.
Keep small objects or liquids away from the unit.
Small objects accidentally falling through the ventilation slots into the cabinet
or spillage into the cabinet may result in fire, electric shock, or equipment
damage.
If an object or liquid falls/spills into the cabinet, unplug the unit immediately.
Have the unit checked by a qualified service engineer before using it again.
English

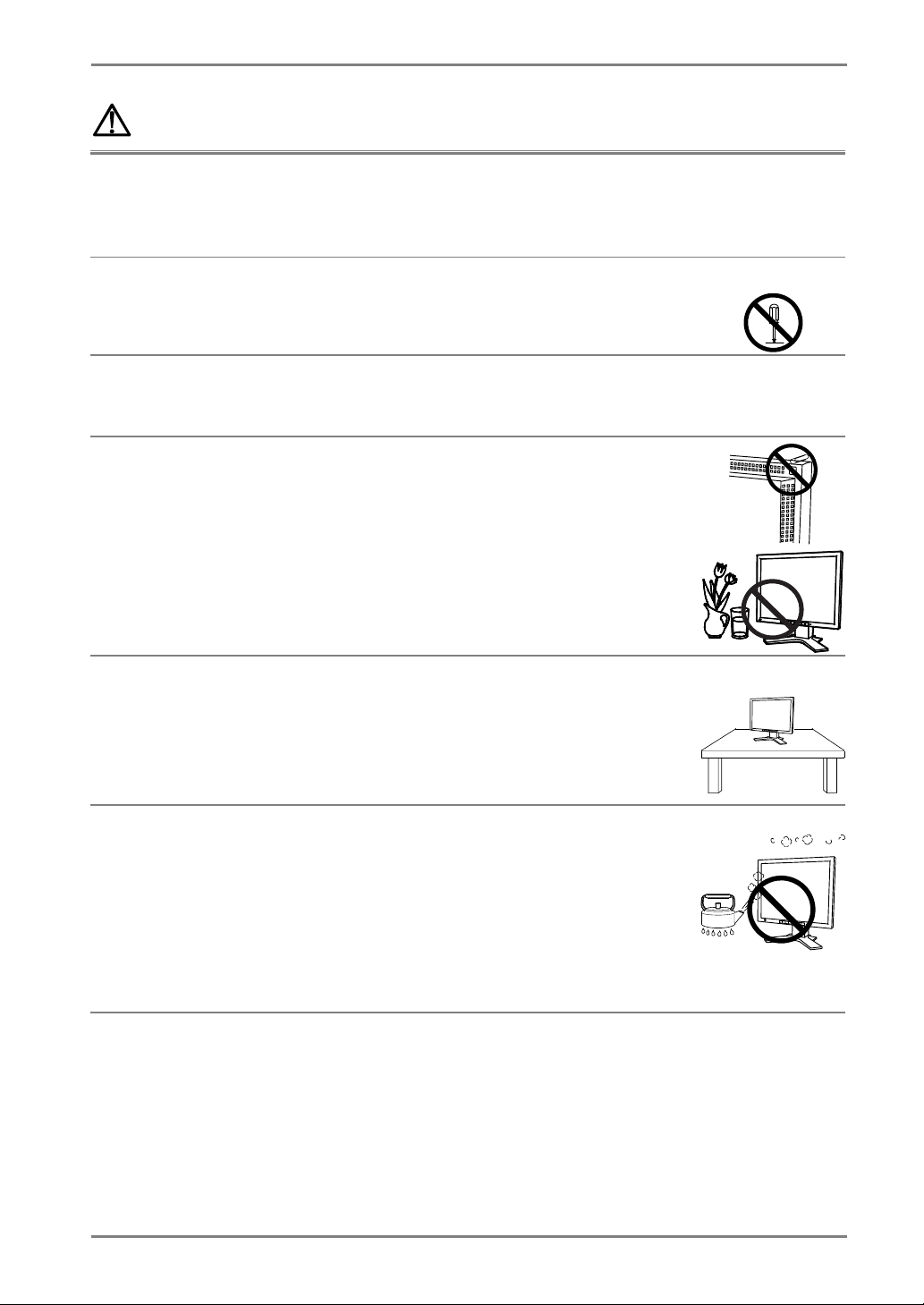

Place the unit on a strong, stable surface.
A unit placed on an inadequate surface may fall, resulting in injury or
equipment damage.
When the unit is dropped, please ask your dealer for advice. Do not continue
using a damaged unit. Using a damaged unit may result in fire or electric
shock.
Set the unit in an appropriate location.
Not doing so may cause damage and could result in fire or electric shock.
*
Do not place outdoors.
*
Do not place in the transportation system (ship, aircraft, trains, automobiles,
etc.)
*
Do not place in a dusty or humid environment.
*
Do not place in a location where the steam comes directly on the screen.
*
Do not place near heat generating devices or a humidifier.
*
Do not place in an inflammable gas environment.
OK
PRECAUTIONS
5
English
WARNING
To avoid danger of suffocation, keep the plastic packing bags away
from babies and children.
Use the enclosed power cord and connect to the standard power outlet
of your country. Be sure to remain within the rated voltage of the
power cord.
Not doing so may cause in fire or electric shock.
To disconnect the power cord, grasp the plug firmly and pull.
Never tug on the cord, doing so may cause damage and could result in fire or
electric shock.
OK
The equipment must be connected to a grounded main outlet.
Not doing so may cause in fire or electric shock.
Use the correct voltage.
*
Do not overload your power circuit, as this may result in fire or electric
shock.
*
The unit is designed for use with a specific voltage only. Connection to
another voltage than specified in this User’s Manual may cause fire, electric
shock, or other damage.
*
Do not overload your power circuit, as this may result in fire or electric
shock.
Handle the power cord with care.
*
Do not place the cord underneath the unit or other heavy objects.
*
Do not pull on or tie the cord.
If the power cord becomes damaged, stop using it. Use of a damaged cord
may result in fire or electric shock.
Never touch the plug and power cord if it begins to thunder.
Touching them may result in electric shock.
6
PRECAUTIONS
WARNING
g
y
p
When attaching an arm stand, please refer to the user’s manual of the
arm stand and install the unit securely.
Not doing so may cause the unit to come unattached, which may result in
injury or equipment damage. When the unit is dropped, please ask your dealer
for advice. Do not continue usin
result in fire or electric shock. When reattaching the tilt stand, please use the
same screws and tighten them securely.
Do not touch a damaged LCD panel directly with bare hands.
The liquid crystal which leaks from the panel is poisonous if it enters the eyes
or mouth.
If any part of the skin or body comes in direct contact with the panel, please
wash thoroughly. If some physical symptoms result, please consult your
doctor.
Follow local regulation or laws for safe disposal.
The backlight of the LCD panel contains mercury.
a damaged unit. Using a damaged unit ma
English

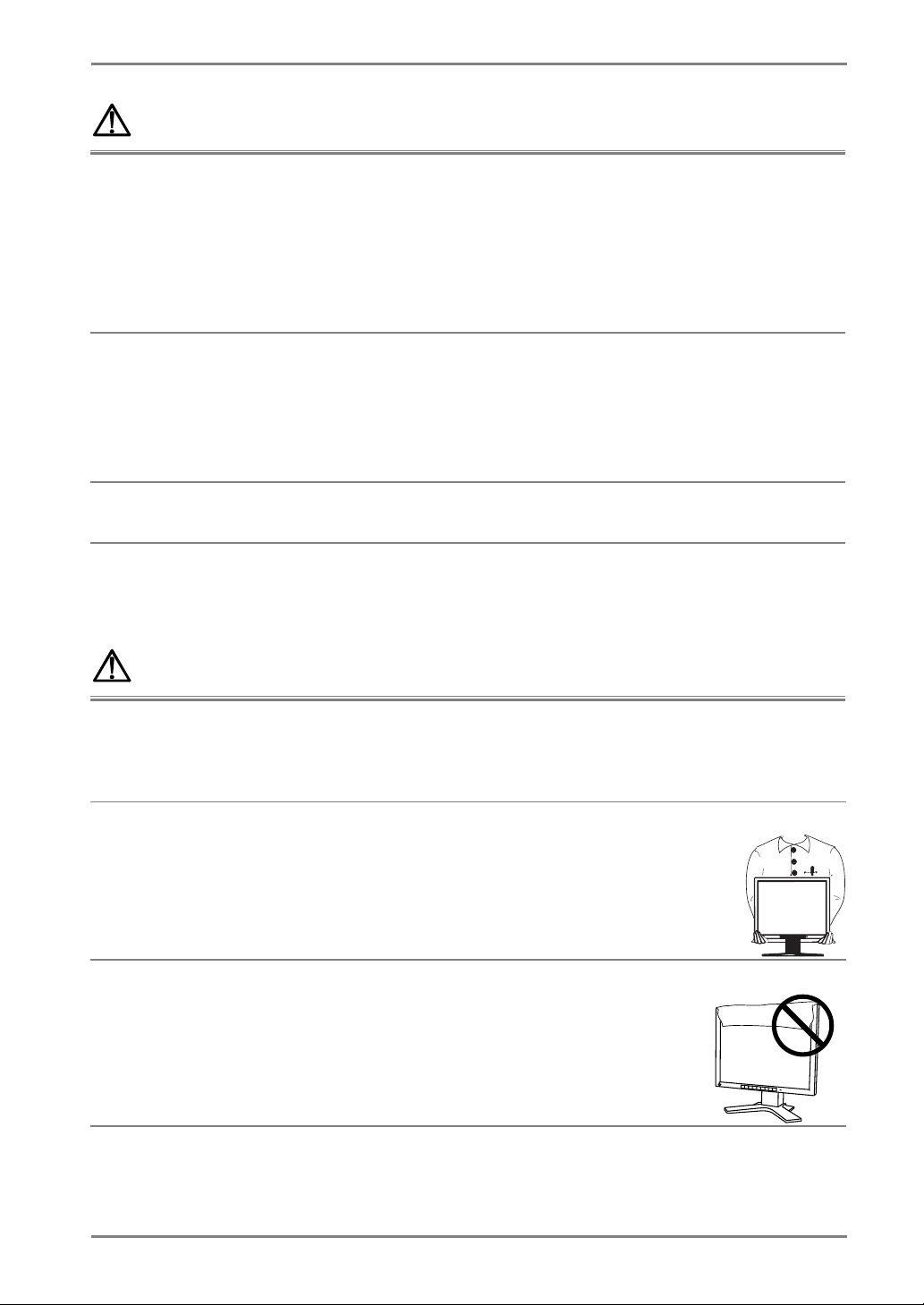

CAUTION
Handle with care when carrying the unit.
Disconnect the
with the cord attached is dangerous. It may result in injury or equipment
damage.
When handling the unit, grip the bottom of the unit firmly with both
hands ensuring the panel faces outward before lifting.
Dropping the unit may result in injury or equipment damage.
Do not block the ventilation slots on the cabinet.
* Do not place books or any other papers on the ventilation slots.
* Do not install the unit in a closed space.
* Do not use the unit lying down or upside down.
Using the unit in these ways blocks the ventilation slots and prevents proper
airflow, leading to fire or other damage.
ower cord and cables when moving the unit. Moving the unit
OK
PRECAUTIONS 7
English
CAUTION
Do not touch the plug with wet hands.
Touching them may result in electric shock.
Use an easily accessible power outlet.
This will ensure that you can disconnect the power quickly in case of a
problem.
Periodically clean the area around the plug.
Buildup of dust, water, or oil on the plug may result in fire.
Unplug the unit before cleaning it.
Cleaning the unit while it is plugged into a power outlet may result in electric
shock.
If you plan to leave the unit unused for an extended period, disconnect
the power cord from the wall socket after turning off the power switch
for the safety and the power conservation.
LCD Panel
In order to suppress the luminosity change by long-term use and to maintain
the stable luminosity, use of a monitor in lower brightness is recommended.
The screen may have defective pixels. These pixels may appear as slightly light
or dark area on the screen. This is due to the characteristics of the panel itself,
and not the product.
The backlight of the LCD panel has a fixed life span. When the screen becomes
dark or begins to flicker, please contact your dealer.
Do not scratch or press on thepanel with any sharp objects, such as a pencil or
pen as this may result in damage to the panel. Do not attempt to brush with
tissues as this may scratch the panel.
8 PRECAUTIONS
1. INTRODUCTION
Thank you very much for choosing an EIZO Color Monitor.
1-1. Features
• Dual inputs compliant
• DVI (p.35) Digital input (TMDS (p.36)) compliant.
• Horizontal scanning frequency: Analog input 30 - 81 kHz
Digital input 30 - 65 kHz
Vertical scanning frequency: Analog input 49.5 - 75.5 Hz
Digital input 59 - 61 Hz (VGA text: 70 Hz)
Resolution: 1 M pixels (1280 dots x 1024 lines)
• Auto Adjustment compliant
• Support to sRGB (p.36) standard
• The height adjustable stand incorporated
• Touch Panel provided
• Touch Panel Pointer “TP1” is available (optional, p.14)
English
1-2. Package Contents
Please contact your local dealer for assistance if any of the listed items are missing or
damaged.
• LCD Monitor
• Power Cord
• Signal Cable (MD-C87)
• Touch Panel Cable (FD-C38)
• User’s Manual
• ScreenManager Quick Reference
• LIMITED WARRANTY
• CD-ROM for Touch Panel
(Contents: TouchWare (Touch Panel Driver), User’s Manual)
NOTE
• Please retain the packing materials for future transference.
• Regarding the installing the touch panel driver, please follow the instructions in the
CD-ROM.
1. INTRODUCTION
9
English
1-3. Controls & Connectors
Front
Control Panel
SIGNAL
1 - 2
MODE
ENTERAUTO
(1)
(2)
(3)
(1)ScreenManager® Monitor Adjustment menu (p.16)
(2)SIGNAL1-2
(3)MODE
(4)AUTO
(5)ENTER
(6)
(7)
(8)
(5)
(4)
Input Signal
Selection Button
Mode Button Show or switch the color mode. (p.23)
Auto Adjustment
Button
Enter Button Show the ScreenManager on the screen.
Control Buttons
(Left, Down, Up,
Right)
Power Switch ON or OFF the monitor’s power.
Power Indicator Indicate monitor’s operation status.
(6)
(8)
(7)
Switch the input signals when connecting 2
PCs. (p.15)
Adjust the screen to appropriate condition
automatically. (analog input only)
Confirm the setting / adjustment function.
Save the adjustment values.
Select the desired function.
Increase and decrease the adjustment value.
Blue: Operation
Flashing blue: Last 15 min. of operation
time before entering the power off state.
(p.18)
Flashing yellow slowly: Power off
10 1. INTRODUCTION
Rear
English
(13)
(14)
Bottom
(9)
(9)
(10)
(11)
(12)
(13) Hole for TP1 Hole for installing the lead of the TP1
(14)
(15) Stand (Detachable) The LCD monitor can be used with an other
Power Connector Connect the power cord.
DVI-D Connector
(SIGNAL1)
D-Sub mini 15 pin
Connector
(SIGNAL2)
RS-232C port Connect the enclosed touch panel cable
Security Lock Slot Allows for connection of a security cable.
(15)
(11)
(10)
Connect the optional digital cable.
Connect the enclosed analog cable (MDC87)
(FD-C38).
(Optional Touch Panel Pointer).
This lock supports Kensington’s MicroSaver
security system.
For further information, please consult:
Kensington Technology Group
2855 Campus Drive, San Mateo, CA 94403
USA
Tel: 800-650-4242, x3348
Intl: 650-572-2700, x3348
Fax: 650-572-9675
http://www.kensington.com
stand by removing the stand (see page 25).
(12)
1. INTRODUCTION
11
English
2. CABLE CONNECTION
2-1. Before connecting
Before connecting your monitor to the PC, change the display screen settings (resolution
(p.35) and frequency) in accordance with the charts below.
NOTE
x The lower display modes like 640x 480, automatically enlarge to the maximum
display mode (1280 x 1024), and some lines of the characters may become fuzzy. In
this case, use <Smoothing> function (p.22) to make the lines clear.
x When your computer and display support VESA DDC, the suitable resolution and
the refresh rate are set by just plugging your display into the computer without any
manual settings.
Analog Input
Resolution Frequency Dot Clock Remarks
320 200
640 480 㨪75 Hz
720 400
800 600 㨪75 Hz
1024 768 㨪75 Hz
1152 864
1280 960
1280 1024 㨪75 Hz
70 Hz VGA Mode13
70 Hz VGATEXT
75 Hz VESA
60 Hz VESA
135 MHz
(Max)
VGA, VESA
VESA
VESA
VESA
Digital Input
Resolution Frequency Dot Clock Remarks
640 480
720 400
800 600
1024 768
1280 1024
12 2. CABLE CONNECTION
60 Hz VGA
70 Hz VGATEXT
60 Hz VESA
60 Hz VESA
60 Hz
109 MHz
(Max)
VESA
2-2. Connecting the signal cable
NOTE
x Be sure that the power switches of both the PC and the monitor are OFF.
1. Plug the signal cable into the connector at the rear of the monitor
and the other end of the cable into the video connector on the PC.
After connecting, secure the connection with the screw-in fasteners.
English
3. Power Cord 2.Touch Panel Cable
Analog Input
Signal Cable Connector of PC PC
Signal Cable (enclosed, MDC87)
Digital Signal Input Connecter
1. Signal Cable
Video Output
Connector/ D-Sub
mini 15 pin
Input Connecor
(monitor)/ D-Sub
mini 15 pin
Analog Signal Input Connecter
xStandard graphics card
Digital Input
Signal Cable Connector of PC PC
FD-C39 (Optional)
Video Output
Connector DVI-I
Input Connecor
(monitor)/ DVI
xDigital Graphics card
2. Plug the enclosed touch panel cable (FD-C38) into the RS-232C port
of the monitor. Then, plug the other end of the cable into the COM
port of the PC.
2. CABLE CONNECTION
13
Loading...
